2AXCP-CLEAR360PROBluetooth Headphone

USER MANUAL 2 WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To reduce the risk of electrical shock, do not open the electric compartment. Refer servicing to qualified personnel only. To reduce the risk of fire, do not cover the ventilation of the apparatus with newspapers, tablecloths, curtains etc. Do not place lighted candles or other incendiary devices on the apparatus. To reduce the risk of fire or electric shock, do not place objects filled with liquids, such as vases, on the apparatus. Connect AC power adapter to an easily accessible AC outlet. Should you notice any abnormalities in the AC adapter, immediately disconnect the AC power adapter from the outlet. Do not expose the battery to excessive heat, fire or the like. The apparatus must not be co-located or operated in conjunction with any other antenna or transmitter. 3 __!! WARNING : IMPORTANT !!__ Read the entire “Wing and Foam Fitting” section before first use. Follow the instructions carefully. Improper fit may result in permanent hearing damage. If using the headset daily, it is highly recommended that you change your Foam Ear Tips at least once a week to ensure maximum hearing protection. __!! WARNING : IMPORTANT !!__ Table of Contents 1. INTRODUCTION 6 4 2. IMPORTANT SAFETY INFORMATION 6 2.1 Warnings 6 2.2 Special Conditions for Intrinsically Safe Use 6 3. PACKAGE CONTENTS 7 4. DEVICE DESCRIPTION 8 5. ATTACHMENT OF REPLACEABLE PARTS 9 5.1 Attaching Ear Wings 9 5.2 Attaching Foam Ear Tips 9 5.3 Replacing Wind Screens 9 6. WING AND FOAM FITTING 11 6.1 Troubleshooting Fit 12 7. BASIC FUNCTIONS 12 7.1 Powering On 12 7.2 Powering Off 12 7.3 Adjusting the Listening Audio Volume 13 7.4 Muting and Unmuting the Listening Audio 13 7.5 Changing Listening Audio Modes 13 7.6 Checking The Battery Level 13 8. CHARGING 14 9. BLUETOOTH™ INFORMATION AND FUNCTIONS 15 9.1 Bluetooth™ Information 15 9.1.1 What is Bluetooth™ wireless technology? 15 9.1.2 Bluetooth™ related precautions 15 9.2 Bluetooth™ Pairing 16 9.2.1 What is pairing? 16 9.2.2 How to pair Bluetooth™ 16 9.3 Bluetooth™ Button Functions 16 9.3.1 General Bluetooth™ button functions 16 9.3.1.1 Clearing the paired device list 16 9.3.1.2 Using voice assistants 17 9.3.2 Phone Call button functions 17 5 9.3.2.1 Answering and Rejecting Phone Calls 17 9.3.2.2 Hanging up a Phone Call 17 9.3.2.3 Transferring a call to the Phone 17 9.3.2.4 Muting and Unmuting the microphone 17 9.3.3 Media Streaming button functions 17 9.3.3.1 Playing and Pausing media 17 9.3.3.2 Skipping Tracks 17 10. FUNCTION INDICATOR LED 17 11. BUTTON FUNCTIONS QUICK REFERENCE 19 12. ADDITIONAL INFORMATION 20 12.1 Warranty 20 12.2 Limitation of Liability 20 12.3 Maintenance 20 12.4 Important Notice 21 12.5 Materials and Allergies 21 12.6 Product Disposal 21 13. CERTIFICATIONS AND SAFETY APPROVALS 22 13.1 Certificate of Compliance–Restriction of the use of Hazardous Substances (RoHs) 22 13.2 Certificate of Compliance-Registration, Evaluation, Authorization and Restriction of Chemicals (REACh) 22 13.3 FCC STATEMENT 22 6 1. INTRODUCTION Thank you for purchasing the CLEAR 360 PRO Hearing Protection System. The CLEAR 360 PRO system provides hearing protection in loud noise environments. It will prevent dangerous sound pressure levels from entering your ears while maintaining full awareness of your surroundings. The system uses patented Bongiovi Acoustic Labs V3D™ technology to provide a natural 360° sound field for maximum safety and comfort. The system also provides an optional Bluetooth connection for essential communications (phone calls, radio comms, etc.) and utilizes the patented DPS™ audio processing technology to ensure maximum voice clarity. _____________________________________________________________________________ 2. IMPORTANT SAFETY INFORMATION Please read, understand, and follow all safety information in these instructions before using the CLEAR 360 PRO Headset. Retain these instructions for future reference. 2.1 Warnings Please do not use your CLEAR 360 PRO device while driving a car, truck, motorcycle, or any other type of personal conveyance. The user is solely responsible for ensuring that the CLEAR 360 PRO is used in safe environments ONLY. ● If the information and recommendations contained herein are not followed, the protection afforded by the headset will be severely impaired. ● Improper fit of this device will reduce its effectiveness in attenuating noise. Consult the enclosed instructions for proper fit. ● Misuse or failure to wear hearing protection at all times when exposed to hazardous noise may result in hearing loss or injury. ● Listening with this unit at high volumes may affect your hearing! ● The Foam Ear Tips are consumable. They may deteriorate due to long-term storage or use. Replace with new ones if they appear to be damaged in any way. o If this headset is to be used daily, it is highly recommended that you replace the Foam Ear Tips at least once per week. ● If you experience discomfort while using this device, discontinue usage immediately. Should any problem persist, consult your dealer. 2.2 Special Conditions for Intrinsically Safe Use The user is responsible for ensuring that the CLEAR 360 PRO headset and Accessories are used according to the applicable regulations in explosive environments. ● Substitution of components will nullify the intrinsically safe design. ● Do not use the headsets or accessories in potentially explosive environments if they appear broken or otherwise damaged. 7 ● Only use the approved CLEAR 360 PRO (or compatible) Charger and Charging Cable to charge the battery. ● Only charge the battery in a non-hazardous location. ● Do not use this device if there is a risk that the connecting wires could be caught up during use. ● The CLEAR 360 PRO uses level-dependent attenuation. Therefore the user should always check operation before use. If distortion or failure is detected, the user should refer to the manufact…

Text truncated - open the document above for the full version.

Bongiovi Acoustic Labs 649 SW Whitmore Drive, Port Saint Lucie, FL34984, United States Sep. 03, 2020 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2AXCP-CLEAR360PRO Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Schematics 3: Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Bongiovi Acoustic Labs Contact person: Joe Butera Title: General Manager

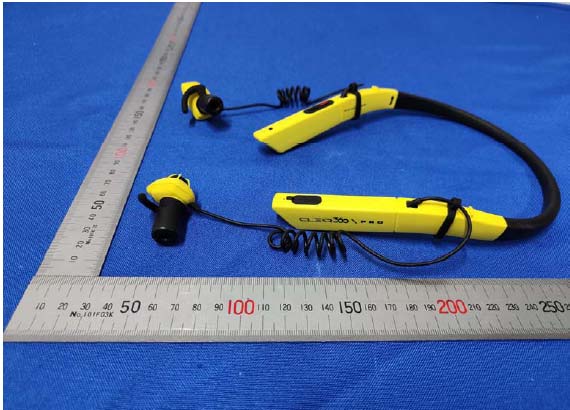

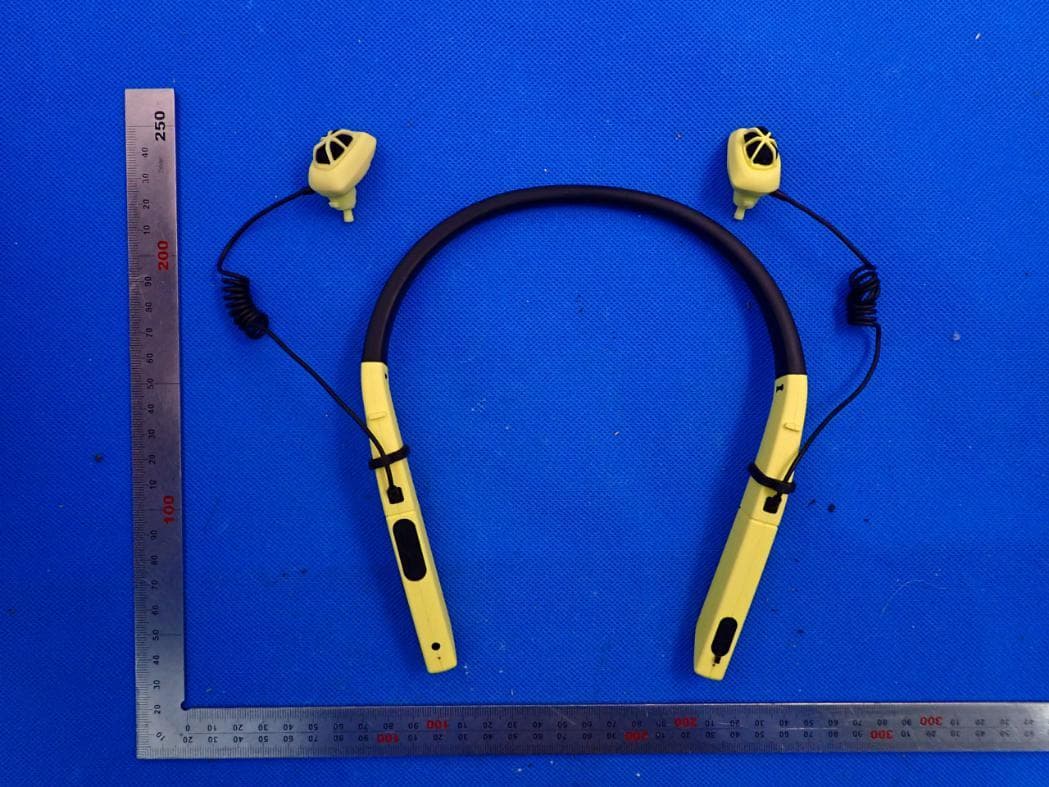

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

Screen print FCC and IC numbers on the inside of this arm The format should be (over/under) FCC ID: 2AXCP-CLEAR360PRO IC: 26411-CLEAR360PRO Bluetooth headphone FCC and IC number placement 10mm*15mm

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Antenna INTERNAL VIEW OF EUT-5

Page 1 of 71 FCC Test Report Report No.: AGC00184200801FE03 FCC ID : 2AXCP-CLEAR360PRO APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth headphone BRAND NAME : N/A MODEL NAME : CLEAR 360 PRO APPLICANT : Bongiovi Acoustic Labs DATE OF ISSUE : Sep. 01, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC00184200801FE03 Page 2 of 71 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Sep. 01, 2020 Valid Initial Release Report No.: AGC00184200801FE03 Page 3 of 71 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 2.10. ANTENNA REQUIREMENT..................................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 11 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 20 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 21 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 27 Report No.: AGC00184200801FE03 Page 4 of 71 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 27 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 27 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 27 10. RADIATED EMISSION ................................................................................................................................. 40 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 40 10.2. TEST SETUP ......................................................................................................................................... 42 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 43 10.4. TEST RESULT........................................................................................................................................ 43 11. NUMBER OF HOPPING FREQUENCY .......................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC00184200801FE03 Page 41 of 71 The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Start ~Stop Frequency 1GHz~26.5GHz 1MHz/3MHz for Peak, 1MHz/3MHz for Average Receiver Parameter Setting Start ~Stop Frequency 9KHz~150KHz/RB 200Hz for QP Start ~Stop Frequency 150KHz~30MHz/RB 9KHz for QP Start ~Stop Frequency 30MHz~1000MHz/RB 120KHz for QP Report No.: AGC00184200801FE03 Page 42 of 71 10.2. TEST SETUP Radiated Emission Test-Setup Frequency Below 30MHz RADIATED EMISSION TEST SETUP 30MHz-1000MHz RADIATED EMISSION TEST SETUP ABOVE 1000MHz Report No.: AGC00184200801FE03 Page 43 of 71 10.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested for restricted band radiated emission, the test records reported below are the worst result compared to other modes. 10.4. TEST RESULT RADIATED EMISSION BELOW 30MHz The amplitude of spurious emissions from 9kHz to 30MHz which are attenuated more than 20 dB below the permissible value need not be reported. Report No.: AGC00184200801FE03 Page 44 of 71 RADIATED EMISSION BELOW 1GHz EUT Bluetooth headphone Model Name CLEAR 360 PRO Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 48.4300 26.65 11.71 40.00 13.35 100 360 Horizontal 2 66.8600 26.60 9.76 40.00 13.40 100 360 Horizontal 3 227.8800 29.53 13.87 46.00 16.47 100 352 Horizontal 4 380.1700 31.80 19.05 46.00 14.20 100 189 Horizontal 5 480.0800 37.77 21.72 46.00 8.23 100 288 Horizontal 6 820.5500 34.96 28.83 46.00 11.04 100 193 Horizontal RESULT: PASS Report No.: AGC00184200801FE03 Page 45 of 71 EUT Bluetooth headphone Model Name CLEAR 360 PRO Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical NO. Freq. [MHz] Level [dBμV/m ] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 38.7300 29.29 11.63 40.00 10.71 100 1 Vertical 2 52.3100 24.73 11.49 40.00 15.27 100 282 Vertical 3 132.8200 20.85 14.35 43.50 22.65 100 92 Vertical 4 236.6100 21.25 14.57 46.00 24.75 100 6 Vertical 5 480.0800 36.08 21.72 46.00 9.92 100 190 Vertical 6 783.6900 34.83 28.06 46.00 11.17 100 106 Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Limit-Measurement. 2. All test modes had been pre-tested. The mode 1 is the worst case and recorded in the report. Report No.: AGC00184200801FE03 Page 46 of 71 RADIATED EMISSION ABOVE 1GHz EUT Bluetooth headphone Model Name CLEAR 360 PRO Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00045.230.0845.3174-28.69 peak 4804.00037.460.0837.5454-16.46 AVG 7206.00040.522.2142.7374-31.27 peak 7206.00032.152.2134.3654-19.64 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Bluetooth headphone Model Name CLEAR 360 PRO Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00044.230.0844.3174-29.69 peak 4804.00036.460.0836.5454-17.46 AVG 7206.00039.882.2142.0974-31.91 peak 7206.00030.632.2132.8454-21.16 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC00184200801FE03 Page 47 of 71 EUT Bluetooth headphone Model Name CLEAR 360 PRO Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00045.120.1445.2674-28.74 peak 4882.00038.160.1438.354-15.7 AVG 7323.00041.262.3643.6274-30.38 peak 7323.00034.132.3636.4954-17.51 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Bluetooth headphone Model Name CLEAR 360 PRO Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00045.440.1445.5874-28.42 peak 4882.00037.590.1437.7354-16.27 AVG 7323.00040.672.3643.0374-30.97 peak 7323.00031.132.3633.4954-20.51 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC00184200801FE03 Page 48 of 71 EUT Bluetooth headphone Model Name CLEAR 360 PRO Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00046.560.2246.7874-27.22 peak 4960.00038.480.2238.754-15.3 AVG 7440.00041.392.6444.0374-29.97 peak 7440.00032.132.6434.7754-19.23 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Bluetooth headphone Model Name CLEAR 360 PRO Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00045.130.2245.3574-28.65 peak 4960.00038.580.2238.854-15.2 AVG 7440.00041.492.6444.1374-29.87 peak 7440.00035.322.6437.9654-16.04 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type RESULT: PASS Note: The amplitude of other spurious emissions from 1G to 25 GHz which ar…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHz RADIATED EMISSION TEST SETUP ABOVE 1GHz LINE CONDUCTED EMISSION TEST SETUP CONDUCTED EMISSION TEST SETUP
