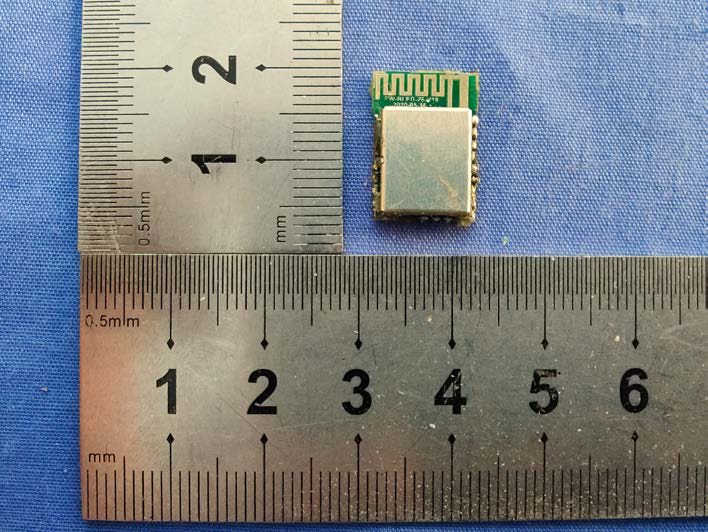

2AXDJ-EW-BLED-26Bluetooth Module

Jiaxing Tech-leading information technology Co., Ltd. EW -BLED-26 Bluetooth module V1.0 20201208 1 Jiaxing Tech-leading information technology Co., Ltd. Rev. Information management About this Manual << EW‐BLED‐26 Module Specifications>> provides an introduction to the basic functions of the EW‐BLED‐26 module, including its electrical specifications, RADIO frequency performance, pin size, and reference schematic design.Readers can refer to this document for a detailed understanding of the overall functional parameters of the module. Revision history 2 Rev No. Date Update history Editor V1.0 2020.12.08 Initial release Jon Jiaxing Tech-leading information technology Co., Ltd. Contents About this manual......................................................................................................2 Revision history...........................................................................................................2 Contents.......................................................................................................................3 1.Profile...............................................................................................................................4 1.1 Features...............................................................................................................4 1.2 Application scope.................................................................................................5 2.Electrical specification................................................................................................... 6 3.Pins explanation..............................................................................................................7 3.1 Pins layout.............................................................................................................8 3.2 Pins definition.......................................................................................................8 4.Design reference..............................................................................................................9 4.1 Reference schematic...............................................................................................9 4.2 Module dimension....................................................................................... .........10 4.3 Attention................................................................................................................11 4.4 Reference PCB package........................................................................................12 5.Reflow parameter recommendation................................................................................13 3 Jiaxing Tech-leading information technology Co., Ltd. 1.Profile 1.1 Features EW‐BLED ‐26 is a small and low‐cost BT and BLE 5.0 dual‐mode Bluetooth module developed by Jiangsu Tech‐leading Co., Ltd. The features of this module are as follows： protocol Built‐in high performance RISC 32‐bit CPU, 160MHz main frequency, 512KB Flash, 128KB RAM Meet Bluetooth 5.0 standard, support 1 Mbps, 500 Kbps,125 Kbps rate Transmitting power: BLE:4.82dBm; BR(GFSK):0.24dBm; EDR(π/4-DQPSK):1.02dBm . Receiving sensitivity: The receiving sensitivity reaches ‐94dBm in 125Kbps mode Support USB, UART, ADC, SPI, PWM and other interfaces Support FTMS protocol, can be customized according to the customer communication Support true random number generator Sup port BT classic Bluetooth and BLE data Bluetooth dual ‐ mode operation On‐board high performance PCB antenna Stamp hole pin, easy and reliable welding Ultra‐small package： 11.2x16mm Ultra‐wide supply voltage：2.2V-5.5V Working temperature：-20°C ~ + 70°C 4 Jiaxing Tech-leading information technology Co., Ltd. The EW‐BLED‐26 module needs to connect the four lines of VCC,GND,TX and RX to complete the data transmission and communication function, and can customize the specific communication protocol and customization function under the specific application environment according to the needs of customers.After the module is configured, you can use relevant hand software to test the communication data function.Users can conduct Bluetooth connection and communication test through the commonly used mobile Bluetooth communication test tool. BT audio transmission can be directly connected to the two channels of DAC R and L of the test module through the mobile Bluetooth for audio signal output. Tech‐leading company has been engaged in the field of Bluetooth for many years, and has strong research and development strength. It can easily realize the interconnection, data transmission and other various applications of users' Bluetooth devices.Our company can customize and design the Bluetooth module according to customers' requirements based on the EW‐BLED ‐26 dual mode Bluetooth module and provide corresponding software and hardware support. 1.2 Application Scope IoT devices; Fitness equipment: treadmill, rhythm machine, etc 5 Jiaxing Tech-leading information technology Co., Ltd.  Absolute Maximum Ratings Attention : Recommended Operating Conditions Power Consumption 2.Electrical specifications The electrical characteristics listed are target specifications for reference only.Some of the data may be updated based on actual test results The voltage values shown are based on GND in the module.Any voltage exceeding the "maximum rating" may cause permanent damage to the equipment 5 5 Operation Mode Average Maximum Unit TX peek current(0 dB)16 mA RX peek current30 mA Deep sleep current(include 128K retention RAM) 300 μ A Power off 10 μ A Rating Min Max Unit Supply Voltage VCC 2.2 5.5 V I/O Voltage ALDO_OUT 2.2 3.6 V Storage Temperature Tstr ‐20 70 º C Item Symbol Min Type. Max Unit Supply Voltage VCC 2.2 3.3 5.5 V I/O Voltage ALDO_OUT2.2 3.3 3.6 V Operating Temperature Topr ‐20 ‐ 70 º C Jiaxing Tech-leading information technology Co., Ltd.  Audio CODEC 6 Digital to Analogue Converter(Mono) PARAMETER CONDITIONSMINTYPMAX UNIT Resolution ‐ ‐‐2…

Text truncated - open the document above for the full version.
