2AXDJ-EWBLED22EW Standard Bluetooth Module

Jiangsu Tech-leading information technology Co., Ltd. EW-BLE D-22 BLE Standard Module V1.0 202008181 Jiangsu Tech-leading information technology Co., Ltd. Rev. information About this manual 《 EW-Bled -22 Module Specification 》provides an introduction to the basic functions of the EW-BLED-22 module, including the electrical specifications, RADIO frequency performance, pin size, and reference schematic design of the module.Readers can refer to this document for a detailed understanding of the overall functional parameters of the module. Change of History 2 Rev.Date Change of history Editor V1.0 2020.08.18 Initial release Jon Jiangsu Tech-leading information technology Co., Ltd. Table content About this manual.........................................................................................................2 Change of history...........................................................................................................2 Table content................................................................................................................ 3 1. Profile ....................................................................................................................4 1.1 Features ................................................................................................................4 1.2 Scope of application.................................................................................................4 2. Electronic data...........................................................................................................5 3. Pins explanation.........................................................................................................7 3.1 Pins layout ............................................................................................................7 3.2 Pins definition..........................................................................................................8 4. Reference design........................................................................................................ 9 4.1 Reference schematic.................................................................................................9 4.2 Module profile size..................................................................................................10 4.3 Caution...................................................................................................................11 4.4 Reference PCB package...........................................................................................12 5. Reflow parameterrecommendation.........................................................................13 3 Jiangsu Tech-leading information technology Co., Ltd. 1. Profile 1.1 Features The EW-Bled -22 is a small, low-cost Bluetooth standardized module developed by Jiangsu Tech-leading information technology Co.,Ltd. The features of this module are as follows.  Support UART, SPI, I2C, I2S, ADC, PWM and other interfaces  Support FTMS protocol, can be customized according to customer communication protocol  Support true random number generator  Support master and slave multiple connections, up to 16 connections  On-board high performance PCB antenna Stamp hole pin, easy and reliable to weld  Ultra-small package：11.2x16mm  Ultra wide supply voltage：3.3V  Working temperature：-20°C ~ +85°C EW-BLED-22 module only needs to connect with four lines of VCC,GND,TX and RX to complete the data transmission and communication , which can also be followed customers’ need to customizespecific communication protocols and customized functions under specific applicationenvironments.After the module is configured, you can use the relevant software to test communication data function.Users can conduct Bluetooth connection and communication test through the commonly used mobile Bluetooth communication test tools Te c h-leading company has been engaged in the field of Bluetooth for many years, and has strong research and development force. It can easily realize the interconnection, data transmission and other various applications of users' Bluetooth devices.Our company can customize and design the Bluetooth module according to customers' requirements and provide corresponding software and hardware support based on the EW-Bled -22 standard version module. 1.2 Application scope Fitness equipment: Treadmill, Fitness bike, Elliptical machine, etc； 4 Jiangsu Tech-leading information technology Co., Ltd. 2. Electronic data Absolute M aximum Ratings N ote： The electrical characteristics listed are target specifications for reference only. Some of the data may be updated based on actual test results。 The voltage values shown are based on GND in the module.Any voltage exceeding the "maximum rating" may be applied to the device and cause permanent damage. （Recommended Operating Conditions） （ Power Consumption） 5 Operation Mode Average Maximum Unit TX peek current(0 dB) 9 mA RX peek current 12.8 mA Deep sleep current(include 48K retention RAM) 12 μ A Power off 5 μ A Item Symbol Min Typ. Max Unit Supply Voltage VCC 1.8 3.3 4.3 V I/O Voltage ALDO_OUT 2.1 2.9 3.5 V Operating Temperature Topr -20 - 85 º C Rating Min Max Unit Supply Voltage VCC 1.8 4.3 V I/O Voltage ALDO_OUT 2.1 3.5 V Storage Temperature Tstr -20 85 º C Jiangsu Tech-leading information technology Co., Ltd. Audio CODEC 6 Digital to Analogue Converter(Mono) PARAMETER CONDITIONS MIN TYP MAX UNIT Resolution - - - 20 Bits Sampling frequency The synchronized clock 8 48 kHz SNR (Signal to Noise Ratio) Fin=1kHz B/W=20Hz—20KHz A- Weighted THD_N<0.01% Fs(8K,16K,32K,44.1K,48K) 92 dB Digital Gain Digital Gain -48 32 dB Analogue Gain Analog Gain Resolution = 0 -30 dB Output voltage VDDA=2.9V 1500 mV Stopband attenuation 65 dB Analog to Digital Converter(Mono) PARAMETER CONDITIONS MIN TYP MAX UNIT Resolution - - - 16 Bits Sampling frequency The synchronized clock 8 48 kHz Signal to Noise Ratio A-weighted 79 dBFS W/O weighting 79 d…

Text truncated - open the document above for the full version.

Date: 2020-08-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attestation Lett er To Whom It May Concern, The chip FR8016H installed in our product EW Standard Bluetooth Module (model name: EW-BLED-22, FCC ID: 2AXDJ-EWBLED22), which supports BLE 1MHz and BLE 2MHz functions. But for this product, it only activates BLE 1MHz function, the BLE 2MHz is disabled by using the software. Please contact me i f there is need f or any additional clarification or information. Best Regards, Sincerely Yours, Signature: Ty ped or Printed Name: Jing Liu Title: Engineer Company: Jiangsu Tech-leading information technology Co.,Ltd. Add: Room 1606, Zhaofeng Plaza, 99 Hua'an Road, Huaqiao Town, Kunshan City, Jiangsu Province, China Tel: 13396831326 Fax: N/A E-mail: [email protected]

Company: Jiangsu Tech-leading information technology Co.,Ltd. Add: Room 1606, Zhaofeng Plaza, 99 Hua'an Road, Huaqiao Town, Kunshan City, Jiangsu Province, China Tel: 13396831326 Fax: N/A FCC Authorization Date: 2020-08-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Jiangsu Tech-leading information technology Co.,Ltd., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Jing Liu Title: Engineer QA-FR-170-B

Compan y: Jiangsu Tech-leading information technology Co.,Ltd. Add: Room 1606, Zhaofeng Plaza, 99 Hua'an Road, Huaqiao Town, Kunshan City, Jiangsu Province, China Tel: 13396831326 Fax: N/A E-mail: hj.yanfa-1 [email protected] FCC Confidential Authorization Date: 2020-08-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AXDJ-EWBL ED22 To: whom it may concern, In accord ance with Sections 0.457 and 0.459 of the Commission’s Rules, Jiangsu Tech-leading information technology Co.,Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Printed Name: Jing Liu Title: Engineer

Applicant Jiangsu Tech-leading information technology Co.,Ltd. FCC ID: 2AXDJ-EWBLED22 Section 15.212 Modular Transmitters Request for Modular Approval  Request for Limited Modular Approval   RequirementsEUT ConditionsComply(Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Refer to external photos. This module does have shield cover. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over‐modulation. All inputs to the modules are buffered through logic or microprocessor inputs. Refer to Schematics. Y 3 The modular transmitter must have its own power supply regulation. The Module uses the chip FR8016H with built-in power management components, the module rated power is 3.3V power, Refer to schematics. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The modular transmitter has a PCB antenna arrangement for BLE, Refer to internal photo. Y Company: Jiangsu Tech-leading information technology Co.,Ltd. Add: Room 1606, Zhao feng Plaza, 99 Hua'an Road, Huaqiao Town, Kunshan City, Jiangsu Province, China Tel: 1339683132 6 Fax: N/A E-mail: [email protected] 5 The modular transmitter must be tested in a stand‐alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrite s, unless they will be marketed with the module (see §15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment co nnected to the module during testing shall be unmodified and commercially available (see §15.31(i)). The modular transmitter is connected to the controlled board when testing. Please refer to setup photo. Y 6 If using a permanently affixed label, t he modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must a lso display a label referring to the enclosed module. This exterior label can use wording such as the following:“ContainsTransmitter M odule FCC I D: 2AXDJ-EWBLED22” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included Refer to the label. Y in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to manual Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The EUT comply with any R F exposure requirements Y Sincerely Yours, Sig nature: Typed or Printed Name: Jing Liu Title: Engineer

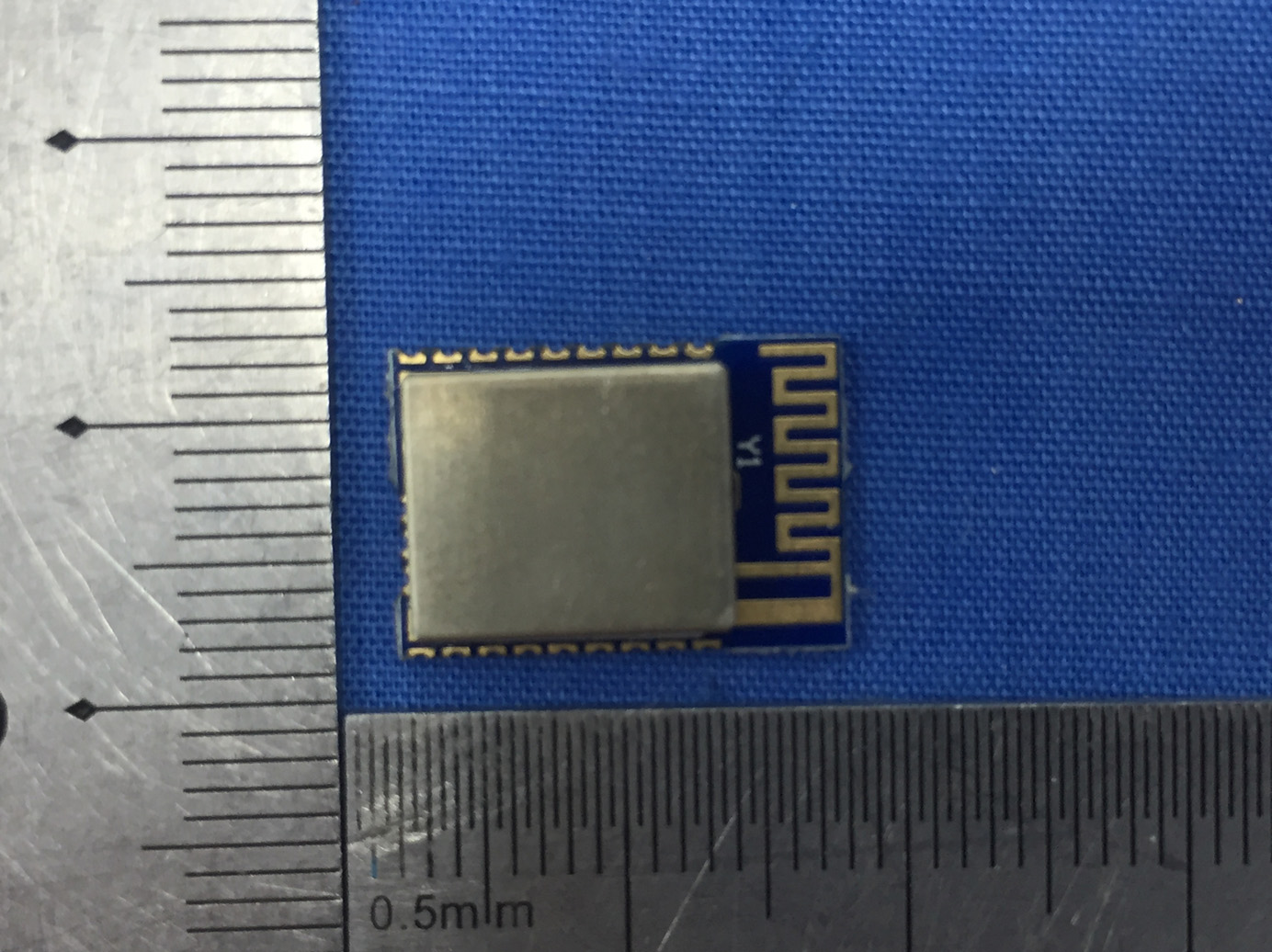

EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS

MODEL:EW-BLED-22 FCC ID: 2AXDJ-EWBLED22 MADE IN CHINA

EXHIBIT B - EUT INTERNAL PHOTOGRAPHS BLE Antenna

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHF200814001-00A FCC Part 15.247 Page 12 of 40 FCC §1.1310 & §2.1093 - RF EXPOSURE Applicable Standard According to§2.1093and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f (GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result Mode Frequency Range (MHz) Max Tune-up Conducted Power Calculated Distance (mm) Calculated Value Threshold (1-g SAR) SAR Test Exclusion (dBm) (mW) BLE 2402-2480 2.50 1.78 5 0.6 3.0 Yes Result: No SAR test is required.

FCC PART 15.247 TEST REPORT For Jiangsu Tech-leading information technology Co.,Ltd. Room 1606, Zhaofeng Plaza, 99 Hua'an Road, Huaqiao Town, Kunshan City, Jiangsu Province, China FCC ID: 2AXDJ-EWBLED22 Report Type: Original Report Product Type: EW Standard Bluetooth Module Test Engineer: Winnie Yang Re port Number: RSHF200814001-00A Re port Date:2020-09-01 Reviewed B y: Oscar Ye EMC Manager Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road,Kunshan,Jiangsu province,China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHF200814001-00A FCC Part 15.247 Page 2 of 40 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 TEST EQUIPMENT LIST ......................................................................................................................................... 11 FCC §1.1310 & §2.1093 - RF EXPOSURE ................................................................................................................. 12 MEASUREMENT RESULT ............................................................................................................................................ 12 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 15 CORRECTED FACTOR & OVER LIMIT CALCULATION .................................................................................................. 15 TEST RESULTS SUMMARY .......................................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 15 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 18 APPLICABLE STANDARD ............................................................................................................................................ 18 EUT SETUP ................................................................................................................................................................ 18 EMI TEST RECEIVER SETUP ....................................................................................................................................... 19 TEST PROCEDURE ..............................…

Text truncated - open the document above for the full version.

EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions (Front View) Conducted Emissions (Side View) Radiated Emissions (Below 1GHz) Radiated Emissions (Above 1GHz)
