2AXDT-TV2TV streaming adapter

WSAUD A/SNymoellevej 6, DK-3540 Lynge, Denmark www.widex.com Manual no.: 9 514 1075 001 02 Issue: 2024-09 9 514 1075 001 02 USER INSTRUCTIONS TV PLAY 2 GB 1. 2. 4. 7. B 3. 5. 6. A 1 2 1. 2. ? 1. 3 4 5a 5b 6 7 TV PLAY 2 1. 2. 3. 5. 6. 4. 8 9 5 sec GB............................................................................................................................. 4 3 CONTENTS WELCOME..................................................................................................................... 6 Package contents - see illus. 1..............................................................................................6 Intended purpose / Intended use........................................................................................6 Important safety information.............................................................................................. 6 GETTING STARTED........................................................................................................ 8 Connecting the device to your TV....................................................................................... 8 Option A: using the optical cable - see illus. 2................................................................8 Option B: using the analogue audio cable - see illus. 3.................................................8 Using an external audio transmitter (e.g. a sound bar)................................................... 9 Powering the device............................................................................................................. 9 Setting up the device for Bluetooth - see illus. 5a............................................................ 9 Setting up the device for one or two hearing aids - see illus. 5b.................................... 9 Pairing the device with your hearing aids - see illus. 6.................................................... 9 Removing a pairing..........................................................................................................10 USING THE DEVICE....................................................................................................... 11 Using the device with the App - see illus. 7................................................................... 11 Using the device without the App...................................................................................11 Adjusting the volume of the TV sound........................................................................... 11 Phone calls while using the device..................................................................................... 11 ATTACHING THE DEVICE TO THE BACK OF YOUR TV - SEE ILLUS. 8............................. 12 ADDITIONAL INFORMATION........................................................................................ 13 Maintenance..........................................................................................................................13 LEDs....................................................................................................................................... 13 Resetting the device............................................................................................................ 13 Troubleshooting................................................................................................................... 13 REGULATORY INFORMATION...................................................................................... 16 EU Directives.........................................................................................................................16 Directive 2014/53/EU.......................................................................................................16 Information regarding disposal...................................................................................... 16 SYMBOLS..................................................................................................................... 18 LICENSES AND ACKNOWLEDGEMENTS....................................................................... 19 Open-source acknowledgements......................................................................................19 Third-party licenses............................................................................................................ 20 3-clause BSD license....................................................................................................... 20 Apache license................................................................................................................. 20 4 MIT license........................................................................................................................ 23 5 WELCOME Congratulations on your new streaming device. Package contents - see illus. 1 1.Device 2.Micro USB cable 3.Mounting bracket with cable holder 4. Optical (TOSLINK) audio cable 5.Cleaning sachet 6. Spare double adhesive tape for mounting 7.Analogue audio cable (mini jack-to-phono) NOTE Read this booklet and the user instructions for your hearing aids carefully before you start using the device. Intended purpose / Intended use This device is intended as a wireless sound transmitter from a television to supported hearing aids. Important safety information Read this section carefully before you start using the device. Risk of electrical shock! Connect the audio input only to a device conforming to safety standards IEC 60065, IEC 60950 or EN 62368. Risk of electrical shock! Do not use the device if it is obviously damaged. Return it to the point of sale. Risk of explosion! Do not use the device in explosive atmospheres (e.g. mining areas). Risk of injury! Do not use the device if it is obviously damaged. Return it to the point of sale. 6 Choking hazard! The device contains small parts which can be swallowed. Keep hearing aids, batteries and accessories out of reach of children and mentally disabled persons. If part…

Text truncated - open the document above for the full version.

WSAudiology WSAUD A/S Nym0llevej 6 3540 Lynge Denmark Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA 2024-09-09 Attestation Statement according to 2.911(d)(5)(i) and 2.911(d)(5)(ii) FCC ID: 2AXDT-TV2 TO WHOM IT MAY CONCERN: Hereby we certify that the equipment for which authorization is sought is not "covered" equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Fürther we certify that, as of the date of the filing of the application, WSAUD A/S is not identified on the Covered List as an entity producing "covered" equipment. Sincerely, Jan Knittel VP Quality Management Systems Dr. Thomas Fischer Senior Director Embedded Software Sivantos GmbH Henri-Dunant-Str. 100 91058 Erlangen Germany [email protected] Sivantos GmbH Henri-Dunant-Str. 100 91058 Erlangen Germany [email protected] WSAUD A/S Nym0llevej 6 3540 Lynge Denmark Rhone: +45 44 35 56 00 www.wsa.com

WSAudiology WSAUD A/S Nym0llevej 6 3540 Lynge Denmark Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA July 10th, 2024 Attestation Statement according to 2.911(d)(7) TO WHOM IT MAY CONCERN: We, WSAUD A/S, designate WS Audiology USA Inc., to act as U.S. agent for Service of process. WS Audiology USA Inc. hereby acknowledges the Obligation of the U.S. agent for Service of process. Fürther WSAUD A/S accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. Sincerely WSAUD A/S FRN:0029767068 Nym0llevej 6 3540 Lynge, Denmark Dr. Thomas Fischer Senior Director Embedded Software +49 9131 308 3382 [email protected] WS Audiology USA Inc. FRN: 0033434770 101 Wood Ave Iselin, NJ 08830, United States La-Shaunda Joseph US Regulatory Affairs Manager +1 561 785 9321 [email protected] WSAUDIOLOGY USA, INC. 101 WOOD AVE. ISEUN, NEW JERSEY 08830 UNITED STATES WSAUD A/S Nym0llevej 6 3540 Lynge Denmark Phone: +45 44 35 56 00 www wsa com

WSA i üology Federal Communication Commission Equipment Authorization Division, Application Processing Branch 2024-09-09 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY CONCERN CONFIDENTIALITY REQUEST for Certification Service in USA Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the following product: FCC ID 2AXDT-TV2 Model TV PLAY 2 For the product stated above, we request permanent confidentiality for exhibits which contain Operational Description, Block Diagram, Schematics, Parts Lists orTune Up Information. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. Sincerely, Dr. Thomas Fischer Senior Director Embedded Software Sivantos GmbH Henri-Dunant-Str. 100 91058 Erlangen Germany [email protected] Jan Knittel VP Quality Management Systems Sivantos GmbH Henri-Dunant-Str. 100 91058 Erlangen Germany [email protected] ws AU D A/S Nym0llevej 6 3540 Lynge Denmark Rhone: +45 44 35 56 00 www.wsa.com Page 1 of 1

WSAiididotjiy Federal Communication Commission2024-09-09 Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 SHORT-TERM CONFIDENTIALITY REQUEST TO WHOM IT MAY CONCERN Pursuantto Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request short term confidentiality for the following product: Model FCC ID 2AXDT-TV2 TV PLAY 2 For the product stated above, we request that the following information be held confidential: 1. External and Internal Photographs 2. Test Setup Photos 3. User Manual We request this confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of the device, which is planned for 2024-10-01. Sincerely, Jan Knittel VP Quality Management Systems Dr. Thomas Fischer Senior Director Embedded Software Sivantos GmbH Henri-Dunant-Str. 100 91058 Erlangen Germany [email protected] Sivantos GmbH Henri-Dunant-Str. 100 91058 Erlangen Germany [email protected] WSAUD A/S Nym0llevej 6 3540 Lynge Denmark Phone:+45 44 35 56 00 www.wsa.com Page 1 of 1

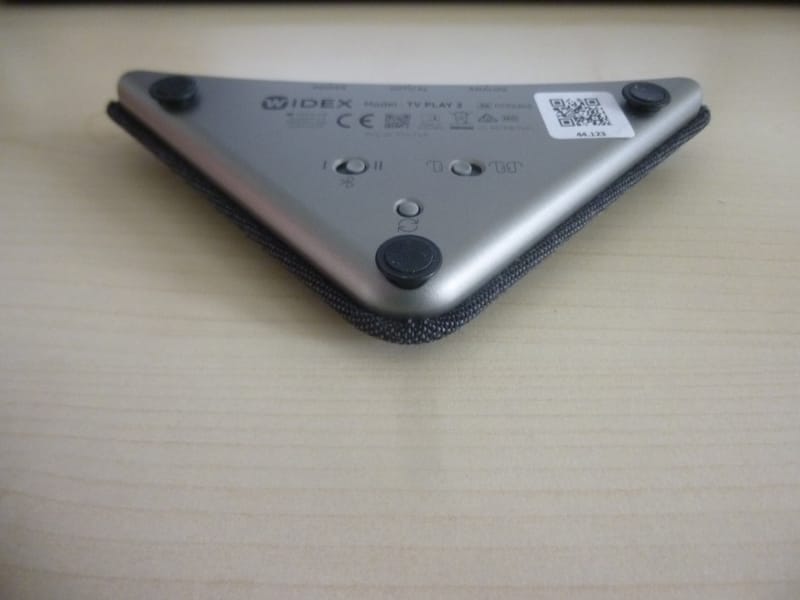

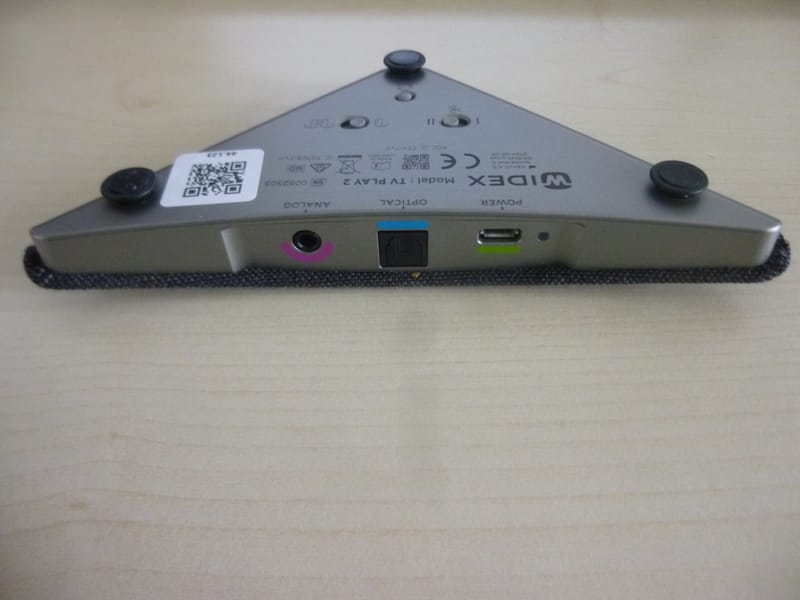

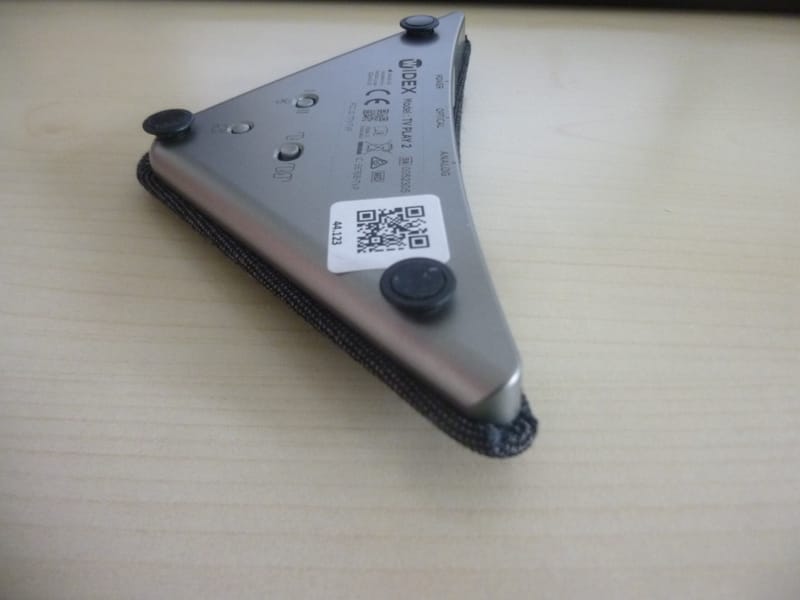

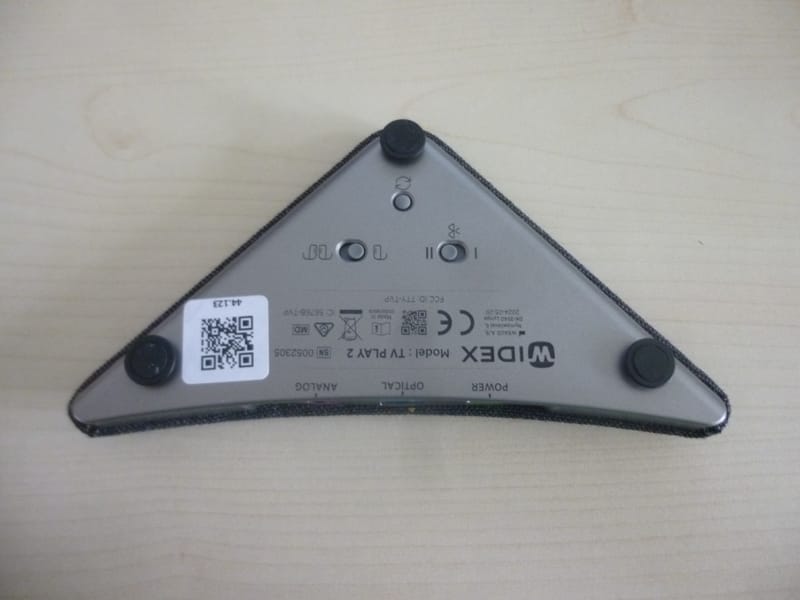

Annex A101 - Photographs No.1-7590-24-01-01_TR1-A101-R01 July 03, 2024 DescriptionExternal photographs of EUT This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized Michael Dorongovski Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-01_TR1-A101-R01 Release 1 - Page 1 of 4 Photo 1 Photo 2 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-01_TR1-A101-R01 Release 1 - Page 2 of 4 Photo 3 Photo 4 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-01_TR1-A101-R01 Release 1 - Page 3 of 4 Photo 5 Photo 6 - END OF DOCUMENT - cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-01_TR1-A101-R01 Release 1 - Page 4 of 4

RevisionIssueDateMade by C Released A 2 W0110 Iversen 2024-09-06 AU000B8Q TV Play Laser Etching Artwork D21036370-14 N/A N/A N/A N/A N/A Adobe illustrator 1AFirst ReleaseTLI SUPPLEMENTARY NOTES: 1: Font: Gotham Narrow - Book Alternative fonts: Arial /Myriad/Tahoma 2: Consecutive 2D data matrix serial number identical with numeric serial number. 3: YYYY-MM-DD Year/Month/Day of production 4: Serial number. Consecutive 7-digits numeric serial number. 0123456 01-07-2024 1:1 Surface Jensen, LB AU000B2T Iversen AU000B8Q 2024-09-06 2024-09-06 2A Japan Radio Type Approval (MIC) added 06-09-2024TLI 152mm R

Annex A102 - Photographs No.1-7590-24-01-01_TR1-A102-R01 July 03, 2024 DescriptionInternal photographs of EUT This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized Michael Dorongovski Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-01_TR1-A102-R01 Release 1 - Page 1 of 4 Photo 1 Photo 2 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-01_TR1-A102-R01 Release 1 - Page 2 of 4 Photo 3 Photo 4 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-01_TR1-A102-R01 Release 1 - Page 3 of 4 Photo 5 Photo 6 - END OF DOCUMENT - cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-01_TR1-A102-R01 Release 1 - Page 4 of 4

© cetecom advanced GmbH Page 1 of 12 TEST REPORT Test report no.: 1-7590-24-01-05_TR2-R02 Testing laboratory Applicant cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://cetecomadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS). The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12047-01-00. ISED Testing Laboratory Recognized Listing Number: DE0001 FCC designation number: DE0002 WSAUD A/S Nymøllevej 6 DK-3540 Lynge / DENMARK Phone: +45 4435 5600 Contact: Emil Moeller e-mail: [email protected] Manufacturer WSAUD A/S Nymøllevej 6 DK-3540 Lynge / DENMARK Test Item Kind of test item: Audio streaming device Model name: TV PLAY 2 FCC ID: 2AXDT-TV2 Frequency: 2400 to 2483.5 Technology tested: Bluetooth ® LE This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Alexander Hnatovskiy Eric Tuettmann Lab Manager Testing Manager Radio Labs Radio Labs Test report no.: 1-7590-24-01-05_TR2-R02 © cetecom advanced GmbH Page 2 of 12 1 Table of contents 1 Table of contents ............................................................................................................................................. 2 2 General Information ......................................................................................................................................... 3 2.1 Notes and Disclaimer ............................................................................................................................ 3 2.2 References ............................................................................................................................................ 3 2.3 Structure of this Document ................................................................................................................... 3 3 General RF Exposure Test Exemptions ............................................................................................................ 4 3.1 1 mW Test Exemption ........................................................................................................................... 5 3.2 MPE-Based Test Exemption ................................................................................................................. 5 3.3 SAR-Based Test Exemption .................................................................................................................. 5 3.4 Simultaneous Transmission ............................................................................................................... 6 4 1 mW Test Exemption ...................................................................................................................................... 7 4.1 Detailed Description .............................................................................................................................. 7 4.2 Results ................................................................................................................................................... 7 5 MPE-Based Test Exemption ............................................................................................................................ 8 5.1 Detailed Description .............................................................................................................................. 8 5.2 Results ................................................................................................................................................... 8 6 SAR-Based Test Exemption ............................................................................................................................. 9 6.1 Detailed Description .............................................................................................................................. 9 6.2 Results ................................................................................................................................................. 10 7 Simultaneous Transmission .......................................................................................................................... 11 7.1 Detailed Description ............................................................................................................................ 11 7.2 Result................................................................................................................................................... 11 8 Conclusion ...................................................................................................................................................... 12 Annex A: Document History ............................................................................................................................ 12 Test report no.: 1-7590-24-01-05_TR2-R02 © cetecom advanced GmbH Page 3 of 12 2 General Information 2.1 Notes and Disclaimer The test results of this test report relate exclusively to the test item specified in this test report. cetecom advanced GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of cetecom advanced GmbH. The testing service provided by cetecom advanced GmbH has been rendered under the current "General Terms and Conditions for cetecom advanced GmbH". cetec…

Text truncated - open the document above for the full version.

Antenna Datasheet – TV Play 2 1 Information Antenna 0 Antenna Type Integrated inverted F antennas Frequency (MHz) 2402 2440 2480 Conducted Power (dBm) 5.2 5.9 5.4 Radiated Power (dBm) 9.0 9.7 9.2 Gain (dBi) 3.8 3.8 3.8 Antenna 1 Antenna Type Integrated inverted F antennas Frequency (MHz) 2402 2440 2480 Conducted Power (dBm) 5.1 5.9 5.4 Radiated Power (dBm) 7.6 8.1 8.0 Gain (dBi) 2.5 2.2 2.6 Where Gain = Radiated Power – Conducted Power 2 Antenna Location The two antennas are located at the left and right edge of the PCB: Antenna 1 Antenna 0 3 Antenna Radiation Pattern Antenna 0: Low channel: Mid channel: High channel: Antenna 1: Low channel: Mid channel: High channel:

Conducted test results No.1-7590-24-01-03_TR1-A201-R1 June 27, 2024 Test Standard(s)FCC 15.247 - NI FCC 15.247, ISED RSS247 - NI NA - NI This document is electronically signed and valid without handwritten signature. Public keys for verification of the electronic signatures can be requested at the testing laboratory. Authorized Michael Dorongovski Lab Manager Radio Labs cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-03_TR1-A201-R1 Release 1 - Page 1 of 128 Table of Content FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps3 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps6 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps9 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 2 Msps12 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 2 Msps15 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 2 Msps18 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 1 Msps21 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 1 Msps26 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 1 Msps31 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 2 Msps36 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 2 Msps41 FCC 15.247, ISED RSS247 # Bandwidth 99PCT and 20dB ~ BT LE 2 Msps46 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps51 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps55 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 1 Msps59 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 2 Msps63 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 2 Msps67 FCC 15.247 # Maximum peak conducted output power DTS ~ BT LE 2 Msps71 FCC 15.247 # Peak psd DTS ~ BT LE 1 Msps75 FCC 15.247 # Peak psd DTS ~ BT LE 1 Msps78 FCC 15.247 # Peak psd DTS ~ BT LE 1 Msps81 FCC 15.247 # Peak psd DTS ~ BT LE 2 Msps84 FCC 15.247 # Peak psd DTS ~ BT LE 2 Msps87 FCC 15.247 # Peak psd DTS ~ BT LE 2 Msps90 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 1 Msps93 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 1 Msps97 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 1 Msps101 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 2 Msps105 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 2 Msps109 FCC 15.247 # TX spurious conducted 20dBc ~ BT LE 2 Msps113 NA # Peak output power 3MHz/3MHz ~ BT LE 1 Msps117 NA # Peak output power 3MHz/3MHz ~ BT LE 1 Msps123 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-03_TR1-A201-R1 Release 1 - Page 2 of 128 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps References TC start24.06.2024 15:09:20 Ambit temp [°C] | humidity [rel%] 27.7 | 42 System version5.0.7.0 Standard | Version FCC 15.247 | NI Method DescriptionFCC 15.247 Bandwidth 6dB DTS - BT LE 1 Msps Information EUT Common Settings BT Low Energy Intermodulation Value N 3 Image Freq. Low | Mid | High [MHz] 0 | 0 | 0 Power Class2 1 Mbps supported True | TXpayload 255 | RXpayload 255 2 Mbps supported True | TXpayload 255 | RXpayload 255 Longrange S8 supported False | TXpayload 255 | RXpayload 255 Longrange S2 supportedFalse | TXpayload 255 | RXpayload 255 Signaling Settings None | HCI | 1 | 2400 | None | S1 | None | On Signaling RF Settings RF1com | 0 | 0 | On | User Interaction No Equipment Signal analyzer,Rohde&Schwarz,FSV-30,1321.3008K30/103170,3.60 Switch matrix,cetecom advanced GmbH,USM,A001,1.0.0 Test Parameter Technology to testBT LE 1 Msps EUT portEUT1 Temperaturenom Voltagenom Frequency low to testTrue | Freq [MHz] 2402 Frequency mid to testFalse | Freq [MHz] 2440 Frequency high to testFalse | Freq [MHz] 2480 Auto control enabled power supply | Climatic Box No | No Additional path loss [dB]0.5 Full path typeEUT_SA_GEN_SIG Full path nameEUT1.MP.SIG1/EUT1.SA/EUT1.GEN1/EUT1.GEN2/ cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-03_TR1-A201-R1 Release 1 - Page 3 of 128 Test Parameter Switch bits 00010001:00010001:00000000:00000001 cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-03_TR1-A201-R1 Release 1 - Page 4 of 128 Test at TX 2402 MHz RESULT: Reference power cond. DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT Ref. power 1MHz/1MHz cond. ------5.47dBmINFO Ref. frequency------2402.200MHzINFO READ SA SETTINGS: RefLevel [dBm] | RefLevelOffset [dB] | InpAtt [dB]10.47 | 8.76 | 20 Start [MHz] | Stop [MHz]2401.000 | 2403.000 RBW [MHz] | VBW [MHz]0.100000 | 0.300000 Detector | TraceModePOS | MAXH Sweep: time [ms] | count | points per Section | type50 | 200 | 10001 | SWE 2401.002401.202401.402401.602401.802402.002402.202402.402402.602402.802403.00 MHz Frequency 10.0 5.0 0.0 -5.0 -10.0 -15.0 -20.0 -25.0 -30.0 dBm Magnitude BW 6dB RESULT DESCRIPTIONLOWER LIMITUPPER LIMITMEASUREDUNITVERDICT DTS bandwidth (6dB)500---703kHzPASS Verdict PASS cetecom advanced GmbH Untertürkheimer Str. 6-10, 66117 Saarbrücken Document No. 1-7590-24-01-03_TR1-A201-R1 Release 1 - Page 5 of 128 FCC 15.247 # Bandwidth 6dB DTS ~ BT LE 1 Msps References TC start24.06.2024 15:28:19 Ambit temp [°C] | humidity [rel%] 27.6 | 42 System version5.0.7.0 Standard | Version FCC 15.247 | NI Method DescriptionFCC 15.247 Bandwidth 6dB DTS - BT LE 1 Msps Information EUT Common Settings BT Low Energy Intermodulation Value N 3 Image Freq. Low | Mid | High [MHz] 0 | 0 | 0 Power Class2 1 Mbps supported True | TXpayload 255 | RXpayload 255 2 Mbps supported True | TXpayload 255 | RXpayload 255 Longrange S8 supported False | TXpayload 255 | RXpayload 255 Longrange S2 supportedFalse | TXpayload 255 | RXpayload 255 Signaling Settings None | HCI | 1 | 2400 | None | S1 | None | On Signaling RF Settings RF1com | 0 | 0 | On | User Interaction No Equipment Signal analyzer,Rohde&Schwarz,FSV-30,1321.3008K30/103170,3.60 Switch matrix,cetecom advanced GmbH,USM,A001,1.0.0 Test Parameter Technology to testBT LE 1 Msps EUT portEUT1 Temperaturenom Voltagenom Frequency low to testFalse | Freq [MHz] 2402 Frequency mid to testTrue | Freq [MHz] 2440 Frequency high to testFalse | Freq…

Text truncated - open the document above for the full version.

TEST REPORT Test report no.: 1-7590-24-01-03_TR1-R01 Testing laboratory Applicant cetecom advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://cetecomadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS). The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate with the registration number: D-PL-12047-01-00. ISED Testing Laboratory Recognized Listing Number: DE0001 FCC designation number: DE0002 WSAUD A/S Nymøllevej 6 DK-3540 Lynge / DENMARK Phone: +45 4435 5600 Contact: Emil Moeller e-mail: [email protected] Manufacturer WSAUD A/S Nymøllevej 6 DK-3540 Lynge / DENMARK Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 3 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices RSS - Gen Issue 5 incl. Amendment 1 & 2 Spectrum Management and Telecommunications Radio Standards Specification - General Requirements for Compliance of Radio Apparatus For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: Audio streaming device Model name: TV PLAY 2 FCC ID: 2AXDT-TV2 ISED certification number: 26428-TV2 Frequency: 2400 MHz to 2483.5 MHz Technology tested: Proprietary Antenna: Two integrated inverted F antennas Power supply: 5.0 V DC by USB Temperature range: 0°C to +45°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Marco Bertolino Michael Dorongovski Supervisor Radio Services Lab Manager Radio Labs Radio Labs Test report no.: 1-7590-24-01-03_TR1-R01 © cetecom advanced GmbH Page 2 of 58 1 Table of contents 1 Table of contents .................................................................................................................................... 2 2 General information ................................................................................................................................ 3 2.1 Notes and disclaimer .................................................................................................................... 3 2.2 Application details ........................................................................................................................ 3 2.3 Test laboratories sub-contracted .................................................................................................. 3 3 Test standard/s, references and accreditations ....................................................................................... 4 4 Reporting statements of conformity – decision rule ................................................................................ 5 5 Test environment.................................................................................................................................... 6 6 Test item ................................................................................................................................................ 6 6.1 General description ...................................................................................................................... 6 6.2 Additional information .................................................................................................................. 6 7 Sequence of testing ................................................................................................................................ 7 7.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ................................................................ 7 7.2 Sequence of testing radiated spurious 30 MHz to 1 GHz ............................................................... 8 7.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ................................................................ 9 7.4 Sequence of testing radiated spurious above 18 GHz ...............................................…

Text truncated - open the document above for the full version.
