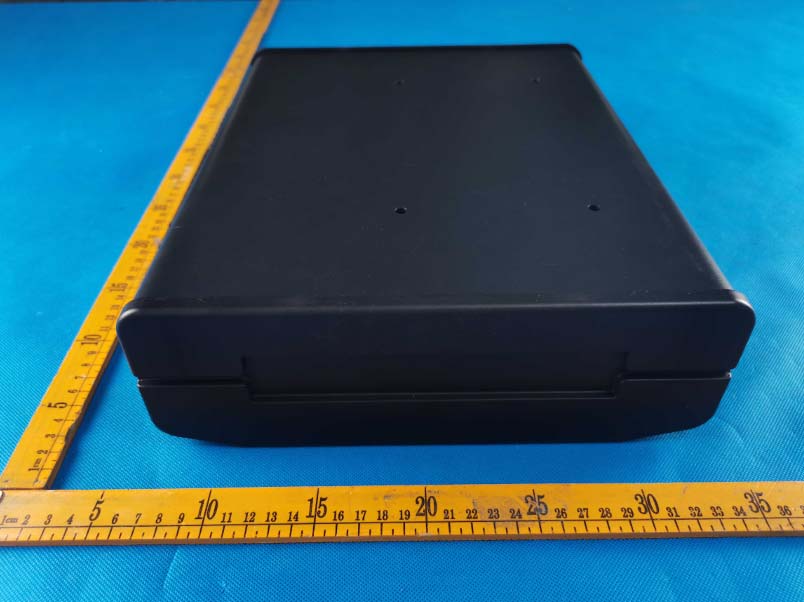

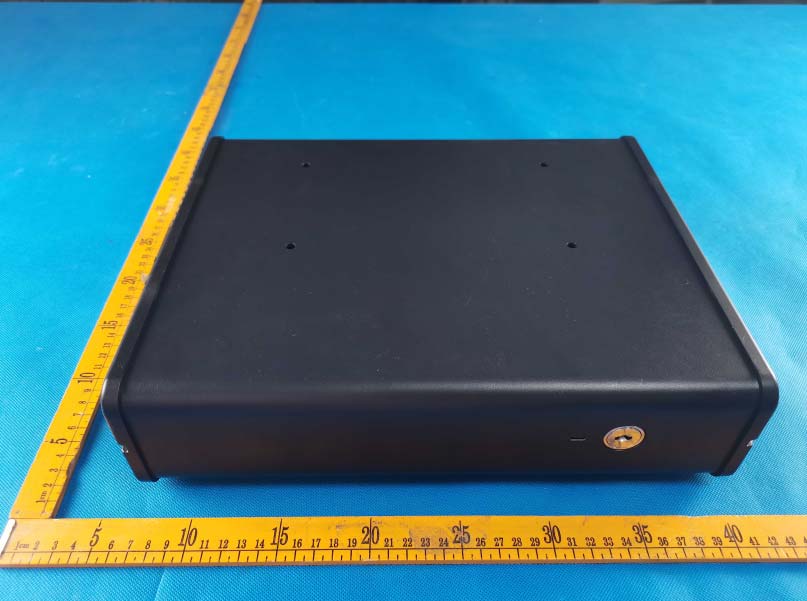

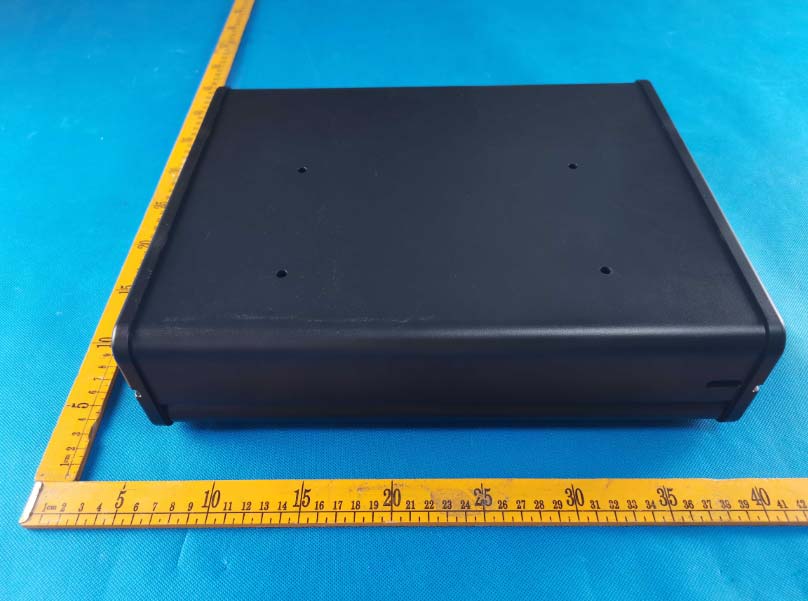

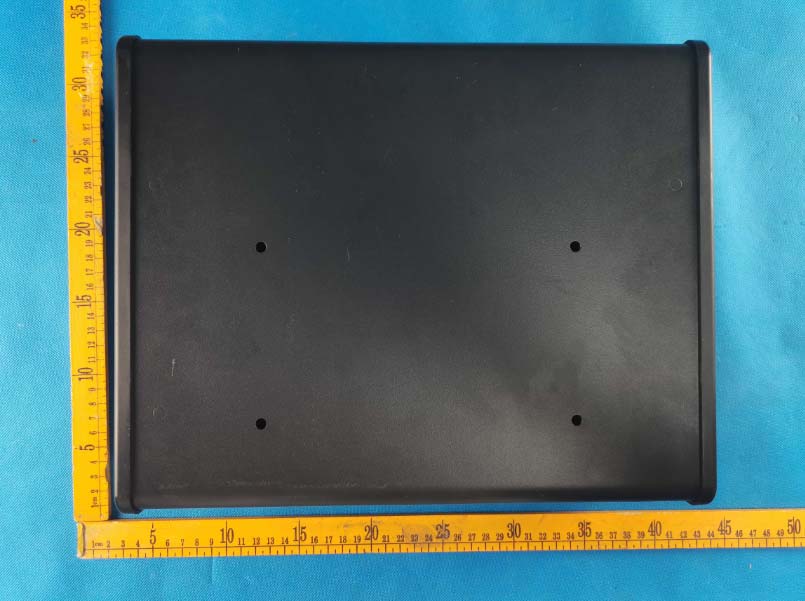

2AXH7-K5Biometric Personal Safe

保险柜使用说明书 感谢您选用⻘松沃德智能保险柜 使用前请仔细阅读本说明书 1. 系统提供总容量100个，添加的前2个用户为管理员 (第一个是密码)。 2. 指纹/密码(支持6-8位)/机械钥匙/APP都可开锁。 3. 低电压警告。 4. 防撬警告。 6.音量可调节。 7. ‘ ’键：返回、退出键，待机状态连续按2次息屏； 8. ‘ ’键：确认键。 产品介绍 黑色 242.4*276.4*91.6mm 半导体传感器 ( 500dpi )，带炫彩指示灯 指纹、密码、机械钥匙、APP 指纹50枚，密码50个 6V 4.8V <90uA 7.5kg 产品颜色 产品尺寸 指纹头 开箱方式 存储容量 供电电压 低电警告电压 待机电流 产品重量 K5 (Tuya WiFi) V1.0 示意图 1.指纹采集器 2.按键 3.电池盖 4.复位键 5.防撬按钮 6.开关闸口 7.喇叭孔 8.应急供电 Type-C接口 9.钥匙孔 10.开合气弹簧 11.柜⻔ 12.钢丝绳入口 1 2 3 4 5 6 7 10 12 8 9 使用说明 1.首次开启保险箱 a.插入钥匙，顺时针转动90度，开启保险柜。 (注：钥匙不能放入保险柜内。) b.用移动电源通过USB线插入Type-C接口， 按压指纹或输入数字12345 开启保险柜。 2.装入电池 a. 打开电池盖，装好4节5号电池。 b. 待指纹灯和按键灯点亮，就可以使用了。 3.恢复出厂 a. ⻓按‘复位键’3秒以上。 (注：如设置了管理员，需验证管理员) b. 系统自动恢复到出厂设置状态 (初始密码: 12345)。 c. 语音播报‘初始化成功’，删除所有管理员和用户。 4. 初始测试 a.合上柜⻔。 b. 按压任意指纹或输入数字12345 , 开启保险柜。 5. 添加管理员 (前2个为管理员，第1个是密码) 5.1. ⻓按‘ ’键, 语音播报‘请录入6-8位管理员密码, 按‘ ’键结束’， 按压数字密码(6-8位)+‘ ’键(相同密码输入2次), 直到语音播报 ‘添加成功，请添加管理员’。 5.2. 放添加的手指(同一手指按6次)或密码+‘ ’键(相同密码输入2次)。 a. 添加指纹：手指按压指纹采集器(同一手指按6次)(推荐大拇指)。 b.添加密码：按压数字密码(6-8位)+‘ ’键(相同密码输入2次)。 5.3. 语音播报‘管理员已满'，自动退出设置。 注：为提高指纹识别率，需按压同一手指的不同部位，共8次， 直到整个指纹外圈都采集完， 如操作不当，可能会增加录入次数。 注：密码只能在数字1~5之间组合。 6. 添加用户 6.1. ⻓按‘ ’键，语音播报‘请验证管理员’。 6.2. 验证已添加的管理员，语音播报‘请添加用户’。 6.3. 放添加的手指(同一手指按6次)或密码+‘ ’键(相同密码输入2次)。 a.添加指纹：手指按压指纹采集器(同一手指按6次)(推荐大拇指)。 b. 添加密码：按压数字密码(6~8位)+‘ ’键(相同密码输入2次)。 6.4. 语音播报‘添加成功'。 Type-C接口 钥匙孔 11 复位键 产品特点 保 修 卡 1. 产品出厂包装均配有此说明书及保修卡，用户安装好后请填 写好保修卡内容并妥善保管，以作保修凭证。 2 . 本产品保修一年。 3 . 以下不属于保修范围： A.意外因素、人为行为或外力(包括暴力撬坏，输入不适合的 电压等）造成损坏。 B.自然灾害等不可抗拒力(如地震，火灾，水灾等)原因造成的损坏。 C.自行安装或不符合安装说明书要求引起的损坏。 D.非我司指定安装人员引起的损坏。 4 . 对于保修范围外，我们将收取相应费用。 5 . 产品出现故障时，请致电售后询求帮助，保修时请填写具体 地址.姓名.电话及故障现象。 江⻄指芯智能科技有限公司 江⻄省宜春市经济开发区宜商大道133号 www.pineworld.net 售后电话：400 900 5952 7 . 删除用户 7.1. ⻓按‘ ’键，语音播报‘请验证管理员’。 7.2. 验证已添加的管理员，语音播报‘请添加用户’。 7.3. 再次⻓按‘ ’号键。 7.4. 语音播报：按“1”删除全部用户指纹，按“2”删除全部用户密码， 按“3”删除全部用户。 7.5.选择“1”、“2”或“3”键进行删除对应用户。 7.6.语音播报‘操作成功’。 注：此操作不能删除管理员，管理员需通过恢复出厂设置删除。 8 . 密码修改： 8.1 按‘5’‘ ’键，输入需要修改的原密码，语音提示‘请输入新密码’。 8.2 输入新密码+“ ”（相同密码输入2次），直到添加成功。 (注：管理员不能修改；添加成功后，旧密码不能使用) 9. APP配网 9.1. 手机连上WiFi，且网络正常。 9.2. 在APP Store或应用商店搜索‘涂鸦智能’或微信扫描尾⻚二维码，下载并安装。 9.3. 打开APP，用手机号注册并登录，进入APP。 9.4. 配网： a. APP：点击‘我的家’/‘添加设备’/‘安防监控’/‘保险箱(WiFi)’， 选择2.4Ghz Wi-Fi网络并输入密码，点击‘下一步’/‘确认指示灯快闪。 b. ⻔锁：按“3”‘ ’, 验证管理员，待智能锁LED面板上指示灯闪烁。 c.APP：进入配网状态，直到成功。 d. 添加成功，语音播报‘操作成功’，添加失败，请重试。 注：1. APP和手机需连接同一WiFi网络(仅支持2.4Ghz WiFi)。 2.APP远程开锁: 需先按⻔锁上‘4’‘ ’进行激活， 待APP上出现‘点击远程开锁’提示，点击后才能开锁。 3.APP临时密码：点击右下⻆‘临时密码’，进入临时密码界面，点击添加。 临时密码开锁：先按‘6’‘ ’激活，再输入临时密码+‘ ’进行开锁。 10. 其他功能 10.1 防错自锁 密码连续输错5次，系统锁定180秒，发出警告提示声音， 并上报到APP进行提醒。 解除防错自锁：已注册的指纹用户(包括管理员)开锁一次。 10.2 防撬警告 当钥匙开锁或柜⻔受到外力破坏，如导致防撬按钮松动， 系统锁定180秒，发出警告提示声音，并上报到APP进行提醒。 解除防撬警告：已注册的指纹用户(包括管理员)开锁一次、 防撬按钮连续按三下 或⻓按3S、卸下电池重装。 10.3 低电压警告 电池低于4.8V时，每次开⻔都会提示‘电池没电了，请及时 更换电池’，此时能使用50次左右，请及时更换新的电池。 10.4 虚位密码 在注册的密码前后输入任意密码 (密码总数不超过10位)， 都可开锁。 10.5 音量切换 按‘3’‘3’‘3’‘ ’键进行切换静音、高音(默认)。 K5 (Tuya WiFi) V1.0 Type-C Port Key Hole 1 2 3 4 5 6 7 10 12 8 9 11 Reset Button PINEWORLD Biometric Personal Safe User Manual Please read this manual carefully before use Do not leave the key in the safe. Overview Features Introduction 1. The fingerprint capacity is 50, the password capacity is 50, the first two users are administrators. Please input password as the first administrator. 2. Support volume adjustment(Mute/Low/High). 3. Support 6-8 digital passwords and scramble PIN passwords. (No longer than 10 digitals) 4. Support pickproof alarm and low power alarm. 5. ` `: Return or Quit. ` `: Confirm. Color Size Fingerprint Unlock Way System Capacity Supply Voltage Low Voltage Alarm Standby Current Weight Black 242.4*276.4*91.6mm Semiconductor( 500dpi ) with Colorful Light Fingerprint, Password, Key and APP Fingerprint: 50, Password: 50 6V 4.8V <90uA 7.5kg 1.Fingerprint Collector 2.Keypad 3.Battery Cover 4.`Reset` Button 5.Pickproof Button 6.Switch Gate 7.Speak Hole 8.Emergency Power Supply Type-C Port 9.Keyhole 10.Switch Gas Spring 11.Safe Door 12.Wire Rope Entrance First Use 1. Open the Safe a. Insert the key into the keyhole, and turn 90 degrees clockwise to open the safe. Note: Do not leave the key in the safe. b. Plug in the USB cable with the mobile power through the Type-C port, and press the fingerprint or press `12345 ` to open the safe. 2. Install the Battery a. Open the battery cover and install 4pcs of AA batteries. b. When the fingerprint light and key light are on, it is ready for use. 3. Reset the Safe a. Long Press `Reset` button for more than 3 seconds. Note: If the administrator is added, it needs to be verified the administrator. b. The system automatically restores to the factory default settings (initial password: 12345) c. Voice prompt `initialization successful`, delete all administrators and users. 4. Initial Test a. Close the safe door. b. Press any fingerprint or enter `12345 ` to open the safe. Function Operation 1. Add Administrator (The first two are administrators, and the first is password) a. Long press ` `key, voice prompt `please enter 6-8 administrator password, press ` `key to end`. b. Enter new password(6-8 digits) ended with ' ' (The same password, 2 times), until the voice prompt `Successfully`, then we can continue to add the 2nd administrator. c. Add administrator`s fingerprint(6 times), or password (6-8 digits) ended with ' '(The same password, 2 times). d. The voice prompt `The administrator is full, quit setting. Notes: Make sure to press different parts of the . same finger until the whole fingerprint is collected completely, the lock key `1-5` will be light on when add successful. 2. Add User a. Long press ' ', the voice prompt `Please verify administrator`. b. Verify the administrator, and the voice prompt `Successful, please add user. c. Add user`s fingerprint(6 times), or password (6-8 digits) ended with ' '(The same password, 2 times). d. The voice prompt `Successful`. 3. Delete User 1. Long press ' ', the voice prompt `Please verify administrator`. 2. V erify the administrator, and the voice prompt `Successful, please add user`. 3. Long press ' ' again. 4. Press `1` to delete all user fingerprints, press `2` to delete all user passwor…
