2AXH7-S2Smark Lock
Jiangxi Fingerchip Intelligent Terminal Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DTS - Digital Transmission System
- Date of Grant
- Sep 17, 2020
- Application Purpose
- Original Equipment
- Date of Application
- Sep 17, 2020
- Equipment Note
- Smark Lock
- Frequency Range
- 2402.00000000 - 2480.00000000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

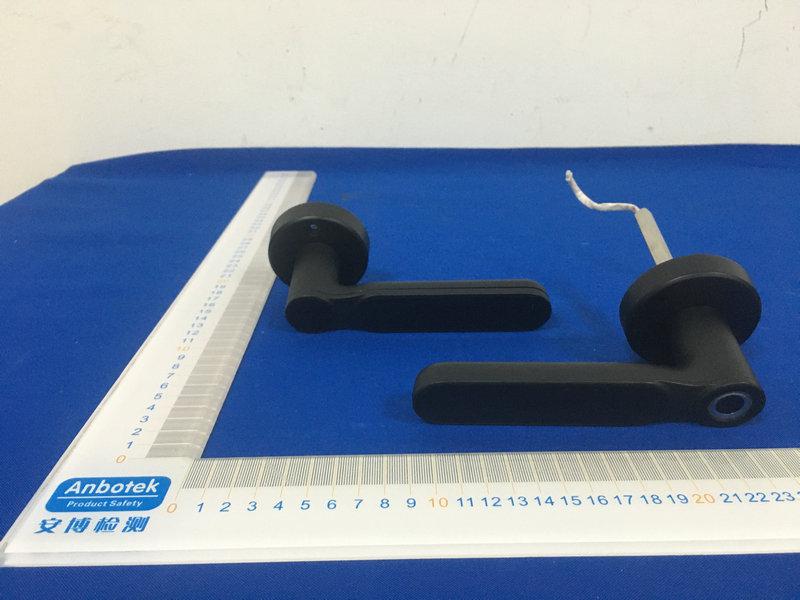

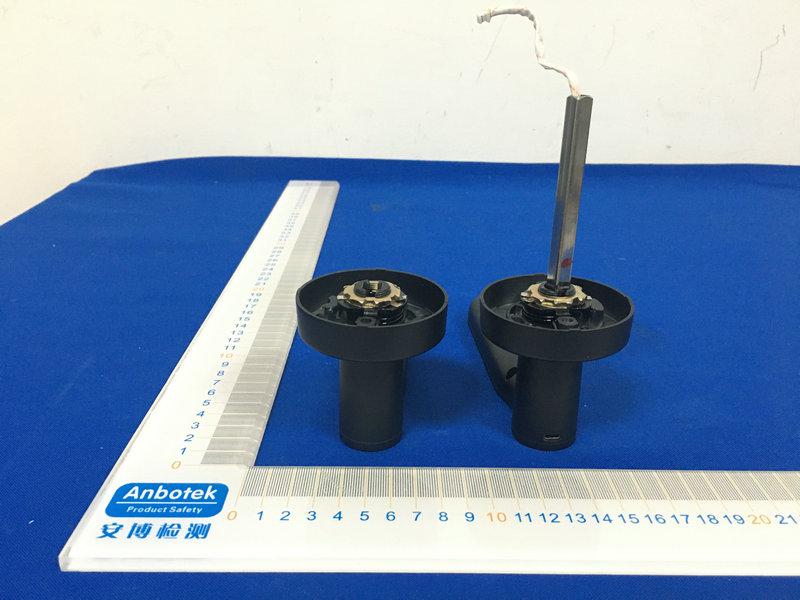

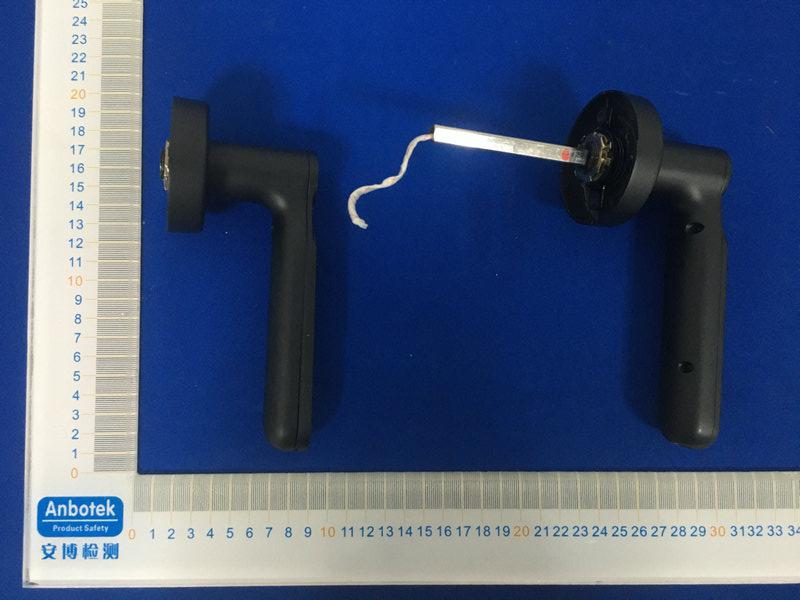

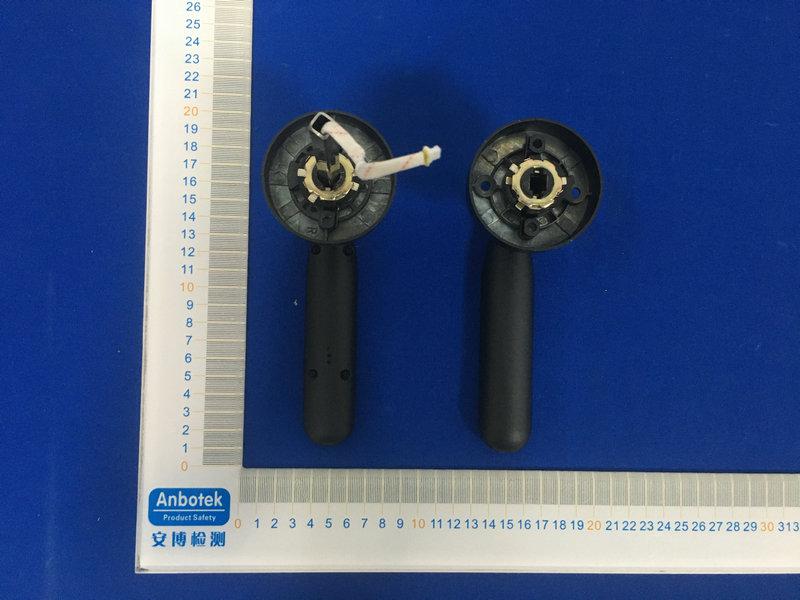

External Photos
FCCID:2AXH7-S2
ID Label/Location Info
LabelLocationOnEUT Label ProductName:SmarkLock ModelNo.:S2 FCCID:2AXH7-S2
Internal Photos
FCCID:2AXH7-S2 ANT
Operational Description
version01 JiangxiFingerchipIntelligentTerminalCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.: S2 FCCID:2AXH7-S2 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N/A Typeofantenna:PCBAntenna Gainoftheantenna:0dBi Frequencyrange:2402MHz~2480MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:JiangxiFingerchipIntelligentTerminalCo.,Ltd. Address:No.133YishangAvenueEconomicDevelopmentZoneYichun,JiangxiChina City:China ZIP/Postalcode:N.A. Country:Jiangxi Place:China Date:2020-09-17 Signature:
RF Exposure Info
RFEXPOSUREEVALUATION FCCID:2AXH7-S2 AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeused toevaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF) Radiationasspecifiedin§1.1307(b): RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,using measurementsorcomputersimulation.WhenroutineSARevaluationisnot required,portabletransmitterswithoutputpowergreaterthantheapplicable lowthresholdrequireSARevaluationtoqualifyforTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTuneUp Power(dBm) Distance (mm) Calculation results Limit Operating Mode 2402-2.243-2.243±1-1.24350.2333 BLE2440-2.283 -2.283±1 -1.28350.2333 2480-2.831-2.831±1-1.83150.2073 TestResults:PASS.
Test Setup Photos
FCCID:2AXH7-S2 PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest
Contact Information
Applicant
Hanson Cheng(QA Manager)
Test Firm
Shenzhen Anbotek Compliance Laboratory LimitedJeff Zhu
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 600.00 µW |
