CONTENTS | CONTENU | INHALT | INHOUD | CONTENIDO | CONTENUTI | CONTEÚDO | INDHOLD | SISÄLLYS [EN] QUICK START GUIDE [FR] GUIDE DE DÉMARRAGE RAPIDE [DE] SCHNELLSTARTANLEITUNG [NL] SNELSTARTGIDS [ES] GUÍA BÁSICA DE INICIACIÓN [IT] GUIDA RAPIDA [PT] GUIA RÁPIDO [DA] VEJLEDNING TIL HURTIG START [FI] PIKAOPAS 1 6 11 16 21 26 31 36 41 Bluetooth headphone MIXX StreamQ C3 SQC3-BK-BK-334 LET’S CONNECT First Time Pairing Press and hold the Multi-function button [3] for 2 seconds to power on your MIXX StreamQ C3 wireless headphones. A voice prompt ‘Power on, pairing’ confirms the headphones are on and in pairing mode. The LED Indicator Light [4] will flash BLUE and WHITE ready to pair with your audio device. Go to the Bluetooth settings on your audio device to select ‘MIXX StreamQ C3’ from the list. Once paired successfully you will hear ‘Connected’ and the LED Indicator Light [4] will turn off. You can now enjoy your music, watch a video or take a call hands free. If there is no Bluetooth connection after 5 minutes the headphones will automatically turn off by confirming with ‘Power off’ and the LED Indicator Light [4] will flash BLUE and WHITE once and then switch off. The headphones will automatically reconnect to the last device they were paired with, confirming ‘Connected’. LET’S STAY CHARGED Connect the headphones to a suitable USB wall charger, computer USB port or a power bank using the USB C Charging Cable [8] supplied and connect it to the headphones USB C Charging Port [5] . While charging, the LED Indicator Light [4] will glow WHITE. Once the headphones are fully charged, the LED Indicator Light [4] will turn off. This can take up to 2 hours. When using, you may hear a voice prompt ‘Battery low’ which allows for 2 minutes play time before the headphones power down stating ‘Battery low, power off’. The LED Indicator Light [4] will flash WHITE once and will then switch off. EN: QUICK START GUIDE 21 EN 4 5 8 LET’S GO WIRED The MIXX StreamQ C3 headphones are suitable for devices with a 3.5mm audio socket. The 3.5mm audio cable supplied provides the flexibility to convert from wireless headphones to wired use. Convenient when watching movies on a plane or when there is no Bluetooth connection. Insert the 3.5mm audio cable [9] into the 3.5mm Audio Port [6] of your headphones and the other end into your phone or aeroplane’s 3.5mm socket to start listening to your music or movie. The EQ function is not available when using the 3.5mm audio cable. 4 4 TIP: 15 MINUTE QUICK CHARGE If you’re running low on power, charge your headphones for 15 minutes and get 8 hours extra play time while on the go. LET’S CONNECT First Time Pairing Press and hold the Multi-function button [3] for 2 seconds to power on your MIXX StreamQ C3 wireless headphones. A voice prompt ‘Power on, pairing’ confirms the headphones are on and in pairing mode. The LED Indicator Light [4] will flash BLUE and WHITE ready to pair with your audio device. Go to the Bluetooth settings on your audio device to select ‘MIXX StreamQ C3’ from the list. Once paired successfully you will hear ‘Connected’ and the LED Indicator Light [4] will turn off. You can now enjoy your music, watch a video or take a call hands free. If there is no Bluetooth connection after 5 minutes the headphones will automatically turn off by confirming with ‘Power off’ and the LED Indicator Light [4] will flash BLUE and WHITE once and then switch off. The headphones will automatically reconnect to the last device they were paired with, confirming ‘Connected’. 21 EN 4 3 LET’S GO WIRED The MIXX StreamQ C3 headphones are suitable for devices with a 3.5mm audio socket. The 3.5mm audio cable supplied provides the flexibility to convert from wireless headphones to wired use. Convenient when watching movies on a plane or when there is no Bluetooth connection. Insert the 3.5mm audio cable [9] into the 3.5mm Audio Port [6] of your headphones and the other end into your phone or aeroplane’s 3.5mm socket to start listening to your music or movie. The EQ function is not available when using the 3.5mm audio cable. 9 4 4 6 43 EN TRAVEL FRIENDLY For ease of storage while travelling, fold the MIXX StreamQ C3 ear pads in towards the headband [A] then pop them in your bag or, place the headband around your neck and rotate the earpads to rest comfortably on your shoulders. Play / Pause Short press the Multi-function button [3] . Volume Up / Down Short press [1] to increase volume, or [2] to decrease volume. Skip / Previous Track Long Press [1] for 2 seconds to skip track, or [2] for previous track. Activate Siri or Google Assistant Double press the Multi-function button [3] . The voice assistant familiar ‘Beep’ will sound then ask a question or state a command. Change the Preset Equalisation (EQ) Settings Choose from 3 Equalisation (EQ) modes to suit your personal preference. There is no App required. • Bass boost mode increases the bass sound. • Voice mode decreases the bass, the high-frequency tones and increases the speech frequencies. • Music mode returns you to the optimal EQ for music listening. Triple press the Multi-function button [3] to cycle through the Music, Bass Boost and Voice modes. Answer / End a call Short press the Multi-function button [3] . (Audio is picked up via the microphone [7] .) Power On Press and hold the Multi-function button [3] for 2 seconds and a voice prompt will confirm with ‘Power on, pairing’. The LED indicator light [4] will flash BLUE and WHITE. Power off Press and hold the Multi-function button [3] for 2 seconds. A voice prompt will confirm with ‘Power off’. The LED indicator light [4] will glow WHITE and will then switch off. LET’S PLAY 3 2 7 3 LET’S RECYCLE This product can be recycled. Products bearing this symbol must NOT be thrown away with normal household waste. Take the product to a collection point designated for recycling of electronic devices. Find out more about return and collection points through your local authority. 2 3 3 3 3 1 1 4 4 …

Text truncated - open the document above for the full version.

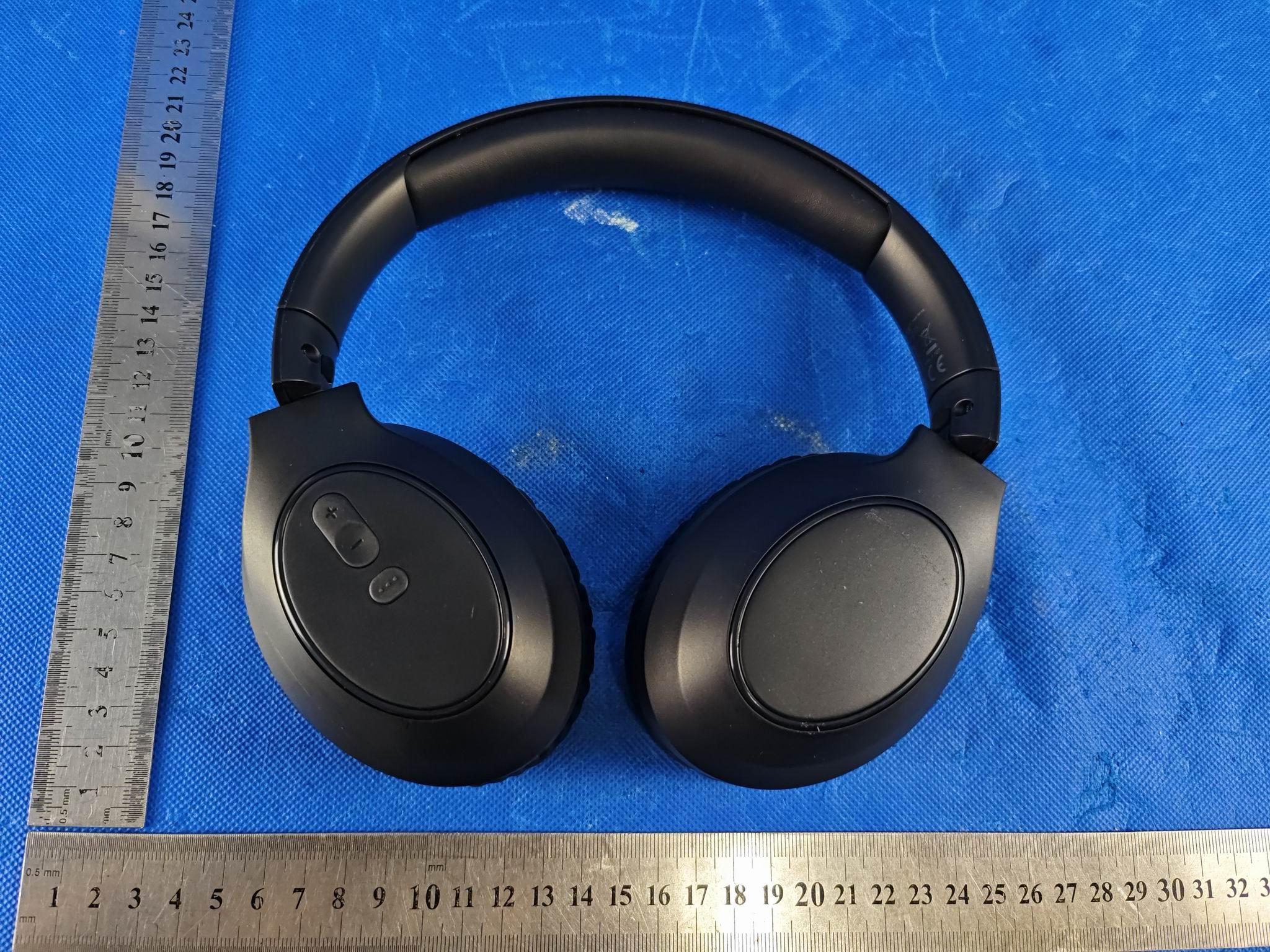

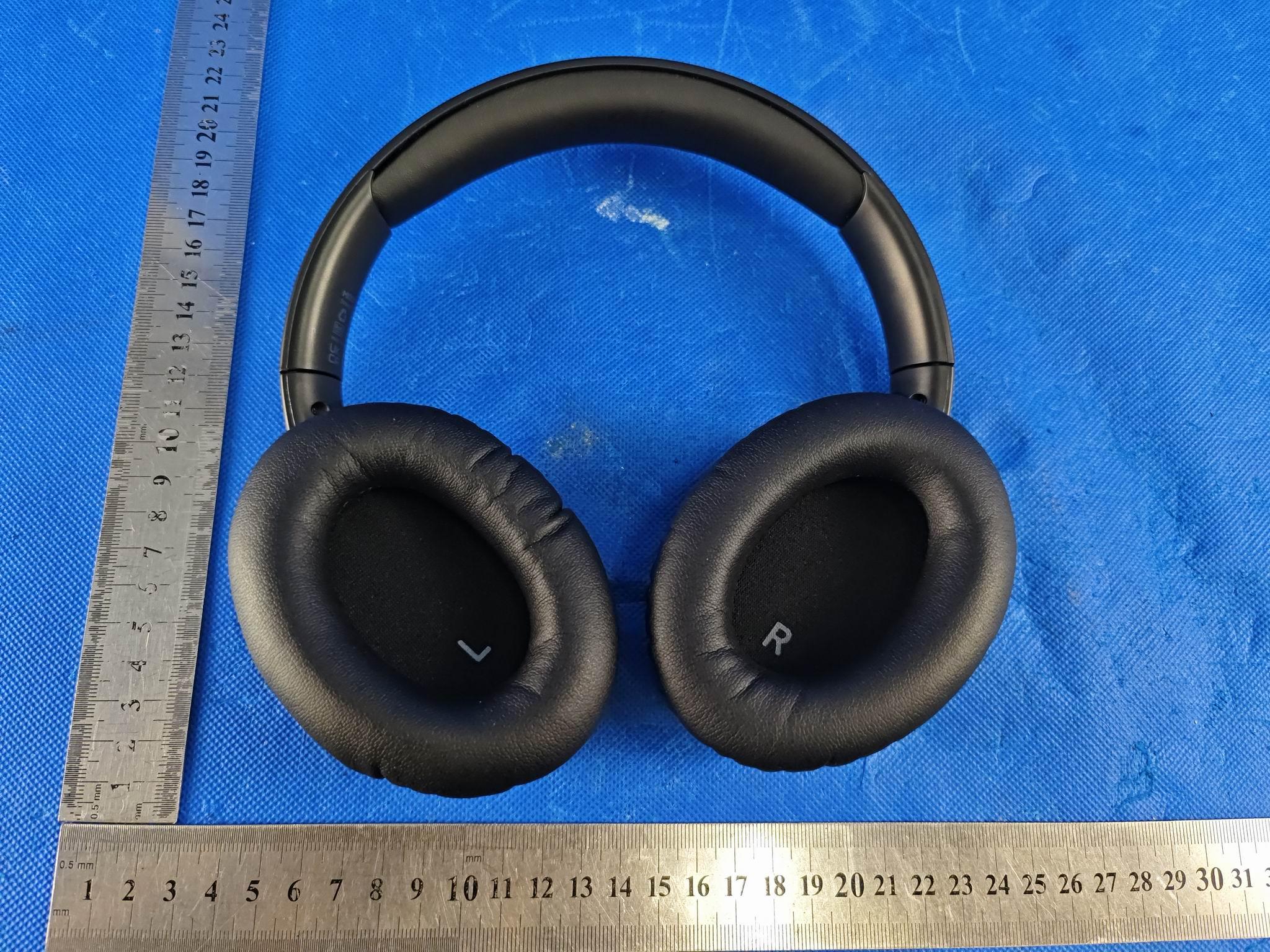

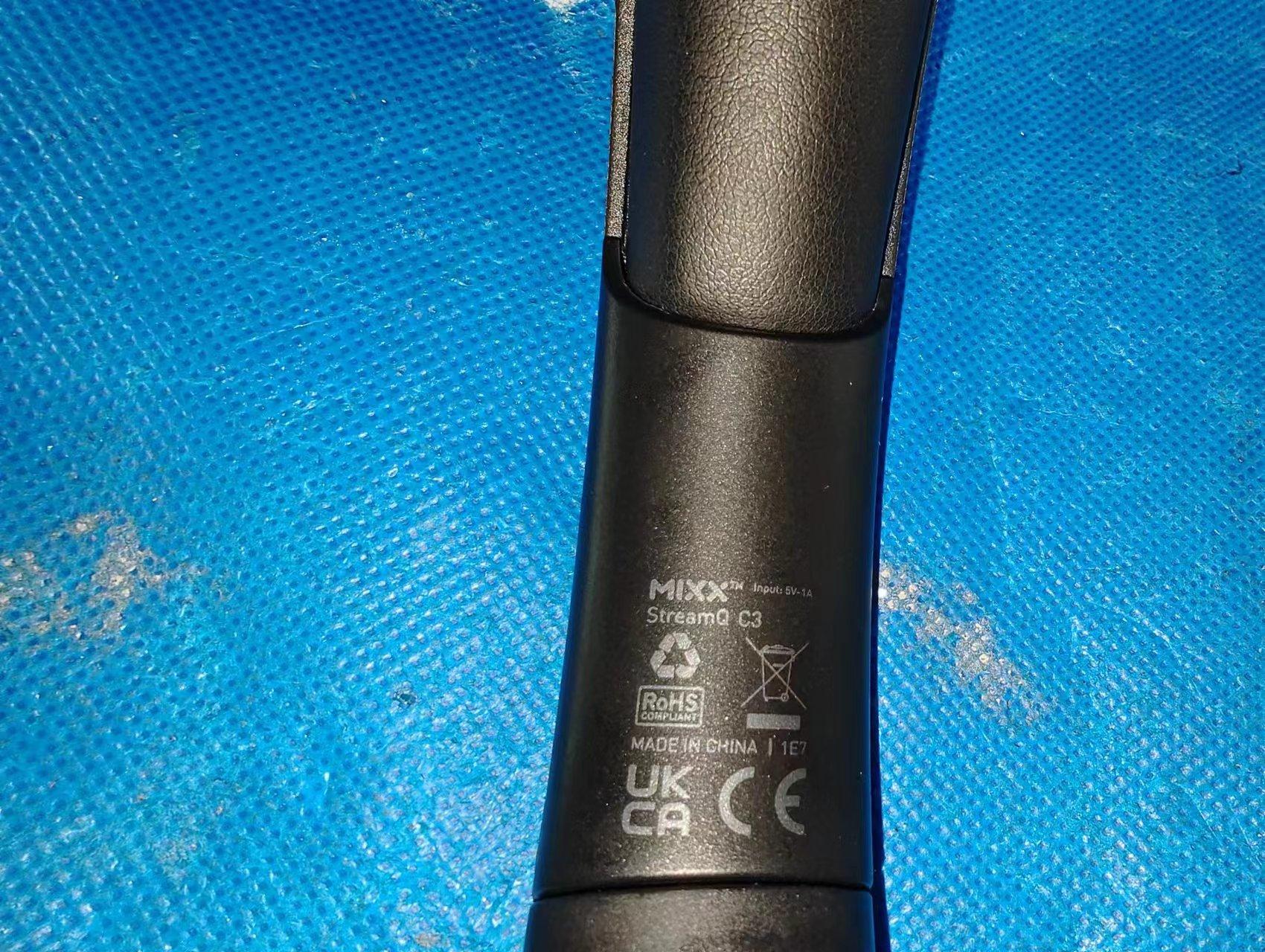

Page1of5FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. ExternalPhotos Photo1 Photo2 Page2of5FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of5FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of5FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 Page5of5FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 ------End------

Page1of7FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. InternalPhotos Photo1 Photo2 Page2of7FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo3 Photo4 Page3of7FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo5 Photo6 Page4of7FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo7 Photo8 Page5of7FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo9 Photo10 Antenna Page6of7FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo11 Photo12 Page7of7FCCID:2AXJ7-C3 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. Photo13 ------End------

RFExposureevaluation FCCID:2AXJ7-C3 1.1.ApplicableStandard Accordingto§1.1307(b)(1),systemsoperatingundertheprovisionsofthissectionshallbeoperatedina mannerthatensuresthatthepublicisnotexposedtoradiofrequencyenergylevelinexcessofthe Commission’sguidelines. Accordingto§1.1310and§2.1093RFexposurerequirement KDB447498v06:MobileandPortableDevicesRFExposureProceduresandEquipmentAuthorization Policies 1.2.Requirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSARtest exclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures, standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions, bymeasurementornumericalsimulation,isnotrequiredwhenthecorrespondingSARTestExclusion Thresholdcondition,listedbelow,issatisfied.Thesetestexclusionconditionsarebasedonsource-based time-averagedmaximumconductedoutputpoweroftheRFchannelrequiringevaluation,adjustedfortune-up tolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions.22Theminimum testseparationdistanceisdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresor outersurfaceofthedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements, toanypartofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbytheoperating configurationsandexposureconditionsofthetransmitterandapplicablehostplatformrequirements,typically intheSARmeasurementorSARanalysisreport,accordingtotherequiredpublishedRFexposureKDB procedures.WhennootherRFexposuretestingorreportingisrequired,astatementofjustificationand compliancemustbeincludedintheequipmentapproval,inlieuoftheSARreport,toqualifyfortheSARtest exclusion.Whenrequired,thedevicespecificconditionsdescribedintheotherpublishedRFexposureKDB proceduresmustbesatisfiedbeforeapplyingtheseSARtestexclusionprovisions;forexample,handheldPTT two-wayradios,handsets,laptops&tabletsetc.23“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)] · [√f(GHz)] ≤ 3.0for1-gSARand ≤ 7.5for10-gextremitySAR,where: • f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison • 3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis ≤ 50mmandfor transmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtestseparationdistanceis<5 mm,adistanceof5mmaccordingto5)insection4.1isappliedtodetermineSARtestexclusion. 1.3.Manufacturingtolerance BR_EDR Frequency (MHz) GFSK 240224402480 Target(dBm)1.01.00 Tolerance ± (dB) 1.01.01.0 Frequency (MHz) π/4-DQPSK 240224402480 Target(dBm)1.01.00 Tolerance±(dB)1.01.01.0 Frequency (MHz) 8-DPSK 240224402480 Target(dBm)1.01.00 Tolerance±(dB)1.01.01.0 Page2of2 2.EvaluationResult EvaluationResults Band/Modef(GHz) Antenna Distance (mm) Max.RFoutputpower (includingtune-up tolerance) SARTest Exclusion Threshold SARTest Exclusion dBmmW BR_EDR2.552 1.58 0.50<3.0Yes 3.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRFExposure andSARExclusionThresholdperKDB447498v06 .....................EndofReport.........................

Page1of38ReportNo.:AIT23072606FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. TESTREPORT ClientInformation: Applicant:MIXXLIMITED Applicantadd.: Unit5ThePavilionsBrightonRoad,PeasePottage,RH119BJUnited Kingdom Manufacturer:MIXXLIMITED Manufactureradd.: Unit5ThePavilionsBrightonRoad,PeasePottage,RH119BJUnited Kingdom ProductInformation: ProductName:Bluetoothheadphone ModelNo.:MIXXStreamQC3,SQC3-BK-BK-334,SQC3-GY-GY-337,SQC3-SD-SD-333 BrandName:N/A FCCID: 2AXJ7-C3 Applicablestandards : FCCCFRTitle47Part15SubpartCSection15.247 PreparedBy: DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang,Huangjiang,Dongguan, Guangdong,China Tel.:+86-769-82020499Fax.:+86-769-82020495 DateofReceipt:July26,2023DateofTest:July26,2023~July31,2023 DateofIssue:Aug.01,2023TestResult:Pass ThisdevicedescribedabovehasbeentestedbyDongguanYaxu(AiT)TechnologyLimitedandthe testresultsshowthattheequipmentundertest(EUT)isincompliancewiththeFCCrequirements. Anditisapplicableonlytothetestedsampleidentifiedinthereport. Note:Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofDongguan Yaxu(AiT)TechnologyLimited,thisdocumentmaybealteredorrevisedbyDongguanYaxu(AiT) TechnologyLimited,personalonly,andshallbenotedintherevisionofthedocument.Thistest reportmustnotbeusedbytheclienttoclaimproductendorsement. Reviewedby:Approvedby: SimbaHuangSeal.chen Page2of38ReportNo.:AIT23072606FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 1Contents Page COVERPAGE 1CONTENTS......................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................4 2.1StatementoftheMeasurementUncertainty................................................................................4 2.2MeasurementUncertainty............................................................................................................4 3TESTFACILITY..............................................................................................................................................................5 3.1Deviationfromstandard...............................................................................................................5 3.2Abnormalitiesfromstandardconditions.......................................................................................5 3.3TestLocation.................................................................................................................................5 4GENERALINFORMATION...........................................................................................................................................6 4.1Testfrequencies............................................................................................................................7 4.2EUTPeripheralList.......................................................................................................................8 4.3TestPeripheralList.......................................................................................................................8 4.4TESTMETHODOLOGY...............................................................................................................9 4.5DescriptionofTestModes..........................................................................................................10 5EQUIPMENTUSEDDURINGTEST.........................................................................................................................11 6TESTRESULTSANDMEASUREMENTDATA.....................................................................................................11 6.1Antennarequirement..................................................................................................................12 6.2PeakPowerMeasurement.........................................................................................................13 6.3FrequencySeparationand20dBBandwidth............................................................................15 6.4NumberofHoppingFrequency..................................................................................................17 6.5TimeofOccupancy(DwellTime)...............................................................................................18 6.6ConductedSpuriousEmissionsandBandEdgesTest.............................................................20 6.7Restrict-bandBand-edgeMeasurements..................................................................................22 6.8RadiatedEmissionsMeasurement............................................................................................24 6.9ConductedEmissions.................................................................................................................34 6.10Pseudorandomfrequencyhoppingsequence...........................................................................37 7TESTSETUPPHOTOGRAPHSOFEUT.................................................................................................................38 8EXTERNALPHOTOGRAPHSOFEUT....................................................................................................................38 9INTERNALPHOTOGRAPHSOFEUT.....................................................................................................................38 Page3of38ReportNo.:AIT23072606FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. RevisionHistory RevisionIssueDateRevisionsRevisedBy 000 Aug.01,2023 InitialIssueSealChen Page4of38ReportNo.:AIT23072606FW1 DongguanYaxu(AiT)TechnologyLimited No.22,Jinqianling3rdStreet,Jitigang, Huangjiang,Dongguan,Guangdong,China. 2TestSummary TestItemSecti…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dBi PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dBi) Frequency (MHz) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page1of61 AppendixA RFTestDataforBT(BDR/EDR)(ConductedMeasurement) ProductName:Bluetoothheadphone TradeMark:N/A TestModel:MIXXStreamQC3 EnvironmentalConditions Temperature:25.5°C RelativeHumidity:52.5% ATMPressure:101Kpa TestEngineer:SimbaHuang Supervisedby:SealChen DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page2of61 Contents Page COVERPAGE 1DutyCycle........................................................................................................................................................................................3 1.1TestResult............................................................................................................................................................................3 1.2TestGraphs...........................................................................................................................................................................4 2MaximumConductedPeakOutputPower........................................................................................................................................9 2.1TestResult............................................................................................................................................................................9 2.2TestGraphs.........................................................................................................................................................................10 320dBBandwidth..............................................................................................................................................................................15 3.1TestResult..........................................................................................................................................................................15 3.2TestGraphs.........................................................................................................................................................................16 4CarrierFrequencySeparation.........................................................................................................................................................21 4.1TestResult..........................................................................................................................................................................21 4.2TestGraphs.........................................................................................................................................................................22 5HoppingChannelNumber...............................................................................................................................................................24 5.1TestResult..........................................................................................................................................................................24 5.2TestGraphs.........................................................................................................................................................................25 6DwellTime......................................................................................................................................................................................27 6.1TestResult..........................................................................................................................................................................27 6.2TestGraphs.........................................................................................................................................................................28 7RFConductedSpuriousEmissions.................................................................................................................................................31 7.1TestResult..........................................................................................................................................................................31 7.2TestGraphs.........................................................................................................................................................................32 8Band-edgeforRFConductedEmissions........................................................................................................................................41 8.1TestResult..........................................................................................................................................................................41 8.2TestGraphs.........................................................................................................................................................................42 9Restrict-bandband-edgemeasurements........................................................................................................................................54 9.1TestResult..........................................................................................................................................................................54 9.2TestGraphs.........................................................................................................................................................................56 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page3of61 1DutyCycle 1.1TestResult ModeFrequency(MHz)DutyCycle(%)1/T(kHz) 1-DH1240232.012.56 1-DH1244131.422.63 1-DH1248031.212.63 2-DH12402322.56 2-DH12441322.56 2-DH1248032.012.56 3-DH1240232.342.56 3-DH12441322.56 3-DH1248032.012.56 DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page4of61 1.2TestGraphs TestGraphs 1-DH12402MHz 1-DH12441MHz DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page5of61 1-DH12480MHz 2-DH12402MHz Dongguan…

Text truncated - open the document above for the full version.

DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page35of61 π/4DQPSK_LCH_Graphs Pref Puw DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page36of61 π/4DQPSK_MCH_Graphs Pref Puw DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page37of61 π/4DQPSK_HCH_Graphs Pref Puw DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page38of61 8DPSK_LCH_Graphs Pref Puw DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page39of61 8DPSK_MCH_Graphs Pref Puw DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page40of61 8DPSK_HCH_Graphs Pref Puw DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page41of61 8Band-edgeforRFConductedEmissions 8.1TestResult Mode Channe l Carrier Frequency [MHz] Frequenc yHopping MaxSpurious Level[dBc] Limit [dBc] Verdict GFSK LCH2402 Off-55.2-20Pass On-50.34-20Pass HCH2480 Off-55.38-20Pass On-50.75-20Pass π/4DQPSK LCH2402 Off-55.81-20Pass On-49.85-20Pass HCH2480 Off-54.64-20Pass On-51.04-20Pass 8DPSK LCH2402 Off-54.17-20Pass On-50.24-20Pass HCH2480 Off-54.1-20Pass On-50.05-20Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page42of61 8.2TestGraphs TestGraphs Pref GFSK/LCH/NoHop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page43of61 Ref GFSK/LCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page44of61 Ref GFSK/HCH/NoHop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page45of61 Ref. GFSK/HCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page46of61 Ref π/4DQPSK/LCH/No Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page47of61 Ref π/4DQPSK/LCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page48of61 Ref π/4DQPSK/HCH/No Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page49of61 Ref π/4DQPSK/HCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page50of61 Ref 8DPSK/LCH/NoHop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page51of61 Ref 8DPSK/LCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page52of61 Ref 8DPSK/HCH/NoHop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page53of61 Ref 8DPSK/HCH/Hop DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page54of61 9Restrict-bandband-edgemeasurements 9.1 TestResult Test Mode HoppingFreq. Power [dBm] Gain E [dBuV/m] Detector Limit [dBuV/m] Verdict GFSK Off2310.0-50.29246.97PEAK74Pass Off2310.0-57.75239.51AV54Pass Off2340.336-46.44250.82PEAK74Pass Off2354.064-55.7241.56AV54Pass Off2390.0-52.24245.02PEAK74Pass Off2390.0-57.95239.31AV54Pass Off2483.5-49.45247.81PEAK74Pass Off2483.5-57.41239.85AV54Pass Off2486.368-47.74249.52PEAK74Pass Off2499.472-57.23240.03AV54Pass Off2500.0-49.92247.34PEAK74Pass Off2500.0-57.94239.32AV54Pass π/4DQPSK Off2310.0-49.73247.53PEAK74Pass Off2310.0-57.83239.43AV54Pass Off2344.848-46.43250.83PEAK74Pass Off2339.568-55.67241.59AV54Pass Off2390.0-51.08246.18PEAK74Pass Off2390.0-58.21239.05AV54Pass Off2483.5-49.56247.7PEAK74Pass Off2483.5-57.79239.47AV54Pass Off2491.336-47.77249.49PEAK74Pass Off2484.28-57.16240.1AV54Pass Off2500.0-50.14247.12PEAK74Pass Off2500.0-57.75239.51AV54Pass 8DPSK Off2310.0-49.69247.57PEAK74Pass Off2310.0-58.13239.13AV54Pass Off2388.816-46.77250.49PEAK74Pass Off2354.064-55.61241.65AV54Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page55of61 Off2390.0-50.66246.6PEAK74Pass Off2390.0-58.28238.98AV54Pass Off2483.5-48.68248.58PEAK74Pass Off2483.5-57.5239.76AV54Pass Off2496.568-47.34249.92PEAK74Pass Off2486.704-57.32239.94AV54Pass Off2500.0-49.62247.64PEAK74Pass Off2500.0-57.58239.68AV54Pass DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page56of61 9.2TestGraphs Restrict-bandband-edgemeasurements_HoppingOff_GFSK_PEAK(LowChannel) Restrict-bandband-edgemeasurements_HoppingOff_GFSK_Average(LowChannel) DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page57of61 Restrict-bandband-edgemeasurements_HoppingOff_GFSK_PEAK(HighChannel) Restrict-bandband-edgemeasurements_HoppingOff_GFSK_Average(HighChannel) DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page58of61 Restrict-bandband-edgemeasurements_HoppingOff_π/4-DQPSK_PEAK(LowChannel) Restrict-bandband-edgemeasurements_HoppingOff_π/4-DQPSK_Average(LowChannel) DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page59of61 Restrict-bandband-edgemeasurements_HoppingOff_π/4-DQPSK_PEAK(HighChannel) Restrict-bandband-edgemeasurements_HoppingOff_π/4-DQPSK_Average(HighChannel) DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page60of61 Restrict-bandband-edgemeasurements_HoppingOff_8DPSK_PEAK(LowChannel) Restrict-bandband-edgemeasurements_HoppingOff_8DPSK_Average(LowChannel) DongguanYaxu(AiT)TechnologyLimited ReportNo.:AIT23072606FW1 FCCID:2AXJ7-C3 Page61of61 Restrict-bandband-edgemeasurements_HoppingOff_8DPSK_PEAK(HighChannel) Restrict-bandband-edgemeasurements_HoppingOff_8DPSK_Average(HighChannel) ---TheEnd---
