2AXJ7-MOTHONEARBluetooth Headphone

CHARGING THE HEADPHONES Connect the headphones to a suitable USB wall charger, computer USB port or a power bank using the micro USB to USB charging cable supplied. The MOTH On Ear will begin to charge automatically, and the LED Light Indicator will light up RED. Once the headphones are fully charged, the RED light will switch off. This can take between 1 and 2 hours. INTERCHANGABLE EAR CAPS You can change the design of your headphones with interchangeable ear caps (sold separately). To remove the ear cap, ease your fingernail into the slot between the ear cap and the headphone base and gently push away from the headphones. Take your new designed MOTH On Ear earcap, check inside the ear cap to read which side it fits on (Left or Right) and align to the correct headphone base. Gently push the ear cap onto the headphone base until you hear it ‘click’. The new designed ear caps should now be safely secured to the headphones. PLUG AND PLAY Plug the Micro USB to 3.5mm connector audio cable supplied into the Micro USB Port and the 3.5mm connector into the 3.5mm socket of your audio device to listen to your sound through your headphones. *Ear caps will come pre installed on the headphones - if ordered separately a second set of printed back caps may be included in the box. MOTH On Ear Headphones inside spread (roll out) Micro USB Charging cable Micro USB to 3.5mm connector audio cable A pair of ear caps* Ear Cap (Interchangeable design) Volume Up / Skip Button Volume Down / Previous Button Microphone Multi-function Button LED Light Micro USB Port 1 2 3 4 5 6 7 8 BOX CONTAINS:HEADPHONE CONTROLS 1 2 3 4 5 6 7 6 7 8 CONTROL FUNCTIONS First Time Pairing Press and hold the Button until you hear ‘MOTH headphones, hello’. Go to Bluetooth settings on your phone and select ‘MOTH On Ear’ from the list. Once paired successfully you will hear ‘MOTH headphones connected’. Play / Pause Short press the Button Volume Up / Down Short Press the < / > Buttons to adjust the volume Previous / Skip Tracks Press and hold the < / > Buttons to change tracks Answer / End Call Short press the Button Activate Voice Double press the Button to activate Assistant Siri or Google Assistant Listen for the familiar Voice Assist ‘beep’ then ask a question or state a command Decline a Phone Call Double press the for an incoming call Power ON/OFF Press and hold the Button for 3 seconds until you hear ‘MOTH headphones hello / MOTH headphones goodbye’ ONE1-QSG01 SAFE USAGE INFORMATION Do not crush, puncture or incinerate the headphones. Only use a certified or the device manufacturer’s charging cable. SAFETY INSTRUCTIONS It’s important that you read this section completely, especially the ‘Warnings, Caution and Safe Usage’ instructions. For your protection: Ensure the product is correctly connected using the manufacturer’s original accessories included. Please keep the product out of reach from children and animals. Do not listen to loud music for a long duration of time. Adjust the volume to a comfortable level before listening. Do not use headphones while operating machinery, including cars. Do not use in areas where the use of hearing is required for safety. Do not drop, short circuit, disassemble or continue to use this product if damaged. We recommend To refer all servicing to qualified persons. Servicing may be required when the product has been damaged in any way, does not operate normally or has been dropped. The operating temperature range for this product is 5° - 40° Celsius. Warning These headphones and the micro USB cable connectors are not water resistant and should not be exposed to rain, moisture, any splashing or liquid spills. Caution: This product contains a Lithium battery. Incorrect disposal of this battery may result in explosion. RECYCLE This product can be recycled. Products bearing this symbol must NOT be thrown away with normal household waste. Take the product to a collection point designated for recycling of electronic devices. Find out more about return and collection points through your local authority. QUICK START GUIDE front cover back cover MOTH On Ear Wireless Headphones FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits ar e designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a par ticular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the r eceiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Oper ation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Co m Ad d Kin Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: MIX dress: Unit ngdom oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: XX LIMITED t 5 The Pa e: Bluetoot er(s): Moth ription: Bl u MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s JOHN W H Manager MIXX LIM Agen D avilions Br th Headpho On Ear, AO uetooth He bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect HITEHEAD ITED MIXX LIM nt Auth righton Ro one OD1-HP-BK eadphone Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of MITED horizat oad, Pease K-005, On-E ourt, Pleasa certification forward all i agencies as and all acts our own. tion e Pottage Ear1 anton, Califo of above na information s required a s carried ou Date: , RH11 9B ornia 94566 amed equip related to t nd to discu ut by MiCOM Sep. 11, 20 BJ, United 6, USA, to pment. the approva ss any M Labs on 020 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: M of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AXJ7-M om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio r understand pondence du ents and thi zation is iss ely, ure: JOHN WHI anage r ing Techno cations Com s Road 046 for Confiden MOTHONE Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri ding that all uring the ce s informatio sued. TEHEAD logy mmission ntiality EAR the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption l measurem ertification re on will be av MIXX LIMIT ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for TED s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the Date: Sep. 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 11, 2020 0.459, we al dered as documents the market . ntial quipment .

Model Difference Declaration To Whom It May Concern, We, MIXX LIMITED(Bluetooth Headphone) Trademark:N/A;Model Number: Moth On Ear, AOD1-HP-BK-005, On-Ear1; All model’s the function, software and electricc ircuit are the same, only with a product model named different for commercial purpose. Test sample model: Moth On Ear. Please contact me if you have any question. Name: JOHN WHITEHEAD Date: Sep. 11, 2020 Title: Manager Signature of applicant:

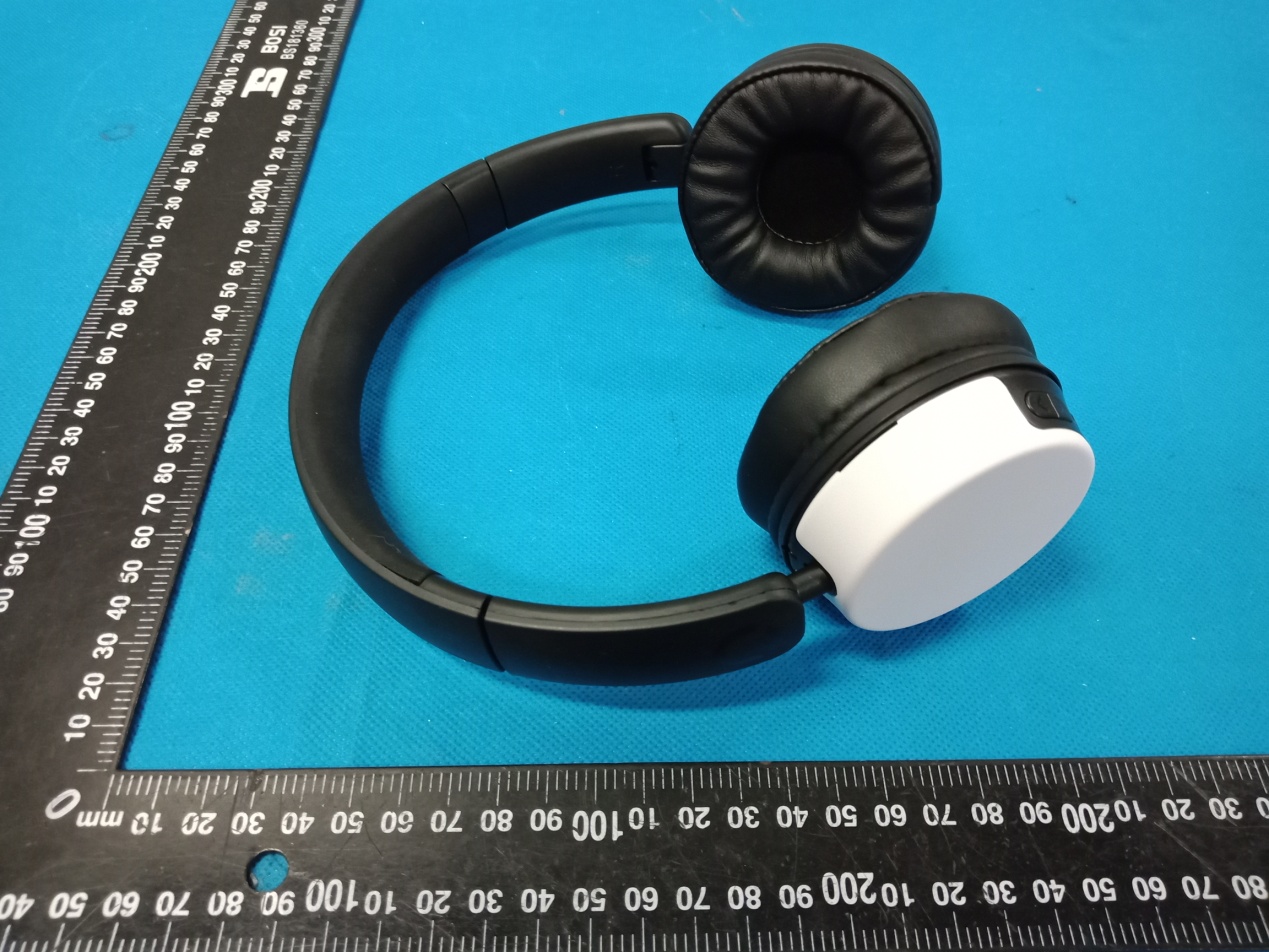

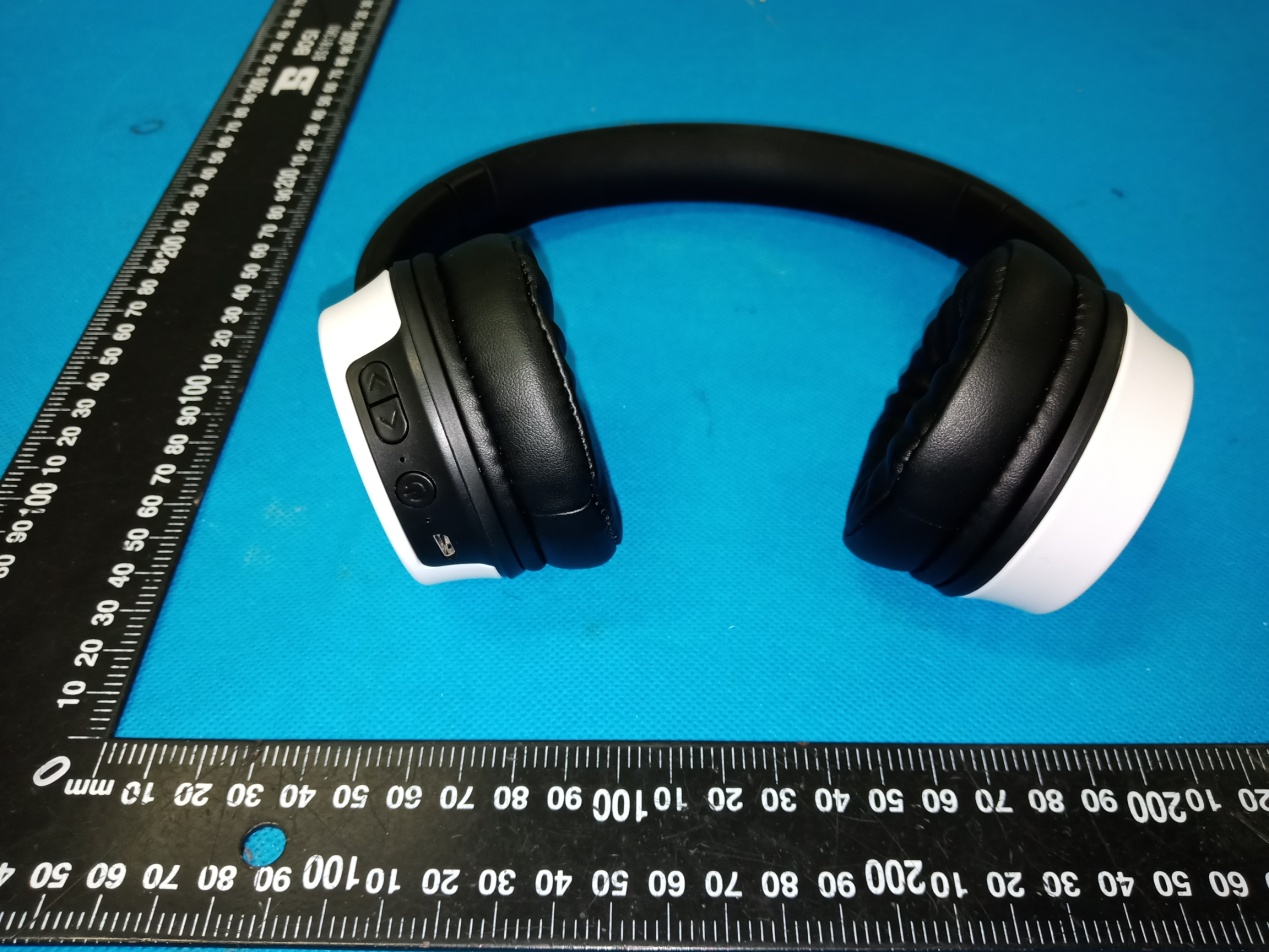

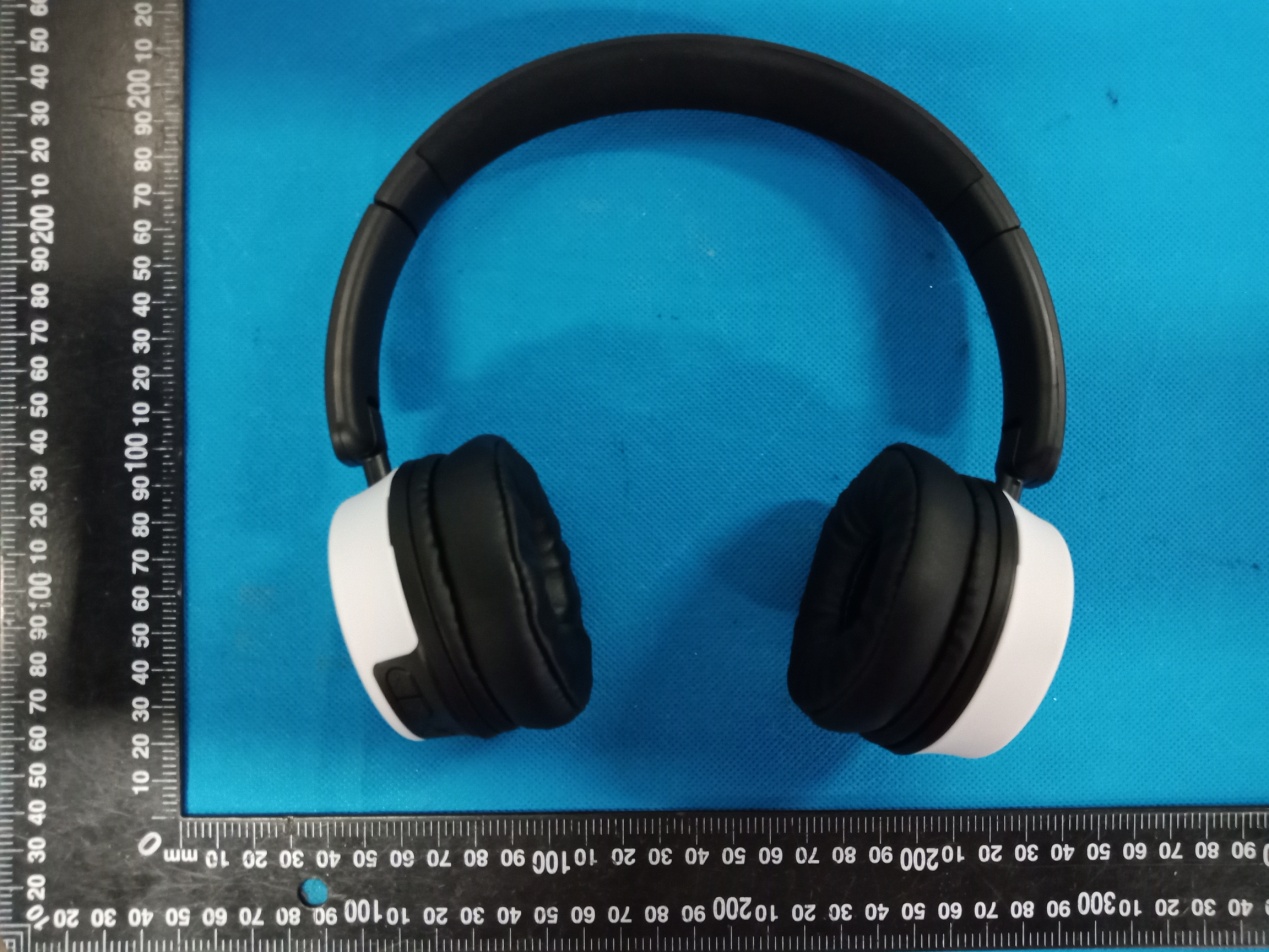

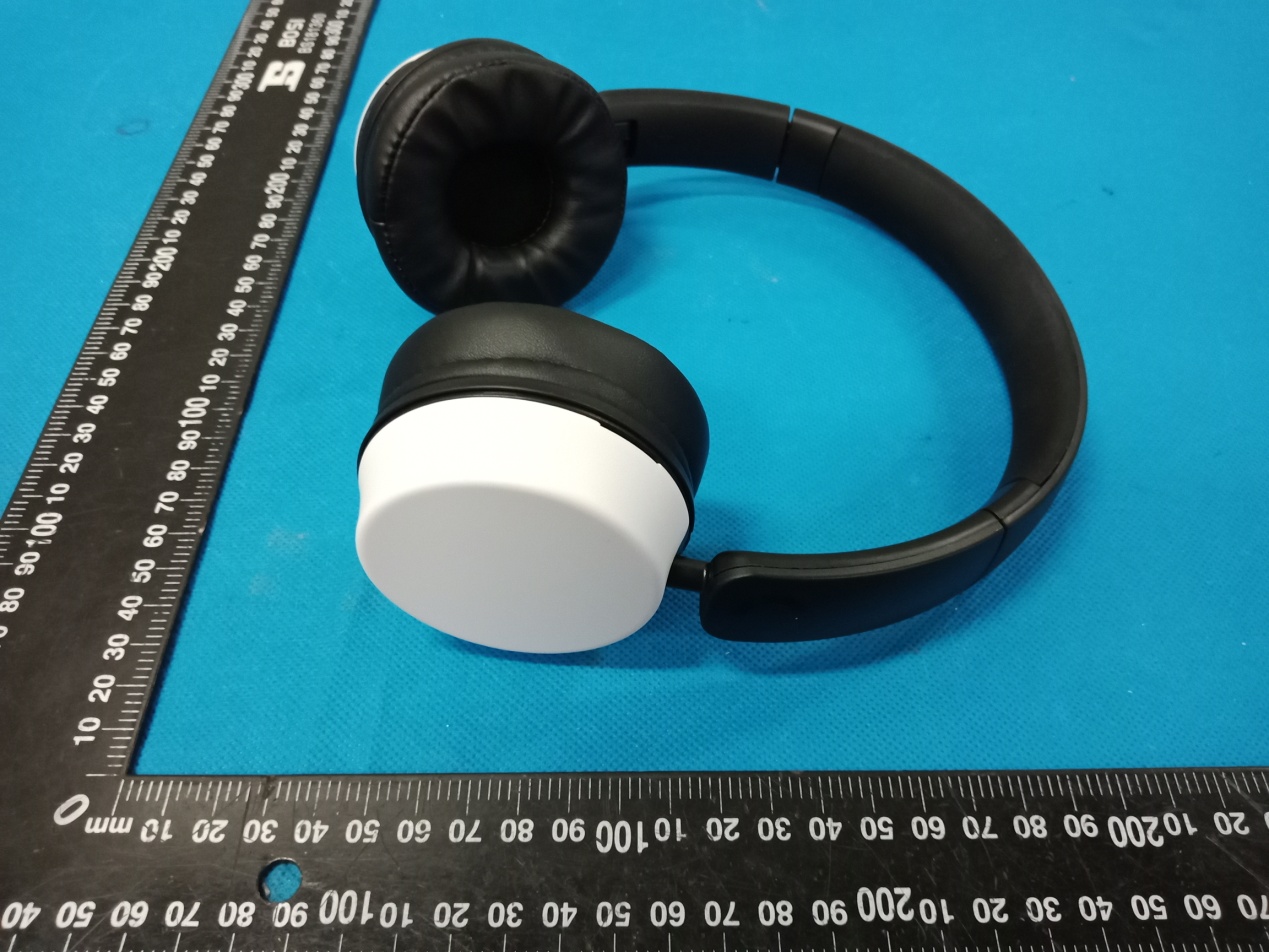

Annex A External Photos Report No.: HK2008172238‐E Page 1 of 3 Report No.: HK2008172238‐E Page 2 of 3 Report No.: HK2008172238‐E Page 3 of 3

FCC ID LABEL: Ca. 5mm x 10mm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: 2AXJ7-MOTHONEAR

Annex B Internal Photo Report No.:HK2008172238-E Page 1 of 3 Antenna Antenna Report No.:HK2008172238-E Page 2 of 3 Report No.:HK2008172238-E Page 3 of 3

FCC RF Exposure EUT Description: Bluetooth Headphone Model No.: Moth On Ear FCC ID: 2AXJ7-MOTHONEAR 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Output power （dBm） Tune Up Power （dBm） Max Tune Up power mW Min test separati on distance mm Result Limit SAR Te s t Exclusio n EDR -2.161 -3±1(-2) 0.631 5 0.199 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2008172238-E antenna gain=0dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.199 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 44 Report No.: HK2008172238-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of MIXX LIMITED For Bluetooth Headphone Model No.: Moth On Ear, AOD1-HP-BK-005, On-Ear1 FCC ID: 2AXJ7-MOTHONEAR Prepared for : MIXX LIMITED Unit 5 The Pavilions Brighton Road, Pease Pottage, RH11 9BJ, United Kingdom Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Aug. 12, 2020 ~ Aug. 19, 2020 Date of Report: Aug. 19, 2020 Report Number: HK2008172238-E Page 2 of 44 Report No.: HK2008172238-E TEST RESULT CERTIFICATION Applicant’s name ................. : MIXX LIMITED Address ................................. : Unit 5 The Pavilions Brighton Road, Pease Pottage, RH11 9BJ, United Kingdom Manufacture's Name ............ : MIXX LIMITED Address ................................. : Unit 5 The Pavilions Brighton Road, Pease Pottage, RH11 9BJ, United Kingdom Product description Trade Mark: N/A Product name ........................... : Bluetooth Headphone Model and/or type reference : Moth On Ear, AOD1-HP-BK-005, On-Ear1 Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Aug. 12, 2020 ~ Aug. 19, 2020 Date of Issue ........................................... : Aug. 19, 2020 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 44 Report No.: HK2008172238-E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 25 3.4. 20DB BANDWIDTH ..................................................................................................................................................... 26 3.5. FREQUENCY SEPARATION ............................................................................................................................................. 29 3.6. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 31 3.7. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 33 3.8. OUT‐OF‐BAND EMISSIONS ............................................................................................................................................ 36 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 41 3.10. ANTENNA REQUIREMENT..........................................…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emissions
