2AXKI-QNC1414.1inch Notebook

Essential Pad QNC14Essential LIGHT DC IN USB USB USB RJ45 HDMI 64 GB ROM + 4 GB RAM 1TB HDD 5400RPM 0.3MP Apollo Lake N3350 1920*1080 IPS 5000 329*217*23mm 1400 g Action Center File Explorer Settings All apps Can let you set up the PC. Can scan more apps. Power Can Sleep/shut down. Notebook FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. o Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Weihejia Electronic Technology Co.,LTD Date: 2020-09-24 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Shenzhen Weihejia Electronic Technology Co.,LTD Hereby declares the following statement for FCC, PCB board, structure and internal of these model(s) are the same, Only models name is different for these models: Product name: 14.1" Notebook Trade Mark: Quasad Model No.: QNC14, N1459, NLT-1400, NLT-1401, WH14U (Signed) Name / Title: Fengyan Zhang/Sales Company: Shenzhen Weihejia Electronic Technology Co.,LTD Address: 11st floor, Taijiale technology Industrial park, Tongguan, Tianliao, Gongming agency, Guangming, Shenzhen 518132 China Phone: 0755-86672202 Fax: 0755-86655045 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-09-24> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID 2AXKI-QNC14 Model name QNC14, N1459, NLT-1400, NLT-1401, WH14U For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name / Title: Fengyan Zhang/Sales Company: Shenzhen Weihejia Electronic Technology Co.,LTD Address: 11st floor, Taijiale technology Industrial park, Tongguan, Tianliao, Gongming agency, Guangming, Shenzhen 518132 China Phone: 0755-86672202 Fax: 0755-86655045 E-Mail: [email protected]

Shenzhen Weihejia Electronic Technology Co.,LTD Add: 11st floor, Taijiale technology Industrial park, Tongguan, Tianliao, Gongming agency, Guangming, Shenzhen 518132 China Date: Sep. 24, 2020 FCC ID: 2AXKI-QNC14 Model Number: QNC14, N1459, NLT-1400, NLT-1401, WH14U To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Weihejia Electronic Technology Co.,LTD, declare that this EUT (FCC ID: 2AXKI-QNC14) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Fengyan Zhang/Sales Company: Shenzhen Weihejia Electronic Technology Co.,LTD Address: 11st floor, Taijiale technology Industrial park, Tongguan, Tianliao, Gongming agency, Guangming, Shenzhen 518132 China Phone: 0755-86672202 Fax: 0755-86655045 E-Mail: [email protected]

Shenzhen Weihejia Electronic Technology Co.,LTD Add: 11st floor, Taijiale technology Industrial park, Tongguan, Tianliao, Gongming agency, Guangming, Shenzhen 518132 China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/09/24 To whom it may concern: We, Shenzhen Weihejia Electronic Technology Co.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AXKI-QNC14 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, (Signed) Name / Title: Fengyan Zhang/Sales Company: Shenzhen Weihejia Electronic Technology Co.,LTD Address: 11st floor, Taijiale technology Industrial park, Tongguan, Tianliao, Gongming agency, Guangming, Shenzhen 518132 China Phone: 0755-86672202 Fax: 0755-86655045 E-Mail: [email protected]

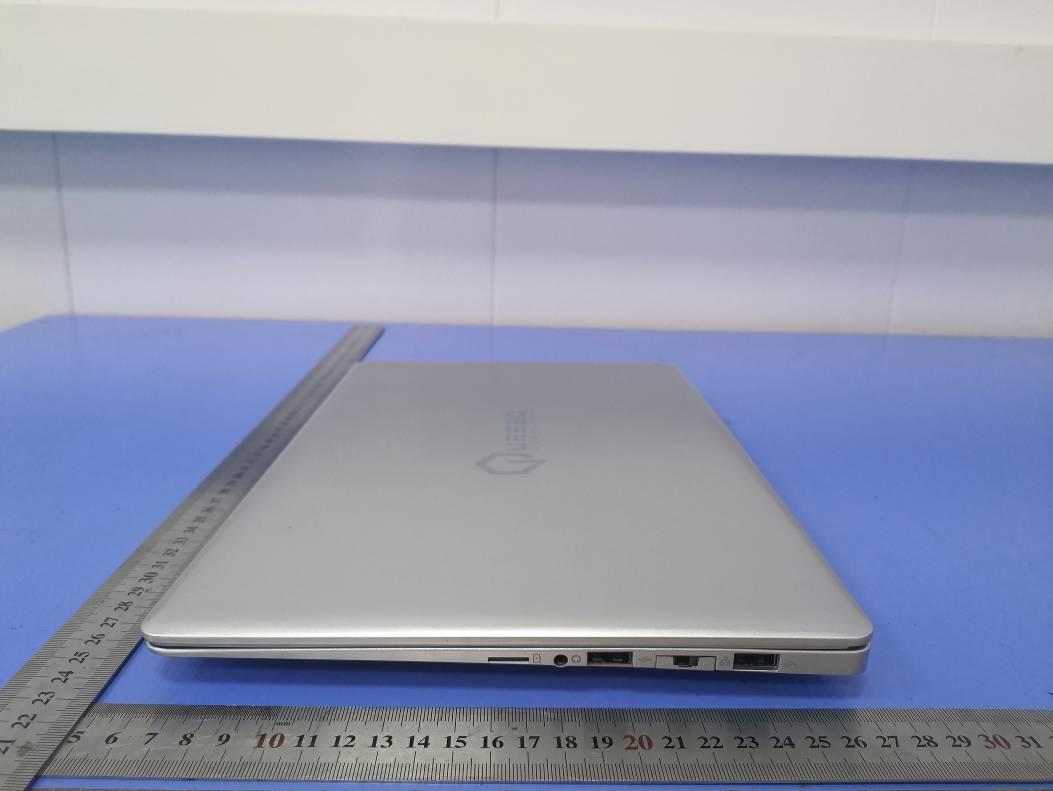

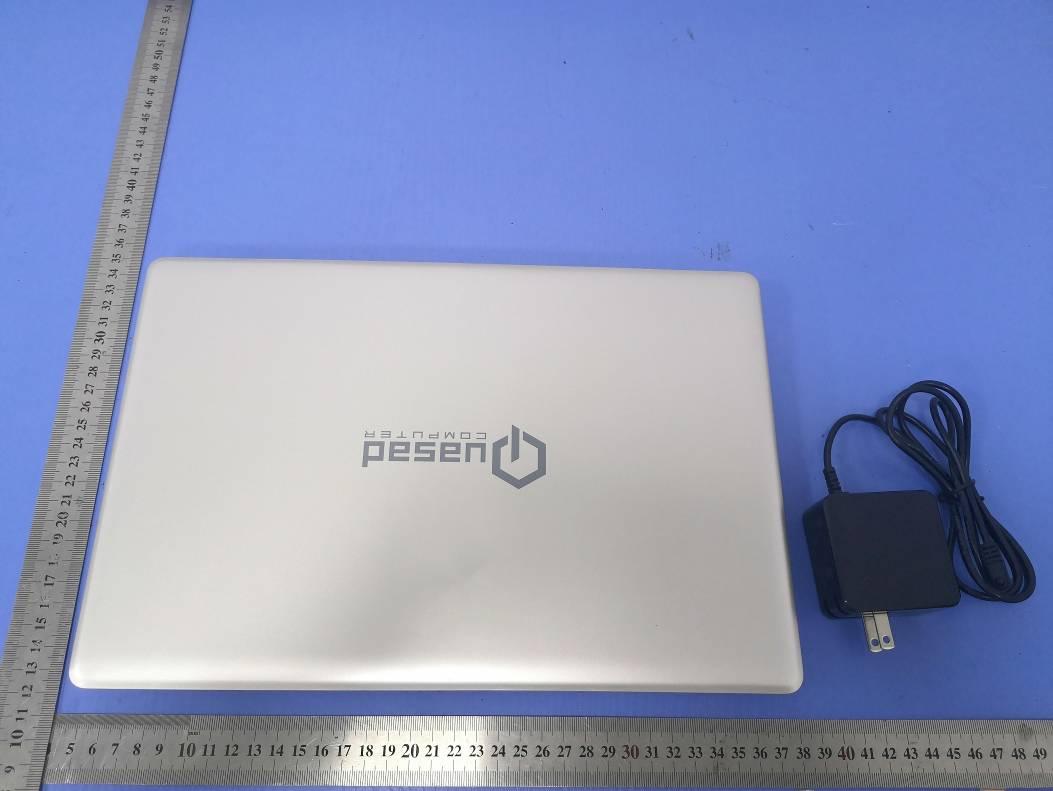

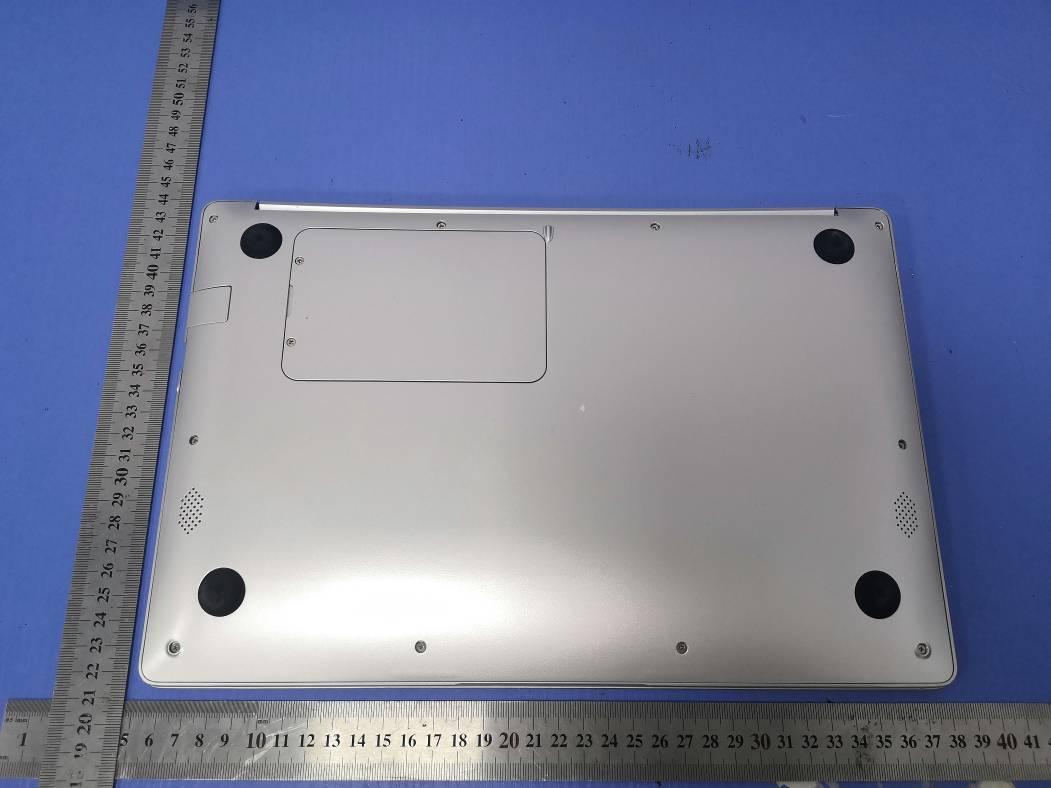

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKI-QNC14 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKI-QNC14 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKI-QNC14 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKI-QNC14 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKI-QNC14 _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L5.0cm x 3.0cm) Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location 14.1" Notebook Model No.: QNC14 FCC ID: 2AXKI-QNC14 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKI-QNC14 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKI-QNC14 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKI-QNC14 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKI-QNC14 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXKI-QNC14 ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXKI-QNC14 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AXKI-QNC14 Product name 14.1” Notebook Model number QNC14 Additional Model No. N1459, NLT-1400, NLT-1401, WH14U Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply DC 7.6V by Rechargeable Li-ion battery (5000mAh) Input: DC 12V/2.0A Frequency Range 2412 – 2462 MHz Channel Number 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) Channel Spacing 5MHz Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Type PIFA Antenna Antenna Gain 2.05 dBi(Max.) Hardware version IP3-AN10B-MB-V11 Software version AN10FV211.22/08/2020 Windows 10 Home Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXKI-QNC14 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results [2.4GWLAN Max Conducted Power] Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) IEEE 802.11b 1 2412 7.36 6 2437 7.02 11 2462 7.21 IEEE 802.11g 1 2412 7.38 6 2437 7.66 11 2462 7.85 IEEE 802.11n HT20 1 2412 8.12 6 2437 7.74 11 2462 7.92 IEEE 802.11n HT40 3 2422 8.17 6 2437 8.13 9 2452 8.07 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXKI-QNC14 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing tolerance 2.4GWLAN IEEE 802.11b (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 7.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 7.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 8.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT40 (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 8.0 8.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results BT Band/Mode f (GHz) Antenna Distance (mm) RF output power SAR Test Exclusion Threshold SAR Test Exclusion dBm mW IEEE 802.11b 2.412 5 8.0 6.3096 1.9598< 3.0 Yes IEEE 802.11g 2.412 5 8.0 6.3096 1.9598< 3.0 Yes IEEE 802.11n HT20 2.412 5 9.0 7.9433 2.4673< 3.0 Yes IEE…
