RIFF U S E R MA N U A L 用戶手冊 WH A T ’S IN THE B O X/盒裝內容 •RIFF Bluetooth speaker RIFF 藍芽喇叭 •USB-C cable USB Type C 充電傳輸線 T U R NI NG ON/ OF F/電源開關 Press the power button on the back of the unit to turn on and off. 按下RIFF背面的電源按鈕，打開與關閉電源。 B L U E T OOTH P A I R I NG/藍芽配對 Tap the Bluetooth button on the top panel to activate pairing. Bluetooth symbol will blink blue. 點擊頂部面板上的藍芽按鈕，進入配對模式，藍芽LED訊號將閃 爍藍色。 On your Bluetooth audio device, go to Bluetooth settings and select “Fender RIFF ”. Once connected, the Bluetooth LED will turn remain solid blue. 在您的藍芽影音設備上，進入藍芽設置，並選擇“Fender RIFF ” 一旦連接成功，藍芽LED訊號將穩定停留在藍色。 P A R T Y MOD E/派對模式 Agent (Broadcast) unit: Tap the Link symbol on the top panel to activate party mode. Agent設備(主喇叭): 點擊頂部面板上的連接符號，進入配對模式 Client (Receiver) unit: Turn on the unit, then touch and hold the link symbol on the top panel for 3 seconds. Client設備(其他連接至主喇叭之喇叭): 開啟設備，接著按住頂部面板上 的連接符號持續3 If pairing more than 1 Client to Agent unit, continue to connect all Client units to Agent unit before starting audio streaming to Agent unit. 如果配對一個以上的Client設備，請將所有的Client設備連接到Agent設備， 才可開始將影音串流至Agent設備。 An audio cue will play when Agent and Client unit(s) are successfully connected. 當Client設備與Agent設備成功連接時，將會有聲音提示。 To exit party mode; Unlink all - Touch and hold the Link symbol on Agent unit for 2 seconds. Unlike client – Touch and hold the Link symbol on the client unit to unlink for 2 seconds. P A R T Y MOD E (CONT I N U E D )/派對模式 退出派對模式 結束所有連結 – 按住Agent設備上的連接符號持續兩秒，以取消所有連結。 結束client連結 – 按住client設備上的連接符號持續兩秒，以取消連結。 V OL U ME C ONT R OL/音量控制 To increase volume, slide finger across touch panel to the right, or tap the + symbol. An audio cue will be played when the max level i s reached. 提升音量: 在觸控面板上手指向右滑動，或是點擊 “+”符號可以 提升音量。當音量調至最大時，將有聲音提示。 To decrease volume, slide finger across touch panel to the left, or tap the - symbol. An audio cue will be played when the min level isreached. 降低音量: 在觸控面板上手指向左滑動，或是輕觸 “-”符號 可以降低音量，當音量調至最小時，將有聲音提示。 E Q C ONT R OL( B A S S / T R E B L E )/均衡器控制(低音/高音) To increase Bass / Treble EQ, slide finger across touch panel to the right, or tap the + symbol. An audio cue will be played when the max level is re ached. 增加低音 / 高音 : 在觸控面板上手指向右滑動，或是輕觸 “+”符號，當調至最大級 別時，將有聲音提示。 To decrease Bass / Treble EQ, slide finger across touch panel to t he left, or tap the - symbol. An audio cue will be played when the min level is re ached. 增加低音 / 高音 : 在觸控面板上手指向左滑動，或是輕觸 “-”符號，當調至最小級別 時，將有聲音提示。 To reset Bass / Treble to middle, touch and hold the Treble or Bass words for 5 seconds. An audio cue will be played when successful. 重置低音 / 高音於中音: 按住” Treble” 或”Bass”持續五秒鐘，重置成功時，將有聲音 提示。 G U I T A R MODE/吉他模式 S T A ND A R D/標準 You can play your guitar through the RIFF with a standard guitar cable (3/4” plug). 您可以透過標準吉他導線(3/4”plug)使用RIFF彈奏吉他。 H IGH G A I N/增益 If your guitar volume is too low (i.e. if your guitar is passive), touch and hold “Volume” for 5 seconds to activate high gain mode. 如果您的吉他音量太低，按住”Volume”持續五秒，啟動high gain模式 Touch and hold “Volume” for 5 seconds to exit high gain mode. 按住”Volume”持續五秒，退出high gain模式。 P L A Y I NG A L ONG WIT H MUSI C 與音樂一起彈奏 Ja m along with your tunes easily; with your guitar plugged in, you can pair with your Bluetooth device as per normal. Volume of the B luetooth signal (e.g. music) is controlled via the Bluetooth device. Guitar volume is controlled via the RIFF touch panel. 插上您的吉他後，可以像前述所提及的正常地與您的藍芽設備配對。藍芽 訊號的音量(例如背景音樂)是由藍芽設備進行控制；吉他音量而是透過 RIFF觸控面板進行控制，簡單輕鬆地結合曲調進行即興演奏。 G U I T A R MODE (CONTINU E D )/吉他模式 C H A R GING/充電 You can charge the RIFF via the USB C port at the back of the unit. 您可以透過設備背面的USB Type C埠，為RIFF充電。 V OI C E CALL S/通話 RIFF has built-in micro phones that allows it to function as a speakerphone. RIFF具有內置麥克風，可做免持話筒使用。 M U LT I - P OINT/多音源連接 Tap the Bluetooth button to connect with first source. Tap the Bluetooth button again to connect with the second source. Both sources are now connect to the RIFF. 點擊藍芽按鈕連接第一個聲音來源裝置，再次點擊藍芽按鈕 連接第二個聲音來源裝置，此時兩個聲音來源裝置均可同時 連接到RIFF A U T O-EQ (ROOM C OR R ECTION)/自動均衡器 To begin the Auto-EQ please launch the Riff app and select the A uto-EQ function. 要進行Auto-EQ，請打開Riff應用程式(APP)並啟動Auto-EQ功能。 Step 1: Hold your device with the mic pointing directly at the speaker, about 12 in (30 cm) from the front of the speaker and tap t he Start Tuning button. 將您的設備麥克風直接面向喇叭，距離喇叭正面約12英吋(30)，然後點擊 ”Start Tuning”按鈕。 Step 2: Once step 1 is complete, go to your usual listening position, hold the device with the mic pointing to the speaker and tap the Start Tuning button again. 一旦完成第一個步驟，可以回到習慣收音的位置，將您的設備麥克風面向喇叭，然後 再次點擊” Start Tuning”按鈕。 A U T O- E Q (CONTINU E D )/自動均衡器 Step 3: Tuning is now complete and the app will ask you to select your preferred Bass and Treble EQ profile. Once selected, the Auto-EQ process is complete. 如此調音便完成，應用程式(APP)將會請您選擇您喜愛的低音和 高音均衡器配置(EQ profile)。完成選擇後，自動均衡器設置即 完成。 R IFF A P P The RIFF app has these functions: 有這些功能 • Tone adjustment - slide to adjust Volume, Treble and Bass levels. 音調調整 – 滑動以調整音量、高音與低音級別。 • Gui tar mix adjustment - slide to adjust balance of volume b etween Guitar and Bluetooth signals. 吉他混音調整 – 滑動以調整吉他與藍芽訊號之間的音量平衡。 • Au to-EQ – Auto adjusts the overall EQ of the RIFF to suit the acoustics of the room that it is placed in. 自動均衡器 – 自動調整RIFF整體EQ以適配室內的聲響效果。 Important safety instructions The applied nameplate is located at the bottom or near of the product. to avoid replacement of a battery with an incorrect type don't disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a Battery. on’t leaving a battery in an extremely high temperature surrounding environment to avoid battery subjected to extremely low air pressure. FCC Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. these limits are designed to provide reasonable protection against …

Text truncated - open the document above for the full version.

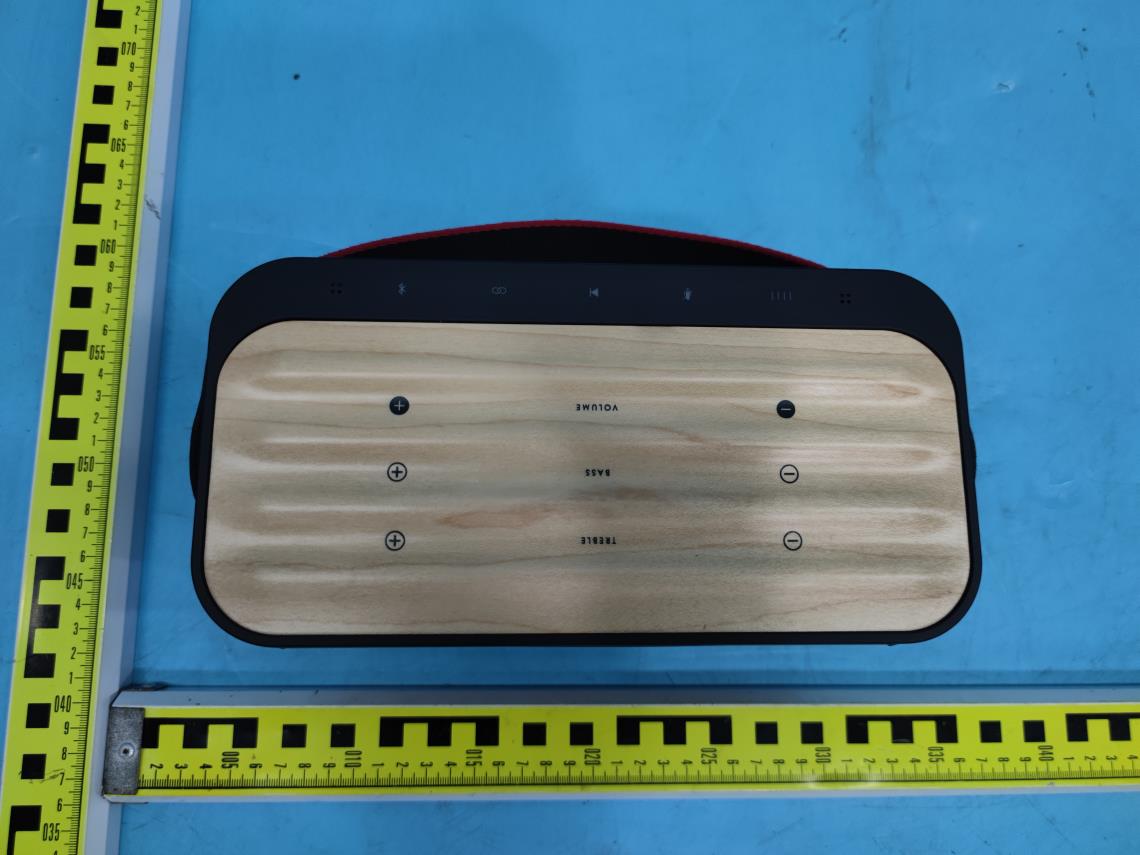

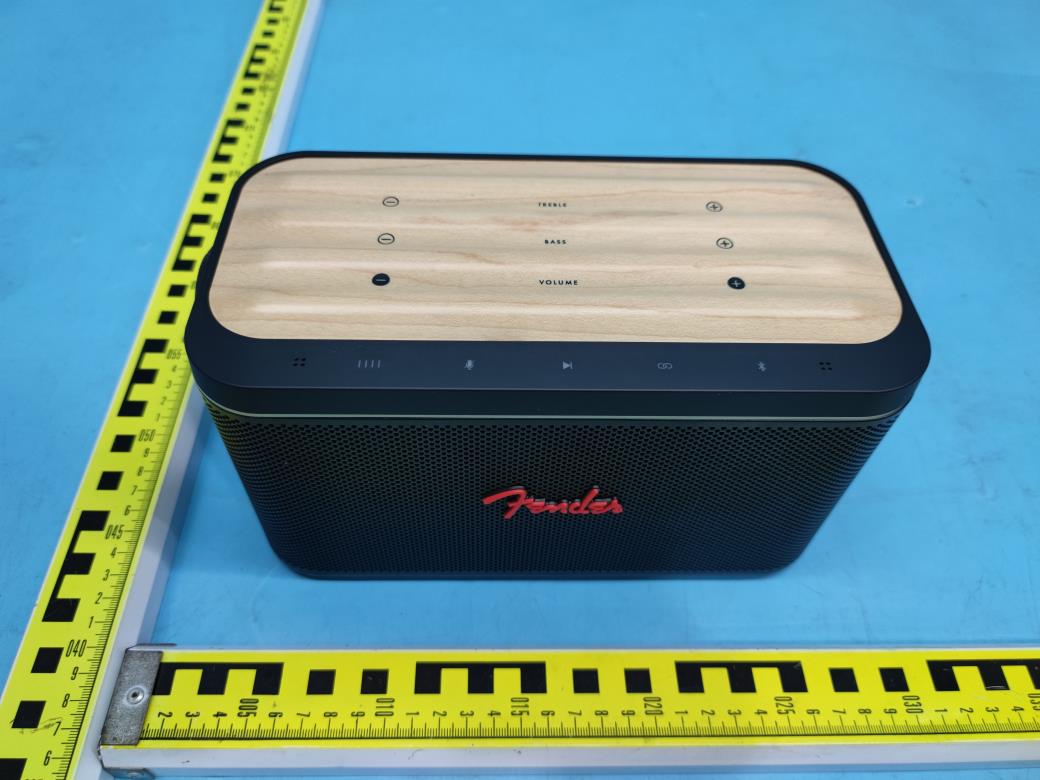

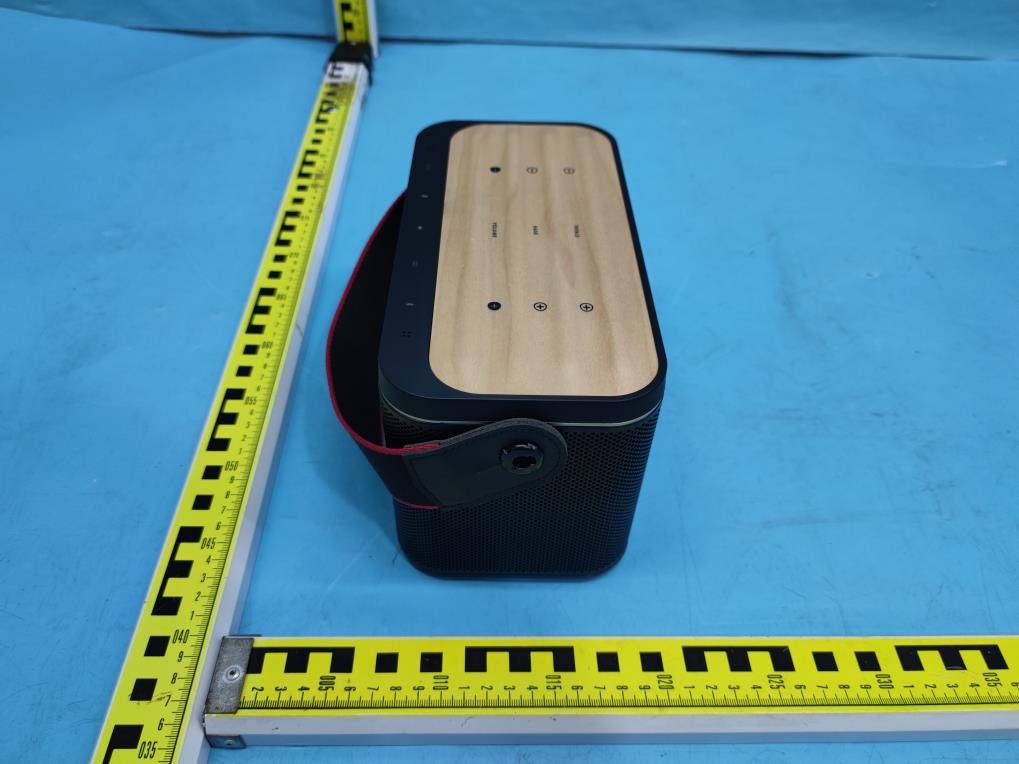

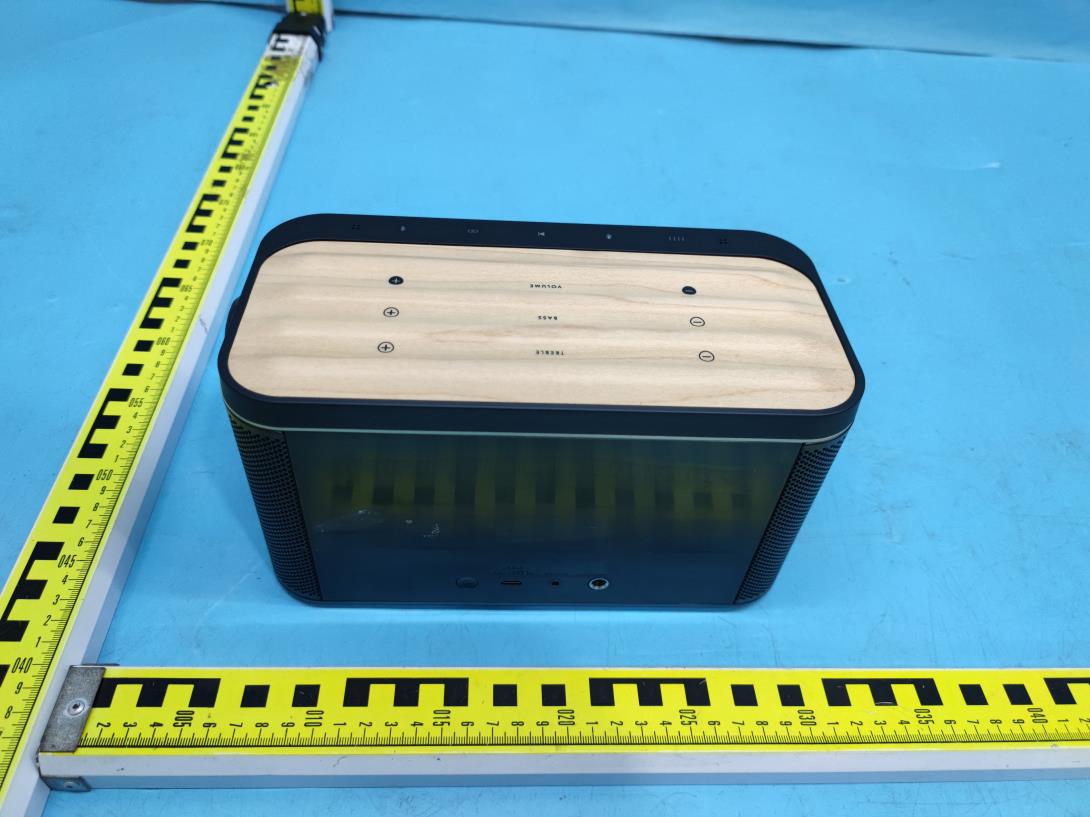

Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 1 of 4 Project No.: 220805EL02-02 External EUT Photo Test models: RIFF Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 2 of 4 Project No.: 220805EL02-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 3 of 4 Project No.: 220805EL02-02 Lab: Hwa-Hsing (Dongguan) Testing Co., Ltd. Address: No.101, Bld N1, Yuyuan 2Rd, Yuyuan Industrial Park, HuangJiang Town, Dongguan, China Tel: 0769-83078199 Web.: www.hwa-hsing.com E-Mail: [email protected] Release Ver. 1.5 Page 4 of 4 Project No.: 220805EL02-02 -End-
