2AXLP-WINCHECKS2WinCheck S2

WinCheck™ S2 Service Manual 90-230071-01 Baseline WinCheck™ S2 July 2023 Technology Training and Support Services 10 Memorial Boulevard, Providence, RI 02903 USA WinCheck™ S2 - Service Manual Warranty Information in this document is subject to change without notice and does not represent a commitment on the part of IGT, a wholly owned subsidiary of IGT. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose other than the purchaser's personal use without written permission of IGT. Nothing contained in this document shall be construed as a warranty. The warranty, if any, for a product shall be contained in the contract with IGT for the purchase, lease or license of the product. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, ARE HEREBY DISCLAIMED. IN NO EVENT SHALL IGT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF USE, REVENUE OR PROFITS. Hardware Warning! The following servicing instructions and/or information is for use by QUALIFIED PERSONNEL ONLY. Third-Party Trademarks All other trademarks and registered trademarks are the property of their respective owners, without intent to infringe. Hardware Trademark and Copyright Information © 2023 IGT. All rights reserved. Certain trademarks and/or service marks used herein are the property of their respective third party owners. The use of such marks herein is for identification purposes only, and does not imply an endorsement by IGT of the mark owner, or vice-versa, or that such mark owner has authorized IGT to promote its products and/or services. Contact Information IGT 10 Memorial Boulevard Providence, Rhode Island 02903 1-401-392-1000 IGT Support 1-866-777-8448 We Appreciate Your Ideas! Help the IGT team hit the jackpot. Please send your feedback to [email protected] Give it to us straight – We appreciate your input. 2WinCheck™S2 Table of Contents Chapter 1 Introduction5 Overview5 Product Notes for Field Services6 Controller Board6 3.5" LCD/Capacitive Touchscreen6 Audio Indicator6 2D Barcode Scanner6 Environmental Specification7 Electrical Specification8 Communications Specification8 Mechanical Specification8 External Ports9 Chapter 2 Installation11 Counter-Mount Installation11 Wall-Mount Installation14 Chapter 3 Diagnostics17 Required Equipment for the USB Method17 Diagnostics Tests17 Device Information19 Peripheral Test19 Configuration20 Firmware update from USB21 *** Reboot ***22 Chapter 4 Download23 Downloading WinCheck S2 Firmware Using Terminal Diagnostics23 Downloading WinCheck S2 Firmware Using WinCheck S2 Standalone Diagnostics23 Chapter 5 Configuration25 Wired Configuration26 Wireless Configuration26 Multiple Counter-Top Terminals in Same Location - Wireless Configuration27 Chapter 6 Operation31 Chapter 7 Hardware33 Required Tools34 Removing the Main Controller Board34 Removing the Barcode Scanner Engine36 Removing the LCD Assembly37 Chapter 8 Troubleshooting39 Troubleshooting Techniques—The Seven-Step Troubleshooting Method39 Step One: Identify the Problem39 Step Two: Determine Related Symptoms40 Step Three: Analyze the Symptoms40 Step Four: Isolate the Problem41 Step Five: Correct the Problem42 Step Six: Verify the Correction42 WinCheck™S23 Step Seven: Document the Process42 Troubleshooting Worksheet43 General Troubleshooting45 Chapter 9 Preventive Maintenance49 Cleaning Materials49 External Cleaning49 When You Are Finished49 Chapter 10 Handling Precautions51 What is ESD?51 Becoming “Static Safe”51 ESD-Induced Failure Modes52 Radiated Electromagnetic Fields52 Conducted Charges52 Typical Symptoms of ESD Damage52 Common False Assumptions Concerning ESD52 ESD Precautions Checklist53 Recommended Devices53 Precautionary Practices53 Recommended Handling - Example54 Proper Grounding Technique54 IGT Manufacturing Specification55 Packaging55 General Packaging Procedures55 Chapter 11 Diagrams57 Chapter 12 Spare Parts and Tools59 Chapter 13 Product Safety & Approvals61 Safety Instructions61 Model Rating Label62 FCC62 FCC Radiation Exposure Statement62 Industry Canada63 European Union63 Wireless Device Option63 4WinCheck™S2 Chapter 1 Introduction Overview The WinCheck™ S2 is IGT's next generation customer ticket checker and optionally as a digital play device ([[[Undefined variable Ticket_Scan_Plus.CC Product]]]). The device consists of an integrated barcode scanner and LCD touchscreen player display. l As a customer ticket checker, players may check their printed ticket for a winning status by placing the ticket in view of the barcode scanner to scan the barcode. l As a digital play device, players additionally may check their printed tickets as described above. The WinCheck S2 connects to a retailer terminal, either wired via a Netgear router or wireless via Wi-Fi card mounted on the counter-top terminal's motherboard, which in turn communicates with the host system. Status messages are communicated from the host through the retailer terminal and to the WinCheck S2 to be displayed to the player. Up to three (3) devices can be connected to each retailer counter-top terminal. Figure 1-1 WinCheck S2 with Optional Counter Mount WinCheck™S25 Chapter1 Introduction The WinCheck S2 includes the following components: l 2D Barcode Scanner (Zebra SE4107) l 3.5" LCD Capacitive Touchscreen Display l Controller Board l Audio Indicator l Wired Communications Options include: l WiFi Communications Product Notes for Field Services The WinCheck S2 serial number prefix indicates the mechanical configuration of the devices and what they are used for. The WinCheck S2 has serial number prefixes of: l WB meaning you can only connect using a Wired/Ethernet cable. l WW meaning you can connect either by Wired/Ethernet or a Wi-Fi connection. Controller Board The 51-XXXX-01E is the c…

Text truncated - open the document above for the full version.

International Game Technology Covered Equipment Certification Attestation Letter Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AXLP-WINCHECKS2 International Game Technology (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. International Game Technology (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Justin Johnson Title: Test Engineer Company Name: International Game Technology Date: 2023-08-08

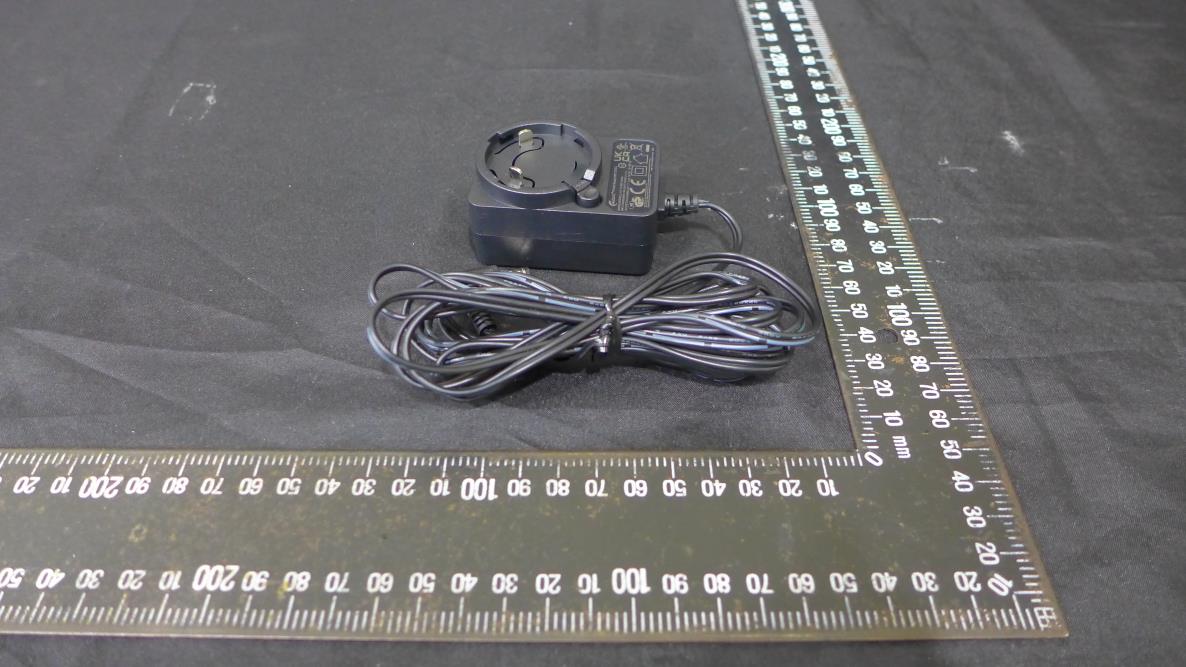

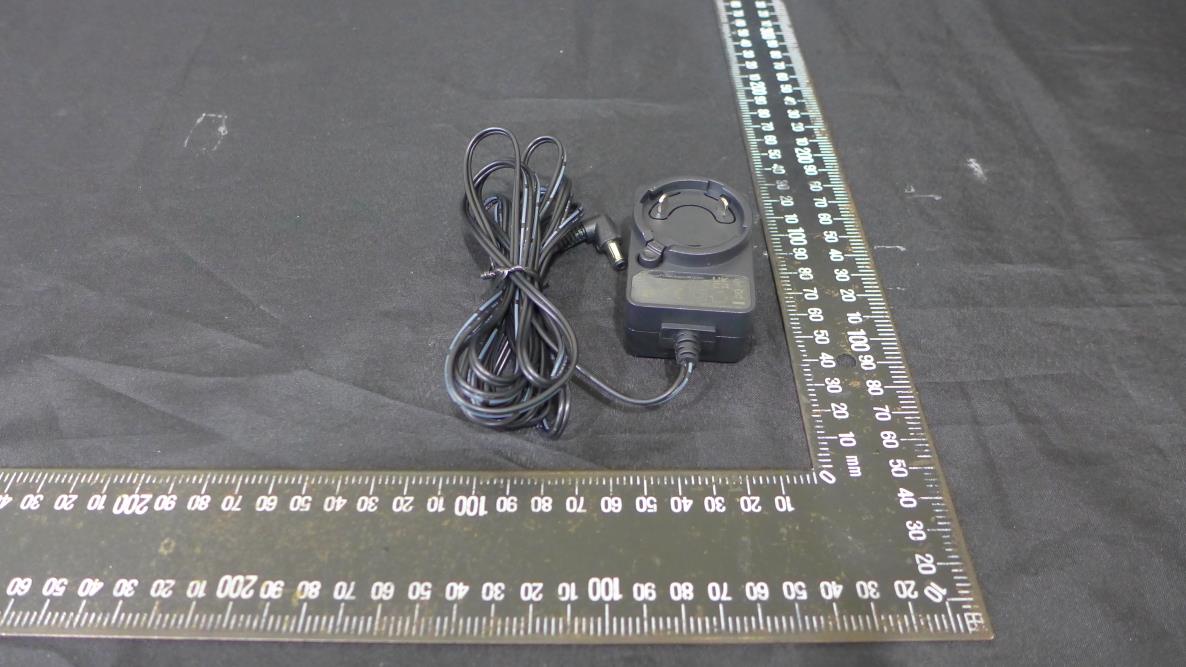

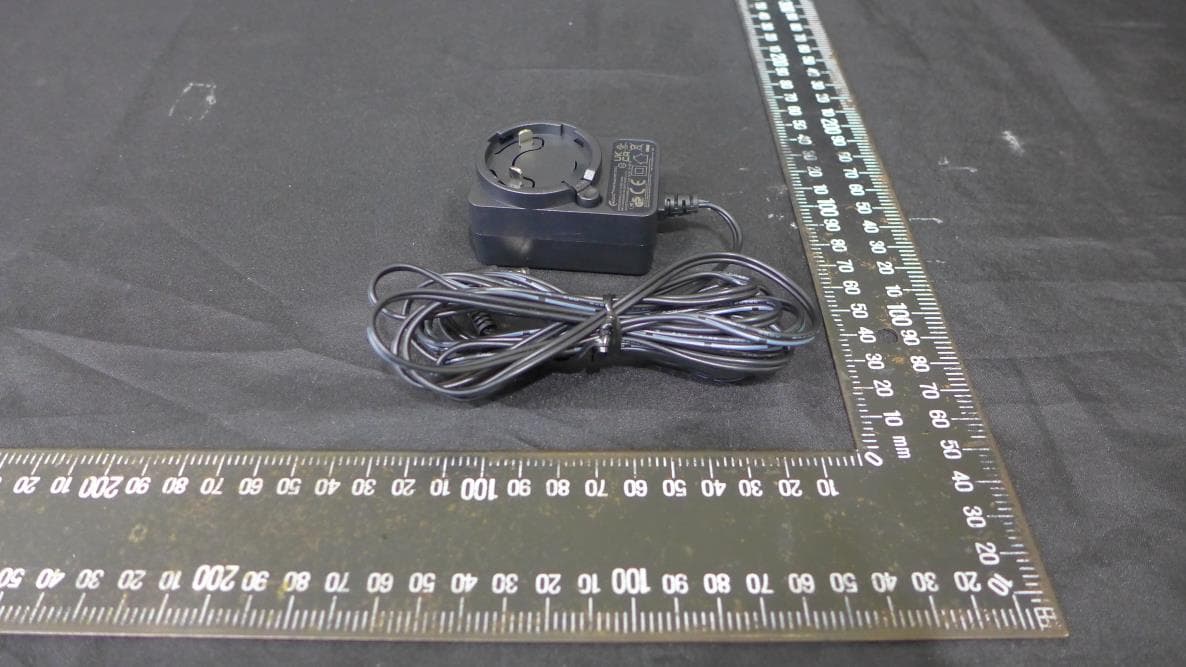

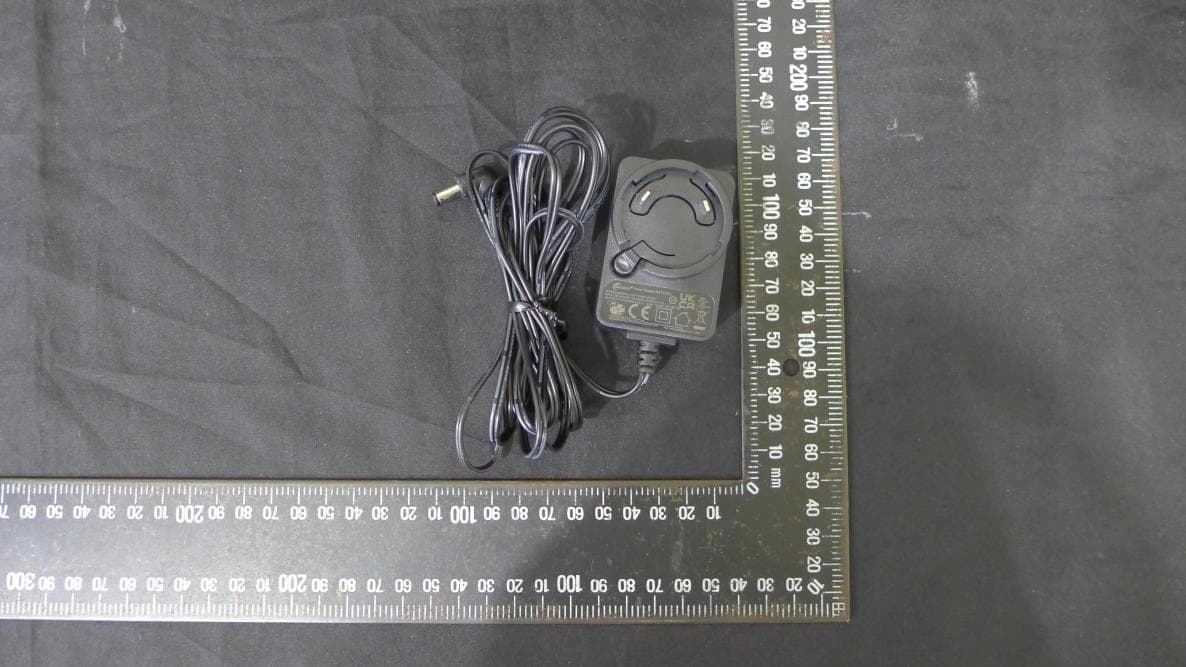

Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 1 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 2 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 3 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 4 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 5 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 6 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 7 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 8 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 9 of 19

Label Location :

Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 10 of 19 NFC Antenna Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 11 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 12 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 13 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 14 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 15 of 19 Wi-Fi/BT Antenna Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 16 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 17 of 19 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 18 of 19 RF IC: RTL8821CU1 Appendix No.: EP-2210T119-3 APPENDIX-EUT PHOTOS Project No.: 2210T119 Page 19 of 19 RF IC: PN5190

Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 1 of 9 Report Version: R00 FCC RF Exposure Report FCC ID: 2AXLP-WINCHECKS2 Report No. : BTL-FCCP-1-2210T119 Equipment : WinCheck™S2 Model Name : WinCheck™S2 Brand Name : IGT Applicant : International Game Technology Address : 9295 Prototype Drive, Reno, NV Standard(s) : 47 CFR § 2.1091 FCC Guidelines for Human Exposure IEEE C95.1 Date of Receipt : 2022/11/17 Date of Test : 2022/11/29 ~ 2023/6/28 Issued Date : 2023/7/17 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Eddie Lee, Engineer Approved by : Jerry Chuang, Supervisor BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 2 of 9 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 3 of 9 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2210T119 R00 Original Report. 2023/7/17 Valid Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 4 of 9 Report Version: R00 1. LIMITS According to § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 8 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit for occupational/controlled exposure is 20 W/kg, averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). Exposure may be averaged over a time period not to exceed 6 minutes to determine compliance with occupational/controlled SAR limits. (c) The SAR limits for general population/uncontrolled exposure are 0.08 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 1.6 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit is 4 W/kg, averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). Exposure may be averaged over a time period not to exceed 30 minutes to determine compliance with general population/uncontrolled SAR limits. (e) Limits for Maximum Permissible Exposure (MPE) to radiofrequency electromagnetic fields (Table 1). Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (i) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1.500 f/300 <6 1.500-100.000 5 <6 (ii) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1.500 f/1500 <30 1.500-100.000 1.0 <30 f = frequency in MHz. * = Plane-wave equivalent power density. Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 5 of 9 Report Version: R00 2. APPLIED EXEMPTION CRITERIA Refer to KDB 447498 D04, ticked item is applied: For RF Exposure Test Exemptions for Single Source: ☒ 1-mW Test Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. Th…

Text truncated - open the document above for the full version.

碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. Z X Y 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. Dual Band Test DataEfficiency (%)Peak Gain (dBi) 2400-1.8 66.2 4.5 2450-0.7 85.6 5.8 2500-1.3 74.0 5.2 5150-1.9 64.5 3.5 5250-1.4 72.2 4.5 5350-2.0 63.7 4.0 5470-1.8 66.7 3.7 5600-1.8 65.8 4.5 5725-1.6 68.9 5.0 5785-1.6 70.0 5.2 5850-1.2 76.1 5.6 -7.0 -6.0 -5.0 -4.0 -3.0 -2.0 -1.0 0.0 24002450250051505250535054705600572557855850 Dual Band Antenna 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. 碧擎科技有限公司 Bi Qing Technology Co., Ltd. Thank You!

Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 1 of 116 Report Version: R00 FCC Radio Test Report FCC ID: 2AXLP-WINCHECKS2 Report No. : BTL-FCCP-1-2210T119 Equipment : WinCheck™S2 Model Name : WinCheck™S2 Brand Name : IGT Applicant : International Game Technology Address : 9295 Prototype Drive, Reno, NV Radio Function : WLAN 2.4 GHz FCC Rule Part(s) : FCC CFR Title 47, Part 15, Subpart C (15.247) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2022/11/17 Date of Test : 2022/11/29 ~ 2023/6/28 Issued Date : 2023/7/17 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Eddie Lee, Engineer Approved by : Jerry Chuang, Supervisor BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 2 of 116 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 3 of 116 Report Version: R00 CONTENTS REVISION HISTORY 5 1 SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 8 1.4 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 8 1.5 DUTY CYCLE 9 2 GENERAL INFORMATION 10 2.1 DESCRIPTION OF EUT 10 2.2 TEST MODES 11 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 2.4 SUPPORT UNITS 13 3 AC POWER LINE CONDUCTED EMISSIONS TEST 14 3.1 LIMIT 14 3.2 TEST PROCEDURE 14 3.3 DEVIATION FROM TEST STANDARD 14 3.4 TEST SETUP 15 3.5 TEST RESULT 15 4 RADIATED EMISSIONS TEST 16 4.1 LIMIT 16 4.2 TEST PROCEDURE 17 4.3 DEVIATION FROM TEST STANDARD 17 4.4 TEST SETUP 17 4.5 EUT OPERATING CONDITIONS 18 4.6 TEST RESULT – BELOW 30 MHZ 19 4.7 TEST RESULT – 30 MHZ TO 1 GHZ 19 4.8 TEST RESULT – ABOVE 1 GHZ 19 5 BANDWIDTH TEST 20 5.1 LIMIT 20 5.2 TEST PROCEDURE 20 5.3 DEVIATION FROM TEST STANDARD 20 5.4 TEST SETUP 20 5.5 EUT OPERATING CONDITIONS 20 5.6 TEST RESULT 20 6 OUTPUT POWER TEST 21 6.1 LIMIT 21 6.2 TEST PROCEDURE 21 6.3 DEVIATION FROM TEST STANDARD 21 6.4 TEST SETUP 21 6.5 EUT OPERATING CONDITIONS 21 6.6 TEST RESULT 21 7 POWER SPECTRAL DENSITY 22 7.1 LIMIT 22 7.2 TEST PROCEDURE 22 7.3 DEVIATION FROM TEST STANDARD 22 7.4 TEST SETUP 22 7.5 EUT OPERATING CONDITIONS 22 Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 4 of 116 Report Version: R00 7.6 TEST RESULT 22 8 ANTENNA CONDUCTED SPURIOUS EMISSIONS TEST 23 8.1 LIMIT 23 8.2 TEST PROCEDURE 23 8.3 DEVIATION FROM TEST STANDARD 23 8.4 TEST SETUP 23 8.5 EUT OPERATING CONDITIONS 23 8.6 TEST RESULT 23 9 LIST OF MEASURING EQUIPMENTS 24 10 EUT TEST PHOTO 26 11 EUT PHOTOS 26 APPENDIX A AC POWER LINE CONDUCTED EMISSIONS 27 APPENDIX B RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 32 APPENDIX C RADIATED EMISSIONS - ABOVE 1 GHZ 35 APPENDIX D BANDWIDTH 92 APPENDIX E OUTPUT POWER 101 APPENDIX F POWER SPECTRAL DENSITY 103 APPENDIX G ANTENNA CONDUCTED SPURIOUS EMISSIONS 108 Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 5 of 116 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2210T119 R00 Original Report. 2023/7/17 Valid Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 6 of 116 Report Version: R00 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions APPENDIX A Pass ------ 15.205 15.209 15.247(d) Radiated Emissions APPENDIX B APPENDIX C Pass ------ 15.247(a) Bandwidth APPENDIX D Pass ------ 15.247(b) Output Power APPENDIX E Pass ------ 15.247(e) Power Spectral Density APPENDIX F Pass ------ 15.247(d) Antenna conducted Spurious Emission APPENDIX G Pass ------ 15.203 Antenna Requirement ------ Pass ------ NOTE: (1) ”N/A” denotes test is not applicable in this Test Report. (2) The report format version is TP.1.1.1. Report No.: BTL-FCCP-1-2210T119 Project No.: 2210T119 Page 7 of 116 Report Version: R00 1.1 TEST FACILITY The test locations stated below are under the TAF Accreditation Number 0659. The test location(s) used to collect the test data in this report are: No. 68-1, Ln. 169, Sec. 2, Da…

Text truncated - open the document above for the full version.

Appendix No.: TP-2210T119-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2210T119 Page 1 of 6 AC Power Line Conducted Emissions test photos Appendix No.: TP-2210T119-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2210T119 Page 2 of 6 Radiated emissions test photos 9 kHz to 30 MHz Appendix No.: TP-2210T119-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2210T119 Page 3 of 6 Radiated emissions test photos 30 MHz to 1 GHz Appendix No.: TP-2210T119-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2210T119 Page 4 of 6 Radiated emissions test photos 30 MHz to 1 GHz NFC Appendix No.: TP-2210T119-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2210T119 Page 5 of 6 Radiated emissions test photos Above 1 GHz Appendix No.: TP-2210T119-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2210T119 Page 6 of 6 DFS test photos
