UserManual SCFD-1EU SCFD-1US SCFD-1AU SCFD-1JP SMART CONSTRUCTION FleetDevice 1.Greetings Thank you very much for purchasing the “SCFD-1” (hereinafter referred to as “this product”). Please read this manual before using to ensure correct use. 2.Beforeusingthisproduct (please be sure to read this manual) Please read the "Safety Precautions" and "Disclaimer" in this manual before using this product to ensure proper use. ➢See pages 2 & 3 1 3.Safety Precautions Please read these "Safety Precautions" before use to ensure correct use. It explains what you must do to prevent harm to people and damage to property. Warning Thereisariskofdeathorseriousinjury. Caution There is a risk of minor injury or property damage. ProhibitionShould not be done. InstructionMustexecute this content. Warning •Do not disassemble or modify the product. •Do not get it wet with water or other liquids. •Do not touch with hands covered with sand or water. •Do not apply excessive shock or vibration. •Do not damage cables or car chargers. •Do not operate this product while driving. •In case of malfunction or failure, turn off the power immediately. Caution •Do not use the product in a damaged state. •Do not dispose of it with ordinary trash. •Whenusing in a car, please check with the manufacturer or distributor about the effects of radio waves. •In places where the specs of devices using radio waves are restricted, such as medical facilities and public transportation, follow the instructions of the administrator. 2 ◼It classifies and explains the degree of harm and damage that could caused by misuse. ◼Thefollowingsymbolsandpictographs need to follow. 4.Disclaimer •The Company shall not be liable for any damage caused by external cause such as lightning, wind, flood, fire, or acts of a third party other than our responsibility, or other accidents, or by the customer's intentional or negligent use, misuse or other abnormal conditions. •The Company shall not be liable for any incidental damage (such as loss of change in content, loss of business profits, business interruption, etc.) arising from the use or inability to use this product. •The Company shall not be liable for any loss or damage caused by failure to observe the contents of this manual. •Communication is not possible in places where there is no signal, such as underground, even in LTE service areas. Communication may also be unavailable in places with poor reception. •In environments where it is difficult to capture GNSS satellites (e.g., indoors), the accuracy of the location information might be poor, or the location information may not be acquired. •If you use this module to commit a defective act that is extremely disturbing to the public, you may be punished in accordance with the laws and ordinances (such as anti-nuisance ordinances). •Please dispose of this product in accordance with the instructions of the municipality where it is collected. •The contents of this product and manual are subject to change without notice. We reserve the right to make changes in this product and the manual without notice. ※The term “Company" in this document refers to the following company. LandLogLtd. 3 5.Nameandhowtoconnecteachpart FollowthestepsbelowtoconnectSCFD-1mainunit,USBcableand thecar charger. ①Insert the Type-A terminal of the USB cable into the car charger ②Insert the Type-B terminal of the USB into the main unit. Car Charger SCFD-1Main unitUSBCable Micro Type-B Terminal Type-A Terminal LEDLamp 6.How LED Lamp glows When this product is turned ON/OFF, it glows as follows: •OFF・・・・・・PowerOFF •Whitelight・・・PowerON •Blinking white・・・Software update After the power is turned on, it lights up as follows depending on the status of the product. •Blue・・LTE range and GNSS positioning is complete •Orange・・LTE range but GNSS positioning Is not complete •Purple・・Out of LTE range, but GNSS is in position •Red・・Out of LTE range and GNSS positioning is not completed 4 7.Installationtothevehicle Follow the steps below to install it in your vehicle. ①Cleaning the inside of the cigar socket Clean the inside of the cigar socket before installing this product. Make sure that the inside of the cigar socket is cold before removing any dust or debris from the cigar socket. If the inside of the cigar socket is dirty, it may cause poor contact or fire. ②Installation of the main unit Install and fix this product firmly on the dashboard in the correct orientation as shown in the installation example below. If it is not fixed firmly, it may cause the product to jump out of the dashboard due to vibration or shaking. ③Inserting into a cigar socket Make sure to insert the cigar charger of this product to the cigar socket securely. If it is not inserted securely, it may cause poor contact or fire. ④Activationofthisproduct After the installation of this product is completed, start the vehicle's engine and confirm that the LED lamp of this product lights up and this product has started. Main Unit Dashboard （Installation example） (Topview) Frontside Cautions •Please install in accordance with your local regulations •Read the owner's manual of the vehicle and install it in accordance with safety precautions. 5 8.Ifyouneedhelp Please check the following items. •IfthepowerdoesnotturnON •Make sure that the USB cable is securely connected. •Make sure the vehicle's cigar socket is not dirty or rusty. If there is dirt or rust on it, remove it. •If the location information is not correct •The location information obtained from GNSS has a different error range depending on the measurement environment. If the error range is continuously large, move to an area with a better measurement environment (open sky) before turning on the power. •If location information is not available •If the LED lamp is out of LTE range or the GNSS location environment is poor, move to LTE coverage range and then turn on the power again. •Check the mounting position of the product body and install it correctly so that the surface o…

Text truncated - open the document above for the full version.

LANDLOG Ltd. Request for Confidentiality Date: _2020/12/18_ Subject: Confidentiality Request for: __ ___ FCC ID: 2AXNO-SCFD1US ____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term PermanentBlock Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ____ LANDLOG Ltd. _____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of_days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Kousaku Igawa (Signature/Title 2 ) (Print name)

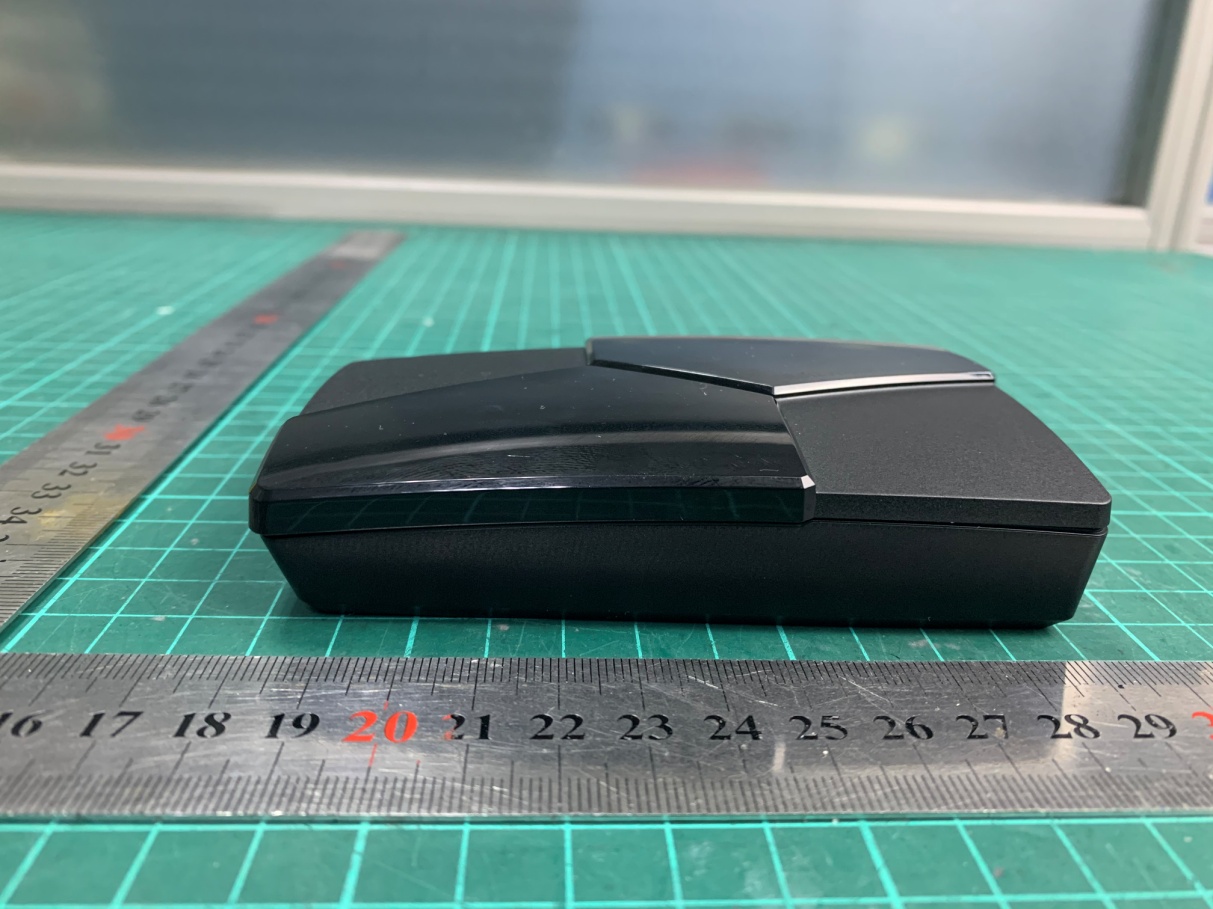

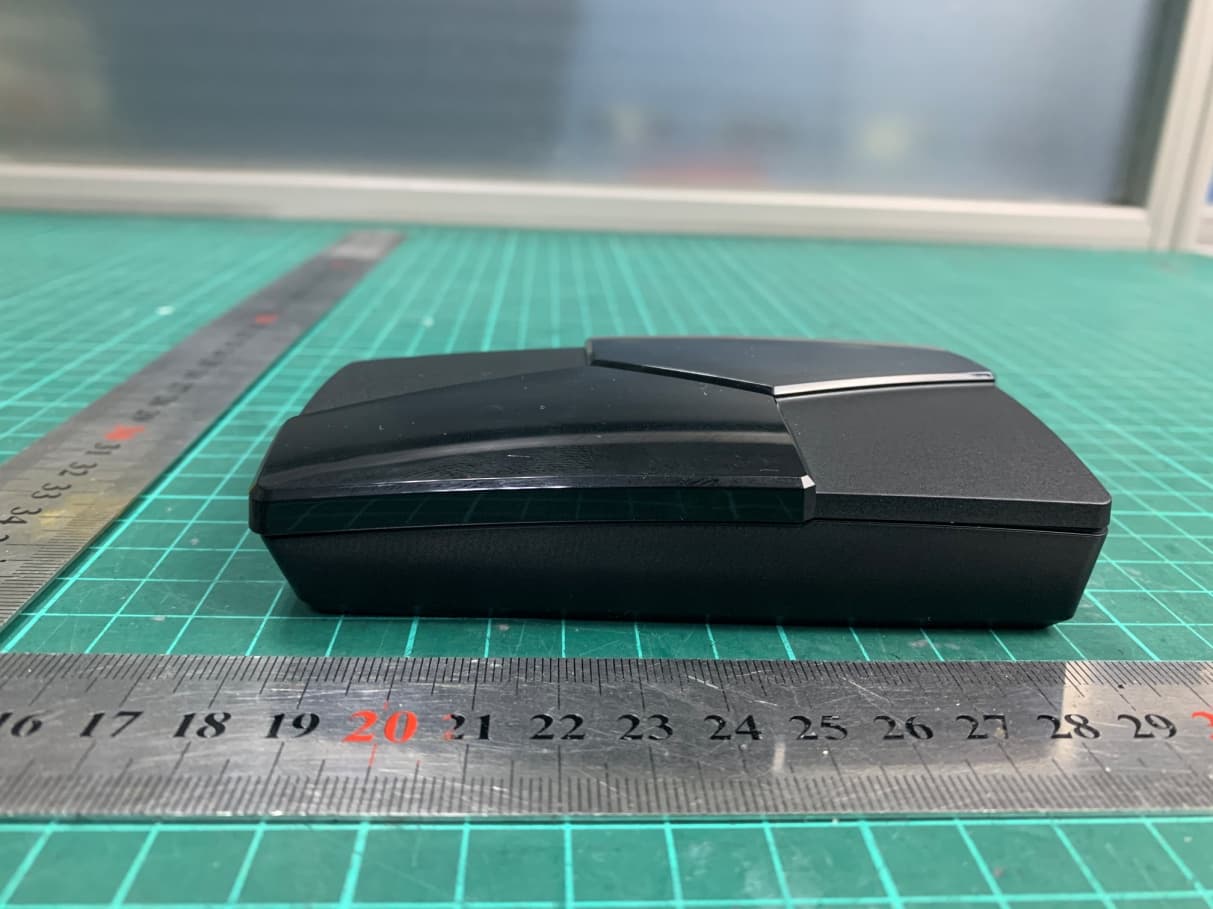

EUT Appearance Page 1 of 3 EUT Appearance EUT Appearance Page 2 of 3 EUT Appeara ance P Page 3 of 3
