2AXNO-SCROVER-01Smart Construction Rover

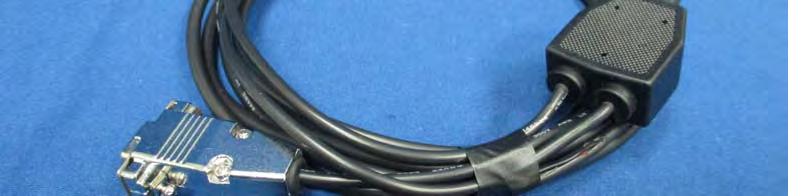

Smart Construction Rover Dual GNSS Receiver ”SC Rover” Installation Manual What is "SC Rover“ Setting Tool App "RTFSetting“ ? ■"RTFSetting" Setting Tool App is a dedicated app for setting “SC Rover". ■This is an Android device-only App. ■This App may not be available on all Android devices. ■“SC Rover” and Android device are set with Bluetooth communication. 2 “SC Rover” receiver port and Connection cable 3 Port1 RS232C, External power supply Port2 RS232C Android device SC Rover Setting Tool APP 『 RTFSetting 』 Bluetooth Port1 Cable Port2 Cable DSub9 Female Connector DSub9 Female Connector Power line (2 Cores) Set with Bluetooth connection SC Rover Optinal Cable Power source: 9V ~ 36 Vdc or 4.8Vdc (battery) Mobile Station System RTCM OUTPUT ※ RTCM32MSM4 "SC Rover“ Connection Cable 4 Reference Station System (Base Station) Port1 SC Rover Port1 Cable Power Line Port1 NMEA OUT SC Rover Port1 Cable Port2 RTCM INPUT Port2 Cable DC12V-24V Power can be supplied with an external power supplye. Modem Modem RS232C RS232C RS232C DC12V-24V Power can be supplied with an external power supplye. Power Line 5 "SC Rover“ : Internal switch (Back side of receiver: Inside battery case ） Int : Setting Mode Ext : Normal mode Alkaline : Using alkaline batteries Eneloop : Using Nickel-metal hydride rechargeable battery ON Temporarily use the battery for momentary interruption OFF Using a battery as a power source Ext Int On Off Eneloop Alkaline Usually use "Ext" When using batteries, "Off" There is no problem if you use the switch with the wrong settings. *Operating time when using batteries will change slightly. When using an external power supply, but with a built-in battery and using the battery as a countermeasure against momentary interruption The continuous operation time when using Eneloop is about 4 hours. 『 RTF500 』の設定準備（設定モードにする） 6 "SC Rover“ Setup ■Turn off the power of “SC Rover”. ■Open the lid on the back of the main unit and switch the switch in the yellow frame to "Int". ■Turn on the power of “SC Rover” main unit with a battery or an external power supply. *BATT Lump : Green when using batteries, red when using external power supply ■After turning on the power, “SC Rover” starts in the setting mode. (It takes a few minutes to start up.) GNSS lamp is off, WiFi lamp is on, and BT lamp is on, and you can access it by the Settings app. "SC Rover“ : Setting preparation (Set to setting mode ） 7 Turn on Android device and turn on Bluetooth. (Ex : Motog7) Turn on Bluetooth on Android device 8 Motog7 Hold your finger on the top of the screen and slide it down. (Swipe down) * The operation may differ depending on the Android device used. Make sure Bluetooth is turned on. Tap "RTFSetting" icon. 9 “SC Rover” Setting App: Strat “RTFSetting” Tap "Search“ button. 接続完了 現在の設定内 容を表示しま す。 10 Select Receiver to set Tap the Receiver you want to set, then tap “Connect” button. The Receiver serial number referenced in "Search" is displayed. The serial number of "SC Rover“ is printed on the back cover of main unit. Once connected, the contents of the current receiver settings will be displayed. 11 "SC Rover“ : Setup When “SC Rover" and Android device are connected via Bluetooth, the serial number of the connected receiver will be displayed. Mobile Station System (Rover) : Setting ItemsSetting Value / Description Receiver Mode Please set to Rover. PORT1 Baudrate Set PORT1 Cable (RS232C) communication speed. Please adapt the speed with the capture device or App for the NMEA output port. PORT2 Baudrate （ Modem ） Set PORT2 Cable (RS232C) communication speed. This setting is used when using RTK with the radio. Please match with the RS232C communication speed of the radio. NMEA TCP Port 50001 This is the port number for NMEA output to SmartMate. Please do not change. RTCM TCP Port 50002 This is the port number for outputting RTCM messages (RTK correction data) to SmartMate. Please do not change. ItemsSetting Value / Description NMEA Out Rate This is the output cycle of the NMEA message output to PORT1 or TCP port (50001). Please select from 1Hz, 5Hz, 10Hz. GGA UseSelect ON to output NMEA-GGA and OFF to not output. GNS UseSame as above GSA UseSame as above GSV UseSame as above RMC UseSame as above VTG UseSame as above ZDA UseSame as above Elevation Mask Elevation mask setting. Please select from 5 degrees, 10 degrees, 15 degrees, and 20 degrees. 12 Reference Station System (Base Station) : Setting ItemsSetting Value / Description Receiver Mode Please set to Base Station. PORT1 Baudrate （ Modem ） Set PORT1 Cable (RS232C) communication speed. This setting is used when using RTK with the radio. Please match with the RS232C communication speed of the radio. RTCM Out TCP Port Please set the TCP port number to output the RTCM message. *Not normally used. GPSSelect ON when using GPS satellites and OFF when not using them. When using a radio, select GPS, GLONASS, Beidou, or Galileo. If the total number of satellites exceeds 30, the communication speed of the radio may not be in time and the positioning result may be affected. (Assuming an air-intermediate speed of 4800 bps for the radio. ） Ex ） GPS + GLONASS, GPS + Beidou, etc. GLONASSSame as above BeidouSame as above GalileoSame as above ItemsSetting Value / Description Base LatEnter the coordinates (latitude) of the location where the base station GNSS antenna is installed in decimal (degree format). Ex) 35.379506622 Base LonEnter the coordinates (longitude) of the location where the base station GNSS antenna is installed in decimal (degree format). Ex) 139.644391867 Base AltEnter the height (ellipse height) of the location where the base station GNSS antenna is installed. Ex) 50.123 （ m) NTRIP Caster Host Set when using SC_Rover as an NTRIP server. Please enter the Host address of NTRIP Caster. NTRIP Caster Port Please enter the connection port number to NTRIP Caster. NTRIP Caster MountPoint Please enter the mout point to NTRIP Caster. NTRIP Caster Password Please enter NTRIP Caster…

Text truncated - open the document above for the full version.

Report No：2090945R-E3032110108 Page: 49 of 69 Attachment 2  EUT External Photograph (1) EUT Photo (2) EUT Photo Report No：2090945R-E3032110108 Page: 50 of 69 (3) EUT Photo (4) EUT Photo Report No：2090945R-E3032110108 Page: 51 of 69 (5) EUT Photo (6) EUT Photo Report No：2090945R-E3032110108 Page: 52 of 69 (7) EUT Photo (8) EUT Photo Report No：2090945R-E3032110108 Page: 53 of 69 (9) EUT Photo (10) EUT Photo

This device complies with Part 15 of the FCC rules standard. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Report No：2090945R-E3032110108 Page: 54 of 69 Attachment 3  EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No：2090945R-E3032110108 Page: 55 of 69 (3) EUT Photo (4) EUT Photo Report No：2090945R-E3032110108 Page: 56 of 69 (5) EUT Photo (6) EUT Photo Report No：2090945R-E3032110108 Page: 57 of 69 (7) EUT Photo (8) EUT Photo Report No：2090945R-E3032110108 Page: 58 of 69 (9) EUT Photo (10) EUT Photo Report No：2090945R-E3032110108 Page: 59 of 69 (11) EUT Photo (12) EUT Photo Report No：2090945R-E3032110108 Page: 60 of 69 (13) EUT Photo (14) EUT Photo Report No：2090945R-E3032110108 Page: 61 of 69 (15) EUT Photo (16) EUT Photo Report No：2090945R-E3032110108 Page: 62 of 69 (17) EUT Photo (18) EUT Photo Report No：2090945R-E3032110108 Page: 63 of 69 (19) EUT Photo (20) EUT Photo Report No：2090945R-E3032110108 Page: 64 of 69 (21) EUT Photo (22) EUT Photo Report No：2090945R-E3032110108 Page: 65 of 69 (23) EUT Photo (24) EUT Photo Report No：2090945R-E3032110108 Page: 66 of 69 (25) EUT Photo (26) EUT Photo Report No：2090945R-E3032110108 Page: 67 of 69 (27) EUT Photo (28) EUT Photo Report No：2090945R-E3032110108 Page: 68 of 69 (29) EUT Photo (30) EUT Photo Report No：2090945R-E3032110108 Page: 69 of 69 (31) EUT Photo

Report No. 2090945R-E3032410101 Page: 1 of 8 RF Exposure Evaluation Declaration Product Name ：Smart Construction Rover Trade Name ：LANDLOG Model No. ：SC Rover FCC ID ：2AXNO-SCROVER-01 Applicant : LANDLOG Ltd. Address : 12F Sumitomofudosan Shibadaimon 2chome Building 2-11-8 Shibadaimon, Minato-ku, Tokyo 105-0012 Japan Date of Receipt : Sep. 28, 2020 Date of Declaration : Jan. 08, 2021 Report No. : 2090945R-E3032410101 Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of DEKRA Testing and Certification Co., Ltd.. Report No. 2090945R-E3032410101 Page: 2 of 8 RF Exposure Evaluation Declaration Issued Date : Jan. 08, 2021 Report No. : 2090945R-E3032410101 Product Name : Smart Construction Rover Applicant : LANDLOG Ltd. Address : 12F Sumitomofudosan Shibadaimon 2chome Building 2-11-8 Shibadaimon, Minato-ku, Tokyo 105-0012 Japan Manufacturer : AKASAKA TEC INC. Address : 3F. Marina Plaza 4-2, Shiraho, Kanazawa-ku, Yokohama-shi, Kanagawa, 236-0007 Japan Trade Name : LANDLOG Model No. : SC Rover FCC ID : 2AXNO-SCROVER-01 EUT Voltage ： DC 12V Testing Voltage ： DC 12V Applicable Standard : FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. Test Lab : Hsin Chu Laboratory Address : No.372-2, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 310, Taiwan, R.O.C. TEL: +886-3-582-8001 / FAX: +886-3-582-8958 Test Result : Complied Tested By : ( Lion Wang / Engineer ) Approved By : ( Louis Hsu / Deputy Manager ) Report No. 2090945R-E3032410101 Page: 3 of 8 Revision History Version Description Issued Date V1.0 Initial issue of report Jan. 08, 2021 Report No. 2090945R-E3032410101 Page: 4 of 8 1.1. Test Facility Ambient conditions in the laboratory: Items Test Item Required Test Site Temperature (°C) Peak Output Power 15 - 35 1 Humidity (%RH) 25 - 75 Note: Test site information refers to Laboratory Information. USA : FCC Registration Number: TW3024 Canada : IC Registration Number: 22397-1 / 22397-2 / 22397-3 The address and introduction of DEKRA Testing and Certification Co., Ltd. laboratories can be founded in our Web site: http://www.dekra.com.tw If you have any comments, please don’t hesitate to contact us. Our test sites as below: Test Laboratory DEKRA Testing and Certification Co., Ltd. Address 1. No.372, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 31061, Taiwan, R.O.C. 2. No.372-2, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 31061, Taiwan, R.O.C. Phone number 1. +886-3-582-8001 2. +886-3-582-8001 Fax number 1. +886-3-582-8958 2. +886-3-582-8958 Email address [email protected] Website http://www.dekra.com.tw Report No. 2090945R-E3032410101 Page: 5 of 8 1.2. List of Test Equipment Peak Output Power / SR12-H Instrument Manufacturer Model No. Serial No. Cal. Date Next Cal. Date High Speed Peak Power Meter Dual Input Anritsu ML2496A 1602004 2019/12/02 2020/12/01 Pulse Power Sensor Anritsu MA2411B 1531043 2019/12/02 2020/12/01 Pulse Power Sensor Anritsu MA2411B 1531044 2019/12/02 2020/12/01 Power Meter Keysight 8990B MY510002482020/05/20 2021/05/19 Power Sensor Keysight N1923A MY572400052020/05/20 2021/05/19 Note: All equipment upon which need to calibrated are with calibration period of 1 year. 1.3. Uncertainty Test item Uncertainty Peak Output Power ± 2.26 dB Determining compliance shall be based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Report No. 2090945R-E3032410101 Page: 6 of 8 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Reference Period (minutes) 0.003-1023 170 180 - Instantaneous* 0.1-10 - 1.6/ ƒ - 6** 1.29-10 193/ ƒ 0.5 - - 6** 10-20 61.4 0.163 10 6 20-48 129.8/ ƒ 0.25 0.3444/ ƒ 0.25 44.72/ ƒ 0.5 6 48-100 49.33 0.1309 6.455 6 100-6000 15.60 ƒ 0.25 0.04138 ƒ 0.25 0.6455ƒ0.5 6 6000-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.40 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ ƒ 1.2 Note: ƒ is frequency in MHz. *Based on nerve stimulation (NS). ** Based on specific absorption rate (SAR). Report No. 2090945R-E3032410101 Page: 7 of 8 Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 2.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Report No. 2090945R-E3032410101 Page: 8 of 8 2.3. Test Result of RF Exposure Evaluation Product Smart Construction Rover Test Mode Transmit Mode Test Condition RF Exposure Evaluation Date of Test 2020/11/14 Test Site SR12-H Temperature(°C) 22 Humidity (%RH) 63 Antenna Gain: The maximum antenna gain is 3.79dBi. Output Power into Antenna & RF Exposure Evaluation Distance: WLAN 2.4GHz Mode Frequency (MHz) Maximum Conducted Output Power Maximum Power Density at R = …

Text truncated - open the document above for the full version.

Report No：2090945R-E3032110108 Page: 1 of 69 FCC Test Report Product Name ：Smart Construction Rover Trade Name ：LANDLOG Model No. ：SC Rover FCC ID ：2AXNO-SCROVER-01 Applicant ： LANDLOG Ltd. Address ： 12F Sumitomofudosan Shibadaimon 2chome Building 2-11-8 Shibadaimon, Minato-ku, Tokyo 105-0012 Japan Date of Receipt：Sep. 28, 2020 Issued Date ：Jan. 08, 2021 Report No. ：2090945R-E3032110108 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of DEKRA Testing and Certification Co., Ltd. Report No：2090945R-E3032110108 Page: 2 of 69 Test Report Certification Issued Date: Jan. 08, 2021 Report No. : 2090945R-E3032110108 Product Name : Smart Construction Rover Applicant : LANDLOG Ltd. Address : 12F Sumitomofudosan Shibadaimon 2chome Building 2-11-8 Shibadaimon, Minato-ku, Tokyo 105-0012 Japan Manufacturer : AKASAKA TEC INC. Address : 3F. Marina Plaza 4-2, Shiraho, Kanazawa-ku, Yokohama-shi, Kanagawa, 236-0007 Japan Trade Name : LANDLOG Model No. : SC Rover FCC ID : 2AXNO-SCROVER-01 EUT Voltage : DC 12V Testing Voltage : DC 12V Applicable Standard : FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2019 ANSI C63.10: 2013 Laboratory Name : Hsin Chu Laboratory Address : No.372-2, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 310, Taiwan, R.O.C. TEL: +886-3-582-8001 / FAX: +886-3-582-8958 Test Result : Complied Documented By : ( Carol Tsai / Senior Engineering Adm. Specialist ) Tested By : ( Lion Wang / Engineer ) Approved By : ( Louis Hsu / Deputy Manager ) Report No：2090945R-E3032110108 Page: 3 of 69 Revision History Version Description Issued Date V1.0 Initial issue of report Jan. 08, 2021 Report No：2090945R-E3032110108 Page: 4 of 69 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................................. 6 1.1. EUT Description ......................................................................................................... 6 1.2. Test Mode ................................................................................................................... 7 1.3. Tested System Details ................................................................................................ 8 1.4. Configuration of tested System .................................................................................. 8 1.5. EUT Exercise Software .............................................................................................. 9 1.6. Comments and Remarks ............................................................................................ 9 1.7. Test Facility ............................................................................................................... 10 1.8. List of Test Equipment .............................................................................................. 11 1.9. Duty cycle ................................................................................................................. 13 1.10. Uncertainty ............................................................................................................... 14 2. Conducted Emission .............................................................................................................. 15 2.1. Test Setup................................................................................................................. 15 2.2. Limits ........................................................................................................................ 15 2.3. Test Procedure ......................................................................................................... 16 2.4. Test Specification ...................................................................................................... 16 2.5. Test Result ................................................................................................................ 16 3. Maximum peak conducted output power ................................................................................ 17 3.1. Test Setup................................................................................................................. 17 3.2. Limits ........................................................................................................................ 17 3.3. Test procedures ........................................................................................................ 17 3.4. Test Specification ...................................................................................................... 17 3.5. Test Result ................................................................................................................ 18 4. Radiated Emission ................................................................................................................. 19 4.1. Test Setup................................................................................................................. 19 4.2. Limits ........................................................................................................................ 20 4.3. Test Procedure ......................................................................................................... 20 4.4. Test Specification ...................................................................................................... 20 4.5. Test Result ................................................................................................................ 21 5. RF antenna conducted test .................................................................................................... 2 9 5.1. Test Setup................................................................................................................. 29 5.2. Limits ........................................................................................................................ 29…

Text truncated - open the document above for the full version.

Report No：2090945R-E3032110113 Page: 1 of 137 FCC Test Report Product Name ：Smart Construction Rover Trade Name ：LANDLOG Model No. ：SC Rover FCC ID ：2AXNO-SCROVER-01 Applicant ： LANDLOG Ltd. Address ： 12F Sumitomofudosan Shibadaimon 2chome Building 2-11-8 Shibadaimon, Minato-ku, Tokyo 105-0012 Japan Date of Receipt：Sep. 28, 2020 Issued Date ：Jan. 08, 2021 Report No. ：2090945R-E3032110113 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of DEKRA Testing and Certification Co., Ltd.. Report No：2090945R-E3032110113 Page: 2 of 137 Test Report Certification Issued Date : Jan. 08, 2021 Report No.: 2090945R-E3032110113 Product Name ： Smart Construction Rover Applicant ： LANDLOG Ltd. Address ： 12F Sumitomofudosan Shibadaimon 2chome Building 2-11-8 Shibadaimon, Minato-ku, Tokyo 105-0012 Japan Manufacturer : AKASAKA TEC INC. Address : 3F. Marina Plaza 4-2, Shiraho, Kanazawa-ku, Yokohama-shi, Kanagawa, 236-0007 Japan Model No. ： SC Rover FCC ID ： 2AXNO-SCROVER-01 EUT Test Voltage ： DC 12V Testing Voltage ： DC 12V Trade Name ： LANDLOG Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2019 ANSI C63.10: 2013 Laboratory Name ： Hsin Chu Laboratory Address ： No.372-2, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 310, Taiwan, R.O.C. TEL: +886-3-582-8001 / FAX: +886-3-582-8958 Test Result ： Complied Documented By : ( Carol Tsai / Senior Engineering Adm. Specialist ) Tested By : ( Lion Wang / Engineer ) Approved By : ( Louis Hsu / Deputy Manager ) Report No：2090945R-E3032110113 Page: 3 of 137 Revision History Version Description Issued Date V1.0 Initial issue of report Jan. 08, 2021 Report No：2090945R-E3032110113 Page: 4 of 137 TABLE OF CONTENTS Description Page 1. General Information ........................................................................................................ 6 1.1. EUT Description ............................................................................................................. 6 1.2. Test Mode ...................................................................................................................... 8 1.3. Tested System Details ................................................................................................... 9 1.4. Configuration of tested System ...................................................................................... 9 1.5. EUT Exercise Software .................................................................................................. 9 1.6. Comments and Remarks .............................................................................................. 10 1.7. Test Facility .................................................................................................................. 11 1.8. List of Test Equipment .................................................................................................. 12 1.9. Duty Cycle .................................................................................................................... 15 1.10. Uncertainty ................................................................................................................... 17 2. Conducted Emission .................................................................................................... 18 2.1. Test Setup .................................................................................................................... 18 2.2. Limits ............................................................................................................................ 18 2.3. Test Procedure ............................................................................................................. 19 2.4. Test Specification ......................................................................................................... 19 2.5. Test Result ................................................................................................................... 19 3. Maximum peak conducted output power ...................................................................... 20 3.1. Test Setup .................................................................................................................... 20 3.2. Test procedures ........................................................................................................... 20 3.3. Limits ............................................................................................................................ 20 3.4. Test Specification ......................................................................................................... 20 3.5. Test Result ................................................................................................................... 21 4. Radiated Emission ....................................................................................................... 22 4.1. Test Setup .................................................................................................................... 22 4.2. Limits ............................................................................................................................ 22 4.3. Test Procedure ............................................................................................................. 23 4.4. Test Specification ......................................................................................................... 23 4.5. Test Result ................................................................................................................... 24 5. RF antenna conducted test .......................................................................................... 44 5.1. Test Setup .................................................................................................................... 44 5.2. Limits ........................................................................…

Text truncated - open the document above for the full version.

Report No：2090945R-E3032110108 Page: 47 of 69 Attachment 1  Test Setup Photograph <Radiated Emission> Description： Front View of Radiated Emission Test Setup(Bilog_Under 1G) Description： Back View of Radiated Emission Test Setup (Bilog_Under 1G) Report No：2090945R-E3032110108 Page: 48 of 69 Description： Front View of Radiated Emission Test Setup (Horn_Above 1G) Description： Back View of Radiated Emission Test Setup (Horn_Above 1G)
