2AXPS-WDCWireless Device Charger

User Manual Document ID: WDC Wireless Device Charger Product Description （WDC） Version: Record: Date: Prepare： A1 Initial Release 16.05.2023 Hua Jiang User Manual Document ID: WDC Page 2 of 9 Content 1 Product Introduction ....................................................................................... 3 1.1 Product Introduction .......................................................................... 3 1.2 Mechanical Design .............................................................................. 4 1.2.1 Product 3D View ................................................. 4 1.2.2 Product 3D Exploded View ........................................ 4 1.2.3 Dimension 2D View ............................................... 5 1.3 Product Technial Parameters ............................................................. 6 2 Safety Instructions ........................................................................................... 6 User Manual Document ID: WDC Page 3 of 9 1 Product Introduction 1.1 Product Introduction Chart 1-1 Logic Diagram WPC013 WPC014&WPC014-1 13.5V Chart 1-2 Charging Location View The wireless device charger can charge your Qi-enabled smartphone at up to 15W of power. Just simply place your smartphone on the charger. The wireless device charger supports up to only one phone at once. NOTE: The wireless device charger may not work if your phone case is metal. Take the phone out of the case and place the phone on the charger. User Manual Document ID: WDC Page 4 of 9 1.2 Mechanical Design 1.2.1 Product 3D View WPC013 WPC014&WPC014-1 Chart 1-3 3D view 1.2.2 Product 3D Exploded View WPC013 WPC014&WPC014-1 Chart 1-4 3D Exploded View User Manual Document ID: WDC Page 5 of 9 1.2.3 Dimension 2D View WPC013 WPC014&WPC014-1 WPC013 WPC014&WPC014-1 Chart 1-5 2D View User Manual Document ID: WDC Page 6 of 9 1.3 Product Technial Parameters Electrical Specification Parameters: Range: Output Power Max. Output 15W Temperature Range Operating Temperature -40°C~85°C Storage Temperature -40°C~85°C Input Parameter Voltage/Current 13.5V DC @ 2.5A Charging Efficiency Rx Output Power VS Tx Input Power Coil Center:>70% Charging operating Frequency / 127.772kHz Chart 1-6 technical parameters 2 Safety Instructions ⚫ Before using and operating the equipment, please read and observe the following precautions. ⚫ This product meets the technical standards of short distance micro power class an equipment and relevant specifications. ⚫ It is not allowed to disassemble the equipment, change the internal structure, antenna, etc. to avoid danger. ⚫ In places where the use of wireless devices is prohibited according to laws and regulations, such as in-flight, medical and other places, please comply with the relevant regulations and requirements, stop using or turn off the devices. The use of micro power equipment in relevant electromagnetic environmental protection areas shall comply with the requirements of electromagnetic environmental protection and relevant industry authorities. ⚫ The radio waves generated by devices may affect implantable medical devices, such as pacemakers, cochlear implants, hearing aids, etc. When using the wireless charging device, please keep a distance of at least 30 cm from the implanted medical device. User Manual Document ID: WDC Page 7 of 9 This product has passed the Qi certification of WPC, and can charge the products that also pass the certification of WPC. Please don't charge the wireless charging equipment that doesn’t meet the requirements of Qi, and don’t use unauthorized or incompatible power supply, charger, battery, etc. to power the equipment, which may cause fire or other hazards. This device complies with Part 15 of the FCC Rules and Industry Canada's license- exempt RSS Standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference. And (2) This device must accept any Interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. ·If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. User Manual Document ID: WDC Page 8 of 9 This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This equipment complies with UK radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclara…

Text truncated - open the document above for the full version.

BCS Automotive Interface Solutions (Suzhou) Co., Ltd * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter DATE 6/ 26/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AXPS-WDC Per section 2.911(d)(7) of the FCC rules,BCS Automotive Interface Solutions (Suzhou) Co., Ltd(“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Printed name: Linwei Wang Printed name: Tim Payne Title: Manager Title: Manager Company Name: BCS Automotive Interface Solutions (Suzhou) Co., Ltd Company Name: FCC US Agent, LLC Date: 6/26/2023 Date: 6/26/2023

Declaration of Differences We, BCS Automotive Interface Solutions (Suzhou) Co., Ltd, here declare that, There are three series models available WPC013，WPC014，WPC014-1，They are collectively referred to as WDC. The difference between WPC013 and WPC014: PCBA is completely consistent, but the external installation structure is inconsistent, the difference between WPC014-1 and WPC014, and the communication address ID of the customer host communication is not the same, and the wireless performance is exactly the same. Company name: BCS Automotive Interface Solutions (Suzhou) Co., Ltd Signature: Date: 4/7/2023

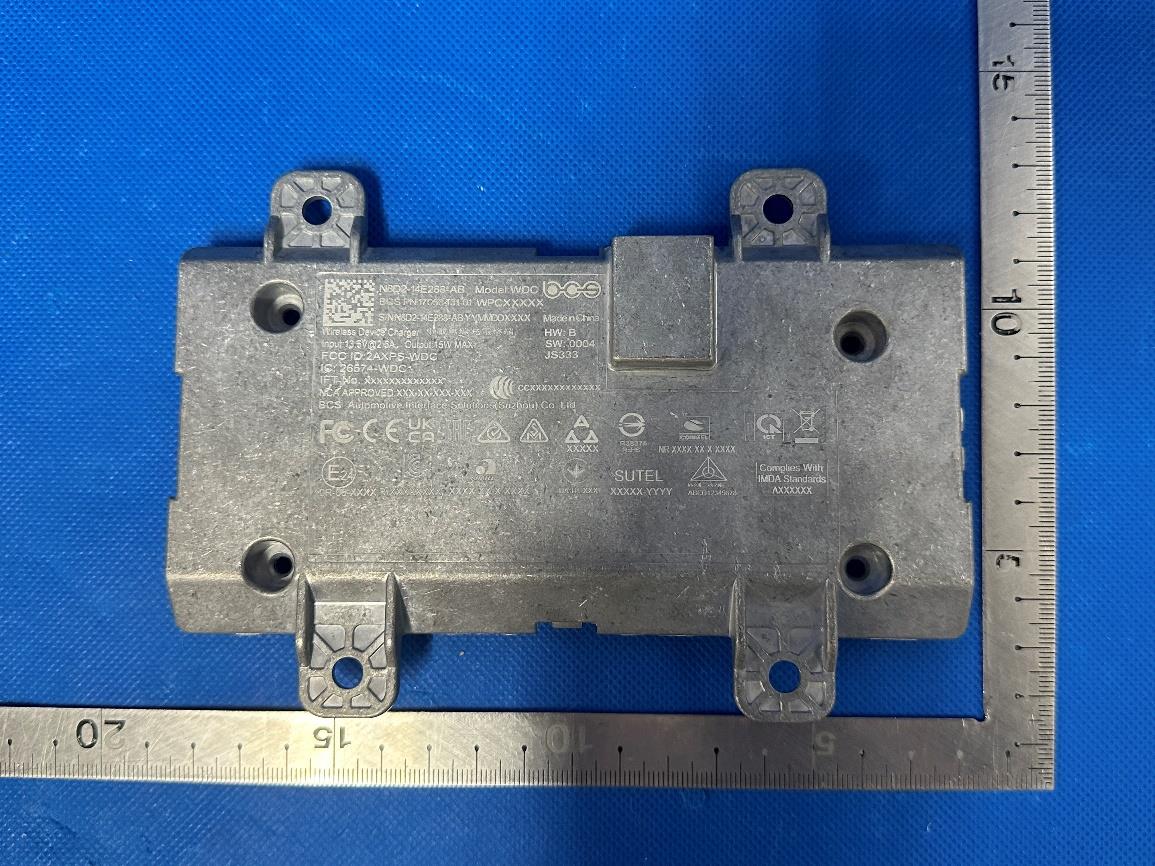

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-External Photo Page 1 / 6 External Photographs (1) EUT Photo(WPC013) (2) EUT Photo(WPC013) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-External Photo Page 2 / 6 (3) EUT Photo(WPC013) (4) EUT Photo(WPC013) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-External Photo Page 3 / 6 (5) EUT Photo(WPC013) (6) EUT Photo(WPC013) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-External Photo Page 4 / 6 (7) EUT Photo(WPC014&WPC014-1) (8) EUT Photo(WPC014&WPC014-1) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-External Photo Page 5 / 6 (9) EUT Photo(WPC014&WPC014-1) (10) EUT Photo(WPC014&WPC014-1) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-External Photo Page 6 / 6 (11) EUT Photo(WPC014&WPC014-1) (12) EUT Photo(WPC014&WPC014-1)

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-Internal Photo Page 1 / 6 Internal Photographs (1) EUT Photo(WPC013) (2) EUT Photo(WPC013) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-Internal Photo Page 2 / 6 (3) EUT Photo(WPC013) (4) EUT Photo(WPC013) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-Internal Photo Page 3 / 6 (5) EUT Photo(WPC013) (6) EUT Photo(WPC013) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-Internal Photo Page 4 / 6 (7) EUT Photo(WPC014) (8) EUT Photo(WPC014) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-Internal Photo Page 5 / 6 (9) EUT Photo(WPC014) (10) EUT Photo(WPC014) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-Internal Photo Page 6 / 6 (11) EUT Photo(WPC014)

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Designation Number: CN1199 Test report No: 2350237R-RF-US-P20V01 FCC Exposure TEST REPORT Product Name Wireless Device Charger Trademark BCS Model and /or type reference WDC FCC ID 2AXPS-WDC Applicant ́s name / address BCS Automotive Interface Solutions (Suzhou) Co., Ltd No. 2052, Taidong Road Xiangcheng Economic Development District Suzhou, Jiangsu Province 215143 China Test method requested, standard FCC Part 2.1091 Verdict Summary IN COMPLIANCE Documented by (name / position & signature) Feng Jiao/ Project Engineer Approved by (name / position & signature) Jack Zhang/ Manager Date of issue 2023-07-04 Report Version V1.1 Report template No Template_FCC MPE-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Designation Number: CN1199 Report no.: 2350237R-RF-US-P20V01 Page 2 / 13 INDEX page Competences and Guarantees ............................................................................................................................. 3 General conditions ............................................................................................................................................... 3 Environmental conditions ..................................................................................................................................... 3 Possible test case verdicts ................................................................................................................................... 4 Abbreviations ....................................................................................................................................................... 4 Document History ................................................................................................................................................ 5 Remarks and Comments ..................................................................................................................................... 5 1. General Information .................................................................................................................................... 6 1.1. EUT Description .......................................................................................................................................... 6 1.2. Antenna information .................................................................................................................................... 7 1.3. Mode of Operation ...................................................................................................................................... 8 1.4. Tested System Details ................................................................................................................................ 8 1.5. Configuration of Tested System .................................................................................................................. 8 1.6. EUT Exercise Software ............................................................................................................................... 8 2. Technical Test ............................................................................................................................................ 9 2.1. Test Environment ........................................................................................................................................ 9 3. Electric Field Strength / Magnetic Field Strength........................................................................................ 10 3.1. Test Equipment ......................................................................................................................................... 10 3.2. Test Setup ................................................................................................................................................ 10 3.3. Limit .......................................................................................................................................................... 11 3.4. Test Procedure ......................................................................................................................................... 12 3.5. Uncertainty ............................................................................................................................................... 12 3.6. Test Result ............................................................................................................................................... 13 4. RF Exposure Evaluation ............................................................................................................................ 13 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Designation Number: CN1199 Report no.: 2350237R-RF-US-P20V01 Page 3 / 13 COMPETENCES AND GUARANTEES DEKRA is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA has a calibration and maintenance program for its measurement equipment. DEKRA guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated in the report and it is based on the knowledge and technical facilities available at DEKRA at the time of performance of the test. DEKRA is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this T…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Test report No: 2350237R-RF-US-P06V01 FCC TEST REPORT Product Name Wireless Device Charger Trademark BCS Model and /or type reference WDC FCC ID 2AXPS-WDC Applicant ́s name / address BCS Automotive Interface Solutions (Suzhou) Co., Ltd No. 2052, Taidong Road Xiangcheng Economic Development District Suzhou, Jiangsu Province 215143 China Test method requested, standard CFR 47, FCC Part 15 C Verdict Summary IN COMPLIANCE Documented by (name / position & signature) Feng Jiao/ Project Engineer Approved by (name / position & signature) Jack Zhang/ Manager Date of issue 2023-07-10 Report Version V1.1 Report template No Template_FCC Part 15C-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-US-P06V01 Page 2 / 31 INDEX page General conditions ...................................................................................................................................................... 4 Environmental conditions ............................................................................................................................................ 4 Possible test case verdicts .......................................................................................................................................... 5 Abbreviations .............................................................................................................................................................. 5 Document History ....................................................................................................................................................... 6 Remarks and Comments ............................................................................................................................................. 6 Used Equipment ......................................................................................................................................................... 7 Uncertainty ................................................................................................................................................................. 8 1 General Information............................................................................................................................................ 9 1.1 General Description of the Item(s) ............................................................................................................ 9 1.2 Antenna Information ............................................................................................................................... 10 1.3 Channel List ........................................................................................................................................... 11 2 Description of Test Setup ................................................................................................................................. 12 2.1 Operating mode(s) used for tests ............................................................................................................ 12 2.2 Auxiliary equipment / Test software for the EUT ...................................................................................... 12 2.3 Test Configuration / Block diagram used for tests ................................................................................... 13 2.4 Testing process ...................................................................................................................................... 14 3 Verdict summary section .................................................................................................................................. 15 3.1 Standards............................................................................................................................................... 15 3.2 Deviation(s) from the Standard(s) / Test Specification(s) ......................................................................... 15 3.3 Overview of results ................................................................................................................................. 16 3.4 Test Facility ............................................................................................................................................ 17 4 Test Results ..................................................................................................................................................... 18 4.1 AC Power Line Conducted Emission ...................................................................................................... 18 4.1.1 Limit ............................................................................................................................................. 18 4.1.2 Test Setup .................................................................................................................................... 18 4.1.3 Test Procedure ............................................................................................................................. 18 4.1.4 Test Data ..................................................................................................................................... 18 4.2 Field Strength of Spurious ...................................................................................................................... 19 4.2.1 Limit ............................................................................................................................................. 19 4.2.2 Test Setup .................................................................................................................................... 20 4.2.3 Test Procedure ................…

Text truncated - open the document above for the full version.

无线充电Coil天线规格书 1、天线参数： Item Specification Operating Frequency(MHz) 0.1277 Operating temperature -40°C～+105°C Storage temperature -40°C～+125°C Modulation FSK Brand Luxshare Antenna Model MP-A27 Manufacture Luxshare-ICT Address THE intersection Between Xiyuan Road and Xigu Road,Songshuping village,Liujiaoting Sub- district,Enshi city,Hubei province, China 2、天线照片：

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-US-Test Photo Page 1 / 4 ISED Test Photographs Description: Radiated emission(Below 30MHz) Description: Radiated emission(Above 30MHz) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-US-Test Photo Page 2 / 4 Description: RF Exposure Setup –3kHz~100kHz(Sides) Description: RF Exposure Setup –Above 100kHz(Sides) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-US-Test Photo Page 3 / 4 Description: RF Exposure Setup –3kHz~100kHz(Top) Description: RF Exposure Setup –Above 100kHz(Top) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 2350237R-RF-US-Test Photo Page 4 / 4 Description: RF Exposure Setup –Test Probe 1Hz ~ 400kHz Description: RF Exposure Setup –Test Probe 100kHz ~ 3GHz
