2AXS5-FLC5330XSA-A2.4GHz WLAN/Bluetooth Module

JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 1/25 ProductSpecification Model:FLC5330XSA-A JiangsuFulianCommunicationTechnologyCo.,Ltd. ApprovalReviewDraftVersionDate V1.22025.03.05 I.VersionUpdateLog JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 2/25 DateVersionUpdateContent 2024-10-08V1.0Initialdocument 2025-03-05V1.2 Updatedmodulationmodes;supplemented11AX transmitpowerandreceivesensitivity JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 3/25 II.ProductOverview TheFLC5330XSA-AmoduleintegratestheTR5330chip,featuringahighlyintegrated2.4GHzWi-Fiand BLECombochipwithIEEE802.11b/g/n/axbasebandandRFcircuits,includingPA,LNA,RFbalun,antenna switch,andpowermanagementmodules.Itsupports802.11n(20MHz/40MHzbandwidth)and802.11ax (20MHzbandwidth),deliveringamaximumphysicallayerrateof150Mbpsandextendedcoverage. Wi-FibasebandimplementsOFDMA,OFDMtechnologies,andisbackwardcompatiblewithDSSS,CCK. SupportsIEEE802.11b/g/ndataratesandIEEE802.11axMCS0–MCS9rates. SupportsBLE1MHz/2MHzbandwidth,BLE4.0/4.1/4.2/5.0/5.1/5.2/5.4protocols,BLEMesh,andgateway functionswithamaximumairinterfacerateof2Mbps. TheFLC5330XSA-Aadoptsastamp-holepackagedesign(21×23mm),laser-etchedshieldcoverfor aestheticsandtraceability,optimizedmatchingandRFperformance.Applicationsincludesmarthome, smartcity,healthcare,security,andIoT. JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 4/25 III.KeyFeatures WiFi  2.4GHzband(Channel1–14)Wi-FiStation.  PHYsupportsIEEE802.11b/g/n/ax.  MACsupportsIEEE802.11d/e/i/k/v/w.  Supports802.11n(20MHz/40MHz)and802.11ax(20MHz).  Maxrate:150Mbps@HT40MCS7,114.7Mbps@HE20MCS9.  IntegratedPA/LNA,TX/RXswitch,balun.  SupportsSTA,SoftAP(max8STA),andP2Pmodes. CPU  -32-bitCPU,max240MHz.  InternalSRAM,ROM.  Laser-etchedshieldcover,stamp-holedesign(19-pin).  Standard3.3Vsupply(3.0–3.6V).  Operatingtemperature:0–70°C.  Tape-and-reelpackaging BLE  Supports BLE 4.0/4.1/4.2/5.0/5.1/5.2/5.4.  Rates: 125Kbps, 500Kbps, 1Mbps, 2Mbps.  High power output: 8 dBm±2dBm. . JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 5/25 IV.DetailedParameters Table4-1:DetailedParameterTable ParameterNameDescription ModuleModelFLC5330XSA-A ModuleTypeWLAN802.11b/g/n/axSDIO1T1RModule MainChipTR5330S Standard802.11b/g/n/ax Rate 150Mbps@HT40MCS7 114.7Mbps@HE20MCS9 ModulationCCK/DSSS/DBPSK/DQPSK/OFDM/16QAM/64QAM/256QAM,GFSK FrequencyBand2.4–2.4835GHz TransmitPower 802.11b@11Mbps:16dBm±2dB 802.11ax@MCS9:14dBm±2dB ReceiveSensitivity11axHE20MCS9(PER<10%):<-66dBm±2dB OSSupportWindows/Linux/Mac/Android/WinCE SecurityWEP,TKIP,AES,WPA/WPA2 InterfaceSDIO1.1/2.0 PowerSupplyDC3.3V(3.0–3.6V) OperatingTemp0–+70°C StorageTemp-20–125°C Humidity5%–90% Dimensions21×23×2.4mm(±0.2mm) JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 6/25 V.HardwareBlockDiagram Figure5-1HardwarediagramoftheFLC5330XSA-A JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 7/25 VI.ModuleDimensions(Unit:mm) Figure6-1DimensionsoftheFLC5330XSA-A VII.ModulePinDefinitions Table7-1:PinMappingTable PinNo.PinNameDescription 1–3GNDGround 4VBAT3.3VPower 5NCNotConnected 6VDDIO IOSupply(1.8–3.3V,Max 3.6V) 7GNDGround 8CHIP_ENChipEnable 9INT/GPIO0WL_DEV_WAKE_HOST 10SD_D2SD_D2 11SD_D3SD_D3 JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 8/25 12SD_CMDSD_CMD 13SD_CLKSD_CLK 14SD_D0SD_D0 15SD_D1SD_D1 16-19GNDGND VIII.ElectricalParameters 8.1PowerSupply Table8-1Powersupplyparameters SymbolDescriptionCondition Detail MinTypMaxUnit VBATPowerVoltageDC3.03.33.6V VDDIOIOSupplyVoltageDC1.71.8/3.33.6V 8.23.3VDigitalIOPinDCParameters Table8-23.3VdigitalIOpinDCparameters SymbolDescriptionCondition Detail MinTypMaxUnit VIHHigh-LevelInputDC2.03.33.6V VILLow-LevelInputDC000.9V VOH High-Level Output DC2.97-3.3V VOLLow-LevelOutputDC0-0.33V JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 9/25 IX.InterfaceTimingDiagrams 9.1Power-Up/Power-DownTiming Figure9-1Power-onsequence Figure9-2Power-offsequence TimingParameters Table9-1Timeparameters NoParameters DescriptionMinMaxUnit t 1 POWER_ONHighDuration20-ms t 2 ClockLowTime Default10-ns HS7-ns T WH ClockHighTimeDefault10-ns HS7-ns T ISU InputbuildtimeDefault5-ns HS6-ns T IH InputholdtimeDefault5-ns HS2-ns JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 10/25 T ODLY OutputdelaytimeDefault-14ns HS-14ns Voltageparameterdescription Table9-2Voltageparameters NoParameters DescriptionMinMaxUnit t 1 HighleveldurationofthePOWERON afterpower-on -20-ms t 2 ClocklowtimeDefault10-ns HS7-ns T WH ClockhighleveltimeDefault10-ns HS7-ns T ISU InputbuildtimeDefault5-ns HS6-ns T IH InputholdtimeDefault5-ns HS2-ns T ODLY OutputdelaytimeDefault-14ns HS-14ns 9.2SDIOPortTimingDiagram SDIOsupports3SDIOworkingmodes： Defaultspeedmode（DS） Theinterfaceclockfrequencyisupto25MHz,including1bitand4bitmodes. Highspeedmodes（HS） Themaximumclockfrequencyoftheinterfaceis50MHz. SDR12 ， SDR25 modes Themaximumfrequencyoftheinterfaceclockis25MHzand50MHzrespectively. JiangsuFulianCommunicationTechnologyCo.,LtdFileNO：FLWIC-01-QRC17 11/25 Defaultspeedmode TheDefaultspeedmodeisthedefaultmodeaftertheSDIOispoweredon.Toensurecompatibilitywithvarious HOSTdevices,thismoderequiresalowworkingrateandonlysupports25MHz. Table9-3ClockparametersinDefaultspeedmode(DVDDIO=3.3V) ParameterSymbolMinMaxUnitRemarks ClockCLK（Allvaluearereferredtomin(V IH )andmax(V IL )） ClockfrequencyDateTransferMode f PP -25MHz C CARD ≤10pF ClockfrequencyIdentificationMode f OD -400KHz C CARD ≤10pF Clocklowtimet WL 10-ns C CARD ≤ 10pF Clockhightime t WH 10-ns C CARD ≤ 10pF Clockrisetime t TLH -10ns C CARD ≤ 10pF Clockfalltime t THL -10ns C CARD ≤10pF ThedatarequiredbytheSDIOinterfaceisstabletimebeforeclocksampling,andtIHistheholdingtime,thatis, thetimeforthedatarequiredbytheSDIOinterfacetomaintaintheoriginallevelafterclocksamplinginthis mode. Inputmodetimingdiagram:tISUistheestablishmenttime,thatis,thestabletimeofthedatarequiredbythe SDIOinterfacebeforeclocksamplinginthismode;tIHis…

Text truncated - open the document above for the full version.

CoveredEquipmentCertificationAttestationLetter 2025.04.16 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 USA ATTN.:ReviewingEngineer FCCID:2AXS5-FLC5330XSA-A JiangSuFulianCommunicationTechnologyCo.,Ltd(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtisnot“covered”equipmentprohibitedfrom receivinganequipmentauthorizationpursuanttosection2.903oftheFCCrules. Note:Iftheequipmentforwhichtheapplicantseeksauthorizationisproducedby anyoftheentitiesidentifiedonthecurrentCoveredList,theapplicantshould includeanexplanationonwhytheequipmentisnot“covered”equipment. JiangSuFulianCommunicationTechnologyCo.,Ltd(“theapplicant”)certifiesthat,asof thedateofthefilingoftheapplication,theapplicantisnotidentifiedontheCoveredList asanentityproducing“covered”equipment. JiangSuFulianCommunicationTechnologyCo.,Ltd(“theapplicant”)certifiesthatthe equipmentforwhichauthorizationissoughtdoesnotincludecybersecurityoranti-virus softwareproducedorprovidedbyKasperskyLab,Inc.oranyofitssuccessorsand assignees,includingequipmentwithintegratedKasperskyLab,Inc.(oranyofits successorsandassignees)cybersecurityoranti-virussoftwarepursuanttoDA-24-886 andKDB986446D01 CoveredEquipmentGuidancesectionB(2a). Signed: Printedname:MrJiangweiLuo Title:RDManager CompanyName:JiangSuFulianCommunicationTechnologyCo.,Ltd Date:2025.04.16

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC IDModel name 2AXS5-FLC5330XSA-AFLC5330XSA-A We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement without expiration date US-American Point of ContactApplicant/Approval Holder SignatureSignature Company Name:Global Product Services and Consultation LLC Jiang Su Fulian Communication Technology Co., Ltd FRN:00334067030030077929 Contact Name:Chi S ChanMr Jiangwei Luo Address:328 W Palm Ave. Monrovia, CA91016 Yongan Community, the south of Lanling Road Danyang Development Distinct, Jiangsu, China Phone:N/AN/A Email:[email protected]@fulian-link.com SC5046767

2025.04.16 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2AXS5-FLC5330XSA-A ProductName:2.4GHzWLAN/BluetoothModule RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommission’srules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...) Schematics Blockdiagram  Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. Name:MrJiangweiLuo Title:RDManager Company:JiangSuFulianCommunicationTechnologyCo.,Ltd

SingleModularapprovalDeclarationletter We,JiangSuFulianCommunicationTechnologyCo.,Ltdappliessinglemodular approvalfor ProductName:2.4GHzWLAN/BluetoothModule Model:FLC5330XSA-A FCCID:2AXS5-FLC5330XSA-A Accordingto996369D01ModuleEquipAuthGuidev01r04and15.212requirement: 1)Theradioelementsmusthavetheradiofrequencycircuitryshielded.Physical componentsandtuningcapacitor(s)maybelocatedexternaltotheshield,butmustbe onthemoduleassembly; Answer:Yes,shielded. 2)Themodulemusthavebufferedmodulation/datainputstoensurethatthedevice willcomplywithPart15requirementswithanytypeofinputsignal; Answer:Yes;Allinputstothemodulesarebufferedthroughlogicormicroprocessor inputs. 3)Themodulartransmittermusthaveitsownpowersupplyregulation. Answer:Yes;Alowdropoutregulatorisusedformodularpowersupplyregulation. 4)Themodulemustcontainapermanentlyattachedantenna,orcontainaunique antennaconnector,andbemarketedandoperatedonlywithspecificantenna(s),per Sections15.203,15.204(b),15.204(c),15.212(a),2.929(b); Answer:Yes;Deviceisequippedwithintegralantenna. (5)Themodulemustdemonstratecomplianceinastand-aloneconfiguration; Answer:Yes ， distancebetweenmodularandallAEsarebiggerthan10cm,referto setupphoto. (6)ThemodulemustbelabeledwithitspermanentlyaffixedFCCIDlabel,orusean electronicdisplay(SeeKDBPublication784748aboutlabelingrequirements); Answer:Yes;Themodularhasapermanentfixedlabel,andbelowstatementwas listedintheUserManual;ThehostdevicemustbelabeledtodisplaytheFCCIDof themodule“ContainsFCCID:2AXS5-FLC5330XSA-A” (7)Themodulemustcomplywithallspecificrulesapplicabletothetransmitter includingalltheconditionsprovidedintheintegrationinstructionsbythegrantee; Answer:Yes;Themodulecomplywithallspecificrulesapplicabletothetransmitter includingalltheconditionsprovidedintheintegrationinstructionsbythegrantee, Refertotestreportandusermanual. (8)ThemodulemustcomplywithRFexposurerequirements Answer:Yes;TransmittermeetsMPEcalculationof47CFR1.1307.RefertoMPE ReportsandRefertomodularinstallationmanual. Pleasecontactmeifyouhaveanyfurtherquestions.Thanksforyourattention. BestRegards, <Signature> Name:MrJiangweiLuo Title:RDManager Company:JiangSuFulianCommunicationTechnologyCo.,Ltd

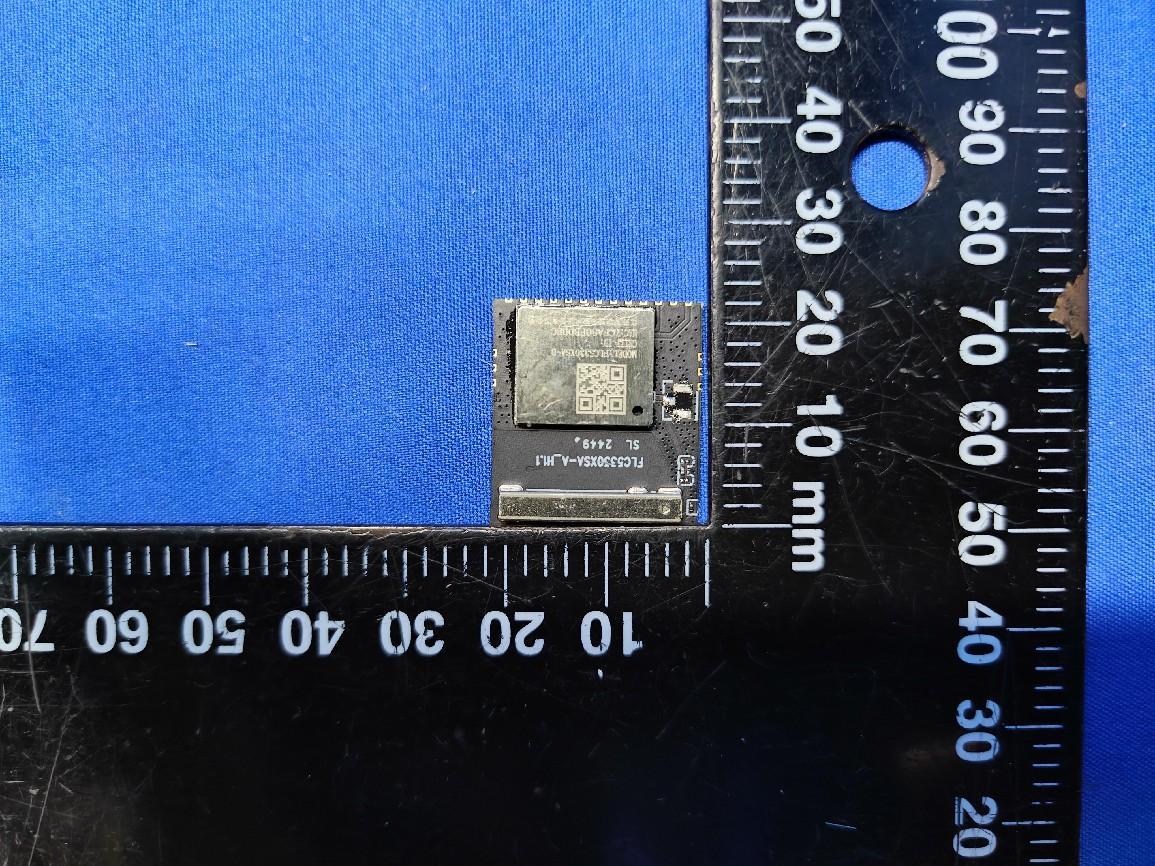

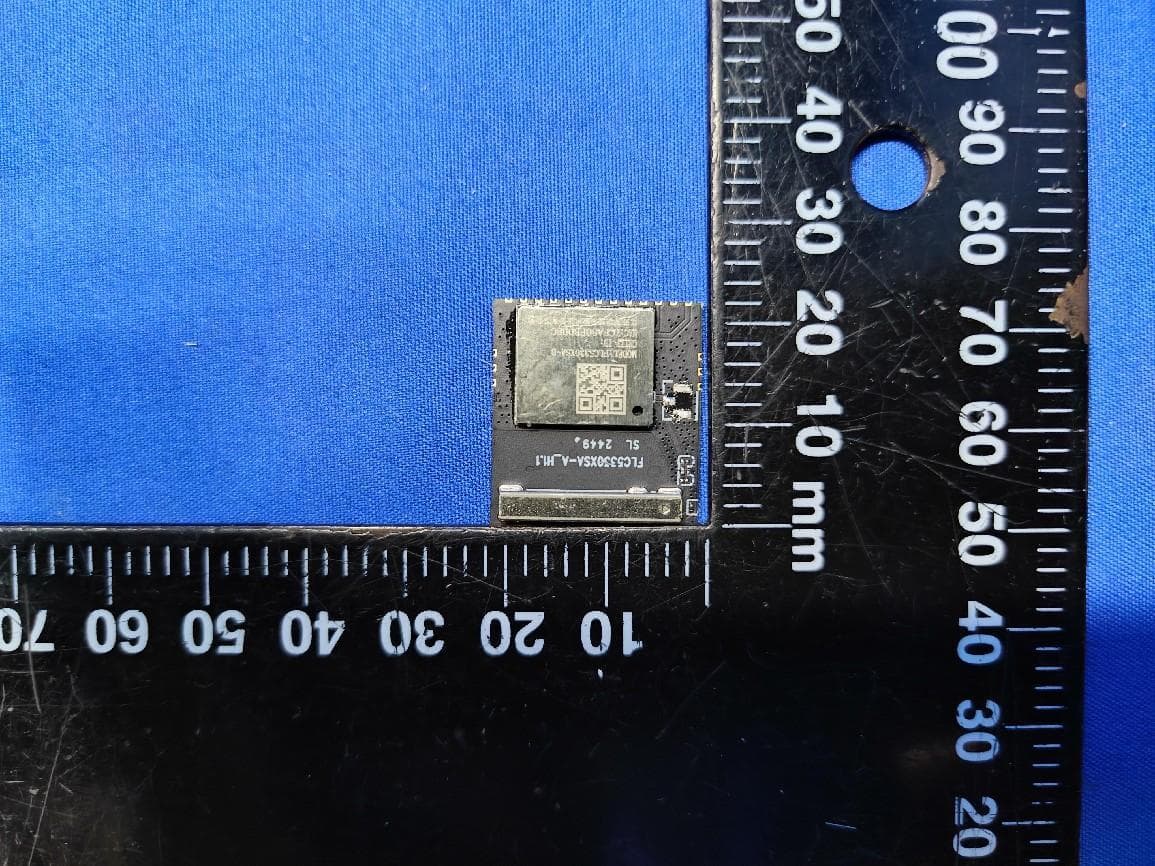

ReportNo.:CISRR25032017105 Page 38 of 41 7.EXTERNALANDINTERNALPHOTOS 7.1.ExternalPhotos Testboard module ReportNo.:CISRR25032017105 Page 39 of 41 ReportNo.:CISRR25032017105 Page 40 of 41

FCCID:2AXS5-FLC5330XSA-A Label Size:10mm*8mm FCCID:2AXS5-FLC5330XSA-A LabelLocation

ReportNo.:CISRR25032017105 Page 41 of 42 7.2.InternalPhotos ANT ReportNo.:CISRR25032017105 Page 42 of 42 8.AppendixReport

RFExposureevaluation FCCID2AXS5-FLC5330XSA-A ProductName2.4GHzWLAN/BluetoothModule Model/TypereferenceFLC5330XSA-A ListedModel(s)-- ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeMobileDevice 1.Reference ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposureto RadioFrequencyElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortable DevicesRFExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices 2.Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f2)* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f2)* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 3.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 4.AntennaInformation FLW8189FSA7-AWiFimodulecanonlyuseantennascertificatedasfollowsprovidedby manufacturer; AntennaNo.Typeofantenna: Gainoftheantenna (Max.) Frequencyrange: AntennaMetalAntenna3.1dBi2402-2480MHz 5.ManufacturingTolerance BLE BLE1M ChannelChannel0Channel19Channel39 Target(dBm)966 Tolerance±(dB)1.01.01.0 BLE2M ChannelChannel0Channel19Channel39 Target(dBm)798 Tolerance±(dB)1.01.01.0 2.4GWIFI IEEE802.11b ChannelChannel1Channel6Channel11 Target(dBm)181817 Tolerance±(dB)1.01.01.0 IEEE802.11g ChannelChannel1Channel6Channel11 Target(dBm)181817 Tolerance±(dB)1.01.01.0 IEEE802.11n_20 ChannelChannel1Channel6Channel11 Target(dBm)181818 Tolerance±(dB)1.01.01.0 IEEE802.11n_40 ChannelChannel3Channel6Channel9 Target(dBm)171716 Tolerance±(dB)1.01.01.0 IEEE802.11ax_20 ChannelChannel1Channel6Channel11 Target(dBm)171717 Tolerance±(dB)1.01.01.0 6.StandaloneMPEResult AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast20 cmfromanybodypartoftheuserornearbypersons;fromthemaximumEUTRFoutput power,theminimumseparationdistance,r=20cm,aswellasthegainoftheusedantennais 2.54dBi,theRFpowerdensitycanbeobtained. Mode Outputpower Antenna Gain(dBi) Antenna Gain(linear) MPE (mW/cm 2 ) MPELimits (mW/cm 2 ) dBmmW BLE 1010.003.12.040.00406 1.0000 2.4GWIFI 1979.433.12.040.03226 1.0000 Remark: 1.Outputpower(Peak)includingturn-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolled RFExposureofmobiledevice. ------Endofthereport------

Engineering Specification 1. 18x3.0x2.5mm WiFi/Bluetooth Ceramic Chip Antenna Product Number (1) Product Type (2) Steel plate antenna (3) Size Code (4) 18x3.0x2.5mm (5) Type Code (6) H1 (7) Packing (8) Paper &Reel (9) Frequency (10) 2.45GHz Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：18x3.0x2.5mm WiFi/Bluetooth Ceramic Chip Antenna Engineering Specification DOCUMENT NO. RTL8189 REV. A PAGE 1 OF 4 Manufacture : Shenzhen Dezizi Technology Co., Ltd Address : Building C6, Hengfeng Industrial City, Baoan District,Shenzhen 2. Features *Stable and reliable in performances *Low temperature coefficient of frequency *Low profile, compact size *RoHS compliance *SMT processes compatible 3. Applications *Bluetooth earphone systems *Hand-held devices when WiFi /Bluetooth functions are needed, e.g., Smart phone. *IEEE802.11 b/g/n *ZigBee *Wireless PCMCIA cards or USB dongle 4. Description dezizai chip antenna series are specially designed for WiFi/Bluetooth applications. Based on dezizai proprietary design and processes, this chip antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5. Electrical Specifications 5-1. Electrical Table Characteristics Specifications Unit Outline Dimensions 18x3.0x2.5mm mm Working Frequency 2400~2500 MHz VSWR 2 Max. Impedance 50 Ω Polarization Linear Polarization Gain Peak 3.1 (typical)dBi Efficiency 75 (typical) % Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：18x3.0x2.5mm WiFi/Bluetooth Ceramic Chip Antenna Engineering Specification DOCUMENT NO. RTL8189 REV. A PAGE 2 OF 4 5-2. Return Loss & VSWR Return Loss (S 11 ) VSWR(S 11 ) 6. Antenna Dimensions & Test Board (unit: mm) a. Antenna Dimensions Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：18x3.0x2.5mm WiFi/Bluetooth Ceramic Chip Antenna Engineering Specification DOCUMENT NO. RTL8189 REV. A PAGE 3 OF 4 Size : 18*3*2.5mm Thickness : 0.3mm b. Test Board with Antenna 7. Radiation Pattern 7-1. 3D Pattern @ 2400、2450、2500MHz 7-2. Gain and efficiency Frequency( MHz) 2400 2410 2420 2430 2442 2450 2460 2470 2480 2490 2500 Efficiency (%) 43.7 46.8 48.8 50.8 53.4 56.5 61.7 65.0 69.4 71.2 72.2 Gain (dBi) 0.8 1.1 1.3 1.5 1.7 1.8 2.1 2.4 3.1 2.9 3.1 Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：18x3.0x2.5mm WiFi/Bluetooth Ceramic Chip Antenna Engineering Specification DOCUMENT NO. RTL8189 REV. A PAGE 4 OF 4 8. OTA 8-1 Test board environment with antenna 8-2. TRP and TIS #1 #2 TRP TIS TRP TIS 11b/11M 11M（20M） CH1 16.69 -84.86 16.8 -85.14 CH7 16.46 -84.29 16.97 -85.83 CH13 16.65 -84.62 16.86 -85.76 11g/6M 54M（20M） CH1 14.83 -66.65 15.11 -68.09 CH7 14.24 -65.24 15.28 -67.47 CH13 14.42 -66.89 15.15 -68.55 11n/6.5M 65M（20M） CH1 14.85 -63.14 15.05 -64.95 CH7 14.29 -62.89 15.28 -64.1 CH13 14.36 -62.04 15.02 -63.17 Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：18x3.0x2.5mm WiFi/Bluetooth Ceramic Chip Antenna Engineering Specification DOCUMENT NO. RTL8189 REV. A PAGE 5 OF 6

ReportNo.:CISRR25032017105 Thetestresultsrelateonlytothetestedsamples. ThetestreportshouldnotbereproducedexceptinfullwithoutthewrittenapprovalofShenzhenBangce TestingTechnologyCo.,Ltd. Page1of42 TESTREPORT ReportNo.CISRR25032017105 ProjectNo.CISR250320171 FCCID2AXS5-FLC5330XSA-A ApplicantJiangSuFulianCommunicationTechnologyCo.,Ltd Address YonganCommunity,thesouthofLanlingRoad,Danyang DevelopmentDistrict,JiangsuProvince,China. ManufacturerJiangSuFulianCommunicationTechnologyCo.,Ltd Address YonganCommunity,thesouthofLanlingRoad,Danyang DevelopmentDistrict,JiangsuProvince,China. ProductName2.4GHzWLAN/BluetoothModule TradeMarkN/A Model/TypereferenceFLC5330XSA-A ListedModel(s)N/A Standard 47CFRPart15.247 TestdateMarch20,2025toApril09,2025 IssuedateApril10,2025 TestresultComplied Preparedby:RoryHuangApprovedby:GenryLong ReportNo.:CISRR25032017105 Page 2 of 42 Contents 1.REPORTVERSION..........................................................................................................................................3 2.TESTDESCRIPTION.......................................................................................................................................4 3.SUMMARY........................................................................................................................................................5 3.1.ProductDescription*..................................................................................................................................5 3.2.RadioSpecificationDescription*..............................................................................................................5 3.3.ModificationofEUT.....................................................................................................................................6 3.4.Deviationfromstandards...........................................................................................................................6 3.5.TestingSite...................................................................................................................................................6 4.TESTCONFIGURATION.................................................................................................................................7 4.1.Testfrequencylist.......................................................................................................................................7 4.2.Descriptionsoftestmode...........................................................................................................................7 4.3.Supportunitusedintestconfiguration....................................................................................................7 4.4.Testsampleinformation.............................................................................................................................7 4.5.Environmentalconditions...........................................................................................................................7 4.6.EquipmentUsedduringtheTest................................................................................................................8 5.TESTRESULTS.............................................................................................................................................10 5.1.EvaluationResults(Evaluation)...............................................................................................................10 5.1.1.AntennaRequirement............................................................................................................................10 5.2.RadioSpectrumMatterTestResults(RF)...............................................................................................11 5.2.1.ConductedEmissionatACpowerline.................................................................................................11 5.2.2.6dBBandwidth........................................................................................................................................14 5.2.3.MaximumConductedOutputPower.....................................................................................................15 5.2.4.PowerSpectralDensity..........................................................................................................................16 5.2.5.Conductedbandedgeandspuriousemission...................................................................................17 5.2.6.Radiatedbandedgeemission...............................................................................................................18 5.2.7.RadiatedSpuriousEmission(below1GHz).........................................................................................24 5.2.8.RadiatedSpuriousEmission(Above1GHz)........................................................................................28 6.TESTSETUPPHOTOS..................................................................................................................................36 7.EXTERNALANDINTERNALPHOTOS........................................................................................................38 7.1.ExternalPhotos.........................................................................................................................................38 7.2.InternalPhotos...........................................................................................................................................41 8.APPENDIXREPORT......................................................................................................................................42 ReportNo.:CISRR25032017105 Page 3 of 42 1.REPORTVERSION VersionNo.IssuedateDescription 00April10,2025Original ReportNo.:CISRR25032017105 Page 4 of 42 2.TESTDESCRIPTION No.TestItemStandardRequirementResult 1AntennaRequirement47CFR15.203Pass 2ConductedEmissionatACpowerline47CFR15.207(a)Pass 36dBBandwidth47CFR15.247(a)(2)Pass 4MaximumConductedOutputPower47CFR15.247(b)(3)…

Text truncated - open the document above for the full version.

ProjectNo.:CISR250320171 AppendixReport1/12 AppendixReport ProjectNo.: CISR250320171 TestEngineer:JamesWang Supervisedby:RoryHuang ProjectNo.:CISR250320171 AppendixReport2/12 1)DutyCycle TestResult ModeChannelOnTime(ms)Period(ms)DutyCycle(%) DutyCycle (linear) DutyCycle Factor(dB) 1/T BLE1M 02.1252.49985.050.85050.70330.4706 192.1262.50085.060.85060.70270.4704 392.1262.50085.060.85060.70270.4704 BLE2M 01.0691.87357.060.57062.43670.9355 191.0691.87357.060.57062.43670.9355 391.0691.87457.020.57022.43970.9355 TestGraphs BLE1M_Channel0BLE1M_Channel19 BLE1M_Channel39BLE2M_Channel0 ProjectNo.:CISR250320171 AppendixReport3/12 BLE2M_Channel19BLE2M_Channel39 ProjectNo.:CISR250320171 AppendixReport4/12 2)PowerSpectralDensity TestResult ModeChannelPSD(dBm/3kHz)Limit(dBm/3kHz)Result BLE1M0-7.730≤8PASS BLE1M19-10.140≤8PASS BLE1M39-11.220≤8PASS BLE2M0-12.650≤8PASS BLE2M19-11.170≤8PASS BLE2M39-11.450≤8PASS TestGraphs BLE1M_Channel0BLE2M_Channel0 BLE1M_Channel19BLE2M_Channel19 ProjectNo.:CISR250320171 AppendixReport5/12 BLE1M_Channel39BLE2M_Channel39 ProjectNo.:CISR250320171 AppendixReport6/12 3)6dBBandwidth TestResult ModeChannel CenterFrequency (MHz) 6dBBandwidth (MHz) Limit (MHz) Result BLE1M 024020.6600 ≥0.5 PASS 1924400.6700PASS 3924800.6600PASS BLE2M 024021.170PASS 1924401.160PASS 3924801.160PASS TestGraphs BLE1M_Channel0BLE2M_Channel0 BLE1M_Channel19BLE2M_Channel19 ProjectNo.:CISR250320171 AppendixReport7/12 BLE1M_Channel39BLE2M_Channel39 ProjectNo.:CISR250320171 AppendixReport8/12 4)ConductedOutputPower TestResult ModeChannel PeakOutputPower (dBm) PeakOutputPower (mW) Limit (dBm) Result BLE1M 09.298.49≤30PASS 196.854.84≤30PASS 396.264.23≤30PASS BLE2M 07.755.96≤30PASS 199.068.05≤30PASS 398.677.36≤30PASS TestGraphs PeakOutputPower BLE1M_Channel0 PeakOutputPower BLE1M_Channel19 PeakOutputPower BLE1M_Channel39 PeakOutputPower BLE2M_Channel0 ProjectNo.:CISR250320171 AppendixReport9/12 PeakOutputPower BLE2M_Channel19 PeakOutputPower BLE2M_Channel39 ProjectNo.:CISR250320171 AppendixReport10/12 5)ConductedOutOfBandEmission TestResult ModeChannel OOBEmission Frequency (MHz) OOBEmission Level (dBm) Limit (dBm) OverLimit (dB) Result BLE1M 0 2400.00-43.290-10.84-32.450PASS 6269.59-52.861-10.84-42.021PASS 19250.15-48.131-13.34-34.791PASS 39 2483.50-50.330-13.87-36.460PASS 6957.09-52.097-13.87-38.227PASS BLE2M 0 2400.00-22.620-9.82-12.800PASS 22043.1-53.191-9.82-43.371PASS 19549.79-48.963-11.91-37.053PASS 39 2483.50-48.360-11.51-36.850PASS 16313.4-53.124-11.51-41.614PASS TestGraphs In-BandReferenceLevel BLE1M_Channel0 In-BandReferenceLevel BLE2M_Channel0 OutOfBandEmission BLE1M_Channel0 OutOfBandEmission BLE2M_Channel0 ProjectNo.:CISR250320171 AppendixReport11/12 30.0MHz-25000.0MHz BLE1M_Channel0 30.0MHz-25000.0MHz BLE2M_Channel0 In-BandReferenceLevel BLE1M_Channel19 In-BandReferenceLevel BLE2M_Channel19 30.0MHz-25000.0MHz BLE1M_Channel19 30.0MHz-25000.0MHz BLE2M_Channel19 ProjectNo.:CISR250320171 AppendixReport12/12 In-BandReferenceLevel BLE1M_Channel39 In-BandReferenceLevel BLE2M_Channel39 OutOfBandEmission BLE1M_Channel39 OutOfBandEmission BLE2M_Channel39 30.0MHz-25000.0MHz BLE1M_Channel39 30.0MHz-25000.0MHz BLE2M_Channel39 ------Endofthereport-----

ReportNo.:CISRR25032017106 Thetestresultsrelateonlytothetestedsamples. ThetestreportshouldnotbereproducedexceptinfullwithoutthewrittenapprovalofShenzhenBangce TestingTechnologyCo.,Ltd. Page1of37 TESTREPORT ReportNo.CISRR25032017106 ProjectNo.CISR250320171 FCCID2AXS5-FLC5330XSA-A ApplicantJiangSuFulianCommunicationTechnologyCo.,Ltd Address YonganCommunity,thesouthofLanlingRoad,Danyang DevelopmentDistrict,JiangsuProvince,China. ManufacturerJiangSuFulianCommunicationTechnologyCo.,Ltd Address YonganCommunity,thesouthofLanlingRoad,Danyang DevelopmentDistrict,JiangsuProvince,China. ProductName2.4GHzWLAN/BluetoothModule TradeMarkN/A Model/TypereferenceFLC5330XSA-A ListedModel(s)N/A Standard 47CFRPart15.247 TestdateMarch20,2025toApril09,2025 IssuedateApril10,2025 TestresultComplied Preparedby:RoryHuangApprovedby:GenryLong ReportNo.:CISRR25032017106 Page 2 of 37 Contents 1.REPORTVERSION..........................................................................................................................................3 2.TESTDESCRIPTION.......................................................................................................................................4 3.SUMMARY........................................................................................................................................................5 3.1.ProductDescription*..................................................................................................................................5 3.2.RadioSpecificationDescription*..............................................................................................................5 3.3.ModificationofEUT.....................................................................................................................................5 3.4.Deviationfromstandards...........................................................................................................................6 3.5.TestingSite...................................................................................................................................................6 4.TESTCONFIGURATION.................................................................................................................................7 4.1.Testfrequencylist.......................................................................................................................................7 4.2.Descriptionsoftestmode...........................................................................................................................7 4.3.Supportuni…

Text truncated - open the document above for the full version.
