2反面 Technical specifications Note: The pictures listed in this manual are for reference only. Product specifications/button definitions and appearance are subject to change without notice. CPU GPU RAM Storage Ethernet Network Charger Packing list BT WiFi Intel Jasper Lake N5105, 10 nm process, 4- Core 4 threads, main frequency 2.0Ghz (up) (Up to 2.90GHz), TPD 10W, cache 4 MB Intel® UHD Graphics 8GB 128GB/256GB/512GB SSD, M.2 2242(Product capacity is subject to actual purchase), support MicroSD expansion up to 128GB Giga LAN(RJ45)*1,1000M IEEE 802 11 a/b/g/n/ac BT5.2 TYPE-C 12V 3A（DC IN ONLY） 1* mini PC+1* user manual/warranty card +1*TYPE-C charger 3正面 Entitled 12-month warranty for the product quality problems caused by non-human factors. Certificate/Inspected Warranty commitment Company: Shenzhen GMK Technology Co., Ltd. Address: 3/F, #5 Bldg, Yifenghua Industrial Park, Huaning Rd, Longhua Dist, 518109, Shenzhen, China 2正面 Please familiarize yourself with the interface and buttons of the device before use. About the Device 1反面 Safety warnings and precautions 3反面 1正面 GMKtec NUCBOX5 USER MANUAL Before using and operating this equipment, please read and observe the following precautions carefully to avoid dangerous or illegal operations. Use environment Do not use the device in dusty and humid places to avoid causing internal circuit failures; Do not place this equipment near heating objects such as electric heaters; The working temperature of this equipment is 0-40 degrees, and the normal working temperature is 10-90% RH. Power Please use the special charger that comes standard with this product; Waterproof This device is not waterproof, please keep it dry; Maintenance For all maintenance services, please contact the dealer’ maintenance personnel; Do not insert any sharp objects into the device; Do not drop or bump the device to avoid damage to the device. s POWER Type-c (DC IN ONLY) Headphone plug Giga LAN(RJ45) HDMI 4K/60Hz USB 3.2*2 USB 3.2 HD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Radiation Exposure Statement To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance of 20cm from your body.

Shenzhen GMK Technology Co., Ltd 3/F, #5Bldg, HuaLian Industrial Park, XinShi Community, Dalang St, Longhua Dist, 518109, Shenzhen, China Agent Authorization Company: Shenzhen GMK Technology Co., Ltd Address: 3/F, #5Bldg, HuaLian Industrial Park, XinShi Community, Dalang St, Longhua Dist, 518109, Shenzhen, China Product Name: NucBox5 Model Number(s): KB5 Product Description: NucBox5 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022/4/11 Name: Jerome Chung Title: Engineer Company: Shenzhen GMK Technology Co., Ltd

Shenzhen GMK Technology Co., Ltd 3/F, #5Bldg, HuaLian Industrial Park, XinShi Community, Dalang St, Longhua Dist, 518109, Shenzhen, China Page 1 of 2 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/4/10 Subject; Request for Confidentiality FCC ID: 2AXUD-KB5 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Declaration Letter of Software Security Requirements Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. Shenzhen GMK Technology Co., Ltd 3/F, #5Bldg, HuaLian Industrial Park, XinShi Community, Dalang St, Longhua Dist, 518109, Shenzhen, China Page 2 of 2 It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jerome Chung Title: Engineer

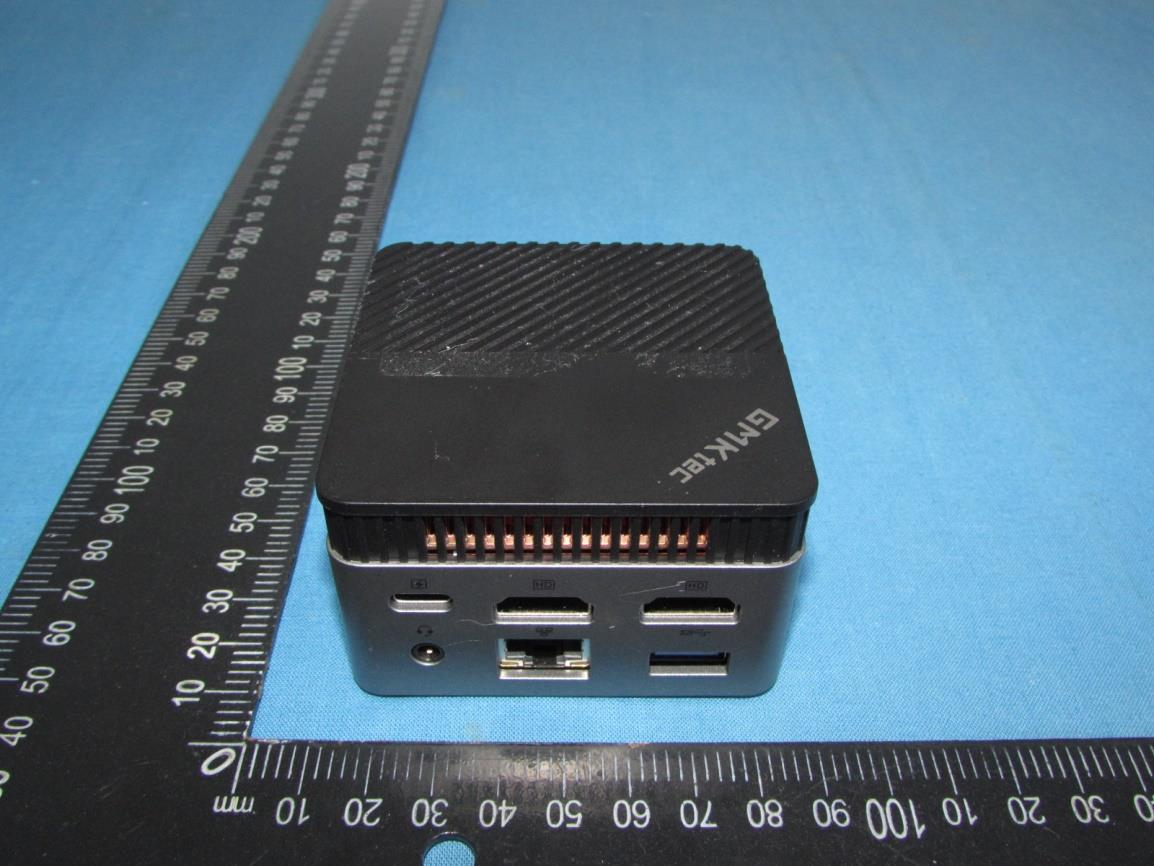

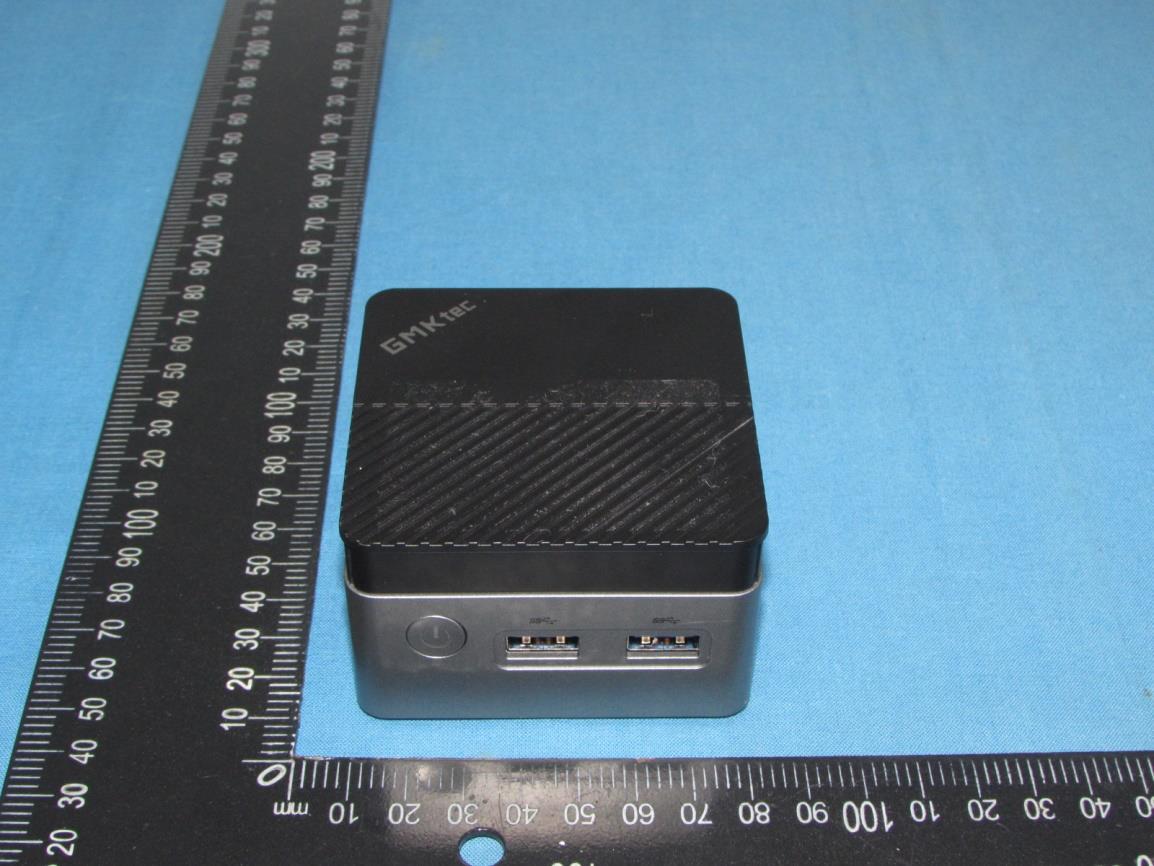

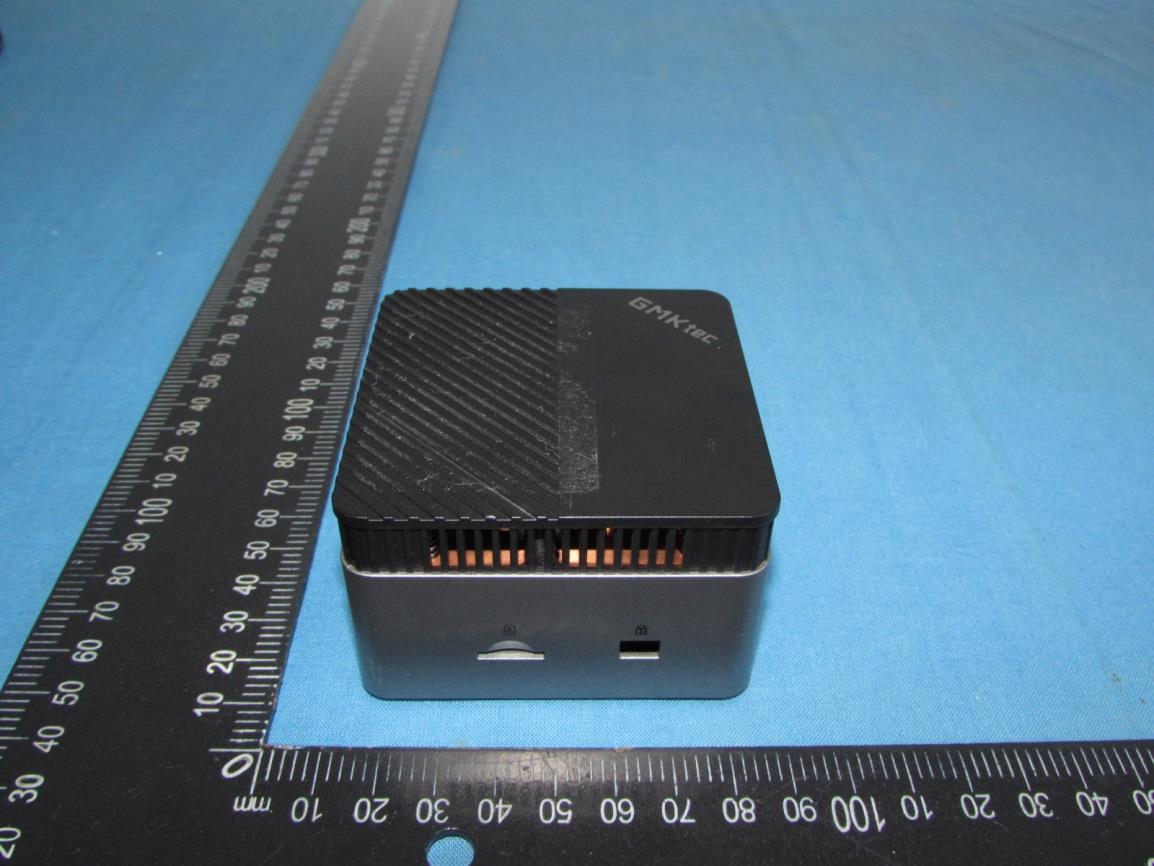

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2AXUD-KB5 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT External Photos Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2AXUD-KB5 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 3 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2AXUD-KB5 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 3

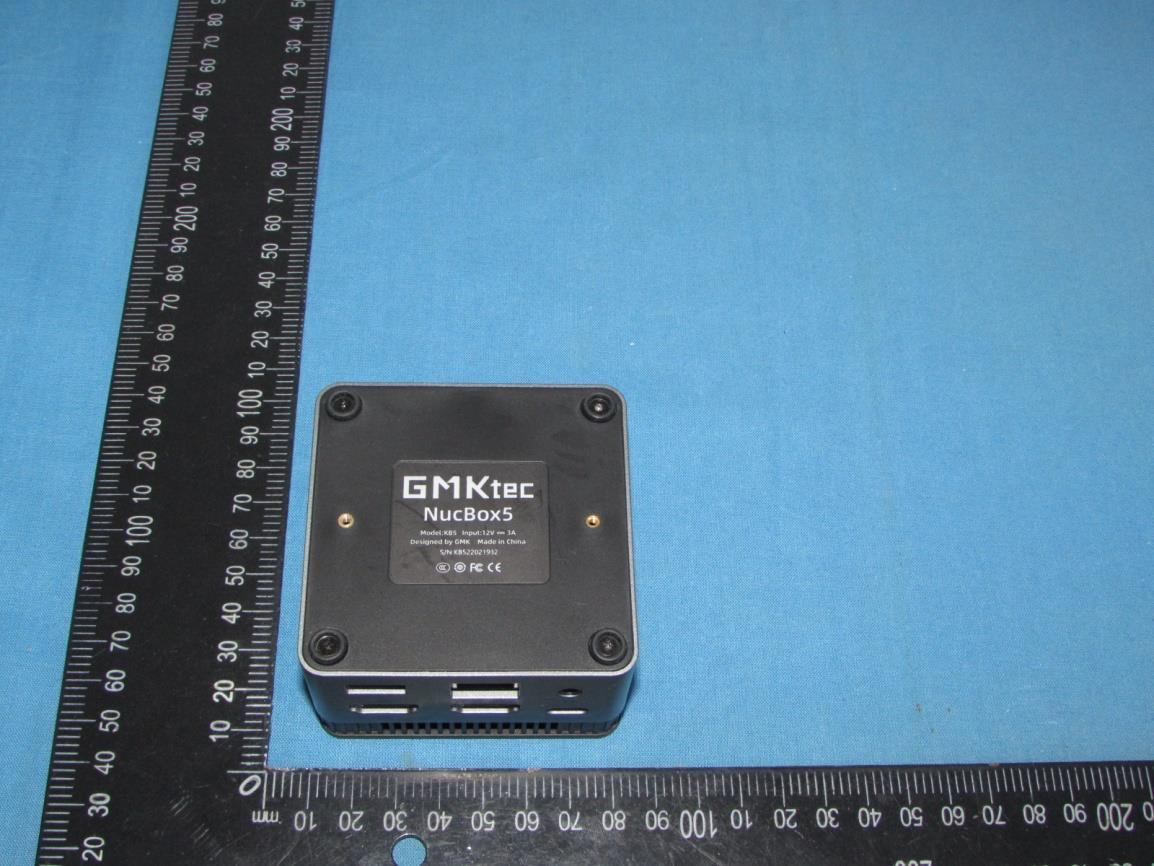

Label & Label Location Size:55mm(L)*36mm(W) FCC ID: 2AXUD-KB5
