2AXVM-HM-TP5XXXHandheld Thermography Camera

Handheld Thermography Camera Quick Start Guide 1 English 1. Brief Description The handheld thermography camera is a camera with thermal images. The built-in high-sensitivity IR detector and high-performance sensor detects the temperature change and measure the real-time temperature. The temperature measurement range is -20°C to 550 °C (-4 °F to 1022 °F) with accuracy ±2 °C. It helps the users to find the risky part and lower their property loss. The device supports live viewing, and capturing, etc. 2. Appearance S cr ee n Charging Indicator Back Nevigation Spe aker Optic al L ens Thermal Lens White Light Lens Protector Switch Trigger Hand Strap Hole Tripod Interface Note: The appearance varies according to different models. Button Button Function Press: display menu or confirm operation Hold: power on/off Exit the menu or return to previous menu. Press to select parameters. Interface ● Charging Indicator: When the device is charging, the LED indicator is red. When the device is fully charged, the LED indicator is green. ● Trigger: In live view interface, pull the trigger to capture snapshots. In menu mode, pull the trigger to switch to live view. ● Type-C Interface: Charge the device or export files with the Type-C cable. ● Tripod Interface: Connected to UNC 1/4”-20 tripod. 3. Charge Device After the device starts up, the OSD (on-screen display) shows the battery status. When the battery is low, charge the device and ensure it works properly. For the first charge, charge the device for 10 hours when the device is turned on. Steps 1. Lift the Type-C cover. 2. Plug in the Type-C cable and charge the device. 2 Type-C User Manual Legal Information © 2020 Hangzhou Microimage Software Co., Ltd. All rights reserved. About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the HIKMICRO website (www.hikmicrotech.com/). Please use this Manual with the guidance and assistance of professionals trained in supporting the Product. Trademarks Acknowledgement and other HIKMICRO’s trademarks and logos are the properties of HIKMICRO in various jurisdictions. Other trademarks and logos mentioned are the properties of their respective owners. LEGAL DISCLAIMER TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKMICRO MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKMICRO BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKMICRO SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKMICRO WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA 3 PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. IC Information This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesir…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev: 0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hangzhou Microimage Software Co., Ltd. Address Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict,Binjiang District, Hangzhou, Zhejiang Grantee Code 2AXVM FCC ID 2AXVM-HM-TP5XXX Authorized Contact Name Jianyi Li Contact Email [email protected] Contact Phone 18858952085 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applic able rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has r ead, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-in novation-division/rules-regulations-title- 47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2020/12/31 Print Name: Jianyi Li Title: Testing and Certification Engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hangzhou Microimage Software Co., Ltd. Current Date : 2020-12-31 To: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE (Hangzhou Microimage Software Co., Ltd.) HEREBY DECLARED THAT Product Description Handheld Thermographic Camera Model No. HM-TP52-3AXF/W-B2L,HM-TP52-3AQF/W-B20,HM-TB3422-3/Q,HM-TP51 -3AQF/W-B10 Manufacturer’s Name Hangzhou Microimage Software Co., Ltd. Manufacturer’s Address Room 313, Unit B, Building 2,399 Danfeng Road,Xixing Subdistrict,Binjiang District,Hangzhou,Zhejiang *Except that the model number, and appearance deviation, are identical with the original product as follows: Note: The definition of identical should be “electrically identical”. A device will be considered to be electrically identical if no changes are made to the devices’ schematics, board layouts, component layouts, chip sets, resistors and all other electrical aspects of the device are identical. Model No. (型号): HM-TP51-3AXF/W-B1L Manufacturer’s Name (生产商名称): Hangzhou Microimage Software Co., Ltd. Manufacturer’s Address（生产商商地址): Room 313, Unit B, Building 2,399 Danfeng Road,Xixing Subdistrict,Binjiang District,Hangzhou,Zhejiang Sincerely, Signature (签字): Printed Name (姓名): Jianyi Li Position/Title (职位): Testing and Certification Engineer Contact Number (联系电话): 18858952085

Hangzhou Microimage Software Co., Ltd. Date: 2020-12-31 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2AXVM-HM-TP5XXX To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certific ation, as specified by SGS North America, Inc., still resides with Hangzhou Microimage Software Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Jianyi Li Title: Testing and Certification Engineer Signature: On behalf of Company: Hangzhou Microimage Software Co., Ltd. Telephone: 18858952085

Hangzhou Microimage Software Co., Ltd. T o: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States F rom: Hangzhou Microimage Software Co., Ltd. Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict,Binjiang District, Hangzhou, Zhejiang Reg arding: Confidentiality Request regarding application for FCC ID : 2AXVM-HM-TP5XXX L ONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. S chematic(s) Block Diagrams Operational Descriptions T he documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. S incerely, S ignature: Printed Name (on file with the FCC associated with the Grantee Code): Jianyi Li Title: Testing and Certification E ngineer Company Name: Hangzhou Microimage Software Co., Ltd.

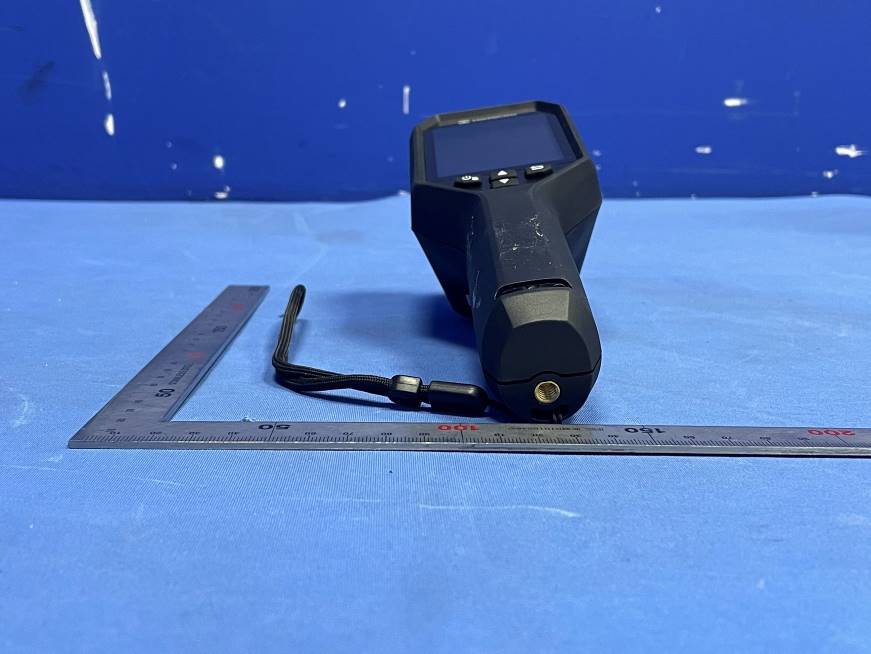

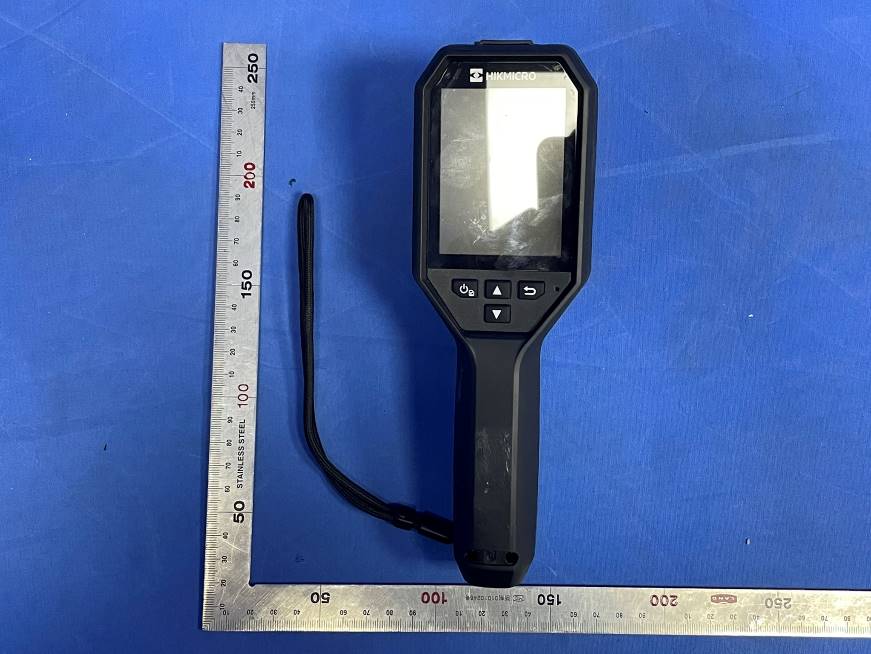

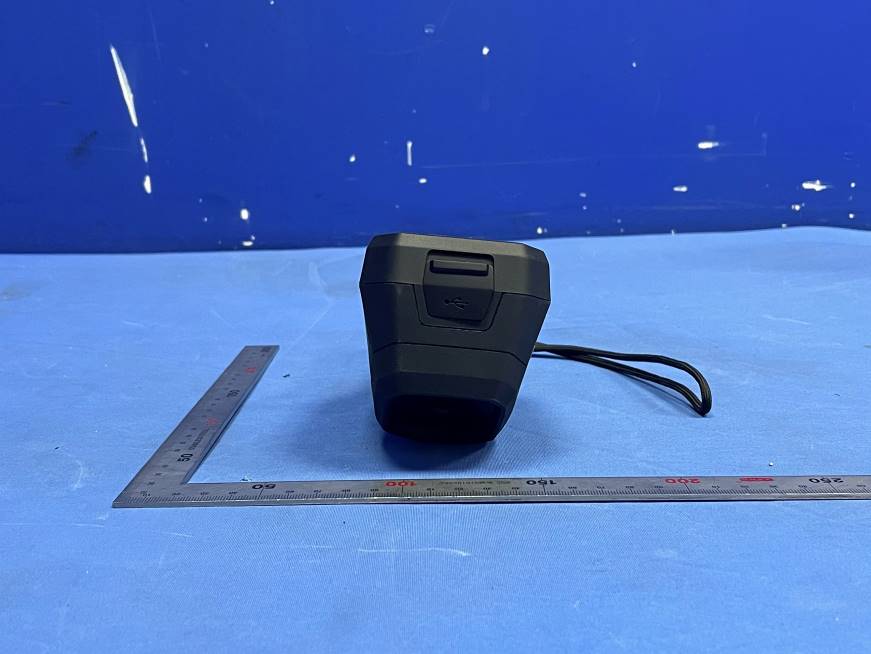

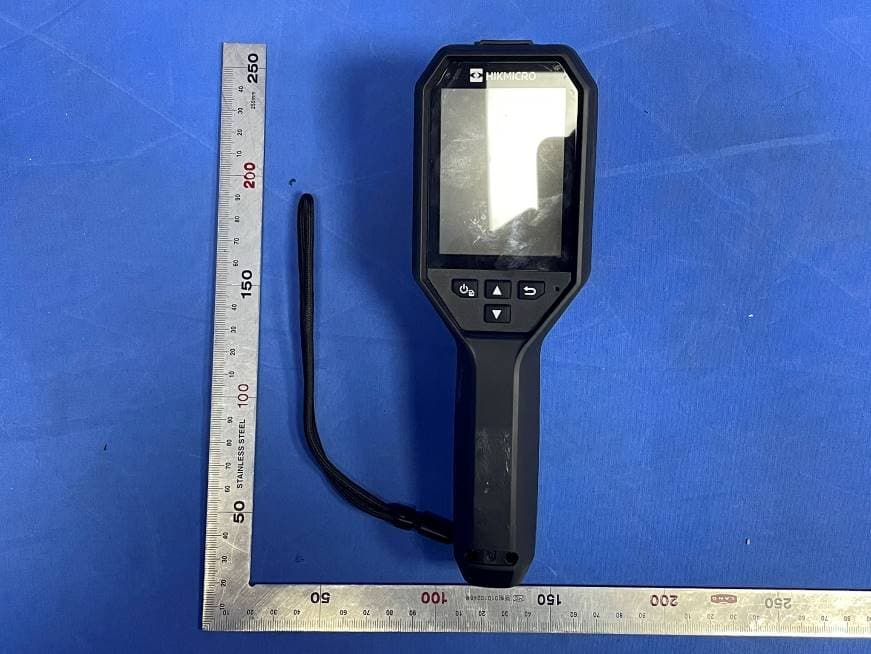

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 4 Page 1 of 4 External Photos Applicant: Hangzhou Microimage Software Co., Ltd. Address of Applicant: Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict,Binjiang District, Hangzhou, Zhejiang Equipment Under Test (EUT): Product Name: Handheld Thermographic Camera Model No.: HM-TP51-3AXF/W-B1L SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 4 Page 2 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 4 Page 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 4 Page 4 of 4 End

Remark：It’s hard to put FCC statement on the product due to device’s irregular appearance. FCC statement will be placed in the user manual which the device is marketed. Label location

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 8 Page 1 of 8 Internal Photos Applicant: Hangzhou Microimage Software Co., Ltd. Address of Applicant: Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict,Binjiang District, Hangzhou, Zhejiang Equipment Under Test (EUT): Product Name: Handheld Thermographic Camera Model No.: HM-TP51-3AXF/W-B1L SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 8 Page 2 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 8 Page 3 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 8 Page 4 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 8 Page 5 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 8 Page 6 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 8 Page 7 of 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 8 Page 8 of 8 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201038902 Page: 1 of 9 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF MPE REPORT Application No.: SHEM2012010389CR FCC ID: 2AXVM-HM-TP5XXX IC: 26572-HMTP5XXX Applicant: Hangzhou Microimage Software Co., Ltd. Address of Applicant: Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict,Binjiang District, Hangzhou, Zhejiang Manufacturer: Hangzhou Microimage Software Co., Ltd. Address of Manufacturer: Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict,Binjiang District, Hangzhou, Zhejiang Factory: Hangzhou Microimage Intelligent Technology Co., Ltd. Address of Factory: Floor 2, Building A1, 299 Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou City, Zhejiang Province Equipment Under Test (EUT): EUT Name: Handheld Thermography Camera Model No.: HM-TP51-3AXF/W-B1L Add Model No.: HM-TP52-3AXF/W-B2L,HM-TP52-3AQF/W-B20,HM-TB3422-3/Q,HM- TP51-3AQF/W-B10 Trade mark: HIKMICRO Standard(s) : FCC Rules 47 CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 RSS-102 Issue 5 (March 2015) Date of Receipt: 2020-12-14 Date of Test: 2020-12-14 to 2020-12-23 Date of Issue: 2020-12-28 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201038902 Page: 2 of 9 Revision Record Version Description Date Remark 00 Original 2020-12-28 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201038902 Page: 3 of 9 2 Contents Page 1 COVER PAGE................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION .......................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 4 3.2 TECHNICAL SPECIFICATIONS ................................................................................................................... 4 3.3 TEST LOCATION ....................................................................................................................................... 5 3.4 TEST FACILITY .......................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS .......................................................................... 6 4.2 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS .............................................................................. 7 5 MEASUREMENT AND CALCULATION .................................................................................................... 8 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 8 5.2 MPE CALCULATION ................................................................................................................................. 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201038902 Page: 4 of 9 3 General Information 3.1 General Description of E.U.T. Power supply: DC 5V by adapter DC 3.6V By LI-ion Recharge Battery Adapter: Model:ADS-12EA-05 05010E INPUT:100-240V,50/60Hz,Max 0.3A. OUTPUT:5V,2A. Serial Number: E20200973 Firmware Version: V5.5.83_190218 3.2 Technical Specifications Antenna Gain: 1dBi (Provided by the manufacturer) Antenna Type: PCB Antenna Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201038902 Page: 5 of 9 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L4354) CNAS has accredited Compliance Certification Services (Kunshan) Inc. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 2541.01) Compliance Certification Services (Kunshan) Inc. is accredited by the American Association for Laboratory Accreditation (A2LA). Certificate No. 2541.01. • FCC (Designation Number: CN1172) Compliance Certification Services Inc. has been r…

Text truncated - open the document above for the full version.

Appendix A for SHEM201201038901 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency(M Hz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) 802.11b 2412 SISO 1 12.410 12.580 98.65 0.06 2437 SISO 1 12.420 13.780 90.13 0.45 2462 SISO 1 12.410 12.590 98.57 0.06 802.11g 2412 SISO 1 2.065 2.200 93.86 0.28 2437 SISO 1 2.039 2.263 90.10 0.45 2462 SISO 1 2.062 2.226 92.63 0.33 802.11n(HT20) 2412 SISO 1 1.894 2.062 91.85 0.37 2437 SISO 1 1.894 2.044 92.66 0.33 2462 SISO 1 1.921 2.064 93.07 0.31 802.11n(HT40) 2422 SISO 1 0.945 1.195 79.08 1.02 2437 SISO 1 0.916 1.083 84.58 0.73 2452 SISO 1 0.921 1.061 86.80 0.61 1.2 Test Graph 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 9.604 ≥0.5 PASS 2437 SISO 1 10.004 ≥0.5 PASS 2462 SISO 1 10.049 ≥0.5 PASS 802.11g 2412 SISO 1 16.360 ≥0.5 PASS 2437 SISO 1 16.368 ≥0.5 PASS 2462 SISO 1 16.366 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 17.349 ≥0.5 PASS 2437 SISO 1 17.333 ≥0.5 PASS 2462 SISO 1 17.580 ≥0.5 PASS 802.11n(HT40) 2422 SISO 1 35.219 ≥0.5 PASS 2437 SISO 1 35.210 ≥0.5 PASS 2452 SISO 1 35.191 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 14.886 Only for Report Use 2437 SISO 1 14.887 Only for Report Use 2462 SISO 1 14.952 Only for Report Use 802.11g 2412 SISO 1 16.969 Only for Report Use 2437 SISO 1 16.887 Only for Report Use 2462 SISO 1 16.865 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.818 Only for Report Use 2437 SISO 1 17.795 Only for Report Use 2462 SISO 1 17.888 Only for Report Use 802.11n(HT40) 2422 SISO 1 36.025 Only for Report Use 2437 SISO 1 36.061 Only for Report Use 2452 SISO 1 36.254 Only for Report Use 2.2 Test Graph - 6dB Bandwidth 2.3 Test Graph - 99% Occupied Bandwidth 3. Maximum Conducted Output Power 3.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 7.00 30 PASS 2437 SISO 8.07 30 PASS 2462 SISO 7.35 30 PASS 802.11g 2412 SISO 6.46 30 PASS 2437 SISO 7.48 30 PASS 2462 SISO 6.81 30 PASS 802.11n(HT20) 2412 SISO 6.81 30 PASS 2437 SISO 7.67 30 PASS 2462 SISO 7.28 30 PASS 802.11n(HT40) 2422 SISO 7.45 30 PASS 2437 SISO 7.49 30 PASS 2452 SISO 7.55 30 PASS 3.2 Test Graph 4. Maximum Power Spectral Density (PSD) 4.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -18.76 ≤8 PASS 2437 SISO -18.04 ≤8 PASS 2462 SISO -18.63 ≤8 PASS 802.11g 2412 SISO -26.91 ≤8 PASS 2437 SISO -24.89 ≤8 PASS 2462 SISO -25.13 ≤8 PASS 802.11n(HT20) 2412 SISO -25.65 ≤8 PASS 2437 SISO -24.64 ≤8 PASS 2462 SISO -25.78 ≤8 PASS 802.11n(HT40) 2422 SISO -28.64 ≤8 PASS 2437 SISO -28.20 ≤8 PASS 2452 SISO -27.70 ≤8 PASS 4.2 Test Graph 5. Unwanted Emissions in Non-restricted Frequency Bands 5.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -23.23 PASS 2437 SISO 1 Refer to test graph -23.23 PASS 2462 SISO 1 Refer to test graph -23.23 PASS 802.11g 2412 SISO 1 Refer to test graph -31.14 PASS 2437 SISO 1 Refer to test graph -31.14 PASS 2462 SISO 1 Refer to test graph -31.14 PASS 802.11n(HT20) 2412 SISO 1 Refer to test graph -30.53 PASS 2437 SISO 1 Refer to test graph -30.53 PASS 2462 SISO 1 Refer to test graph -30.53 PASS 802.11n(HT40) 2422 SISO 1 Refer to test graph -33.53 PASS 2437 SISO 1 Refer to test graph -33.53 PASS 2452 SISO 1 Refer to test graph -33.53 PASS 5.2 Test Graph

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201201038901 Page: 1 of 71 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new sy stem complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM2012010389CR FCC ID: 2AXVM-HM-TP5XXX IC : 26572-HMTP5XXX Applicant: Hangzhou Microimage Software Co., Ltd. Address of Applicant: Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict,Binjiang District, Hangzhou, Zhejiang Manufacturer: Hangzhou Microimage Software Co., Ltd. Address of Manufacturer: Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict,Binjiang District, Hangzhou, Zhejiang Factory: Hangzhou Microimage Intelligent Technology Co., Ltd. Address of Factory: Floor 2, Building A1, 299 Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou City, Zhejiang Province Equipment Under Test (EUT): EUT Name: Handheld Thermography Camera Model No.: HM-TP51-3AXF/W-B1L,HM-TP52-3AXF/W-B2L,HM-TP52-3AQF/W- B20,HM-TB3422-3/Q,HM-TP51-3AQF/W-B10¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: HIKMICRO Standard(s) : 47 CFR Part 15, Subpart C 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, March 2019 Amendment 1 Date of Receipt: 2020-12-14 Date of Test: 2020-12-14 to 2020-12-23 Date of Issue: 2020-12-28 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201201038901 Page: 2 of 71 Revision Record Version Description Date Remark 00 Original 2020-12-28 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201201038901 Page: 3 of 71 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass 99% Bandwidth RSS-247 Issue 2, February 2017 ANSI C63.10 Section 6.9.3 RSS-Gen Section 6.7 Pass Declaration of EUT Family Grouping: Note: There are series models mentioned in this report, and they are the similar in electrical and electronic characters. Only the model HM-TP51-3AXF/W-B1L was tested since their differences were the model number and appearance. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201201038901 Page: 4 of 71 3 Contents Page 1 COVER PAGE ............................................................................................................................................. 1 2 TEST SUMMARY ......................................................................................................................................... 3 3 CONTENTS .................................................................................................................................................. 4 4 GENERAL INFORMATION ......................................................................................................................... 5 4.1 DETAILS OF E.U.T. ................................................................................................................................ 5 4.2 POWER LEVEL SETTING USING IN TEST: ................................................................................................... 5 4.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................... 5 4.4 MEASUREMENT UNCERTAINTY ........................................................…
