2AXVZ-TRIMIX-RF06ARemote Controller

USER’S MANUAL Control box Remote controller I. ELECTRONICS OVERVIEW Remote controller Control box Control box Power supply motor II. PAIRING THE WIRELESS REMOTE STEP 1 ： Push in on bottom of remote to releas e battery cartridge and install three AAA batteries into the remote batte ry compartment.Push in firmly to close. STEP 2 ：  Plug the base into a power source and press the PairingButton/Program Button on the c ontrol box approximately in 1s,ensure the Pairing Lamp - White (Third) flashing. STEP 3：  Press “SW” until the backlight LED flashing , release it and then press “HEAD UP”, never release until the backlight LED is lighting all long, the remote is pairing and release it.  When the Pairing Button/Program Button on the control box and the backlight LED on the remote stop flashing, and the buzzer on the control box has a “DI” sound,pairing is completed.  If the function on the remote can not be operated, repeat the pairing again. Second, Press “HEAD UP”, never release until the backlight LED is lighting all long and then release. First, Press “SW” button until the backlight LED flashing and then release. Pairing Button/Program Button Pairing Lamp - White (Third) I II . FUNCTIONAL OPERATING FOR WIRELESS REMOTE MARK STEP1 STEP2 DESCRIPTIONS Press “SW” in 3s until the backlight LED flashing and then press the “BUTTON” in STEP 2 TV MEMORY POSITION The backlight LEDs all OFF before operating.  Press （ TV,ZG ） until the backlight LED is lighting and the memory position is completed.  When the backlight LED is lighting and press again, clear the corresponding memory posit i on.  TV & ZG have the memory position . ZG ANTISNORE New ANTI-SNORE preset pos ition and five minutes will be reset. HEAD DOWN FUNCTIONS IN CIRCLING Head up and down functions in circling. BACK DOWN All bed base functions up and down in circling. FOOT DOWN Foot up and down functions in circling. HIP DOWN Hip up and down functions in circling. FOOT UP SHORTCUT KEY Foot down tilt ( Music position). HIP UP Head down tilt ( Leg relaxing position). HEAD UP PAIRING Pairing the remote and control box. FLAT FORCED RESET The bed will be in FLAT position when the bed is breakdown. FUNCTION IV. FUNCTIONAL OPERATING FOR WIRELESS REMOTE Controll box Power supply motor Motor: By pairing the remote control with the control box, the motor can be controlled up and down Power supply : Input: 100-240V ~ , 50/60Hz Output:29 .0 V FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter . For Control Box device ： This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

DATE : 2021.06.23 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AXVZ-TRIMIX-RF06A Product Name: Remote Controller Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Dong Li Title: Engineer Company: Zhejiang Tri mix Technology Co., Ltd

DATE: 2021.06.23 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appointEST Technology Co., Ltd. Address:Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China (Name of Agent company name andaddress) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,Iack nowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification,stillres ideswith Zhejiang Tri mix Technology Co., Ltd Address:Floor No. 1, East of Fengnan Road, Fengqiao Town, Nanhu District, Jiaxing, Zhejiang, China (Applicant Nameandaddress) <Signature> Name: Dong Li Title: Engineer Company: Zhejiang Tri mix Technology Co., Ltd

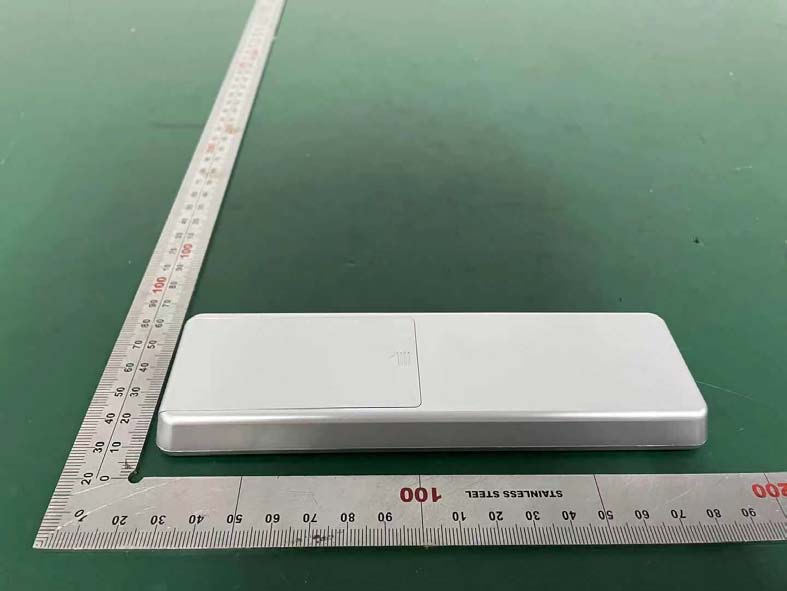

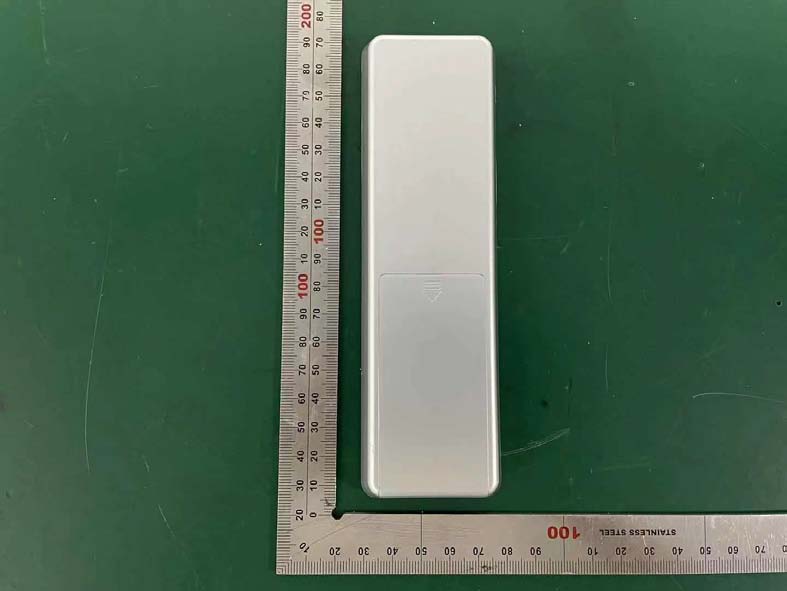

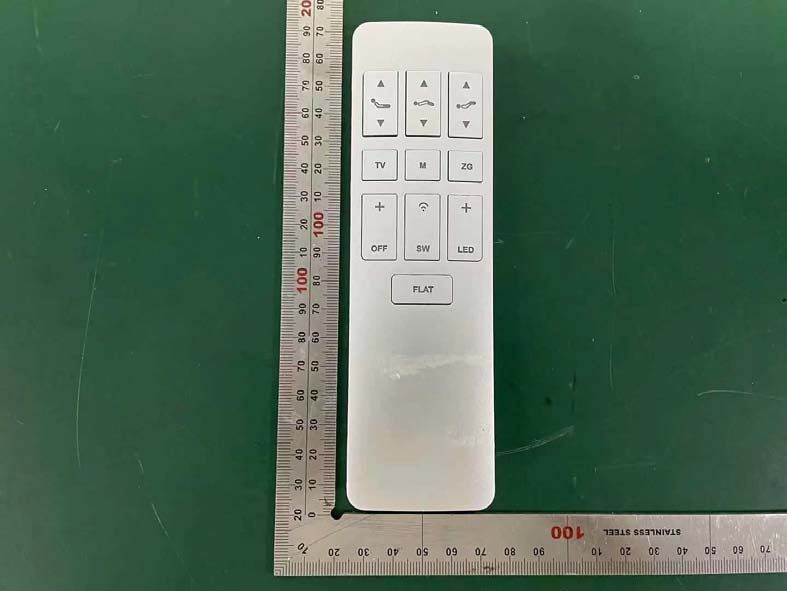

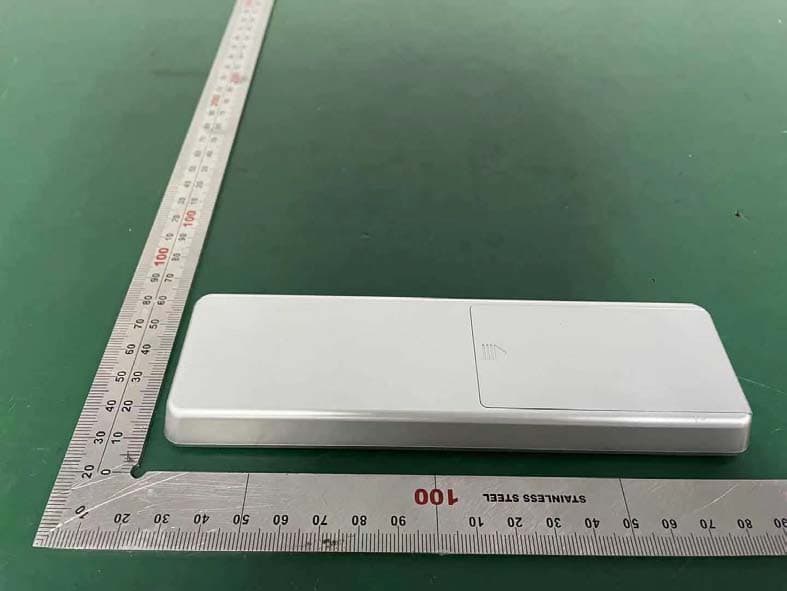

External photos M/N: RF06A External photos M/N: RF06A External photos M/N: RF06A External photos M/N: RF06A

Remote controller Model: RF06A Input: 4.5V Prod. Date: FCC ID: 2AXVZ-TRIMIX-RF06A 3x Battery AAA 1.5V 2.4GHz Serial-No.: Made in China Zhejiang Tri mix Technology Co., Ltd Label location

Internal photos M/N: RF06A Internal photos M/N: RF06A Antenna

FCC ID: 2AXVZ-TRIMIX-RF06A EST Technology Co., Ltd Report No. ESTE-R2106131 Page 1 of 3 FCC RF EXPOSURE REPORT Zhejiang Tri mix Technology Co., Ltd Remote Controller Model Number: RF06A FCC ID: 2AXVZ-TRIMIX-RF06A Prepared for: Zhejiang Tri mix Technology Co., Ltd Floor No. 1, East of Fengnan Road, Fengqiao Town, Nanhu District, Jiaxing, Zhejiang, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2106131 Date of Test: Jun. 17~21, 2021 Date of Report: Jun. 23, 2021 FCC ID: 2AXVZ-TRIMIX-RF06A EST Technology Co., Ltd Report No. ESTE-R2106131 Page 2 of 3 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KD B447498 D01 General RF Exposure Guidance v06 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2AXVZ-TRIMIX-RF06A EST Technology Co., Ltd Report No. ESTE-R2106131 Page 3 of 3 3. Evaluation Results For 2.4G SRD Ant gain=0 dBi Ant numeric gain= 1 Field strength = 88.72 dBuV/m@3m P={ [10 (88.72 /20) /10 6 *3] 2 / (30*1) }*1000mW =0.223 mW Pd= ( 0.223 mW/5mm)x √2.440 GHz = 0.070 < 3 Note: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required. End of Test Report
