2AXVZ-TRIMIX-S3AControl Box

USER’S MANUAL Control box Remote controller I. ELECTRONICS OVERVIEW Remote controller Control box Control box Power supply motor II. PAIRING THE WIRELESS REMOTE STEP 1 ： Push in on bottom of remote to releas e battery cartridge and install three AAA batteries into the remote batte ry compartment.Push in firmly to close. STEP 2 ：  Plug the base into a power source and press the PairingButton/Program Button on the c ontrol box approximately in 1s,ensure the Pairing Lamp - White (Third) flashing. STEP 3：  Press “SW” until the backlight LED flashing , release it and then press “HEAD UP”, never release until the backlight LED is lighting all long, the remote is pairing and release it.  When the Pairing Button/Program Button on the control box and the backlight LED on the remote stop flashing, and the buzzer on the control box has a “DI” sound,pairing is completed.  If the function on the remote can not be operated, repeat the pairing again. Second, Press “HEAD UP”, never release until the backlight LED is lighting all long and then release. First, Press “SW” button until the backlight LED flashing and then release. Pairing Button/Program Button Pairing Lamp - White (Third) I II . FUNCTIONAL OPERATING FOR WIRELESS REMOTE MARK STEP1 STEP2 DESCRIPTIONS Press “SW” in 3s until the backlight LED flashing and then press the “BUTTON” in STEP 2 TV MEMORY POSITION The backlight LEDs all OFF before operating.  Press （ TV,ZG ） until the backlight LED is lighting and the memory position is completed.  When the backlight LED is lighting and press again, clear the corresponding memory posit i on.  TV & ZG have the memory position . ZG ANTISNORE New ANTI-SNORE preset pos ition and five minutes will be reset. HEAD DOWN FUNCTIONS IN CIRCLING Head up and down functions in circling. BACK DOWN All bed base functions up and down in circling. FOOT DOWN Foot up and down functions in circling. HIP DOWN Hip up and down functions in circling. FOOT UP SHORTCUT KEY Foot down tilt ( Music position). HIP UP Head down tilt ( Leg relaxing position). HEAD UP PAIRING Pairing the remote and control box. FLAT FORCED RESET The bed will be in FLAT position when the bed is breakdown. FUNCTION IV. FUNCTIONAL OPERATING FOR WIRELESS REMOTE Controll box Power supply motor Motor: By pairing the remote control with the control box, the motor can be controlled up and down Power supply : Input: 100-240V ~ , 50/60Hz Output:29 .0 V FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter . For Control Box device ： This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

DATE: 2021.06.24 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appointEST Technology Co., Ltd. Address:Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China (Name of Agent company name andaddress) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,Iack nowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforcertification,stillres ideswith Zhejiang Tri mix Technology Co., Ltd Address:Floor No. 1, East of Fengnan Road, Fengqiao Town, Nanhu District, Jiaxing, Zhejiang, China (Applicant Nameandaddress) <Signature> Name: Dong Li Title: Engineer Company: Zhejiang Tri mix Technology Co., Ltd

DATE : 2021.06.24 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AXVZ-TRIMIX-S3A Product Name: Control Box Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Dong Li Title: Engineer Company: Zhejiang Tri mix Technology Co., Ltd

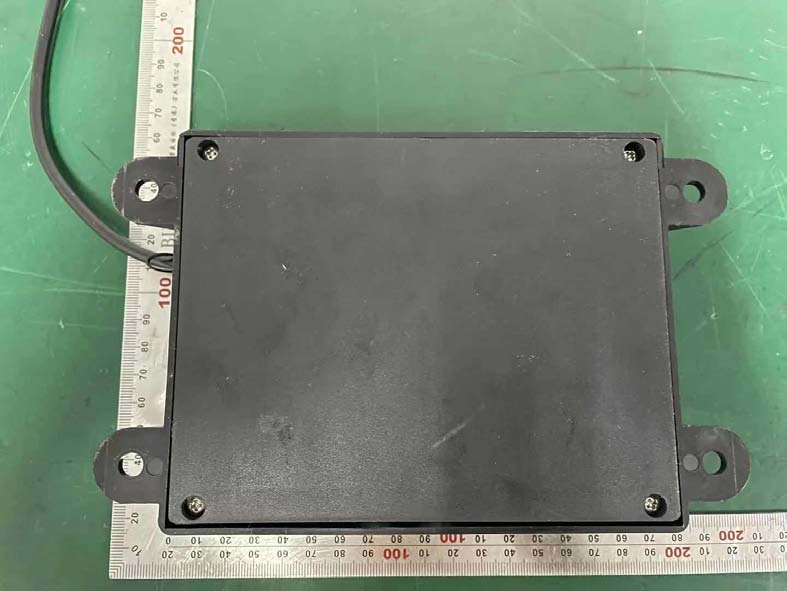

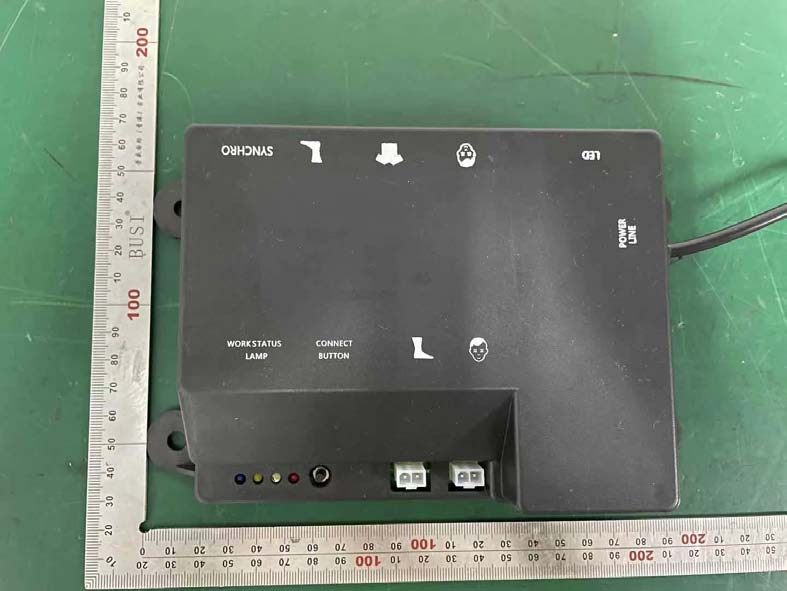

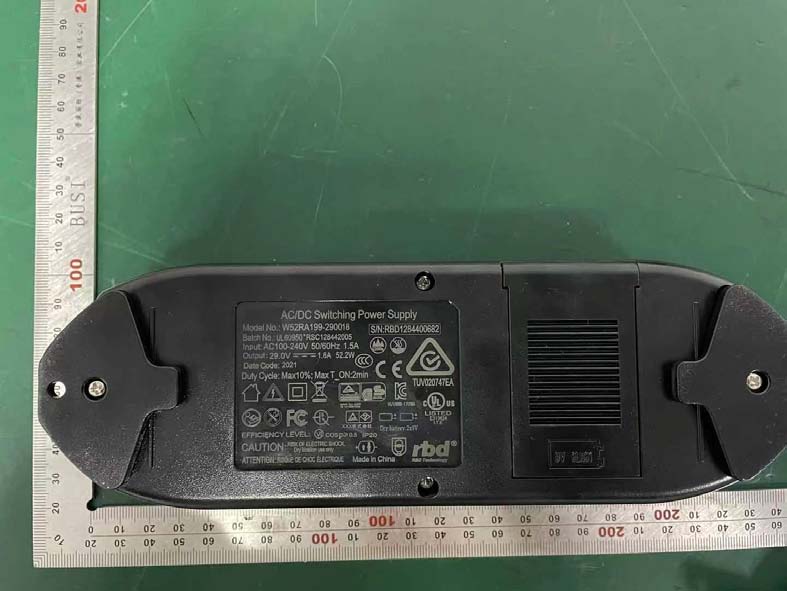

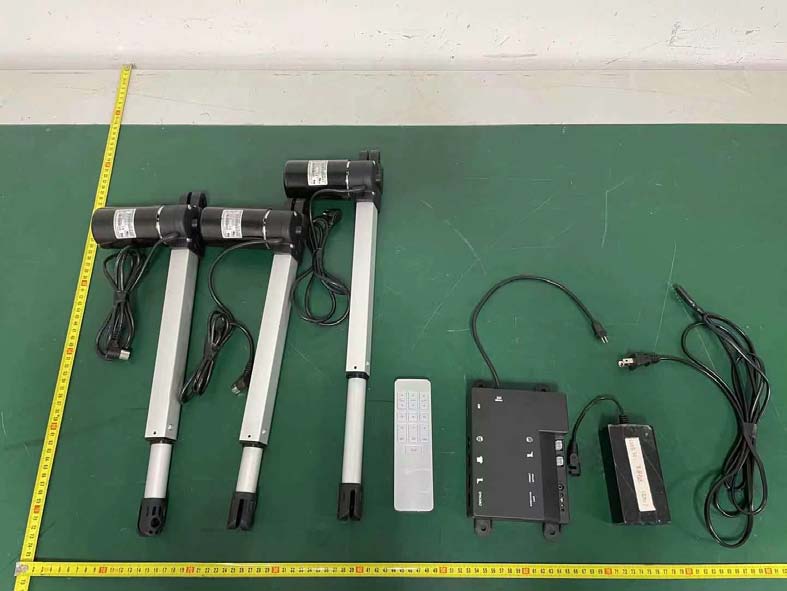

External photos M/N: S3A External photos M/N: S3A External photos M/N: S3A External photos M/N: S3A External photos M/N: S3A External photos M/N: S3A

Zhejiang Tri mix Technology Co., Ltd FCC ID: 2AXVZ-TRIMIX-S3A XXXXXXXXX Model: S3A Prod Date: HW: SW: P/N: Label location

Internal photos M/N: S3A Internal photos M/N: S3A Bluetooth antenna 2.4G SRD antenna

FCC ID: 2AXVZ-TRIMIX-S3A EST Technology Co. ,Ltd Report No. ESTE-R2106139 Page 1 of 5 FCC 47 CFR MPE REPORT Zhejiang Tri mix Technology Co., Ltd Control Box Model Number: S3A FCC ID: 2AXVZ-TRIMIX-S3A Prepared for: Zhejiang Tri mix Technology Co., Ltd Floor No. 1, East of Fengnan Road, Fengqiao Town, Nanhu District, Jiaxing, Zhejiang, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2106139 Date of Test: Jun. 08-22, 2021 Date of Report: Jun. 24, 2021 FCC ID: 2AXVZ-TRIMIX-S3A EST Technology Co. ,Ltd Report No. ESTE-R2106139 Page 2 of 5 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AXVZ-TRIMIX-S3A EST Technology Co. ,Ltd Report No. ESTE-R2106139 Page 3 of 5 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AXVZ-TRIMIX-S3A EST Technology Co. ,Ltd Report No. ESTE-R2106139 Page 4 of 5 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) BLE 2402 0.05 1.012 0 ±2 0.55 1.135 2440 0.03 1.007 0 ±2 0.55 1.135 2480 -0.09 0.979 0 ±2 0.55 1.135 For 2.4G SRD Ant gain=0 dBi Ant numeric gain= 1 Field strength = 89.06 dBuV/m@3m P={ [10 (89.06/20) /10 6 *3] 2 / (30*1) }*1000mW =0.242mW FCC ID: 2AXVZ-TRIMIX-S3A EST Technology Co. ,Ltd Report No. ESTE-R2106139 Page 5 of 5 3. Calculated Result and Limit Mode Target power (dBm) Antenna gain Power Density (S) (mW/cm2) Limited of Power Density (S) (mW/cm2) Test Result (dBi) (Linear) BLE 2 0.55 1.1350.00036 1 Complies Mode Target power (mW) Antenna gain Power Density (S) (mW/cm 2 ) Limited of Power Density (S) (mW/cm 2 ) Test Result (dBi) (Linear) 2.4G SRD 0.242 0 1 0.00005 1 Complies End of Test Report

FCC ID: 2AXVZ-TRIMIX-S3A EST Technology Co., Ltd Report No. ESTE-R2106137 Page 1 of 58 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Zhejiang Tri mix Technology Co., Ltd Control Box Model Number: S3A FCC ID: 2AXVZ-TRIMIX-S3A Prepared for: Zhejiang Tri mix Technology Co., Ltd Floor No. 1, East of Fengnan Road, Fengqiao Town, Nanhu District, Jiaxing, Zhejiang, China Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2106137 Date of Test: Jun. 08-22, 2021 Date of Report: Jun. 24, 2021 FCC ID: 2AXVZ-TRIMIX-S3A EST Technology Co., Ltd Report No. ESTE-R2106137 Page 2 of 58 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test Mode ......................................................................................................................................... 9 2.7. Power Setting of Test Software ........................................................................................................ 9 2.8. Duty Cycle ...................................................................................................................................... 10 2.9. Channel List ................................................................................................................................... 11 2.10. Test Equipment List ....................................................................................................................... 12 3. 6DB BANDWIDTH .......................................................................................................................... 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 14 4. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 16 4.1. Limit ............................................................................................................................................... 16 4.2. Test Setup ....................................................................................................................................... 16 4.3. Spectrum Analyzer Setting ............................................................................................................. 16 4.4. Test Procedure ................................................................................................................................ 16 4.5. Test Result ...................................................................................................................................... 17 5. POWER SPECTRAL DENSITY .......................................................................................................... 19 5.1. Limit ............................................................................................................................................... 19 5.2. Test Setup ....................................................................................................................................... 19 5.3. Spectrum Analyzer Setting ............................................................................................................. 19 5.4. Test Procedure ................................................................................................................................ 19 5.5. Test Result ...................................................................................................................................... 20 6. CONDUCTED BAND EDGE ............................................................................................................. 22 6.1. Limit ............................................................................................................................................... 22 6.2. Test Setup ...................................................…

Text truncated - open the document above for the full version.

Radiated test: Below 1GHz Radiated test: Below 1GHz Conducted test:
