2AXZU-STRONBATStarlink OnBatt 4G cat1 SF iRF

Email: [email protected] Tel: +972-3-9413313 Fax: +972-3-9413316 All rights reserved – ERM Electronic Systems LTD ERM Electronic Systems LTD 16 Hasar Shapira St. Rishon Lezion, Israel Product brochure version: www.ermtelematics.com As part of ERM’s Safety technology StarLink OnBATT is also equiped with ‘Black-Box’ mode, that detects real-time accident events and stores all the data before and after the accident, with a high sampling rate of 100 times per second for accurate post-accident analysis. For installation simply tape the device on top of the vehicle’s battery, connect the power and the device is installed and operational. StarLink OnBATT is a small size vehicle tracking device, designed to enable fast installation on a vehicle battery. StarLink OnBATT supports applica- tions such as UBI (usage based insurance) and provides water proof casing, standard Short Range wireless communication for accessories, add-ons and integration with mobile apps. StarLink OnBATT comes with ERM’s Safety technology, which provides real-time information regarding unsafe driving behavior, such as careless driving, accidents, speed violations etc. It automat- ically identifies 20 different maneuver types, in 3 severity levels - Regular, Aggressive, and Danger- ous. StarLink OnBATT 4G (CAT1) SF iRF Compact Waterproof Tracking Device 4.1.1 FEATURES 1 Output Logic Programming (OLP) for complex output signal generation 2 Vehicle battery diagnostics: charge, voltage and battery life (SoH) 3 F OTA 4 Embedded antennas 5 Immobilization system 6 Geo-zone protection 7 Dedicated single wire com port, for Add-Ons and Accessoriess The StarLink Tracker comes with a variety of options for cellular communication technology to choose from: 2G (GPRS), 3G (UMTS) or 4G (LTE with selected band width) modules. Wi-Fi hot spot with ability to support up to 8 concurrent users. In addition, as an option, the of host, in order to connect with third party Wi-Fi hotspot The device can come with two way Bluetooth communication technology. Which can be used to transmit data between the tracking device and a mobile phone/tablet or read data from variety of external Bluetooth sensors. 3D high sensitivity accelerometer with ERM's Safety technology for Driving Behavior analysis. The technology can identify 20 maneuver types in 3 levels. The technology supports event based driving behavior alerts and also detailed histogram reporting features. The device comes with ERM's CAN Engine technology to support CANBUS interface with various protocols such as OBD2, CANBUS, J1908, J1708, K-Line, VPW, PWM and ability to add additional protocols engine, to enable simple creation of data analysis based Events (VO) Supports voice communication with the driver, by using a Speaker and a Microphone, both included in the kit. There is also an option to add a keypad or a push button for fast dialing in emergencies. management, and supports Black and White Lists. The ID variant includes two proximity remote types Additional eCom Tags can be added at any time (EC) ERM’s patented RF solution (eConnect) to track jammed vehicles, by enabling alternative 433Mhz or 915Mhz frequency, per request (EA) External GPS and Cellular antennas plugs. Used to enhance the communication capability 02 All rights reserved – ERM Electronic Systems LTD FEATURES 2 3 4 5 5 Waterproof 4 Black-Box 3 Driver behavior monitoring 2 Fast installation process Small size 1 The device comes with two way standard short range RF communication module. Which can be used to transmit data between the device and a mobile phone/tablet or read data from variety of external sensors and tags. 3D high sensitivity accelerometer and gyro supported with ERM's Safety technology for Driving Behavior analysis and BlackBox feature. The technology can identify 20 maneuver types in 3 levels. The functionality offers event based driving behavior alerts. Available variants to choose from: The device comes with 4G LTE CAT1 cellular module for communication technology, supporting Australian band frequencies. All rights reserved – ERM Electronic Systems LTD 03 ENVIRONMENT Environment Operating Temperature-20 to 70° C Storage Temperature-40 to 85° C Dimensions10cm x 5.9cm x 2.3cm Weight (NET)120g DurabilityWater resistance Max. Relative Humidity70(±5)% TECHNICAL SPECIFICATIONS Cellular Quectel ec21 AU, LTE CAT1 (bands: 1,2,3,4,5,7,8,28,40) All cellular options comes with optimized embedded antenna. Location GPS/GLONASS/GALILEO , Active antenna, Sensitivity -165 dB, NMEA0193, Acquisition (normal): cold <34s, warm <34s, hot <1s, accuracy: 2.5m CEP Embedded optimized antenna Communication Text messages, TCP/IP over GPRS/UMTS/EDGE/HSPA, Standard short range communication module v4.0 Power Supply 9-32VDC, 20-30mA Backup Battery Rechargeable, 3.6V, 350mAh (Li-ion) Configuration / Firmware Update OTA/Via Standard PC USB Port, parameters setup, software programming Data Logger Up to 8,000 messages FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or…

Text truncated - open the document above for the full version.

ERM Electronic Systems Ltd Agent Authorization Company: ERM Electronic Systems Ltd Address: 16 Hasar Shapira St. Rishon Le'Zion, Israel Product Name: Starlink OnBatt 4G cat1 SF iRF Trade Mark: Starlink Model Number: Starlink OnBatt 4G cat1 SF iRF FCC ID: 2AXZU-STRONBAT We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-20 Name: Arik GanTal Title: VP int'l marketing Company: ERM Electronic Systems Ltd

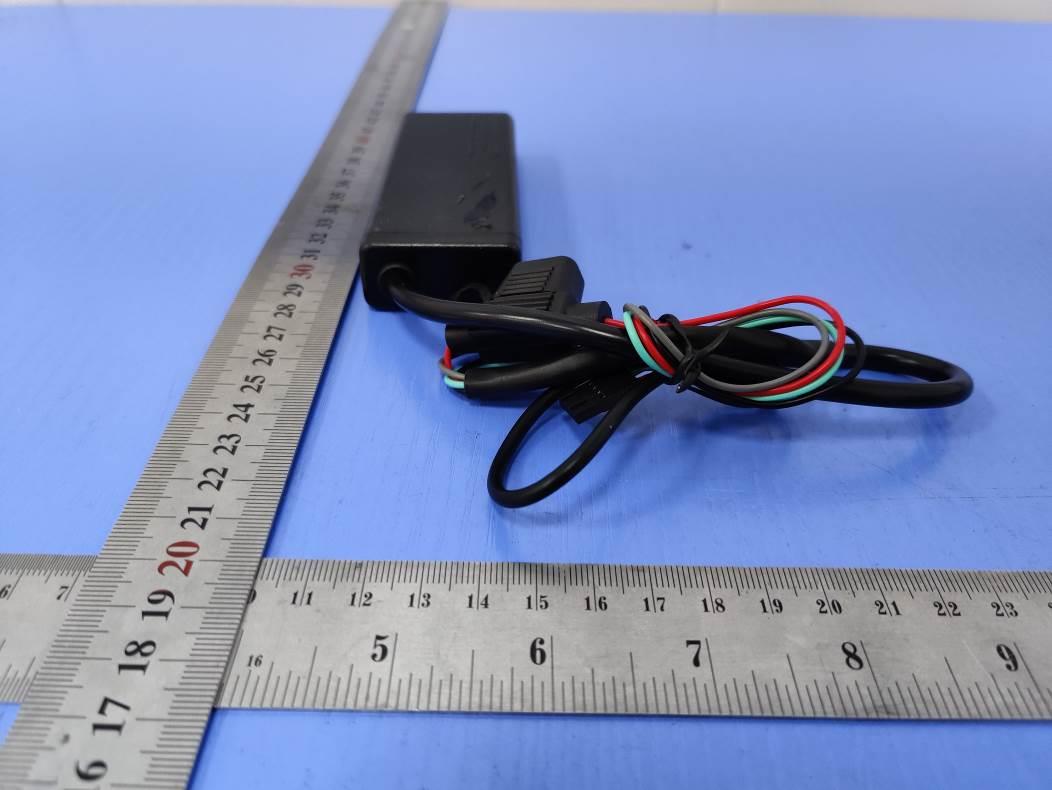

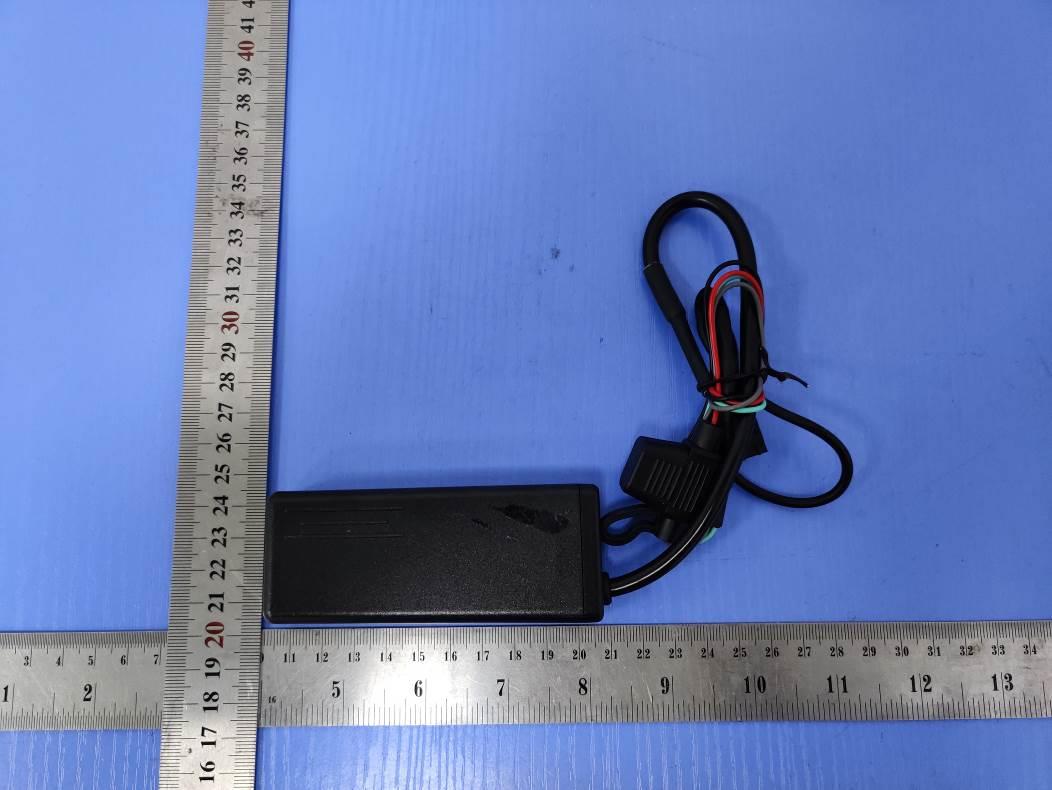

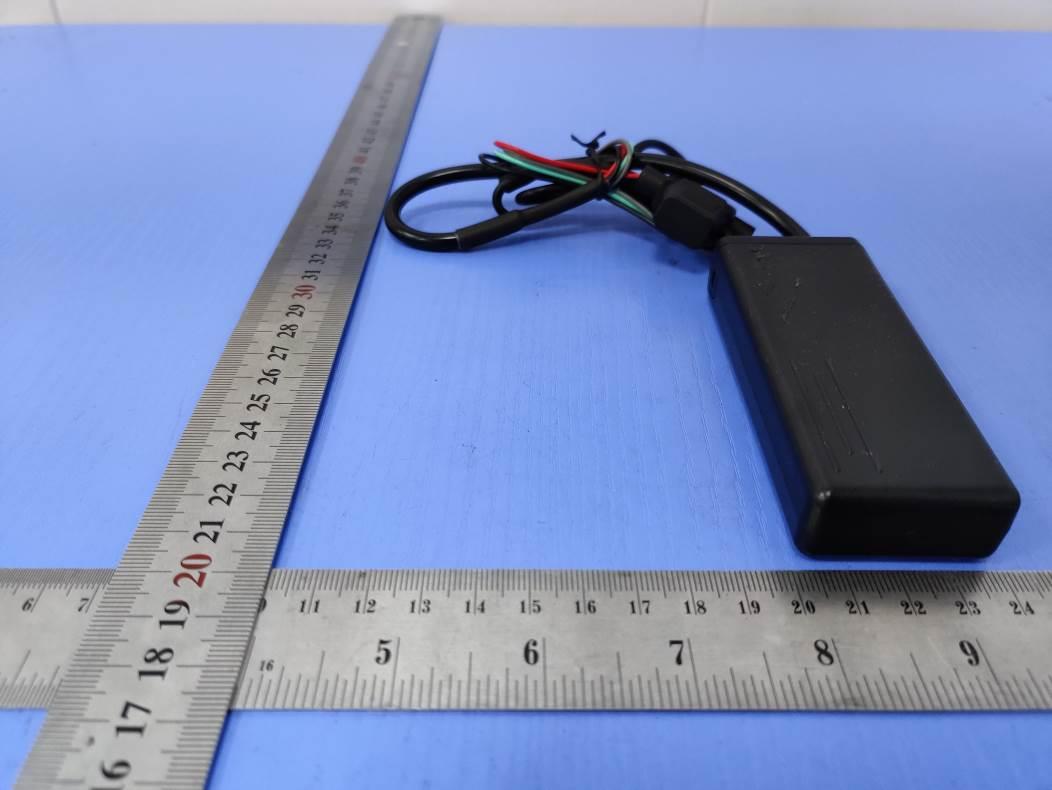

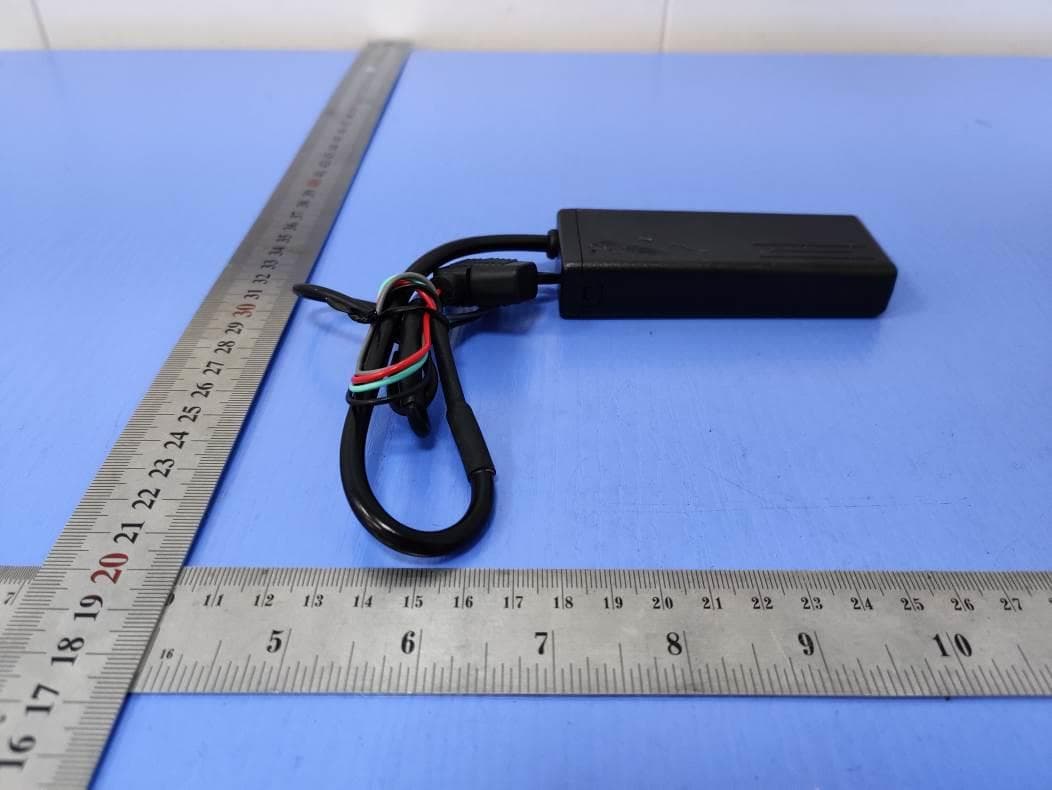

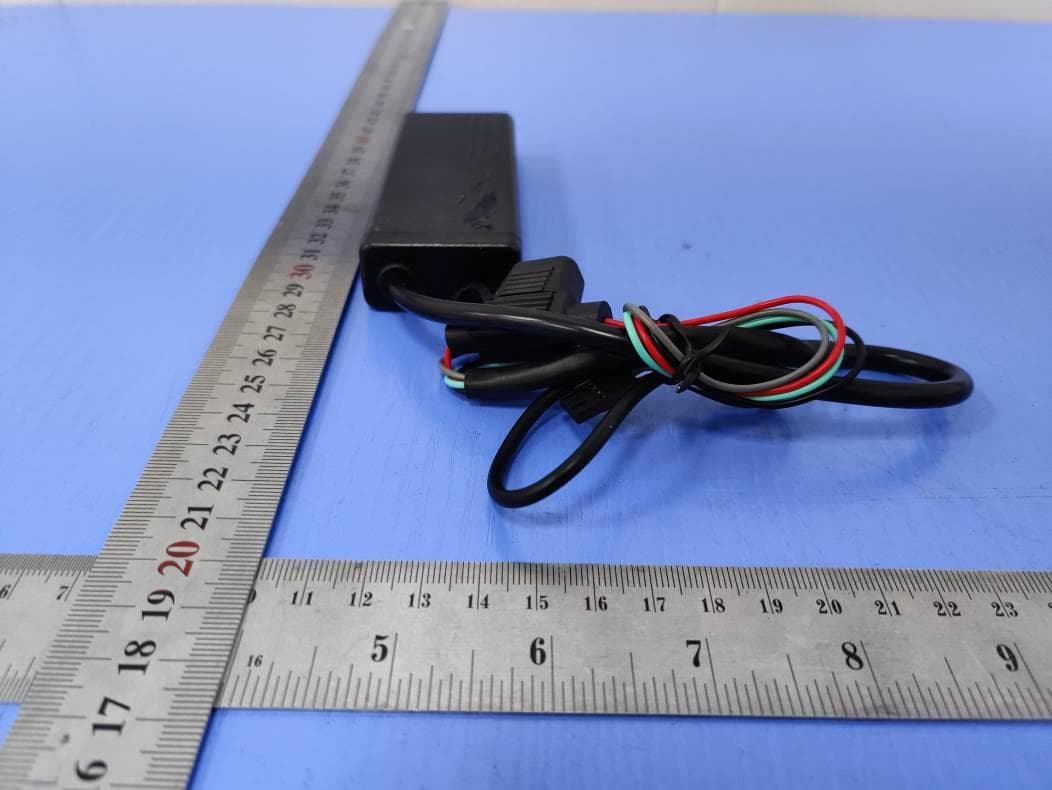

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Page 1 of 3 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Page 1 of 1 Label and Location Size: L7.0cm*W3.5cm Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Page 1 of 3 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Page 2 of 3 Fig.3 Fig.4 BT ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXZU-STRONBAT Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID : 2AXZU-STRONBAT EUT : Starlink OnBatt 4G cat1 SF iRF Test Model : Starlink OnBatt 4G cat1 SF iRF Power Supply : Input: DC 9-32V DC 3.7V by Rechargeable Li-ion Battery(350mAh) Hardware Version : / Software Version : / Bluetooth Frequency Range : 2402MHz ~ 2480MHz Bluetooth Version : V4.0 Bluetooth Channel Number : 40 channels for Bluetooth V4.0(DTS) Bluetooth Channel Spacing : 2MHz for Bluetooth V4.0 (DTS) Bluetooth Modulation Type : GFSK for Bluetooth V4.0(DTS) Antenna Description : PCB Antenna, 0dBi(Max.) GSM Frequency Band : GSM 850, GSM 1900 LTE Frequency Band : LTE FDD Band 2, Band 4, Band 5, Band 7 GSM And LTE Antenna Description : PCB Antenna, 4dBi(Max.) GPS function : Support and only RX Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Fixed Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXZU-STRONBAT Page 2 of 4 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498 D01 General RF Exposure Guidance v06 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXZU-STRONBAT Page 3 of 4 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Electronic Lock can only use an antenna certificated as follows provided by manufacturer; Antenna Identification Antenna type and antenna number Operate frequency band Maximum antenna gain BLE ANT PCB Antenna 2400MHz – 2500MHz 0dBi(Max.) GSM & LTE ANT PCB Antenna 600MHz – 3000MHz 4dBi(Max.) 6. Conducted Power of BLE [BLE Max Conducted Power] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 5.726 19 2440 5.653 39 2480 5.032 7. Manufacturing tolerance of BLE BT LE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 5 5 5 Tolerance ±(dB) 1 1 1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXZU-STRONBAT Page 4 of 4 8. Measurement Results As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. Mode RF output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 6 3.98 0 1.0 0.0008 1.0 Mode PG(mW) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) GSM 850 993.116 0.198 0.57 GSM 1900 497.737 0.099 1.0 LTE Band 2 794.328 0.158 1.0 LTE Band 4 794.328 0.158 1.0 LTE Band 5 933.254 0.186 0.55 LTE Band 7 794.328 0.158 1.0 Remark: 1. Output power including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 3. MPE values = PG/4πR²; 4. The maximum permissible exposure for 300~1500MHz is f/1500 mW/cm 2 , for 1…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 1 of 14 Appendix A RF Test Data for BT V4.0(BLE) (Conducted Measurement) Product Name: Starlink OnBatt 4G cat1 SF iRF Trade Mark: Starlink Test Model: Starlink OnBatt 4G cat1 SF iRF Environmental Conditions Temperature: 21.3C Relative Humidity: 53.1% ATM Pressure: 100.0 kPa Test Engineer: Ken He Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 5.726 30 PASS BT LE MCH 5.653 30 PASS BT LE HCH 5.032 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -9.978 8 PASS BT LE MCH -10.020 8 PASS BT LE HCH -10.554 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6454 ≥0.5 PASS BT LE MCH 0.6566 ≥0.5 PASS BT LE HCH 0.6866 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 8 of 14 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 5.162 -37.696 -14.838 PASS BT LE MCH 5.08 -37.330 -14.920 PASS BT LE HCH 4.484 -37.411 -15.516 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 11 of 14 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 5.334 -49.025 -14.67 PASS BT LE HCH 4.601 -39.569 -15.4 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 12 of 14 A.7 Restrict-band band-edge measurements Test Mode Test Channel Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict BT LE 2402 2310.0 -44.25 2.0 0 52.98 PEAK 74 PASS 2310.0 -53.62 2.0 0 43.61 AV 54 PASS 2390.0 -39.56 2.0 0 57.67 PEAK 74 PASS 2390.0 -53.09 2.0 0 44.14 AV 54 PASS 2480 2483.5 -24.77 2.0 0 72.46 PEAK 74 PASS 2483.5 -51.81 2.0 0 45.42 AV 54 PASS 2500.0 -40.31 2.0 0 56.92 PEAK 74 PASS 2500.0 -52.56 2.0 0 44.67 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109013AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109016AEA Page 1 of 32 FCC TEST REPORT For ERM Electronic Systems Ltd Starlink OnBatt 4G cat1 SF iRF Test Model: Starlink OnBatt 4G cat1 SF iRF Prepared for : ERM Electronic Systems Ltd Address : 16 Hasar Shapira St. Rishon Le'Zion, Israel Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Date of receipt of test sample : January 11, 2021 Number of tested samples : 2 Sample No. ： 210109016A-1, 210109016A-2 Serial number : Production Sample Date of Test : January 11, 2021 ~ January 15, 2021 Date of Report : January 19, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109016AEA Page 2 of 32 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210109016AEA Date of Issue ................................... : January 19, 2021 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : ERM Electronic Systems Ltd Address ........................................... : 16 Hasar Shapira St. Rishon Le'Zion, Israel Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Starlink OnBatt 4G cat1 SF iRF Trade Mark .......................................................................................................................................... : Starlink Test Model ......................................................................................................................................... : Starlink OnBatt 4G cat1 SF iRF Ratings ................................................................................................................................................ : Input: DC 9-32V DC 3.7V by Rechargeable Li-ion Battery(350mAh) Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang/ Administrator Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109016AEA Page 3 of 32 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210109016AEA January 19, 2021 Date of issue Test Model.............................. : Starlink OnBatt 4G cat1 SF iRF EUT......................................... : Starlink OnBatt 4G cat1 SF iRF Applicant............................... : ERM Electronic Systems Ltd Address................................... : 16 Hasar Shapira St. Rishon Le'Zion, Israel Manufacturer......................... : ERM Electronic Systems Ltd Address................................... : 16 Hasar Shapira St. Rishon Le'Zion, Israel Factory................................... : / Address................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109016AEA Page 4 of 32 Revision History Revision Issue Date Revisions Revised By 000 January 19, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT Report No.: LCS210109016AEA Page 5 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 7 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 7 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.6. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.7. DESCRIPTION OF TEST MODES .......................................................................................................................... 8 2. TEST METHODOLOGY ......................................................................................................................................... 9 2.1. EUT CONFIGURATION ................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRONBAT _______________________________________________________________________________________________ Page 1 of 1 Test Setup Photos of the EUT Radiated Emissions Fig. 1 Fig. 2
