2AXZU-STRTRSFStarlink Tracker 4G cat1 SF iRF

ERM Electronic Systems LTD 16 Hasar Shapira St. Rishon LeZion, 75704 Israel | Phone: 972-3-9413313 Fax: 972-3-9413330 http://ermtelematics.com | [email protected] 2G / 4G – StarLink TrackerSF Installation Manual Release 1.1 © Copyright 2017 by ERM Electronic Systems Ltd. Revision updates log: Revision Change Date 1.0 First version 07/05/2017 1.1 Version Update 25/02/2018 1.2 Version Update 2019/519/0 StarLink TrackerSF Installation Manual ERM Advanced Telematics page: 2 Table of Contents 1. THE STARLINK 2G / 4G V2 3 2. SAFETY INSTRUCTIONS 3 3. GENERAL INSTRUCTIONS 4 4. TOOLS AND EQUIPMENT/MATERIALS REQUIRED 6 5. INSTALLING STARLINK DEVICES 7 5.1 Know the StarLink Family of Tracking Devices 8 5.2 Positioning StarLink Devices in the vehicle 11 5.2.1 General Installation Instructions 11 5.2.2 StarLink Location for Optimal Reception Quality 11 6. STARLINK CONFIGURATION 13 6.1 USB Adapter 13 6.2 USB Driver 16 7. ERM CONTACT INFORMATION 16 StarLink TrackerSF Installation Manual ERM Advanced Telematics page: 3 1. The StarLink 2G / 4G This guide provides information about the StarLink 2G / 4G with internal eSafe and CAN, and describes its recommended installation procedures. 2. Safety Instructions Personal safety is of paramount importance. Please follow all safety instructions when installing ERM products • Always disconnect power when performing installation by removing the negative connection of the vehicle battery. Never work when power is connected. • Always connect the positive wire using a 3A fuse. • Reconnect the battery only after the installation is fully completed, making sure all wires are safely insulated. • Use appropriate work tools. • Maintain good ventilation and lighting in the work area. • Never leave bared wires. Trim all wires not in use in such a way that no bare conductors remain, and fix them securely in place. • Perform installation in a dry environment. ERM devices are not water-tight. • Install ERM devices away from any heat sources. • Do not install ERM devices in the engine compartment or on the vehicle’s exterior. • Install ERM devices away from large metallic bodies and never install them in small gaps between metallic objects. StarLink TrackerSF Installation Manual ERM Advanced Telematics page: 4 3. General Instructions • Install the device with the THIS SIDE UP label facing upwards. • Make sure no metal objects obstruct the device. • Use cable ties to hold wires in place and create tidy wire bundles. • Double-sided adhesive stickers could be used for securing the device in its selected location. • Instructions for soldering wires: a. Strip the ends of the wires to be soldered together. b. Slide an appropriate length of heat-shrink insulation tubing on to one of the wires. c. Solder the wires. d. Slide the heat-shrink insulation over the solder joint. StarLink TrackerSF Installation Manual ERM Advanced Telematics page: 5 e. Use a heater-gun to heat the insulation. The insulation shrinks until it sits snugly on the solder joint. f. Tie the wire with a cable tie in such a way as to relieve stress from the new solder joint. StarLink TrackerSF Installation Manual ERM Advanced Telematics page: 6 4. Tools and Equipment/Materials Required To correctly install the devices and accessories, the following equipment and tools are required: Item Name Picture Item Name Picture 1 Phillips and flat Screwdrivers 2 Panel removal tool, hard plastic 3 Cutter 4 Wire stripper 5 Combination plier 6 Terminal crimper 7 Digital multi-meter 8 Hand torch 9 Cordless drill 10 Gas soldering iron 11 Long-nosed plier 12 Solder 13 Utility knife 14 Wire lugs with star washers 15 T-type nut drivers 16 Plastic tubing 17 Isolation shrink wrap tubing 18 Insulation tape 19 Screwdriver bits StarLink TrackerSF Installation Manual ERM Advanced Telematics page: 7 5. Installing StarLink Devices Before beginning installation, make sure your package includes all the following: This procedure describes the standard connections required to operate StarLink devices. Two-sided sticky tape 3A fuse 3A fuse housing StarLink device Strips StarLink harness Two-sided sticky paper StarLink TrackerSF Installation Manual ERM Advanced Telematics page: 8 5.1 Know the StarLink Family of Tracking Devices 1. Unwrap the device wire harness but do not connect it to the device yet. Refer to the following wiring/color diagram of the StarLink connector when performing connections in the subsequent steps of this procedure. Brown wire | 10 Yellow wire | 9 Orange wire | 8 Purple wire | 7 White wire | 6 CAN Low Port B / Out 2 General output Port C / Out 3 / In 1 eNet2 (pull-up) Port D / Out 4 / In 2 Dallas iButton (pull-up) CAN High Ground (-) Port F / In 4 VSS (pull-down) PC Communication LIN Ignition input (pull-down) +12/24V Black wire | 5 Blue wire | 4 Grey wire | 3 Green wire | 2 Red wire | 1 2. Connect the red wire (pin #1) via a 3A fuse to the vehicle battery (+12V/+24V). Make sure this positive feed remains live even when the Ignition switch is turned to OFF and when starting the engine. The fuse must be removed from the fuse housing during installation. 3. Connect the black wire (pin #5) to the vehicle chassis or any grounded part of the vehicle (GND). Make sure the connection is free of paint or dirt to assure a good conductive ground connection 4. Connect the green wire (pin #2) to the vehicle Ignition switch (IGN). 109876 54321 109876 54321 StarLink TrackerSF Installation Manual ERM Advanced Telematics page: 9 Reconnect the vehicle battery and test the ignition (green) wire – you should measure 0V when the ignition switch is set to OFF and 12V (or 24V) when it is set to ON 5. Gather together all the unused wires and tie them neatly so they do not interfere with any other parts or systems. Keep in mind that you may need to use some of the wires in the future 6. Insert the SIM card, as follows: • Using a small, flat screwdriver, remove the cover of the SIM slot on the device side. • Slide the SIM card into the SIM slot an…

Text truncated - open the document above for the full version.

ERM Electronic Systems Ltd Agent Authorization Company: ERM Electronic Systems Ltd Address: 16 Hasar Shapira St. Rishon Le'Zion, Israel Product Name: Starlink Tracker 4G cat1 SF iRF Trade Mark: Starlink Model Number: Starlink Tracker 4G cat1 SF iRF FCC ID: 2AXZU-STRTRSF We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-20 Name: Arik GanTal Title: VP int'l marketing Company: ERM Electronic Systems Ltd

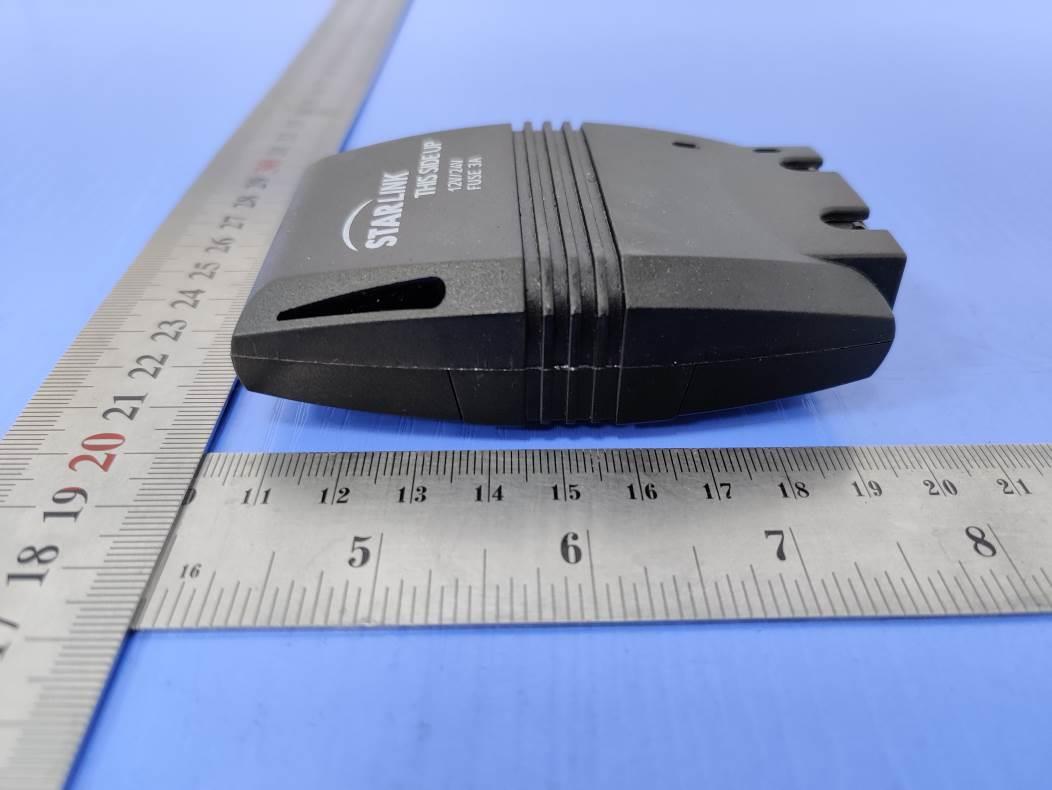

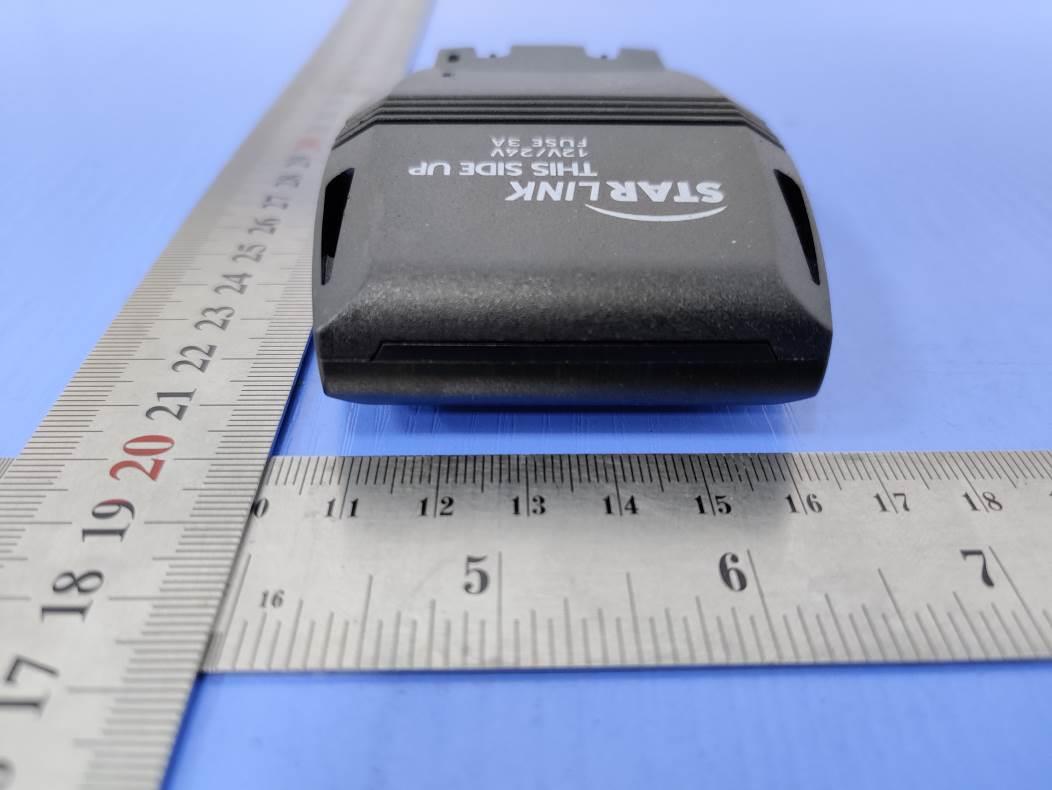

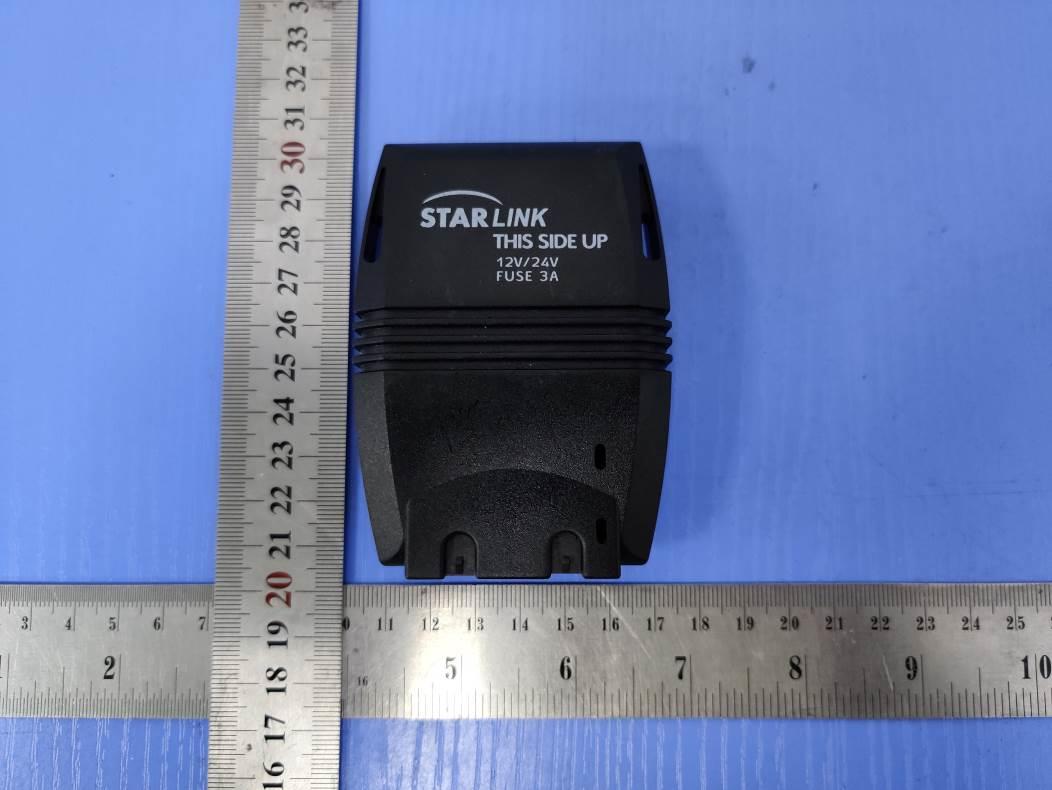

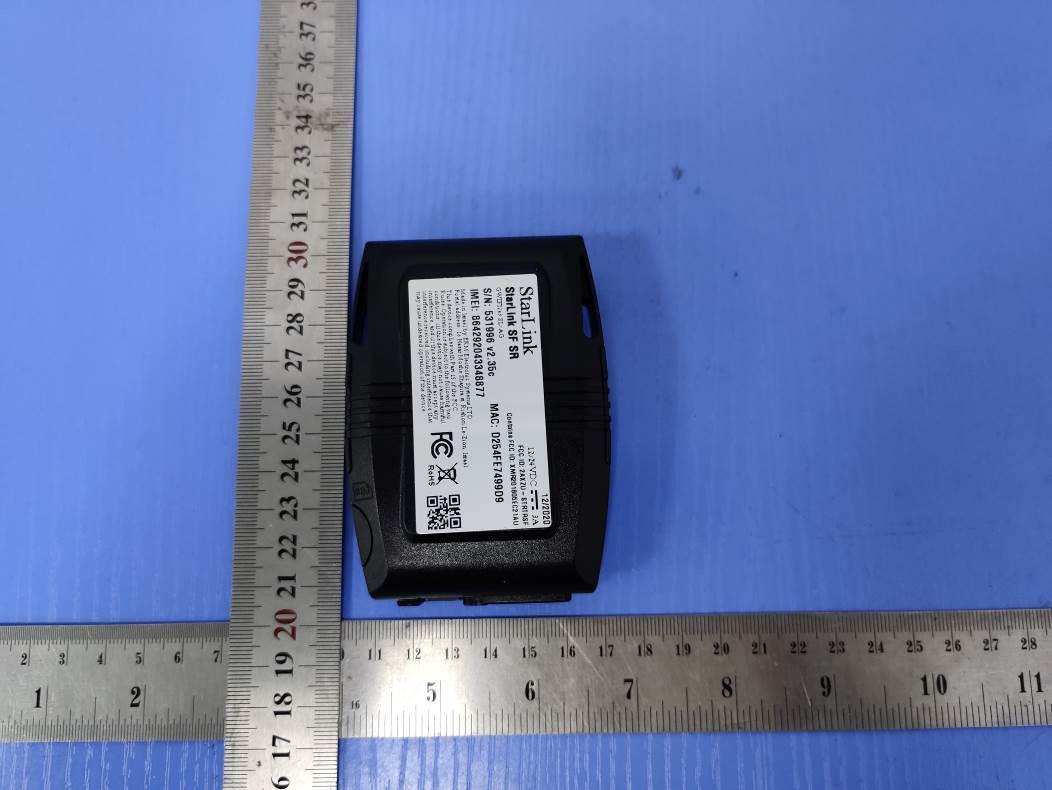

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Page 1 of 3 External Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Page 1 of 1 Label and Location Size: L6.5cm*W3.5cm Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Page 1 of 2 Internal Photos of the EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Page 2 of 2 Fig.3 Fig.4 BT ANT

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXZU-STRTRSF Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID : 2AXZU-STRTRSF EUT : Starlink Tracker 4G cat1 SF iRF Test Model : Starlink Tracker 4G cat1 SF iRF Power Supply : Input: DC 12/24V, 3A DC 3.7V by Rechargeable Li-ion Battery(750mAh) Hardware Version : / Software Version : / Bluetooth Frequency Range : 2402MHz ~ 2480MHz Bluetooth Version : V4.0 Bluetooth Channel Number : 40 channels for Bluetooth V4.0(DTS) Bluetooth Channel Spacing : 2MHz for Bluetooth V4.0 (DTS) Bluetooth Modulation Type : GFSK for Bluetooth V4.0(DTS) Antenna Description : PCB Antenna, 0dBi(Max.) GSM Frequency Band : GSM 850, GSM 1900 LTE Frequency Band : LTE FDD Band 2, Band 4, Band 5, Band 7 GSM And LTE Antenna Description : PCB Antenna, 4dBi(Max.) GPS function : Support and only RX Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Fixed Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXZU-STRTRSF Page 2 of 4 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498 D01 General RF Exposure Guidance v06 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXZU-STRTRSF Page 3 of 4 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Electronic Lock can only use an antenna certificated as follows provided by manufacturer; Antenna Identification Antenna type and antenna number Operate frequency band Maximum antenna gain BLE ANT PCB Antenna 2400MHz – 2500MHz 0dBi(Max.) GSM & LTE ANT PCB Antenna 600MHz – 3000MHz 4dBi(Max.) 6. Conducted Power of BLE [BLE Max Conducted Power] Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 5.68 19 2440 5.61 39 2480 5.05 7. Manufacturing tolerance of BLE BLE BT LE (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 5 5 5 Tolerance ±(dB) 1 1 1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AXZU-STRTRSF Page 4 of 4 8. Measurement Results As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. Mode RF output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW BLE 6 3.98 0 1.0 0.0008 1.0 Mode PG(mW) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) GSM 850 993.116 0.198 0.57 GSM 1900 497.737 0.099 1.0 LTE Band 2 794.328 0.158 1.0 LTE Band 4 794.328 0.158 1.0 LTE Band 5 933.254 0.186 0.55 LTE Band 7 794.328 0.158 1.0 Remark: 1. Output power including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 3. MPE values = PG/4πR²; 4. The maximum permissible exposure for 300~1500MHz is f/1500 mW/cm 2 , fo…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 1 of 14 Appendix A RF Test Data for BT V4.0(BLE) (Conducted Measurement) Product Name: Starlink Tracker 4G cat1 SF iRF Trade Mark: Starlink Test Model: Starlink Tracker 4G cat1 SF iRF Environmental Conditions Temperature: 21.3C Relative Humidity: 53.1% ATM Pressure: 100.0 kPa Test Engineer: Ken He Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 5.68 30 PASS BT LE MCH 5.61 30 PASS BT LE HCH 5.05 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -9.942 8 PASS BT LE MCH -9.965 8 PASS BT LE HCH -10.753 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6516 ≥0.5 PASS BT LE MCH 0.6536 ≥0.5 PASS BT LE HCH 0.6579 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 8 of 14 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 5.123 -37.317 -14.877 PASS BT LE MCH 5.053 -37.057 -14.947 PASS BT LE HCH 4.49 -36.585 -15.510 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 11 of 14 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 4.983 -48.144 -15.02 PASS BT LE HCH 4.707 -39.789 -15.29 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 12 of 14 A.7 Restrict-band band-edge measurements Test Mode Test Channel Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/m] Verdict BT LE 2402 2310.0 -43.59 2.0 0 53.64 PEAK 74 PASS 2310.0 -53.59 2.0 0 43.64 AV 54 PASS 2390.0 -37.99 2.0 0 59.24 PEAK 74 PASS 2390.0 -53.08 2.0 0 44.15 AV 54 PASS 2480 2483.5 -28.91 2.0 0 68.32 PEAK 74 PASS 2483.5 -51.75 2.0 0 45.48 AV 54 PASS 2500.0 -42.92 2.0 0 54.31 PEAK 74 PASS 2500.0 -52.52 2.0 0 44.71 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_PEAK Restrict-band band-edge measurements_BT LE_2402_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_PEAK Restrict-band band-edge measurements_BT LE_2480 _AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 1 of 32 FCC TEST REPORT For ERM Electronic Systems Ltd Starlink Tracker 4G cat1 SF iRF Test Model: Starlink Tracker 4G cat1 SF iRF Prepared for : ERM Electronic Systems Ltd Address : 16 Hasar Shapira St. Rishon Le'Zion, Israel Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Date of receipt of test sample : January 11, 2021 Number of tested samples : 2 Sample No. ： 210109013A-1, 210109013A-2 Serial number : Production Sample Date of Test : January 11, 2021 ~ January 15, 2021 Date of Report : January 19, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 2 of 32 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210109013AEA Date of Issue ................................... : January 19, 2021 Testing Laboratory Name ............. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : ERM Electronic Systems Ltd Address ........................................... : 16 Hasar Shapira St. Rishon Le'Zion, Israel Test Specification Standard .......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Starlink Tracker 4G cat1 SF iRF Trade Mark .......................................................................................................................................... : Starlink Test Model ......................................................................................................................................... : Starlink Tracker 4G cat1 SF iRF Ratings ................................................................................................................................................ : Input: DC 12/24V, 3A DC 3.7V by Rechargeable Li-ion Battery(750mAh) Result ............................................ : Positive Compiled by: Supervised by: Approved by: Jin Wang/ Administrator Linda He/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 3 of 32 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210109013AEA January 19, 2021 Date of issue Test Model.............................. : Starlink Tracker 4G cat1 SF iRF EUT......................................... : Starlink Tracker 4G cat1 SF iRF Applicant............................... : ERM Electronic Systems Ltd Address................................... : 16 Hasar Shapira St. Rishon Le'Zion, Israel Manufacturer......................... : ERM Electronic Systems Ltd Address................................... : 16 Hasar Shapira St. Rishon Le'Zion, Israel Factory................................... : / Address................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 4 of 32 Revision History Revision Issue Date Revisions Revised By 000 January 19, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF Report No.: LCS210109013AEA Page 5 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 7 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 7 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.6. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.7. DESCRIPTION OF TEST MODES .......................................................................................................................... 8 2. TEST METHODOLOGY ......................................................................................................................................... 9 2.1. EUT CONFIGURATION ..........................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AXZU-STRTRSF _______________________________________________________________________________________________ Page 1 of 1 Test Setup Photos of the EUT Radiated Emissions Fig. 1 Fig. 2
