2AY29HY-40WRGBUltra 40W RGB Pro Aquascaping Light

Shenzhen Huiyuan Intelligent Electronics Co., Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 04, 2022
Application Purpose: Original Equipment
Date of Application: Jul 04, 2022
Equipment Note: Ultra 40W RGB Pro Aquascaping Light
Frequency Range: 2402.00000000 - 2480.00000000
Company: Shenzhen Huiyuan Intelligent Electronics Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Ultra 40W RGB Pro Aquascaping Light High color rendition LED light with Bluetooth Solution, Professional Lighting for your Aquarium. March.2022_V2.0 P01/06 Fixture Installation Instructions 1:This product is recommended 2:Install the Holder onto the edge of the use for freshwater or saltwater aquarium. aquarium and secure it with the screws. The holder must be secured firmly enough to 3:Position the fixture over hole of "Holder" prevent the light from falling into the water. by adjusting the "Stand bar" to the proper high so that securely hold the fixture in place.4:Connect the adapter to the connector on the side of light fixture. 5:Plug the adapter into an acceptable outlet. be sure to incorporate a "drip loop" to prevent water6:The light fixture will turn on if the switch droplets from running down the cord and into is turned on. the outlet should any water get onto the cord. ITEM NO.FITS AQUARIUMSLED qty'VoltagePOWERPAR(AVG.)LUMENS QUAD-40WRGB 12" (30cm);18"(45cm); 20"(50cm);24"(60cm). 42 pcsDC24~26V40 watt15mW/c㎡2400~2600 Step-01: Scan QR Code to dowload TUYA app and install. Step-02: Open "TUYA" app and turn on the buletooth of your phone(Wifi is no reques t Step-03: Click "Add device", the system will being searching. Step-04:After discovering devices, click "Add" for loading, click the "Green" power button in the app. P02/06 Wifi is no request). Home page LayoutUser Defined/Dim&Color Layout Options of Lighting Scene, Button if blue color shows it is turned ON, Button if gray color is showing it is turn OFF, *Sunlight: is a white light for general use with high color rendition. *Moonlight: is a gentle, relaxing white light; use in night or dark environment. *Fishlight: is warm white light with more red spectrum for color enhancement. *Ocean blue light: Simulates the colors of the ocean with more blue spectrum. *Sunrise/Sunset:Simulates the Sunrise&Sunset with your preferred lighting settings every day. *8 Timers: Custom set each timer with your preferred lighting scene or use User Defined total in 8 timers. *User Defined: Saves custom settings; adjust your preferred colors/brightness. P03/06 How to set "Sunrise and Sunset" 1. Press edit the time for Sunrise and Sunset; 2.Edit the time of Sunrise. 3.Edit the time of Sunset. 4.Select the lighting scenes for Sunrise Sunset. 5. Sunrise&Sunset lighting chart: P04/06 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% Intensity 50% 100% 50% On Time Off Time 15 Min 60 Min 15 Min 15 Min 15 Min 60 Min How to set 8 Timers. 1. Press edit the time for 8 Timers; 2.Set the time/Light Scene/Brightness for L1-L8 and Save. DO NOT UNDER WATER USE *How to reset the light. The device is reset successfully after the light flashes 3 times and ready for pairing P05/06 LIMITED WARRANTY Warrants that this product shall be free from defective electrical components due to defects in materials or workmanship for a period of 12 months from the date of purchase. This warranty does not apply to damage resulting from accident,misuse,abuse,lack of reasonable care, failure to follow safety and installation instructions,or use of the product with non-standard electrical. IMPORTANT SAFETY INSTRUCTIONS DO NOT UNDER WATER USE 1. To avoid possible electric shock, special care should be taken since water is involved in the use of aquariums,GFCI outlets are the safest outlets for use with aquariums and are recommended. 2. If the appliance falls into the water, DO NOT reach for it! First unplug it and then retrieve it. If electrical components of the appliance get wet, unplug the appliance immediately. 3. Do not operate any appliance if it has a damaged cord or plug. 4. Use the Certified power supply only. 5. Do not allow children to use. 6. Indoor use only. P06/06

External Photos

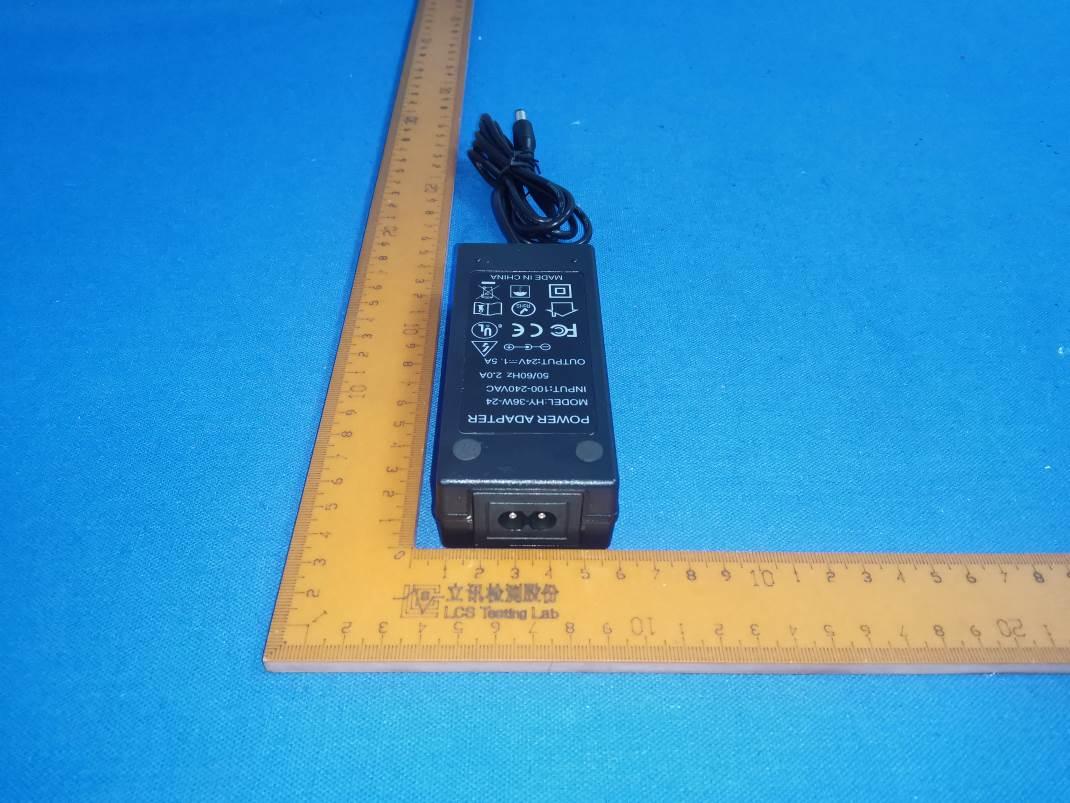

Page1of5FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of5FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of5FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of5FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of5FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9

ID Label/Location Info

Page1of1FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L2.5cmx1.5cm) LabelLocation Ultra40WRGBProAquascapingLight Model:QUAD-40WRGB FCCID:2AY29HY-40WRGB

Internal Photos

RF Exposure Info

Page 1 of 3 FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCRFExposureEvaluation 1.ProductInformation FCCID2AY29HY-40WRGB ProductnameUltra40WRGBProAquascapingLight ModelnumberQUAD-40WRGB Powersupply ForACAdapterModel:HY-36W-24 Input:100-240V~,50/60Hz,2.0A Output:24V1.5A ModulationTypeGFSKforBluetoothV4.2(DTS) AntennaTypePCBAntenna AntennaGain1.5dBi(Max.) Hardwareversion/ Softwareversion/ FCCOperationfrequency2402MHz~2480MHz ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeMobileDevices 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensures thatthepublicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobile devicewherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelow RFPermissibleExposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesum oftheMPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPE ratioofeachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperating configurationsandexposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpower densitytoMPElimit,atthetestfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrom measurementsornumericalsimulationsmaybeusedtodeterminetheMPEratios.Spatialaveragingdoesnot applywhenMPEisestimatedusingsimplecalculationsbasedonfar-fieldplane-waveequivalentconditions. Theantennainstallationandoperatingrequirementsforthehostdevicemustmeettheminimumtest separationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmissionoperations, tosatisfycompliance. Page 2 of 3 FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation PCBAntennacanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal Identification Antennatypeand antennanumber Operatefrequency band Maximumantenna gain Note AntennaPCBAntenna2402MHz~2480MHz1.5dBiBTAntenna Page 3 of 3 FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 6.ConductedPower <BTLEMaxConductedPower> ModeChannelFrequency(MHz) MaxConductedPower (dBm) GFSK 024020.23 1924401.51 3924800.07 7.ManufacturingTolerance <BTLE> GFSK(Peak) Channel Channel0Channel19Channel39 Target(dBm) 01.00 Tolerance±(dB) 1.01.01.0 8.MeasurementResults AsdeclaredbytheApplicant,theEUTisawirelessdeviceusedinafixapplication,atleast20cmfromany bodypartoftheuserornearbypersons;fromthemaximumEUTRFoutputpower,theminimumseparation distance,r=20cm,aswellasthegainoftheusedantennarefertoantennainformation,theRFpowerdensity canbeobtained. [Antenna] <BTLE> Band/Mode RFoutputpower AntennaGain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBmmW GFSK1.51 1.42 1.5 0.0004 1.0000 Remark: 1.Outputpowerincludingtune-uptolerance; 2.MPEevaluatedistanceis20cmfromusermanualprovidebymanufacturer; 9.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1091fortheuncontrolledRFExposureof mobiledevice. .......................THEENDOFREPORT.........................

Test Report

Page1of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity AppendixA RFTestDataforBTLE(ConductedMeasurement) ProductName:Ultra40WRGBProAquascapingLight TestModel:QUAD-40WRGB EnvironmentalConditions Temperature:23.5°C RelativeHumidity:52.2% ATMPressure:100.0kPa TestEngineer:LingZhu Supervisedby:LiHuan Page2of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.16dBBandwidth ConditionModeFrequency (MHz) Antenna6dBBandwidth (MHz) Limit(MHz)Verdict NVNTBLE1M2402Ant10.6610.5Pass NVNTBLE1M2440Ant10.6640.5Pass NVNTBLE1M2480Ant10.6660.5Pass Page3of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs 6dBBandwidthNVNTBLE1M2402MHzAnt1 6dBBandwidthNVNTBLE1M2440MHzAnt1 Page4of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 6dBBandwidthNVNTBLE1M2480MHzAnt1 Page5of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.2MaximumConductedOutputPower ConditionModeFrequency(MHz)AntennaConductedOutputPower (dBm) Limit(dBm)Verdict NVNTBLE1M2402Ant10.2330Pass NVNTBLE1M2440Ant11.5130Pass NVNTBLE1M2480Ant10.0730Pass Page6of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PowerNVNTBLE1M2402MHzAnt1 PowerNVNTBLE1M2440MHzAnt1 Page7of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PowerNVNTBLE1M2480MHzAnt1 Page8of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.3MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaConductedPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTBLE1M2402Ant1-14.658Pass NVNTBLE1M2440Ant1-14.228Pass NVNTBLE1M2480Ant1-14.718Pass Page9of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 Page10of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity PSDNVNTBLE1M2480MHzAnt1 Page11of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.4BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-56.17-20Pass NVNTBLE1M2480Ant1-55.93-20Pass Page12of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission Page13of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission Page14of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity A.5ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-55.25-20Pass NVNTBLE1M2440Ant1-56.12-20Pass NVNTBLE1M2480Ant1-53-20Pass Page15of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestGraphs Tx.SpuriousNVNTBLE1M2402MHzAnt1Ref Tx.SpuriousNVNTBLE1M2402MHzAnt1Emission Page16of23FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceT…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 34 FCCID:2AY29HY-40WRGBReportNo.:LCSA060722074EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For ShenzhenHuiyuanIntelligentElectronicsCo.,Ltd Ultra40WRGBProAquascapingLight TestModel:QUAD-40WRGB AdditionalModelNo.:QUAD-40WRGB(HG026) Preparedfor:ShenzhenHuiyuanIntelligentElectronicsCo.,Ltd Address:Floor3th,Building81,JinJingRd,LongDongstreet, LongGang,Shenzhen,Guangdong Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:June09,2022 Numberoftestedsamples:2 SampleNo.:A060722074-1,A060722074-2 Serialnumber:Prototype DateofTest:June09,2022~June14,2022 DateofReport:June15,2022 Page 2 of 34 FCCID:2AY29HY-40WRGBReportNo.:LCSA060722074EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCSA060722074EA DateofIssue.......................................:June15,2022 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ShenzhenHuiyuanIntelligentElectronicsCo.,Ltd Address................................................:Floor3th,Building81,JinJingRd,LongDongstreet, LongGang,Shenzhen,Guangdong TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:Ultra40WRGBProAquascapingLight TradeMark..........................................: TestModel...........................................: QUAD-40WRGB Ratings.................................................: ForACAdapterModel:HY-36W-24 Input:100-240V~,50/60Hz,2.0A Output:24V1.5A Result...................................................:Positive Compiledby:Supervisedby:Approvedby: JinWang/AdministratorCaryLuo/TechniqueprincipalGavinLiang/Manager Page 3 of 34 FCCID:2AY29HY-40WRGBReportNo.:LCSA060722074EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestModel...............................:QUAD-40WRGB EUT.........................................:Ultra40WRGBProAquascapingLight Applicant...............................:ShenzhenHuiyuanIntelligentElectronicsCo.,Ltd Address..................................:Floor3th,Building81,JinJingRd,LongDongstreet, LongGang,Shenzhen,Guangdong Telephone...............................:/ Fax..........................................:/ Manufacturer........................:ShenzhenHuiyuanIntelligentElectronicsCo.,Ltd Address...................................:Floor3th,Building81,JinJingRd,LongDongstreet, LongGang,Shenzhen,Guangdong Telephone...............................: / Fax..........................................: / Factory...................................:ShenzhenHuiyuanIntelligentElectronicsCo.,Ltd Address...................................:Floor3th,Building81,JinJingRd,LongDongstreet, LongGang,Shenzhen,Guangdong Telephone...............................:/ Fax..........................................:/ TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA060722074EA June15,2022 Dateofissue Page 4 of 34 FCCID:2AY29HY-40WRGBReportNo.:LCSA060722074EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000June15,2022InitialIssue-- Page 5 of 34 FCCID:2AY29HY-40WRGBReportNo.:LCSA060722074EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.GENERALINFORMATION........................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT).............................................................................................................6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAILS.............................…

Text truncated - open the document above for the full version.

Test Setup Photos

Page1of2FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhotosoftheEUT TestSetupPhoto(s)ofRadiatedEmissionsMeasurement Fig.1 Fig.2 Page2of2FCCID:2AY29HY-40WRGB ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhoto(s)ofConductedEmissionsMeasurement Fig.3

Contact Information

Applicant

YU HE(General Manager)

[email protected]86-18902849703Fax: 86-18902849703

Test Firm

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]0755-82591330Fax: 0755-82591132

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.40 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is peak conducted. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
