2AY29HY-60W1202.4G LED AQUARIUM LIGHT

User Manual of Programmable Aquarium Light High Performance LED light with 2.4G Wireless Solution, Be a Comfortable Lighting for your Aquarium. March.2021_V3 P01/06 Fixture Installation Instructions 1:This product is recommended use for freshwater or saltwater aquarium. 2:Fit on the edgs of length of aquarium to prevent deep in the water. 3:Position the fixture over aquarium by adjusting the legs to the proper length so that securely hold the fixture in place. 4:Connect the adapter to the connector on the side of light fixture. 5:Plug the adapter into an acceptable outlet. be sure to incorporate a "drip loop" to prevent water droplets from running down the cord and into the outlet should any water get onto the cord. 6:The light fixture will turn on to a standard setting and you can program the fixture to your preferred settings using remote or buttons in the end of lamp. ITEM NO.FITS AQUARIUMSLED qty' POWER PAR(AVG .)LUMENS HY-18W030-RMT12" (30cm)40 pcs18 watt231000 HY-26W045-RMT18" (45cm)80 pcs26 watt311500 HY-35W060-RMT24" (60cm)120 pcs35 watt422000 HY-40W075-RMT30" (75cm)160 pcs40 watt482300 HY-50W090-RMT36" (90cm)200 pcs50 watt652900 HY-60W120-RMT48" (120cm)280 pcs65 watt863800 P02/06 Remote Layout Remote instructions Installing Batteries 1. Remove the cover from the back of remote; 2. Install 2(AA) batteries; 3. Close the cover in that time remote is ready for use. Remote Connection 1.Turn the power of lamp "ON"; 2. Press and hold for 3 seconds until you see the lighting blinking. in the same time LCD display "COd"text. Setting the Time 1.Press and hold for 3 seconds untill you see the hour blinking. 2.Use or buttons to set the time on 12/24 houres option. 3.Press the Hours will be blinking,use the or buttons to set the hours. 4.Press the minute will be blinking,use the or buttons to set the minute. 5.Press the time will be set. P03/06 ON/OFF Clock settings (Press and hold). Fish option Day Light optionMoon Light option Coral Light option Color adjustable (Press and hold for set, Short press return) Programmable with 8 Channels (Press and hold for set, Short press executes timer of 8 channelsr) "Up" for dimmable or change number of setting. "Down" for dimmable or change number of setting. Sunrise setting (Press and hold for set, Short press executes program of sunrise & sunset) Sunset setting (Press and hold for set, Short press executes program of sunrise & sunset) LCD Screen. Intensity Options of Lighting Scene. 1. Press start the lighting for fish; 2. Press start the lighting for coral; 3. Press start the day light; 4. Press start the moon light; 5. Use and buttons to adjust the intensity of lighting from 10% ~ 100% of each model. One key start the default settings of *Sunrise&Sunset. 1. Press or buttons start the default Sunrise&Sunset lighting as below chart: *Icon of will display in screen when executes program of Sunrise&Sunset. Defined the time of Sunrise. 1. Press and hold 3 seconds untill hour of "DAY-L" blinking, use the or buttons to set the hours of Sunrise. 2.Press move to set minute of "DAY-L", use the or buttons to set the number of minute.. 3. Press turn the time of Sunrise set done. Defined the time of Sunset. 1. Press and hold 3 seconds untill hour of "MOON-L" blinking, use the or buttons to set the hours of Sunset. 2.Press move to set minute of "MOON-L ",use the or buttons to set the number of minute.. 3. Press turn the time of Sunset done. Return the default of Sunrise&Sunset. Press and hold and buttons in the same time over 3 seconds till LCD display "E5" text. system will return the default set of Sunrise&Sunset. P04/06 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 6:00 7:00 8:00 9:00 10:00 11:00 12:00 13:00 14:00 15:00 16:0017:00 18:00 19:00 20:00 21:00 22:00 23:00 24:00 Intensity Time ON 10% Moon light 50% 80% 100% 80% 50% Moon light OFF 10% Setting the RGBW LED color option. 1. Press and hold adjust colors to your prefer. 2. Leave button to keep your prefer color. 3. Use and buttons to adjust the intensity of lighting from 10% ~ 100%. Programmable the Timer with 8 channels from L1~L8. 1.Press and hold for 3 seconds untill you see the number of "lighting intensity" in lower right corner is blinking. 2. Use and buttons to adjust the intensity of lighting from 10% ~ 100% for "L1" timer. 3. Press button and you will see the icon of "lighting scene" is blinking. use and buttons for select lighting scene from "Fish light/Coral light/Day light/Moon light" for "L1" timer. 4. Press button you will see the hour number is blinking, use and buttons for setting the hours for "L1" timer. 5. Press button you will see the minute number is blinking, use and buttons for setting the miunute for "L1" timer. 6. Repeat the above operation finish timer of L2/L3/L4/L5/L6/L7/L8. You can set below example of Programmable with 8 channels: L1: at 00:00 turn on "Moon light" with 100% intensity; L2: at 03:00 turn on "Moon light" with 50% intensity; L3: at 06:00 turn on "Moon light" with 10% intensity; L4: at 09:00 turn on "Fish light" with 60% intensity; L5: at 12:00 turn on "Coral light" with 100% intensity; L6: at 18:00 turn on "Day light" with 60% intensity; L7: at 20:00 turn on "Moon light" with 30% intensity; L8: at 23:00 turn on "Moon light" with 60% intensity; *Above information for reference only. How to be Multi-lights controll by one remote: 1.Turn the "power on" in the same time of all lights, 2. Press and hold for 3 seconds until you see the all lighting blinking in the same time, also LCD display with "COd"text,the operation is successed. Cancel Multi-lights controll by one remote: 1.Turn the "power on" in the same time of all lights, 2. Press and hold and for 3 seconds until all lights quickly blinking will cancel. P05/06 LIMITED WARRANTY Warrants that this product shall be free from defective electrical components due to defects in materials or workmanship for a period of 12 months from the date of purchase. This warranty does not apply to damage resulting from accident,misuse…

Text truncated - open the document above for the full version.

Shenzhen Huiyuan Intelligent Electronics Co., Ltd. Agent Authorization Company: Shenzhen Huiyuan Intelligent Electronics Co., Ltd. Address: Floor 3th,Building 81, JinJing Rd, LongDong street, LongGang,Shenzhen, Guangdong, China Product Name: 2.4G LED AQUARIUM LIGHT Trade Mark: N/A Model Number(s): HY-60W120-RMT, HY-50W090-RMT, HY-40W075-RMT, HY- 30W060-RMT, HY-26W045-RMT, HY-18W030-RMT FCC ID: 2AY29HY-60W120 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-03-10 Name: YU HE Title: General Manager Company: Shenzhen Huiyuan Intelligent Electronics Co., Ltd.

Shenzhen Huiyuan Intelligent Electronics Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-03-10 Subject; Request for Confidentiality FCC ID: 2AY29HY-60W120 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: YU HE Title: General Manager

Shenzhen Huiyuan Intelligent Electronics Co., Ltd. Add: F3/B2, Yijiayang Industrial Park, Huayun Road, Dalang Street, Longhua District, Shenzhen, China Tel: 86-18902849703 Fax: 86-18902849703 Date: 2021-03-10 Dear Sir/Madam, We, Shenzhen Huiyuan Intelligent Electronics Co., Ltd. Hereby declares the following statement , PCB board, circuit, structure and internal of these model(s) are the same, Only product appearance and model number are different for marketing purpose: Product name: 2.4G LED AQUARIUM LIGHT Models No.: HY-60W120-RMT, HY-50W090-RMT, HY-40W075-RMT, HY-30W060-RMT, HY- 26W045-RMT, HY-18W030-RMT Sincerely, Client’s name / title : YU HE / General Manager Contact information / address: F3/B2, Yijiayang Industrial Park, Huayun Road, Dalang Street, Longhua District, Shenzhen, China Tel: 86-18902849703 Fax: 86-18902849703 E-Mail: [email protected]

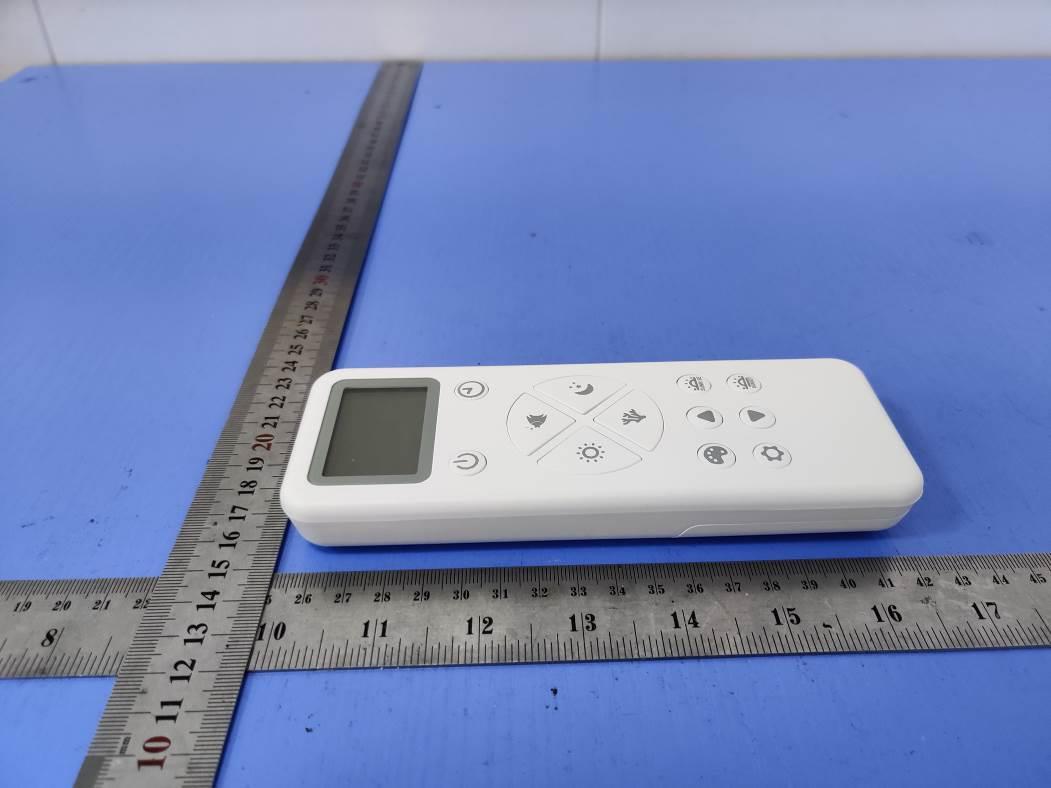

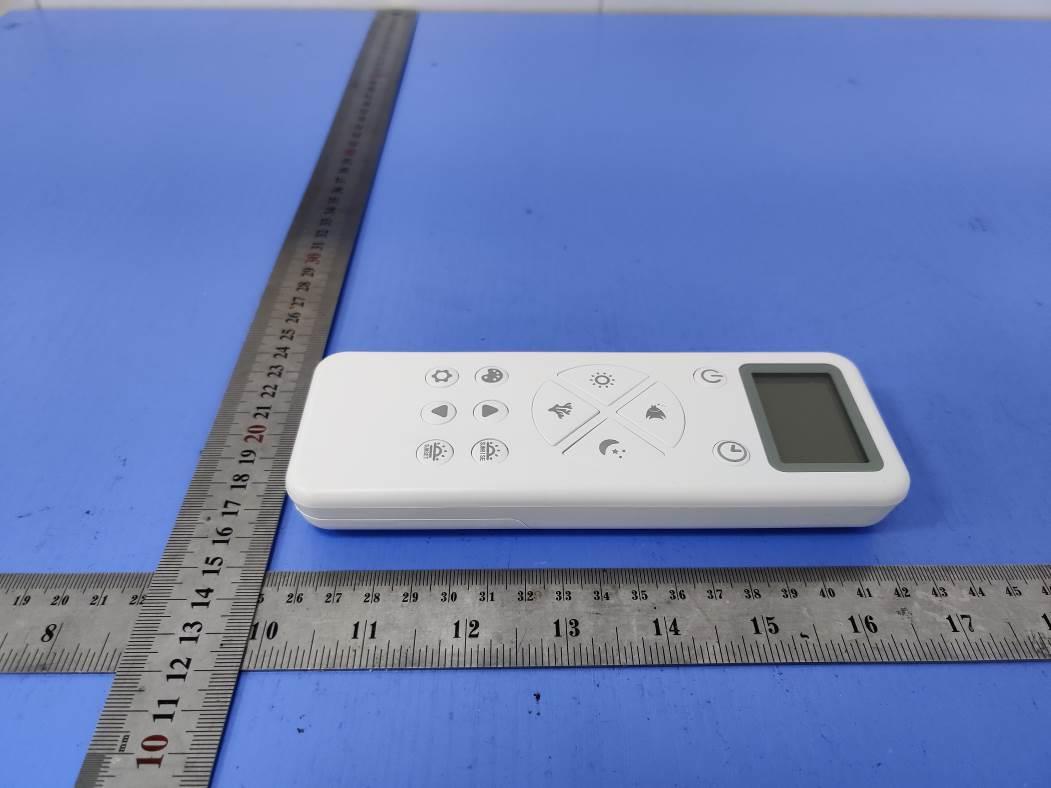

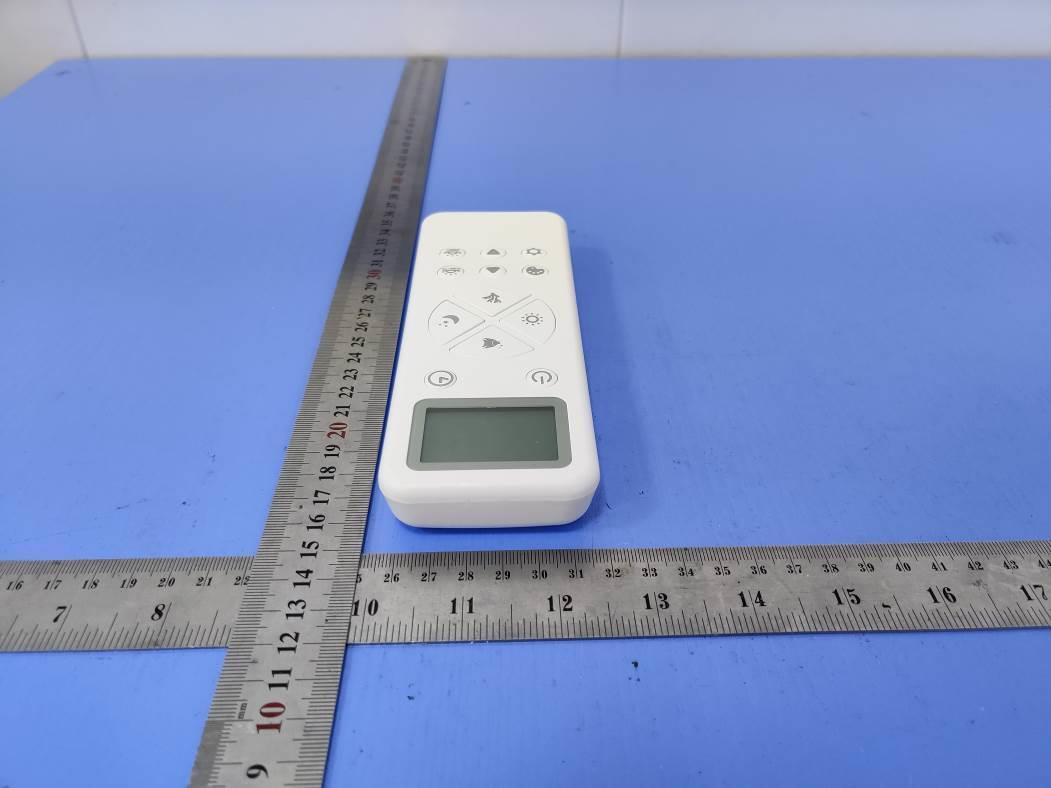

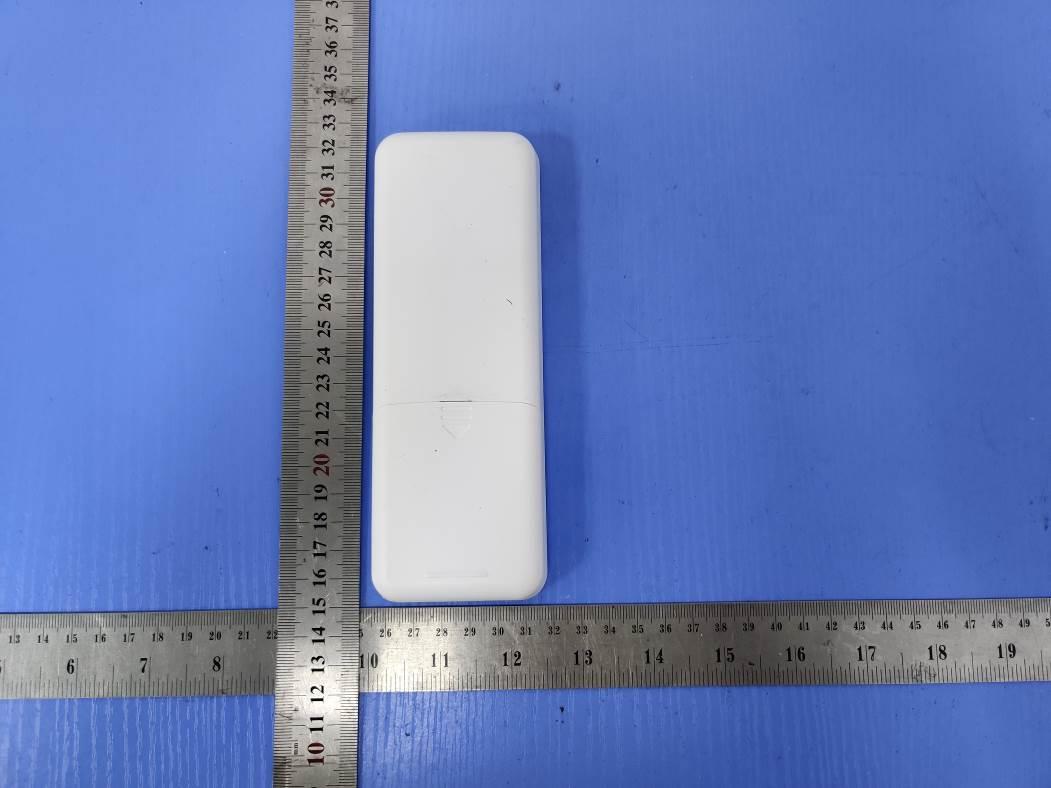

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AY29HY-60W120 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AY29HY-60W120 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AY29HY-60W120 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AY29HY-60W120 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7
