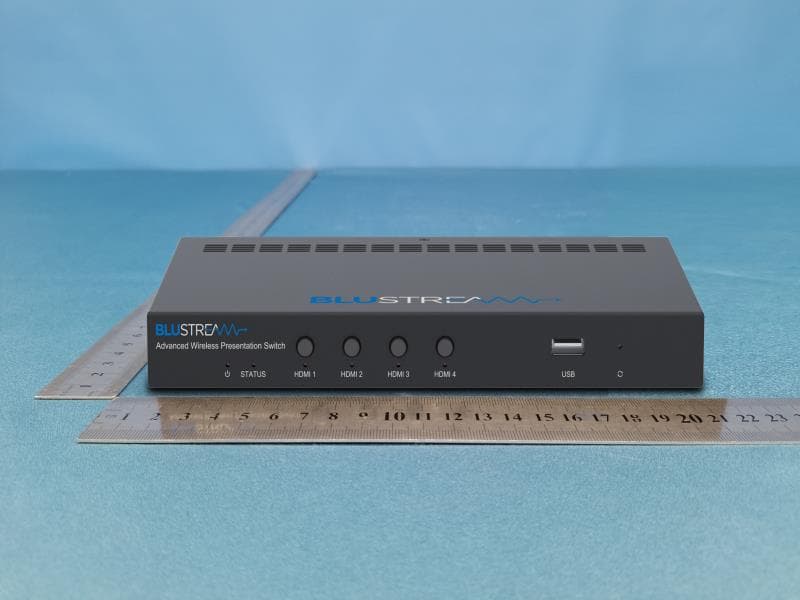

2AY2P-AMF41W4K60 BYOD Presentation Switcher

AMF41W QUICK REFERENCE GUIDE Contact: [email protected] | [email protected] | [email protected] A MF41W Quick Reference Guide 01 The AMF41W is an advanced 4K multi-format presentation switch featuring 4 x HDMI, AirPlay and Miracast® inputs to a single HDMI output. The AMF41W provides enhanced features including localised 2.4/5G WiFi hotspot, seamless switching, multiview presentation, video scaling and Web GUI for control and configuration. The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel and TCP/IP. The AMF41W is an ideal product for your boardroom, classroom or huddle-space application. Introduction AMF41W QUICK REFERENCE GUIDE www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk02 FEATURES: • Features 4 x HDMI, AirPlay and Miracast® inputs which can be switched to a single HDMI output • Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracast® local streaming to AMF41W • Multiview presentation with up to 7 concurrent video signals and configurable screen layout • Seamless switching of sources in both single or multiview mode • In-built video scaler with output timing up to 4K 60Hz 4:4:4 • HDMI inputs support resolutions up to 4K 30Hz 4:4:4 • Supports AirPlay mirroring and Miracast® point-to-point mode (up to 1080p) • Audio breakout to analogue L/R audio • LAN connection for integration to existing network infratructures • Auto display on / off feature allowing control of display via RS-232 • Web interface module for control and configuration of switch • Control via front panel and TCP/IP with manual or auto source selection • Features PoE support for powering the device from any PoE switch AMF41W QUICK REFERENCE GUIDE Contact: [email protected] | [email protected] | [email protected] Front Panel Description 1 Power LED Indicator - Illuminates when the device is powered on 2 Status LED Indicator - Illuminates when the device is outputting at least one source - Flashes when the device is in standby mode - Turns off when the device is outputting the guide screen 3 Input Selection LED - Illuminates when video input has a valid signal and is shown on the display, - Flashes once a second when input does not have a signal but is shown in the current layout - Flashes once every two seconds when video input has a valid signal but is not shown on the display - Off when the video input signal is neither valid nor shown in the layout, or device is in standby 4 Input Selection Buttons - Short press to select / deselect the input signal between HDMI 1 to 4, long press to view video source in full screen mode 5 USB Socket - Reserved for future use 6 Reset Button - Push and hold for 10 seconds to factory reset the device 03 15642 3 Rear Panel Description 25167834 1 WiFi Antenna Connection 1 - Connect to supplied WiFi antenna 2 Power Port – Use included 12V/2A DC adaptor 3 HDMI Inputs 1-4 - Connect to HDMI source equipment 4 HDMI Output - Connect to HDMI display equipment 5 Analogue Audio Output - 3.5mm stereo analogue audio output to connect to external audio distribution equipment or amplifier. Supports 2ch PCM only 6 TCP/IP Port - RJ45 connector to connect to LAN for TCP/IP control of device and to access Web GUI 7 RS-232 Port - 4-pin Phoenix connector for control of source or display from the AMF41W, also includes a 12V output pin to trigger local device 8 WiFi Antenna Connection 2 - Connect to supplied WiFi antenna NOTE: The distance between user and products should be no less than 20cm. WARNING: 5.2 GHz band is restricted to indoor use only. La distance entre l’utilisateur et le produit ne doit pas être inférieure à 20 cm. La bande de 5.2 GHz est réservée à l’usage intérieur. AMF41W QUICK REFERENCE GUIDE www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk Configuration and Web GUI Control The AMF41W features an in-built Web GUI which is required for control and configuration of the device. This configuration includes features such as source EDID management, output scaler resolution, network / WiFi configuration and user control. You can connect to the AMF41W either via hardwired LAN connection or via local WiFi hotspot. Connecting via LAN: By default this device is set to DHCP, however if a DHCP server (eg: network router) is not installed or you connect directly from your PC to the AMF41W, the IP address will revert to the below details: Default Username is: blustream Default Password is: 1234 Default IP Address is: 192.168.0.200 If the AMF41W is connected to a pre-existing network then it will be provided an IP Address via DHCP. There are several ways in which you can find the IP address of the device as follows: • The On Screen Display shows the IP address of the product in the lower right corner of the screen (item A in the image below). • Use a 3rd party IP scanning tool on your PC to find the IP address of the AMF41W. Connecting via Local WiFi Hotspot: This device can broadcast its own local WiFi hotspot which users can connect to in order to stream content to the device, or control and configure it. The default local WiFi hotspot settings are as follows: Default Device ID / SSID is: Blustream_ AMF41W Default SSID Password is: 12345678 Default BYOD PIN is: N/A It is also possible to disable the local WiFi hotspot and hardwire the AMF41W into a pre-existing data network. You would then use the pre-existing WiFi access points to connect to the network and communicate with the AMF41W. BYOD (Bring Your Own Device) Connectivity The on screen display shows a connection guide when no input devices (HDMI or BYOD) are being viewed. This illustrates how to connect your laptop, tablet or smartphone (BYOD device) to the unit. There are various technologies utilised to ensure your smart device is capable of broadcasting a video to the AMF41W without any apps required. These are: • AirPlay (Apple devices) • Miracast®, SmartView or ScreenCast (Android devices) • …

Text truncated - open the document above for the full version.

FCC Software Configuration Control Declaration Blustream PTY LTD FCC Software Configuration Control Declaration Date: July 9, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: 4K60 BYOD Presentation Switcher/ AMF41W Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 V02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Martyn Shirley Date: 2021/05/14 Title: Director Signature of applicant

Test Model No.: AMF41W

C M Y CM MY CY CMY K RevB5_AMF41W_Silkscreen_legacyoutline.pdf 1 29/04/2021 13:36

Test Model No.: AMF41W

FCC ID: 2AY2P-AMF41W RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2AY2P-AMF41W Test Result of RF Exposure Evaluation WIFI 2.4G Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2437MHz SISO 45.92 0.0144 1.0 PASS 2437MHz MIMO 84.14 0.0265 1.0 PASS Antenna gain: 2dBi WiFi 5Gmode Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 5180 MHz (802.11n HT20 MIMO) 38.02 0.0120 1.0 PASS Antenna gain: 2dBi 5.8G mode Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 5805 MHz (802.11AC HT20 MIMO) 72.28 0.0228 1.0 PASS Antenna gain: 2dBi The max power density is less than MPE exempt limit, so it is compliance.

Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 59 AppendixA1: Emission Bandwidth Test Result TestMode Antenna Channel 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 20.280 5734.960 5755.240 --- PASS Ant2 5745 20.680 5734.600 5755.280 --- PASS Ant1 5785 20.600 5774.840 5795.440 --- PASS Ant2 5785 20.800 5774.440 5795.240 --- PASS Ant1 5805 20.360 5794.760 5815.040 --- PASS Ant2 5805 20.240 5794.800 5815.320 --- PASS 11N20 Ant1 5745 20.600 5734.720 5755.320 --- PASS Ant2 5745 20.760 5734.880 5755.640 --- PASS Ant1 5785 20.440 5774.840 5795.280 --- PASS Ant2 5785 20.920 5774.600 5795.520 --- PASS Ant1 5805 20.440 5794.680 5815.400 --- PASS Ant2 5805 20.680 5794.720 5815.320 --- PASS 11AC20 Ant1 5745 20.600 5734.720 5755.320 --- PASS Ant2 5745 21.240 5734.360 5755.600 --- PASS Ant1 5785 20.800 5774.480 5795.280 --- PASS Ant2 5785 21.200 5774.280 5795.480 --- PASS Ant1 5805 20.520 5794.640 5815.240 --- PASS Ant2 5805 21.080 5794.840 5815.440 --- PASS Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 59 Test Graphs 11A_Ant1_5745 11A_Ant2_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 59 11A_Ant1_5785 11A_Ant2_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 59 11A_Ant1_5805 11A_Ant2_5805 11N20 _Ant1_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 5 of 59 11N20 _Ant2_5745 11N20 _Ant1_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 6 of 59 11N20 _Ant2_5785 11N20 _Ant1_5805 11N20 _Ant2_5805 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 7 of 59 11AC20 _Ant1_5745 11AC20 _Ant2_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 8 of 59 11AC20 _Ant1_5785 11AC20 _Ant2_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 9 of 59 11AC20 _Ant1_5805 11AC20 _Ant2_5805 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 10 of 59 AppendixA2: Occupied channel bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.930 5736.570 5753.500 --- PASS Ant2 5745 17.064 5736.517 5753.581 --- PASS Ant1 5785 16.969 5776.558 5793.527 --- PASS Ant2 5785 17.063 5776.484 5793.547 --- PASS Ant1 5805 16.862 5796.553 5814.626 --- PASS Ant2 5805 16.796 5796.513 5814.515 --- PASS 11N20 Ant1 5745 17.000 5736.530 5753.530 --- PASS Ant2 5745 17.005 5736.521 5753.526 --- PASS Ant1 5785 16.955 5776.559 5793.514 --- PASS Ant2 5785 17.048 5776.471 5793.519 --- PASS Ant1 5805 16.832 5796.584 5814.573 --- PASS Ant2 5805 16.805 5796.489 5814.493 --- PASS 11AC20 Ant1 5745 17.902 5736.031 5753.933 --- PASS Ant2 5745 17.962 5736.009 5753.971 --- PASS Ant1 5785 17.938 5776.056 5793.994 --- PASS Ant2 5785 17.982 5775.973 5793.955 --- PASS Ant1 5805 16.915 5796.026 5815.060 --- PASS Ant2 5805 16.798 5795.931 5814.949 --- PASS Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 11 of 59 Test Graphs 11A_Ant1_5745 11A_Ant2_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 12 of 59 11A_Ant1_5785 11A_Ant2_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (…

Text truncated - open the document above for the full version.

Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 21 of 59 11A_Ant1_5785 11A_Ant2_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 22 of 59 11A_Ant1_5805 11A_Ant2_5805 11N20 _Ant1_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 23 of 59 11N20 _Ant2_5745 11N20 _Ant1_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 24 of 59 11N20 _Ant2_5785 11N20 _Ant1_5805 11N20 _Ant2_5805 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 25 of 59 11AC20 _Ant1_5745 11AC20 _Ant2_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 26 of 59 11AC20 _Ant1_5785 11AC20 _Ant2_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 27 of 59 11AC20 _Ant1_5805 11AC20 _Ant2_5805 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 28 of 59 AppendixB: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11A Ant1 5745 9.78 <=30 PASS Ant2 5745 11.83 <=30 PASS Ant1 5785 9.38 <=30 PASS Ant2 5785 11.46 <=30 PASS Ant1 5805 11.19 <=30 PASS Ant2 5805 10.20 <=30 PASS 11N20 Ant1 5745 7.91 <=30 PASS Ant2 5745 9.10 <=30 PASS total 5745 11.6 <=30 PASS Ant1 5785 8.32 <=30 PASS Ant2 5785 9.17 <=30 PASS total 5785 11.8 <=30 PASS Ant1 5805 10.73 <=30 PASS Ant2 5805 13.31 <=30 PASS total 5805 15.22 <=30 PASS 11AC20 Ant1 5745 10.22 <=30 PASS Ant2 5745 11.98 <=30 PASS total 5745 14.2 <=30 PASS Ant1 5785 12.46 <=30 PASS Ant2 5785 11.37 <=30 PASS total 5785 15.0 <=30 PASS Ant1 5805 16.72 <=30 PASS Ant2 5805 14.02 <=30 PASS total 5805 18.59 <=30 PASS Note：The Duty Cycle Factoriscompensatedinthegraph. Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 29 of 59 Test Graphs 11A_Ant1_5745 11A_Ant2_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 30 of 59 11A_Ant1_5785 11A_Ant2_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 31 of 59 11A_Ant1_5805 11A_Ant2_5805 11N20 _Ant1_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 32 of 59 11N20 _Ant2_5745 11N20 _Ant1_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 33 of 59 11N20 _Ant2_5785 11N20 _Ant1_5805 11N20 _Ant2_5805 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 34 of 59 11AC20 _Ant1_5745 11AC20 _Ant2_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 35 of 59 11AC20 _Ant1_5785 11AC20 _Ant2_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 27…

Text truncated - open the document above for the full version.

Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 41 of 59 11N20 _Ant1_5745 11N20 _Ant2_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 42 of 59 11N20 _Ant1_5785 11N20 _Ant2_5785 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 43 of 59 11N20 _Ant1_5805 11N20 _Ant2_5805 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 44 of 59 11AC20 _Ant1_5745 11AC20 _Ant2_5745 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 45 of 59 11AC20 _Ant1_5785 11AC20 _Ant2_5785 11AC20 _Ant1_5805 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 46 of 59 11AC20 _Ant2_5805 Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 47 of 59 AppendixG:Frequency Stability Test Result Voltage TestMode Antenna Channel Voltage [Vdc] Temper ature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict 11A Ant1 5745 NV NT -13000 -2.262837 20 PASS LV NT -14000 -2.436902 20 PASS HV NT -14000 -2.436902 20 PASS Ant2 5745 NV NT -11000 -1.914708 20 PASS LV NT -11000 -1.914708 20 PASS HV NT -11000 -1.914708 20 PASS Ant1 5785 NV NT -12000 -2.07433 20 PASS LV NT -12000 -2.07433 20 PASS HV NT -12000 -2.07433 20 PASS Ant2 5785 NV NT -11000 -1.901469 20 PASS LV NT -11000 -1.901469 20 PASS HV NT -11000 -1.901469 20 PASS Ant1 5805 NV NT -13000 -2.23176 20 PASS LV NT -13000 -2.23176 20 PASS HV NT -13000 -2.23176 20 PASS Ant2 5805 NV NT -11000 -1.888412 20 PASS LV NT -11000 -1.888412 20 PASS HV NT -11000 -1.888412 20 PASS 11N20 5745 NV NT -10000 -1.740644 20 PASS LV NT -12000 -2.088773 20 PASS HV NT -9000 -1.56658 20 PASS 5785 NV NT -9000 -1.555748 20 PASS LV NT -11000 -1.901469 20 PASS HV NT -9000 -1.555748 20 PASS 5805 NV NT -8000 -1.373391 20 PASS LV NT -10000 -1.716738 20 PASS HV NT -10000 -1.716738 20 PASS 11AC20 Ant1 5745 NV NT -9000 -1.56658 20 PASS LV NT -9000 -1.56658 20 PASS HV NT -9000 -1.56658 20 PASS 5785 NV NT -8000 -1.382887 20 PASS LV NT -9000 -1.555748 20 PASS HV NT -7000 -1.210026 20 PASS 5805 NV NT -9000 -1.545064 20 PASS LV NT -7000 -1.201717 20 PASS Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 48 of 59 HV NT -8000 -1.373391 20 PASS Temperature TestMode Antenna Channel Voltage [Vdc] Temper ature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict 11A Ant1 5745 NV -30 -13000 -2.262837 20 PASS NV -20 -13000 -2.262837 20 PASS NV -10 -13000 -2.262837 20 PASS NV 0 -12000 -2.088773 20 PASS NV 10 -12000 -2.088773 20 PASS NV 20 -12000 -2.088773 20 PASS NV 30 -12000 -2.088773 20 PASS NV 40 -11000 -1.914708 20 PASS NV 50 -11000 -1.914708 20 PASS Ant2 5745 NV -30 -11000 -1.914708 20 PASS NV -20 -11000 -1.914708 20 PASS NV -10 -11000 -1.914708 20 PASS NV 0 -11000 -1.914708 20 PASS NV 10 -11000 -1.914708 20 PASS NV 20 -11000 -1.914708 20 PASS NV 30 -11000 -1.914708 20 PASS NV 40 -11000 -1.914708 20 PASS NV 50 -11000 -1.914708 20 PASS Ant1 5785 NV -30 -13000 -2.247191 20 PASS NV -20 -13000 -2.247191 20 PASS NV -10 -13000 -2.247191 20 PASS NV 0 -13000 -2.247191 20 PASS NV 10 -13000 -2.247191 20 PASS NV 20 -13000 -2.247191 20 PASS NV 30 -13000 -2.247191 20 PASS NV 40 -13000 -2.247191 20 PASS NV 50 -13000 -2.247191 20 PASS Ant2 5785 NV -30 -11000 -1.901469 20 PASS NV -20 -11000 -1.901469 20 PASS NV -10 -11000 -1.901469 20 PASS NV 0 -11000 -1.901469 20 PASS NV 10 -11000 -1.901469 20 PASS NV 20 -11000 -1.901469 20 PASS NV 30 -11000 -1.901469 20 PASS NV 40 -11000 -1.901469 20 PASS NV 50 -10000 -1.728608 20 PASS Ant1 5805 NV -30 -13000 -2.23176 20 PASS NV -20 -13000 -2.23176 20 PASS Report No.: GTS202102000020-03 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 49 of 59 NV -10 -13000 -2.23176 20 PASS NV 0 -13000 -2.23176 20 PASS NV 10 -13000 -2.23176 20 PASS NV 20 -13000 -2.23176 20 PASS NV 30 -13000 -2.23176 20 PASS NV 40 -13000 -2.23176 20 PASS NV 50 -13000 -2.23176 20 PASS Ant2 5805 NV -30 -10000 -1.716738 20 PASS NV -20 -10000 -1.716738 20 PASS NV -10 -10000 -1.716738 20 PASS NV 0 -10000 -1.716738 20 PASS NV 10 -10000 -1.716738 20 PASS NV 20 -10000 -1.716738 20 PASS NV 30 -10000 -1.716738…

Text truncated - open the document above for the full version.

Report No.: GTS202102000020-02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 43 Appendix A1: Emission Bandwidth Test Result TestMode Antenna Channel 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11N20 Ant1 5180 20.480 5169.880 5190.360 --- PASS Ant2 5180 20.680 5169.720 5190.400 --- PASS Ant1 5200 20.680 5189.800 5210.480 --- PASS Ant2 5200 20.680 5189.800 5210.480 --- PASS Ant1 5240 20.600 5229.800 5250.400 --- PASS Ant2 5240 20.640 5229.720 5250.360 --- PASS 11AC20 Ant1 5180 21.120 5169.640 5190.760 --- PASS Ant2 5180 21.080 5169.480 5190.560 --- PASS Ant1 5200 20.880 5189.680 5210.560 --- PASS Ant2 5200 21.160 5189.320 5210.480 --- PASS Ant1 5240 21.440 5229.360 5250.800 --- PASS Ant2 5240 21.280 5229.400 5250.680 --- PASS 11AC80 Ant1 5210 86.560 5163.280 5249.840 --- PASS Ant2 5210 81.760 5168.560 5250.320 --- PASS Report No.: GTS202102000020-02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 43 Test Graphs 11N20_Ant1_5180 11N20 _Ant2_5180 Report No.: GTS202102000020-02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 43 11N20 _Ant1_5200 11N20 _Ant2_5200 Report No.: GTS202102000020-02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 43 11N20 _Ant1_5240 11N20 _Ant2_5240 Report No.: GTS202102000020-02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 5 of 43 11AC20 _Ant1_5180 11AC20 _Ant2_5180 Report No.: GTS202102000020-02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 6 of 43 11AC20 _Ant1_5200 11AC20 _Ant2_5200 Report No.: GTS202102000020-02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Indu…

Text truncated - open the document above for the full version.
