2AY37-BS-W522Baseus Simple Mini Magnetic Wireless Charger

： FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) thi s device may not cause harmful interference, and (2) thi s device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance co ul d void the user's authority to operate the equipment. NOTE: Th is equipment has bee n tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed t o provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or r elocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, Thi s equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the sup plie d antenna.

Shenzhen Times Innovation Technology Co., Ltd. Agent Authorization Company: Shenzhen Times Innovation Technology Co., Ltd. Address: 5th Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Product Name: Baseus Simple Mini Magnetic Wireless Charger Model Number(s): BS-W522 Product Description: Baseus Simple Mini Magnetic Wireless Charger We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022-06-30 Name: Anna Bai Title: CEO Company: Shenzhen Times Innovation Technology Co., Ltd.

Shenzhen Times Innovation Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/06/30 Subject; Request for Confidentiality FCC ID: 2A7PV-BS-W522 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Anna Bai Title: CEO

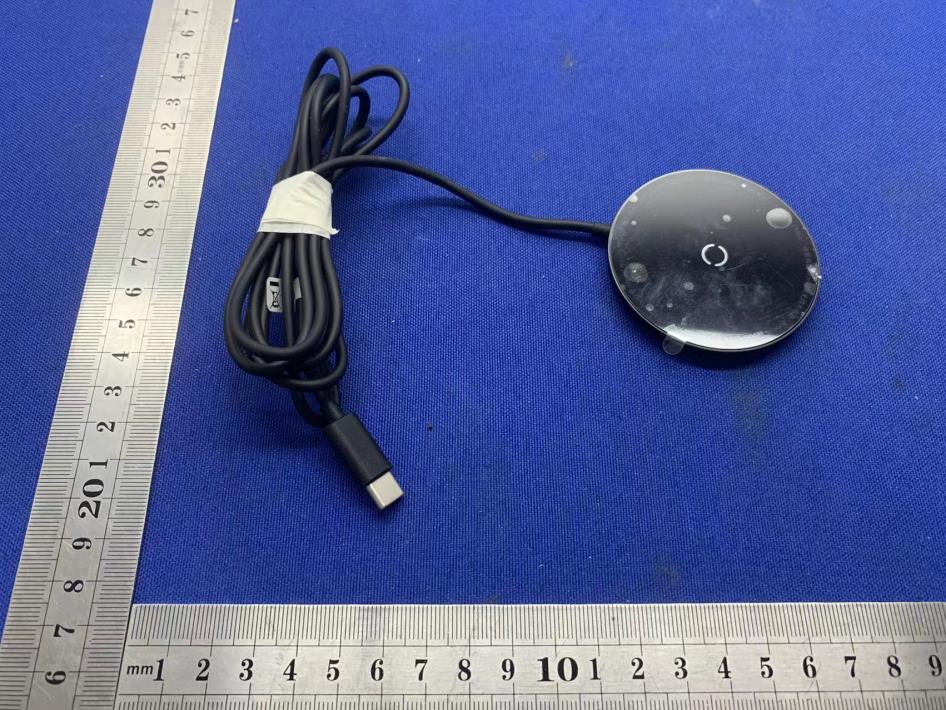

External Photos

Model: BS-W522 FCC ID: 2AY37-BS-W522 Label Location

Internal Photos ANT ANT

RF EXPOSURE REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Baseus Simple Mini Magnetic Wireless Charger FCC ID: 2AY37-BS-W522 Trademark: Baseus Model Number: BS-W522 Prepared For: Shenzhen Times Innovation Technology Co., Ltd Address: 5th Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Manufacturer: Shenzhen Times Innovation Technology Co., Ltd Address: 5th Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: May. 24, 2022 Sample tested Date: May. 24, 2022 to Jun. 07, 2022 Issue Date: Jun. 07, 2022 Report No.: CTB220607026RF Test Standards FCC CFR 47 part1, 1.1307(b), 1.1310, 47 CFR§2.1091; KDB 680106 D01 RF Exposure Wireless Charging App v03r01 Test Results PASS Remark: This is wireless charger EMF report. EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page1 of 10 Table of Contents Page 1 . GENERAL INFORMATION 3 1.1 . Independent Operation Mode 3 1.2 . Test Supporting System 3 2 .LIST OF T EST AND MEASUREMENT I NSTRUMENTS 4 2.1 . For conducted emission at the mains terminals test 4 3. METHOD OF MEASUREMENT 5 3. 1.Applicable Standard 5 4. TEST RESULT 5 4.1. Conducted Emission at the Mains Terminals Test 5 4.2. Equipment Approval Considerations: 6 4.3. E and H field Strength 6 EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page2 of 10 1. GENERAL INFORMATION 1.1. Independent Operation Mode The basic operation mode is: 1.1.1. wireless charger power: 15 W 1.2. Test Supporting System Adapter Description : Adapter Model No. : HP18A-0902000-AU Power Input : AC100-240V~ 1.0A 50/60Hz Output: 9V 2 .0 A DC Line : Unshielded, Detachable 1.2 m EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page3 of 10 2.LIST OF TEST AND MEASUREMENT INSTRUMENTS 2.1. For conducted emission at the mains terminals test Item Equipment Brand Model No. Frequency Range Last calibration Calibrated until 1 Broadband Field Meter NARDA NBM-550 - 2020.09.27 2022.08.05 2 Magnetic Field Meter NARDA ELT-400 1 – 400kHz 2020.09.27 2022.08.05 3 Magnetic Probe NARDA HF-3061 300kHz – 30MHz 2020.09.27 2022.08.05 4 Magnetic Probe NARDA HF-0191 27 – 1000MHz 2020.09.27 2022.08.05 5 Broadband Field Meter NARDA NBM-550 - 2020.09.27 2022.08.05 6 Electric Field Meter COMBINOV A EFM 200 5Hz – 400kHz 2020.09.27 2022.08.05 7 E- Field Probe NARDA EF-0391 100kHz – 3GHz 2020.09.27 2022.08.05 8 E- Field Probe NARDA EF-6091 100MHz – 60GHz 2020.09.27 2022.08.05 EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page4 of 10 3. METHOD OF MEASUREMENT 3. 1.Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. According KDB680106 D01: RF Exposure Wireless Charging Apps v 03r01. 4. TEST RESULT 4.1. Conducted Emission at the Mains Terminals Test Note: Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device Test Procedure: a) The RF exposure test was performed on 360 degree turn table in anechoic chamber. b) The measurement probe was placed at test distance (15cm) which is between the edge of the charger and the geometric centre of probe. c) The turn table was rotated 360d degree to search of highest strength. d) The highest emission level was recorded and compared with limit as soon as measurement of each points were completed. e) The EUT were measured according to the dictates of KDB 680106v03r01. EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page5 of 10 4.2. Equipment Approval Considerations: The EUT does comply with item 5(b) of KDB 680106 V03R01 1) Power transfer frequency is less than 1MHz Ye s , the device operate in the frequency range from 115 KHz to 205KHz 2) Output power from each primary coil is less than or equal to 15 watts. Ye s , the maximum output power of the primary coil is 15000mW. 3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that able to detect and allow coupling onlybetween individual pair of coils. Ye s , the transfer system includes only single primary and one coils. 4) Client device is inserted in or placed directly in contact with the transmitter. Ye s , client device is placed directly in contact with the transmitter. 5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Ye s , the EUT is a Mobile Wireless Charger 6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Ye s , the EUT field strength levels are less 50% x MPE limit. 4.3. E and H field Strength EMF Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page6 of 10 E- Field Strength at 15 cm surrounding the EUT and for above the top surface of the EUT，15cm and 20cm all have been tested, only worse case 15cm is reported. battery level Frequency Range (kHz) Te s t Position Right Te s t Position Front Te s t Posit…

Text truncated - open the document above for the full version.

Report Te l : 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 22 TEST REPORT Compiled by: Reviewed by: Approved by: Arron Liu Bin Mei Rita Xiao / Director The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Baseus Simple Mini Magnetic Wireless Charger FCC ID: 2AY37-BS-W522 Trademark: Baseus Model Number: BS-W522 Prepared For: Shenzhen Times Innovation Technology Co., Ltd Address: 5th Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Manufacturer: Shenzhen Times Innovation Technology Co., Ltd Address: 5th Floor, Building B, Baseus Intelligence Park, No.2008, Xuegang Rd, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: Floor 1&2, Building A, No. 26 of Xinhe Road, Xinqiao Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong China Sample Received Date: May. 24, 2022 Sample tested Date: May. 24, 2022 to Jun. 07, 2022 Issue Date: Jun. 07, 2022 Report No.: CTB220607025RF Test Standards FCC Part 15 C Test Results PASS Remark: This is wireless charger radio test report. TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................ 3 1.1. Report information ......................................................................................................................... 3 1.2. Measurement Uncertainty ............................................................................................................ 3 1.3. Test Facility .................................................................................................................................... 3 1.4. Test Uncertainty ............................................................................................................................ 4 2. PRODUCT DESCRIPTION ......................................................................................................... 5 2.1. EUT Description ............................................................................................................................ 5 2.2. Block Diagram of EUT Configuration .......................................................................................... 5 2.3. Test Conditions .............................................................................................................................. 5 2.4. Description Of Support Units (Conducted Mode) ..................................................................... 6 3. TEST RESULTS SUMMARY ..................................................................................................... 6 4. TEST EQUIPMENT USED .......................................................................................................... 7 4.1. MEASUREMENT INSTRUMENTS LIST ................................................................................... 7 5. CONDUCTED EMISSION TEST ................................................................................................ 9 5.1. Block Diagram of Test Setup ....................................................................................................... 9 5.2. Test Standard ................................................................................................................................ 9 5.3. Conducted Emission Limit ........................................................................................................... 9 5.4. EUT Configuration on Test .......................................................................................................... 9 5.5. Operating Condition of EUT ....................................................................................................... 10 5.6. Test Procedure ............................................................................................................................ 10 5.7. Test Result ................................................................................................................................... 10 6. RADIATED EMISSION MEASUREMENT ............................................................................. 13 6.1. Block Diagram of Test Setup ..................................................................................................... 13 6.2. Test Standard .............................................................................................................................. 14 6.3. EMI Test Receiver Setup ........................................................................................................... 14 6.4. Test Procedure ............................................................................................................................ 14 6.5. Test Result ................................................................................................................................... 14 7. OCCUPIED BANDWIDTH ........................................................................................................ 18 7.1. Block Diagram of Test Setup ..................................................................................................... 18 7.2. Rules and specifications............................................................................................................. 18 7.3. Test Procedure ............................................................................................................................ 18 7.4. Test Result ................................................................................................................................... 18 8. ANTENNA REQUIREMENT .......................…

Text truncated - open the document above for the full version.
