2AY3N-HRC1Remote control

Legal and Regulatory Information Bluetooth Remote Control Use 3M dual lock to stick the remote control. Use the elastic straps to secure the remote in place. Rotate to open the cover installing the battery. User Guide 1 Description 3 Description of Control 6 Installation 5 Battery Installation 4 2 Specifications The Bluetooth Remote Control is designed to control remotel y devic e’s sel ected functions and to navigat e its menu. Remote Control Activation • Open Bluetooth of device； • Automatically pair with the nearest remote control； Connection Range:＜2m； Note: Only one remote control can be connected to the device at a time. OFFConnected Pairing ........ ........ 1 2 CR2032 3.0V lithium battery coin cells Menu button (press rotary encoder) Power Button Capture button Image mode button (P button) Image brightness button Rangefinding module connection Rangefinding mode Frequency 2.4 GHz Standard IEEE 802.15 Connection Range，m ＜2 Voltage / Battery 3V / CR2032 Dimensions, mm / inch 94x30x28 / 3.7x1.2x1.1 Weight, g / oz 32 / 1.1 OpenClose 7 Safety Instructions for Battery 8 Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recycle- this.info IRay Technology Co., Ltd. declares that the Bluetooth Remote Control complies with Frequency range of Bluetooth radio module: 2.400-2.4835GHz Power of radio module: 2.72 mW User information on the disposal of electrical and electronic devices (private households) the directives 2014/53/EU and 2011/65/EU. Regulatory information for USA    Note:This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.      FCC ID：2AY3N-HRC1

InfiRay Technology Co., Ltd. Covered Equipment Certification Attestation Letter 9/4/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AY3N-HRC1 InfiRay Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List , the applicant should include an explanation on why the equipment is not “covered” equipment. InfiRay Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signature: Name: Peng Zhang Company: InfiRay Technology Co., Ltd. Address: Building C3, A1, Innovation Industrial Park Hefei Anhui, P.R.China Phone: 18562243217 E-Mail: [email protected]

InfiRay Technology Co., Ltd. Date: 2023.09.04 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:__ 2AY3N-HRC1___ Product Name:__ Remote control ________ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block Diagram • Operation Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Peng Zhang Company: InfiRay Technology Co., Ltd. Address: Building C3, A1, Innovation Industrial Park Hefei Anhui, P.R.China Phone: 18562243217 E-Mail: [email protected]

InfiRay Technology Co., Ltd. \\192.168.1.200\sz-ctc\09_工程部\RF实验室\2023年案件\8月\CTC230821-005 莱茵(青岛) HRC-1 RED & FCC ID\1.资料\1.3 申请资料 \Letter\POA_Letter_140225.docx Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023.09.04 SUBJECT: FCC Application for FCC ID: 2AY3N-HRC1 To Whom It May Concern: We, the undersigned, hereby authorize _Titto Zhao _ at _CTC Laboratories, Inc. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by _ Titto Zhao _ on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: Name: Peng Zhang Company: InfiRay Technology Co., Ltd. Address: Building C3, A1, Innovation Industrial Park Hefei Anhui, P.R.China Phone: 18562243217 E-Mail: [email protected]

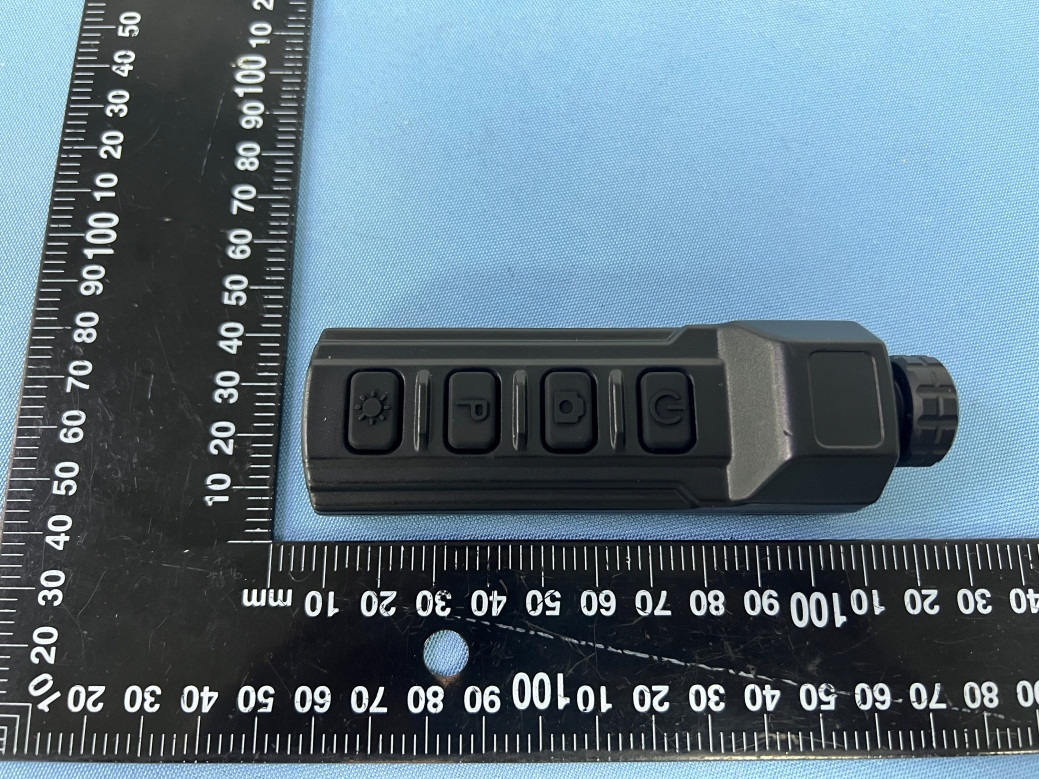

CTC Laboratories, Inc. 1- 2/ F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 3 External Photographs Page 2 of 3 Page 3 of 3

CTC Laboratories, Inc. 1- 2/ F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 1 Label Label Loc ation 1.

CTC Laboratories, Inc. 1- 2/ F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 3 Internal Photographs BT Antenna Page 2 of 3 Page 3 of 3

CTC Laboratories, Inc. 1- 2/ F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn CTC Laboratories, Inc. 1- 2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Maximum Permissible Exposure Evaluation FCC ID: 2 AY 3 N-HRC1 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Address of the report laboratory CTC Laboratories, Inc. Add: 1- 2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Laboratoryaccreditation The test facility is recognized, certified, or accredited by the following organizations: A2LA-LabCert.No.:4340.01 CTCLaboratories,Inc.EMCLaboratory has been accredited byA2LAfortechnicalcompetencein the fieldof electricaltesting,andprovedto bein compliancewithISO/IEC17025:2017General Requirements fortheCompetenceof Te s t i n gandCalibration Laboratoriesandanyadditionalprogramrequirementsin th e identifiedfieldof testing. Industry Canada (Registration No.: 9783A, CAB Identifier: CN0029) CTC Laboratories, Inc. EMC Laboratory has been registered by Certification and Engineer Bureau of Indus try Canada for the performance of with Registration NO.: 9783A on Jan, 2016. FCC (Registration No.: 951311, Designation Number CN1208) CTC Laboratories, Inc. EMC Laboratory has been registered and fully described in a report filed with the (F CC)Federal Communications Commission. The acceptance letter from the FCC is maintained inour files. Registration 951311, Aug 26, 2017. EUT Specification Product Name: Remote control Trade Mark: InfiRay Model/Type reference: HRC-1 Listed Model(s): / Frequency band (Operating) B T: 2402MHz ~ 2480MHz Device category Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Antenna Diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Page 2 of 2 Report No.: CTC20231748E03 CTC Laboratories, Inc. 1- 2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Antenna Gain (Max) 3dBi Limit For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR Where: -f (GHz) is the RF channel transmit frequency in GHz -Power and distance are rounded to the nearest mW and mm before calculation -The result is rounded to one decimal place for comparison -The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. Measurement Result Mode Frequency (MHz) Max. Measured Power (dBm) Max. Tune up Power (dBm) Result Limit Verdict BLE 2480 -0.01 0 0.627 3.0 Pass Note: 1. Calculate in the w orst-case mode. 2. Max. Tune Up Power is declared by manufacturer, and used to calculate. 3. For a more detailed features description, please refer to the RF Test Report. **********************THE END**********************

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn TEST REPORT Report No. ··························: CTC20231748E02 FCC ID································: 2 AY 3 N-HRC1 Applicant····························: InfiRay Technology Co., Ltd. Address·······························: Building C3, A1, Innovation Industrial Park Hefei Anhui, P.R.China Manufacturer························: InfiRay Technologies Co., Ltd. Address·······························: Building C3, A1, Innovation Industrial Park Hefei Anhui, P.R.China Product Name······················: Remote control Trade Mark···························: InfiRay Model/Type reference·············: HRC-1 Listed Model(s) ·····················: / Standard·····························: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of receipt of test sample...: Aug. 21, 2023 Date of testing.......................: Aug. 22, 2023 ~ Sept. 04, 2023 Date of issue.........................: Sept. 05, 2023 Result.................................: PASS Compiled by: (Printed name+signature) Terry Su Supervised by: (Printed name+signature) Eric Zhang Approved by: (Printed name+signature) Totti Zhao Testing Laboratory Name......: CTC Laboratories, Inc. Address...............................: 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China This test report may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CTC. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CTC within 15 days since the date when the report is received. It will not be taken into consideration beyond this limit. The test report merely correspond to the test sample. Page 2 of 43 Report No.: CTC20231748E02 CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Table of Contents Page 1. TEST SUMMARY ............................................................................................................................................ 3 1.1. TEST STA N D AR D S ................................................................................................................................................... 3 1.2. REPORT VERSION ................................................................................................................................................... 3 1.3. TEST DESCRIPTION ................................................................................................................................................. 4 1.4. TEST FACILITY ........................................................................................................................................................ 4 1.5. MEASUREMENT UNCERTAINTY ................................................................................................................................. 5 1.6. ENVIRONMENTAL CONDITIONS ................................................................................................................................. 6 2. GENERAL INFORMATION ............................................................................................................................... 7 2.1. CLIENT INFORMATION ............................................................................................................................................. 7 2.2. GENERAL DESCRIPTION OF EUT ............................................................................................................................... 7 2.3. ACCESSORY EQUIPMENT INFORMATION ...................................................................................................................... 8 2.4. OPERATION S TAT E .................................................................................................................................................. 9 2.5. MEASUREMENT INSTRUMENTS LIST ........................................................................................................................ 10 3. TEST ITEM AND RESULTS ............................................................................................................................. 12 3.1. CONDUCTED EMISSION ......................................................................................................................................... 12 3.2. RADIATED EMISSION ............................................................................................................................................. 14 3.3. BAND EDGE EMISSIONS (RA D I AT E D) ........................................................................................................................ 24 3.4. BAND EDGE AND SPURIOUS EMISSIONS (CONDUCTED) ............................................................................................... 29 3.5. DTS BANDWIDTH ................................................................................................................................................ 35 3.6. PEAK OUTPUT POWER .......................................................................................................................................... 37 3.7. POWER SPECTRAL DENSITY .................................................................................................................................... 39 3.8. DUTY CYCLE ...................................…

Text truncated - open the document above for the full version.

Dongguan speed wave electronics Co., LTD ADD：No.6, Qilin East Road, Daning, Humen Town, Dongguan City Antenna specification NO. 内 容 （Contents） 页数 （Number of Page） 页码 （Page Code） 1 承认书封面 （Spec Cover） 1 1 2 承认书项目表（Spec Item ） 1 2 3 工程成品图 （Drawing） 1 3 4 电性测试报告（Test Reports ） 1 4 5 S 参数测试 （S Parameter ） 1 5 6 增益测试 （Gain Test ） 1 6 7 8 9 10 - - - 11 - - - 12 - - - SIGN DATE B C D DESCRIPTION APPROVER 东莞市速波电子有限公司 3 MX24CXIP-A01 FPC FPC 25*9*0.3mm 1 TITLE:2.4G ANTENNA PART NO.: MX24CXIP-113B-60LX DWG NAME: 2 R-CB-113B Coaxial Cable O.D. 1.13mm Black 1 APPROVED BY CHECKED BY DESIDNED BY Tolerance 1 CI-113 Connector IPEX 1 jeff leon YD UNITS: mm X.X ±0.20 Material Q'ty 2014-03-18 2014-03-18 2014-03-18 SCALE: 1/1 X.XX ±0.10 No. Part Number Name REVISION: A X° ±3° Dongguan speed wave electronics Co., LTD ADD：No.6, Qilin East Road, Daning, Humen Town, Dongguan City 电性测试报告 Test Reports Electrical Properties Frequency 2.4GHz Antenna model MX24CXIP-A01 Impedance 50 0hm Nominal V.S.W.R 1.92 : 1 Max Return Loss -10 dB Max Radiation Omni-directional Gain (Peak) 3dBi Cable Loss 3.2 dB / m Max @ 2450 MHz Polarization Linear, Vertical Admitted Power 1 W Connector ipex Physical Properties Antenna Material FPCB Cable Type O.D. 1.13mm // 060 mm Operating Temp. -10 ~ +60 ̊C Storage Temp. -10 ~ +70 ̊C Cable Color Black Dongguan speed wave electronics Co., LTD ADD：No.6, Qilin East Road, Daning, Humen Town, Dongguan City S 参数测试 S Parameter Test Agilent E5071C Dongguan speed wave electronics Co., LTD ADD：No.6, Qilin East Road, Daning, Humen Town, Dongguan City 增益测试 Gain Test Antenna Radiation Pattern VS Gain

CTC Laboratories, Inc. 1- 2 /F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 2 Radiated Measurements 30MHz - 1GHz Above1GHz Page 2 of 2 Above1GHz
