2AY58-V1-VN-DB01IP Camera

This device complies with Part 15 of the FCC rules. Operation is subject to thefollowing two conditions: 1) this device may not cause harmful interference, and 2)this device must accept any interference received, including interference that maycause undesired operation.Note: This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee thatinterference will not occur in particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:--Reorient or relocate the receiving antenna.--Increase the separation between the equipment and receiver.--Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.--Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment.FCC Radiation Exposure StatementThis device complies with FCC RF radiation exposure limits set forth for anuncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.This device must operate with a minimum distance of 2 0 cm between the radiator and user body. FCC statement

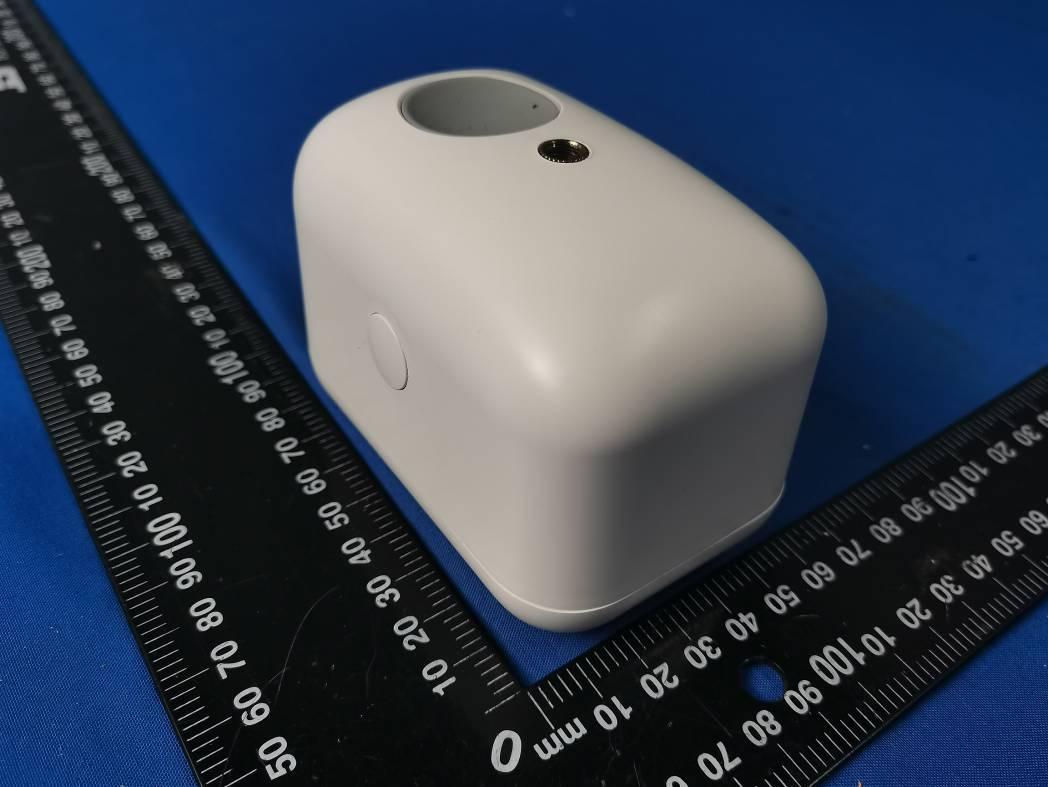

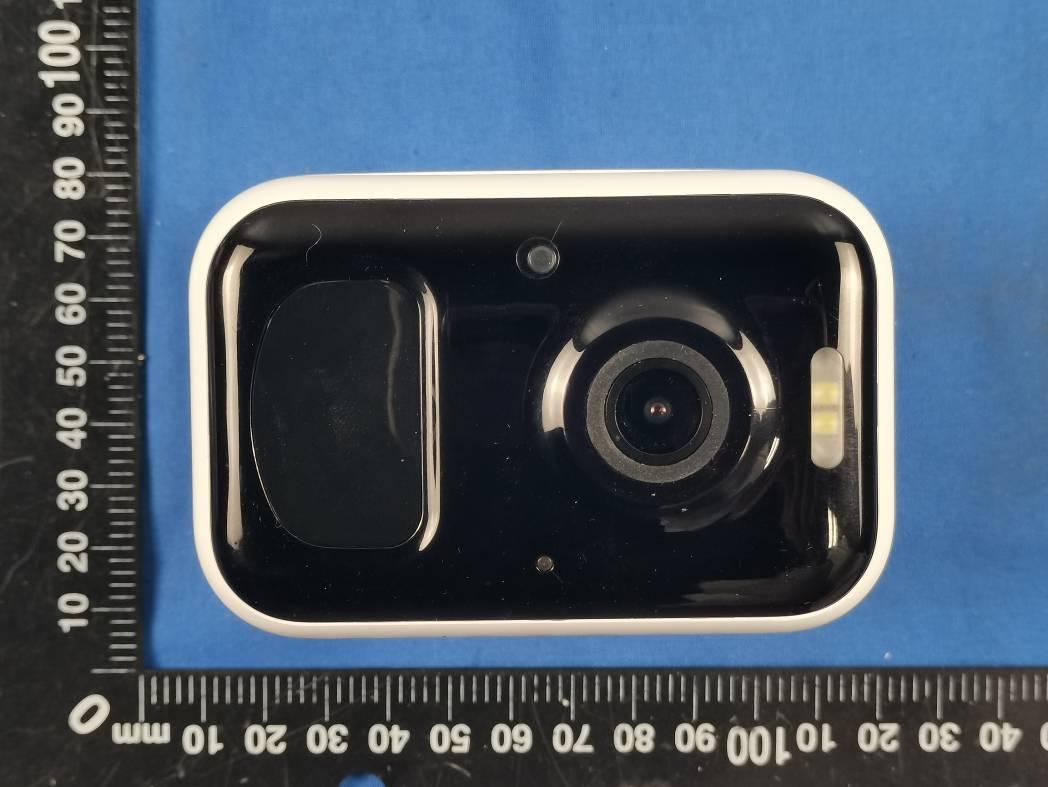

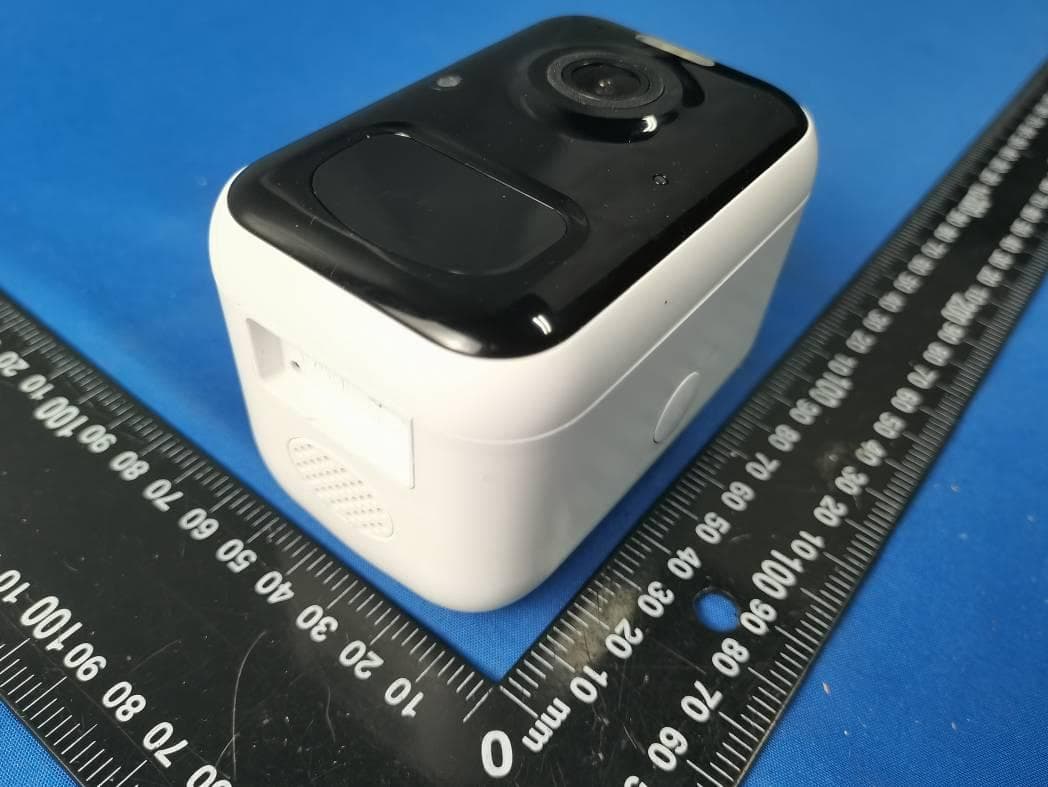

FCC-ID: 2AY58-V1-VN-DB01 Page 1 of 2 Report No.: CTL2101281031-WF External Photos of EUT FCC-ID: 2AY58-V1-VN-DB01 Page 2 of 2 Report No.: CTL2101281031-WF

FCC-ID: 2AY58-V1-VN-DB01 Page 1 of 1 Report No.: CTL2101281031-WF FCC ID Label Information 1. Label location: 2. FCC ID Label: 2AY58-V1-VN-DB01 IP Camera Model: V1 FCC ID: 2AY58-V1-VN-DB01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC-ID: 2AY58-V1-VN-DB01 Page 1 of 4 Report No.: CTL2101281031-WF Internal Photos of EUT FCC-ID: 2AY58-V1-VN-DB01 Page 2 of 4 Report No.: CTL2101281031-WF Antenna FCC-ID: 2AY58-V1-VN-DB01 Page 3 of 4 Report No.: CTL2101281031-WF FCC-ID: 2AY58-V1-VN-DB01 Page 4 of 4 Report No.: CTL2101281031-WF

WisezecIntelligentTechnologyCo.,Ltd floor4th,5#Building,5thBusinessPark,LiuwuVillage,LongGangStreet,ShenZhen, ChinaTel:13148794122Fax:13148794122 DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:V1,V2,V3,V5,V6,V7,V8,V9,B1,B2,B3,B5,B6,B7,B8,B9,D1,D2,D3,D5,D6,D7,D8, D9,S1,S2,S3,S5,S6,S7,S8,S9,FT-P200PLUS3X,FT-P200PLUS2X,FT-P200PLU4X,FT-P200PLU5X, FT-P200SMS40F,FT-P200SMT40F,FT-P200SMK40F,WF-200WFID30SD,WF-500WFID30SD,WF- 200WFIHK20SD,WF-500WFIHK20SD,FT-P200SMZ03Y,FT-P200SMT04,FT-P100MT08S,FT- PXXX4GKS,FT-PXXX4GKT,FT-PXXXWIFIMS,FT-PXXX4GMS,FT-P200WIFI5X,FT-P2004G5X,FT- P100A60W40AH,FT-P130A60W40AH,FT-P200A60W40AH,FT-P130B60W40AH,FT-P200B60W40AH, FT-P200WIFIKP,FT-P500WIFIKP,FT-P2004GKP,FT-P5004GKP,FT-P100SMHD,FT-P200SVPT,FT- P200USB01,VN-DB01,VN-DB02,VN-DB03,VN-DB04,VN-DB05,VN-DB06,VN-DB07,VN-DB08,VN- DB09,VN-TWAXX,VN-TWBXX,VN-TWCXX,VN-TWDXX,VN-TWEXX,VN-TWFXX,VN-TWGXX, VN-GBAXX,VN-GBBXX,VN-GBCXX,VN-GBDXX,VN-GBEXX,VN-GBFXX,VN-GBGXX,VN-BAXX, VN-BBXX,VN-BCXX,VN-BDXX,VN-BEXX,VN-BFXX,VN-BGXX,RH-V1,RH-V3,RH-V5 FCCID:2AY58-V1-VN-DB01 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsforSheetMetal Antenna antennatype(s)describedbelow: ModelNo.ofantenna: N/A Typeofantenna: SheetMetalAntenna Gainoftheantenna: 1.75dBi Frequencyrange: 2412-2462MHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:WisezecIntelligentTechnologyCo.,Ltd Address:floor4th,5#Building,5thBusinessPark,LiuwuVillage,LongGangStreet,Shen Zhen,China City:ShenZhen ZIP/Postalcode: Country:China Place: ProductManagerDate:2021-03-12 Signature: version01

FCC-ID: 2AY58-V1-VN-DB01 Page 1 of 2 Report No.: CTL2101281031-WF RF Exposure evaluation FCC ID: 2AY58-V1-VN-DB01 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density FCC-ID: 2AY58-V1-VN-DB01 Page 2 of 2 Report No.: CTL2101281031-WF 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.75dBi for 2.4GHz, the RF power density can be obtained. For 2.4Ghz wifi Frequency (MHz) Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 2412 16.70 46.7735 1.4962 0.0139 1.0000 PASS 2437 16.95 49.5450 1.4962 0.0147 1.0000 PASS 2462 16.68 46.5586 1.4962 0.0139 1.0000 PASS 5. Conclusion The SAR evaluation is not required.

FCC:ID 2AY58-V1-VN-DB01 Page 1 of 39 Report No. CTL2101281031-WF Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 9.652 ≥0.5 PASS 2437 SISO 1 9.637 ≥0.5 PASS 2462 SISO 1 9.606 ≥0.5 PASS 802.11g 2412 SISO 1 16.518 ≥0.5 PASS 2437 SISO 1 16.541 ≥0.5 PASS 2462 SISO 1 16.537 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 17.715 ≥0.5 PASS 2437 SISO 1 17.731 ≥0.5 PASS 2462 SISO 1 17.764 ≥0.5 PASS 802.11n(HT40) 2422 SISO 1 36.044 ≥0.5 PASS 2437 SISO 1 36.366 ≥0.5 PASS 2452 SISO 1 36.407 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 11.316 Only for Report Use 2437 SISO 1 11.334 Only for Report Use 2462 SISO 1 11.298 Only for Report Use 802.11g 2412 SISO 1 16.649 Only for Report Use 2437 SISO 1 16.645 Only for Report Use 2462 SISO 1 16.680 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.749 Only for Report Use 2437 SISO 1 17.757 Only for Report Use 2462 SISO 1 17.772 Only for Report Use 802.11n(HT40) 2422 SISO 1 36.174 Only for Report Use 2437 SISO 1 36.196 Only for Report Use 2452 SISO 1 36.247 Only for Report Use 1.2 Test Graph - 6dB Bandwidth FCC:ID 2AY58-V1-VN-DB01 Page 2 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 3 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 4 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 5 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 6 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 7 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 8 of 39 Report No. CTL2101281031-WF 1.3 Test Graph - 99% Occupied Bandwidth FCC:ID 2AY58-V1-VN-DB01 Page 9 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 10 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 11 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 12 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 13 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 14 of 39 Report No. CTL2101281031-WF 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 16.70 30 PASS 2437 SISO 16.95 30 PASS 2462 SISO 16.68 30 PASS 802.11g 2412 SISO 16.12 30 PASS 2437 SISO 16.90 30 PASS 2462 SISO 16.75 30 PASS 802.11n(HT20) 2412 SISO 16.10 30 PASS 2437 SISO 16.49 30 PASS 2462 SISO 16.73 30 PASS 802.11n(HT40) 2422 SISO 15.84 30 PASS 2437 SISO 13.00 30 PASS 2452 SISO 12.72 30 PASS 2.2 Test Graph FCC:ID 2AY58-V1-VN-DB01 Page 15 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 16 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 17 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 18 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 19 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 20 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 21 of 39 Report No. CTL2101281031-WF 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -13.04 ≤8 PASS 2437 SISO -12.16 ≤8 PASS 2462 SISO -12.08 ≤8 PASS 802.11g 2412 SISO -16.82 ≤8 PASS 2437 SISO -15.76 ≤8 PASS 2462 SISO -15.44 ≤8 PASS 802.11n(HT20) 2412 SISO -16.25 ≤8 PASS 2437 SISO -16.86 ≤8 PASS 2462 SISO -16.56 ≤8 PASS 802.11n(HT40) 2422 SISO -22.41 ≤8 PASS 2437 SISO -23.07 ≤8 PASS 2452 SISO -23.33 ≤8 PASS 3.2 Test Graph FCC:ID 2AY58-V1-VN-DB01 Page 22 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 23 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 24 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 25 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 26 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 27 of 39 Report No. CTL2101281031-WF 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -17.83 PASS 2437 SISO 1 Refer to test graph -17.83 PASS 2462 SISO 1 Refer to test graph -17.83 PASS 802.11g 2412 SISO 1 Refer to test graph -22.96 PASS 2437 SISO 1 Refer to test graph -22.96 PASS 2462 SISO 1 Refer to test graph -22.96 PASS 802.11n(HT20) 2412 SISO 1 Refer to test graph -23.04 PASS 2437 SISO 1 Refer to test graph -23.04 PASS 2462 SISO 1 Refer to test graph -23.04 PASS 802.11n(HT40) 2422 SISO 1 Refer to test graph -29.02 PASS 2437 SISO 1 Refer to test graph -29.02 PASS 2452 SISO 1 Refer to test graph -29.02 PASS 4.2 Test Graph FCC:ID 2AY58-V1-VN-DB01 Page 28 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 29 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 30 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 31 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 32 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 33 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 34 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 35 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 36 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 37 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 38 of 39 Report No. CTL2101281031-WF FCC:ID 2AY58-V1-VN-DB01 Page 39 of 39 Report No. CTL2101281031-WF

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15 SUBPART C 15.247 Report Reference No. ................ : CTL2101281031-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Cary Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : IP Camera Model/Type reference ................ : V1 List Model(s) ............................... : Refer to page 2 Trade Mark .................................. : N/A FCC ID ......................................... : 2AY58-V1-VN-DB01 Applicant’s name ....................... : Wisezec Intelligent Technology Co., Ltd Address of applicant ................. : floor 4th, 5# Building, 5th Business Park, Liuwu Village, Long Gang Street, Shen Zhen, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : 47 CFR FCC Part 15 Subpart C 15.247 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Feb. 02, 2021 Date of sampling ........................ : Feb. 02, 2021 Date of Test Date ........................ : Feb. 02, 2021-Mar. 05, 2021 Date of Issue .............................. : Mar. 08, 2021 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 33 Report No. CTL2101281031-WF TEST REPORT Test Report No. : CTL2101281031-WF Mar. 08, 2021 Date of issue Equipment under Test : IP Camera Sample No : CTL210128103-1-S001 Model /Type : V1 Listed Models : V2, V3, V5, V6, V7, V8, V9, B1, B2, B3, B5, B6, B7, B8, B9, D1, D2, D3, D5, D6, D7, D8, D9, S1, S2, S3, S5, S6, S7, S8, S9, FT-P200PLUS3X, FT-P200PLUS2X, FT-P200PLU4X, FT-P200PLU5X, FT-P200SMS40F, FT-P200SMT40F, FT-P200SMK40F, WF-200WFID30SD, WF-500WFID30SD, WF-200WFIHK20SD, WF-500WFIHK20SD, FT-P200SMZ03Y, FT-P200SMT04, FT-P100MT08S, FT-PXXX4GKS, FT-PXXX4GKT, FT-PXXXWIFIMS, FT-PXXX4GMS, FT-P200WIFI5X, FT-P2004G5X, FT-P100A60W40AH, FT-P130A60W40AH, FT-P200A60W40AH, FT-P130B60W40AH, FT-P200B60W40AH, FT-P200WIFIKP, FT-P500WIFIKP, FT-P2004GKP, FT-P5004GKP, FT-P100SMHD, FT-P200SVPT, FT-P200USB01, VN-DB01, VN-DB02, VN-DB03, VN-DB04, VN-DB05, VN-DB06, VN-DB07, VN-DB08, VN-DB09, VN-TWAXX, VN-TWBXX, VN-TWCXX, VN-TWDXX, VN-TWEXX, VN-TWFXX, VN-TWGXX, VN-GBAXX, VN-GBBXX, VN-GBCXX, VN-GBDXX, VN-GBEXX, VN-GBFXX, VN-GBGXX, VN-BAXX, VN-BBXX, VN-BCXX, VN-BDXX, VN-BEXX, VN-BFXX, VN-BGXX, RH-V1, RH-V3, RH-V5 Applicant : Wisezec Intelligent Technology Co., Ltd Address : floor 4th, 5# Building, 5th Business Park, Liuwu Village, Long Gang Street, Shen Zhen, China Manufacturer : Wisezec Intelligent Technology Co., Ltd Address : floor 4th, 5# Building, 5th Business Park, Liuwu Village, Long Gang Street, Shen Zhen, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. V1.0 Page 3 of 33 Report No. CTL2101281031-WF The device (Product Name: IP Camera) Models Name: V1, V2, V3, V5, V6, V7, V8, V9, B1, B2, B3, B5, B6, B7, B8, B9, D1, D2, D3, D5, D6, D7, D8, D9, S1, S2, S3, S5, S6, S7, S8, S9, FT-P200PLUS3X, FT-P200PLUS2X, FT-P200PLU4X, FT-P200PLU5X, FT-P200SMS40F, FT-P200SMT40F, FT-P200SMK40F, WF-200WFID30SD, WF-500WFID30SD, WF-200WFIHK20SD, WF-500WFIHK20SD, FT-P200SMZ03Y, FT-P200SMT04, FT-P100MT08S, FT-PXXX4GKS, FT-PXXX4GKT, FT-PXXXWIFIMS, FT-PXXX4GMS, FT-P200WIFI5X, FT-P2004G5X, FT-P100A60W40AH, FT-P130A60W40AH, FT-P200A60W40AH, FT-P130B60W40AH, FT-P200B60W40AH, FT-P200WIFIKP, FT-P500WIFIKP, FT-P2004GKP, FT-P5004GKP, FT-P100SMHD, FT-P200SVPT, FT-P200USB01, VN-DB01, VN-DB02, VN-DB03, VN-DB04, VN-DB05, VN-DB06, VN-DB07, VN-DB08, VN-DB09, VN-TWAXX, VN-TWBXX, VN-TWCXX, VN-TWDXX, VN-TWEXX, VN-TWFXX, VN-TWGXX, VN-GBAXX, VN-GBBXX, VN-GBCXX, VN-GBDXX, VN-GBEXX, VN-GBFXX, VN-GBGXX, VN-BAXX, VN-BBXX, VN-BCXX, VN-BDXX, VN-BEXX, VN-BFXX, VN-BGXX, RH-V1, RH-V3, RH-V5 have same electrical, PCB and BOM, only the colour and model’s names are different for marketing requirements. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 4 of 33 Report No. CTL2101281031-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2021-03-08 CTL2101281031-WF Tracy Qi V1.0 Page 5 of 33 Report No. CTL2101281031-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 6 1.1. TEST STANDARDS ..................................................................................................................................................... 6 1.2. TEST DESCRIPTION ........................................................................................................................................................ 6 1.3. TEST FACILITY .............................................................................................................................................................. 7 1.4. STAT…

Text truncated - open the document above for the full version.

FCC-ID: 2AY58-V1-VN-DB01 Page 1 of 1 Report No.: CTL2101281031-WF Test set-up Procedures
