2AY59-MBCNSWWIRELESS CONTROLLER

BUTTONS 1. -(SELECT) 2. + (START) 3. Ll/L2 4. Rl/R2 5.L3 6.ABXY 7.CAP 8. TURBO 9. D-PAD 10.R3 24 6 © 霉 7日尸 WIRELESS CONTROLLER Quick Start Guide 二 四 。 一 应·噙.,畸，m 15 Model: MBCNSW 11.HOME 12.AGR 13.AGL 14. Pairing button 15. Programming button 17 — 16. Reset button 17. Rl / R2 18. USB charging port 19. Ll / L2 18 LEDS - 4 LED that represent the players CHARGING PORT - TYPE-C port MOTORS - Left and right rumble motors Press Turbo and the START ( + ) button to improve the intensity of the motor vibration. Press the Turbo and the SELECT ( - ) button to save the motor vibration intensity. There are 4 levels of vibration intensity. OPERATING MODES Press the HOME button to turn on the controller and wake up Switch console as long as the console is not in airplane mode. Controller will auto shut off if its not connected to any console within 10 seconds. Automatic sleeping mode - When the console screen is off and there is no action on the controller, the controller will go into auto sleep mode within 5 minutes. PAIRING UP The Bluetooth function of the controller needs to be paired when connecting to the Switch Console or mobile phone for the first time. To Pair with Switch console: While controller is off, press and hold the pairing button. When led starts to flash, it has entered the pairing mode. Follow on the screen directions to pair with Switch console. If the controller is not connected to any console within 2 minutes, it will automatically turn off. Reconnecting - If the controller has been paired with the Switch console or with a mobile phone, you won't need to re-pair it. It will automatically reconnect. TURBO Support buttons - ABXY, LlRl, L2R2, cross keys. The turbo function will clear every time when controller is off. Set up - Press and hold the button that wishes to be turbo. Then press the Turbo button 1 time to set as turbo. Press turbo button again to set it as full auto. Press the button 3 times to clear the button of turbo. Speed adjustment - Press and hold the Turbo button. Push up the right stick for the maximum speed ( + ) . Push down the right stick for the minimum speed ( - ) . This will change the speed interval of the turbo button. POWER Charging - When the controller is charging, the LED 1-4 will flash slowly When the controller is fully charged, the LED will stay on. The controller can also charge when it is connected to the computer or console. Input power rating: DC 5V,500MA Voltage DC: 3.7 -4.2v Battery capacity: 550mAh Operating temperature: 5C'-35C' Mass: Approx 162g MACRO PROGRAMMING Support buttons - ABXY, L1R1, L2R2, direction pad. One programming key supports up to 12 buttons. When there are more than 12 keys, the controller automatically records the first 12 buttons and exits the Macro recording. Quitting the Macro programming function without saving - To quit the macro programing, switch the switch on the back of the controller to Normal. This also applies to deactivate the AGL / AGR buttons. Programming the macro - First switch the back of the switch to "custom". Press and hold AGL / AGR, then press the start ( + ) button. The Led will turn on, as well as the start recording button ( supports recording key time ) . Press the desired combination or remap buttons as needed. In Macro recording - if only one key is recorded, the function of the programming key will be the same as the key. Pressing the program­ ming key is equivalent to pressing the key, and releasing the programming key is equivalent to releasing the key. CONNECTION METHOD Wired For Switch and PC. Supports the PC Steam platform. XINPUT: Xbox 360 Controller for Windows DINPUT: the Controller for Windows ( pc ) : SC20 Gamepad Connecting to a PC: Press the lower end of the SELECT ( - ) and START ( + ) button for 3 seconds. The controller can switch between DINPUT and XINPUT. The controller with light mode XINPUT ( lamp 1, 4 light ) , DINPUT ( lamp 2, 3 light ) . Wireless With a Bluetooth connection. Called the "Pro Controller" when using the Switch Bluetooth mode. When connected to the Nintendo Switch, the controller's light modes are allocated by the Console. FCC Statement C hanges or modifications not expressly approved b y the party r esponsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful in terference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with t he instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this eq uipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - - Consult the dealer or an experienced radio/TV technician for help Thi s device complies with part 15 of the FCC rules. Operation is su bject to the following two conditions (1)this device may not cause h armful interference, and (2) this device must ac cept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

CLD Distribution S.A. Rue du Grand Champ 14, 5380 Fernelmont, Belgium, Fernelmont, Belgium Statement Product: WIRELESS CONTROLLER Model: MBCNSW Additional Model: MBCNSW-P, MBCNSW-B, MBCNSW-FL, MBCNSW-M, MBCNSW-DG, MBCNSW-TR, MBCNSW-JP Trademark : Minibird We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2021/04/08 Name：Jenny Tse Company Name：CLD Distribution S.A. Address：Rue du Grand Champ 14, 5380 Fernelmont, Belgium, Fernelmont, Belgium Tel / Fax：+85266231642/+85227422741 E-Mail：[email protected]

CLD Distribution S.A. Rue du Grand Champ 14, 5380 Fernelmont, Belgium, Fernelmont, Belgium Agent Authorization Letter (2021-04-08 Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen Tongce Testing Lab) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Jenny Tse Date: 2021-04-08 Title: Manager

CLD Distribution S.A. Rue du Grand Champ 14, 5380 Fernelmont, Belgium, Fernelmont, Belgium Long Term Confidentiality Request Letter (2021-04-08) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (WIRELESS CONTROLLER / MBCNSW , MBCNSW-P, MBCNSW-B, MBCNSW-FL, MBCNSW-M, MBCNSW-DG, MBCNSW-TR, MBCNSW-JP /FCC ID: 2AY59-MBCNSW) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Operational Description required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Name: Jenny Tse Date: 2021-04-08 Title: Manager

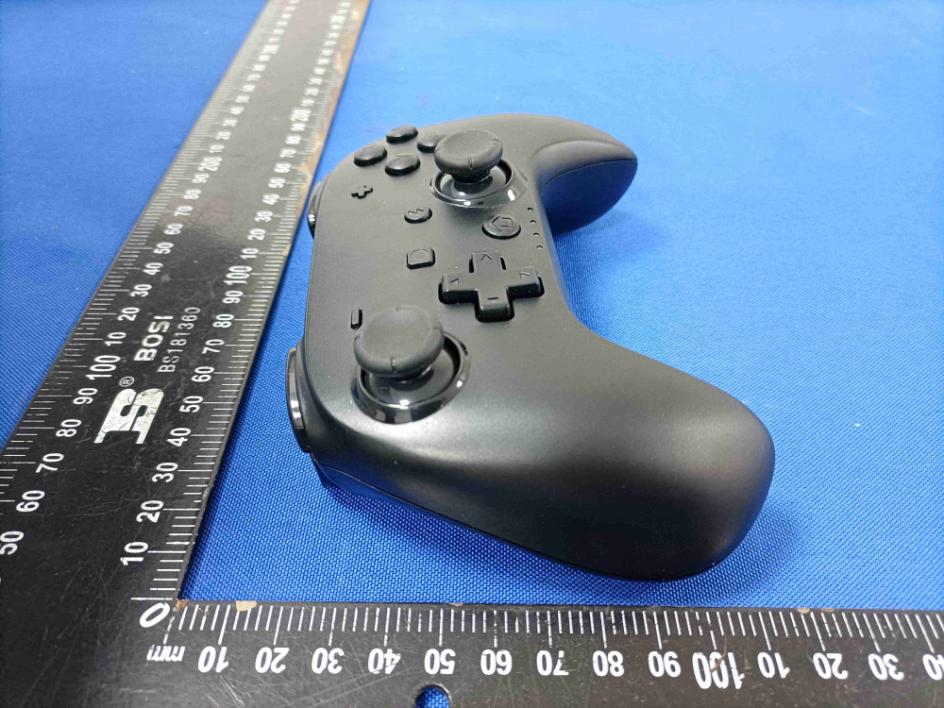

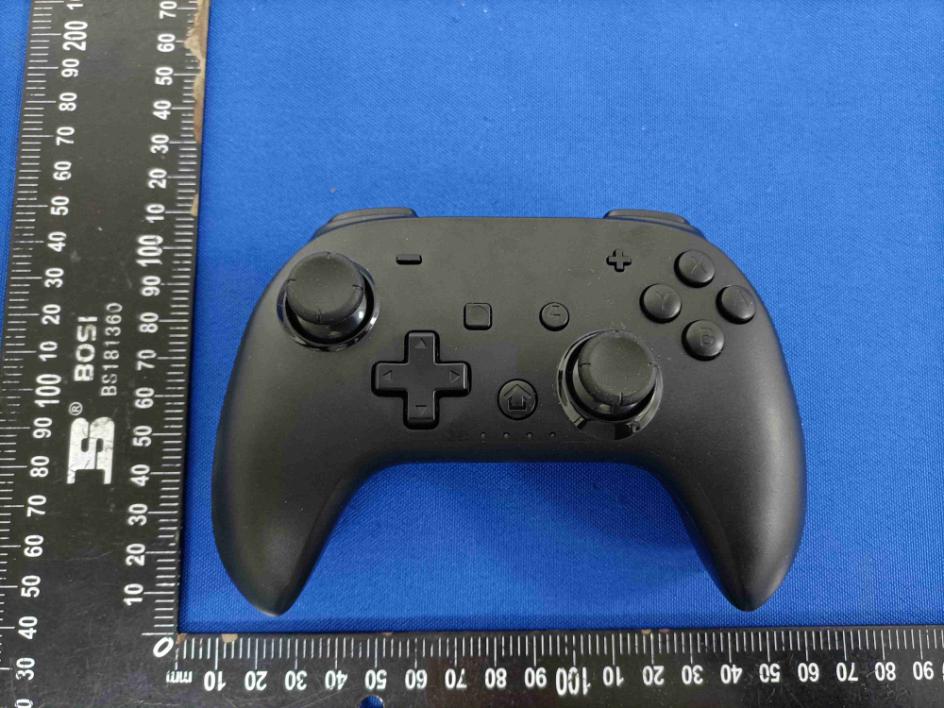

Page 1 of 3 Appendix B: Photographs of EUT Product: WIRELESS CONTROLLER Model: MBCNSW External Photos Page 2 of 3 Page 3 of 3

Label Artwork and Location Model: MBCNSW Label: Size: L*W=28*18mm Location

Page 1 of 4 Appendix B: Photographs of EUT Product: WIRELESS CONTROLLER Model: MBCNSW Internal Photos Page 2 of 4 Page 3 of 4 Antenna Page 4 of 4

RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  For EDR+BDR: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 78 2.480 1.03 0.5±1 1.5 1.41 5 0.44 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AY59-MBCNSW Product: WIRELESS CONTROLLER Model No.: MBCNSW Additional Model No.: MBCNSW-P, MBCNSW-B, MBCNSW-FL, MBCNSW-M, MBCNSW-DG, MBCNSW-TR, MBCNSW-JP Trade Mark: Minibird Report No.: TCT210128E024 Issued Date: Feb. 23, 2021 Issued for: CLD Distribution S.A. Rue du Grand Champ 14, 5380 Fernelmont, Belgium, Fernelmont, Belgium Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT210128E024 Page 2 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations .................................................................. 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ..................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 10 6.4. 20dB Occupy Bandwidth .................................................................................... 18 6.5. Carrier Frequencies Separation ......................................................................... 23 6.6. Hopping Channel Number .................................................................................. 28 6.7. Dwell Time ............................................................................................................ 31 6.8. Pseudorandom Frequency Hopping Sequence ................................................ 36 6.9. Conducted Band Edge Measurement ................................................................ 37 6.10. Conducted Spurious Emission Measurement ................................................. 41 6.11. Radiated Spurious Emission Measurement .................................................... 45 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT210128E024 Page 3 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: WIRELESS CONTROLLER Model No.: MBCNSW Additional Model No.: MBCNSW-P, MBCNSW-B, MBCNSW-FL, MBCNSW-M, MBCNSW-DG, MBCNSW-TR, MBCNSW-JP Trade Mark: Minibird Applicant: CLD Distribution S.A. Address: Rue du Grand Champ 14, 5380 Fernelmont, Belgium, Fernelmont, Belgium Manufacturer: KINGLINE TECHNOLOGY CO., LTD Address: 2/f, building4, xifa A industiral yintian, longteng community, xixiang street, baoan district, shenzhen, China Date of Test: Jan. 29, 2021 – Feb. 22, 2021 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Feb. 22, 2021 Brave Zeng Reviewed By: Date: Feb. 23, 2021 Beryl Zhao Approved By: Date: Feb. 23, 2021 Tomsin Report No.: TCT210128E024 Page 4 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(1) PASS 20dB Occupied Bandwidth §15.247 (a)(1) PASS Carrier Frequencies Separation §15.247 (a)(1) PASS Hopping Channel Number §15.247 (a)(1) PASS Dwell Time §15.247 (a)(1) PASS Radiated Emission §15.205/§15.209 PASS Band Edge §15.247(d) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT210128E024 Page 5 of 65 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: WIRELESS CONTROLLER Model No.: MBCNSW Additional Model No.: MBCNSW-P, MBCNSW-B, MBCNSW-FL, MBCNSW-M, MBCNSW-DG, MBCNSW-TR, MBCNSW-JP Trade Mark: Minibird Bluet…
