2AY5GMK020011002122LED Lamp

Tap + to add Way one Add manually Way two Auto scan -Stable Wi-Fi network which could access to the device. -A smart phone is running iOS 8 or higher or Android 4.1 or higher. -Install the bulb in an E26 socket ® TM Smart Light Bulb White LED Light USER MANUAL Get to Know Your Smart Bulb A smart light bulb is easily dim or brighten, change color, turn on or off via remote control with onn. Smart Home app. No hub needed. It is also available to be controlled by voice and be compatible with Google/Alexa/Siri to build your smart home. The Specs White LED Light Size 60x117mm(2*4in 15,000 hour life WiFi:IEEE 802 11 N, 2 4GHz 110-130V AC, 60Hz Scan the QR code below to download the Smart Home app or download the it from APP Store or Google Play. Open the Smart Life app, tap "Register" to register an account, then sign in the app. Add the device, as the following picture shows. Make your router, cellphone, and device are as close as possible. Before connecting, enable bluetooth of cellphone. Make sure you're connecting to a 2.4GHz Wi-Fi network. (lt can't connect to 5GHz networks) Turn on the bulb 3 times(on-off-on-off-on), confirm light bulb is flickering rapidly. (2 times per second). Note: if network configuration takes more than 8 minutes or fails. Reset the bulb(turn on the bulb 3 times again as mentioned above). There are two ways to connect with the bulb, one is Add manually, the other is Auto scan This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. RF Exposure: A distance of 20cm shall be maintained between the antenna and users, and the transmitter module may not be co-located with any other transmitter or antenna. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) this device may not cause harmful -Consult the dealer or an experienced radio/TV technician for help. interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Need help? We're here for you every day from 7 a.m.- 9 p.m. CST. Give us a call at 1-888-516-2630 ”ONLY USE THE CONTROL PROVIDED WITH OR SPECIFIED BY THESE INSTRUCTIONS TO CONTROLTHIS LAMP.THIS LAMP WILL NOT OPERATE PROPERLY WHEN CONNECTED TO ASTANDARD(INCANDESCENT)DIMMER OR DIMMING CONTROL.” RISK OF ELECTRIC SHOCK - DO NOT USE WHERE DIRECTLY EXPOSED TO WATER 1567 8910234 Let’s Get Started Here’s what you’ll need to get set up Register Your AccountAdd Your Device 0102 Add Your Device 02 The Fine PrintThe Fine PrintThe Fine Print Create Connection 03 But Wait....There’s More Follow the pictures to create connection for the bulb You can control the brightness in Dimmer model and choose different scene in scene mode. Federal Communication Commission Interference Statement: FCC Radiation Exposure Statement: Non-modification Statement: FCC Compliance Statement: NOT FOR EMERGENCY LIGHTING E26 socket TM CAUTION

ZhejiangMEKAElectricCo.,Ltd AgentAuthorization Company:ZhejiangMEKAElectricCo.,Ltd Address:NO.8CanghaiRoad,LihaiTown,BinhaiNew City,Shaoxing,zhejiangProvince,China ProductName:LEDLamp ModelNumber(s):MK-020011002122,MK-020011002116,MK-020011002117 ProductDescription:LEDLamp WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date: 2021.03.09 Name:Ansonbao Title:Manager Company:ZhejiangMEKAElectricCo.,Ltd

ZhejiangMEKAElectricCo.,Ltd AuthorizationLetter We, (theapprovalholder) Companyname ZhejiangMEKAElectricCo.,Ltd AddresssNO.8CanghaiRoad,LihaiTown,BinhaiNewCity,Shaoxing,zhejiangProvince,China declarethatthefollowingrepresentative(agent): Name(person)BoveyYang CompanynameShenzhenSTSTestServicesCo.,Ltd. Addresss1/F.,BuildingB,ZhuokeSciencePark,No.190,ChongqingRoad, FuyongStreet,Bao’anDistrict,Shenzhen,Guangdong,China CityShenzhen CountryChina toactonourbehalfonallmattersconcerningtheapplicationanddocumentssubmittedtoMicomLabsforproductcertification below ProductDescription LEDLamp TypeorModel(s)MK-020011002122,MK-020011002116,MK-020011002117 TradenameorBrand(s)MKOPTO Attestation: City:Date:Name: (thismustbeaperson) Function:Signature: (orofficialcompanystamp) China 2021.03.09AnsonbaoManager

DifferencesDescription WeZhejiangMEKAElectricCo.,Ltdstate: Product： LEDLamp ModelName： MK-020011002122,MK-020011002116, MK-020011002117 BrandName： MKOPTO FCCID： 2AY5GMK020011002122 Onlythemodelname,appearance,sizeandpoweraredifferent,theothersarethe same. Sincerely, Company:ZhejiangMEKAElectricCo.,Ltd Title:Manager E-mail:[email protected] Name:Ansonbao Signature

ZhejiangMEKAElectricCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021.03.09 Subject;RequestforConfidentiality FCCID:2AY5GMK020011002122 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:Ansonbao Title:Manager

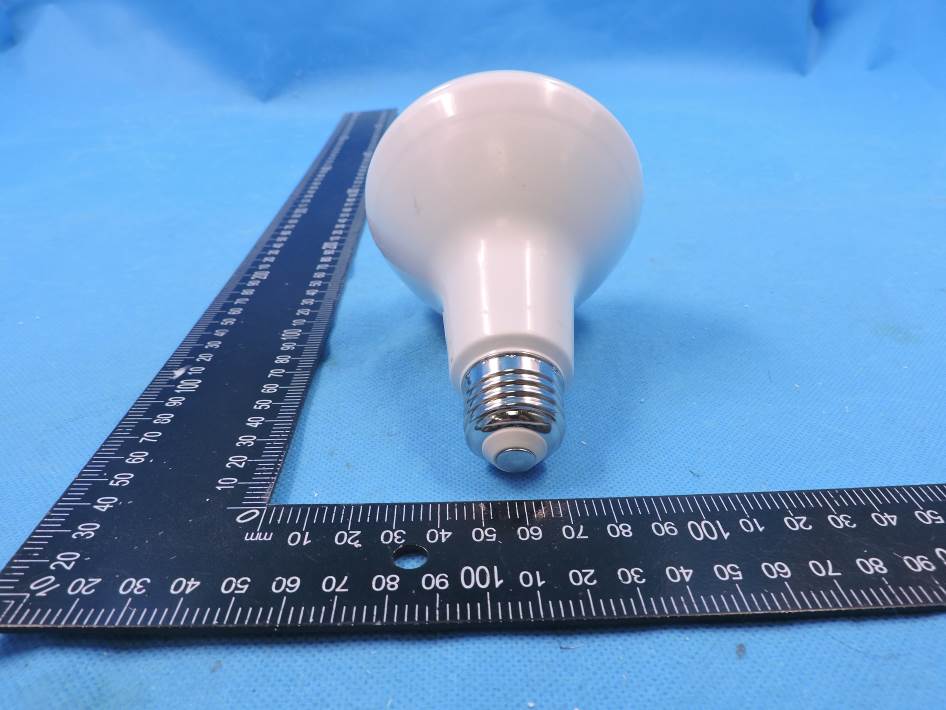

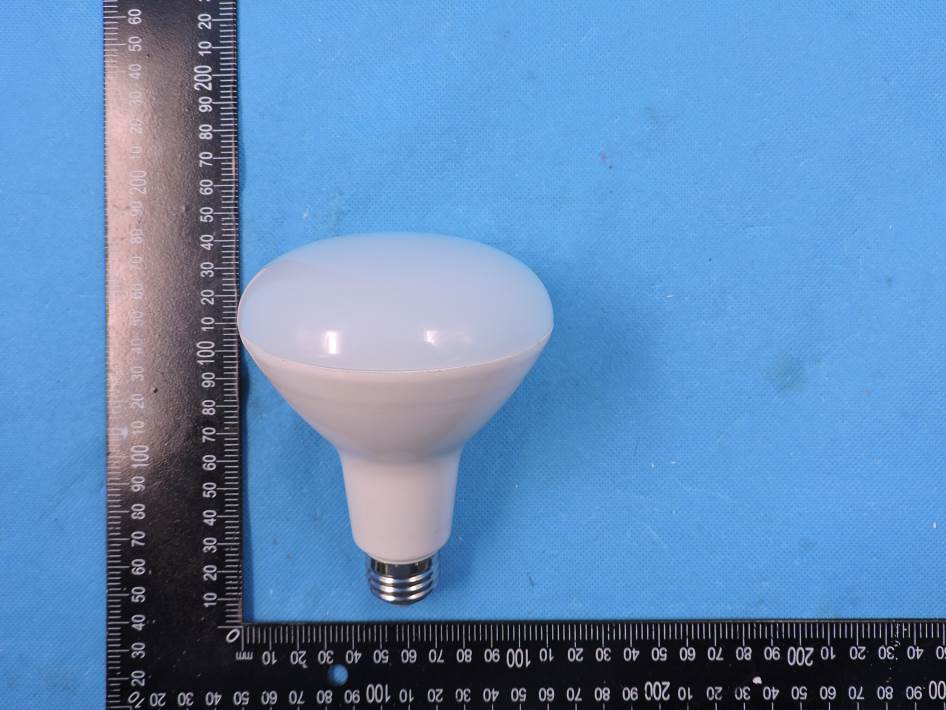

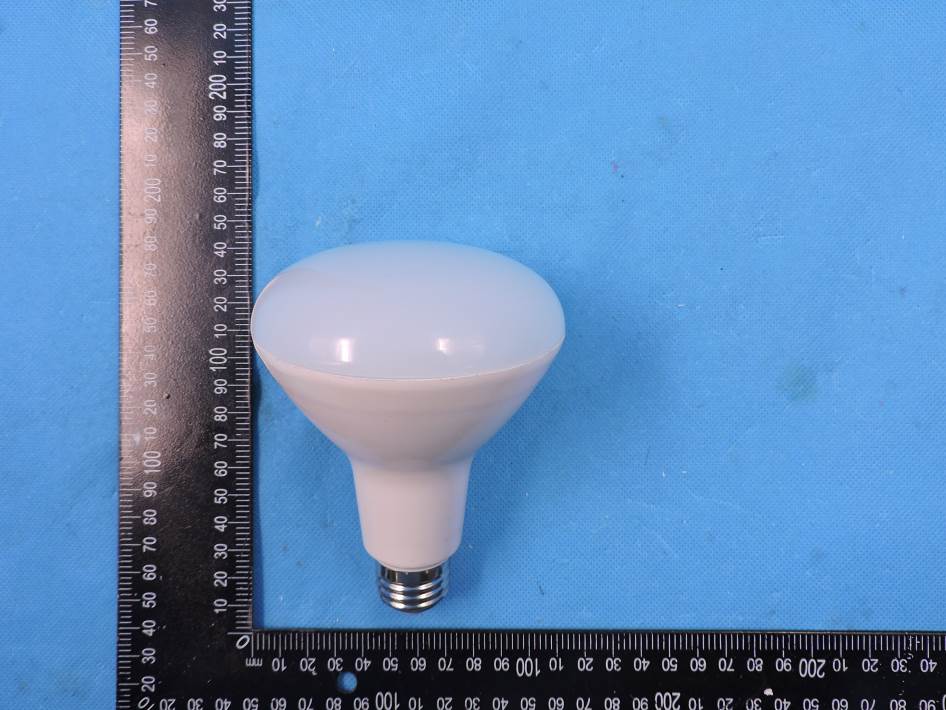

4789738938.2-A8 External Photos Model: MK-020011002122 4789738938.2-A8 4789738938.2-A8

FCC ID: 2AY5GMK02001002122 11W, E26,110-130V, 60Hz WW+CW, 850LM, 2700-6500K FCC ID: 2AY5GMK02001002122 11W, E26,110-130V, 60Hz WW+CW, 850LM, 2700-6500K FCC ID: 2AY5GMK02001002122 11W, E26,110-130V, 60Hz WW+CW, 850LM, 2700-6500K FCC ID: 2AY5GMK02001002122 11W, E26,110-130V, 60Hz WW+CW, 850LM, 2700-6500K Location 1

4789738938.2-A9 Internal Photos Model: MK-020011002122 4789738938.2-A9 4789738938.2-A9 4789738938.2-A9 4789738938.2-A9

RF Exposure Report FCC ID: 2AY5GMK020011002122 RF Exposure Measurement The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of the human exposure to radio-frequency (RF) radiation as specified in 1.1307 (b) Limits for Maximum Permissible Exposure (MPE) F= Frequency in MHz Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Limits for Occupational / controlled Exposures 300 - 1500 -- -- F/300 1500 – 100000 -- -- 5.0 Limits for General population / Uncontrolled Exposure 300 - 1500 -- -- F/1500 1500 – 100000 -- -- 1.0 Friss Formula Friss Transmission Formula: Pd = (Pout * G) / (4*pi*r²) Where Pd = power density in mW/cm² Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = Distance between observation point and the center of radiator in cm If we know the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value at distance 20cm. EUT Operation condition EUT was enabled to transmit and receive at lowest, middle and highest channels. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance from the antenna should be included in the User manual. So, this device is classified as Mobile device. Wi-Fi + BLE Mode BLE: 2402-2480MHz Wi-Fi: 2412-2462MHz BLE and WIFI do not support simultaneous transmission Detector PEAK BLE 5±1dBm 11b 16±1dBm 11g 22±1dBm 11n20 21±1dBm ANT Gain (G) Antenna gain: 1dBi (gain of antenna in linear scale=1.259) GFSK1.2592480 63.98110.00100 1 11b1.2592437 1750.11870.01256 1 11g1.2592412 23199.52620.05000 1 11n201.2592437 22158.48930.03972 1 Power Density (mW/cm²) Limit (mW/cm ²) Protocol ANT Gain(gain of antenna in linear scale) Channel Frequenc y (MHz) Output Power to Antenna (dBm) Output Power to Antenna (mW) According to the maximum gain of the antenna and the total output power to the antenna, through calculation, we will know MPE value 0.05 distance 20cm. This is less than the limit 1, so compliance the RF exposure requirement..
