BG-MK-6338 1 User Manual Smart Key Model BGMK6338 September 2020 MK-6338-20-04 Brilliant Guard www.brilliantguard.com/support BG-MK-6338 2 Table of Content User Manual ...................................................................................................................... 1 Unpack smart key .............................................................................................................. 4 Charging smart key ............................................................................................................ 4 LED Indication .................................................................................................................... 5 Activate your smart key ..................................................................................................... 6 Download mobile APP ............................................................................................... 6 Register smart key ..................................................................................................... 7 Smart Key Operation ......................................................................................................... 8 Grant access and remove access to smart lock......................................................... 8 Smart key factory reset ............................................................................................. 9 Frequently Asked Questions ............................................................................................ 10 Technical Specifications ................................................................................................... 11 BG-MK-6338 3 Support Thank you for purchasing this Brilliant Guard product. You can visit https://www.brilliantguard.com/support to get help, access the latest downloads and user manuals. We recommend that you use only official Brilliant Guard support resources. Compliance and Conformity For regulatory compliance information, visit https://www.brilliantguard.com/regulatory Trademarks ©Brilliant Guard, Inc. and the Brilliant Guard logo are trademarks of Brilliant Guard limited. BG-MK-6338 4 Unpack smart key Your package contains the smart key, and usb cable. Smart Key 20cm micro USB cable Charging smart key Remove top cover and insert micro USB cable (Charger not included) BG-MK-6338 5 LED Indication LED Light LED Description Device first time to charge (Flashing green 3 times in one second, then flashing neon 3 times after) Device is charging battery (Solid Green) Device connected to mobile APP (Flashing neon once every 5 seconds) Device is disconnecting Bluetooth connectivity with mobile APP (Flashing amber 3 times in one second) Device is in low battery (less than 25%) (Flashing red once every 5 seconds) BG-MK-6338 6 Activate your smart key Download mobile APP Download our App from Google Play or Apple App Store, search for Brilliant Guard, or scan the QR as follow, you should see following icon and you can install the app on your smartphone. (NOTE: If you have installed and setup for any BG lock product previously, you can skip this step) Requirements: Mobile devices running iOS 9 or higher and Android 4.4 or higher Download and launch the Brilliant Guard app on your mobile device and create an account. We recommended to sign in with Google or Apple for quicker accessing. Or create by email and password, ensure you can access your email to verify and complete the registration. BG-MK-6338 7 Register smart key  Obtain the unique smart key QR code from the last page of Quick Start Guide (provided with the package). – Diagram 1  Click Product -> Smart Key -> Add device (Plus sign)  Place the QR code from above under the built-in scanner – Diagram 2 Diagram 1 Diagram 2 Once the smart key was successfully connected and registered, it will automatically return to device Dashboard page with colour blue on battery and signal strength icons. Diagram 3 SSsdf dma BG-MK-6338 8 Smart Key Operation Grant access and remove access to smart lock Follow this step to enable Smart Key service and to use mobile App to control and manage the key. (Please Note: you should have at least one BG smart lock in your mobile App in order to add Smart Key as Access Key). Once you press the smart key icon which will display a list (Diagram 4) of available smart locks that you are eligible to grant access. You can simply to select allow or delete for granting or removing smart lock from the list. * Any smart key will have its own access control list correspondingly, for example Smart Key 1 and Smart Key 2 can be set to control different Smart Locks. Diagram 4 BG-MK-6338 9 Smart key factory reset To delete smart key, press the smart key on dashboard, there is “trash bin” icon on the middle of bottom, once press and confirmed, the smart key will be delete and change to factory setting. Diagram 5 Delete and reset Smart Key BG-MK-6338 10 Frequently Asked Questions This section provides information to help you diagnose and solve problem you might experience with your smart key. If you do not find the solution here, check our support page at brilliantguard.com/support for product and contact information. Q: Why smart key cannot open the smart lock? A: Due to the Bluetooth protocol one to one connection restriction, smart lock might continue connecting with previous device such as mobile App, Need to make sure mobile App is closed after the usage, you can simply click the back arrow to main dashboard page, if the connection is terminated, a message below will be shown. Q: How long the smart key battery last? A: The full charge battery can last up to 6 months with minimum of usage twice a day. Q: How to check smart key battery status? A: Connect to mobile APP, the battery level of smart key shows on dashboard screen. Q: How to view the event logs? A: The smart key access record stores inside of each individual smart lock, which can be retrieve the event logs under the smart lock menu. BG-MK-6338 11 T…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 11/26/2020 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AYAP-BGMK6338 BGMK6338 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Signature FIONA CHEUNG MANAGER BRILLIANT GUARD LIMITED

BRILLIANT GUARD LIMITED UNIT 1307, LEADER INDUSTRIAL CENTRE, 57-59 AU PUI WAN STREET, FO TAN, HONG KONG Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 11/26/2020 To whom it may concern: We, BRILLIANT GUARD LIMITED, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AYAP-BGMK6338 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature FIONA CHEUNG MANAGER BRILLIANT GUARD LIMITED

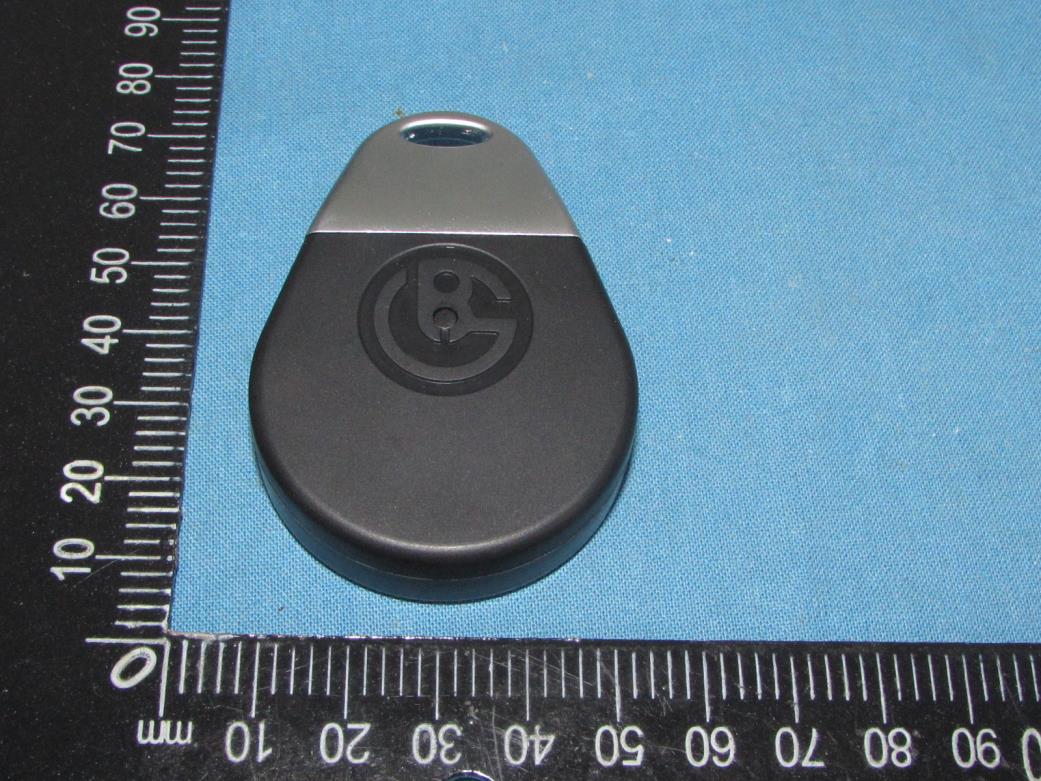

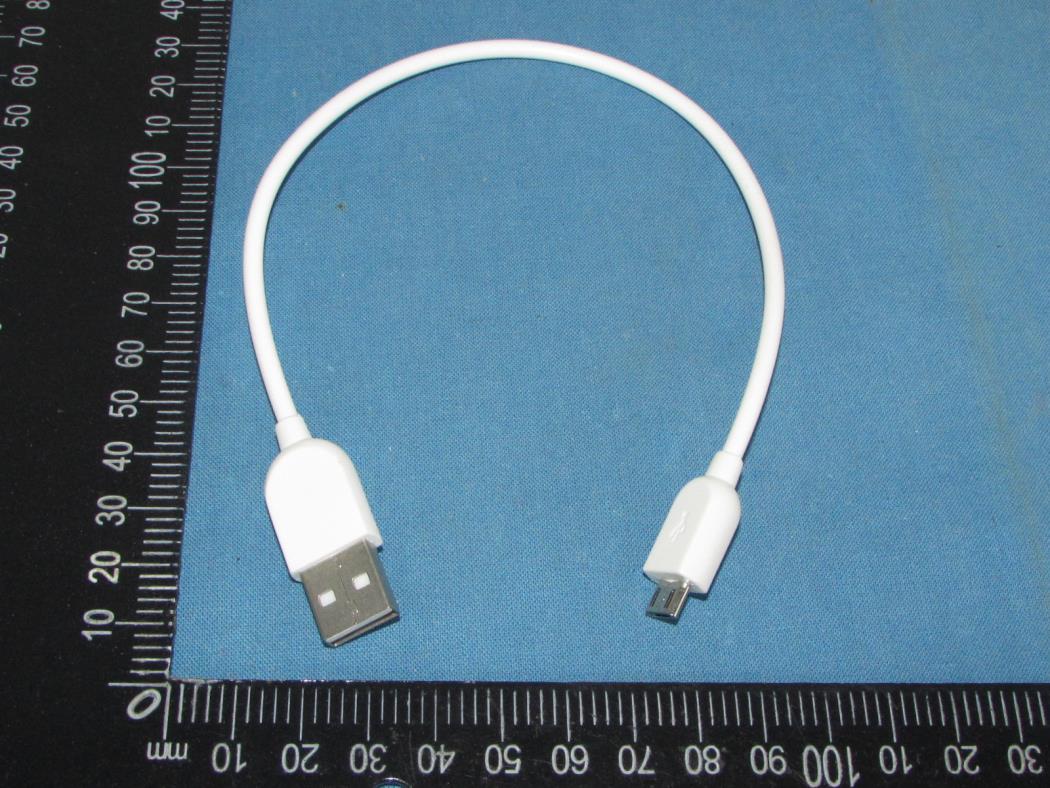

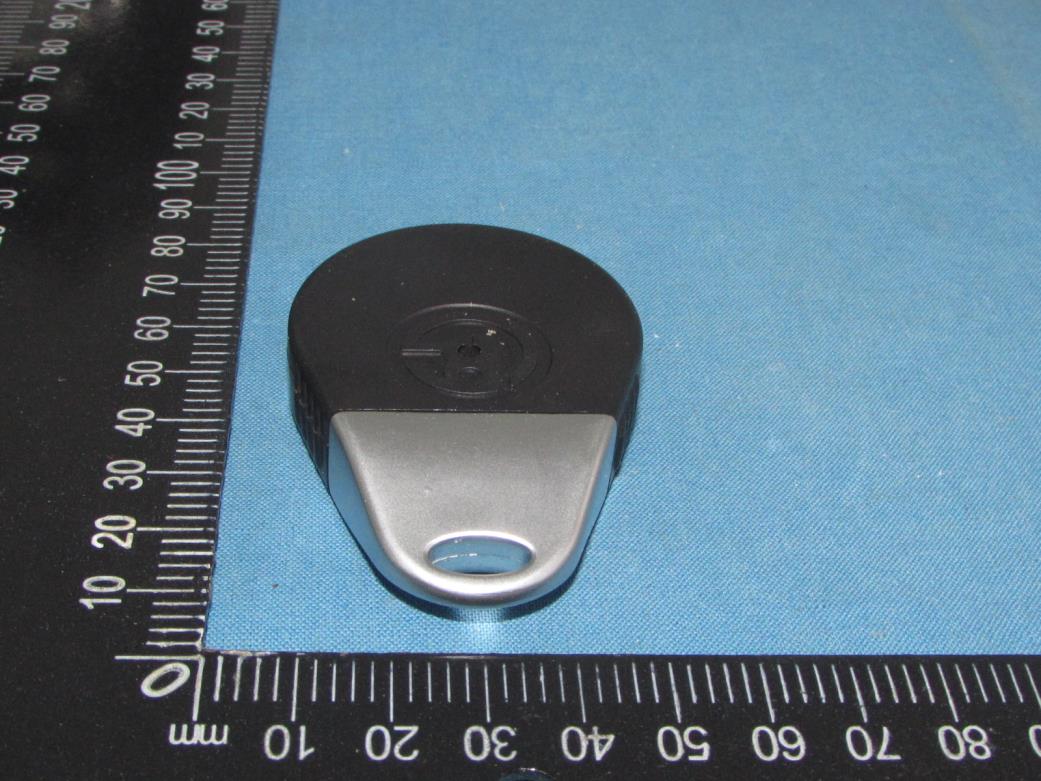

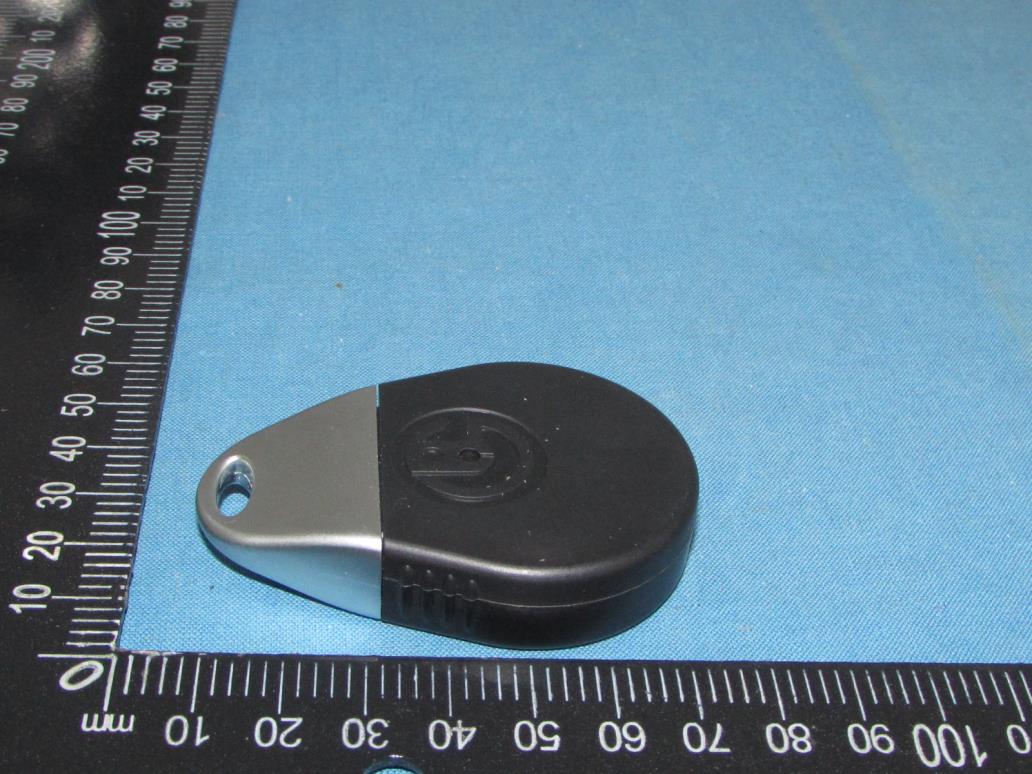

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Label & Label Location Size: 15mm(L)*5mm(W) FCC ID: 2AYAP-BGMK6338

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Note: Manufacturer declared that the maximum antenna gain is 0dBi (Max.). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 -1.83 19 2440 -2.39 39 2480 -3.71 Manufacturing tolerance GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -2.0 -2.5 -4.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 -1.0 -1.0 0.79 10 2440 -1.5 -1.5 0.71 10 2480 -3.0 -3.0 0.50 10 The antenna gain of the EUT for BT is 0dBi (Max). the Maximum Eirp is used for Routine Evaluation Exemption according to section 4.3.1 of KDB 447498 D01. So, the SAR evaluation is not required.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 1 of 16 Appendix A RF Test Data for BT(BLE) (Conducted Measurement) Product Name: Smart Key Trade Mark: Brilliant Guard Test Model: BGMK6338 FCC ID: 2AYAP-BGMK6338 Environmental Conditions Temperature: 22.8 C Relative Humidity: 60% ATM Pressure: 100.0 kPa Test Engineer: Nancy Li Supervised by: Hugo Chen NOTE N/A A.1. 6dB Bandwidth TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.672 2401.636 2402.308 0.5 PASS 2440 0.656 2439.648 2440.304 0.5 PASS 2480 0.664 2479.640 2480.304 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 2 of 16 BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 3 of 16 A.2. Occupied Bandwidth Test Mode Test Channel Ant OBW[MHz] Limit[MHz] Verdict A.3. Maximum peak conducted output power TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 -1.83 <=30 PASS 2440 -2.39 <=30 PASS 2480 -3.71 <=30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 4 of 16 BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 5 of 16 A.4. Maximum Peak power spectral density TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -8.19 <=8 PASS 2440 -9.00 <=8 PASS 2480 -10.13 <=8 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 6 of 16 BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 7 of 16 A.5. Band-edge for RF Conducted Emissions TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -2.04 -42.56 <=-22.04 PASS High 2480 -4.00 -48.77 <=-24 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 8 of 16 BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 ' Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 9 of 16 A.6. RF Conducted Spurious Emissions TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -2.19 -2.19 --- PASS 30~1000 30~1000 -61.195 <=-20 PASS 1000~26500 1000~26500 -52.29 <=-20 PASS 2440 Reference -2.84 -2.84 --- PASS 30~1000 30~1000 -61.065 <=-20 PASS 1000~26500 1000~26500 -51.294 <=-20 PASS 2480 Reference -4.64 -4.64 --- PASS 30~1000 30~1000 -60.242 <=-20 PASS 1000~26500 1000~26500 -51.311 <=-20 PASS BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 10 of 16 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 11 of 16 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 12 of 16 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 13 of 16 A.7. Duty Cycle TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] BLE_1M Ant1 2440 0.42 0.62 66.94 BLE_1M_Ant1_2440 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 14 of 16 A.8. Restrict-band band-edge measurements TestMode Antenna ChName Channel Detector Freq. [MHz] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -48.56 <=-41.20 PASS AV 2390.000 -47.88 <=-41.20 PASS Peak 2310.000 -40.67 <=-21.20 PASS Peak 2390.000 -41.65 <=-21.20 PASS High 2480 AV 2483.500 -46.47 <=-41.20 PASS AV 2500.000 -47.55 <=-41.20 PASS Peak 2483.500 -39.30 <=-21.20 PASS Peak 2500.000 -40.32 <=-21.20 PASS 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm . Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 15 of 16 BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Report No.: TZ201101786-E Page 16 of 16 BLE_1M_Ant1_High_2480_Peak

Report No.: TZ201101786-E Page 1 of 35 FCC TEST REPORT Test report On Behalf of BRILLIANT GUARD LIMITED For Smart Key Model No.: BGMK6338 FCC ID: 2AYAP-BGMK6338 Prepared for : BRILLIANT GUARD LIMITED UNIT 1307, LEADER INDUSTRIAL CENTRE, 57-59 AU PUI WAN STREET, FO TAN, HONG KONG Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2020/11/9~2020/11/18 Date of Report: 2020/11/19 Report Number: TZ201101786-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ201101786-E Page 2 of 35 TEST RESULT CERTIFICATION Applicant’s name ................. : BRILLIANT GUARD LIMITED Address .................................. : UNIT 1307, LEADER INDUSTRIAL CENTRE, 57-59 AU PUI WAN STREET, FO TAN, HONG KONG Manufacturer's Name ........... : CHEUNG ON LOCK MANUFACTORY LIMITED Address .................................. : DONGGUAN CITY CHANGAN TOWN XIN'AN COMMUNITY OF NEW STREET GANG LU YUANGANG, China. Product description Trade Mark ............................. : Brilliant Guard Product name ........................... : Smart Key Model and/or type reference .. : BGMK6338 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2020/11/9~2020/11/18 Date of Issue .......................................... : 2020/11/19 Test Result .............................................. : Pass Testing Engineer : (Nancy Li) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ201101786-E Page 3 of 35 Revision History Revision Issue Date Revisions Revised By 000 2020/11/19 Initial Issue Andy Zhang Report No.: TZ201101786-E Page 4 of 35 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 5 1.3 EUT CONFIGURATION .......................................................................................................................................... 6 1.4. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.5. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.6. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.7. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.8. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.9. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 2.4. TEST SAMPLE ...................................................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP ........................................................................................................................................................ 9 4. SUMMARY OF TEST RESULTS ..............................................................…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AYAP-BGMK6338 Conducted Emission
