2AYD5-I25M02POS Device

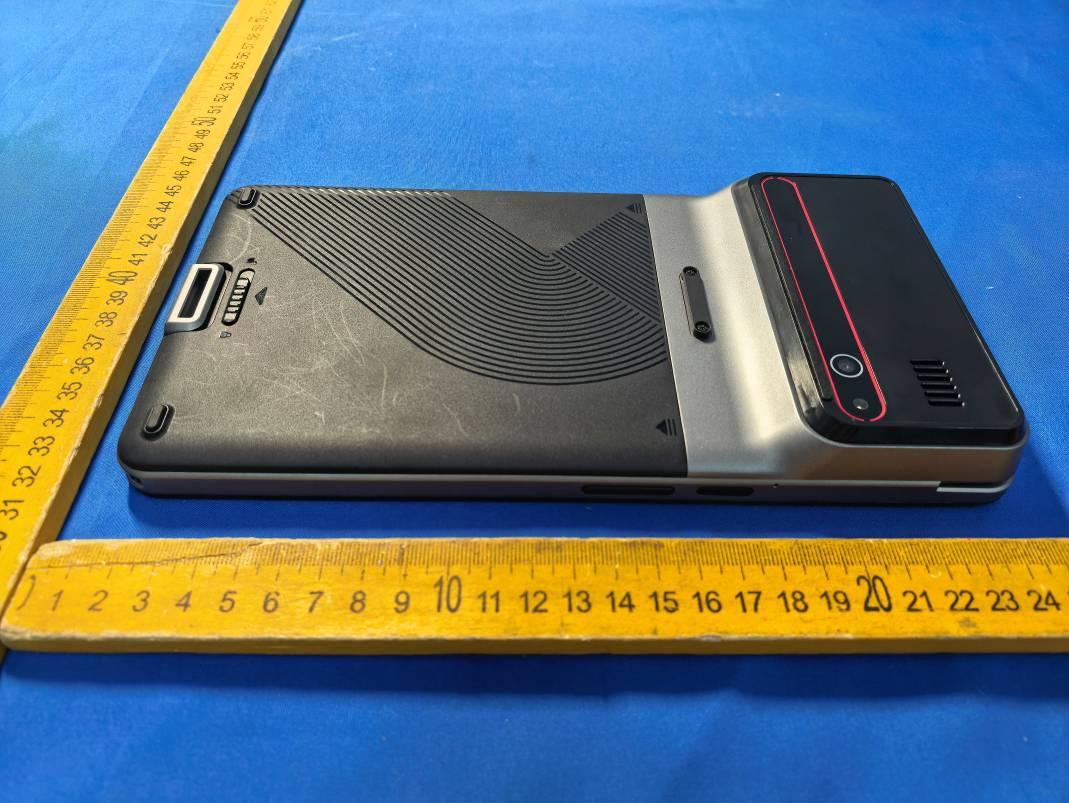

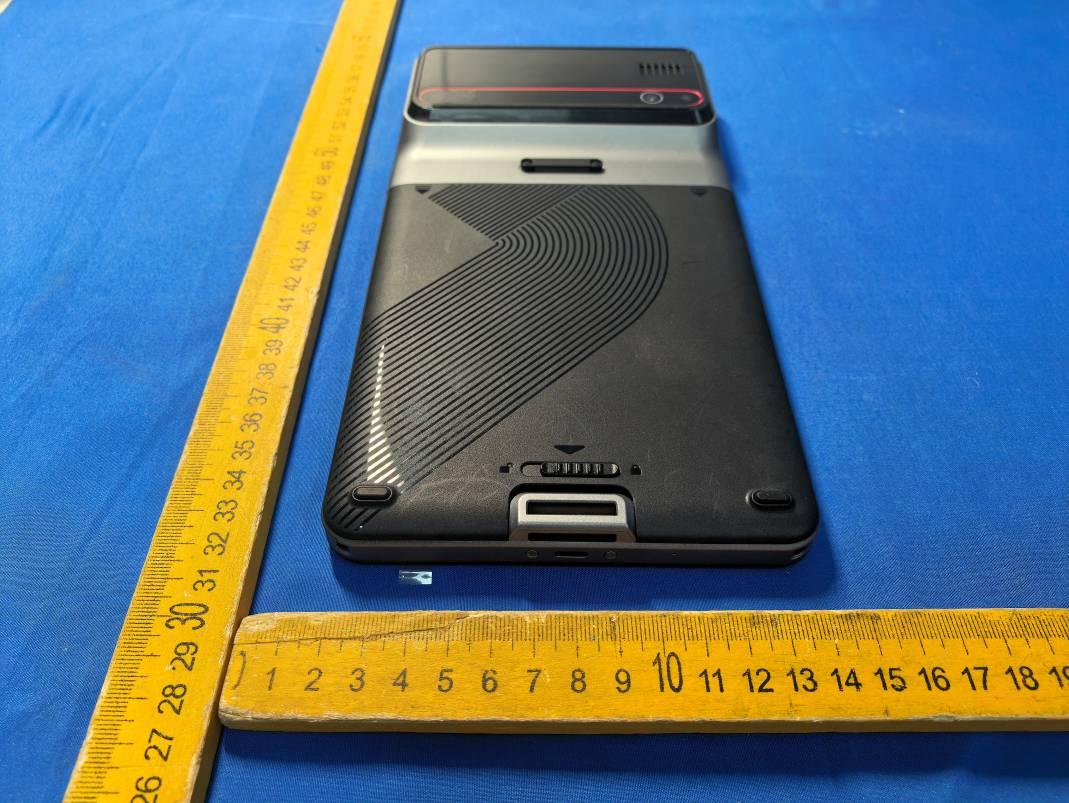

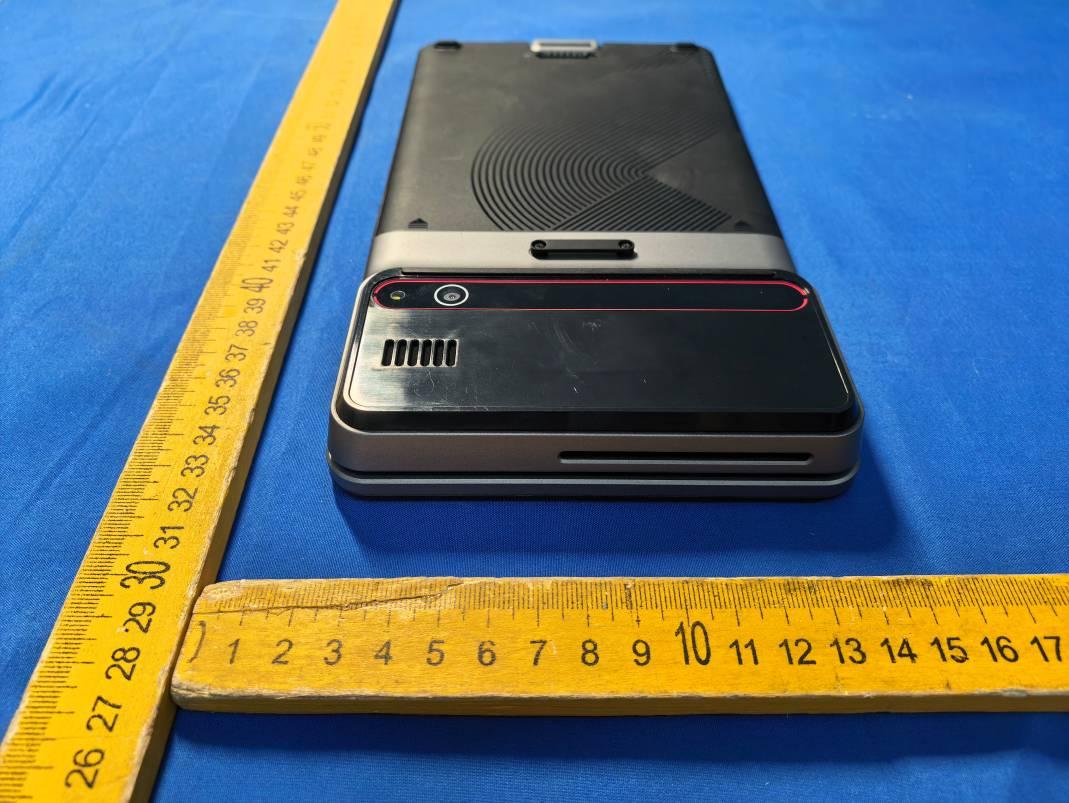

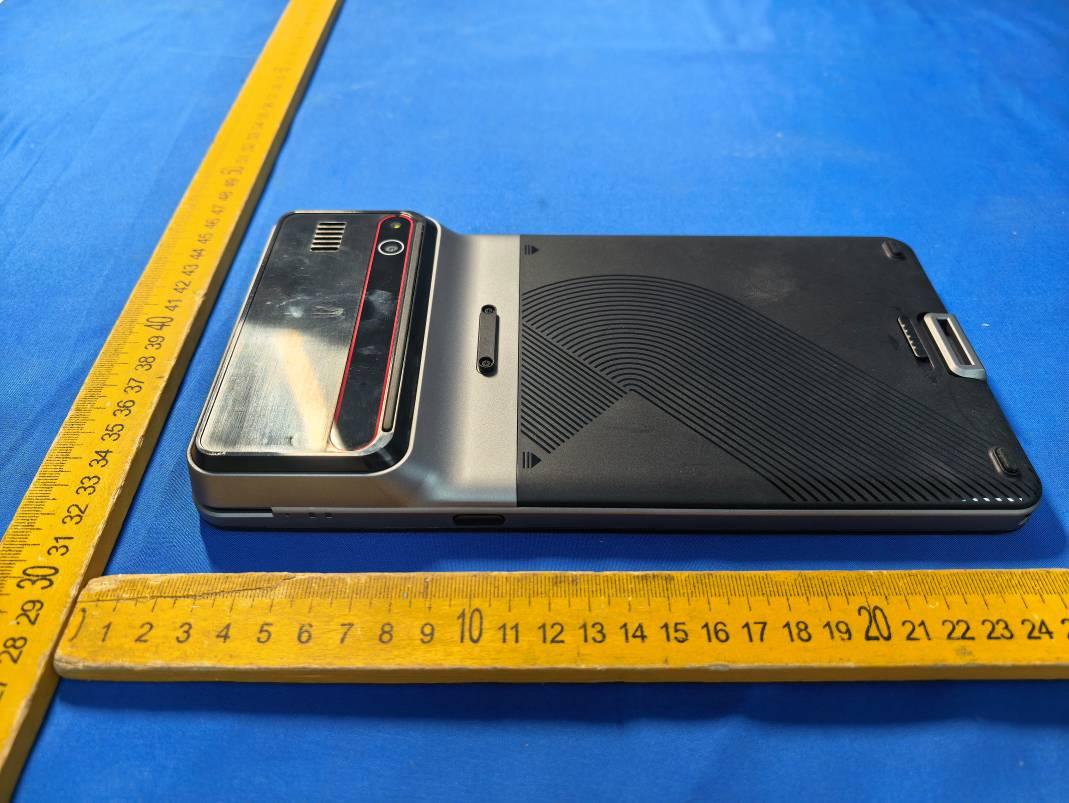

Roc 1 Max Model: I25M02 User Manual Introduction Type-C Front Camera Pogo Pin Power Button (Fingerprint) Volume Button Display Functional Button Mic IndicatorLight Sensor Module Power Button Module Power Status Module BT Status Removable Lithium Battery PSAM Card Slot (optional) TF Card Slot SIM Card Slot Rear Camera Flash light Battery Cover Strap Speaker Technical Specif ications OS CPU Screen Storage Camera Barcode scanner LED indicator Sensor Fingerprint unlock WLAN Network GNSS Bluetooth Payment Module Functional External Interface Card Slot Battery Power Adapter Charging Temperature Operating Temperature Storage Temperature Operating Humidity IP Rating Rolling Drop Drop-proof Android 14 GMS QCS5430 FP2.5, Octa-core (4*A78 @2.4GHz + 4*A55 @1.8GHz), AI: 6 TOPS (INT8) 8.68 inches LCD screen , 800 x 1340, Brightness: 500 nits", Incell, multi-point touch 4GB RAM + 64GB ROM / 8GB RAM + 128GB ROM 8 MP rear camera, with flash light, 5 MP front camera, Independent professional 1D/2D scanner engine Optional Red & Green LED G-sensor, Light sensor Ye s WiFi6E, 2.4GHz/5GHz/6GHz, IEEE 802.11 a/b/g/n/ac/ax 2G/3G/4G ( LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71, WCDMA: B2/B4/B5 ) GPS/Galileo/Glonass/Beidou/QZSS BT5.2 Ingenico Moby5500M Controlling scanner / Customized USB Type-C x 1support OTG, DP out TF card x 1 (Maximum 1 TB), Nano SIM x 1, eSIM x 1 (optional), PSAM x 1 (optional) Main Battery3.89V 8000mAh Swappable Smart Battery Backup Battery: 3.8V 205mAh (Maximum 1.5A output) Output power 18W, Input: AC 100-240V, Output: DC 9V/2A 0°C to 40°C -10°C to 50°C -20°C to 60°C 5% to 95% r.H. IP55 (Except Moby5500M part) 0.5m, 250 rounds 1.22m drop test Safety Information Safety and Handling · Please plug-in power adapter to only its corresponding AC socket. · Do not use in explosive gas atmosphere. · Do not disassemble the equipment. It should be serviced or recycled only by iMin or an authorised service provider. · This is a Grade B product. The product may cause radio interference and interfere with medical devices. The user may be required to take practical measures to reduce the possibility of causing interference to radios, televisions and other electronic devices. · About the battery replacement: 1. Do not attempt to replace the battery yourself - you may damage the battery, which could cause overheating, f ire and injury. 2. The replaced/ used battery should be disposed according to local environmental laws and guidelines. Do not dispose in f ire. It should be serviced or recycled by iMin or an authorised service provider, and must be recycled or disposed of separately from household waste. Company Statement Our company is not responsible for the following actions: · Damage caused by misuse, lack of care in maintaining the equipment, or placing the device under conditions that may cause undesired operation and risk as specif ied in this instruction manual. · We will not be responsible for any damage or problem caused by third party parts or components (other than the original products or approved products provided by us). Without our consent, you have no right to modify or alter the products. · The operating system of this product is supported by off icial regular OS update. If the user breached the third party's ROM system or change the system f ile by hacking, it may cause unstable, undesired system operation and bring security risk. Advices · Do not expose the device to moisture, dampness, or wet weather, such as rain, snow or fog. · Do not use the device in extreme cold or hot environments eg, near a f ire or lit cigarette. · Do not topple, throw, or bend. · Use in optimally clean and dust-free environment to avoid tiny particles clogging and seeping through gaps in the device. · Do not at tempt to use the device near medical equipment Important Safety Information · Do not install or use during thunder storms and lightning conditions, otherwise, there will be risk of electric shock, injury or death in the event of thunder or lightning hit. · If you f ind unusual odour, overheating or smoke, please cut off the power immediately. · Do not expose the device to moisture, dampness, or wet weather, such as rain, snow or fog; Do not use in explosive gas atmosphere. Disclaimer Due to regular updates and enhancements made to the product, some details of this document may be inconsistent with the physical product. Please take the product you received as current standard. The right to interpret this document belongs to our company. We reserve the right to amend this specif icat ion without prior not ice. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any int…

Text truncated - open the document above for the full version.

FCCID:2AYD5-I25M02 1 Case No. :GTS20251018009-2-05 Ambient Condition: 23 °C, 52 %RH According Standard: ■Part15E Test Date: 2026.1.08-2026.2.28Test Engineer: Evan ouyang AppendixE.1: Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5260 19.400 5250.400 5269.800 --- --- 5280 19.440 5270.240 5289.680 --- --- 5320 19.240 5310.360 5329.600 --- --- 11N20SISO Ant1 5260 20.400 5249.880 5270.280 --- --- 5280 20.280 5269.840 5290.120 --- --- 5320 20.200 5309.920 5330.120 --- --- 11N40SISO Ant1 5270 40.080 5249.840 5289.920 --- --- 5310 40.000 5290.000 5330.000 --- --- 11AC20SISO Ant1 5260 20.560 5249.680 5270.240 --- --- 5280 20.600 5269.680 5290.280 --- --- 5320 20.400 5309.920 5330.320 --- --- 11AC40SISO Ant1 5270 39.680 5250.160 5289.840 --- --- 5310 40.160 5290.000 5330.160 --- --- 11AC80SISO Ant1 5290 82.400 5249.040 5331.440 --- --- 11AX20SISO Ant1 5260 21.200 5249.400 5270.600 --- --- 5280 21.360 5269.320 5290.680 --- --- 5320 20.920 5309.640 5330.560 --- --- 11AX40SISO Ant1 5270 40.720 5249.840 5290.560 --- --- 5310 40.480 5289.760 5330.240 --- --- 11AX80SISO Ant1 5290 82.560 5249.040 5331.600 --- --- FCCID:2AYD5-I25M02 2 Test Graphs 11A_Ant1_5260 11A_Ant1_5280 11A_Ant1_5320 FCCID:2AYD5-I25M02 3 11N20SISO_Ant1_5260 11N20SISO_Ant1_5280 FCCID:2AYD5-I25M02 4 11N20SISO_Ant1_5320 11N40SISO_Ant1_5270 11N40SISO_Ant1_5310 FCCID:2AYD5-I25M02 5 11AC20SISO_Ant1_5260 11AC20SISO_Ant1_5280 FCCID:2AYD5-I25M02 6 11AC20SISO_Ant1_5320 11AC40SISO_Ant1_5270 11AC40SISO_Ant1_5310 FCCID:2AYD5-I25M02 7 11AC80SISO_Ant1_5290 11AX20SISO_Ant1_5260 FCCID:2AYD5-I25M02 8 11AX20SISO_Ant1_5280 11AX20SISO_Ant1_5320 11AX40SISO_Ant1_5270 FCCID:2AYD5-I25M02 9 11AX40SISO_Ant1_5310 11AX80SISO_Ant1_5290 FCCID:2AYD5-I25M02 10 Appendix E.2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5260 16.579 5251.7084 5268.2874 --- --- 5280 16.606 5271.6643 5288.2703 --- --- 5320 16.593 5311.6709 5328.2639 --- --- 11N20SISO Ant1 5260 17.755 5251.1002 5268.8552 --- --- 5280 17.743 5271.0975 5288.8405 --- --- 5320 17.736 5311.1038 5328.8398 --- --- 11N40SISO Ant1 5270 36.196 5251.8787 5288.0747 --- --- 5310 36.179 5291.8895 5328.0685 --- --- 11AC20SISO Ant1 5260 17.728 5251.1217 5268.8497 --- --- 5280 17.743 5271.0936 5288.8366 --- --- 5320 17.750 5311.1093 5328.8593 --- --- 11AC40SISO Ant1 5270 36.192 5251.8862 5288.0782 --- --- 5310 36.213 5291.9081 5328.1211 --- --- 11AC80SISO Ant1 5290 75.657 5252.2037 5327.8607 --- --- 11AX20SISO Ant1 5260 19.021 5250.4565 5269.4775 --- --- 5280 19.017 5270.4674 5289.4844 --- --- 5320 19.036 5310.4562 5329.4922 --- --- 11AX40SISO Ant1 5270 37.854 5251.0449 5288.8989 --- --- 5310 37.910 5291.0762 5328.9862 --- --- 11AX80SISO Ant1 5290 77.423 5251.3691 5328.7921 --- --- FCCID:2AYD5-I25M02 11 Test Graphs 11A_Ant1_5260 11A_Ant1_5280 11A_Ant1_5320 FCCID:2AYD5-I25M02 12 11N20SISO_Ant1_5260 11N20SISO_Ant1_5280 FCCID:2AYD5-I25M02 13 11N20SISO_Ant1_5320 11N40SISO_Ant1_5270 11N40SISO_Ant1_5310 FCCID:2AYD5-I25M02 14 11AC20SISO_Ant1_5260 11AC20SISO_Ant1_5280 FCCID:2AYD5-I25M02 15 11AC20SISO_Ant1_5320 11AC40SISO_Ant1_5270 11AC40SISO_Ant1_5310 FCCID:2AYD5-I25M02 16 11AC80SISO_Ant1_5290 11AX20SISO_Ant1_5260 FCCID:2AYD5-I25M02 17 11AX20SISO_Ant1_5280 11AX20SISO_Ant1_5320 11AX40SISO_Ant1_5270 FCCID:2AYD5-I25M02 18 11AX40SISO_Ant1_5310 11AX80SISO_Ant1_5290 FCCID:2AYD5-I25M02 19 AppendixE.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant1 5260 2.09 2.11 99.05 0.04 0.48 5280 2.10 2.11 99.53 0.02 0.48 5320 2.09 2.11 99.05 0.04 0.48 11N20SISO Ant1 5260 5.39 5.41 99.63 0.02 0.19 5280 5.39 5.41 99.63 0.02 0.19 5320 5.40 5.42 99.63 0.02 0.19 11N40SISO Ant1 5270 5.19 5.21 99.62 0.02 0.19 5310 5.20 5.22 99.62 0.02 0.19 11AC20SISO Ant1 5260 5.40 5.42 99.63 0.02 0.19 5280 5.40 5.42 99.63 0.02 0.19 5320 5.40 5.42 99.63 0.02 0.19 11AC40SISO Ant1 5270 5.20 5.22 99.62 0.02 0.19 5310 5.19 5.21 99.62 0.02 0.19 11AC80SISO Ant1 5290 2.70 2.72 99.26 0.03 0.37 11AX20SISO Ant1 5260 5.41 5.43 99.63 0.02 0.18 5280 5.41 5.43 99.63 0.02 0.18 5320 5.42 5.44 99.63 0.02 0.18 11AX40SISO Ant1 5270 4.10 4.12 99.51 0.02 0.24 5310 4.10 4.12 99.51 0.02 0.24 11AX80SISO Ant1 5290 2.21 2.23 99.10 0.04 0.45 FCCID:2AYD5-I25M02 20 Test Graphs 11A_Ant1_5260 11A_Ant1_5280 11A_Ant1_5320 FCCID:2AYD5-I25M02 21 11N20SISO_Ant1_5260 11N20SISO_Ant1_5280 FCCID:2AYD5-I25M02 22 11N20SISO_Ant1_5320 11N40SISO_Ant1_5270 11N40SISO_Ant1_5310 FCCID:2AYD5-I25M02 23 11AC20SISO_Ant1_5260 11AC20SISO_Ant1_5280 FCCID:2AYD5-I25M02 24 11AC20SISO_Ant1_5320 11AC40SISO_Ant1_5270 11AC40SISO_Ant1_5310 FCCID:2AYD5-I25M02 25 11AC80SISO_Ant1_5290 11AX20SISO_Ant1_5260 FCCID:2AYD5-I25M02 26 11AX20SISO_Ant1_5280 11AX20SISO_Ant1_5320 11AX40SISO_Ant1_5270 FCCID:2AYD5-I25M02 27 11AX40SISO_Ant1_5310 11AX80SISO_Ant1_5290

FCCID:2AYD5-I25M02 1 Case No. :GTS20251018009-2-05 Ambient Condition: 24 °C, 52 %RH According Standard: ■Part15E Test Date: 2026.1.08-2026.2.28Test Engineer: Evan ouyang Appendix G.1: Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5745 19.520 5735.080 5754.600 --- --- 5785 19.600 5775.040 5794.640 --- --- 5825 20.040 5815.120 5835.160 --- --- 11N20SISO Ant2 5745 20.320 5734.760 5755.080 --- --- 5785 20.520 5774.880 5795.400 --- --- 5825 20.680 5814.560 5835.240 --- --- 11N40SISO Ant2 5755 39.760 5735.080 5774.840 --- --- 5795 39.520 5775.080 5814.600 --- --- 11AC20SISO Ant2 5745 20.520 5734.680 5755.200 --- --- 5785 20.360 5774.760 5795.120 --- --- 5825 20.600 5814.680 5835.280 --- --- 11AC40SISO Ant2 5755 40.080 5734.920 5775.000 --- --- 5795 39.600 5775.080 5814.680 --- --- 11AC80SISO Ant2 5775 82.400 5733.080 5815.480 --- --- 11AX20SISO Ant2 5745 21.160 5734.360 5755.520 --- --- 5785 21.160 5774.320 5795.480 --- --- 5825 23.280 5814.080 5837.360 --- --- 11AX40SISO Ant2 5755 40.400 5734.920 5775.320 --- --- 5795 40.160 5774.840 5815.000 --- --- 11AX80SISO Ant2 5775 82.240 5733.880 5816.120 --- --- FCCID:2AYD5-I25M02 2 Test Graphs 11A_Ant2_5745 11A_Ant2_5785 11A_Ant2_5825 FCCID:2AYD5-I25M02 3 11N20SISO_Ant2_5745 11N20SISO_Ant2_5785 FCCID:2AYD5-I25M02 4 11N20SISO_Ant2_5825 11N40SISO_Ant2_5755 11N40SISO_Ant2_5795 FCCID:2AYD5-I25M02 5 11AC20SISO_Ant2_5745 11AC20SISO_Ant2_5785 FCCID:2AYD5-I25M02 6 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5755 11AC40SISO_Ant2_5795 FCCID:2AYD5-I25M02 7 11AC80SISO_Ant2_5775 11AX20SISO_Ant2_5745 FCCID:2AYD5-I25M02 8 11AX20SISO_Ant2_5785 11AX20SISO_Ant2_5825 11AX40SISO_Ant2_5755 FCCID:2AYD5-I25M02 9 11AX40SISO_Ant2_5795 11AX80SISO_Ant2_5775 FCCID:2AYD5-I25M02 10 Appendix G.2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5745 16.617 5736.6145 5753.2315 --- --- 5785 16.616 5776.6319 5793.2479 --- --- 5825 16.662 5816.6132 5833.2752 --- --- 11N20SISO Ant2 5745 17.759 5736.0628 5753.8218 --- --- 5785 17.751 5776.0779 5793.8289 --- --- 5825 17.790 5816.0526 5833.8426 --- --- 11N40SISO Ant2 5755 36.199 5736.8334 5773.0324 --- --- 5795 36.166 5776.8334 5812.9994 --- --- 11AC20SISO Ant2 5745 17.757 5736.0705 5753.8275 --- --- 5785 17.767 5776.0671 5793.8341 --- --- 5825 17.799 5816.0529 5833.8519 --- --- 11AC40SISO Ant2 5755 36.227 5736.8195 5773.0465 --- --- 5795 36.168 5776.8258 5812.9938 --- --- 11AC80SISO Ant2 5775 75.547 5737.0002 5812.5472 --- --- 11AX20SISO Ant2 5745 19.021 5735.4416 5754.4626 --- --- 5785 19.029 5775.4414 5794.4704 --- --- 5825 19.058 5815.4278 5834.4858 --- --- 11AX40SISO Ant2 5755 37.938 5735.9947 5773.9327 --- --- 5795 37.842 5775.9847 5813.8267 --- --- 11AX80SISO Ant2 5775 77.312 5736.0640 5813.3760 --- --- FCCID:2AYD5-I25M02 11 Test Graphs 11A_Ant2_5745 11A_Ant2_5785 11A_Ant2_5825 FCCID:2AYD5-I25M02 12 11N20SISO_Ant2_5745 11N20SISO_Ant2_5785 FCCID:2AYD5-I25M02 13 11N20SISO_Ant2_5825 11N40SISO_Ant2_5755 11N40SISO_Ant2_5795 FCCID:2AYD5-I25M02 14 11AC20SISO_Ant2_5745 11AC20SISO_Ant2_5785 FCCID:2AYD5-I25M02 15 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5755 11AC40SISO_Ant2_5795 FCCID:2AYD5-I25M02 16 11AC80SISO_Ant2_5775 11AX20SISO_Ant2_5745 FCCID:2AYD5-I25M02 17 11AX20SISO_Ant2_5785 11AX20SISO_Ant2_5825 11AX40SISO_Ant2_5755 FCCID:2AYD5-I25M02 18 11AX40SISO_Ant2_5795 11AX80SISO_Ant2_5775 FCCID:2AYD5-I25M02 19 Appendix G.3: Min emission bandwidth TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5745 16.320 5736.800 5753.120 0.5 PASS 5785 16.320 5776.800 5793.120 0.5 PASS 5825 16.320 5816.800 5833.120 0.5 PASS 11N20SISO Ant2 5745 17.560 5736.160 5753.720 0.5 PASS 5785 17.560 5776.160 5793.720 0.5 PASS 5825 17.520 5816.200 5833.720 0.5 PASS 11N40SISO Ant2 5755 35.920 5736.840 5772.760 0.5 PASS 5795 35.920 5776.840 5812.760 0.5 PASS 11AC20SISO Ant2 5745 17.560 5736.160 5753.720 0.5 PASS 5785 17.280 5776.200 5793.480 0.5 PASS 5825 17.560 5816.160 5833.720 0.5 PASS 11AC40SISO Ant2 5755 36.000 5736.840 5772.840 0.5 PASS 5795 36.000 5776.840 5812.840 0.5 PASS 11AC80SISO Ant2 5775 75.680 5736.760 5812.440 0.5 PASS 11AX20SISO Ant2 5745 18.880 5735.520 5754.400 0.5 PASS 5785 18.880 5775.520 5794.400 0.5 PASS 5825 18.760 5815.560 5834.320 0.5 PASS 11AX40SISO Ant2 5755 37.360 5736.120 5773.480 0.5 PASS 5795 37.520 5775.960 5813.480 0.5 PASS 11AX80SISO Ant2 5775 76.480 5735.960 5812.440 0.5 PASS FCCID:2AYD5-I25M02 20 11A_Ant2_5745 11A_Ant2_5785 11A_Ant2_5825 FCCID:2AYD5-I25M02 21 11N20SISO_Ant2_5745 11N20SISO_Ant2_5785 FCCID:2AYD5-I25M02 22 11N20SISO_Ant2_5825 11N40SISO_Ant2_5755 11N40SISO_Ant2_5795 FCCID:2AYD5-I25M02 23 11AC20SISO_Ant2_5745 11AC20SISO_Ant2_5785 FCCID:2AYD5-I25M02 24 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5755 11AC40SISO_Ant2_5795 FCCID:2AYD5-I25M02 25 11AC80SISO_Ant2_5775 11AX20SISO_Ant2_5745 FCCID:2AYD5-I25M02 26 11AX20SISO_Ant2_5785 11AX20SISO_Ant2_5825 11AX40SISO_Ant2_5755 FCCID:2AYD5-I25M02 27 11AX40SISO_Ant2_5795 11AX80SISO_Ant2_5775 FCCID:2AYD5-I25M02 28 AppendixG.4: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant2 5745 2.10 2.11 99.53 0.02 0.48 5785 2.10 2.11 99.53 0.02 0.48 5825 2.10 2.12 99.06 0.04 0.48 11N20SISO Ant2 5745 5.40 5.41 99.82 0.01 0.19 5785 5.39 5.41 99.63 0.02 0.19 5825 5.40 5.42 99.63 0.02 0.19 11N40SISO Ant2 5755 5.19 5.21 99.62 0.02 0.19 5795 5.20 5.22 99.62 0.02 0.19 11AC20SISO Ant2 5745 5.40 5.42 99.63 0.02 0.19 5785 5.40 5.42 99.63 0.02 0.19 5825 5.40 5.42 99.63 0.02 0.19 11AC40SISO Ant2 5755 5.20 5.22 99.62 0.02 0.19 5795 5.20 5.22 99.62 0.02 0.19 11AC80SISO Ant2 5775 2.69 2.71 99.26 0.03 0.37 11AX20SISO Ant2 5745 5.41 5.43 99.63 0.02 0.18 5785 5.42 5.44 99.63 0.02 0.18 5825 5.42 5.44 99.63 0.02 0.18 11AX40SISO Ant2 5755 4.10 4.12 99.51 0.02 0.24 5795 4.11 4.13 99.52 0.02 0.24 11AX80SISO Ant2 5775 2.22 2.24 99.11 0.04 0.45 FCCID:2AYD…

Text truncated - open the document above for the full version.

FCCID:2AYD5-I25M02 37 Appendix G.5: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq(MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant2 5745 10.72 99.53 0.02 10.74 ≤30.00 PASS 5785 9.91 99.53 0.02 9.93 ≤30.00 PASS 5825 8.93 99.06 0.04 8.97 ≤30.00 PASS 11N20SISO Ant2 5745 10.48 99.82 0.01 10.49 ≤30.00 PASS 5785 9.72 99.63 0.02 9.74 ≤30.00 PASS 5825 8.83 99.63 0.02 8.85 ≤30.00 PASS 11N40SISO Ant2 5755 10.16 99.62 0.02 10.18 ≤30.00 PASS 5795 9.69 99.62 0.02 9.71 ≤30.00 PASS 11AC20SISO Ant2 5745 10.36 99.63 0.02 10.38 ≤30.00 PASS 5785 9.80 99.63 0.02 9.82 ≤30.00 PASS 5825 8.86 99.63 0.02 8.88 ≤30.00 PASS 11AC40SISO Ant2 5755 10.12 99.62 0.02 10.14 ≤30.00 PASS 5795 9.64 99.62 0.02 9.66 ≤30.00 PASS 11AC80SISO Ant2 5775 9.94 99.26 0.03 9.97 ≤30.00 PASS 11AX20SISO Ant2 5745 10.51 99.63 0.02 10.53 ≤30.00 PASS 5785 9.72 99.63 0.02 9.74 ≤30.00 PASS 5825 8.87 99.63 0.02 8.89 ≤30.00 PASS 11AX40SISO Ant2 5755 10.06 99.51 0.02 10.08 ≤30.00 PASS 5795 9.53 99.52 0.02 9.55 ≤30.00 PASS 11AX80SISO Ant2 5775 9.95 99.11 0.04 9.99 ≤30.00 PASS FCCID:2AYD5-I25M02 38 Appendix G.6: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant2 5745 -3.84 ≤30.00 PASS 5785 -4.42 ≤30.00 PASS 5825 -5.56 ≤30.00 PASS 11N20SISO Ant2 5745 -4.23 ≤30.00 PASS 5785 -4.73 ≤30.00 PASS 5825 -6.07 ≤30.00 PASS 11N40SISO Ant2 5755 -7.10 ≤30.00 PASS 5795 -7.67 ≤30.00 PASS 11AC20SISO Ant2 5745 -4.14 ≤30.00 PASS 5785 -4.77 ≤30.00 PASS 5825 -5.92 ≤30.00 PASS 11AC40SISO Ant2 5755 -7.30 ≤30.00 PASS 5795 -7.71 ≤30.00 PASS 11AC80SISO Ant2 5775 -10.90 ≤30.00 PASS 11AX20SISO Ant2 5745 -4.52 ≤30.00 PASS 5785 -5.07 ≤30.00 PASS 5825 -6.21 ≤30.00 PASS 11AX40SISO Ant2 5755 -7.67 ≤30.00 PASS 5795 -8.14 ≤30.00 PASS 11AX80SISO Ant2 5775 -11.04 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factorand RBW Factoriscompensatedinthegraph. FCCID:2AYD5-I25M02 39 Test Graphs 11A_Ant2_5745 11A_Ant2_5785 11A_Ant2_5825 FCCID:2AYD5-I25M02 40 11N20SISO_Ant2_5745 11N20SISO_Ant2_5785 FCCID:2AYD5-I25M02 41 11N20SISO_Ant2_5825 11N40SISO_Ant2_5755 11N40SISO_Ant2_5795 FCCID:2AYD5-I25M02 42 11AC20SISO_Ant2_5745 11AC20SISO_Ant2_5785 FCCID:2AYD5-I25M02 43 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5755 11AC40SISO_Ant2_5795 FCCID:2AYD5-I25M02 44 11AC80SISO_Ant2_5775 11AX20SISO_Ant2_5745 FCCID:2AYD5-I25M02 45 11AX20SISO_Ant2_5785 11AX20SISO_Ant2_5825 11AX40SISO_Ant2_5755 FCCID:2AYD5-I25M02 46 11AX40SISO_Ant2_5795 11AX80SISO_Ant2_5775 FCCID:2AYD5-I25M02 47 Appendix G.7:Band edge measurements TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant2 Low 5745 5650~5700 -39.51 ≤-26.19 PASS 5700~5720 -38.19 ≤10.15 PASS 5720~5725 -37.14 ≤16.60 PASS 5760~5650 -39.9 ≤-27 PASS High 5825 5850~5855 -35.18 ≤15.73 PASS 5855~5875 -38.34 ≤10.02 PASS 5875~5925 -38.49 ≤-26.41 PASS 5925~5935 -38.36 ≤-27 PASS 11N20SI SO Ant2 Low 5745 5650~5700 -39.78 ≤-25.93 PASS 5700~5720 -38.57 ≤10.18 PASS 5720~5725 -38.28 ≤16.08 PASS 5760~5650 -39.6 ≤-27 PASS High 5825 5850~5855 -37.38 ≤15.73 PASS 5855~5875 -38.9 ≤10.13 PASS 5875~5925 -39.45 ≤-26.31 PASS 5925~5935 -38.37 ≤-27 PASS 11N40SI SO Ant2 Low 5755 5650~5700 -40.4 ≤-26.90 PASS 5700~5720 -37.55 ≤10.32 PASS 5720~5725 -33.5 ≤16.66 PASS 5780~5650 -39.6 ≤-27 PASS High 5795 5850~5855 -37.55 ≤17.16 PASS 5855~5875 -38.75 ≤10.48 PASS 5875~5925 -37.87 ≤-26.83 PASS 5925~5935 -38.47 ≤-27 PASS 11AC20S ISO Ant2 Low 5745 5650~5700 -40.04 ≤-26.96 PASS 5700~5720 -38.21 ≤10.41 PASS 5720~5725 -37.89 ≤15.82 PASS 5760~5650 -39.24 ≤-27 PASS High 5825 5850~5855 -38.03 ≤16.03 PASS 5855~5875 -37.83 ≤10.51 PASS 5875~5925 -39.36 ≤-26.61 PASS 5925~5935 -36.94 ≤-27 PASS 11AC40S ISO Ant2 Low 5755 5650~5700 -39.94 ≤-26.90 PASS 5700~5720 -32.63 ≤14.63 PASS 5720~5725 -33.38 ≤16.35 PASS 5780~5650 -38.42 ≤-27 PASS FCCID:2AYD5-I25M02 48 High 5795 5850~5855 -37.65 ≤17.16 PASS 5855~5875 -38.27 ≤10.43 PASS 5875~5925 -38.26 ≤-25.73 PASS 5925~5935 -37 ≤-27 PASS 11AC80S ISO Ant2 Low 5775 5650~5700 -40.24 ≤-26.80 PASS 5700~5720 -29.97 ≤13.09 PASS 5720~5725 -30.35 ≤17.77 PASS 5800~5650 -39.75 ≤-27 PASS High 5775 5850~5855 -39.33 ≤15.84 PASS 5855~5875 -38.76 ≤10.14 PASS 5875~5925 -40.11 ≤-26.87 PASS 5925~5935 -39.07 ≤-27 PASS 11AX20SI SO Ant2 Low 5745 5650~5700 -41.23 ≤-26.96 PASS 5700~5720 -36.3 ≤11.51 PASS 5720~5725 -29.25 ≤17.13 PASS 5760~5650 -38.89 ≤-27 PASS High 5825 5850~5855 -32.09 ≤20.34 PASS 5855~5875 -32.3 ≤15.24 PASS 5875~5925 -39.61 ≤-26.61 PASS 5925~5935 -38.53 ≤-27 PASS 11AX40SI SO Ant2 Low 5755 5650~5700 -39.26 ≤-26.90 PASS 5700~5720 -32.62 ≤13.39 PASS 5720~5725 -28.36 ≤17.58 PASS 5780~5650 -39.37 ≤-27 PASS High 5795 5850~5855 -39.58 ≤15.66 PASS 5855~5875 -36.97 ≤11.08 PASS 5875~5925 -39.34 ≤-26.83 PASS 5925~5935 -38.57 ≤-27 PASS 11AX80SI SO Ant2 Low 5775 5650~5700 -38.98 ≤-26.69 PASS 5700~5720 -30.65 ≤11.05 PASS 5720~5725 -31.93 ≤15.65 PASS 5800~5650 -39.21 ≤-27 PASS High 5775 5850~5855 -39.01 ≤16.26 PASS 5855~5875 -38.88 ≤10.14 PASS 5875~5925 -38.82 ≤-25.91 PASS 5925~5935 -38.2 ≤-27 PASS FCCID:2AYD5-I25M02 49 =11A_Ant2_Low_5745 11A_Ant2_High_5825 11N20SISO_Ant2_Low_5745 FCCID:2AYD5-I25M02 50 11N20SISO_Ant2_High_5825 11N40SISO_Ant2_Low_5755 FCCID:2AYD5-I25M02 51 11N40SISO_Ant2_High_5795 11AC20SISO_Ant2_Low_5745 11AC20SISO_Ant2_High_5825 FCCID:2AYD5-I25M02 52 11AC40SISO_Ant2_Low_5755 11AC40SISO_Ant2_High_5795 FCCID:2AYD5-I25M02 53 11AC80SISO_Ant2_Low_5775 11AC80SISO_Ant2_High_5775 11AX20SISO_Ant2_Low_5745 FCCID:2AYD5-I25M02 54 11AX20SISO_Ant2_High_5825 11AX40SISO_Ant2_Low_5755 FCCID:2AYD5-I25M02 55 11AX40SISO_Ant2_High_5795 11AX80SISO_Ant2_Low_5775 11AX80SISO_Ant2_High_5775 FCCID:2AYD5-I25M02 56 FCCID:2AYD5-I25M02 57 Appendix G.8:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant2 5745 30~5650 4857.02 -40.1 ≤-27 PASS 5925~27000 24186.49 -30.93 ≤-27 PASS 5785 30~5650 545…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. ..................... : FCC ID............................................. : GTS20251018009-2-05 2AYD5-I25M02 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Mar.02, 2026 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Imin Technology Pte Ltd Address ............................................ : 11 Bishan Street 21 #03-05 Singapore 573943 Test specification ........................... : Standard ........................................... : FCC Part 15.407: General technical requirements TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : POS Device Trade Mark ....................................... : Manufacturer .................................... : Imin Technology Pte Ltd Model/Type reference ...................... : I25M02 Listed Models .................................. : N/A Operation Frequency ........................ : From 5180MHz to 5250MHz/ 5250MHz to 5320MHz/ 5500MHz to 5700MHz/ 5745MHz to 5825MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 3.89V by battery Recharged by DC 9.0V Result ............................................... : PASS Report No.: GTS20251018009-2-05 Page 2 of 49 T E S T R E P O R T Test Report No. : GTS20251018009-2-05 Mar.02, 2026 ____________________________________________________________________________________ Date of issue Equipment under Test : POS Device Model /Type : I25M02 Listed model : N/A Applicant : Imin Technology Pte Ltd Address : 11 Bishan Street 21 #03-05 Singapore 573943 Manufacturer : Imin Technology Pte Ltd Address : 11 Bishan Street 21 #03-05 Singapore 573943 Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20251018009-2-05 Page 3 of 49 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 8 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 8 2.5. EUT operation mode .............................................................................................................................. 8 2.6. Block Diagram of Test Setup ................................................................................................................. 9 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 9 2.8. EUT Exercise Software .......................................................................................................................... 9 2.9. Special Accessories ............................................................................................................................... 9 2.10. External I/O Cable ................................................................................................................................ 9 2.11. Modifications ........................................................................................................................................ 9 3. TEST ENVIRONMENT ................................................................................................................................... 10 3.1. Address of the test laboratory .............................................................................................................. 10 3.2. Test Facility .......................................................................................................................................... 10 3.3. Environmental conditions ..................................................................................................................... 10 3.4. Statement of the measurement unc…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. .................... : FCC ID. ........................................... : GTS20251018009-2-06 2AYD5-I25M02 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Mar.02, 2026 Representative Laboratory Name : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ........................... : Imin Technolo…
