2AYD5-I26K01Touch All-in-One Computer, Kitchen Display Terminal, POS Device

LocalRepresentativeLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(7),oftheCommission’sRules(47C.F.R.)weattestasfollowsfor theproductlistedbelow: FCCIDModelname 2AYD5-I26K01 I26K01、I26K02 Weherebyacknowledgeasfollows: i.bothsigneesconfirmthatthepointofcontactacceptsresponsibilitytoactasaUS- AmericanRepresentativeonbehalfoftheapplicant ii.thepointofcontactprovidesthephysicalU.S.addressandemailaslistedbelow iii.bothpartiesmaintaintherequirementsofthisagreementwithoutexpirationdate US-AmericanPointofContactApplicant/ApprovalHolder SignatureSignature Compan yName: FCCUSAgent,LLCIminTechnologyPteLtd FRN:00334028840030267330 Contact Name: TimPayneFuJun Address : 3722IllinoisAvenue,SaintCharles, IL,60174,USA 11Bishanstreet21#03-05Singapore 573943Singapore Phone:708-571-314867413019 Email:[email protected]@imin.com

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AYD5-I26K01 I26K01, I26K02 We, Applicant Company Name: Imin Technology Pte Ltd Address: 11 Bishan Street 21, #03-05 Bosch Building, Singapore 573943 Phone: +65-67413019 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-08-06 Signature Date Name / Title: Jun Fu / Manager Company: Imin Technology Pte Ltd Address: 11 Bishan street 21 #03-05 Singapore 573943 Phone: +65-67413019 Fax: +65-67413989 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2AYD5-I26K01 I26K01, I26K02 Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software The memory used does not allow the running the cybersecurity and/or anti-virus software The storage capacity does not allow the running the cybersecurity and/or anti-virus software The operating system used is not capable of running the cybersecurity and/or anti-virus software No inherent compliance Based on software bill of material Compliance Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen Global Test Service Co., Ltd. Contact Name: Peter Xiao Address: No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong, China Phone: +86-755-28717088 Email: [email protected] Date: 2026-08-06 Signature:

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2AYD5-I26K01 I26K01, I26K02 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-08-06 Signature Date Name / Title: Jun Fu / Manager Company: Imin Technology Pte Ltd Address: 11 Bishan street 21 #03-05 Singapore 573943 Phone: +65-67413019 Fax: +65-67413989 E-Mail: [email protected]

Page 1 of 1 Rev.2.0 Imin Technology Pte Ltd WIFI Channel 12 and 13 Declaration Letter We declare the equipment identified below with regards to Channel 12 and 13 capabilities for FCC ID: 2AYD5-I26K01 Declaration Product hardware does not have the capability to operate on Channel 12 and 13. Product hardware has the capability to operate on Channel 12 and 13. However, these two channels will be disabled via software and will not be accessible to user. Product hardware has the capability to operate on Channel 12 and 13. However, all the operated channels can’t be changed in the RF parameter via software. All channels have complied with all of the requirements sets out in FCC Part 15.247. Product hardware has the capability to operate on WiFi Channel 12 and 13, and meets the requirements of KDB 594280 D01 v02r01. Please note: 1.) By default, this device operates in a mode that is compliant with the U.S. requirements. 2.) This device will also use supplemental information such as geo- location data to determine that it is operating outside the U.S., if necessary, to change its power. Such supplemental data will be derived from the following: Global Navigation Satellite System (GNSS)7 sensors in the device Mobile Country Code (MCC),8 or MCC with a Mobile Network code (MNC), received from a CMRS9 carrier and received directly by a receiver on the device Country information derived from multiple adjacent access points (for example using IEEE Std 802.11d provisions) may be permitted on case-by-case basis Other suitable geo-location data based on IP addresses or other reliable source. Name / Title: Jun Fu / Manager Signature: Phone: +65-67413019 Email: [email protected] Date: 2026-08-06

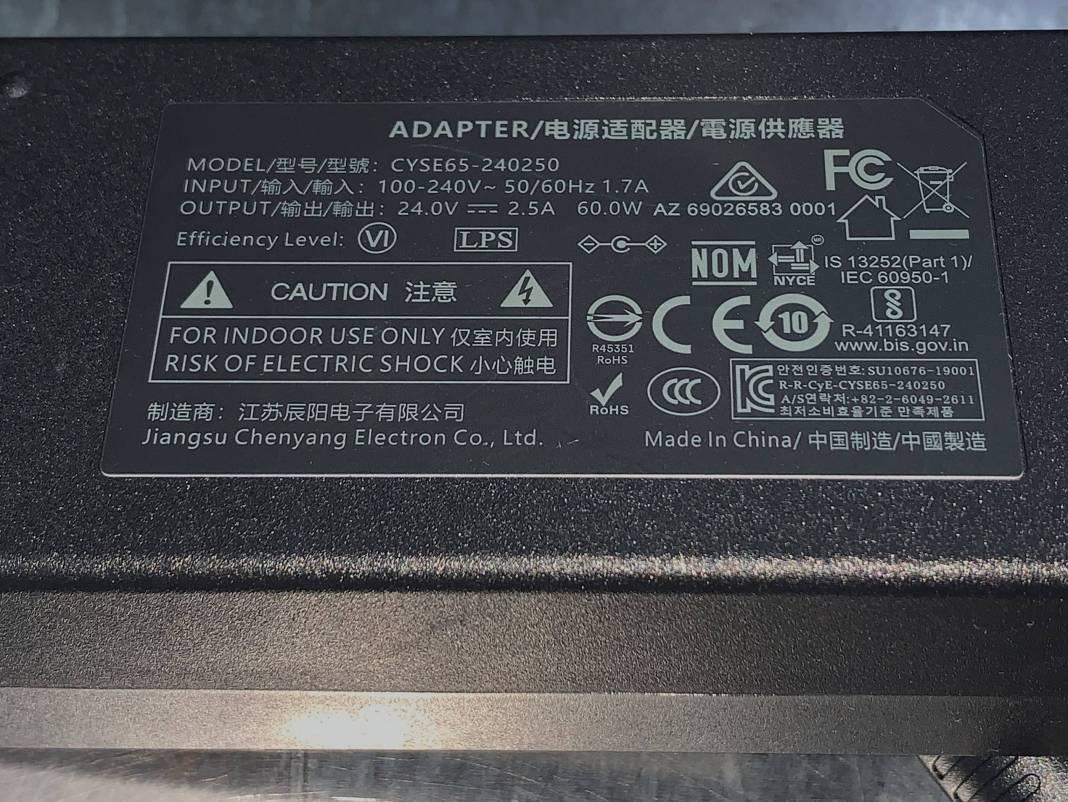

FCC ID: 2AYD5-I26K01 Fig. 1 Fig. 2 I26K01_Version A Model: I26K0121 (Optional) FCC ID: 2AYD5-I26K01 Fig. 3 Fig. 4 FCC ID: 2AYD5-I26K01 Fig. 5 Fig. 6 FCC ID: 2AYD5-I26K01 Fig. 7 Fig. 8 FCC ID: 2AYD5-I26K01 Fig. 9 Fig. 10 I26K01_Version B FCC ID: 2AYD5-I26K01 Fig. 11 Fig. 12 FCC ID: 2AYD5-I26K01 Fig. 13 Fig. 14 FCC ID: 2AYD5-I26K01 Fig. 15 Fig. 16 I26K02_Version A FCC ID: 2AYD5-I26K01 Fig. 17 Fig. 18 FCC ID: 2AYD5-I26K01 Fig. 19 Fig. 20 FCC ID: 2AYD5-I26K01 Fig. 21 Fig. 22 FCC ID: 2AYD5-I26K01 Fig. 23 Fig. 24 I26K02_Version B FCC ID: 2AYD5-I26K01 Fig. 25 Fig. 26 FCC ID: 2AYD5-I26K01 Fig. 27 Fig. 28 FCC ID: 2AYD5-I26K01 Fig. 29 Fig. 30 FCC ID: 2AYD5-I26K01 Fig. 31 Fig. 32

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L8.2cm x 1.8cm) Label Location

FCC ID: 2AYD5-I26K01 Fig. 1 Fig. 2 I26K01_Version A FCC ID: 2AYD5-I26K01 Fig. 3 Fig. 4 FCC ID: 2AYD5-I26K01 Fig. 5 Fig. 6 FCC ID: 2AYD5-I26K01 Fig. 7 Fig. 8 FCC ID: 2AYD5-I26K01 Fig. 9 Fig. 10 Antenna FCC ID: 2AYD5-I26K01 Fig. 11 Fig. 12 I26K01_Version B FCC ID: 2AYD5-I26K01 Fig. 13 Fig. 14 FCC ID: 2AYD5-I26K01 Fig. 15 Fig. 16 FCC ID: 2AYD5-I26K01 Fig. 17 Fig. 18 I26K02_Version A Antenna FCC ID: 2AYD5-I26K01 Fig. 19 Fig. 20 FCC ID: 2AYD5-I26K01 Fig. 21 Fig. 22 FCC ID: 2AYD5-I26K01 Fig. 23 Fig. 24 FCC ID: 2AYD5-I26K01 Fig. 25 Fig. 26 FCC ID: 2AYD5-I26K01 Fig. 27 Fig. 28 FCC ID: 2AYD5-I26K01 Fig. 29 Fig. 30 I26K02_Version B Antenna FCC ID: 2AYD5-I26K01 Fig. 31 Fig. 32 FCC ID: 2AYD5-I26K01 Fig. 33 Fig. 34 FCC ID: 2AYD5-I26K01 Fig. 35 Fig. 36 FCC ID: 2AYD5-I26K01 Fig. 37 Fig. 38 Antenna

Antenna Testing Report Customer：sanggeer Project Name：kp1-11 Report version：Jun. 22th, 2026 A0 Author：liuyi 1 Record VersionReport dateRemark A02026.06.22Preliminary Commissioning Report A1 A2 A3 A4 A5 A6 A7 A8 A9 2 /18 Contents 1. Record.............................................................................................2 2. Project Overview .................................................................................4 3. Equipment List....................................................................................5 4. Project pictures and Passive fixturs............................................................6 5. Version Information ..............................................................................7 6. Matching Circuit .................................................................................7 7. Passive parameters ..............................................................................12 8. Passive efficiency ..............................................................................16 9. Active data .......................................................................................19 10.SAR test ..........................................................................................19 11. Environment Specification.....................................................................23 12. Directional pattern ..............................................................................24 13. Summary .......................................................................................28 3 /18 Prototype statusDebugging machine Device typetablet Number of antennaswifi antenna Frequency band wifi2.4/5.8 Structural styleFPC+cable Environment adjustment change Matching modificationNo change Project Overview 4 /18 Equipment List Equipments Items Total Quantity Quantity for Shanghai R&D Quantity for Shenzhen R&D Quantity for ChongQing R&D OTA chamber10451 5G Tester （ SP9500-CTS ） 3111 R&S Tester （ high configuration CMW500 ） 6321 Japan Anritsu Tester （ Dual Channel 8820 ） 422-- NB-IoT Tester (SP8315)3111 Agilent Tester （ 8960 ） 944-- Agilent Network Analyzer （ E5062A ） 733 1 Agilent Network Analyzer （ E5071C 8.5GHZ ) 11551 Agilent Network Analyzer （ E5071B 8.5GHZ ) 7331 R&S Network Analyzer （ ZND ） 9441 R&S Network Analyzer （ ZVB ） 3111 OTA head hand / ear hand / arm hand 5221 GPS/WIFI active test equipment522 1 The industry's top 64 sensors OTA chamber Frequency range: 400MHz-11GHz Device Llimitation: 2M Load-bearing limitation:100KG 5 /18 Antenna mounting position 6 /18 Active data 7 /18 2.4G信道TRP TIS 802.11b 11mbps 1 9.71 6 10.06 11 11.16-81.38 5G信道TRPTIS 802.11a 54mbps 36 11.16 149 11.34 165 11.42-70.26 2# 2.4G信道TRP TIS 802.11b 11mbps 1 9.57 6 10.48 11 11.06-81.6 5G信道TRPTIS 802.11a 54mbps 36 10.84 149 11.11 165 11.05-70.57 2.4G信道TRP TIS 802.11b 11mbps 1 10.12 6 10.34 11 11.03-81.49 5G信道TRPTIS 802.11a 54mbps 36 11.39 149 11.34 165 11.26-70.22 3#4# Passive parameters wifi Antenna 8 /18 Passive parameters 9 /18 2D Passive parameters 10 /18 3D Passive efficiency and Gain 11 /18 FreqEffiGain (MHz)(%)(dB) 2400 35.922.28 2410 38.532.17 2420 32.361.35 2430 32.271.14 2440 31.881.41 2450 34.061.4 2460 38.821.43 2470 36.640.57 2480 38.021.2 2490 35.81-0.04 2500 35.650.21 FreqEffiGain (MHz)(%)(dB) 5150 29.991.82 5200 34.913 5250 35.813.46 5300 34.673.55 5350 33.653.06 5400 39.543.22 5450 39.083.32 5500 32.281.93 5550 35.081.74 5600 32.811.95 5650 32.662.12 5700 27.80.61 5750 24.550.96 5800 30.342.44 5850 29.992.21 Environment Specification 12 /18 Six areas in the diagram are covered with conductive foam tape for grounding, while the rest do not require the use of conductive foam tape at this time. Summary 13 /18 1.The antenna match has not been modified. 2.Enhance environmental handling by applying conductive foam tape to the motherboard and grounding the screen.。 Thank You Shanghai R&D Center: 1F, Building 4, No.99, Lane 215, Gaoguang Road, Qingpu District, Shanghai, 201799, PRC Shenzhen R&D Center: Room 405, Jinke Building, No.8, Qiongyu Road, Nanshan District, Shenzhen, 518057, PRC ChongQing R&D Center: 1F, ARM Ecological Industrial Park, 19 East Datugu Road, Xiantao, Yubei District, Chongqing, 401120, PRC Huizhou Factory: F4-6, Building 8, Xiongtao Tech Park, No.15, Qingli 2nd Rd, Huicheng Dist, Huizhou City,516255,PRC TEL：021-60835368 E-mail：[email protected] www.sunnyway-iot.com 14 /18 ShenZhenXingYuanChuangTechnologyCo.,Ltd SPECIFICATIONFORAPPROVAL CustomerSanggeerDATE2026-06-29 CUSTOMERPARTNAMEWiFiAntennaVENDORPARTNAMEWiFiAntenna SPECIFICATIONpenguin1SPECIFICATIONpenguin1 CUSTOMERPARTNO.VENDORPARTNO. （PRE.）：(CHKEDBY)：（APPROVEDBY）： （APPROVALRESULT）：  Passed  LimitedConcession,Q'ty: Revision： KeyTestPoints： (REMARK) ： (APPD) ： DQA(CHKEDBY)： （APPROVEDBY）： Address: Room610-614,BuildingC,Ma'anshanJinsheng FortunePlaza,MaanshanCommunity,Shajing Sub-district,Bao'anDistrict,ShenzhenCity Tel:0755-82103639 Fax：0755-82103639 E--MAIL ：[email protected] Website： ShenZhenXingYuanChuangTechnologyCo.,Ltd Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] ApprovalSheet CustomerSangarData2026/06/29 ProductWiFiAntenna Modelspenguin1 P/N F1686-21LB-158CustomerP/N Specifications BlackFPC,MI-1131st-genconnectorblackcoaxialcable,Length L=158mm VenderApprovedByCustomerApprovedBy CheckedBy:CheckedBy: ApprovalBy:ApprovalBy: DocumentrevisionResume Version ReviseTheContentRevusedApprovalDateNote ShenZhenXingYuanChuangTechnologyCo.,Ltd Address:Room610-614,BuildingC,Ma'anshanJinshengFortunePlaza,Ma'anshanCommunity,ShajingSub-district, Bao'anDistrict,ShenzhenCityTel：0755-82103639QQ：487580356Email：[email protected] Content NO.ProectPageNO. 1Specification4 2AntennaPlacement5 3 Matchingcircuit 6 4TestData7~~11 5AntennaAssembly12 6Notes13 7InspectionStandard14 8ListOfRawMaterials15 9OutgoingInspectionReport16 10PackingSpecific…

Text truncated - open the document above for the full version.

FCC ID: 2AYD5-126K01 1 Case No. : GTS20260316016-1-12 Ambient Condition: 24 °C, 46 %RH According Standard: ■Part15C Test Date: 2026.7.10-2026.7.28 Test Engineer: Evan ouyang AppendixB.1: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 0.732 2401.612 2402.344 0.5 PASS 2440 0.660 2439.652 2440.312 0.5 PASS 2480 0.692 2479.620 2480.312 0.5 PASS FCC ID: 2AYD5-126K01 2 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2AYD5-126K01 3 FCC ID: 2AYD5-126K01 4 AppendixB.2: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE Ant1 2402 1.0230 2401.4690 2402.4920 --- --- 2440 1.0201 2439.4678 2440.4879 --- --- 2480 1.0231 2479.4668 2480.4899 --- --- FCC ID: 2AYD5-126K01 5 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2AYD5-126K01 6 FCC ID: 2AYD5-126K01 7 AppendixB.3: Maximum conducted output power Test Result Peak DC 24V: TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE Ant1 2402 5.86 ≤30 PASS 2440 7.80 ≤30 PASS 2480 8.06 ≤30 PASS DC 55V(PoE++): TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE Ant1 2402 5.42 ≤30 PASS 2440 7.55 ≤30 PASS 2480 7.85 ≤30 PASS FCC ID: 2AYD5-126K01 8 AppendixB.4: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE Ant1 2402 -11.31 ≤8.00 PASS 2440 -9.33 ≤8.00 PASS 2480 -9.09 ≤8.00 PASS FCC ID: 2AYD5-126K01 9 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2AYD5-126K01 10 FCC ID: 2AYD5-126K01 11 AppendixB.5:Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 Low 2402 4.56 -49.13 ≤-15.44 PASS High 2480 6.38 -49.24 ≤-13.62 PASS FCC ID: 2AYD5-126K01 12 Test Graphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 FCC ID: 2AYD5-126K01 13 AppendixB.6:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE Ant1 2402 Reference 4.61 4.61 --- PASS 30~1000 4.61 -60.8 ≤-15.39 PASS 1000~26500 4.61 -47.86 ≤-15.39 PASS 2440 Reference 6.56 6.56 --- PASS 30~1000 6.56 -60.25 ≤-13.44 PASS 1000~26500 6.56 -47.61 ≤-13.44 PASS 2480 Reference 6.86 6.86 --- PASS 30~1000 6.86 -60.52 ≤-13.14 PASS 1000~26500 6.86 -47.93 ≤-13.14 PASS FCC ID: 2AYD5-126K01 14 Test Graphs BLE_Ant1_2402_0~Reference BLE_Ant1_2402_30~1000 BLE_Ant1_2402_1000~26500 FCC ID: 2AYD5-126K01 15 BLE_Ant1_2440_0~Reference BLE_Ant1_2440_30~1000 FCC ID: 2AYD5-126K01 16 BLE_Ant1_2440_1000~26500 BLE_Ant1_2480_0~Reference BLE_Ant1_2480_30~1000 FCC ID: 2AYD5-126K01 17 BLE_Ant1_2480_1000~26500 FCC ID: 2AYD5-126K01 18 AppendixB.7: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] Duty Cycle Factor[dB] 1/T Factor[KHz] BLE Ant1 2402 2.13 2.51 0.8486 84.86 0.71 0.47 2440 2.12 2.49 0.8514 85.14 0.70 0.47 2480 2.12 2.49 0.8514 85.14 0.70 0.47 FCC ID: 2AYD5-126K01 19 Test Graphs BLE_Ant1_2402 BLE_Ant1_2440 BLE_Ant1_2480 FCC ID: 2AYD5-126K01 20 FCC ID: 2AYD5-126K01 21 AppendixB.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz ) Detector Freq [MHz] Result [dBm] Limit [dBm] Result [dBuV/m] Limit [dBuV/m] Verdict BLE Ant1 Low 2402 AV 2310.000 -49.27 ≤-41.20 45.93 ≤54 PASS AV 2384.630 -48.64 ≤-41.20 46.56 ≤54 PASS AV 2390.000 -48.86 ≤-41.20 46.34 ≤54 PASS Peak 2310.000 -42.71 ≤-21.20 52.49 ≤74 PASS Peak 2376.125 -39.22 ≤-21.20 55.98 ≤74 PASS Peak 2390.000 -42.85 ≤-21.20 52.35 ≤74 PASS High 2480 AV 2483.500 -45.34 ≤-41.20 49.86 ≤54 PASS AV 2483.520 -45.33 ≤-41.20 49.87 ≤54 PASS AV 2500.000 -48.28 ≤-41.20 46.92 ≤54 PASS Peak 2483.500 -41.95 ≤-21.20 53.25 ≤74 PASS Peak 2490.240 -38.37 ≤-21.20 56.83 ≤74 PASS Peak 2500.000 -42.24 ≤-21.20 52.96 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The Duty Cycle Factor and RBW Factor is compensated in the graph. 3. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. FCC ID: 2AYD5-126K01 22 Test Graphs BLE_Ant1_Low_2402_AV BLE_Ant1_Low_2402_Peak BLE_Ant1_High_2480_AV FCC ID: 2AYD5-126K01 23 BLE_Ant1_High_2480_Peak

FCC ID: 2AYD5-126K01 1 Case No. : GTS20260316016-1-13 Ambient Condition: 24°C,46%RH, Test Date: 2026.7.10-2026.7.28Test Engineer:Evan ouyang AppendixC.1: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.280 2407.360 2416.640 0.5 PASS 2437 9.280 2432.360 2441.640 0.5 PASS 2462 9.280 2457.360 2466.640 0.5 PASS 11G Ant1 2412 16.240 2403.800 2420.040 0.5 PASS 2437 16.280 2428.840 2445.120 0.5 PASS 2462 16.200 2453.880 2470.080 0.5 PASS 11N20SISO Ant1 2412 17.440 2403.240 2420.680 0.5 PASS 2437 17.480 2428.200 2445.680 0.5 PASS 2462 17.480 2453.280 2470.760 0.5 PASS 11N40SISO Ant1 2422 36.160 2404.000 2440.160 0.5 PASS 2437 36.080 2418.920 2455.000 0.5 PASS 2452 35.840 2434.080 2469.920 0.5 PASS 11AX20SISO Ant1 2412 18.960 2402.480 2421.440 0.5 PASS 2437 18.680 2427.560 2446.240 0.5 PASS 2462 18.720 2452.720 2471.440 0.5 PASS 11AX40SISO Ant1 2422 37.120 2403.440 2440.560 0.5 PASS 2437 37.040 2418.520 2455.560 0.5 PASS 2452 36.960 2433.440 2470.400 0.5 PASS FCC ID: 2AYD5-126K01 2 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2AYD5-126K01 3 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2AYD5-126K01 4 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2AYD5-126K01 5 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2AYD5-126K01 6 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 FCC ID: 2AYD5-126K01 7 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 FCC ID: 2AYD5-126K01 8 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 FCC ID: 2AYD5-126K01 9 FCC ID: 2AYD5-126K01 10 AppendixC.2: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.239 2405.4069 2418.6459 --- --- 2437 13.273 2430.3943 2443.6673 --- --- 2462 13.380 2455.3177 2468.6977 --- --- 11G Ant1 2412 17.339 2403.3299 2420.6689 --- --- 2437 17.385 2428.2953 2445.6803 --- --- 2462 17.240 2453.3241 2470.5641 --- --- 11N20SISO Ant1 2412 18.443 2402.7181 2421.1611 --- --- 2437 18.492 2427.7128 2446.2048 --- --- 2462 18.516 2452.6539 2471.1699 --- --- 11N40SISO Ant1 2422 36.772 2403.5643 2440.3363 --- --- 2437 36.844 2418.6087 2455.4527 --- --- 2452 36.659 2433.6579 2470.3169 --- --- 11AX20SISO Ant1 2412 19.192 2402.3954 2421.5874 --- --- 2437 19.194 2427.3999 2446.5939 --- --- 2462 19.234 2452.3682 2471.6022 --- --- 11AX40SISO Ant1 2422 37.989 2402.9819 2440.9709 --- --- 2437 38.012 2418.0297 2456.0417 --- --- 2452 37.935 2432.9641 2470.8991 --- --- FCC ID: 2AYD5-126K01 11 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2AYD5-126K01 12 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2AYD5-126K01 13 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2AYD5-126K01 14 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2AYD5-126K01 15 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 FCC ID: 2AYD5-126K01 16 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 FCC ID: 2AYD5-126K01 17 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 FCC ID: 2AYD5-126K01 18 FCC ID: 2AYD5-126K01 19 AppendixC.3: Maximum conducted output power Test Result DC 24V: Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 17.08 ≤30.00 PASS 2437 17.44 ≤30.00 PASS 2462 18.42 ≤30.00 PASS 11G Ant1 2412 16.85 ≤30.00 PASS 2437 17.65 ≤30.00 PASS 2462 18.41 ≤30.00 PASS 11N20SISO Ant1 2412 16.89 ≤30.00 PASS 2437 17.65 ≤30.00 PASS 2462 18.45 ≤30.00 PASS 11N40SISO Ant1 2422 16.83 ≤30.00 PASS 2437 17.75 ≤30.00 PASS 2452 17.65 ≤30.00 PASS 11AX20SISO Ant1 2412 17.49 ≤30.00 PASS 2437 18.22 ≤30.00 PASS 2462 18.87 ≤30.00 PASS 11AX40SISO Ant1 2422 17.28 ≤30.00 PASS 2437 18.20 ≤30.00 PASS 2452 18.09 ≤30.00 PASS FCC ID: 2AYD5-126K01 20 DC 55V(PoE++): Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 16.67 ≤30.00 PASS 2437 17.02 ≤30.00 PASS 2462 18.15 ≤30.00 PASS 11G Ant1 2412 16.33 ≤30.00 PASS 2437 17.42 ≤30.00 PASS 2462 18.21 ≤30.00 PASS 11N20SISO Ant1 2412 16.63 ≤30.00 PASS 2437 17.28 ≤30.00 PASS 2462 18.15 ≤30.00 PASS 11N40SISO Ant1 2422 16.53 ≤30.00 PASS 2437 17.32 ≤30.00 PASS 2452 17.25 ≤30.00 PASS 11AX20SISO Ant1 2412 17.13 ≤30.00 PASS 2437 18.01 ≤30.00 PASS 2462 18.33 ≤30.00 PASS 11AX40SISO Ant1 2422 16.89 ≤30.00 PASS 2437 17.67 ≤30.00 PASS 2452 17.72 ≤30.00 PASS FCC ID: 2AYD5-126K01 21 AppendixC.4: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -8.38 ≤8.00 PASS 2437 -6.98 ≤8.00 PASS 2462 -6.93 ≤8.00 PASS 11G Ant1 2412 -14.89 ≤8.00 PASS 2437 -14.26 ≤8.00 PASS 2462 -13.82 ≤8.00 PASS 11N20SISO Ant1 2412 -15.05 ≤8.00 PASS 2437 -14.18 ≤8.00 PASS 2462 -13.68 ≤8.00 PASS 11N40SISO Ant1 2422 -18.39 ≤8.00 PASS 2437 -16.57 ≤8.00 PASS 2452 -17.25 ≤8.00 PASS 11AX20SISO Ant1 2412 -16.15 ≤8.00 PASS 2437 -14.92 ≤8.00 PASS 2462 -14.02 ≤8.00 PASS 11AX40SISO Ant1 2422 -18.22 ≤8.00 PASS 2437 -17.80 ≤8.00 PASS 2452 -17.73 ≤8.00 PASS FCC ID: 2AYD5-126K01 22 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2AYD5-126K01 23 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2AYD5-126K01 24 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2AYD5-126K01 25 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 FCC ID: 2AYD5-126K01 26 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 FCC ID: 2AYD5-126K01 27 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 FCC ID: 2AYD5-126K01 28 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 11AX40SISO_Ant1_2452 FCC ID: 2AYD5-126K01 29 FCC ID: 2AYD5-126K01 30 AppendixC.5:Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 5.81 -40.48 ≤-14.19 PASS High 2462 6.95 -47.95 ≤-13.05 PASS 11G Ant1 Low 2412 -1.47 -30.37 ≤-21.47 PASS High 2462 0.82 -46.62 ≤-19.18 PASS 11N20SISO Ant1 Low 2412 -1.69 -30.99 ≤-21.69 PASS High 2462 0.91 -44.88 ≤-19.09 PASS 11N40SISO Ant1 Low 2422 -4.01 -35.18 ≤-24.01 PASS High 2452 -3.22 -43.15 ≤-23.22 PASS 11AX20SISO Ant1 Low …

Text truncated - open the document above for the full version.

FCC ID: 2AYD5-126K01 36 AppendixC.6:Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 5.69 5.69 --- PASS 30~1000 5.69 -51.29 ≤-14.31 PASS 1000~26500 5.69 -44.25 ≤-14.31 PASS 2437 Reference 5.04 5.04 --- PASS 30~1000 5.04 -53.12 ≤-14.96 PASS 1000~26500 5.04 -45.21 ≤-14.96 PASS 2462 Reference 5.73 5.73 --- PASS 30~1000 5.73 -52.53 ≤-14.27 PASS 1000~26500 5.73 -43.92 ≤-14.27 PASS 11G Ant1 2412 Reference -1.07 -1.07 --- PASS 30~1000 -1.07 -60.65 ≤-21.07 PASS 1000~26500 -1.07 -46.86 ≤-21.07 PASS 2437 Reference -2.27 -2.27 --- PASS 30~1000 -2.27 -60.58 ≤-22.27 PASS 1000~26500 -2.27 -47.74 ≤-22.27 PASS 2462 Reference -1.60 -1.60 --- PASS 30~1000 -1.60 -59.99 ≤-21.6 PASS 1000~26500 -1.60 -47.14 ≤-21.6 PASS 11N20SISO Ant1 2412 Reference -1.93 -1.93 --- PASS 30~1000 -1.93 -60.53 ≤-21.93 PASS 1000~26500 -1.93 -47.79 ≤-21.93 PASS 2437 Reference -0.59 -0.59 --- PASS 30~1000 -0.59 -60.57 ≤-20.59 PASS 1000~26500 -0.59 -47.69 ≤-20.59 PASS 2462 Reference -0.33 -0.33 --- PASS 30~1000 -0.33 -60.56 ≤-20.33 PASS 1000~26500 -0.33 -47.19 ≤-20.33 PASS 11N40SISO Ant1 2422 Reference -5.61 -5.61 --- PASS 30~1000 -5.61 -60.59 ≤-25.61 PASS 1000~26500 -5.61 -46.85 ≤-25.61 PASS 2437 Reference -3.62 -3.62 --- PASS 30~1000 -3.62 -60.21 ≤-23.62 PASS 1000~26500 -3.62 -47.9 ≤-23.62 PASS 2452 Reference -3.34 -3.34 --- PASS 30~1000 -3.34 -60.02 ≤-23.34 PASS 1000~26500 -3.34 -47.38 ≤-23.34 PASS FCC ID: 2AYD5-126K01 37 11AX20SISO Ant1 2412 Reference -2.01 -2.01 --- PASS 30~1000 -2.01 -60.15 ≤-22.01 PASS 1000~26500 -2.01 -47.85 ≤-22.01 PASS 2437 Reference -1.26 -1.26 --- PASS 30~1000 -1.26 -60.33 ≤-21.26 PASS 1000~26500 -1.26 -47.63 ≤-21.26 PASS 2462 Reference 0.86 0.86 --- PASS 30~1000 0.86 -60.88 ≤-19.14 PASS 1000~26500 0.86 -46.31 ≤-19.14 PASS 11AX40SISO Ant1 2422 Reference -4.38 -4.38 --- PASS 30~1000 -4.38 -60.2 ≤-24.38 PASS 1000~26500 -4.38 -47.4 ≤-24.38 PASS 2437 Reference -3.34 -3.34 --- PASS 30~1000 -3.34 -60.23 ≤-23.34 PASS 1000~26500 -3.34 -47.5 ≤-23.34 PASS 2452 Reference -3.52 -3.52 --- PASS 30~1000 -3.52 -61.01 ≤-23.52 PASS 1000~26500 -3.52 -47.32 ≤-23.52 PASS FCC ID: 2AYD5-126K01 38 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 FCC ID: 2AYD5-126K01 39 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 FCC ID: 2AYD5-126K01 40 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 FCC ID: 2AYD5-126K01 41 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference FCC ID: 2AYD5-126K01 42 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference FCC ID: 2AYD5-126K01 43 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 FCC ID: 2AYD5-126K01 44 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 FCC ID: 2AYD5-126K01 45 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 FCC ID: 2AYD5-126K01 46 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 FCC ID: 2AYD5-126K01 47 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference FCC ID: 2AYD5-126K01 48 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference FCC ID: 2AYD5-126K01 49 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 FCC ID: 2AYD5-126K01 50 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 FCC ID: 2AYD5-126K01 51 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 FCC ID: 2AYD5-126K01 52 11N40SISO_Ant1_2452_1000~26500 11AX20SISO_Ant1_2412_0~Reference 11AX20SISO_Ant1_2412_30~1000 FCC ID: 2AYD5-126K01 53 11AX20SISO_Ant1_2412_1000~26500 11AX20SISO_Ant1_2437_0~Reference FCC ID: 2AYD5-126K01 54 11AX20SISO_Ant1_2437_30~1000 11AX20SISO_Ant1_2437_1000~26500 11AX20SISO_Ant1_2462_0~Reference FCC ID: 2AYD5-126K01 55 11AX20SISO_Ant1_2462_30~1000 11AX20SISO_Ant1_2462_1000~26500 FCC ID: 2AYD5-126K01 56 11AX40SISO_Ant1_2422_0~Reference 11AX40SISO_Ant1_2422_30~1000 11AX40SISO_Ant1_2422_1000~26500 FCC ID: 2AYD5-126K01 57 11AX40SISO_Ant1_2437_0~Reference 11AX40SISO_Ant1_2437_30~1000 FCC ID: 2AYD5-126K01 58 11AX40SISO_Ant1_2437_1000~26500 11AX40SISO_Ant1_2452_0~Reference 11AX40SISO_Ant1_2452_30~1000 FCC ID: 2AYD5-126K01 59 11AX40SISO_Ant1_2452_1000~26500 FCC ID: 2AYD5-126K01 60 AppendixC.7: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11B Ant1 2412 12.22 12.40 98.55 0.06 0.08 2437 12.22 12.36 98.87 0.05 0.08 2462 12.23 12.36 98.95 0.05 0.08 11G Ant1 2412 2.03 2.27 89.43 0.49 0.49 2437 2.03 2.20 92.27 0.35 0.49 2462 2.03 2.21 91.86 0.37 0.49 11N20SISO Ant1 2412 1.89 2.16 87.50 0.58 0.53 2437 1.89 2.48 76.21 1.18 0.53 2462 1.89 2.13 88.73 0.52 0.53 11N40SISO Ant1 2422 0.92 1.16 79.31 1.01 1.09 2437 0.94 1.24 75.81 1.20 1.06 2452 0.94 1.38 68.12 1.67 1.06 11AX20SISO Ant1 2412 1.46 1.70 85.88 0.66 0.68 2437 1.46 1.69 86.39 0.64 0.68 2462 1.46 1.73 84.39 0.74 0.68 11AX40SISO Ant1 2422 0.76 1.00 76.00 1.19 1.32 2437 0.76 1.00 76.00 1.19 1.32 2452 0.76 1.00 76.00 1.19 1.32 FCC ID: 2AYD5-126K01 61 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 FCC ID: 2AYD5-126K01 62 11G_Ant1_2412 11G_Ant1_2437 FCC ID: 2AYD5-126K01 63 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 FCC ID: 2AYD5-126K01 64 11N20SISO_Ant1_2462 11N40SIS…

Text truncated - open the document above for the full version.
