2AYDXSCMAA1Symphoney Classroom AI Enabled Classroom Hub

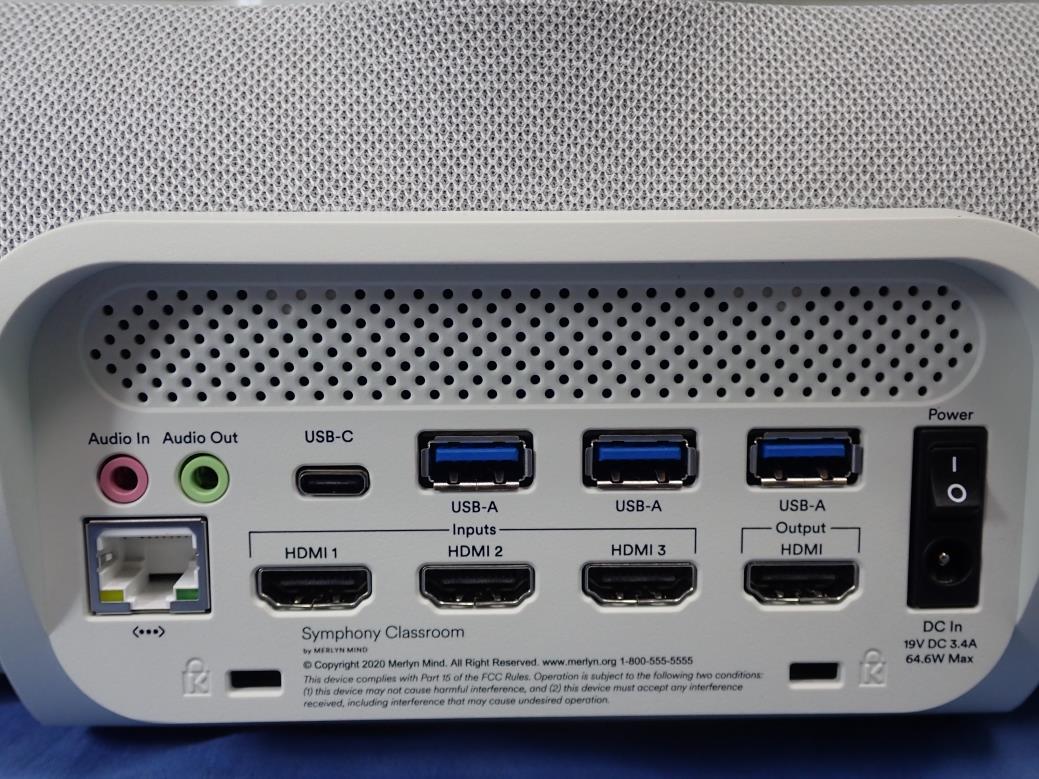

6 Remove tab to activate batteries Retirez la languette pour activer les piles Power on Allumez 5 Wiring & I/O Panel Connections Cablage & connexions de panneau I/S USB-A Power Switch Commutateur d’laimentation DC In Entree DC HDMI Out Sortie HDMI USB-C Audio Out Sortie Audio Audio In Entree Audio Ethernet RJ-45 HDMI In Entree HDMI Kensington Security Slot Fente Securite de Kensington 7 Setup Installer Follow the instructions on screen Suivez les instructions à l’écran (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To comply with the Canadian RF exposure compliance requirements, this device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Avis Canadien Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Pour se conformer aux exigences de conformité RF canadienne l’exposition, cet appareil et son antenne ne doivent pas être co-localisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur. THE TERMS HDMI, HDMI HIGH-DEFINITION MULTIMEDIA INTERFACE, AND THE HDMI LOGO ARE TRADEMARKS OR REGISTERED TRADEMARKS OF HDMI LICENSING ADMINISTRATOR, INC LES TERMES HDMI, INTERFACE MULTIMÉDIA HAUTE DÉFINITION HDMI ET LE LOGO HDMI SONT DES MARQUES COMMERCIALES OU DES MARQUES DÉPOSÉES DE HDMI LICENSING ADMINISTRATOR, INC. THE BLUETOOTH® WORD MARK AND LOGOS ARE REGISTERED TRADEMARKS OWNED BY BLUETOOTH SIG, INC. AND ANY USE OF SUCH MARKS BY MERLYN MIND INC. IS UNDER LICENSE. OTHER TRADEMARKS AND TRADE NAMES ARE THOSE OF THEIR RESPECTIVE OWNERS. LA MARQUE ET LES LOGOS BLUETOOTH® SONT DES MARQUES DÉPOSÉES APPARTENANT À BLUETOOTH SIG, INC. ET TOUTE UTILISATION DE CES MARQUES PAR MERLYN MIND INC. SE FAIT SOUS LICENCE. LES AUTRES MARQUES ET NOMS COMMERCIAUX APPARTIENNENT À LEURS PROPRIÉTAIRES RESPECTIFS. ALL OTHER NAMES OF SYSTEMS, PRODUCTS, AND SERVICES ARE TRADEMARKS OF THEIR RESPECTIVE OWNERS. IN THE MANUAL, THE ™ OR ® MARKS ARE NOT SPECIFIED. FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. TOUS LES AUTRES NOMS DE SYSTÈMES, PRODUITS ET SERVICES SONT DES MARQUES DÉPOSÉES DE LEURS PROPRIÉTAIRES RESPECTIFS. DANS LE MANUEL, LES MARQUES ™ OU ® NE SONT PAS SPÉCIFIÉES. LES CARACTÉRISTIQUES ET SPÉCIFICATIONS PEUVENT ÊTRE MODIFIÉES SANS PRÉAVIS. © 2020 MERLYN MIND™ INC. ALL RIGHTS RESERVED. SYMPHONY CLASSROOM™, AND MERLYN MIND™ ARE TRADEMARKS OR REGISTERED TRADEMARKS OF MERLYN MIND™ INC. © 2020 MERLYN MIND ™ INC. TOUS DROITS RÉSERVÉS. SYMPHONY CLASSROOM ™ ET MERLYN MIND ™ SONT DES MARQUES COMMERCIALES OU DES MARQUES DÉPOSÉES DE MERLYN MIND ™ INC. FCC STATEMENT This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help CAUTION: Changes or modifications made to the equipment without express manufacturer approval could void the user’s authority to operate this equipment. INDUSTRY CANADA STATEMENT / DÉCLARATION D’INDUSTRIE CANADA Canada, Industry Canada (IC) This Class B digital apparatus complies with Canadian ICES-003 and RSS-247. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Canada, avis d’Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES- 003 et RSS-247. Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas causer d’interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Canadian Notice (RF Exposure) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to The following two conditions: Plug in Symphony Classroom to a display before turning it on. Branchez Symphony Classroom sur un écran avant de l’allumer. Optional attachments Pièces jointes facultatives Mandatory attachments Pièces jointes obligatoires Hello! I’m Merlyn 8 Onboarding Intégration Ta b Languette Installation Guide Guide d’installation MODEL NUMBER SC SERIES Make sure you whitelist the domain merlyn.org to receive updates and connect to our servers. Assurez-vous de mettre le domaine merlyn.org sur liste blanche pour recevoir des mises à jour et vous connecter à nos serveurs. A Merlyn will walk you through the on-boarding process. This includes pairing your remote, connecting to wireless, setting up your teacher portal, and more. Merlyn vous guidera tout au long du processus d’intégratio…

Text truncated - open the document above for the full version.

Merlyn Mind, Inc. 405 Lexington Avenue, Suite 3504, New York, NY 10174, USA TEL: +1-714-6993737 FAX: NA Date: 2021/1/14 FCC ID: 2AYDXSCMAA1 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics / Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Max Tsou / Sr. Director, Hardware Product Management Tel: +1-714-6993737 Fax: NA E-mail: [email protected]; [email protected]

Merlyn Mind, Inc. 405 Lexington Avenue, Suite 3504, New York, NY 10174, USA TEL: +1-714-6993737 FAX: NA Date: 2021/1/14 FCC ID: 2AYDXSCMAA1 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Max Tsou / Sr. Director, Hardware Product Management Tel: +1-714-6993737 Fax: NA E-mail: [email protected]; [email protected]

Merlyn Mind, Inc. 405 Lexington Avenue, Suite 3504, New York, NY 10174, USA TEL: +1-714-6993737 FAX: NA Date: 2021/1/14 FCC ID: 2AYDXSCMAA1 We, Merlyn Mind, Inc. here declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Max Tsou / Sr. Director, Hardware Product Management Tel: +1-714-6993737 Fax: NA E-mail: [email protected]; [email protected]

Merlyn Mind, Inc. 405 Lexington Avenue, Suite 3504, New York, NY 10174, USA TEL: +1-714-6993737 FAX: NA Date: 2021/1/14 FCC ID: 2AYDXSCMAA1 AUTHORIZATION LETTER To Whom It May Concern: Merlyn Mind, Inc. hereby authorizes Debby Lin of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Debby Lin of BV CPS Taoyuan on Merlyn Mind, Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------- Max Tsou / Sr. Director, Hardware Product Management Tel: +1-714-6993737 Fax: NA E-mail: [email protected]; [email protected]

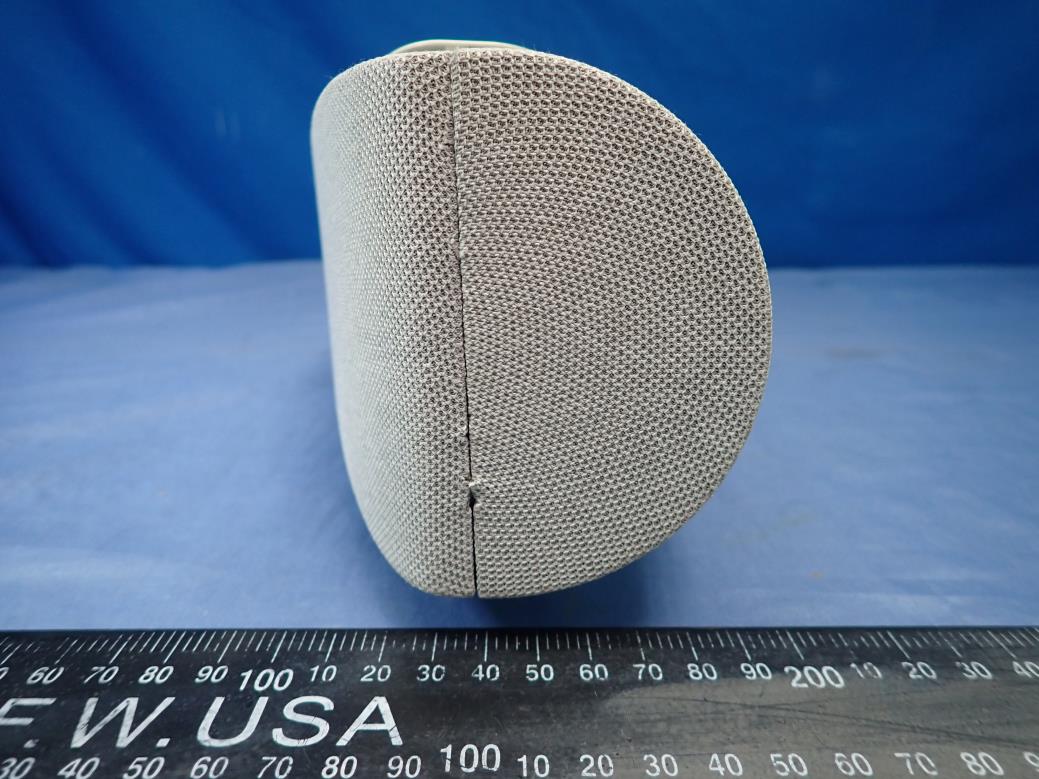

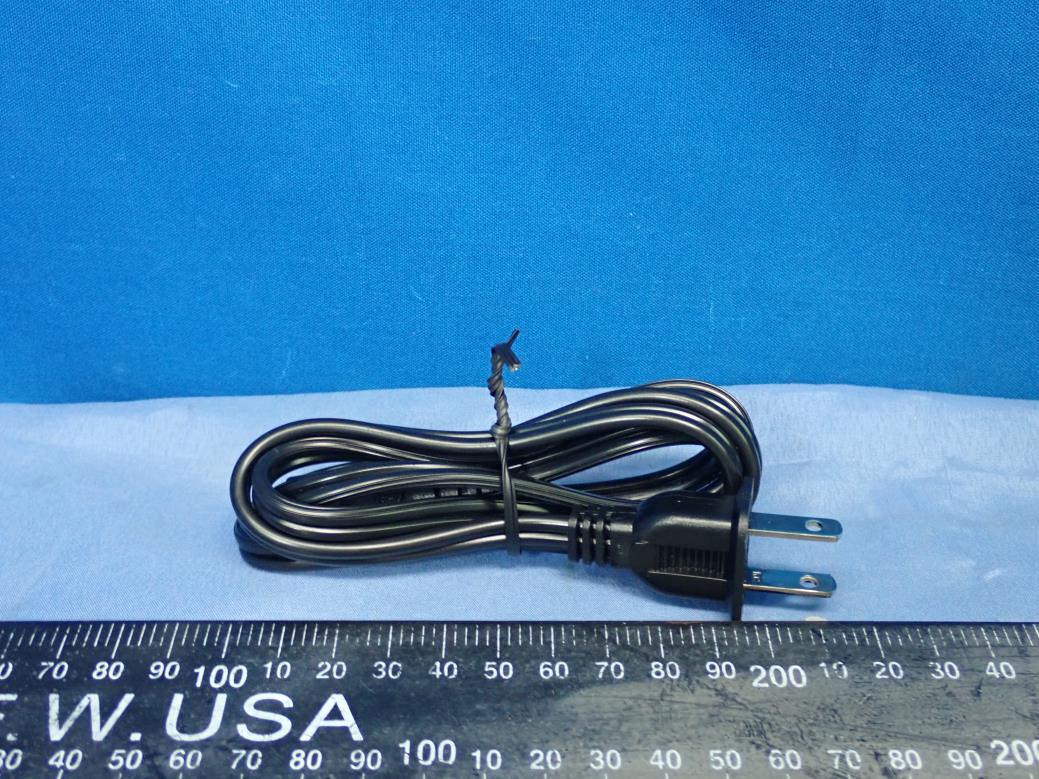

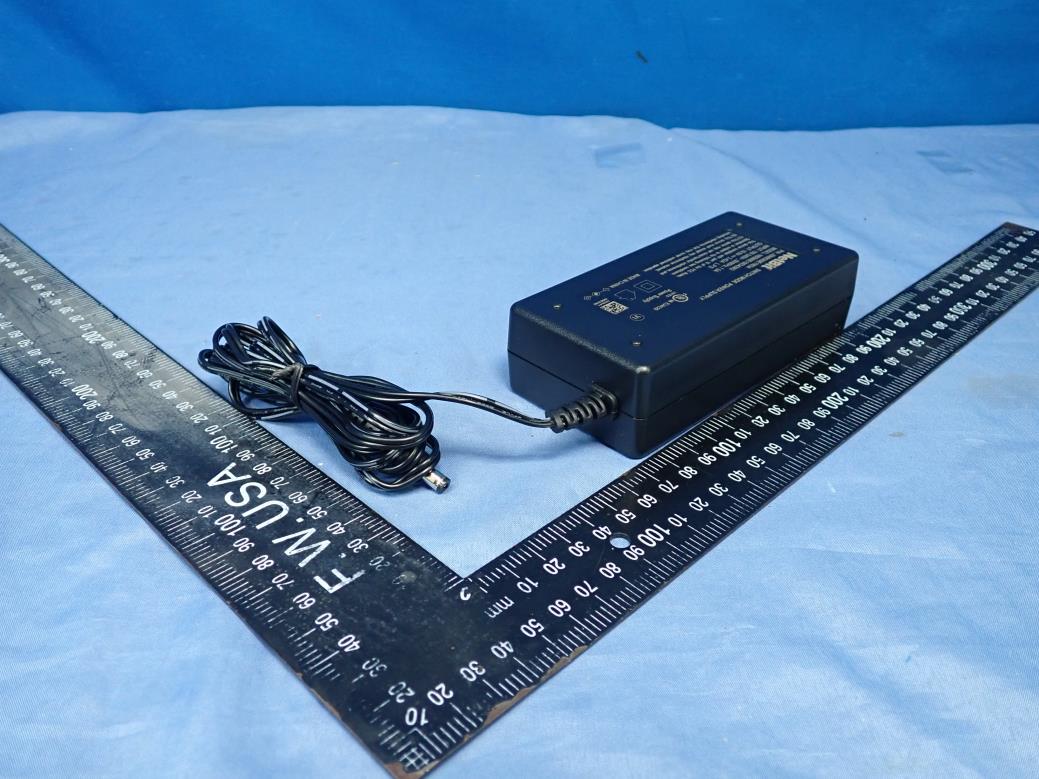

Reference No.:BHQC-WTW-P20110715-1 Page 1/7 CONSTRUCTION PHOTOS OF EUT Reference No.:BHQC-WTW-P20110715-1 Page 2/7 Reference No.:BHQC-WTW-P20110715-1 Page 3/7 Reference No.:BHQC-WTW-P20110715-1 Page 4/7 Reference No.:BHQC-WTW-P20110715-1 Page 5/7 Reference No.:BHQC-WTW-P20110715-1 Page 6/7 Reference No.:BHQC-WTW-P20110715-1 Page 7/7

(Fig. 1) FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. FCC ID:2AYDXSCMAA1 ; IC: 26781-SCMAA1 EUT Bottom Label

FCC ID: 2AYDXSCMAA1 IC ID: 26781-SCMAA1 Designed in the USA. Made in China. Conçu aux USA. Fabriqué en Chine.

Reference No.:BHQC-WTW-P20110715-2 Page 1/23 CONSTRUCTION PHOTOS OF EUT Reference No.:BHQC-WTW-P20110715-2 Page 2/23 Reference No.:BHQC-WTW-P20110715-2 Page 3/23 Reference No.:BHQC-WTW-P20110715-2 Page 4/23 Reference No.:BHQC-WTW-P20110715-2 Page 5/23 Reference No.:BHQC-WTW-P20110715-2 Page 6/23 Reference No.:BHQC-WTW-P20110715-2 Page 7/23 Reference No.:BHQC-WTW-P20110715-2 Page 8/23 Reference No.:BHQC-WTW-P20110715-2 Page 9/23 Reference No.:BHQC-WTW-P20110715-2 Page 10/23 Reference No.:BHQC-WTW-P20110715-2 Page 11/23 Reference No.:BHQC-WTW-P20110715-2 Page 12/23 Reference No.:BHQC-WTW-P20110715-2 Page 13/23 Reference No.:BHQC-WTW-P20110715-2 Page 14/23 Reference No.:BHQC-WTW-P20110715-2 Page 15/23 Reference No.:BHQC-WTW-P20110715-2 Page 16/23 Reference No.:BHQC-WTW-P20110715-2 Page 17/23 Reference No.:BHQC-WTW-P20110715-2 Page 18/23 Reference No.:BHQC-WTW-P20110715-2 Page 19/23 Reference No.:BHQC-WTW-P20110715-2 Page 20/23 Reference No.:BHQC-WTW-P20110715-2 Page 21/23 ANT1 Reference No.:BHQC-WTW-P20110715-2 Page 22/23 ANT2 Reference No.:BHQC-WTW-P20110715-2 Page 23/23

Report No.: SABHQC-WTW-P20110715 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SABHQC-WTW-P20110715 FCC ID: 2AYDXSCMAA1 Test Model: SCMAA1 Series Model: SCMBA1 Received Date: Nov. 23, 2020 Test Date: Dec. 11, 2020 to Jan. 4, 2021 Issued Date: Jan. 6, 2021 Applicant: Merlyn Mind, Inc. Address: 405 Lexington Avenue, Suite 3504, New York, NY 10174, USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan FCC Registration / Designation Number: 198487 / TW2021 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SABHQC-WTW-P20110715 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1Certificate of Conformity ...................................................................................................................... 4 2RF Exposure .......................................................................................................................................... 5 2.1Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2MPE Calculation Formula ................................................................................................................... 5 2.3Classification ....................................................................................................................................... 5 3Calculation Result of Maximum Conducted Power ........................................................................... 6 Report No.: SABHQC-WTW-P20110715 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SABHQC-WTW-P20110715 Original release. Jan. 6, 2021 Report No.: SABHQC-WTW-P20110715 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Symphony Classroom AI Enabled Classroom Hub Brand: Symphony Classroom TM Test Model: SCMAA1 Series Model: SCMBA1 Sample Status: Engineering sample Applicant: Merlyn Mind, Inc. Test Date: Dec. 11, 2020 to Jan. 4, 2021 Standards: FCC Part 2 (Section 2.1091) IEEE C95.3 -2002 References Test Guidance: KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date: Jan. 6, 2021 Annie Chang / Senior Specialist Approved by : , Date: Jan. 6, 2021 Rex Lai / Associate Technical Manager Report No.: SABHQC-WTW-P20110715 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SABHQC-WTW-P20110715 Page No. 6 / 6 Report Format Version: 6.1.1 3 Calculation Result of Maximum Conducted Power Frequency Band (MHz) Max Average Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 5180-5240 (WLAN) 23.56 8.19 20 0.2977 1 5260-5320 (WLAN) 23.54 8.19 20 0.2963 1 5500-5720 (WLAN) 23.98 8.19 20 0.3279 1 5745-5825 (WLAN) 24.41 8.19 20 0.3620 1 2412-2462 (WLAN) 25.43 6.16 20 0.2869 1 2402-2480 (BTLE) 4.99 3.46 20 0.0014 1 2402-2480 (BT EDR) 5.84 3.46 20 0.0017 1 Note: 1. Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. 2. The above Antenna information is declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications, the laboratory shall not be held responsible. 3. Directional gain (WLAN 5.0GHz) = 10 log[(10 G1 /10 + 10 G2 /10 + ... + 10 GN /10 )/N ANT ]=8.19dBi. Dire…

Text truncated - open the document above for the full version.

Report No.: RFBHQC-WTW-P20110715 Page No. 1 / 23 Report Format Version: 6.1.2 DFS Test Report Report No.: RFBHQC-WTW-P20110715 FCC ID: 2AYDX-SCMAA1 Test Model: SCMAA1 Series Model: SCMBA1 Received Date: Nov. 24, 2020 Test Date: Jan. 07, 2021 Issued Date: Jan. 22, 2021 Applicant: Merlyn Mind, Inc. Address: 405 Lexington Avenue, Suite 3504, New York, NY 10174, USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RFBHQC-WTW-P20110715 Page No. 2 / 23 Report Format Version: 6.1.2 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 EUT Information .................................................................................................................................... 5 2.1 Operating Frequency Bands and Mode of EUT .................................................................................. 5 2.2 EUT Software and Firmware Version .................................................................................................. 5 2.3 Description of Available Antennas to the EUT .................................................................................... 5 2.4 EUT Maximum Conducted Power ....................................................................................................... 6 2.5 EUT Maximum EIRP Power ................................................................................................................ 6 2.6 Transmit Power Control (TPC) ............................................................................................................ 7 2.7 Statement of Manufacturer .................................................................................................................. 7 3. U-NII DFS Rule Requirements ............................................................................................................. 8 3.1 Working Modes and Required Test Items ........................................................................................... 8 3.2 Test Limits and Radar Signal Parameters ........................................................................................... 9 4. Test & Support Equipment List ......................................................................................................... 12 4.1 Test Instruments ................................................................................................................................ 12 4.2 Description of Support Units ............................................................................................................. 12 5. Test Procedure .................................................................................................................................... 13 5.1 DFS Measurement System ............................................................................................................... 13 5.2 Calibration of DFS Detection Threshold Level .................................................................................. 14 5.3 Deviation from Test Standard ............................................................................................................ 15 5.4 Conducted Test Setup Configuration ................................................................................................ 15 5.4.1 Client without Radar Detection Mode ................................................................................................ 15 6. Test Results ......................................................................................................................................... 16 6.1 Summary of Test Results .................................................................................................................. 16 6.2 Test Results ....................................................................................................................................... 17 6.2.1 Test Mode: Device Operating in Client without Radar Detection Mode ............................................ 17 6.2.2 Channel Closing Transmission and Channel Move Time .................................................................. 18 6.2.3 Non-Occupancy Period ....................................................…

Text truncated - open the document above for the full version.

Report No.: RFBHQC-WTW-P20110715 Page No. 1 / 119 Report Format Version:6.1.2 FCC Test Report Report No.: RFBHQC-WTW-P20110715 FCC ID: 2AYDXSCMAA1 Test Model: SCMAA1 Series Model: SCMBA1 Received Date: Nov. 24, 2020 Test Date: Nov. 30 ~ Dec. 22, 2020 Issued Date: Jan. 05, 2021 Applicant: Merlyn Mind, Inc. Address: 405 Lexington Avenue, Suite 3504, New York, NY 10174, USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location (1): No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location(2): No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number (1): 198487 / TW2021 FCC Registration / Designation Number (2): 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: RFBHQC-WTW-P20110715 Page No. 2 / 119 Report Format Version:6.1.2 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ...................................................................................................................... 5 2 Summary of Test Results ..................................................................................................................... 6 2.1 Measurement Uncertainty ................................................................................................................... 6 2.2 Modification Record ............................................................................................................................ 6 3 General Information .............................................................................................................................. 7 3.1 General Description of EUT ................................................................................................................ 7 3.2 Description of Test Modes ................................................................................................................... 9 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................ 11 3.3 Duty Cycle of Test Signal .................................................................................................................. 13 3.4 Description of Support Units ............................................................................................................. 14 3.4.1 Configuration of System under Test .................................................................................................. 15 3.5 General Description of Applied Standards and References ............................................................. 16 4 Test Types and Results ...................................................................................................................... 17 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 17 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 17 4.1.2 Test Instruments ................................................................................................................................ 18 4.1.3 Test Procedures ................................................................................................................................. 19 4.1.4 Deviation from Test Standard ............................................................................................................ 19 4.1.5 Test Setup .......................................................................................................................................... 20 4.1.6 EUT Operating Conditions ................................................................................................................. 21 4.1.7 Test Results ....................................................................................................................................... 22 4.2 Conducted Emission Measurement .................................................................................................. 66 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 66 4.2.2 Test Instruments ................................................................................................................................ 66 4.2.3 Test Procedures ..........................................................................................................…

Text truncated - open the document above for the full version.

Reference No.: BHQC-WTW-P20110715 1 PHOTOGRAPHS OF THE TEST CONFIGURATION Set UUT as Slave mode (Radar injected into Master) Radar Master UUT

Reference No.: RFBHQC-WTW-P20110715-1 Page No. 1 / 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Reference No.: RFBHQC-WTW-P20110715-1 Page No. 2 / 5 RADIATED EMISSION TEST (WLAN 5.0GHz Band excluded) <Frequency Range below 1GHz> Reference No.: RFBHQC-WTW-P20110715-1 Page No. 3 / 5 RADIATED EMISSION TEST (WLAN 5.0GHz Band) <Frequency Range below 1GHz> Reference No.: RFBHQC-WTW-P20110715-1 Page No. 4 / 5 RADIATED EMISSION TEST (WLAN 5.0GHz Band excluded) <Frequency Range above 1GHz> Reference No.: RFBHQC-WTW-P20110715-1 Page No. 5 / 5 RADIATED EMISSION TEST (WLAN 5.0GHz Band) <Frequency Range…

Text truncated - open the document above for the full version.
