2AYFQ-SD780Digital Portable Radio

Quanzhou SFE Electronic Technology Co.,Ltd Date: 2021-06-03 Declaration Letter FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Declaration of compliance to the requirements of §15.121 FCC ID: 2AYFQ-SD780 Dear Sir/Madam, We declare that, this scanning receiver is incapable of operating (tuning), or readily being altered by the users to operate, within the frequency bands allocated to the Cellular Radiotelephone Service in part 22 of this chapter (cellular telephone bands). This device will not be able to receive transmissions in the cellular telephone bands by means of clipping the leads of, or installing, a simple component such as a diode, resistor or jumper wire; replacing a plug-in semiconductor chip; or programming a semiconductor chip using special access codes or an external device, such as a personal computer. This device is also incapable of converting digital cellular communication transmissions to analog voice audio. This device is designed so that the tuning, control and filtering circuitry is inaccessible. Any attempts to modify the equipment to receive transmissions from the Cellular Radiotelephone Service will render the receiver inoperable. This scanning receiver rejects any signals from the Cellular Radiotelephone Service frequency bands that are 38 dB or lower based upon a 12 dB SINAD measurement. We are aware that the modification of this device to receive transmissions from Cellular Radiotelephone Service frequency bands will be considered to constitute manufacture of such equipment. This includes any individual, individuals, entity or organization that modifies one or more scanners. Any modification to receive transmissions from the Cellular Radiotelephone Service frequency bands voids the certification of the scanning receiver, regardless of the date of manufacture of the original unit. Sincerely Yours, Signature: ___________________________ Leo Lee

Quanzhou SFE Electronic Technology Co.,Ltd Jun. 04, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AYFQ-SD780 Model Number: SD780, SD780A, SD780D, SD780E, SD780H To Whom It May Concern: We, The Quanzhou SFE Electronic Technology Co.,Ltd hereby declare that the models are identical except the housing design and model name. Except for the different above, no other modification is performed. Sincerely, Signature: Leo Lee Quanzhou SFE Electronic Technology Co.,Ltd

Quanzhou SFE Electronic Technology Co.,Ltd Agent Authorization Company: Quanzhou SFE Electronic Technology Co.,Ltd Address: No.35, Yangming Street, Shuangyang,Luojiang District,Quanzhou City,Fujian Province 362012,China Product Name: Digital Portable Radio Model Number(s): SD780, SD780A, SD780D, SD780E, SD780H Product Description: Digital Portable Radio We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-06-04 Name: Leo Lee Company: Quanzhou SFE Electronic Technology Co.,Ltd

Quanzhou SFE Electronic Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-06-04 Subject; Request for Confidentiality FCC ID: 2AYFQ-SD780 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Leo Lee Quanzhou SFE Electronic Technology Co.,Ltd

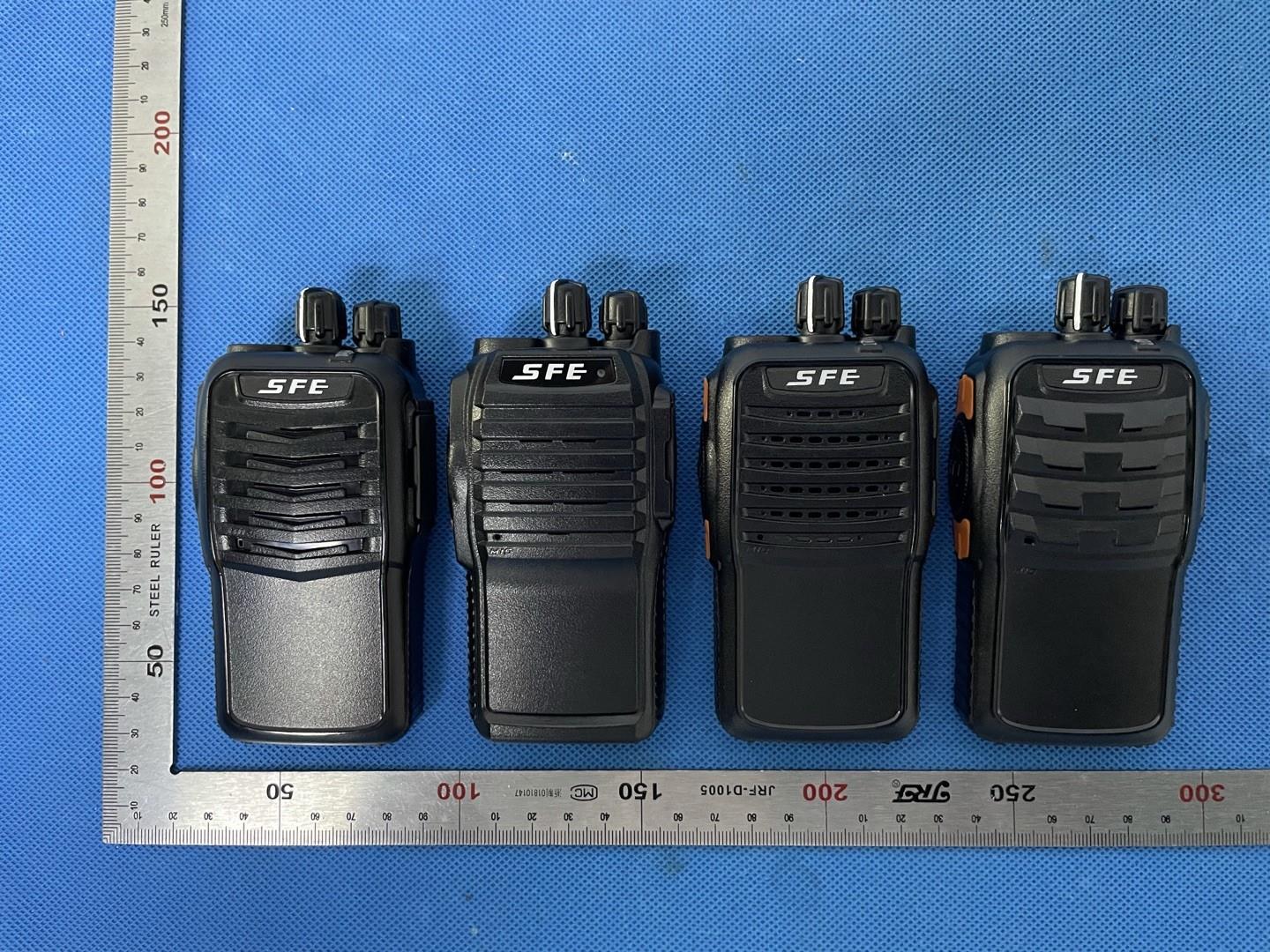

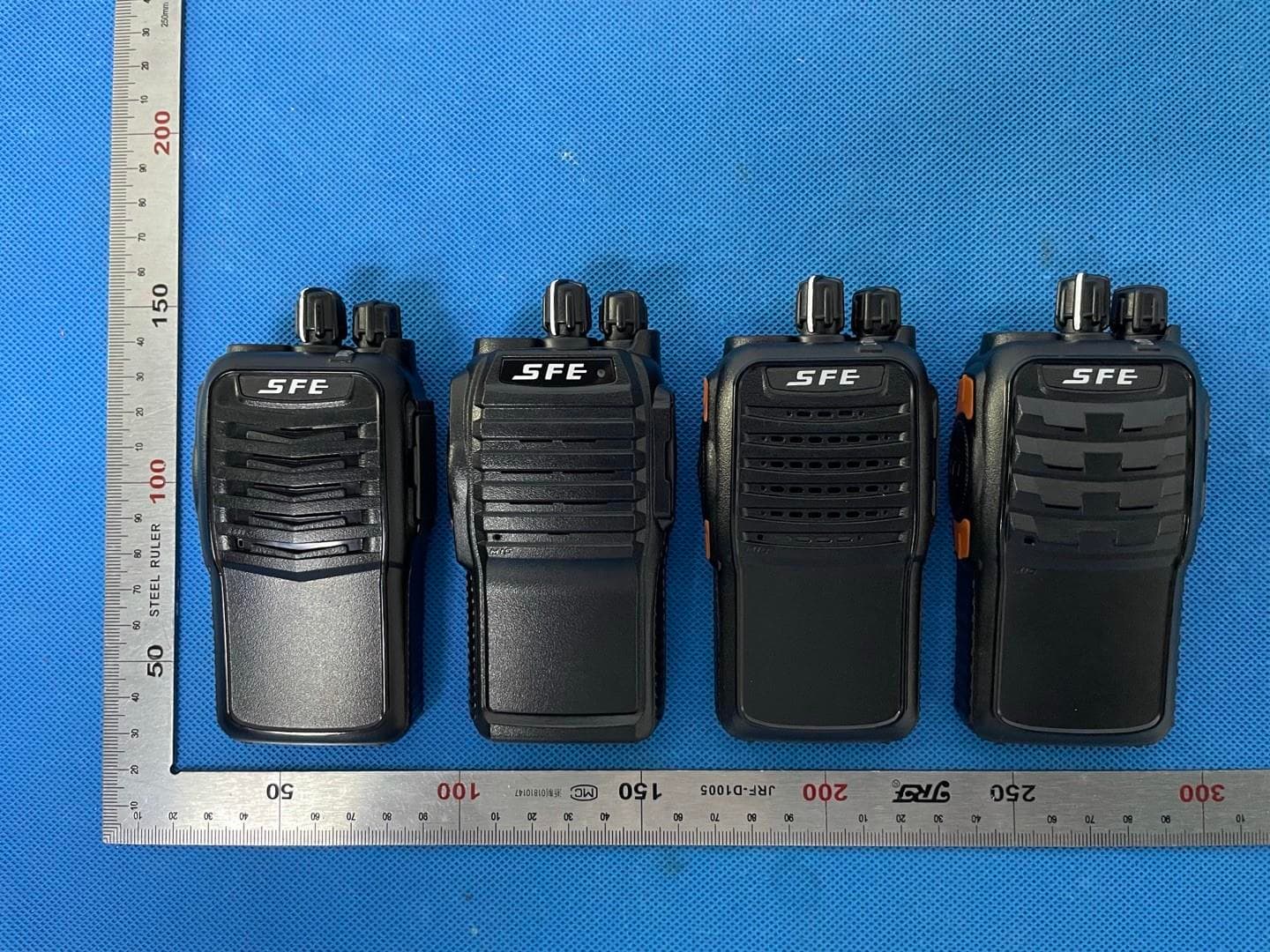

External Photos ALL VIEW OF SERIAES MODEL ALL VIEW OF SERIES MODEL-BACK VIEW WHOLE VIEW OF EUT TOP VIEW OF EUT Antenna BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 30MM&30MM FCC ID: 2AYFQ-SD780

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT OPEN VIEW-3 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT INTERNAL VIEW-8 OF EUT INTERNAL VIEW-9 OF EUT

Page 1 of 27 FCC Test Report Report No.: AGC03535201205FE08 FCC ID : 2AYFQ-SD780 PRODUCT DESIGNATION : Digital Portable Radio BRAND NAME : SFE MODEL NAME : SD780, SD780A, SD780D, SD780E, SD780H APPLICANT : Quanzhou SFE Electronic Technology Co.,Ltd DATE OF ISSUE : May 27, 2021 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC03535201205FE08 Page 2 of 27 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 27, 2021 Valid Initial Release Report No.: AGC03535201205FE08 Page 3 of 27 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ................................................................................................................. 4 2. PRODUCT INFORMATION .............................................................................................................................. 5 3. IDENTIFICATION OF THE RESPONSIBLE TESTING LOCATION ............................................................... 6 4. SUPPORT EQUIPMENT LIST ......................................................................................................................... 7 5. SYSTEM DESCRIPTION .................................................................................................................................. 7 6. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 7. SUMMARY OF TEST RESULTS ..................................................................................................................... 8 8. FCC RADIATED EMISSION TEST .................................................................................................................. 9 8.1 PROVISIONS APPLICABLE ................................................................................................................... 9 8.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................... 9 8.3 TEST PROCEDURE .............................................................................................................................. 11 8.4 TEST RESULT ....................................................................................................................................... 12 9. FCC CONDUCTED EMISSION TEST ............................................................................................................ 16 9.1 PROVISIONS APPLICABLE ................................................................................................................. 16 9.2 TEST SETUP BLOCK DIAGRAM ......................................................................................................... 16 9.4 TEST RESULT ................................................................................................................................... 18 10. ANTENNA CONDUCTED POWER FOR RECEIVERS ............................................................................... 20 10.1 PROVISIONS APPLICABLE ............................................................................................................... 20 10.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 20 10.3 TEST PROCEDURE ............................................................................................................................ 20 10.4 TEST RESULT ..................................................................................................................................... 21 11. SCANNING RECEIVERS AND FREQUENCY CONVERTERS USED WITH SCANNING RECEIVERS .. 23 11.1 PROVISIONS APPLICABLE ............................................................................................................... 23 11.2 TEST SETUP BLOCK DIAGRAM ....................................................................................................... 23 11.3 TEST PROCEDURE ............................................................................................................................ 23 11.4 TEST RESULT ..................................................................................................................................... 24 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................................. 25 APPENDIX II: PHOTOGRAPHS OF TEST EUT................................................................................................ 27 Report No.: AGC03535201205FE08 Page 4 of 27 1. VERIFICATION OF COMPLIANCE Applicant: Quanzhou SFE Electronic Technology Co.,Ltd Address: No.35, Yangming Street, Shuangyang,Luojiang District,Quanzhou City,Fujian Province 362012,China Manufacturer: Quanzhou SFE Electronic Technology Co.,Ltd Address: No.35, Yangming Street, Shuangyang,Luojiang District,Quanzhou City,Fujian Province 362012,China Factory: Quanzhou SFE Electronic Technology Co.,Ltd Address: No.35, Yangming Street, Shuangyang,Luojiang District,Quanzhou City,Fujian Province 362012,China Product Designation: Digital Portable Radio Brand Name: SFE Test Model: SD780 Series Model(s) SD780A, SD780D, SD780E, SD780H Difference Description Same circuit, same series, different housing design and model name Measurement Procedure: ANSI C63.4: 2014 Deviation: No any deviation from the test method. Date of Test: May 07, 2021~May 27, 2021 Condition of Test Sample: Normal Test Result: Pass Report Template； AGCRT-US-PTT/EMC The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2014. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate onl…

Text truncated - open the document above for the full version.

Test Setup Photos CONDUCTED EMISSION TEST SETUP RADIATED EMISSION TEST SETUP-BELOW 1GHZ RADIATED EMISSION TEST SETUP-ABOVE 1GHZ
