2AYGCRBN-NX1Smart Phone

Quick Start Guide RBN-NX1 RBN-NX3 Know Your Device Before using the device, familiarize yourself with its basic operations. •To power on your device, press and hold the power button until the screen turns on. •To power off your device, press and hold the power button, and then touch . •To restart your device, press and hold the power button, and then touch . •Press and hold the Power and Volume down buttons for more than 10 seconds to force restart your device. NFC Volume button Power button/ Fingerprint sensor USB Type-C portHeadset jack Card slot •Only RBN-NX1 supports NFC. Please keep the NFC area close to other devices or objects while using the NFC function. •Check out the pre-installed Tips app and master all the great features on your device. 1 Getting Started •Be careful not to scratch your device or hurt yourself when using the eject pin. •Store the eject pin out of the reach of children to prevent accidental swallowing or injury. •Do not use cut or modified SIM or microSD cards with your device as these may not be recognized and could damage the card tray (slot). •If your SIM card does not match your device, please contact your carrier. Follow the instructions in the following figures to set up your device. Please use the eject pin included. Ensure that the card is correctly aligned and that the card tray is level when you insert it into your device. Single-SIM card: Dual-SIM card: SIM Card Management Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app. 2 •5G and 4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 5G or 4G service. •5G and 4G service may be unavailable in certain areas due to network interference. •If this guide is inconsistent with the description on the official website, the latter prevails. For More Information If you encounter any problems while using your device, you can obtain help from the following resources: •Visit https://www.hihonor.com to view device information and other information. •Visit https://www.hihonor.com/global/support/ for the most up-to-date contact information for your country or region. •Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal information, Safety information, Authentication info, Regulatory information. •Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can go to Settings and touch System & updates > Regulatory information to view FCC ID. If your device does not have an FCC ID, the device has not been authorized for sale in the U.S. or its territories and may only be brought to the U.S. for the owner's personal use. Safety Information Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly. Operation and safety • To prevent possible hearing damage, do not listen at high volume levels for long periods. 3 •Using an unapproved or incompatible power adapter, charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards. •Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to +45 °C. •Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. •Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators. •Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. •While flying in an aircraft or immediately before boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. •In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field. •When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible. •Unplug the charger from electrical outlets and the device when not in use. •Do not use, store or transport the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. •Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode. 4 •Dispose of this device, the battery, and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards. •This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are strongly advised to contact an authorized service center for a replacement. Disposal and Recycling Information The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that…

Text truncated - open the document above for the full version.

Honor Device Co., Ltd. Attestation Statements Not Covered Equipment To Federal Communications Commission 2023-04-24 Oakland Mills Road, Columbia MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) filing FCC ID: 2AYGCRBN-NX1 Dear Sir or Madam, [Honor Device Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely, Applicant Signature Printed Name: Liming Title: Manager Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China Tel.:86-755-61886688 Email: [email protected]

Honor Device Co., Ltd. Attestation Statements Not Covered Entity Applicant To Federal Communications Commission 2023-04-24 Oakland Mills Road, Columbia MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(ii) filing FCC ID: 2AYGCRBN-NX1 Dear Sir or Madam, [Honor Device Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Applicant Signature Printed Name: Liming Title: Manager Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China Tel.:86-755-61886688 Email: [email protected]

20_Authorization Letter V1.0 Honor Device Co., Ltd. Federal Communications Commission 2023-01-18 Oakland Mills Road Columbia MD 21046 Letter of Authorization To whom it may concern: We the undersigned, hereby authorize TÜV Rheinland (Shenzhen) Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by TÜV Rheinland (Shenzhen) Co., Ltd. on our behalf shall have the same affect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from Honor Device Co., Ltd. . Sincerely, For and Behalf of: Honor Device Co., Ltd. Liming Laboratory Manager Honor Device Co., Ltd. E-mail: [email protected] Tel: 8613760231984 Fax: NA

HONOR HONOR Conf idential Antenna information 1、Basic information(FCCID: 2AYGCRBN-NX1) ant type Model number of the antenna ant position band Type of connection with transmitter frequency range peak gain IFA IFA for RBN-NX1 ANT7 BT antenna shrapnel 2400-2483.5MHz -2 IFA IFA for RBN-NX1 ANT7 wifi 2.4G antenna shrapnel 2400-2483.5MHz -2 IFA IFA for RBN-NX1 ANT8 wifi 5G antenna shrapnel 5200-5800MHz -1 Name of the antenna manufacturer：Honor Device Co., Ltd Address of the antenna manufacturer：Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China 2、Refer to the test setup photos for antenna position and dimention 3、Antenna gain ANT7-2.4GWIFI ANT7-BT frequency(GHz) Gain(dBi) frequency(GHz) Gain(dBi) 2400 -2 2400 -2 2420 -2.18 2420 -2.18 2440 -2.2 2440 -2.2 2460 -2.35 2460 -2.35 2480 -2.3 2480 -2.3 2500 -2.45 2500 -2.45 ANT8-5G WIFI frequency(GHz) Gain(dBi) 5200 -1.15 5220 -1.02 5240 -1.1 5260 -1.18 5280 -1.21 5300 -1 5320 -1.25 5340 -1.3 5360 -1.34 5380 -1.26 5400 -1.21 5420 -1.14 5440 -1.2 HONOR HONOR Conf idential 5460 -1.2 5480 -1.2 5500 -1.06 5520 -1.05 5540 -1.12 5560 -1.12 5580 -1.37 5600 -1.32 5620 -1.37 5640 -1.3 5660 -1.28 5680 -1.19 5700 -1.2 5720 -1.13 5740 -1.1 5760 -1.1 5780 -1.06 5800 -1.03 4、3D map 2.4G W IFI 2412 2442 2480 BT 2412 2442 2480 5G W IFI 5180 5320 5825

23_Electronic Label Letter V1.0 Honor Device Co., Ltd. Federal Communications Commission 2023-01-18 Oakland Mills Road Columbia MD 21046 Subject: Electronic Label Letter FCC ID: 2AYGCRBN-NX1 To Whom It May Concern: Pursuant to the provisions of KDB 784748 D02 e labeling v02, we hereby provide the following statement: This device have a integrated display screen can present the required label information electronically (e-label) in lieu of a physical label or nameplate. The end user can access the electronic label with three steps. The information of electronic label is programmed by Honor, any can’t be modified by any third party. If have any questions concerning the above, please contact the undersigned. Best Regards Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Suite 3401, Unit A, Building 6, Shum Yip Sky Park, No. 8089, Hongli West Road, Xiangmihu Street, Futian District, Shenzhen, Guangdong 518040, People's Republic of China E-mail: [email protected] Tel: 0755-61886688

18_Confidentiality Letter V1.0 Honor Device Co., Ltd. Federal Communications Commission 2023-01-18 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AYGCRBN-NX1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure KDB Inquiry Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2023-7-12 External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards 18_Confidentiality Letter V1.0 Liming Laboratory Manager Honor Device Co., Ltd. E-mail: [email protected] Tel: 8613760231984 Fax: NA

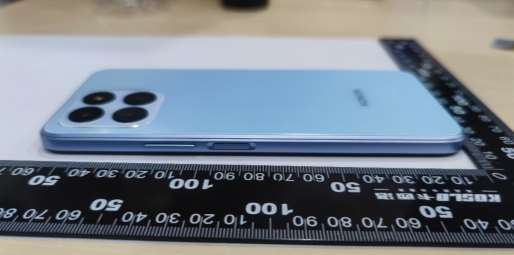

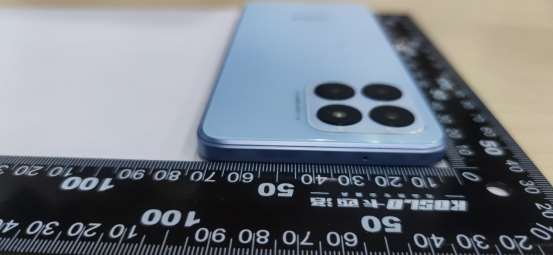

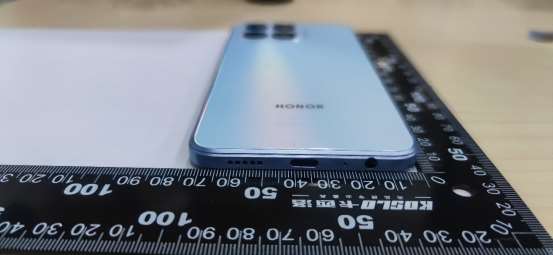

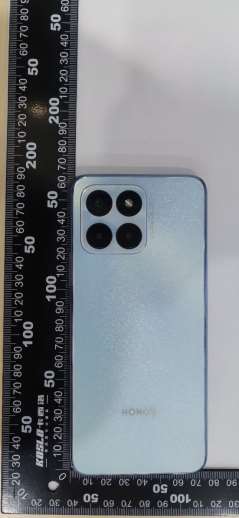

RBN-NX1 Smart Phone 2023-1-18 HONOR Conf idential Page1, Total3 External Photos of RBN-NX1 RBN-NX1 Smart Phone 2023-1-18 HONOR Conf idential Page2, Total3 Front Back Right RBN-NX1 Smart Phone 2023-1-18 HONOR Conf idential Page3, Total3 Left Top Bottom

RBN-NX1 Smart Phone 2023-01-18 HONOR Conf idential Page1, Total2 Label and label Location: RBN-NX1 Smart Phone 2023-01-18 HONOR Conf idential Page2, Total2 FCC ID electronic label: Settings-->System & updates-->Regulatory information

RBN-NX1 Smart Phone 2023-1-18 HONOR Conf idential Page1, Total4 Internal Photos of RBN-NX1 RBN-NX1 Smart Phone 2023-1-18 HONOR Conf idential Page2, Total4 RBN-NX1 Smart Phone 2023-1-18 HONOR Conf idential Page3, Total4 RBN-NX1 Smart Phone 2023-1-18 HONOR Conf idential Page4, Total4

©Copyright. All rights reserved by CTTL. PART 0 SAR CHAR REPORT No. I22Z62328-SEM01 For HONOR Device Co., Ltd. Smart Phone Model Name: RBN-NX1 with Hardware Version: HN2VNEM Software Version: 6.1.0.9(C900E9R1P1) FCC ID: 2AYGCRBN-NX1 Issued Date: 2023-1-18 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I22Z62328-SEM01 ©Copyright. All rights reserved by CTTL. Page 2 of 10 REPORT HISTORY Report Number Revision Issue Date Description I22Z62328-SEM01 Rev.0 2023-1-18 Initial creation of test report No.I22Z62328-SEM01 ©Copyright. All rights reserved by CTTL. Page 3 of 10 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 4 1.1 TESTING LOCATION ........................................................................................................................................ 4 1.2 TESTING ENVIRONMENT ................................................................................................................................. 4 1.3 PROJECT DATA ............................................................................................................................................... 4 1.4 SIGNATURE ..................................................................................................................................................... 4 2 INTRODUCTION ............................................................................................................................ 5 3 EQUIPMENT UNDER TEST (EUT) OVERVIEW .......................................................................... 6 4 SAR CHARACTERIZATION ......................................................................................................... 7 4.1 DSI AND SAR DETERMINATION ..................................................................................................................... 7 4.2 SAR DESIGN TARGET AND UNCERTAINTY ...................................................................................................... 8 4.2 SAR CHAR ..................................................................................................................................................... 9 5 MEASUREMENT UNCERTAINTY .............................................................................................. 10 No.I22Z62328-SEM01 ©Copyright. All rights reserved by CTTL. Page 4 of 10 1 Test Laboratory 1.1 Testing Location Company Name: CTTL Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. 1.2 Testing Environment Temperature: 18C~25C, Relative humidity: 30%~ 70% Ground system resistance: < 0.5  Ambient noise & Reflection: < 0.012 W/kg 1.3 Project Data Project Leader: Qi Dianyuan Test Engineer: Lin Xiaojun Testing Start Date: April 28, 2022 Testing End Date: December 28, 2022 1.4 Signature Lin Xiaojun (Prepared this test report) Qi Dianyuan (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.I22Z62328-SEM01 ©Copyright. All rights reserved by CTTL. Page 5 of 10 2 Introduction The equipment under test (EUT) is a smart phone. It contains the Qualcomm modem supporting 2G/3G/4G technologies and 5G NR Sub-6 GHz technologies. These modems enable Qualcomm Smart Transmit feature to control and manage transmitting power in real time and to ensure at all times the time-averaged RF exposure is in compliance with the FCC requirement. In the Part 0 report, the EUT SAR are characterized for WWAN radios (2G/3G/4G/Sub6 NR) to determine the power limit that corresponds to the exposure design target after accounting for all device design related uncertainties, i.e., SAR_design_target (< FCC SAR limit) for sub-6. The SAR characterization are denoted as SAR Char. SAR Char will be used as input for Qualcomm Smart Transmit to operate. SAR Char will be loaded and store in the EUT via the Embedded File System (EFS). The compliance test under the static transmission scenario and simultaneous transmission analysis are reported in Part 1 report. The validation of the time-averaging algorithm and compliance under the dynamic (time- varying) transmission scenario for WWAN technologies are reported in Part 2 report. The EUT supports WLAN/BT radio as well but WLAN/BT modem is not enabled with Smart Transmit. Nomenclature for Part 0 Report Term Description P limit The time-averaged RF power which corresponds to SAR_design_target. P max Maximum target power level SAR_design_target: The design target for SAR compliance. It should be less than regulatory power density limit to account for all device design related uncertainties. SAR Char P limit for all the technologies/bands for all applicable DSI No.I22Z62328-SEM01 ©Copyright. All rights reserved by CTTL. Page 6 of 10 3 Equipment Under Test (EUT) Overview Description: Smart Phone Model name: RBN-NX1 Tested Band: GSM850/1900, WCDMA B2/5 LTE Band5/7/38/41 5G NR N7/38/41/78 BT, Wi-Fi(2.4G), Wi-Fi(5G) Tx Frequency: 824 – 849 MHz (GSM 850) 1850 – 1910 MHz (GSM 1900) 824–849 MHz (WCDMA 850 Band V) 1850–1910 MHz (WCDMA1900 Band II) 824 – 849 MHz (LTE Band 5) 2500 – 2570 MHz(LTE Band 7) 2570 – 2620 MHz (LTE Band 38) 2496 – 2690 MHz (LTE Band 41) 2412 – 2462 MHz (Wi-Fi 2.4G) 5180 – 5240 MHz (Wi-Fi 5.2G) 5260 – 5320 MHz (Wi-Fi 5.3G) 5500 – 5720 MHz (Wi-Fi 5.5G) 5745 – 5825 MHz (Wi-Fi 5.8G) 2400 – 2483.5 MHz (Bluetooth) 2500 – 2570 MHz (NR n7) 2570 – 2620 MHz (NR n38) 2496 – 2690 MHz (n41) 3450 – 3550 MHz (n78) GPRS/EGPRS Multislot Class: 12 Test device production information: Production unit Device type: Portable device…
