Quick Start Guide RMO-NX1 RMO-NX3 Know Your Device Before using the device, familiarize yourself with its basic operations. •To power on your device, press and hold the power button until the screen turns on. •To power off your device, press and hold the power button, and then touch . •To restart your device, press and hold the power button, and then touch . •Press and hold the Power and Volume down buttons for more than 10 seconds to force restart your device. NFC Volume buttonPower button Card slot USB Type-C port/ Headset jack In-screen fingerprint •Only RMO-NX1 supports NFC. Please keep the NFC area close to other devices or objects while using the NFC function. •Check out the pre-installed Tips app and master all the great features on your device. 1 Getting Started •Be careful not to scratch your device or hurt yourself when using the eject pin. •Store the eject pin out of the reach of children to prevent accidental swallowing or injury. •Do not use cut or modified SIM cards with your device as these may not be recognized and could damage the card tray (slot). •If your SIM card does not match your device, please contact your carrier. Follow the instructions in the following figures to set up your device. Please use the eject pin included. Ensure that the card is correctly aligned and its notch is first inserted into the card tray. Single-SIM card: Dual-SIM card: SIM Card Management Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app. 2 •5G and 4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 5G or 4G service. •5G and 4G service may be unavailable in certain areas due to network interference. •If this guide is inconsistent with the description on the official website, the latter prevails. For More Information If you encounter any problems while using your device, you can obtain help from the following resources: •Visit https://www.hihonor.com to view device information and other information. •Visit https://www.hihonor.com/global/support/ for the most up-to-date contact information for your country or region. •Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal information, Safety information, Authentication info, Regulatory information. •Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can go to Settings and touch System & updates > Regulatory information to view FCC ID. If your device does not have an FCC ID, the device has not been authorized for sale in the U.S. or its territories and may only be brought to the U.S. for the owner's personal use. Safety Information Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly. Operation and safety • To prevent possible hearing damage, do not listen at high volume levels for long periods. 3 •Using an unapproved or incompatible power adapter, charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards. •Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to +45 °C. •Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. •Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators. •Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. •While flying in an aircraft or immediately before boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. •In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field. •When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible. •Unplug the charger from electrical outlets and the device when not in use. •Do not use, store or transport the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. •Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode. 4 •Dispose of this device, the battery, and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards. •This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are strongly advised to contact an authorized service center for a replacement. Disposal and Recycling Information The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable mater…

Text truncated - open the document above for the full version.

HONOR HONOR Confidential Authorization Letter Date:24 November 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 To whom it may concern: We the undersigned, hereby authorize TÜV Rheinland (Shenzhen) Co., Ltd to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by TÜV Rheinland (Shenzhen) Co., Ltd on our behalf shall have the same affect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from Honor Device Co., Ltd. . Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

HONOR HONOR Confidential Confidentiality Letter Date:24 November 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AYGCRMO-NX1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure KDB Inquiry Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2023-05-21 External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards HONOR HONOR Confidential Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

HONOR HONOR Confidential Electronic Label Letter Date:24 November 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 Subject:Electronic Label Letter FCC ID:2AYGCRMO-NX1. To Whom It May Concern: Pursuant to the provisions of KDB 784748 D02 e labeling v02, we hereby provide the following statement: This device have a integrated display screen can present the required label information electronically (e-label) in lieu of a physical label or nameplate. The end user can access the electronic label with three steps. The information of electronic label is programmed by Honor, any can’t be modified by any third party. If have any questions concerning the above, please contact the undersigned. Best Regards Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

HONOR HONOR Confidential Antenna information 1、Basic information ant type ant position band Type of connection with transmitter frequency range peak gain IFA ANT9 BT antenna shrapnel 2400-2483.5MHz -2 IFA ANT9 wifi 2.4G antenna shrapnel 2400-2483.5MHz -2 IFA ANT6 wifi 5G antenna shrapnel 5200-5800MHz 0 2、Refer to the test setup photos for antenna position and dimention 3、Antenna gain ANT9-2.4GWIFI ANT9-BT frequency(GHz) Gain(dBi) frequency(GHz) Gain(dBi) 2400 -2.37 2400 -2.37 2420 -2 2420 -2 2440 -2.22 2440 -2.22 2460 -2.26 2460 -2.26 2480 -2.75 2480 -2.75 2500 -2.65 2500 -2.65 ANT6-5G WIFI frequency(GHz) Gain(dBi) 5200 -0.41 5220 -0.23 5240 0 5260 -0.05 5280 -0.15 5300 0 5320 -0.03 5340 -0.36 5360 -0.27 5380 -0.27 5400 -0.27 5420 -0.58 5440 -0.37 5460 -0.02 5480 0 5500 -0.2 5520 -0.38 5540 -0.24 5560 -0.16 HONOR HONOR Confidential 5580 -0.11 5600 -0.19 5620 -0.15 5640 -0.05 5660 -0.17 5680 -0.04 5700 0 5720 -0.12 5740 0 5760 -0.27 5780 -0.27 5800 -0.33 4、3D map HONOR HONOR Confidential

HONOR HONOR Confidential Declaration of test data reuse Letter Date:30 November 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 To whom it may concern: RMO-NX1（FCC ID: 2AYGCRMO-NX1）is a variant of RMO-NX3 (FCC ID: 2AYGCRMO-NX3),The difference between model RMO-NX1 and model RMO-NX3 is show in the below table: Model RMO-NX3 RMO-NX1 Licensed Frequency LTE BAND B2/B4/B5/B7/B12/B13/B17/B26/B 38/B41/B66 Not support CA B2/B4/B5/B7/B38/B41 Support UL CA 7C/41C UMTS BAND B2/B4/B5 B2/B5 5G NR Band N2/N7/N38/N41/N66/N78 Not support CA N7/N38/N41/N78 Support DL CA n7A-n78A Antenna The antenna matching and routing of the same frequency are the same. The antenna matching and routing of the same frequency are the same. Unlicensed Frequency NFC Not support Support FM support Not support RF RF circuit The RF circuit of the same frequency is the same. 1、 The RF transmit and receive circuits of LTE B2/B4 and WCDMA B2 are different. 2、 The RF receive circuit of GSM B2 is different. 3、 The rest of the same frequency band RF circuit is the same. 4、 The different frequency band changed by delete LTE B12/13/17/26/66 and NR N66 SAWS、switch、 LNA and RF matching HONOR HONOR Confidential components. Tune-up The tune-up of the same frequency are the same. The tune-up of LTE B2/B4 and WCDMA B2 are different. The test plans as below EMC: RMO-NX1 test RE(worst mode ) of RMO-NX3,Other data use RMO-NX3 data. RF: 1、RMO-NX1 test LTE B2、LTE B4、LTE B5、LTE 7C、LTE 41C、WCDMA B2,Other data use RMO-NX3 data. 2、RMO-NX1 test NFC SAR: 1、RMO-NX1 test LTE B2、LTE B4、LTE B5、WCDMA B2 2、RMO-NX1 test UL CA (LTE 7C/41C) test conducted power 3、RMO-NX1 test the worst SAR of RMO-NX3,Other data use RMO-NX3 data. 4、RMO-NX1 test GSM 1900、WCDMA B2、LTE B7、LTE B41、NR N38、NR N78 Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

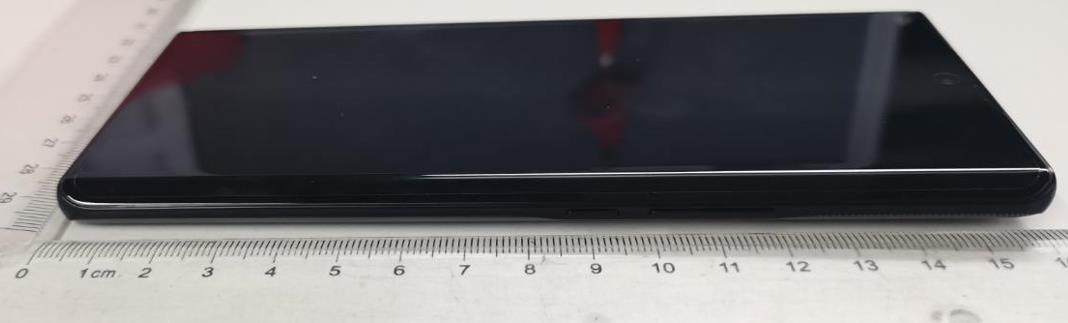

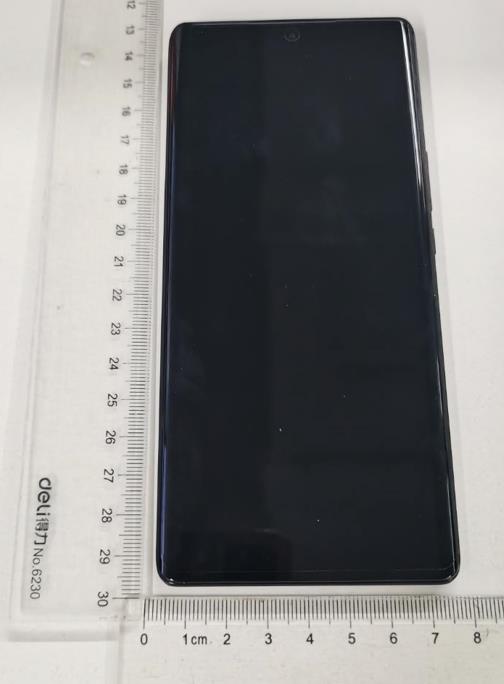

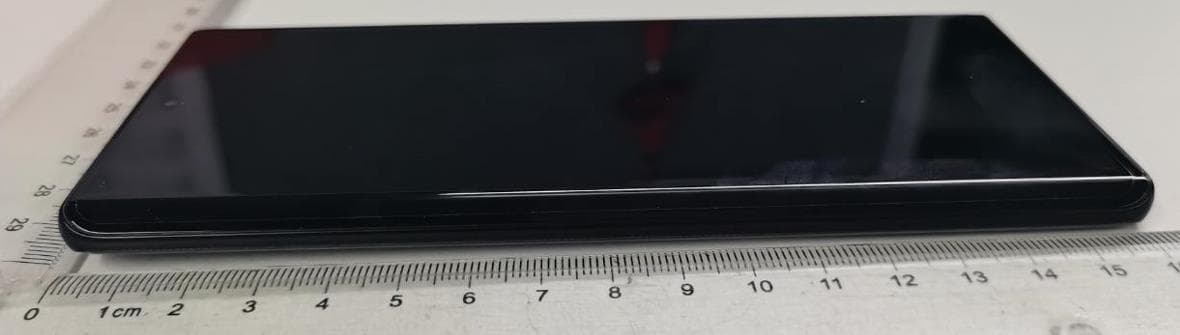

HONOR Page1,Total 3 HONOR Confidential External Photos of RMO-NX1 Front: Back: HONOR Page2,Total 3 HONOR Confidential Left Side: Right Side: HONOR Page3,Total 3 HONOR Confidential Top: Bottom:

HONOR HONOR Confidential Label and label Location of RMO-NX1 HONOR HONOR Confidential ： HONOR HONOR Confidential FCC ID electronic label: Settings-->System & updates-->Regulatory information

HONOR 2022-11-24 HONOR Confidential Page1, Total2 Internal Photos of RMO-NX1 HONOR 2022-11-24 HONOR Confidential Page2, Total2

©Copyright. All rights reserved by CTTL. PART 0 SAR CHAR REPORT No. I22Z61952-SEM01 For HONOR Device Co., Ltd. Smart Phone Model Name: RMO-NX1 with Hardware Version: HN2RMOM Software Version: 6.1.0.21(C900E21R1P1) FCC ID: 2AYGCRMO-NX1 Issued Date: 2022-11-24 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of CTTL. Test Laboratory: CTTL, Telecommunication Technology Labs, CAICT No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. Tel:+86(0)10-62304633-2512, Fax:+86(0)10-62304633-2504 Email: [email protected], website: www.caict.ac.cn No.I22Z61952-SEM01 ©Copyright. All rights reserved by CTTL. Page 2 of 10 REPORT HISTORY Report Number Revision Issue Date Description I22Z61952-SEM01 Rev.0 2022-11-24 Initial creation of test report No.I22Z61952-SEM01 ©Copyright. All rights reserved by CTTL. Page 3 of 10 TABLE OF CONTENT 1 TEST LABORATORY .................................................................................................................... 4 1.1 TESTING LOCATION ........................................................................................................................................ 4 1.2 TESTING ENVIRONMENT ................................................................................................................................. 4 1.3 PROJECT DATA ............................................................................................................................................... 4 1.4 SIGNATURE ..................................................................................................................................................... 4 2 INTRODUCTION ............................................................................................................................ 5 3 EQUIPMENT UNDER TEST (EUT) OVERVIEW .......................................................................... 6 4 SAR CHARACTERIZATION ......................................................................................................... 7 4.1 DSI AND SAR DETERMINATION ..................................................................................................................... 7 4.2 SAR DESIGN TARGET AND UNCERTAINTY ...................................................................................................... 8 4.2 SAR CHAR ..................................................................................................................................................... 9 5 MEASUREMENT UNCERTAINTY .............................................................................................. 10 No.I22Z61952-SEM01 ©Copyright. All rights reserved by CTTL. Page 4 of 10 1 Test Laboratory 1.1 Testing Location Company Name: CTTL(Shouxiang) Address: No. 52, Huayuan North Road, Haidian District, Beijing, P. R. China 100191. 1.2 Testing Environment Temperature: 18C~25C, Relative humidity: 30%~ 70% Ground system resistance: < 0.5  Ambient noise & Reflection: < 0.012 W/kg 1.3 Project Data Project Leader: Qi Dianyuan Test Engineer: Lin Xiaojun Testing Start Date: October 17,2022 Testing End Date: November 18, 2022 1.4 Signature Lin Xiaojun (Prepared this test report) Qi Dianyuan (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.I22Z61952-SEM01 ©Copyright. All rights reserved by CTTL. Page 5 of 10 2 Introduction The equipment under test (EUT) is a smart phone. It contains the Qualcomm modem supporting 2G/3G/4G technologies and 5G NR Sub-6 GHz technologies. These modems enable Qualcomm Smart Transmit feature to control and manage transmitting power in real time and to ensure at all times the time-averaged RF exposure is in compliance with the FCC requirement. In the Part 0 report, the EUT SAR are characterized for WWAN radios (2G/3G/4G/Sub6 NR) to determine the power limit that corresponds to the exposure design target after accounting for all device design related uncertainties, i.e., SAR_design_target (< FCC SAR limit) for sub-6. The SAR characterization are denoted as SAR Char. SAR Char will be used as input for Qualcomm Smart Transmit to operate. SAR Char will be loaded and store in the EUT via the Embedded File System (EFS). The compliance test under the static transmission scenario and simultaneous transmission analysis are reported in Part 1 report. The validation of the time-averaging algorithm and compliance under the dynamic (time- varying) transmission scenario for WWAN technologies are reported in Part 2 report. The EUT supports WLAN/BT radio as well but WLAN/BT modem is not enabled with Smart Transmit. Nomenclature for Part 0 Report Term Description P limit The time-averaged RF power which corresponds to SAR_design_target. P max Maximum target power level SAR_design_target: The design target for SAR compliance. It should be less than regulatory power density limit to account for all device design related uncertainties. SAR Char P limit for all the technologies/bands for all applicable DSI No.I22Z61952-SEM01 ©Copyright. All rights reserved by CTTL. Page 6 of 10 3 Equipment Under Test (EUT) Overview Description: Smart Phone Model name: RMO-NX1 Tested Band: GSM850/1900, WCDMA B2/B5 LTE Band2/4/5/7/38/41 5G NR N7/38/41/78 BT, Wi-Fi(2.4G), Wi-Fi(5G) Tx Frequency: 824 – 849 MHz (GSM 850) 1850 – 1910 MHz (GSM 1900) 824–849 MHz (WCDMA 850 Band V) 1850–1910 MHz (WCDMA1900 Band II) 1850 – 1910 MHz(LTE Band 2) 1710 – 1755 MHz (LTE Band 4) 824 – 849 MHz (LTE Band 5) 2500 – 2570 MHz(LTE Band 7) 2570 – 2620 MHz (LTE Band 38) 2496 – 2690 MHz (LTE Band 41) 2412 – 2462 MHz (Wi-Fi 2.4G) 5180 – 5240 MHz (Wi-Fi 5.2G) 5260 – 5320 MHz (Wi-Fi 5.3G) 5500 – 5720 MHz (Wi-Fi 5.5G) 5745 – 5825 MHz (Wi-Fi 5.8G) 2400 – 2483.5 MHz (Bluetooth) 2500 – 2570 MHz (n7) 2570 – 2620 MHz (n38) 2496 – 2690 MHz (n41) 3450 – 3550 MHz (n78) Rx Frequency: 869 – 894 MHz (GSM 850) 1…

Text truncated - open the document above for the full version.

ANNEX A GRAPH RESULTS GSM850 Head ANT1 Date: 10/19/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 825 MHz; σ = 0.872 S/m; εr = 42.95; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, GSM850 (0) Frequency: 824.2 MHz Duty Cycle: 1:8.30042 Probe: EX3DV4 - SN7600 ConvF(10.74, 10.74, 10.74) Area Scan (81x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.198 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.549 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.230 W/kg SAR(1 g) = 0.170 W/kg; SAR(10 g) = 0.130 W/kg Maximum value of SAR (measured) = 0.205 W/kg GSM850 Body 10mm ANT1 Date: 10/19/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.878 S/m; εr = 43.03; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, GSM850 (0) Frequency: 836.6 MHz Duty Cycle: 1:8.30042 Probe: EX3DV4 - SN7600 ConvF(10.74, 10.74, 10.74) Area Scan (91x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.195 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.23 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.227 W/kg SAR(1 g) = 0.141 W/kg; SAR(10 g) = 0.093 W/kg Maximum value of SAR (measured) = 0.189 W/kg GSM1900 Head ANT0 Date: 10/20/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 1910 MHz; σ = 1.418 S/m; εr = 40.49; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, GSM1900 (PCS) (0) Frequency: 1909.8 MHz Duty Cycle: 1:8.30042 Probe: EX3DV4 - SN7600 ConvF(8.54, 8.54, 8.54) Area Scan (81x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.136 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.949 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) = 0.152 W/kg SAR(1 g) = 0.091 W/kg; SAR(10 g) = 0.055 W/kg Maximum value of SAR (measured) = 0.131 W/kg GSM1900 Body 10mm ANT0 Date: 10/20/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 1910 MHz; σ = 1.418 S/m; εr = 40.49; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, GSM1900 (PCS) (0) Frequency: 1909.8 MHz Duty Cycle: 1:8.30042 Probe: EX3DV4 - SN7600 ConvF(8.54, 8.54, 8.54) Area Scan (91x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.509 W/kg Zoom Scan (6x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.04 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.626 W/kg SAR(1 g) = 0.348 W/kg; SAR(10 g) = 0.190 W/kg Maximum value of SAR (measured) = 0.489 W/kg GSM1900 Body 15mm ANT0 Date: 10/20/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 1910 MHz; σ = 1.418 S/m; εr = 40.49; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, GSM1900 3TX (0) Frequency: 1909.8 MHz Duty Cycle: 1:2.66993 Probe: EX3DV4 - SN7600 ConvF(8.54, 8.54, 8.54) Area Scan (91x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.281 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.747 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.338 W/kg SAR(1 g) = 0.198 W/kg; SAR(10 g) = 0.117 W/kg Maximum value of SAR (measured) = 0.278 W/kg GSM1900 Head ANT2 Date: 10/20/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 1910 MHz; σ = 1.418 S/m; εr = 40.49; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, GSM1900 (PCS) (0) Frequency: 1909.8 MHz Duty Cycle: 1:8.30042 Probe: EX3DV4 - SN7600 ConvF(8.54, 8.54, 8.54) Area Scan (81x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 1.18 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.17 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 1.36 W/kg SAR(1 g) = 0.694 W/kg; SAR(10 g) = 0.351 W/kg Maximum value of SAR (measured) = 1.10 W/kg GSM1900 Body 10mm ANT2 Date: 10/20/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 1910 MHz; σ = 1.418 S/m; εr = 40.49; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, GSM1900 3TX (0) Frequency: 1909.8 MHz Duty Cycle: 1:2.66993 Probe: EX3DV4 - SN7600 ConvF(8.54, 8.54, 8.54) Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.292 W/kg Zoom Scan (6x8x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.470 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.334 W/kg SAR(1 g) = 0.182 W/kg; SAR(10 g) = 0.096 W/kg Maximum value of SAR (measured) = 0.278 W/kg GSM1900 Body 15mm ANT2 Date: 10/20/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 1910 MHz; σ = 1.418 S/m; εr = 40.49; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, GSM1900 (PCS) (0) Frequency: 1909.8 MHz Duty Cycle: 1:8.30042 Probe: EX3DV4 - SN7600 ConvF(8.54, 8.54, 8.54) Area Scan (91x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.228 W/kg Zoom Scan (5x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.870 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.258 W/kg SAR(1 g) = 0.148 W/kg; SAR(10 g) = 0.085 W/kg Maximum value of SAR (measured) = 0.214 W/kg WCDMA850 Head ANT1 Date: 10/19/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.878 S/m; εr = 43.03; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, WCDMA850…

Text truncated - open the document above for the full version.

ANNEX B SYSTEM VALIDATION RESULTS 835 MHz Date: 10/19/2022 Electronics: DAE4 Sn777 Medium: H700-6000 Medium parameters used: f = 835 MHz; σ = 0.876 S/m; εr = 43; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 835 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7600 ConvF(10.74, 10.74, 10.74) System Performance Check/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Area Scan (61x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.88 W/kg System Performance Check/d=15mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.18 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.42 W/kg SAR(1 g) = 2.3 W/kg; SAR(10 g) = 1.55 W/kg Maximum value of SAR (measured) = 2.90 W/kg 0 dB = 2.90 W/kg = 4.62 dBW/kg 1900 MHz Date: 10/20/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 1900 MHz; σ = 1.411 S/m; εr = 40.54; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 1900 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7600 ConvF(8.54, 8.54, 8.54) System Performance Check/d=10mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Area Scan (61x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.2 W/kg System Performance Check/d=10mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 97.06 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 17.0 W/kg SAR(1 g) = 9.59 W/kg; SAR(10 g) = 5.1 W/kg Maximum value of SAR (measured) = 13.6 W/kg 0 dB = 13.6 W/kg = 11.34 dBW/kg 2450 MHz Date: 11/8/2022 Electronics: DAE4 Sn1556 Medium: H700-6000M Medium parameters used: f = 2450 MHz; σ = 1.868 S/m; εr = 39.7; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 2450 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7464 ConvF(7.77, 7.77, 7.77) System Performance Check/d=10mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Area Scan (81x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 22.1 W/kg System Performance Check/d=10mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 85.02 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 28.3 W/kg SAR(1 g) = 13.7 W/kg; SAR(10 g) = 6.4 W/kg Maximum value of SAR (measured) = 21.1 W/kg 0 dB = 21.1 W/kg = 13.24 dBW/kg 2600 MHz Date: 10/23/2022 Electronics: DAE4 Sn777 Medium: H700-6000M Medium parameters used: f = 2600 MHz; σ = 1.982 S/m; εr = 39.32; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 2600 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN7600 ConvF(7.62, 7.62, 7.62) System Performance Check/d=10mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Area Scan (81x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 23.8 W/kg System Performance Check/d=10mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.86 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 30.1 W/kg SAR(1 g) = 14.8 W/kg; SAR(10 g) = 6.78 W/kg Maximum value of SAR (measured) = 22.6 W/kg 0 dB = 22.6 W/kg = 13.54 dBW/kg 2600 MHz Date: 11/9/2022 Electronics: DAE4 Sn1588 Medium: H700-6000M Medium parameters used: f = 2600 MHz; σ = 1.923 S/m; εr = 39.73; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 2600 MHz Duty Cycle: 1:1 Probe: EX3DV4 - SN3617 ConvF(7.4, 7.4, 7.4) System Performance Check/d=10mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Area Scan (81x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 23.4 W/kg System Performance Check/d=10mm, Pin=250 mW, dist=2.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 99.88 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 30.3 W/kg SAR(1 g) = 14.8 W/kg; SAR(10 g) = 6.79 W/kg Maximum value of SAR (measured) = 22.7 W/kg 0 dB = 22.7 W/kg = 13.56 dBW/kg 2600 MHz Date: 11/6/2022 Electronics: DAE4 Sn1331 Medium: H700-6000M Medium parameters used: f = 2600 MHz; σ = 1.932 S/m; εr = 39.94; ρ = 1000 kg/m3 Ambient Temperature:23.3°C Liquid Temperature: 22.5°C Communication System: UID 0, CW (0) Frequency: 2600 MHz D…
