2AYGE-MLSK17Remote Control

Model: MLS-K17 IC:26807-MLSK17 FCC ID: 2AYGE-MLSK17 Manufacturer: MeLaSen Electronics Ltd. Address:No.29 Industrial Road, Xiaolan Industrial Estate, Xiaolan Town, Zhongshan, 528415 Guangdong, P.R. China Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement.

Rev 1/26/2023 MeLaSen Electronics Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06‐07‐2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID:2AYGE‐MLSK17 MeLaSen Electronics Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Rui Ye Rui Ye Rev 1/26/2023 MeLaSen Electronics Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06‐07‐2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AYGE‐MLSK17 MeLaSen Electronics Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Rui Ye Rui Ye

MeLaSen Electronics CO., LTD Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 07-10-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2AYGE-MLSK17 MeLaSen Electronics CO., LTD (“the applicant”) certifies that, as of the date of the filing of the application, TianHeng Consulting, LLC is our designated U.S. agent for service of process for the above referenced FCC ID. MeLaSen Electronics CO., LTD accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. TianHeng Consulting, LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Sincerely, Designated U.S. Agent Information: Name: TianHeng Consulting, LLC FRN: 0033401258 Contact Person: Hualing Dong Address: 392 Andover Street, Wilmington, MA 01887, United States Tel.: +1 617-997-4010 Email: [email protected] U.S. Agent Signature: Applicant: Company Name: MeLaSen Electronics CO., LTD Grantee Code:2AYGE Contact Name: Rui Ye Address: No.29 Industrial Road,Xiaolan Industrial Estate,Xiaolan Town, Zhongshan, Guangdong, China Tel.: +86-13532008828 Email: [email protected] Applicant Signature: Rui Ye Hualing Dong, President

MeLaSen Electronics Co., Ltd. Date:June 7, 2023 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:2AYGE-MLSK17 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description Schematic.pdf Block Diagram.pdf Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, MeLaSen Electronics Co., Ltd. Signature Rui Ye/General manager Typed name and Title Rui Ye

MeLaSen Electronics Co., Ltd. FCC ID:2AYGE-MLSK17 POWER OF ATTORNEY Date: June 7, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Foshan) Co., Ltd. (Dara Zhou) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Foshan) Co., Ltd. (Dara Zhou) on our behalf shall have the same effect as acts of our own. This authorization expires on May 26, 2024 . This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, MeLaSen Electronics Co., Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, MeLaSen Electronics Co., Ltd. Signature Rui Ye/General manager Typed name and Title Rui Ye

MeLaSen Electronics Co., Ltd. FCC ID:2AYGE-MLSK17 POWER OF ATTORNEY Date: June 7, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Foshan) Co., Ltd. (Dara Zhou) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Foshan) Co., Ltd. (Dara Zhou) on our behalf shall have the same effect as acts of our own. This authorization expires on May 26, 2024 . This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, MeLaSen Electronics Co., Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, MeLaSen Electronics Co., Ltd. Signature Rui Ye/General manager Typed name and Title Rui Ye

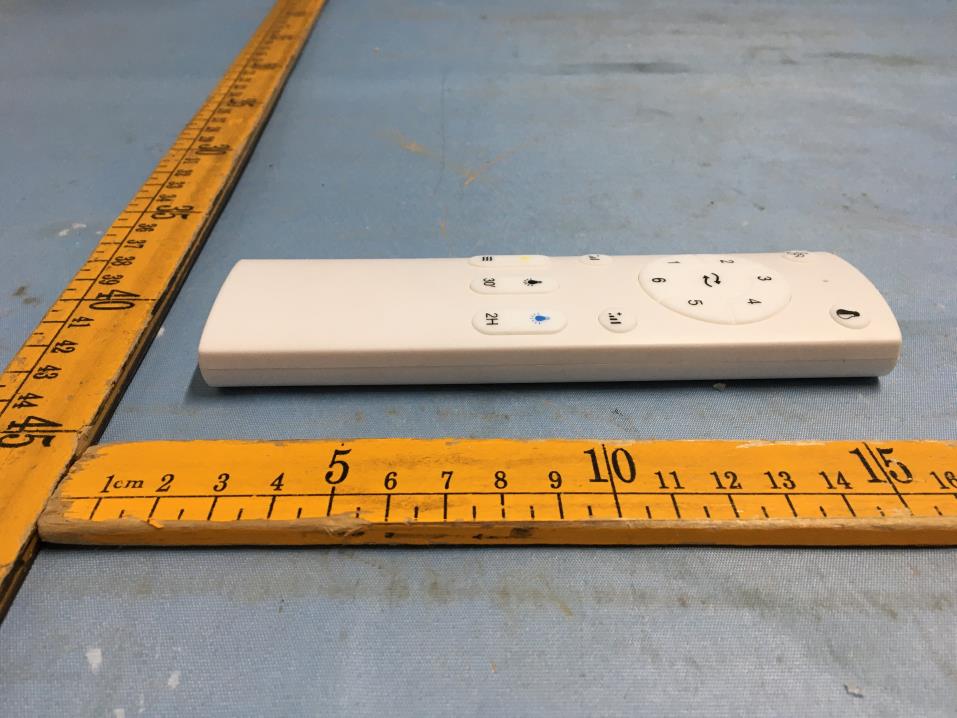

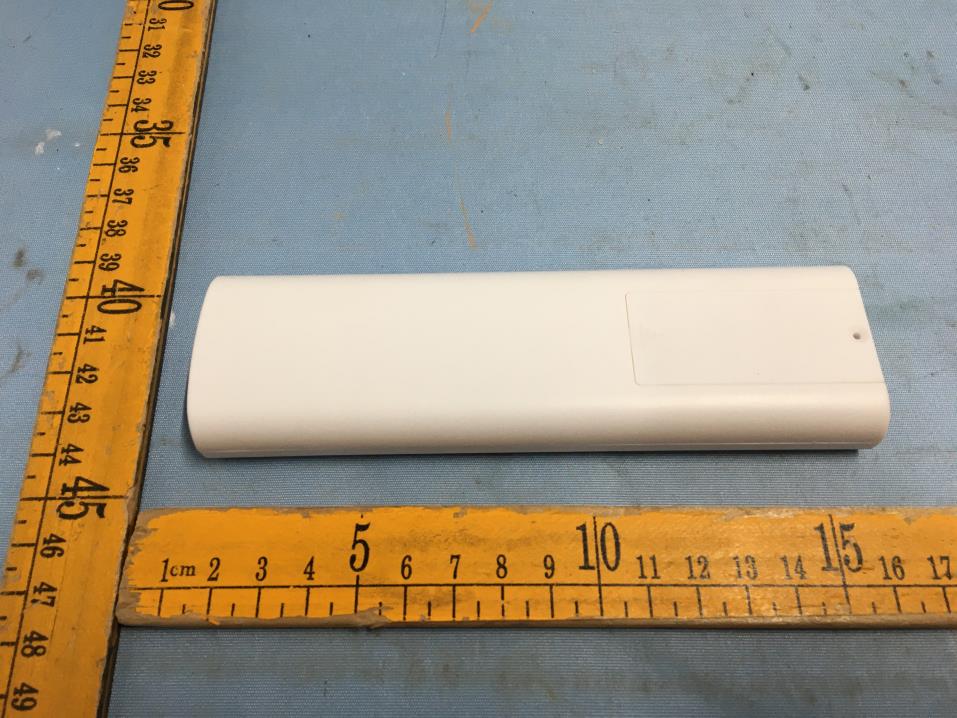

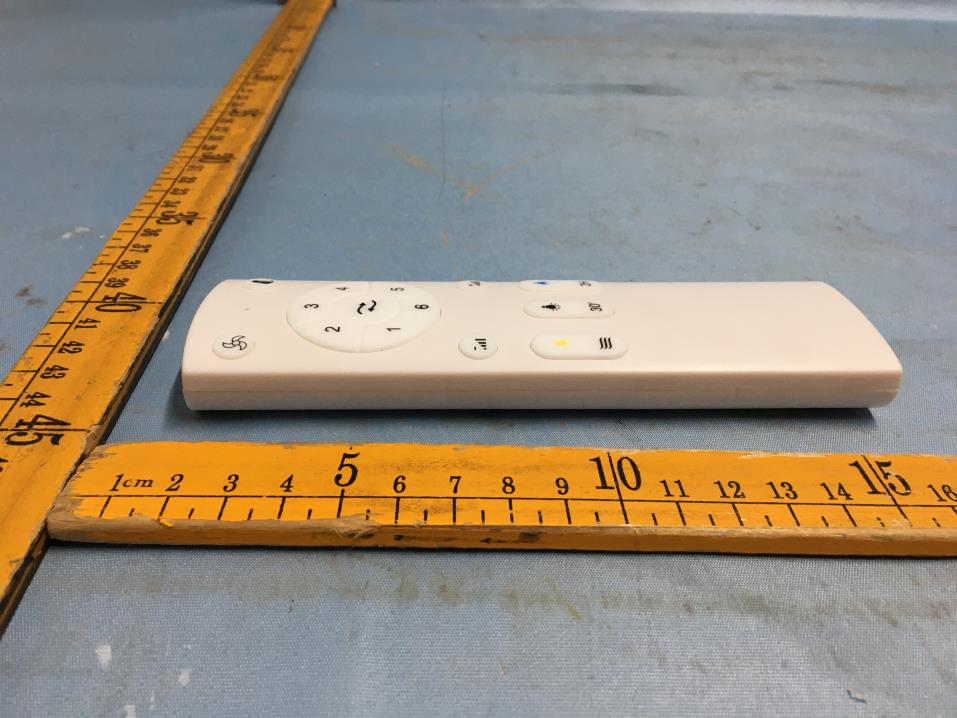

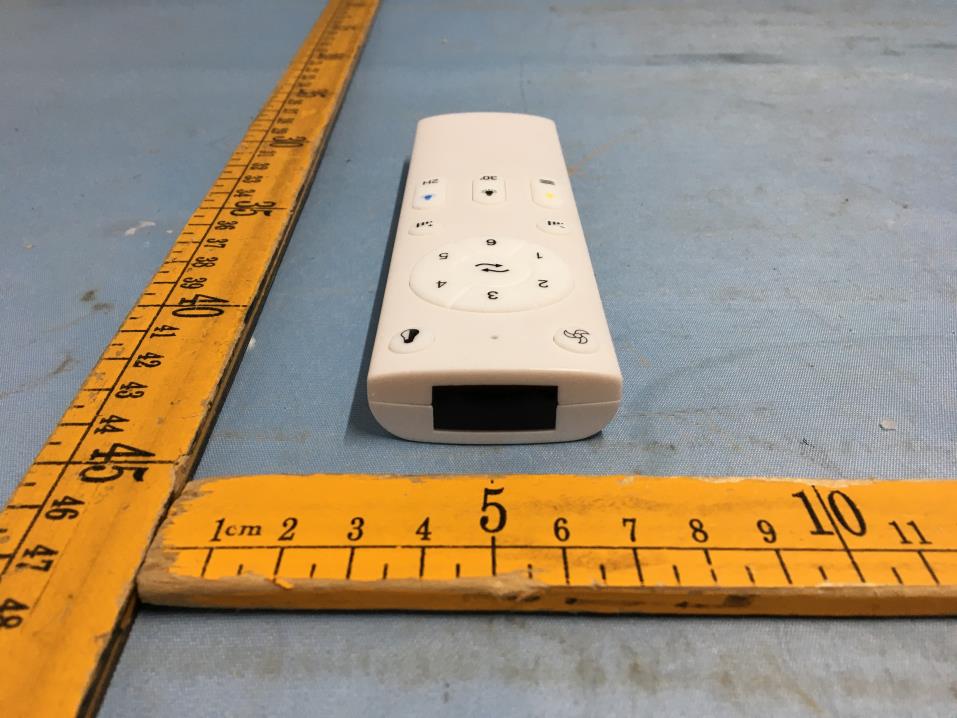

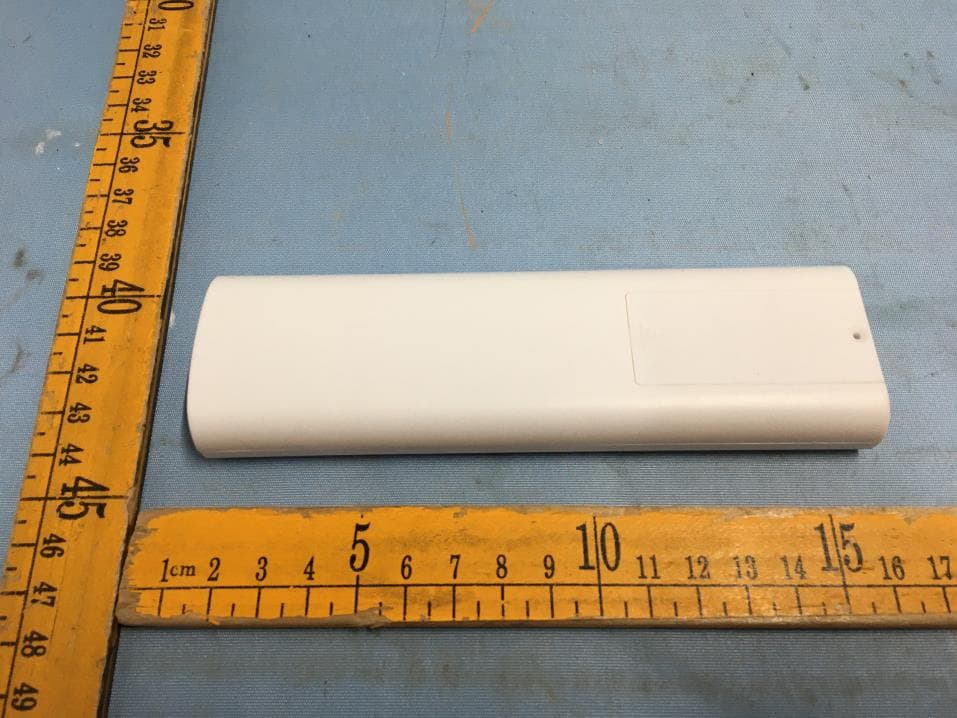

Model: MLS-K17 Page 1 of 3 Picture 1 Picture 2 Model: MLS-K17 Page 2 of 3 Picture 3 Picture 4 Model: MLS-K17 Page 3 of 3 Picture 5 Picture 6

Model: MLSK-17 Page 1 of 3 Picture 1 Picture 2 Model: MLSK-17 Page 2 of 3 Picture 3 Picture 4 Model: MLSK-17 Page 3 of 3 Picture 5

RF Exposure Requirements 1 General Information Client Information Applicant ....................................... : MeLaSen Electronics CO., LTD Address of applicant ................... : No.29 Industrial Road, Xiaolan Industrial Estate, Xiaolan Town, Zhongshan, 528415 Guangdong, P.R. China Manufacturer ................................. : The same as above Address of manufacturer ............. : The same as above General Description of E.U.T FCC ID ............................................ : 2AYGE-MLSK17 Product Name ............................... : Remote Control Model No. ..................................... : MLS-K17 Model Description ........................ : --- Rated Voltage ................................ : Battery 3V (2*1.5V AAA) Battery Capacity ........................... : --- Power Adapter .............................. : --- Technical Characteristics of EUT Operating Frequency ................... : 433.92 MHz Max. Field Strength ...................... : 80.98 dBuV/m (at 3m distance) Modulation .................................... : ASK Type of Antenna ........................... : PCB Printed Antenna Antenna Gain ................................ : 3dBi Lowest oscillator .......................... 13.56MHz 2 RF Exposure Exemption According to S1.1307(b)(3) and 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radiofrequency energy level in excess limit for maximum permissible exposure. FCC Rule Part 1.1307 (b)(3)(i)(A): The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A). 3 RF Exposure Evaluation Calculated the EIRP from the radiated field strength in the far field using Equation: EIRP=E Meas +20log(d Meas )-104.7 Where EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m 4 Calculation Result Radio Access Technology Min. Distance (cm) Prediction Frequency (MHz) Max. Field Strength (dBμV/m) EIRP (dBm) EIRP (mW) SAR Test Exclusion Threshold (mW) Result SRD 0.5 433.92 80.98 -14.18 0.04 1 Pass ======End of Report======

RF Exposure Requirements 1 General Information Client Information Applicant ....................................... : MeLaSen Electronics CO., LTD Address of applicant ................... : No.29 Industrial Road, Xiaolan Industrial Estate, Xiaolan Town, Zhongshan, 528415 Guangdong, P.R. China Manufacturer ................................. : The same as above Address of manufacturer ............. : The same as above General Description of E.U.T FCC ID ............................................ : 2AYGE-MLSK17 Product Name ............................... : Remote Control Model No. ..................................... : MLS-K17 Model Description ........................ : --- Rated Voltage ................................ : Battery 3V (2*1.5V AAA) Battery Capacity ........................... : --- Power Adapter .............................. : --- Technical Characteristics of EUT Operating Frequency ................... : 433.92 MHz Max. Field Strength ...................... : 80.98 dBuV/m (at 3m distance) Modulation .................................... : ASK Type of Antenna ........................... : PCB Printed Antenna Antenna Gain ................................ : 3dBi Lowest oscillator .......................... 13.56MHz 2 RF Exposure Exemption According to S1.1307(b)(3) and 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radiofrequency energy level in excess limit for maximum permissible exposure. FCC Rule Part 1.1307 (b)(3)(i)(A): The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of this section. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A). 3 RF Exposure Evaluation Calculated the EIRP from the radiated field strength in the far field using Equation: EIRP=E Meas +20log(d Meas )-104.7 Where EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m 4 Calculation Result Radio Access Technology Min. Distance (cm) Prediction Frequency (MHz) Max. Field Strength (dBμV/m) EIRP (dBm) EIRP (mW) SAR Test Exclusion Threshold (mW) Result SRD 0.5 433.92 80.98 -14.18 0.04 1 Pass ======End of Report======

Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn Page 1 of 25 WT-510-201-12-A TEST REPORT Reference No. .................... : WTF22F10215718W FCC ID ................................ : 2AYGE-MLSK17 Applicant ............................ : MeLaSen Electronics CO., LTD Address .............................. : No.29 Industrial Road, Xiaolan Industrial Estate, Xiaolan Town, Zhongshan, 528415 Guangdong, P.R. China Manufacturer .................... : The same as above Address .............................. : The same as above Product Name .................... : Remote Control Model No. ........................... : MLS-K17 Test specification .............. : FCC CFR47 Part 15 Subpart C (Section 15.231):2021 Date of Receipt sample .... : 2022-11-23 Date of Test ....................... : 2022-12-07 to 2022-12-19 Date of Issue ...................... : 2023-07-12 Test Report Form No. ....... : WEW-15231A-01A Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Foshan) Co., Ltd. Address: No.13-19, 2/F., 2nd Building, Sunlink International Machinery City, Chencun, Shunde District, Foshan, Guangdong, China Tel:+86-757-23811398 Fax:+86-757-23811381 E-mail:[email protected] Tested by: Approved by: Roy Hong Danny Zhou Reference No.: WTF22F10215718W Page 2 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn WT-510-201-12-A 1 Revision History Test Report No. Date of Issue Description Status WTF22F10215718W 2023-07-12 Original Valid Reference No.: WTF22F10215718W Page 3 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn WT-510-201-12-A 2 Contents Page 1 REVISION HISTORY ................................................................................................................................. 2 2 CONTENTS ............................................................................................................................................... 3 3 GENERAL INFORMATION ....................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T ................................................................................................... 4 3.2 TECHNICAL CHARACTERISTICS OF EUT ........................................................................................... 4 3.3 STANDARDS APPLICABLE FOR TESTING ............................................................................................ 4 3.4 TEST FACILITY ................................................................................................................................ 5 3.5 SUBCONTRACTED ........................................................................................................................... 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................ 5 3.7 DISCLAIMER .................................................................................................................................... 5 4 EUT SETUP AND TEST MODE ................................................................................................................ 6 5 EQUIPMENT USED DURING TEST ......................................................................................................... 7 5.1 EQUIPMENT LIST ............................................................................................................................. 7 5.2 TEST SOFTWARE ............................................................................................................................ 8 5.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ......................................................................... 8 5.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 8 6 SUMMARY OF TEST RESULT ................................................................................................................ 9 6.1 ANTENNA REQUIREMENT ............................................................................................................... 10 6.2 RADIATED SPURIOUS EMISSIONS ................................................................................................... 11 6.3 20DB BANDWIDTH ......................................................................................................................... 15 6.4 TRANSMISSION TIME ..................................................................................................................... 16 6.5 DUTY CYCLE ................................................................................................................................. 17 7 PHOTOGRAPHS TEST SETUP ............................................................................................................. 19 7.1 PHOTOGRAPHS - RADIATED EMISSION TEST SETUP ........................................................................ 19 8 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS ............................................................................... 20 8.1 EUT - EXTERNAL PHOTOS ............................................................................................................. 20 8.2 EUT - INTERNAL PHOTOS .............................................................................................................. 23 Reference No.: WTF22F10215718W Page 4 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn WT-510-201-12-A 3 General Information 3.1 General Description of E.U.T Product Name ............................... : Remote Control Model No. ..................................... : MLS-K17 Model Desc…

Text truncated - open the document above for the full version.

Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn Page 1 of 25 WT-510-201-12-A TEST REPORT Reference No. .................... : WTF22F10215718W FCC ID ................................ : 2AYGE-MLSK17 Applicant ............................ : MeLaSen Electronics CO., LTD Address .............................. : No.29 Industrial Road, Xiaolan Industrial Estate, Xiaolan Town, Zhongshan, 528415 Guangdong, P.R. China Manufacturer .................... : The same as above Address .............................. : The same as above Product Name .................... : Remote Control Model No. ........................... : MLS-K17 Test specification .............. : FCC CFR47 Part 15 Subpart C (Section 15.231):2021 Date of Receipt sample .... : 2022-11-23 Date of Test ....................... : 2022-12-07 to 2022-12-19 Date of Issue ...................... : 2023-07-12 Test Report Form No. ....... : WEW-15231A-01A Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Foshan) Co., Ltd. Address: No.13-19, 2/F., 2nd Building, Sunlink International Machinery City, Chencun, Shunde District, Foshan, Guangdong, China Tel:+86-757-23811398 Fax:+86-757-23811381 E-mail:[email protected] Tested by: Approved by: Roy Hong Danny Zhou Reference No.: WTF22F10215718W Page 2 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn WT-510-201-12-A 1 Revision History Test Report No. Date of Issue Description Status WTF22F10215718W 2023-07-12 Original Valid Reference No.: WTF22F10215718W Page 3 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn WT-510-201-12-A 2 Contents Page 1 REVISION HISTORY ................................................................................................................................. 2 2 CONTENTS ............................................................................................................................................... 3 3 GENERAL INFORMATION ....................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T ................................................................................................... 4 3.2 TECHNICAL CHARACTERISTICS OF EUT ........................................................................................... 4 3.3 STANDARDS APPLICABLE FOR TESTING ............................................................................................ 4 3.4 TEST FACILITY ................................................................................................................................ 5 3.5 SUBCONTRACTED ........................................................................................................................... 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................ 5 3.7 DISCLAIMER .................................................................................................................................... 5 4 EUT SETUP AND TEST MODE ................................................................................................................ 6 5 EQUIPMENT USED DURING TEST ......................................................................................................... 7 5.1 EQUIPMENT LIST ............................................................................................................................. 7 5.2 TEST SOFTWARE ............................................................................................................................ 8 5.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ......................................................................... 8 5.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 8 6 SUMMARY OF TEST RESULT ................................................................................................................ 9 6.1 ANTENNA REQUIREMENT ............................................................................................................... 10 6.2 RADIATED SPURIOUS EMISSIONS ................................................................................................... 11 6.3 20DB BANDWIDTH ......................................................................................................................... 15 6.4 TRANSMISSION TIME ..................................................................................................................... 16 6.5 DUTY CYCLE ................................................................................................................................. 17 7 PHOTOGRAPHS TEST SETUP ............................................................................................................. 19 7.1 PHOTOGRAPHS - RADIATED EMISSION TEST SETUP ........................................................................ 19 8 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS ............................................................................... 20 8.1 EUT - EXTERNAL PHOTOS ............................................................................................................. 20 8.2 EUT - INTERNAL PHOTOS .............................................................................................................. 23 Reference No.: WTF22F10215718W Page 4 of 25 Waltek Testing Group (Foshan) Co., Ltd. http://www.waltek.com.cn WT-510-201-12-A 3 General Information 3.1 General Description of E.U.T Product Name ............................... : Remote Control Model No. ..................................... : MLS-K17 Model Desc…

Text truncated - open the document above for the full version.

Model: MLS-K17 Page 1 of 1 Test Setup For Radiated Emission (30MHz to 1GHz) Test Setup For Radiated Emission (Above 1GHz)
