2AYHD-A20DC6coreMeter

1 User’s Guide 2 Contents 1. Safety Information, P3-4 1.1 Warning, P3 1.2 Precautions, P3-4 1.3 Handling Cautions, P4 2. Introduction, P5-7 2.1 Package Contents, P5 2.2 Product Features, P5 2.3 Remote Controller, P6 2.4 Setup Connection, P7 2.5 Display when Power Up, P7-8 3. Settings, P8-21 3.1 WiFi, P9 3.2 Bluetooth, P10 3.3 Ethernet, P10 3.4 More..., P11 3.5 Sound and notification, P12 3.6 Display, P13-15 3.7 Storage&USB, P16 3.8 Apps, P17 3.9 Memory, P17 3.10 Location, P18 3.11 Security, P18 3.12 Language & input, P19 3.13 Reset, P19 3.14 Accounts, P20 3.15 Google, P21 3.16 Date time, P21 3.17 About MediaBox, P22 4. Apps Install & Uninstall, P23 5. Firmware Update , P24 6. Trouble Shooting/FAQ , P25 7. Repairs , P26 8. Specification , P27 9. Trademark Notice , P28 3 1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product . To reduce the risk of fire or electric shock, keep this product away from exposed direct sunlight, naked flames or heat, large amounts of moisture, dust, and sand. FCC Note (for U.S.A) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Consult the dealer or an experienced radio/ technician for help. - This class B digital product meets all requirements of the Canadian Interference - Causing Equipment Regulations. 1.2 Precautions Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. 1.2.1 Read these instructions. 1.2.2 Keep these instructions. 1.2.3 Heed all warnings. 1.2.4 Follow all instructions. 1.2.5 DO NOT use this apparatus near water. 1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth. 1.2.7 DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions. 1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. 1.2.9 Protect the power cord from being walked on or pinched particularly at plugs, 4 convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid injury from tip-over. 1.2.12 Unplug this apparatus during lightning storms or when unused for long period of time. 1.2.13 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 1.3 Handling Cautions 1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus. 1.3.2 To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times. 1.3.3 DO NOT plug multiple electric devices into the same wall socket. Overloading a socket can cause it to overheat, resulting in a fire. 1.3.4 Before connecting other components to this player, be sure to turn them off. 1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer service center for technical assistance. Do not use the product. Using the product as it is may cause a fire or an electric shock. 5 2. Introduction 2.1 Package Contents CM03 IR Remote Controller (IR RC) Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V, 2A 2.2 Product Features  Quad Core CPU,Penta GPU, frequency is 2.0GHz, RAM is 2G, built in 8G EMMC. Powered by Android 7.1 OS  Built in browser and support virtual private network access  RJ45 10/100M Ethernet interface  Support 4k2k video local media playback from SD card or USB HDD  Built in 802.11b/g/n AC WIFI module with antenna inside, WiFi frequency range is 2.4G/5.8G  Rj45:Wired internet connection  HDMI video output, connect to HD for HD video playback  2 external USB interface , support mobile HDD, support mouse and keyboard operating  Support weather, calendar, and desktop clock gadgets  Support USB mouse and keyboard operation  Support simple IR remote control with mouse function  Support music player, picture player and more family entertainment  Support Micro SD card  Support Google Chrome browser  App Installer for application installation from USB/SD card 6 2.3 Remote Controller Note: Button Battery 2025 3V insert with correct polarity (+/-). ① Power ② Mode ③ Mute ④ Upwards ⑤ Towards the left ⑥ Towards the right ⑦ Downwards ⑧ OK ⑨ Return ⑩ Home ⑪ Background App ⑫ Menu ⑬ Vo l + ⑭ Notification ⑮ Page Up…

Text truncated - open the document above for the full version.

Co m Ad d Pr o Mo d Pr o We act We an d issu our Sig Na m Title Com mpany: Hy dress: 290 oduct Name del Numbe oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: phametrics CLINTON A e: coreMete er(s): CM03 ription: co MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s Gerardo L Manager Hyphame H Agen s,Inc. AVENUE 5 er 3 reMete r bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect Lopez etrics,Inc. Hyphamet nt Auth A BROOKL Boulder Co erning the c allowed to f regulatory a cation. Any t as acts of trics,Inc. horizat LYN NY, 11 ourt, Pleasa certification forward all i agencies as and all acts our own. tion 1205 US anton, Califo of above na information s required a s carried ou Date: ornia 94566 amed equip related to t nd to discu ut by MiCOM Jan. 19, 20 6, USA, to pment. the approva ss any M Labs on 021 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: Title: M of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AYHD-A om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schemat Block Di Parts Lis Operatio Tune-up software r understand pondence du ents and thi zation is iss ely, ure: Gerardo L o anager ing Techno cations Com s Road 046 for Confiden A20DC6 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp tic Diagram agram st onal Descrip Procedure e security re ding that all uring the ce s informatio sued. opez H logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption equirement l measurem ertification re on will be av Hyphametric ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for s,Inc. s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the Date: Jan. 457 and § 0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 19, 2021 0.459, we al dered as documents the market . ntial quipment .

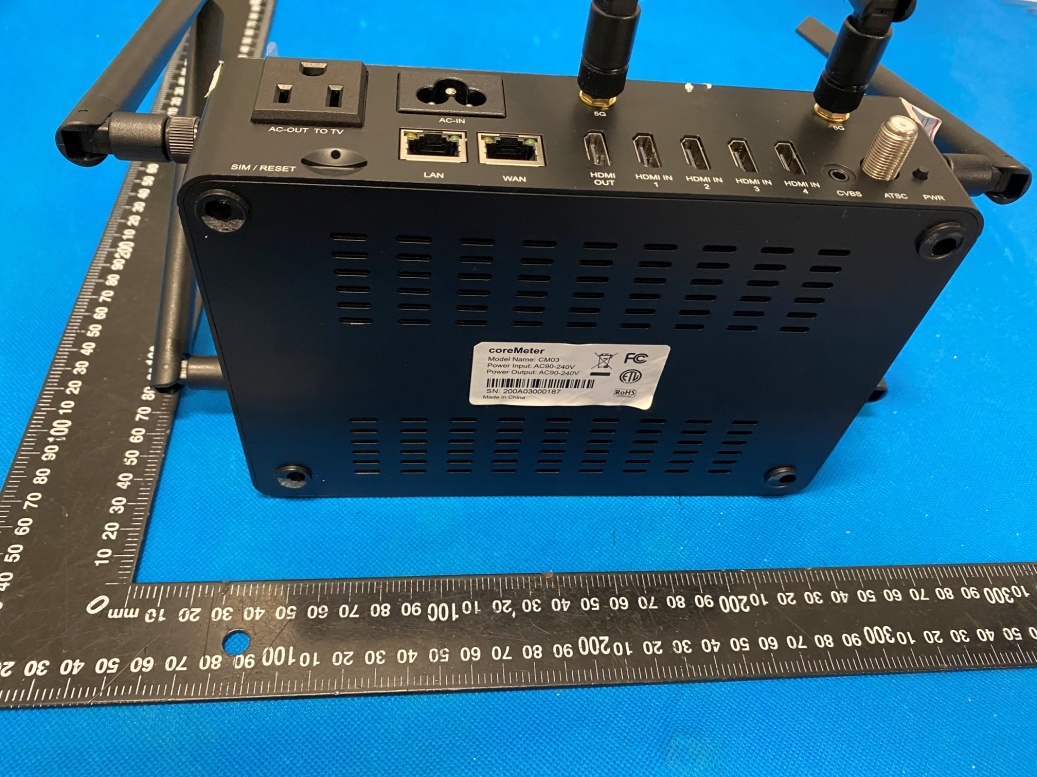

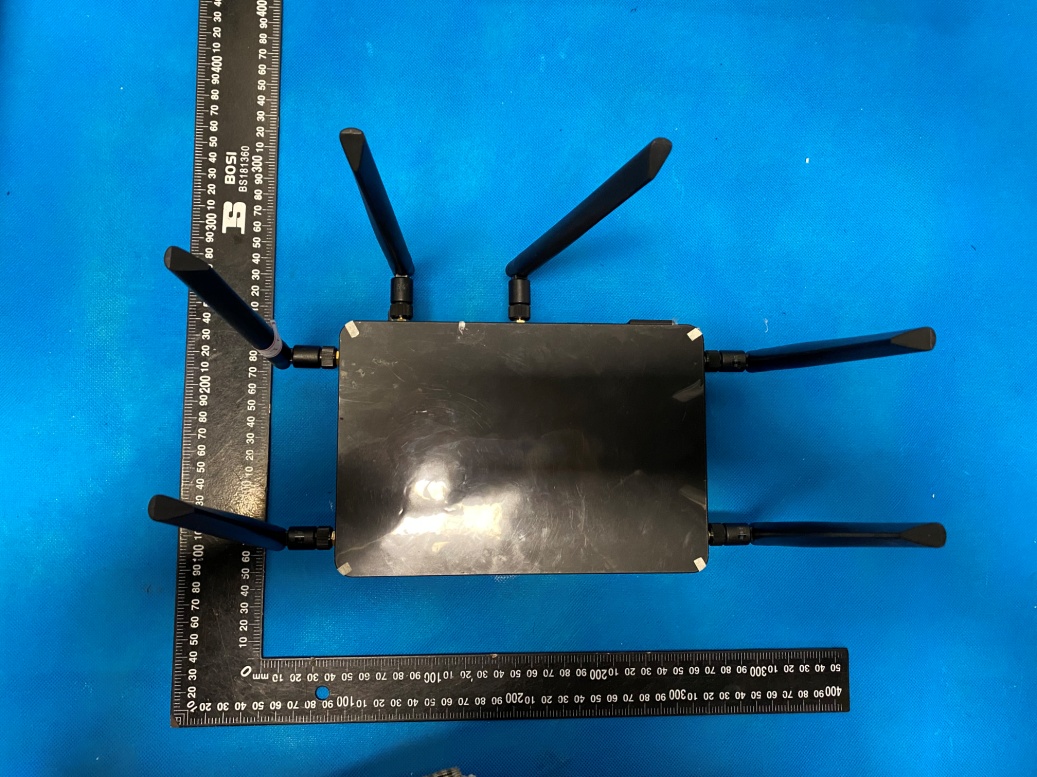

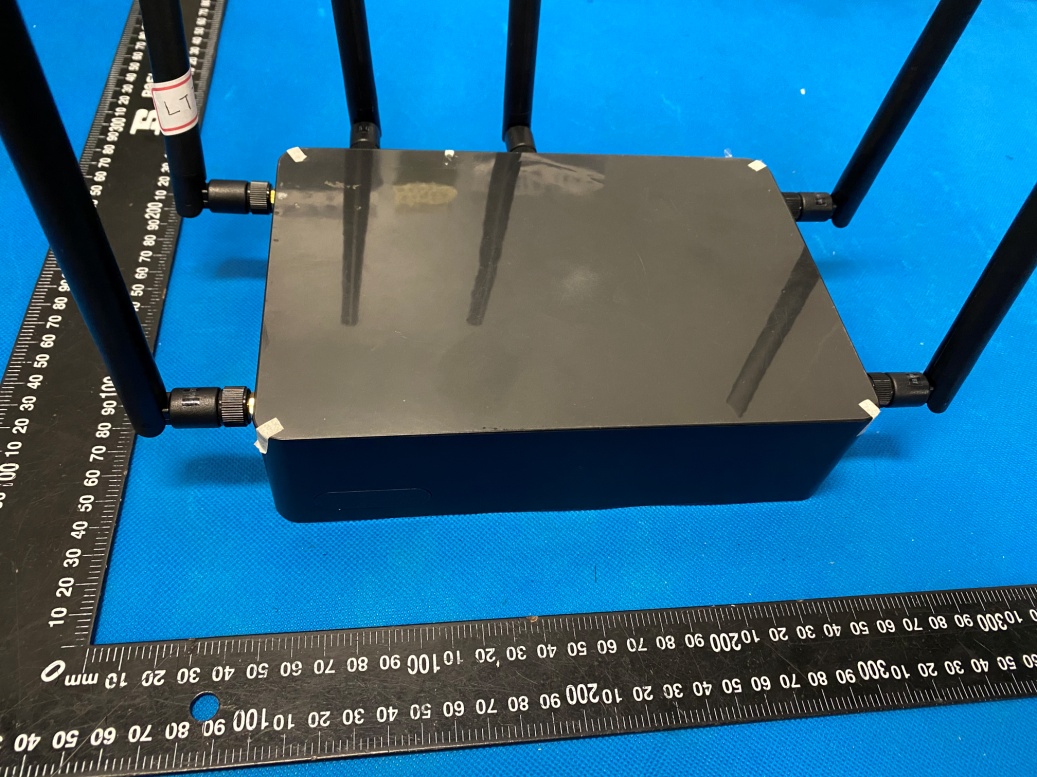

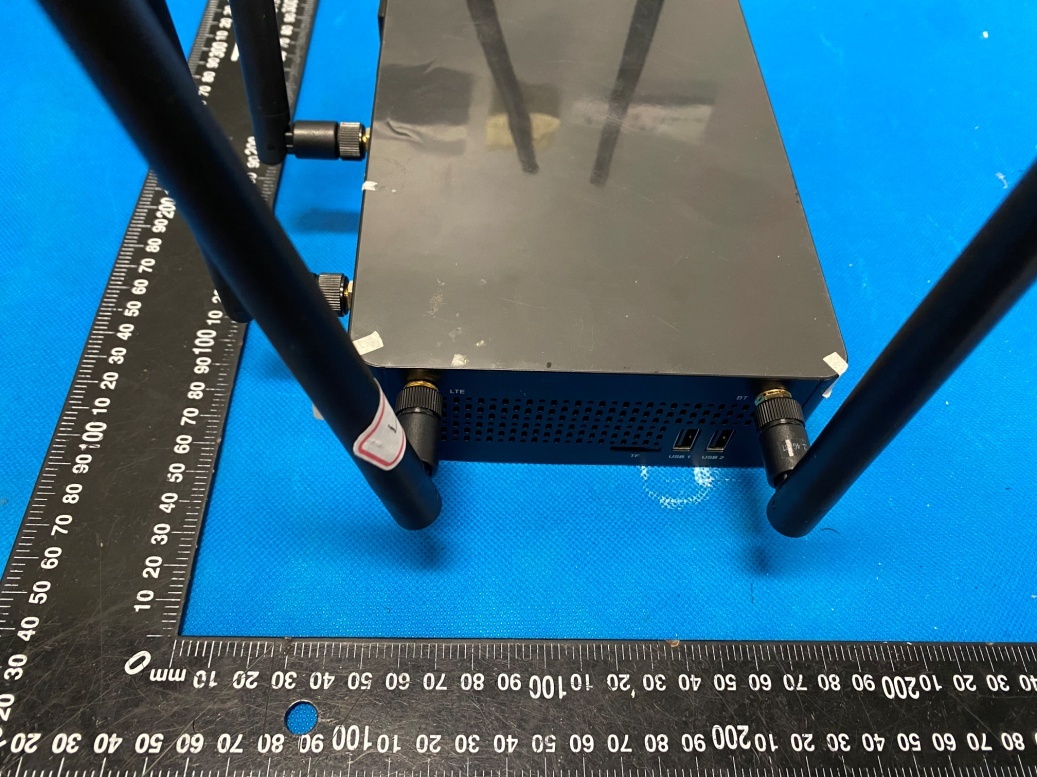

Page 1 of 5 Annex A External Photos Test Model: CM03 Photo 1 Photo 2 5.2G/5.8G WIFI ANT. 2.4G WIFI ANT. BT ANT. LTE ANT. Page 2 of 5 Photo 3 Photo 4 Page 3 of 5 Photo 5 Photo 6 Page 4 of 5 Photo 7 Photo 8 Page 5 of 5 Photo 9

FCC ID LABEL: Label Location FCC ID: 2AYHD‐A20DC6

Page1of13 Annex B Internal Photo TestModel:CM03   Photo1  Photo2  Page2of13         Photo3  Photo4  Page3of13         Photo5  Photo6  Page4of13         Photo7  Photo8  Page5of13         Photo9  Photo10  Page6of13         Photo11  Photo12  Page7of13         Photo13  Photo14  Page8of13         Photo15  Photo16  Page9of13         Photo17  Photo18  Page10of13         Photo19  Photo20  Page11of13         Photo21  Photo22  Page12of13  Photo23  Photo24  Page13of13 Photo25  Photo26

RF Exposure evaluation FCC ID: 2AYHD-A20DC6 1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. 2. Limit FCC: Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method FCC： Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result Mode Minimum Separation Distance Output Power (Turn-up Procedure) Antenna Gain (Numeric ) Power Density At 20 cm (mW/cm 2 ) Power Density Limit (mW/cm 2 ) Test Results (cm) dBmmW WCDMA Band 2 20.00 23.5 223.872.00 0.00933 1.0000 PASS WCDMA Band 4 20.00 24.0 251.192.00 0.00953 1.0000 PASS WCDMA Band 5 20.00 23.5 223.871.58 0.07062 0.55 PASS LTE Band 2 20.00 24.0 251.192.00 0.00953 1.0000 PASS LTE Band 4 20.00 24.0 251.192.00 0.00953 1.0000 PASS LTE Band 5 20.00 24.1 257.041.58 0.08109 0.55 PASS LTE Band 12 20.00 24.0 251.191.58 0.07924 0.47 PASS LTE Band 13 20.00 24.2 263.031.58 0.08298 0.52 PASS LTE Band 14 20.00 24.2 263.031.58 0.08298 0.53 PASS LTE Band 66 20.00 24.0 251.192.00 0.00953 1.0000 PASS LTE Band 71 20.00 24.0 251.191.58 0.07924 0.442 PASS WIFI 5.2G ANT1 20.00 15.0 31.62 1.78 0.01119 1.0000 PASS WIFI 5.2G ANT2 20.00 14.0 25.12 1.78 0.00889 1.0000 PASS WIFI 5.2G MIMO 20.00 / / / 0.02008 1.0000 PASS WIFI 5.8G ANT1 20.00 12.0 15.85 1.78 0.00792 1.0000 PASS WIFI 5.8G ANT2 20.00 12.0 15.85 1.78 0.00792 1.0000 PASS WIFI 5.8G MIMO 20.00 / / / 0.01584 1.0000 PASS WIFI 2.4G ANT1 20.00 15.0 31.62 1.78 0.01119 1.0000 PASS WIFI 2.4G ANT2 20.00 14.0 25.12 1.78 0.00889 1.0000 PASS WIFI 2.4G MIMO 20.00 / / / 0.02008 1.0000 PASS BT EDR 20.00 0 1 1.78 0.00035 1.0000 PASS 5. Simultaneous transmission MPE Considerations According to KDB447498 :For mobile exposure host platform to qualify for simultaneous transmission MPE test exclusion, all transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 The EUT is Not Applicable. 6. Conclusion This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Page 1 of 48 Report No.: HK2012173845-13E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Hyphametrics,Inc. For coreMeter Model No.: CM03 FCC ID: 2AYHD-A20DC6 Prepared for : Hyphametrics,Inc. 290 CLINTON AVENUE 5A BROOKLYN NY, 11205 US Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Dec. 17, 2020 ~Jan.05, 2021 Date of Report: Jan.05, 2021 Report Number: HK2012173845-13E Page 2 of 48 Report No.: HK2012173845-13E TEST RESULT CERTIFICATION Applicant’s name ................. : Hyphametrics,Inc. Address ................................. : 290 CLINTON AVENUE 5A BROOKLYN NY, 11205 US Manufacture's Name ............ : Hyphametrics,Inc. Address ................................. : 290 CLINTON AVENUE 5A BROOKLYN NY, 11205 US Product description Trade Mark: N/A Product name ........................... : coreMeter Model and/or type reference : CM03 Standards ............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Dec. 17, 2020 ~Jan.05, 2021 Date of Issue ........................................... : Jan.05, 2021 Test Result ............................................... : Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 48 Report No.: HK2012173845-13E Table of Contents Page 1. SUMMARY............................................................................................................................................................ 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION ....................................................................................................................................... 7 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 7 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 7 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 2.7. DESCRIPTION OF TEST SETUP ................................................................................................................................ 10 3. TEST CONDITIONS AND RESULTS ......................................................................................................................... 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................................................... 25 3.4. 20DB BANDWIDTH ..................................................................................................................................................... 26 3.5. FREQUENCY SEPARATION ............................................................................................................................................. 30 3.6. NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 32 3.7. TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 34 3.8. OUT‐OF‐BAND EMISSIONS ............................................................................................................................................ 38 3.9. PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 44 3.10. ANTENNA REQUIREMENT...................................................................................................................................... 45 4. TEST SETUP PHOTOS OF THE EUT .................................…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
