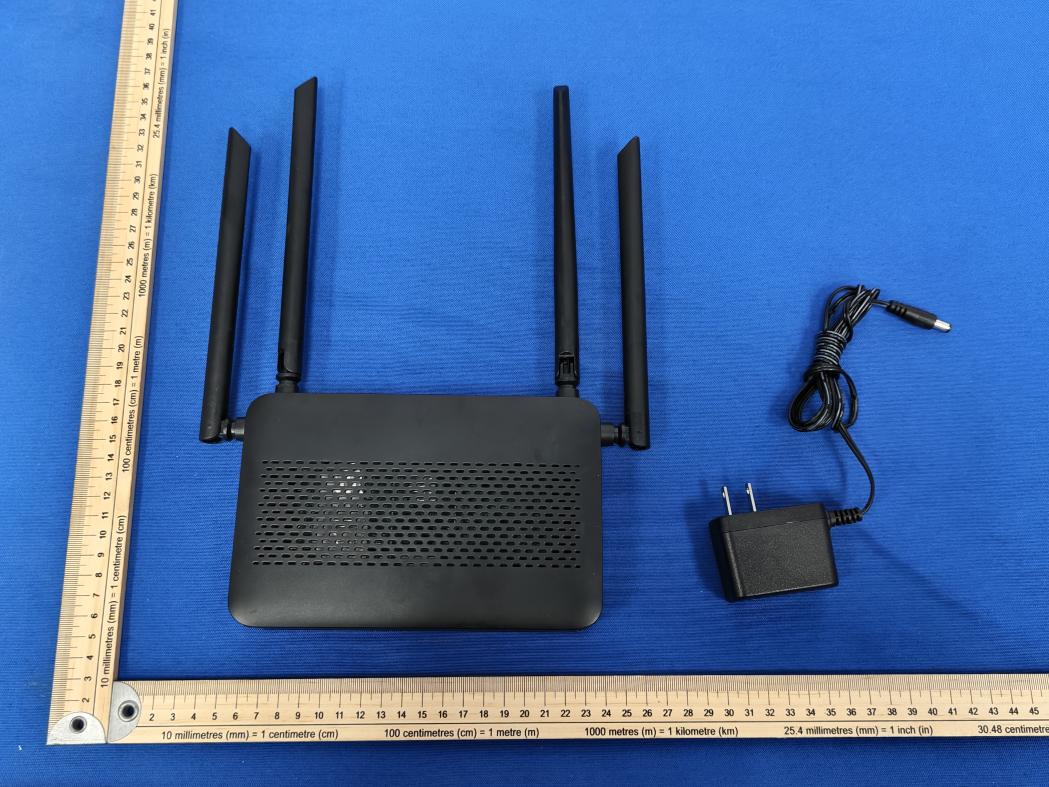

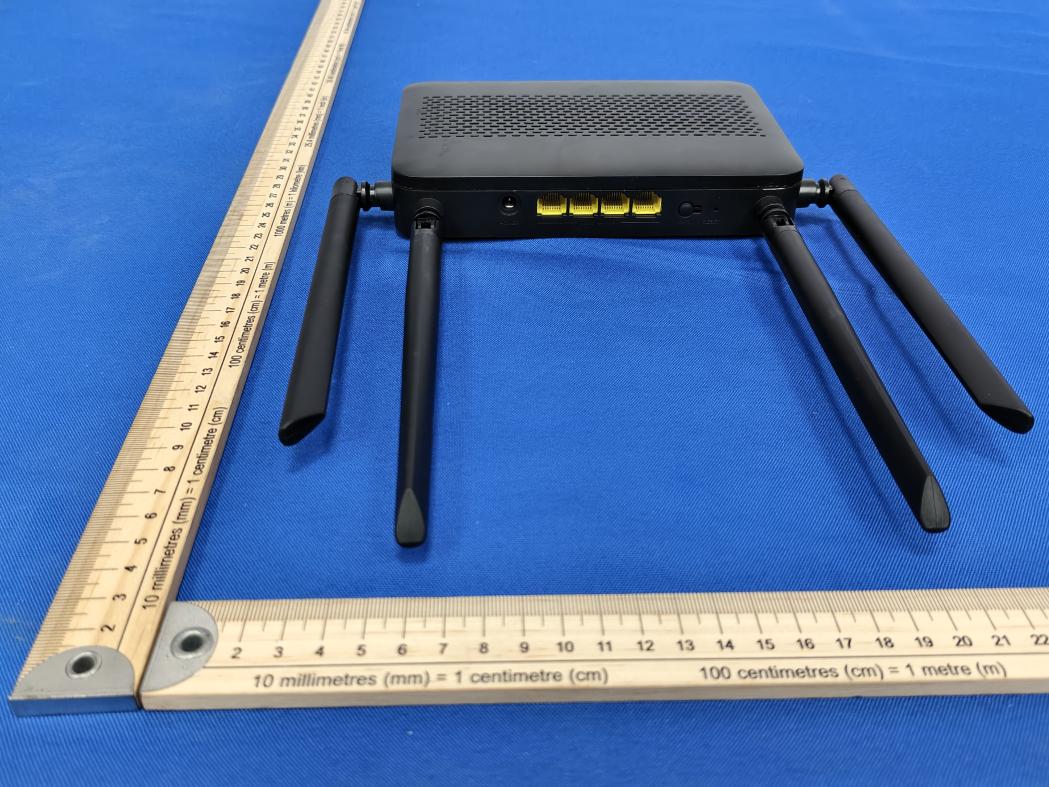

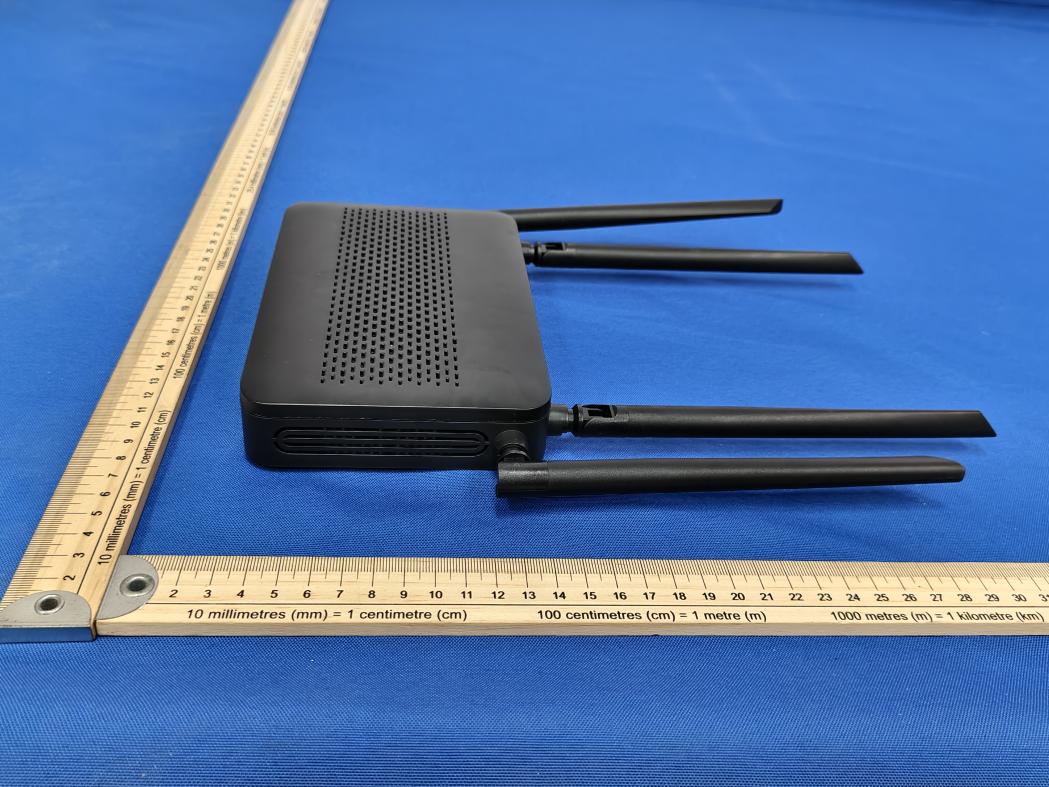

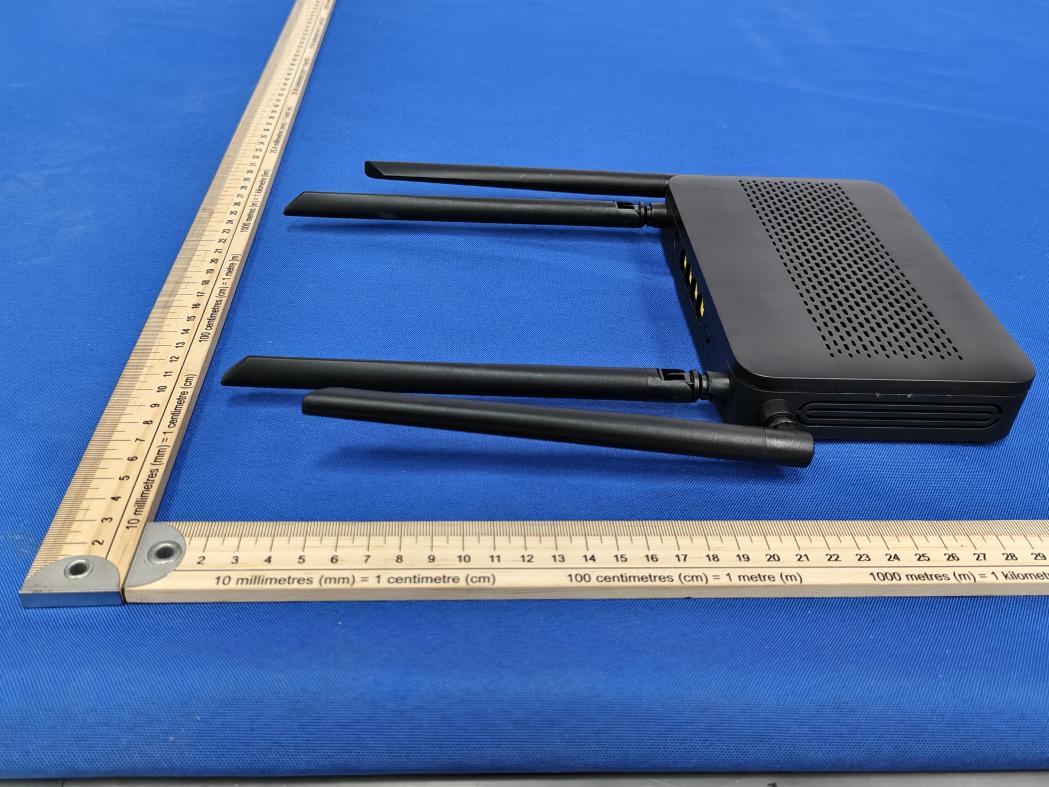

Model No.:Standalone Route v1 AC1200 Dual Band Whole Mesh WiFi Router System Technical Specification Confidential 2 / 4 Features: ⚫ Dual-band concurrent Wireless Access Point compatible with IEEE802.11a/b/g/n/ac ⚫ Chipset Solution: MTK MT7621AT+MT7603+MT7613BEN ⚫ 16MByte Flash and 128Mbyte RAM ⚫ 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously ⚫ Smart Mesh networking and IEEE802.11K/V/R ⚫ Supports multiple devices extension for wide WiFi coverage ⚫ Wireless roaming helps users auto switch to stronger signal source ⚫ Next-GEN MU-MIMO technology improves user experience comprehensively ⚫ Intelligent Beamforming delivers highly targeted and efficient WiFi connection ⚫ Full gigabit WAN and LAN ensures high speed Internet access and wired speed ⚫ Supports DHCP, Static IP and PPPoE broadband functions ⚫ QoS: Bandwidth Control based on IP address ⚫ Support Easy Mesh protocol ⚫ Support TR069 Confidential 3 / 4 General Items Features Wireless Standards IEEE802.11a/n/ac@5GHz IEEE802.11b/g/[email protected] Signal Rate 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps Operation Frequency 2.4GHz and 5GHz Basic Features SSID Broadcast Support MU-MIMO Wireless Security WPA2-PSK(default) Backhaul Link Speed 5G 866Mbps + 2.4G 300Mbps Wireless roaming Comply with IEEE802.11v/r Hardware Specification Items Features Ethernet Standards IEEE802.3, IEEE802.3u Interface 1 Gigabit Ethernet WAN port 3 Gigabit Ethernet LAN port Antenna 4*5dB External antennas Button 1 WPS & 1 Reset button Power Adapter Input:100-240V—50/60Hz, 0.4A Output:DC 12V==1A Software Features Items Features Internet Connection Type Dynamic IP/Static IP/PPPoE DHCP Server, Client, DHCP Client List, Address Reservation Quality of Service WMM, Bandwidth Control Port Forwarding Virtual Server, UPnP VPN Pass-Through PPTP, L2TP, IPSec Access Control Parental Control Guest Network Reset to factory settings Firewall Security Forbid UDP flood attack Forbid TCP flood attack Forbid ICMP flood attack Internet Protocol IPv4 and IPv6 Setup Requirements Supports Web UI,TR069 Confidential 4 / 4 Environment Items Features Operating Temperature 0°C~40°C (32°F~104°F) Storage Temperature -40°C~70°C (-40°F~158°F) Relative Humidity 10%~90%, non-condensing Storage Humidity 5%~90%, non-condensing Package Contents Items Features Package Contents 1*R1200A4 1*Power Adapter 1*Quick Install Guide 1*Gigabit Ethernet Cable Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorient or relocate the receiving antenna. ●Increase the separation between the equipment and receiver. ●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. RF exposure statement: The transmitter must not be colocated or operated in conjunction with any other antenna or transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a Minimum distance of 20cm between the radiator and any part of your body.
Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 106 / 127 802.11n(HT20)_HCH_5240MHz_Ant1_NTNV 802.11n(HT20)_HCH_5240MHz_Ant2_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 107 / 127 802.11n(HT20)_HCH_5240MHz_MIMO_NTNV 802.11n(HT40)_LCH_5190MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 108 / 127 802.11n(HT40)_LCH_5190MHz_Ant2_NTNV 802.11n(HT40)_LCH_5190MHz_MIMO_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 109 / 127 802.11n(HT40)_HCH_5230MHz_Ant1_NTNV 802.11n(HT40)_HCH_5230MHz_Ant2_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 110 / 127 802.11n(HT40)_HCH_5230MHz_MIMO_NTNV 802.11ac(VHT20)_LCH_5180MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 111 / 127 802.11ac(VHT20)_LCH_5180MHz_Ant2_NTNV 802.11ac(VHT20)_MCH_5200MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 112 / 127 802.11ac(VHT20)_MCH_5200MHz_Ant2_NTNV 802.11ac(VHT20)_HCH_5240MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 113 / 127 802.11ac(VHT20)_HCH_5240MHz_Ant2_NTNV 802.11ac(VHT40)_LCH_5190MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 114 / 127 802.11ac(VHT40)_LCH_5190MHz_Ant2_NTNV 802.11ac(VHT40)_HCH_5230MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 115 / 127 802.11ac(VHT40)_HCH_5230MHz_Ant2_NTNV 802.11ac(VHT80)_MCH_5210MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 116 / 127 802.11ac(VHT80)_MCH_5210MHz_Ant2_NTNV 802.11ac(VHT20)_LCH_5180MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 117 / 127 802.11ac(VHT20)_LCH_5180MHz_Ant2_NTNV 802.11ac(VHT20)_LCH_5180MHz_MIMO_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 118 / 127 802.11ac(VHT20)_MCH_5200MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5200MHz_Ant2_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 119 / 127 802.11ac(VHT20)_MCH_5200MHz_MIMO_NTNV 802.11ac(VHT20)_HCH_5240MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 120 / 127 802.11ac(VHT20)_HCH_5240MHz_Ant2_NTNV 802.11ac(VHT20)_HCH_5240MHz_MIMO_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 121 / 127 802.11ac(VHT40)_LCH_5190MHz_Ant1_NTNV 802.11ac(VHT40)_LCH_5190MHz_Ant2_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 122 / 127 802.11ac(VHT40)_LCH_5190MHz_MIMO_NTNV 802.11ac(VHT40)_HCH_5230MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 123 / 127 802.11ac(VHT40)_HCH_5230MHz_Ant2_NTNV 802.11ac(VHT40)_HCH_5230MHz_MIMO_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 124 / 127 802.11ac(VHT80)_MCH_5210MHz_Ant1_NTNV 802.11ac(VHT80)_MCH_5210MHz_Ant2_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 125 / 127 802.11ac(VHT80)_MCH_5210MHz_MIMO_NTNV Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 126 / 127 5. Frequency Stability 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Temperature (°C) Voltage (VAC) Measured Frequency (MHz) Limit (MHz) Verdict Carrier Wave SISO 5180 20 102 5179.951 5150 to 5250 Pass 120 5179.951 5150 to 5250 Pass 138 5179.951 5150 to 5250 Pass -30 120 5179.951 5150 to 5250 Pass -20 120 5179.951 5150 to 5250 Pass -10 120 5179.951 5150 to 5250 Pass 0 120 5179.951 5150 to 5250 Pass 10 120 5179.951 5150 to 5250 Pass 30 120 5179.951 5150 to 5250 Pass 40 120 5179.951 5150 to 5250 Pass 50 120 5179.951 5150 to 5250 Pass 5200 20 102 5199.951 5150 to 5250 Pass 120 5199.951 5150 to 5250 Pass 138 5199.951 5150 to 5250 Pass -30 120 5199.951 5150 to 5250 Pass -20 120 5199.951 5150 to 5250 Pass -10 120 5199.951 5150 to 5250 Pass 0 120 5199.951 5150 to 5250 Pass 10 120 5199.951 5150 to 5250 Pass 30 120 5199.951 5150 to 5250 Pass 40 120 5199.951 5150 to 5250 Pass 50 120 5199.951 5150 to 5250 Pass 5240 20 102 5239.951 5150 to 5250 Pass 120 5239.951 5150 to 5250 Pass 138 5239.951 5150 to 5250 Pass -30 120 5239.951 5150 to 5250 Pass -20 120 5239.951 5150 to 5250 Pass -10 120 5239.951 5150 to 5250 Pass 0 120 5239.951 5150 to 5250 Pass 10 120 5239.951 5150 to 5250 Pass 30 120 5239.951 5150 to 5250 Pass 40 120 5239.951 5150 to 5250 Pass 50 120 5239.951 5150 to 5250 Pass 5190 20 102 5189.951 5150 to 5250 Pass 120 5189.951 5150 to 5250 Pass 138 5189.951 5150 to 5250 Pass -30 120 5189.951 5150 to 5250 Pass -20 120 5189.951 5150 to 5250 Pass -10 120 5189.951 5150 to 5250 Pass 0 120 5189.951 5150 to 5250 Pass 10 120 5189.951 5150 to 5250 Pass 30 120 5189.951 5150 to 5250 Pass 40 120 5189.951 5150 to 5250 Pass 50 120 5189.951 5150 to 5250 Pass Annex for 5G Wi-Fi Band 1 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 127 / 127 5230 20 102 5229.951 5150 to 5250 Pass 120 5229.951 5150 to 5250 Pass 138 5229.951 5150 to 5250 Pass -30 120 5229.951 5150 to 5250 Pass -20 120 5229.951 5150 to 5250 Pass -10 120 5229.951 5150 to 5250 Pass 0 120 5229.951 5150 to 5250 Pass 10 120 5229.951 5150 to 5250 Pass 30 120 5229.951 5150 to 5250 Pass 40 120 5229.951 5150 to 5250 Pass 50 120 5229.951 5150 to 5250 Pass 5210 20 102 5209.951 5150 to 5250 Pass 120 5209.951 5150 to 5250 Pass 138 5209.951 5150 to 5250 Pass -30 120 5209.951 5150 to 5250 Pass -20 120 5209.951 5150 to 5250 Pass -10 120 5209.951 5150 to 5250 Pass 0 120 5209.951 5150 to 5250 Pass 10 120 5209.951 5150 to 5250 Pass 30 120 5209.951 5150 to 5250 Pass 40 120 5209.951 5150 to 5250 Pass 50 120 5209.951 5150 to 5250 Pass
FCC ID: 2AYHD-SR01 Page 1 of 2 Report No.: CTL2506042031-WF Test Setup Photos of the EUT FCC ID: 2AYHD-SR01 Page 2 of 2 Report No.: CTL2506042031-WF
Page 1 / 20 Annex for 5G Wi-Fi Band 2C DFS Test Report No.: CTL2506042031-WF03 TABLE OF CONTENTS 1. Signal Calibration ............................................................................................................................... 3 1.1 Test Result ............................................................................................................................... 3 1.1.1 SC .................................................................................................................................. 3 1.2 Test Graph ................................................................................................................................ 4 1.2.1 SC .................................................................................................................................. 4 2. U-NII Detection Bandwidth ................................................................................................................. 9 2.1 Test Result ............................................................................................................................... 9 2.1.1 20MHz_5500MHz ........................................................................................................... 9 2.1.2 20MHz_5500MHz_Data .................................................................................................. 9 3. Channel Available Check_init ............................................................................................................ 9 3.1 Test Result ............................................................................................................................... 9 3.1.1 CAC_init ......................................................................................................................... 9 3.2 Test Graph .............................................................................................................................. 10 3.2.1 CAC_init ....................................................................................................................... 10 4. Channel Available Check_Beginning ............................................................................................... 11 4.1 Test Result ............................................................................................................................. 11 4.1.1 CAC_Begin ................................................................................................................... 11 4.2 Test Graph .............................................................................................................................. 12 4.2.1 CAC_Begin ................................................................................................................... 12 5. Channel Available Check_Ending .................................................................................................... 13 5.1 Test Result ............................................................................................................................. 13 Page 2 / 20 5.1.1 CAC_End ...................................................................................................................... 13 5.2 Test Graph .............................................................................................................................. 14 5.2.1 CAC_End ...................................................................................................................... 14 6. Channel Move Time and Closing Transmission Time ...................................................................... 15 6.1 Test Result ............................................................................................................................. 15 6.1.1 CMT_CTT ..................................................................................................................... 15 6.2 Test Graph .............................................................................................................................. 16 6.2.1 CMT_CTT ..................................................................................................................... 16 7. Non-Occupancy Period .................................................................................................................... 17 7.1 Test Result ............................................................................................................................. 17 7.1.1 Period ........................................................................................................................... 17 7.2 Test Graph .............................................................................................................................. 18 7.2.1 Period ........................................................................................................................... 18 8. Statistical Performance Check ......................................................................................................... 19 8.1 Test Result ............................................................................................................................. 19 8.1.1 SPC .............................................................................................................................. 19 8.1.2 SPC_Data ..................................................................................................................... 19 Annex for 5G Wi-Fi Band 2C DFS Test Report No.: CTL2506042031-WF03 FCCID: 2AYHD-SR01 Page 3 / 20 1. Signal Calibration 1.1 Test Result 1.1.1 SC Band: 2C Mode Bandwidth (MHz) Frequency (MHz) Radar Signal Signal Calibration Verdict Type Trial Id Result Limit 802.11n (HT20) 20 5500 0 0 Refer To Test Graph Pass 1 0 Refer To Test Graph Pass 2 0 Refer To Test Graph Pass 3 0 Refer To Test Graph Pass 4 0 Refer To Test Graph Pass 5 0 Refer To Test Graph Pass 6 0 Refer To Test Graph Pass Annex for 5G Wi-Fi Band 2C DFS Test Report No.: CTL2506042031-WF…
Text truncated - open the document above for the full version.
Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Tel: +86-755-89486194 E-mail: [email protected] Page 1 / 19 Annex for 5G Wi-Fi Band 2A DFS Test Report No.: CTL2506042031-WF03 TABLE OF CONTENTS 1. Signal Calibration ............................................................................................................................... 3 1.1 Test Result ............................................................................................................................... 3 1.1.1 SC .................................................................................................................................. 3 1.2 Test Graph ................................................................................................................................ 4 1.2.1 SC .................................................................................................................................. 4 2. U-NII Detection Bandwidth ................................................................................................................. 8 2.1 Test Result ............................................................................................................................... 8 2.1.1 20MHz_5260MHz ........................................................................................................... 8 2.1.2 20MHz_5260MHz_Data .................................................................................................. 8 3. Channel Available Check_init ............................................................................................................ 8 3.1 Test Result ............................................................................................................................... 8 3.1.1 CAC_init ......................................................................................................................... 8 3.2 Test Graph ................................................................................................................................ 9 3.2.1 CAC_init ......................................................................................................................... 9 4. Channel Available Check_Beginning ............................................................................................... 10 4.1 Test Result ............................................................................................................................. 10 4.1.1 CAC_Begin ................................................................................................................... 10 4.2 Test Graph .............................................................................................................................. 11 4.2.1 CAC_Begin ................................................................................................................... 11 5. Channel Available Check_Ending .................................................................................................... 12 Shenzhen CTL Testing Technology Co., Ltd. Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Tel: +86-755-89486194 E-mail: [email protected] Page 2 / 19 5.1 Test Result ............................................................................................................................. 12 5.1.1 CAC_End ...................................................................................................................... 12 5.2 Test Graph .............................................................................................................................. 13 5.2.1 CAC_End ...................................................................................................................... 13 6. Channel Move Time and Closing Transmission Time ...................................................................... 14 6.1 Test Result ............................................................................................................................. 14 6.1.1 CMT_CTT ..................................................................................................................... 14 6.2 Test Graph .............................................................................................................................. 15 6.2.1 CMT_CTT ..................................................................................................................... 15 7. Non-Occupancy Period .................................................................................................................... 16 7.1 Test Result ............................................................................................................................. 16 7.1.1 Period ........................................................................................................................... 16 7.2 Test Graph .............................................................................................................................. 17 7.2.1 Period ........................................................................................................................... 17 8. Statistical Performance Check ......................................................................................................... 18 8.1 Test Result ............................................................................................................................. 18 8.1.1 SPC .............................................................................................................................. 18 8.1.2 SPC_Data ..................................................................................................................... 18 Annex for 5G Wi-Fi Band 2A DFS Test Report No.: CTL2506042031-WF03 FCCID: 2AYHD-SR01 Page 3 / 19 1. Signal Calibration 1.1 Test Result 1.1.1 SC Band: 2A Mode Bandwidth (MH…
Text truncated - open the document above for the full version.
Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] DFS TEST REPORT FCC PART 15 SUBPART E 15.407 Report Reference No. ................ : CTL2506042031-WF03 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Jack Wang (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Standalone Route v1 Model/Type reference ................ : SR01 List Model(s) ............................... : N/A Trade Mark .................................. : N/A FCC ID ......................................... : 2AYHD-SR01 Applicant’s name ....................... : Hyphametrics,Inc. Address of applicant ................. : 149 E 23 St. #2052 New York, NY 10010 United States Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : 47 CFR FCC Part 15 Subpart E 15.407 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Jul 14, 2025 Date of Test Date ........................ : Jul 14, 2025- Aug 07, 2025 Date of Issue .............................. : Aug 08, 2025 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 18 Report No.: CTL2506042031-WF03 TEST REPORT Test Report No. : CTL2506042031-WF03 Aug 08, 2025 Date of issue Equipment under Test : Standalone Route v1 Sample No : CTL2506042031 Model /Type : SR01 Listed Models : N/A Applicant : Hyphametrics,Inc. Address : 149 E 23 St. #2052 New York, NY 10010 United States Manufacturer : Shenzhen Geniatech INC., Ltd. Address : Room 02-04, 10/F, Block A, Building 8, Shenzhen International Innovation Valley, Dashi Road, Nanshan District, Shenzhen, Guangdong, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 18 Report No.: CTL2506042031-WF03 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2025-08-08 CTL2506042031-WF03 Tracy Qi V1.0 Page 4 of 18 Report No.: CTL2506042031-WF03 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES ........................................................................................................................................ 9 2.4. MEASUREMENT EQUIPMENTS USED DURING THE TEST ........................................................................................................ 9 2.5. DESCRIPTION OF SUPPORT UNITS .................................................................................................................................... 9 2.6. RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................................................ 9 2.7. MODIFICATIONS ........................................................................................................................................................... 9 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 10 3.1. APPLICABILITY OF DFS REQUIREMENTS ........................................................................................................................... 10 3.2. TEST LIMITS AND RADAR SIGNAL PARAMETERS ................................................................................................................. 10 3.3. PARAMETERS OF DFS TEST SIGNALS ...................................................................................................................... 11 3.4. CA…
Text truncated - open the document above for the full version.
Annex for 5G Wi-Fi Band 3 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 106 / 126 802.11n(HT20)_HCH_5825MHz_MIMO_NTNV 802.11n(HT40)_LCH_5755MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 3 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 107 / 126 802.11n(HT40)_LCH_5755MHz_Ant2_NTNV 802.11n(HT40)_LCH_5755MHz_MIMO_NTNV Annex for 5G Wi-Fi Band 3 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 108 / 126 802.11n(HT40)_HCH_5795MHz_Ant1_NTNV 802.11n(HT40)_HCH_5795MHz_Ant2_NTNV Annex for 5G Wi-Fi Band 3 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 109 / 126 802.11n(HT40)_HCH_5795MHz_MIMO_NTNV 802.11ac(VHT20)_LCH_5745MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 3 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 110 / 126 802.11ac(VHT20)_LCH_5745MHz_Ant2_NTNV 802.11ac(VHT20)_MCH_5785MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 3 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 111 / 126 802.11ac(VHT20)_MCH_5785MHz_Ant2_NTNV 802.11ac(VHT20)_HCH_5825MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 3 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 112 / 126 802.11ac(VHT20)_HCH_5825MHz_Ant2_NTNV 802.11ac(VHT40)_LCH_5755MHz_Ant1_NTNV Annex for 5G Wi-Fi Band 3 Test Report No.: CTL2506042031-WF02 FCCID: 2AYHD-SR01 Page 113 / 126 802.11ac(VHT40)_LCH_5755MHz_Ant2_NTNV 802.11ac(VHT40)_HCH_5795MHz_Ant1_NTNV Annex for 5G Wi-Fi B…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15E | 5.18 GHz - 5.24 GHz | 19.50 mW |
| 2 | 15E | 5.26 GHz - 5.32 GHz | 48.60 mW |
| 3 | 15E | 5.50 GHz - 5.70 GHz | 46.30 mW |
| 4 | 15E | 5.75 GHz - 5.83 GHz | 37.10 mW |
