2AYKQTEG9300-TPOS Terminal

OASYS CYBERNETICS PRIVATE LIMITED

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: May 06, 2021
Application Purpose: Original Equipment
Date of Application: Apr 29, 2021
Equipment Note: POS Terminal
Frequency Range: 2545.00000000 - 2645.00000000
Company: OASYS CYBERNETICS PRIVATE LIMITED
Country: India

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

O1QuickGuide 1PRODUCTINTRODUTION Powerbutton ShortPress:Lightthescreen,lockthescreen. Longpress:Inshutdownstate,longpress2-3secondstoturnon; Wheninuse,press2-3secondsforalongtime,andyoucanchoosetoPoweroff,Restartor Screenshot. Inthecrashstate,longpress10secondstorestartautomatically. Volumeupbutton Compatiblewiththefunctionsofcodescanningandvolumeupadjustment. Volumedownbutton Compatiblewiththefunctionsofcodescanningandvolumedownadjustment. Scanner ScanningrecognitionofBarcodeandQRcodecanbecarriedoutbyusingscanningdock whenscanningfunctionisturnedon. Rearcamera Supportsphotographingand1D/2Dcodequickscanning. Type-CUSB UsedFordevicecharging,andyoucanalsopluginOTG. HeadTerminal Insertawiredheadset,andthesoundwillbeswitchedfromthespeakertotheheadset. MIC UsedtomakeTerminalcalls,videoandvoiceconversations. Speaker UsedForlisteningtomusicorsoundamplification. Indicatorlight AndroidChargingandNotificationIndicatorLamp(BreathingLamp)(Red,Green) SDcardslotandSIMcardslot(up)andPsamcardslot(down) UsedforinsertingtheSIMCard,PsamCardandSDCard Printinginstructions Thisdevicesupports58mmthermalpaperwiththespecifificationsof57±0.5mmφ40mm. ① Openthepapercontainer ② Feedthepapercorrectlyintothepapercontainerinthedirectionasshown,andpullsome paperoutsidethecutter; ③ Closethecoverofthepapercontainertofifinishprintingpaperfeeding. 2TECHNICALINDICATORSOFPRODUCTS •Android9.0 •CPUModel：MT6761D •Quadcore1.8GHz •LTE/UMTS/GSM/WIFI2.4&5G/Bluetooth •2GBRAM,16GBROM •LCD/CTP：5.45HD+ •Scanner：E3 •Rearcamera：5MAF •Bluetooth5.0 •Wi-Fi802.11a/b/g/n（2.4G/5G） •USBTypeC •Battery4.2V/5000mAh •Printer：Seiko 3ATTENTION PRODUCTSAFETYWARNINGS Useresponsibly.Readallinstructionsandsafetyinformationbeforeusetoavoidinjury.Thelimit operatingambienttemperatureoftheequipmentdeclaredbythemanufactureris-15~55°C Batterysafety Chargebatteryonlyatambienttemperaturesrangingfrom40°C. (1)CAUTION:Dangerofexplosionifbatteryisincorrectlyreplaced.Replaceonlywiththesame orequivalenttypeofbatteryrecommendedbythemanufacturer.Disposeofusedbatteries accordingtobatterymanufacturer’sinstructions. (2)CAUTION:RISKOFEXPLOSIONIFBATTERYISREPLACEDBYANINCORRECTTYPE.DISPOSEOF USEDBATTERIESACCORDINGTOTHEINSTRUCTIONS. (3)CAUTION:Batterychargingtemperatureupperlimitis40°C. Adaptersafety Whencharging,pleaseplacethedeviceinanenvironmentthathasanormalroom temperatureandgoodventilation.Itisrecommendedtochargethedeviceinanenvironment withatemperaturethatrangesfrom0°C~40°C.Foraltitude2kmbelowuseonly Wi-FiSafety TurnWi-FioffinareaswhereWi-Fiuseisprohibitedorwhenitmaycauseinterferenceordanger, suchasinairplaneswhileflying. FCCStatement 1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowing twoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation. 2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance couldvoidtheuser'sauthoritytooperatetheequipment. NOTE: ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable protectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalled andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuseris encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: Reorientorrelocatethereceivingantenna. Increasetheseparationbetweentheequipmentandreceiver. Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. Consultthedealeroranexperiencedradio/TVtechnicianforhelp. SARInformationStatement YourwirelessTerminalisaradiotransmitterandreceiver.Itisdesignedandmanufactured nottoexceedtheemissionlimitsforexposuretoradiofrequency(RF)energysetbythe FederalCommunicationsCommissionoftheU.S.Government.Theselimitsarepartof comprehensiveguidelinesandestablishpermittedlevelsofRFenergyforthegeneral population.Theguidelinesarebasedonstandardsthatweredevelopedbyindependent scientificorganizationsthroughperiodicandthoroughevaluationofscientificstudies.The standardsincludeasubstantialsafetymargindesignedtoassurethesafetyofallpersons, regardlessofageandhealth.TheexposurestandardforwirelessmobileTerminalsemploys aunitofmeasurementknownastheSpecificAbsorptionRate,orSAR.TheSARlimitsetby theFCCis1.6W/kg.*TestsforSARareconductedwiththeTerminaltransmittingatits highestcertifiedpowerlevelinalltestedfrequencybands.AlthoughtheSARisdetermined atthehighestcertifiedpowerlevel,theactualSARleveloftheTerminalwhileoperatingcan bewellbelowthemaximumvalue.ThisisbecausetheTerminalisdesignedtooperateat multiplepowerlevelssoastouseonlythepowerrequiredtoreachthenetwork.Ingeneral, thecloseryouaretoawirelessbasestationantenna,thelowerthepoweroutput.Beforea Terminalmodelisavailableforsaletothepublic,itmustbetestedandcertifiedtotheFCC thatitdoesnotexceedthelimitestablishedbythegovernmentadoptedrequirementfor safeexposure.Thetestsareperformedinpositionsandlocations(e.g.,attheearandworn onthebody)asrequiredbytheFCCforeachmodel.ThehighestSARvalueforthismodel Terminalwhenwornonthebody,asdescribedinthisuserguide,is1.054W/Kg(Body-worn measurementsdifferamongTerminalmodels,dependinguponavailableaccessoriesand FCCrequirements).WhiletheremaybedifferencesbetweentheSARlevelsofvarious Terminalsandatvariouspositions,theyallmeetthegovernmentrequirementforsafe exposure.TheFCChasgrantedanEquipmentAuthorizationforthismodelTerminalwithall reportedSARlevelsevaluatedasincompliancewiththeFCCRFexposureguidelines.SAR informationonthismodelTerminalisonfilewiththeFCCandcanbefoundunderthe DisplayGrantsectionofhttp://www.fcc.gov/oet/fccidaftersearchingon FCCID:2AYKQTEG9300-TAdditionalinformationonSpecificAbsorptionRa…

Text truncated - open the document above for the full version.

Cover Letter(s)

OASYSCYBERNETICSPRIVATELIMITED DATE:2021/4/25 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2AYKQTEG9300-T ProductName:POSTerminalMachine RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics  Blockdiagram Operationdescription BOM Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> Name:SRIDHARS Title:C.E.O Company:OASYSCYBERNETICSPRIVATELIMITED

Cover Letter(s)

DATE:2021/4-25 FederalCommunicationsCommission Authorization&EvaluationDivision 7345OaklandMillsRoad Columbia,Maryland21046 AuthoritytoActasAgent Onourbehalf,IappointJianyanTestingGroupShenzhenCo.,Ltd.No.101,Building8, InnovationWisdomPort,No.155HongtianRoad,HuangpuCommunity,XinqiaoStreet,Bao'an District,Shenzhen,Guangdong,People'sRepublicofChina.toactasouragentinthe preparationofthisapplicationforequipmentcertification.Icertifythatsubmitted documentsproperlydescribethedeviceorsystemforwhichequipmentcertificationis sought.Ialsocertifythateachunitmanufactured,importedormarketed,asdefinedinthe FederalCommunicationsCommission’sregulationswillhaveaffixedtoitalabelidentical tothatsubmittedforapprovalwiththisapplication. 1.Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonour behalf,Iacknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsfor certification,stillresideswithOASYSCYBERNETICSPRIVATELIMITED/OASTOWERS,No.3, STRINGERSSTREET,VEPERY,CHENNAI,TAMILNADU,India–600003. <Signature> Name: SRIDHARS Title:C.E.O Company:OASYSCYBERNETICSPRIVATELIMITED

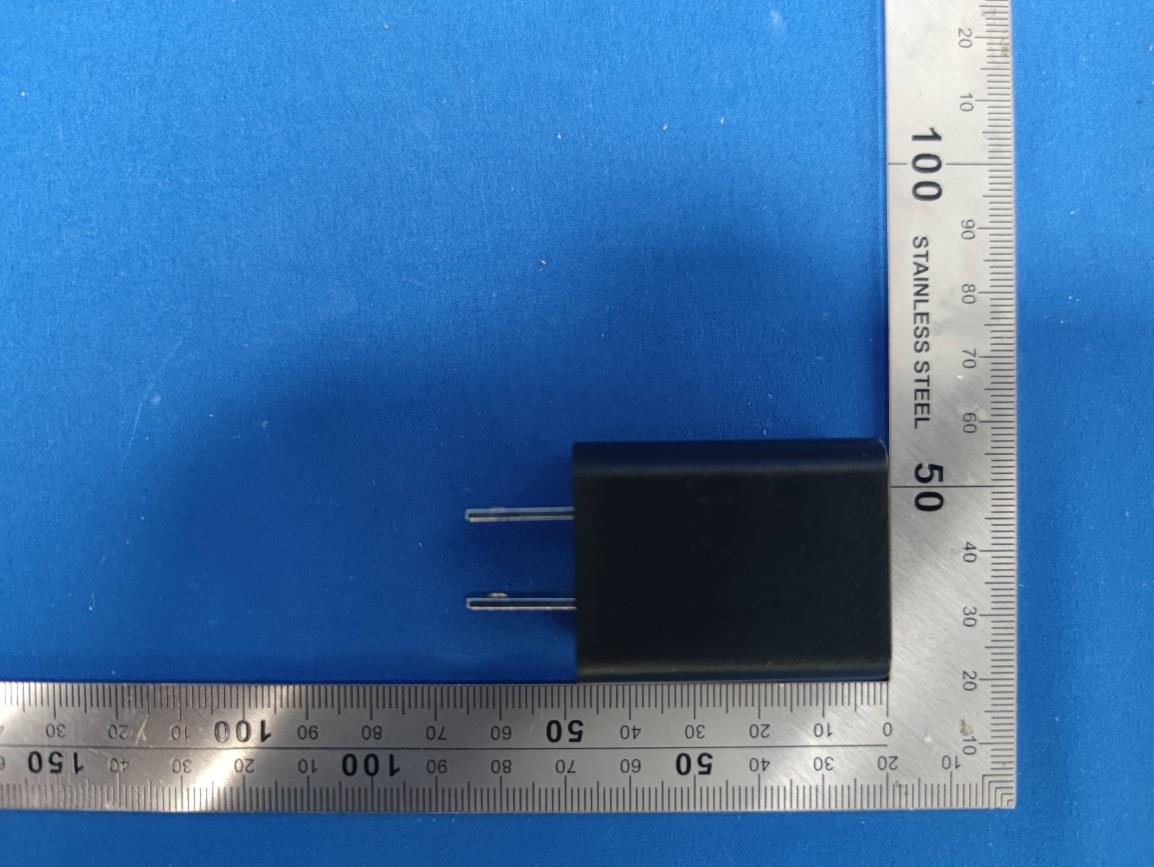

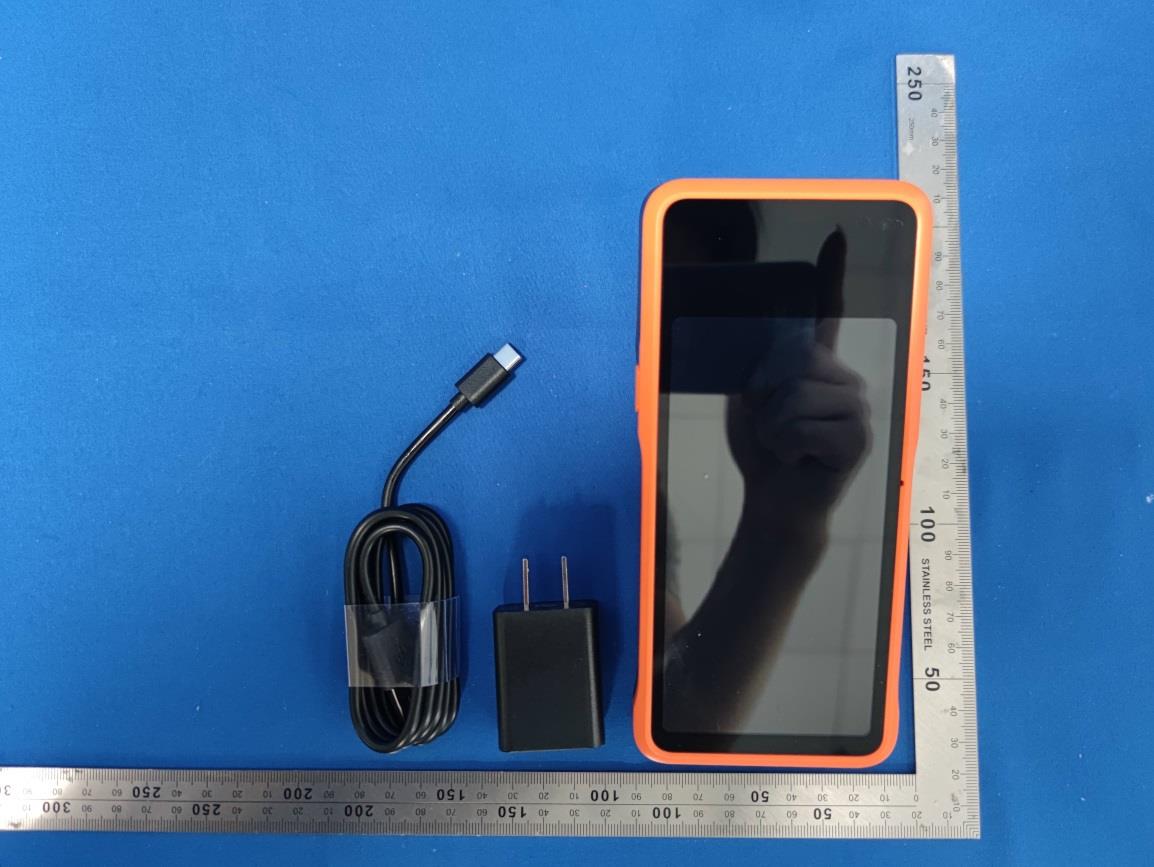

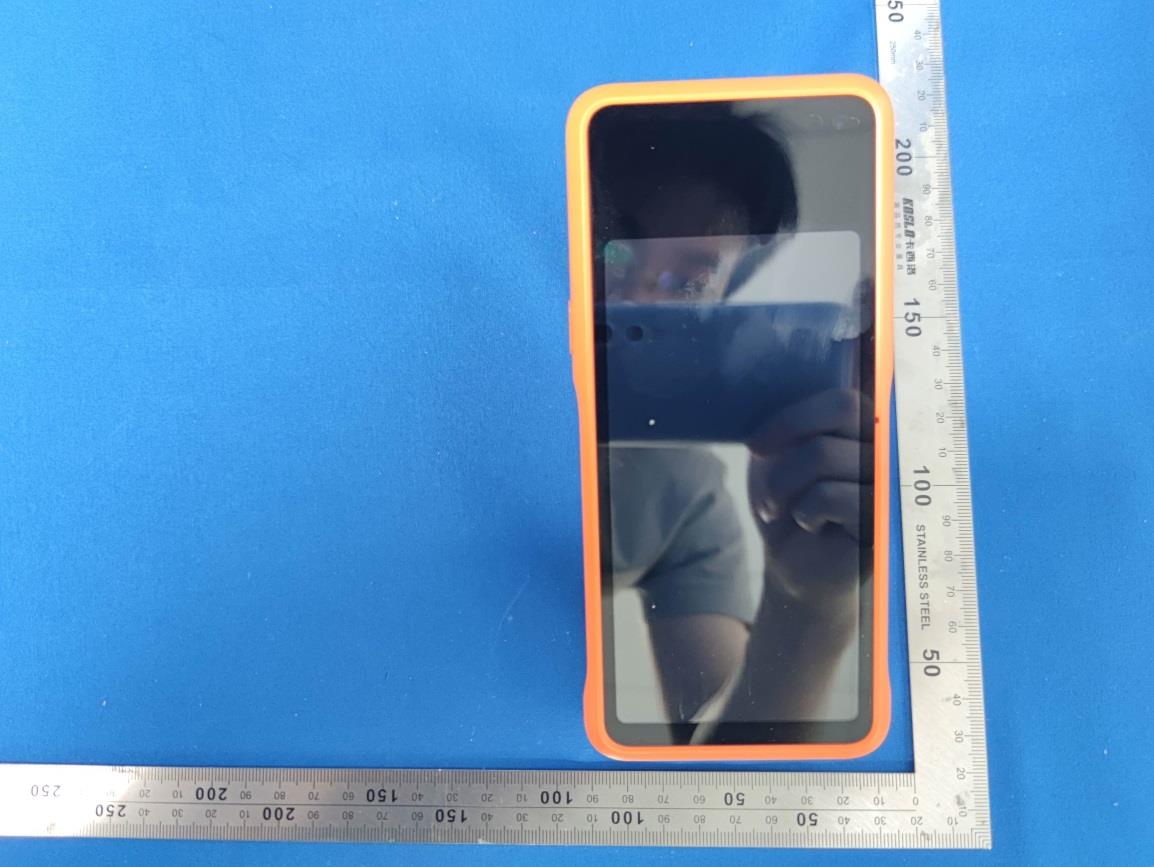

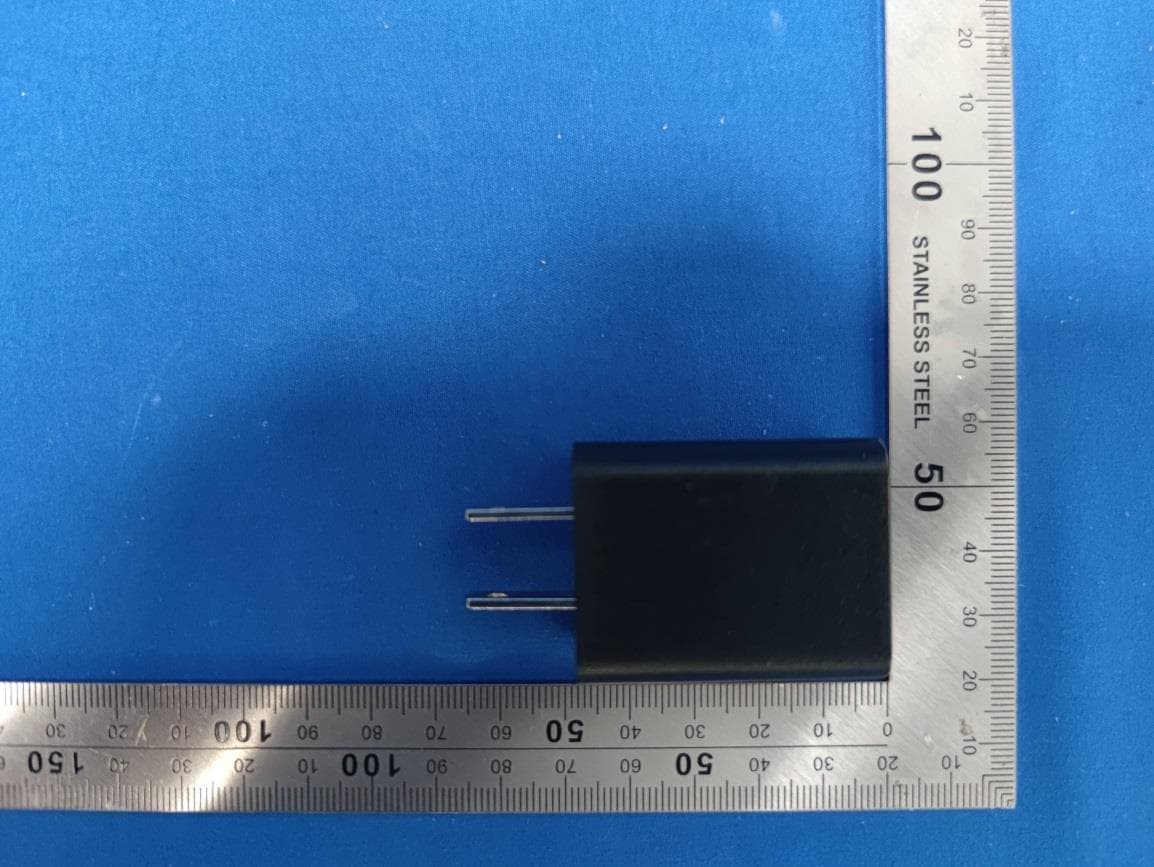

External Photos

ID Label/Location Info

Label Size:50*22mm Location:

Internal Photos

Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 49 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 50 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 51 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 52 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 53 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 54 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 55 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 56 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 57 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 58 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 59 of 60 Report No: JYTSZB-R12-2100455 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 60 of 60 -----End of report------

RF Exposure Info

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R14-2100044 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC SAR REPORT Applicant: OASYS Cybernetics Pvt. Ltd., Corp Address of Applicant: OASYS Towers, No.3, Stringers road, Periyamet, Vepery, Chennai – 600003. Equipment Under Test (EUT) Product Name: POS Terminal Model No.: TEG9300-T Trade mark: Oasys FCC ID: 2AYKQTEG9300-T Applicable standards: FCC 47 CFR Part 2.1093 Date of Test: 08 Apr., 2021 ~ 15 Apr., 2021 Test Result: Maximum Reported SAR (W/kg) Body: 1.054 (1-g) Limb: 0.582 (10-g) Report No: JYTSZB-R14-2100044 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103056 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366, E-mail: [email protected] Page 2 of 107 2 Version Version No. Date Description 00 28 Apr., 2021 Original Tested by: Date: 28 Apr., 2021 Test Engineer Reviewed by: Date: 28 Apr., 2021 Project Engineer Report No: JYTSZB-R14-2100044 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103056 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community,Xinqiao Street, Bao'an District, Shenzhen, Guangdong,People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366, E-mail: [email protected] Page 3 of 107 3 Contents 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 SAR RESULTS SUMMARY ................................................................................................................................. 5 5 GENERAL INFORMATION .................................................................................................................................. 6 5.1 CLIENT INFORMATION ..................................................................................................................................................................... 6 5.2 GENERAL DESCRIPTION OF EUT ................................................................................................................................................... 6 5.3 MAXIMUM RF OUTPUT POWER ...................................................................................................................................................... 7 5.4 ENVIRONMENT OF TEST SITE ......................................................................................................................................................... 8 5.5 TEST SAMPLE PLAN ....................................................................................................................................................................... 8 5.6 TEST LOCATION ............................................................................................................................................................................. 8 6 INTRODUCTION ................................................................................................................................................... 9 6.1 INTRODUCTION ............................................................................................................................................................................... 9 6.2 SAR DEFINITION ............................................................................................................................................................................ 9 7 RF EXPOSURE LIMITS ..................................................................................................................................... 10 7.1 UNCONTROLLED ENVIRONMENT ................................................................................................................................................... 10 7.2 CONTROLLED ENVIRONMENT ....................................................................................................................................................... 10 7.3 RF EXPOSURE LIMITS .................................................................................................................................................................. 10 8 SAR MEASUREMENT SYSTEM ....................................................................................................................... 11 8.1 E-FIELD PROBE.................................................................................................................................…

Text truncated - open the document above for the full version.

RF Exposure Info

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R14-2100044 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103056 Page 1 of 6 EUT Photos (Model:TEG9300-T) JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R14-2100044 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103056 Page 2 of 6 EUT Antenna Locations JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R14-2100044 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103056 Page 3 of 6 JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R14-2100044 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103056 Page 4 of 6 JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R14-2100044 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103056 Page 5 of 6 SAR Test Setup Photos Body Front side (5mm) Back side(5mm) Left side(5mm) Right side(5mm) Top side(5mm) JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R14-2100044 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103056 Page 6 of 6 Limb Front side (0mm) Back side(0mm) Left side(0mm) Right side(0mm) Top side(0mm)

Test Report

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2100459 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful, and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1. Cover Page FCC REPORT (LTE) Applicant: OASYS Cybernetics Pvt. Ltd., Corp Address of Applicant: OASYS Towers, No.3, Stringers road, Periyamet, Vepery, Chennai – 600003. Equipment Under Test (EUT) Product Name: POS Terminal Model No.: TEG9300-T Trade Mark: Oasys FCC ID: 2AYKQTEG9300-T Applicable standards: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 27 Subpart M Date of sample receipt: 19 Mar., 2021 Date of Test: 19 Mar., to 20 Apr., 2021 Date of report issued: 21 Apr., 2021 Test Result: PASS* *In the configuration tested, the EUT complied with the standards specified above. Report No: JYTSZB-R12-2100459 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 65 2. Version Version No. Date Description 00 21 Apr., 2021 Original Tested by: Date: 21 Apr., 2021 Test Engineer Reviewed by: Date: 21 Apr., 2021 Project Engineer Report No: JYTSZB-R12-2100459 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 65 3. Contents Page 1. COVER PAGE .............................................................................................................................................................. 1 2. VERSION ....................................................................................................................................................................... 2 3. CONTENTS ................................................................................................................................................................... 3 4. TEST SUMMARY ......................................................................................................................................................... 4 5. GENERAL INFORMATION ........................................................................................................................................ 5 5.1 CLIENT INFORMATION .................................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................................... 5 5.3 TEST ENVIRONMENT AND MODE .................................................................................................................................... 8 5.4 DESCRIPTION OF SUPPORT UNITS ................................................................................................................................ 8 5.5 MEASUREMENT UNCERTAINTY...................................................................................................................................... 8 5.6 RELATED SUBMITTAL(S) / GRANT (S) ........................................................................................................................... 8 5.7 ADDITIONS TO, DEVIATIONS, OR EXCLUSIONS FROM THE METHOD .............................................................................. 8 5.8 LABORATORY FACILITY ................................................................................................................................................. 8 5.9 LABORATORY LOCATION ............................................................................................................................................... 9 5.10 TEST INSTRUMENTS LIST ............................................................................................................................................ 9 6. TEST RESULTS ......................................................................................................................................................... 10 6.1 CONDUCTED OUTPUT POWER, ERP AND EIRP ................................................................................................ 10 6.2 PEAK-TO-AVERAGE RATIO .................................................................................................................................. 15 6.3 OCCUPY BANDWIDTH .......................................................................................................................................... 17 6.4 OUT OF BAND EMISSION AT ANTENNA TERMINALS .............................................................................................. 36 6.5 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ...............................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No: JYTSZB-R12-2100459 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2103055 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 64 of 65 7 Test Setup Photo Radiated Spurious Emission Below 1GHz Above 1GHz

Contact Information

Applicant

SRIDHAR S(Mr)

[email protected]8939877853Fax: +91-44-25613300

Test Firm

JianYan Testing Group Shenzhen Co., Ltd.Bruce Zhang

[email protected]+86 (0) 755 23118282

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	27	2.54 GHz - 2.65 GHz	152.10 mW	17M9W7D	0.08 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for Part 22 and EIRP for Part 27. The highest reported SAR for body, simultaneous transmission, and extremity (hand) exposure conditions are 1.05 W/kg, 1.40 W/kg, and 0.58 W/kg, respectively. End-users must be informed of the operating requirements for satisfying RF exposure compliance. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
