2AYL8-BT2107Bluetooth Speaker

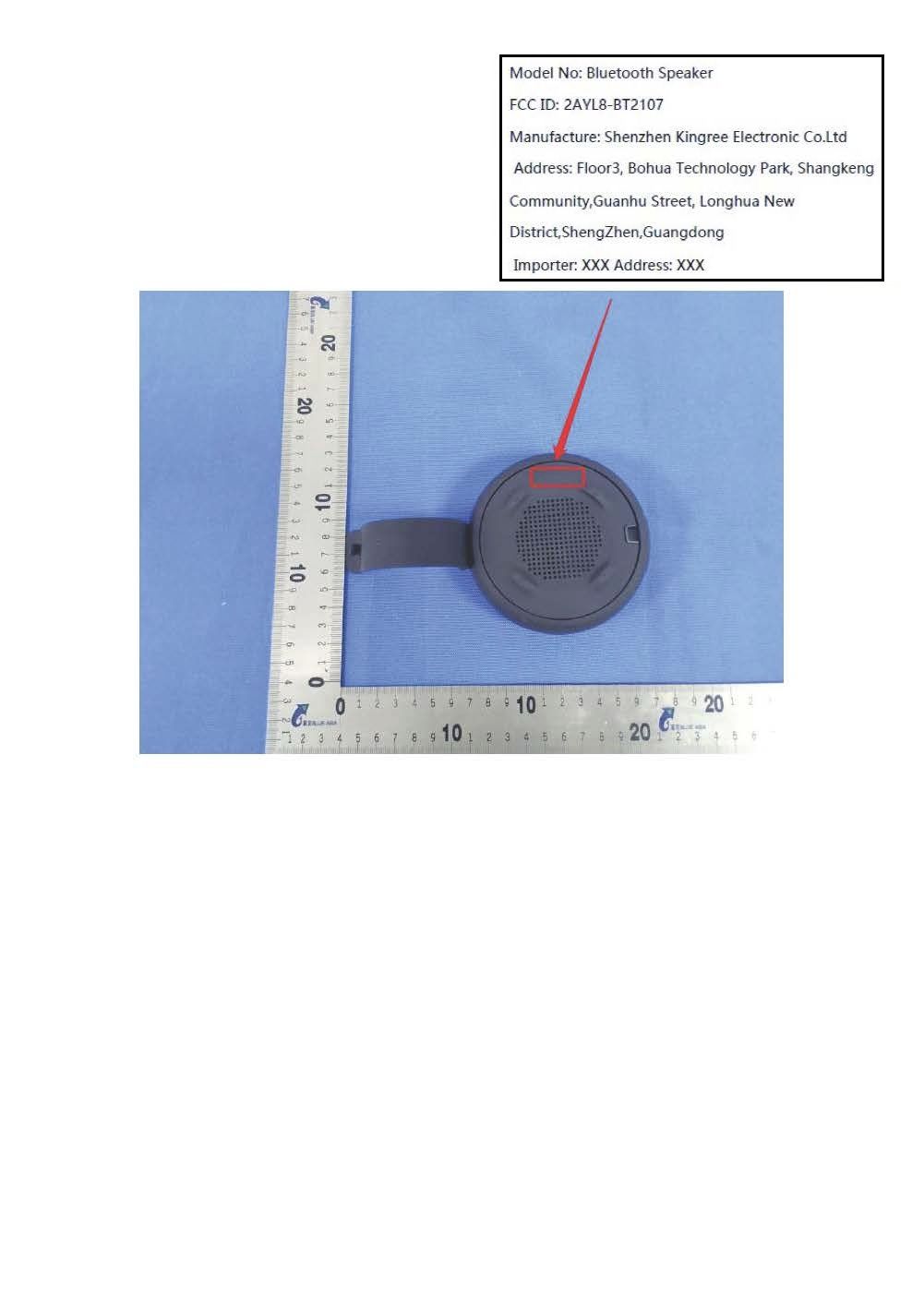

Product Name:Bluetooth Speaker Model No.:BT2107, BT2288 FCC ID:2AYL8-BT2107 All models are electrically identical , only model no is different. <Signature> Name ：Ji hui Title： Manager Company ：Shenzhen Kingree Intelligent Digital Co., Ltd

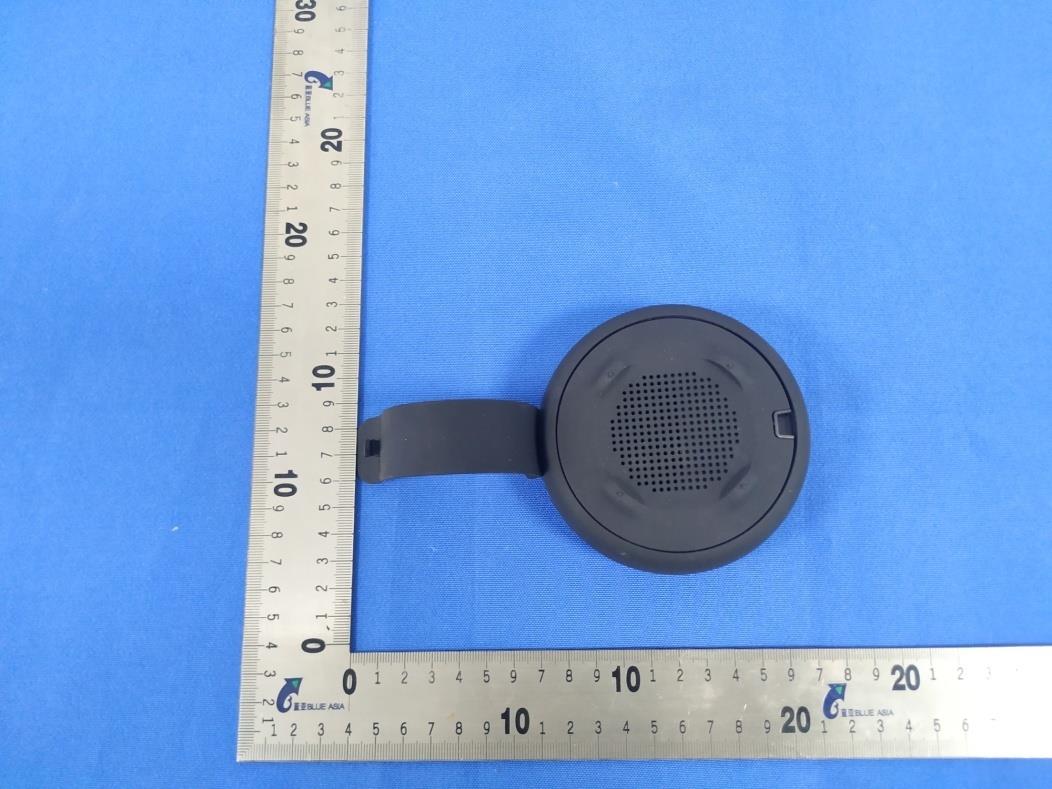

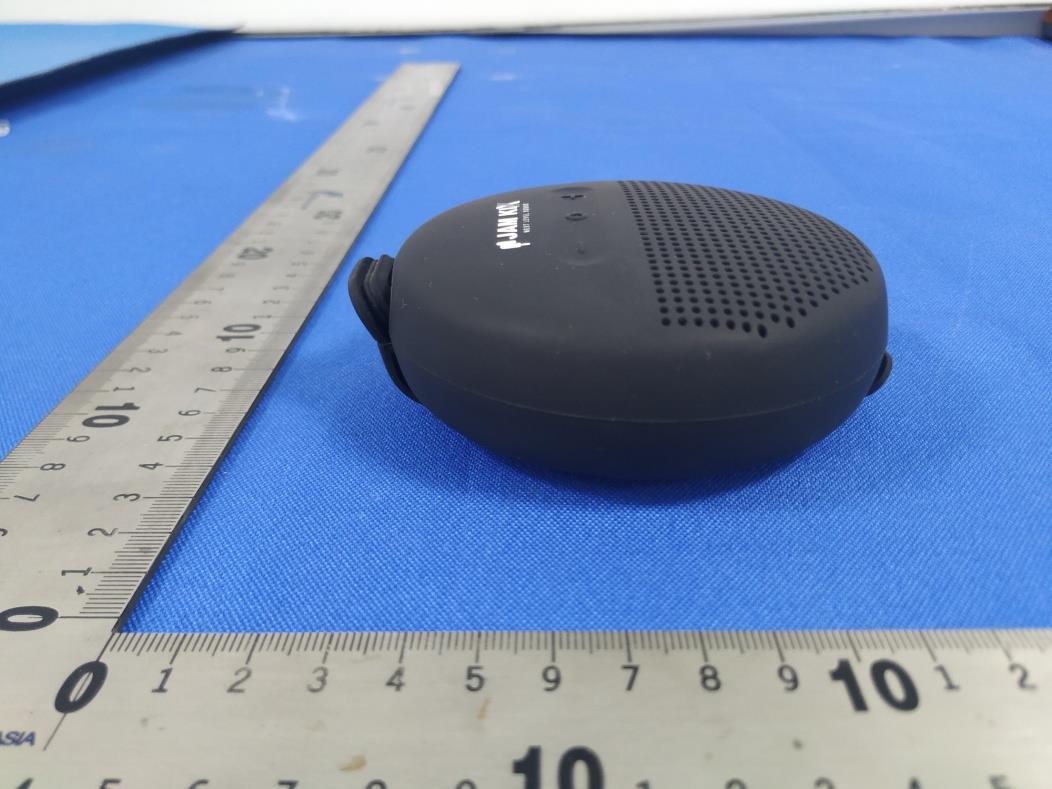

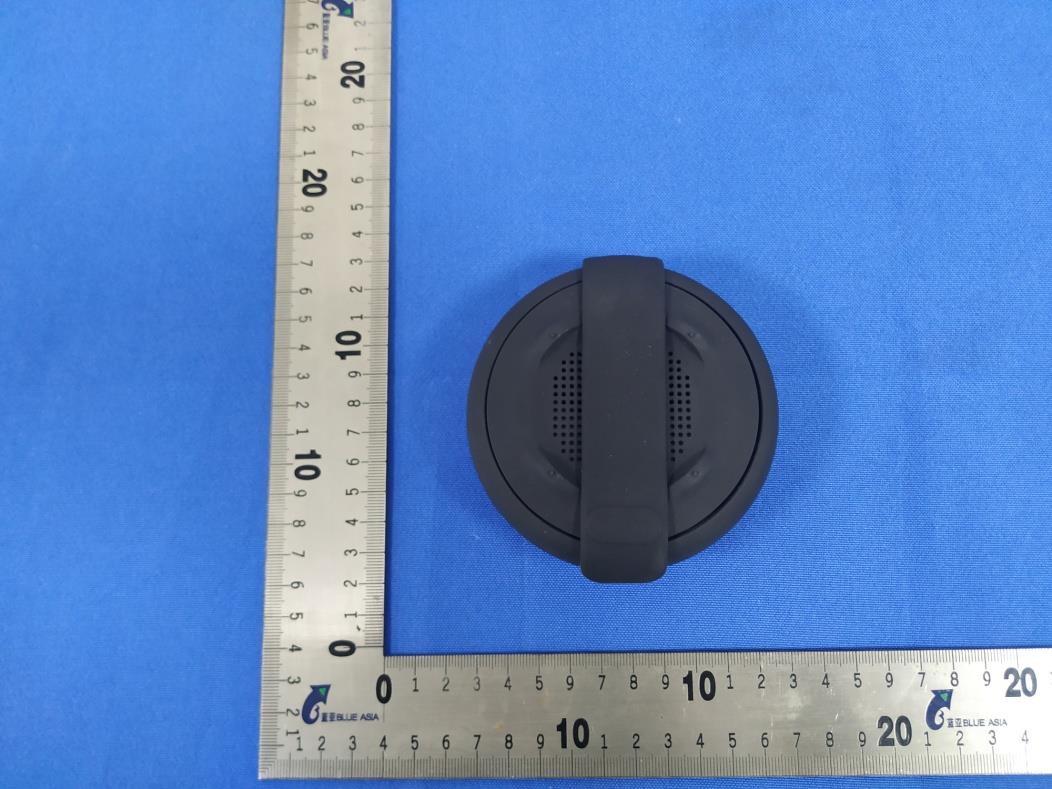

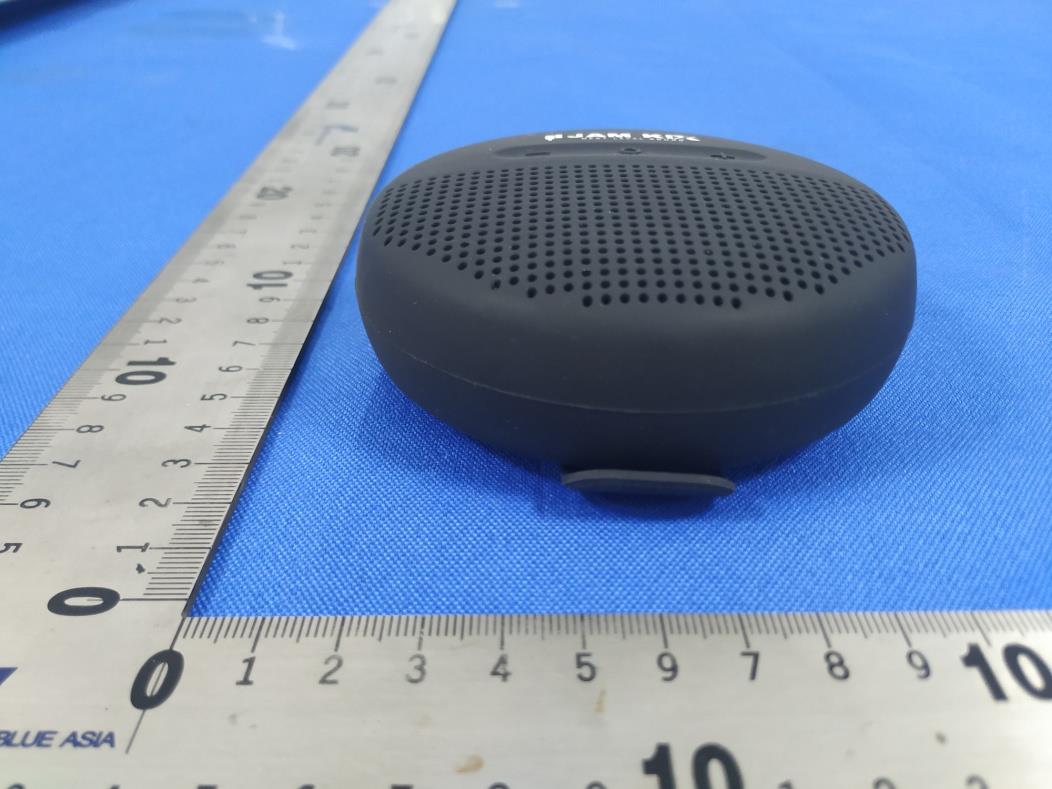

Model No.: BT2107

Model No.: BT2107

Page 1 of 2 RF Exposure Evaluation Report 1 RF EXPOSURE Product Name Bluetooth Speaker Model No. BT2107, BT2288 FCC ID 2AYL8-BT2107 1.1 LIMITS The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion Page 2 of 2 1.2 EUT RF EXPOSURE EVALUATION Operational Mode: EDR （8-DPSK worst case） Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power(dB m) Maximum tune-up Power(mW ) Calculated value Exclusion threshold 2402MHz 3.35 ±1 4.35 2.72 0.84 3 2441MHz 3.07 ±1 4.07 2.55 0.80 3 2480MHz 2.16 ±1 3.16 2.07 0.65 3 Conclusion: the calculated value ≤3.0, SAR is exempted.

Page 1 of 88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Add:No. 448, Bulong Road, Bantian Street, Longgang District, Shenzhen, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Bluetooth Speaker Brand Mark : N/A Model No. : BT2107, BT2288 FCC ID : 2AYL8-BT2107 Report Number : BLA-EMC-202012-A2001 Date of Sample Receipt : 2020/12/4 Date of Test : 2020/12/4 to 2020/12/16 Date of Issue : 2020/12/17 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Shenzhen Kingree Electronic Co.Ltd Floor3,BohuaTechnology Park,ShangkengCommunity,Guanhu Street, Longhua New District,ShengZhen,Guangdong Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. IOT Test Centre of BlueAsia No. 448 Bulong Road, Bantian Street, Longgang District, Shenzhen,China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2020/12/17 Report No.: BLA-EMC-202012-A2001 Page 2 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2020/12/17 Original Report No.: BLA-EMC-202012-A2001 Page 3 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................6 2 GENERAL INFORMATION .........................................................................................................................7 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................7 4 TEST ENVIRONMENT ................................................................................................................................8 5 TEST MODE ................................................................................................................................................8 6 MEASUREMENT UNCERTAINTY ..............................................................................................................8 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................9 8 LABORATORY LOCATION .........................................................................................................................9 9 TEST INSTRUMENTS LIST ..................................................................................................................... 10 ANTENNA REQUIREMENT .............................................................................................................................. 14 CONCLUSION ...................................................................................................................................................................... 14 CONDUCTED SPURIOUS EMISSIONS ........................................................................................................... 15 LIMITS ............................................................................................................................................................................. 15 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 15 TEST DATA ........................................................................................................................................................................ 16 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS ......................................................... 17 LIMITS ............................................................................................................................................................................. 17 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 18 PROCEDURE ................................................................................................................................................................... 18 TEST DATA ........................................................................................................................................................................ 20 CONDUCTED BAND EDGES MEASUREMENT ............................................................................................. 24 LIMITS ............................................................................................................................................................................. 24 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 24 TEST DATA ........................................................................................................................................................................ 25 DWELL TIME..................................................................................................................................................... 26 LIMITS ............................................................................................................................................................................. 26 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................... 26 TEST DATA ........................................................................................................................................................................ 27 HOPPING CHANNEL NUMBER ....................................................................................................................... 28 Report No.: BLA-EMC-202012-A2…

Text truncated - open the document above for the full version.

Report No.: BLA-EMC-202012-A2001 Page 67 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_High_Hop_2480 3DH1_Ant1_Low_2402 3DH1_Ant1_High_2480 Report No.: BLA-EMC-202012-A2001 Page 68 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3DH1_Ant1_Low_Hop_2402 3DH1_Ant1_High_Hop_2480 Report No.: BLA-EMC-202012-A2001 Page 69 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 10.7 APPENDIXH:CONDUCTEDSPURIOUSEMISSION Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH1 Ant1 2402 Reference 0.11 0.11 --- PASS 30~1000 30~1000 -67.144 <=-19.893 PASS 1000~26500 1000~26500 -51.586 <=-19.893 PASS 2441 Reference -0.20 -0.20 --- PASS 30~1000 30~1000 -65.441 <=-20.195 PASS 1000~26500 1000~26500 -53.409 <=-20.195 PASS 2480 Reference -1.27 -1.27 --- PASS 30~1000 30~1000 -64.569 <=-21.27 PASS 1000~26500 1000~26500 -53.274 <=-21.27 PASS 2DH1 Ant1 2402 Reference -1.65 -1.65 --- PASS 30~1000 30~1000 -67.175 <=-21.646 PASS 1000~26500 1000~26500 -53.201 <=-21.646 PASS 2441 Reference -1.64 -1.64 --- PASS 30~1000 30~1000 -66.82 <=-21.64 PASS 1000~26500 1000~26500 -54.042 <=-21.64 PASS 2480 Reference -2.48 -2.48 --- PASS 30~1000 30~1000 -67.153 <=-22.482 PASS 1000~26500 1000~26500 -53.913 <=-22.482 PASS 3DH1 Ant1 2402 Reference -1.29 -1.29 --- PASS 30~1000 30~1000 -67.943 <=-21.285 PASS 1000~26500 1000~26500 -52.845 <=-21.285 PASS 2441 Reference -1.42 -1.42 --- PASS 30~1000 30~1000 -67.266 <=-21.422 PASS 1000~26500 1000~26500 -53.817 <=-21.422 PASS 2480 Reference -2.28 -2.28 --- PASS 30~1000 30~1000 -67.266 <=-22.276 PASS 1000~26500 1000~26500 -53.52 <=-22.276 PASS Report No.: BLA-EMC-202012-A2001 Page 70 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Test Graphs DH1_Ant1_2402_0~Reference DH1_Ant1_2402_30~1000 DH1_Ant1_2402_1000~26500 DH1_Ant1_2441_0~Reference Report No.: BLA-EMC-202012-A2001 Page 71 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com DH1_Ant1_2441_30~1000 DH1_Ant1_2441_1000~26500 DH1_Ant1_2480_0~Reference Report No.: BLA-EMC-202012-A2001 Page 72 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com DH1_Ant1_2480_30~1000 DH1_Ant1_2480_1000~26500 2DH1_Ant1_2402_0~Reference Report No.: BLA-EMC-202012-A2001 Page 73 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2402_30~1000 2DH1_Ant1_2402_1000~26500 2DH1_Ant1_2441_0~Reference Report No.: BLA-EMC-202012-A2001 Page 74 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2441_30~1000 2DH1_Ant1_2441_1000~26500 2DH1_Ant1_2480_0~Reference Report No.: BLA-EMC-202012-A2001 Page 75 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 2DH1_Ant1_2480_30~1000 2DH1_Ant1_2480_1000~26500 3DH1_Ant1_2402_0~Reference Report No.: BLA-EMC-202012-A2001 Page 76 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3DH1_Ant1_2402_30~1000 3DH1_Ant1_2402_1000~26500 3DH1_Ant1_2441_0~Reference Report No.: BLA-EMC-202012-A2001 Page 77 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3DH1_Ant1_2441_30~1000 3DH1_Ant1_2441_1000~26500 3DH1_Ant1_2480_0~Reference Report No.: BLA-EMC-202012-A2001 Page 78 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com 3DH1_Ant1_2480_30~1000 3DH1_Ant1_2480_1000~26500 Report No.: BLA-EMC-202012-A2001 Page 79 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX A: PHOTOGRAPHS OF TEST SETUP Conducted Emissions at AC Power Line (150kHz-30MHz) Radiated Spurious Emissions Report No.: BLA-EMC-202012-A2001 Page 80 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A2001 Page 81 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com APPENDIX B: PHOTOGRAPHS OF EUT Report No.: BLA-EMC-202012-A2001 Page 82 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A2001 Page 83 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A2001 Page 84 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A2001 Page 85 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A2001 Page 86 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A2001 Page 87 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Report No.: BLA-EMC-202012-A2001 Page 88 of88 BlueAsia of Technical Services(Shenzhen) Co.,Ltd.Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com ----END OF REPORT---- The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(…

Text truncated - open the document above for the full version.

Model No.: BT2107 Radiated Spurious Emissions Conducted Emissions at AC Power Line (150kHz-30MHz)
