APPTRICITY CORPORATION® LONG-RANGE BLUETOOTH TAG Manufactured By: Apptricity Corporation® Model Number: 550-130-100 APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 1 Table of Contents 1. PRODUCT DESCRIPTION .............................................................................................................................................. 2 2. KEY FEATURES ............................................................................................................................................................. 2 3. BATTERY REPLACEMENT .............................................................................................................................................. 3 4. REGULATORY ............................................................................................................................................................... 7 5. CONTACT INFO ............................................................................................................................................................ 7 APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 2 1. PRODUCT DESCRIPTION The Apptricity Long-Range tag is intended for Asset tracking. The range of the transmitted Bluetooth signal is up to 9 miles (14.4 km) line of sight. The transmission rate can be set from a ping once per second to a ping of once per 145 hours. The Long-Range Bluetooth Tag requires one 3 Volt CR2477 Lithium battery. Batteries are customer replaceable. The lifetime of the battery is determined by the ping rate. The ping rate is set when the tag is manufactured. 2. KEY FEATURES 22 dBm Bluetooth Beacon 2.48 GHz Frequency Band Gain of Antenna is 3 dBi IP57: Water and Dust Resistant Weight: 1.4 oz Dimensions: 1.61” X 1.61” X 0.79” Part Numbers: 550-130-100 APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 3 3. BATTERY REPLACEMENT The Long-Range Bluetooth tag battery replacement is demonstrated below. Step #1: Remove the 4 screws from the top of the case. APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 4 Step #2: Remove the lid with attached pcb from the case. Step #3: Remove the battery. APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 5 Step #4: Insert new battery with positive side up (very important) and negative side against the shield. Step #5: Put the top back onto the case bottom. APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 6 Step #6: Replace the four screws to attach the top to the bottom of the case. APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 7 4. REGULATORY This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including any interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by Apptricity could void the user's authority to operate the equipment. 5. CONTACT INFO Apptricity Corporation 220 E Las Colinas Blvd, Suite 400 Irving, TX 76039 USA Main Phone: 214-596-0601 Toll Free: 800-693-2193 [email protected] https://www.apptricity.com/

Page 1 of 1 March 3, 2021 National Technical Systems TCB 41039 Boyce Road Fremont, CA, 94538 FCC ID: 2AYMA-550130100 To whom it may concern: The enclosed documents constitute a formal submittal and application for FCC Equipment Authorization for a Bluetooth Tag pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47) National Technical Systems, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact National Technical Systems for assistance. Sincerely, David W. Bare Chief Engineer

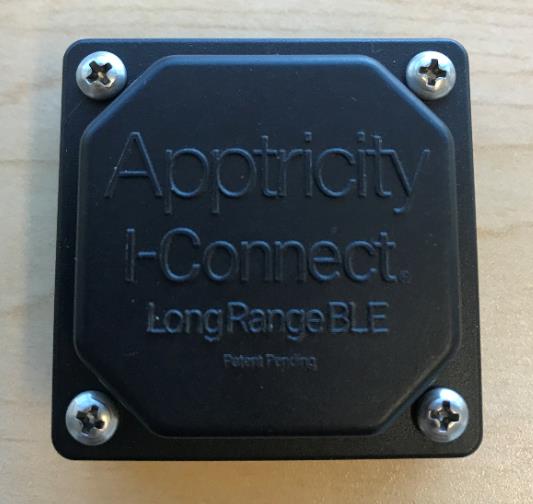

APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 1 1. External Top of Case 2. Bottom of Case APPTRICITY CORPORATION Apptricity I-Connect Long Range Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 2 3. Sides of Case

Apptricity Long Range Bluetooth Tag Label Specifications and Placement Label: Specs: Black Marking White 1”X 1”Vinyl Permanent Adhesive Location:

EMC Test Data Client: Contact: Standard: Specific Details General Test Configuration Yes FCC SAR Exclusion Calculation Cable Loss AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 24802.01.5803.52.03.555.00.50 3.0 Power for calculation reduced by 20 dB due to as in any 1 second period the maximum exposure duty cycle would be .36% (3.63ms/second). Deviations From The Standard No deviations were made from the requirements of the standard. EUT Separation Distance (mm) SAR Exclusion Calc. SAR Exclusion Limit Power Test Engineer: David Bare Device complies with SAR exclusion at 5mm separation: Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). SAR exclusion calculation formula is from FCC KDB 447498 D01 section 4.3: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] Where: f (GHz) is the RF trasnmit channel frequency Summary of Results Maximum Permissible Exposure / SAR Exclusion Objective: Evaluate the RF Exposure requirements per FCC 1.1310, 2.1091, 2.1093 and RSS-102. Date of Test: 2/9/2021 Marci HaslamProject Engineer: David Bare FCC Part 15.247, RSS-247Class: N/A Apptricity CorporationPR Number: PR124075 Model: BT Tag 550-130-100 T-Log Number: TL124075-RA BLE Project Manager: Christine Krebill TL124075-RA BLE.xlsMPE Calc 09-Feb-21Page 1 of 1

41039 Boyce Road 510-578-3500 Phone Fremont, CA. 94538 510-440-9525 Fax File: FR-124075.04-NARF Rev 1 Page 1 EMC Test Report Application for FCC Grant of Equipment Authorization Canada Certification Innovation, Science and Economic Development Canada RSS-Gen Issue 5 / RSS-247 Issue 2 FCC Part 15 Subpart C Model: 550-130-100 FCC ID: 2AYMA-550130100 APPLICANT: Apptricity Corporation 220 E. Las Colinas Blvd, Suite 400 Irving, TX 75039 TEST SITE(S): National Technical Systems 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-3; 2845B-4, 2845B-5, 2845B-7 PROJECT NUMBER: PR124075 REPORT DATE: February 17, 2021 REISSUE DATE: March 16, 2021 FINAL TEST DATES: January 11, February 9 and 10, 2021 TOTAL NUMBER OF PAGES: 45 This report and the information contained herein represent the results of testing of only those articles / products identified in this document and selected by the client. The tests were performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it present any statement whatsoever as to its merchantability or fitness of the test article or similar products, for a particular purpose. This report shall not be reproduced except in full without written approval from NTS. National Technical Systems Project number PR124075 Report Date: February 17, 2021 Reissue Date: March 16, 2021 Test Report FR-124075.04-NARF Rev 1 Page 2 VALIDATING SIGNATORIES PROGRAM MGR ______________________________ David W. Bare Chief Engineer TECHNICAL REVIEWER: ______________________________ David W. Bare Chief Engineer FINAL REPORT PREPARER: ______________________________ David Guidotti Senior Technical Writer QUALITY ASSURANCE DELEGATE ______________________________ Gary Izard Senior Technical Writer National Technical Systems Project number PR124075 Report Date: February 17, 2021 Reissue Date: March 16, 2021 Test Report FR-124075.04-NARF Rev 1 Page 3 REVISION HISTORY Rev# Date Comments Modified By - February 17, 2021 First release 1 March 16, 2021 Revised report to correct FCC ID David Guidotti National Technical Systems Project number PR124075 Report Date: February 17, 2021 Reissue Date: March 16, 2021 Test Report FR-124075.04-NARF Rev 1 Page 4 TABLE OF CONTENTS COVER PAGE............................................................................................................................................................. 1 VALIDATING SIGNATORIES ................................................................................................................................ 2 REVISION HISTORY ................................................................................................................................................ 3 TABLE OF CONTENTS ............................................................................................................................................ 4 SCOPE .......................................................................................................................................................................... 5 OBJECTIVE ................................................................................................................................................................ 6 STATEMENT OF COMPLIANCE ........................................................................................................................... 6 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 6 TEST RESULTS SUMMARY ................................................................................................................................... 7 DIGITAL TRANSMISSION SYSTEMS (2400 – 2483.5MHZ) .............................................................................. 7 MEASUREMENT UNCERTAINTIES .................................................................................................................... 9 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................................... 10 GENERAL .............................................................................................................................................................. 10 OTHER EUT DETAILS ......................................................................................................................................... 10 ANTENNA SYSTEM ............................................................................................................................................ 10 ENCLOSURE ......................................................................................................................................................... 10 MODIFICATIONS ................................................................................................................................................. 10 SUPPORT EQUIPMENT ....................................................................................................................................... 10 EUT INTERFACE PORTS .................................................................................................................................... 10 EUT OPERATION ................................................................................................................................................. 10 TEST SITE ................................................................................................................................................................. 11 GENERAL INFORMATION ........................................................................................…
