2AYMA550135100Long Range Tag

APPTRICITY CORPORATION® LONG-RANGE WITH GPS BLUETOOTH TAG Manufactured By: Apptricity Corporation® Part Number: 550-135-100 APPTRICITY CORPORATION Apptricity I-Connect Long Range with GPS Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 1 Table of Contents 1. PRODUCT DESCRIPTION .............................................................................................................................................. 2 2. KEY FEATURES ............................................................................................................................................................. 2 3. BATTERY REPLACEMENT .............................................................................................................................................. 3 4. REGULATORY ............................................................................................................................................................... 7 5. CONTACT INFO ............................................................................................................................................................ 7 APPTRICITY CORPORATION Apptricity I-Connect Long Range with GPS Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 2 1. PRODUCT DESCRIPTION The Apptricity Long-Range with GPS Bluetooth tag is intended for Asset tracking. The range of the transmitted Bluetooth signal is up to 9 miles (14.4 km) line of sight. The transmission rate can be set from a ping once per second to a ping of once per 145 hours. The Long-Range with GPS Bluetooth Tag requires two CR2477 batteries. Batteries are customer replaceable. The lifetime of the battery is determined by the ping rate. The ping rate is set when the tag is manufactured. 2. KEY FEATURES 22 dBm Bluetooth Beacon 2.48 GHz Frequency Band Gain of Antenna is 3 dBi IP57: Water and Dust Resistant Weight: 1.4 oz (Long-Range) and 2.4 oz Dimensions: 2.85” X 1.93” X 0.83” Part Numbers: 550-135-100 APPTRICITY CORPORATION Apptricity I-Connect Long Range with GPS Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 3 3. BATTERY REPLACEMENT The Long-Range with GPS Bluetooth tag battery replacement is demonstrated below. Step #1: Remove the 4 screws from the top of the case. APPTRICITY CORPORATION Apptricity I-Connect Long Range with GPS Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 4 Step #2: Remove the lid with attached pcb from the case. Step #3: Remove both batteries. APPTRICITY CORPORATION Apptricity I-Connect Long Range with GPS Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 5 Step #4: Insert new batteries with positive sides up (very important) and negative sides against the shields. Step #5: Put the top back onto the case bottom. APPTRICITY CORPORATION Apptricity I-Connect Long Range with GPS Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 6 Step #6: Replace the four screws to attach the top to the bottom of the case. APPTRICITY CORPORATION Apptricity I-Connect Long Range with GPS Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 7 4. REGULATORY This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including any interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by Apptricity could void the user's authority to operate the equipment. 5. CONTACT INFO Apptricity Corporation 220 E Las Colinas Blvd, Suite 400 Irving, TX 76039 USA Main Phone: 214-596-0601 Toll Free: 800-693-2193 [email protected] https://www.apptricity.com/

Page 1 of 1 January 21, 2021 National Technical Systems TCB 41039 Boyce Road Fremont, CA, 94538 FCC ID: 2AYMA550135100 To whom it may concern: The enclosed documents constitute a formal submittal and application for FCC Equipment Authorization for a Bluetooth Tag pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47) National Technical Systems, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact National Technical Systems for assistance. Sincerely, David W. Bare Chief Engineer

220 E. Las Colinas Blvd. • Mandalay Tower 1, Suite 400 • Irving • Texas • 75039 p:214.596.0601 | www.apptricity.com Request for Confidentiality January 20, 2021 Subject: Confidentiality Request for: FCC FRN-Grantee: 0030362719-2AYMA Pursuant to FCC 47 CRF 0.457(d) and 0.459 and/or RSP-100, the applicant requests that a part of the subject FCC and/or ISED application be held confidential. Type of Confidentiality Requested Exhibit Short Term XX Permanent Block Diagrams Short Term XX Permanent* Internal Photos Short Term XX Permanent Operation Description/Theory of Operation Short Term XX Permanent Schematics XX Short Term Test Setup Photos *Note: The pcb board is attached to the top of the case. When the user replaces the batteries, they only see the Battery Holder and Shields. The photos of the pcb layout without the shields are proprietary. Please keep our information confidential. _____ Apptricity Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify FCC in the event information regarding the product or the product is made available to the public. FCC will then release the documents listed above for public disclosure pursuant to FCC KDB 726920 D01.

APPTRICITY CORPORATION Apptricity I-Connect Long Range with GPS Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 1 1. External Top of Case 2. Bottom of Case APPTRICITY CORPORATION Apptricity I-Connect Long Range with GPS Bluetooth Tag _____________________________________________________________________________ Copyright© 2004-2021 Apptricity Corporation® 2 3. Sides of Case

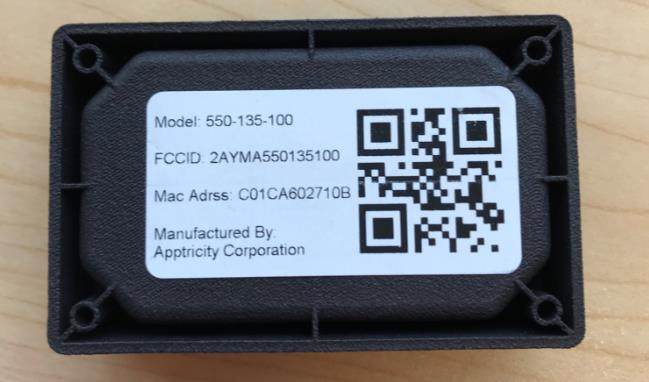

Apptricity Long Range with GPS Bluetooth Tag Label Specifications and Placement Label: Specs: Black Marking White 1”X 1”Vinyl Permanent Adhesive Location:

EMC Test Data Client: Contact: Standard: Specific Details General Test Configuration Yes FCC SAR Exclusion Calculation Cable Loss AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 24801.41.3803.51.43.095.00.43 Power for calculation reduced by 20 dB due to as by design in any 1 second period the maximum exposure duty cycle would be .35% (3.53ms/second). Apptricity CorporationPR Number: PR124075 Model: BT Tag 550-135-100 T-Log Number: TL124075-RA Project Manager: Christine Krebill Marci HaslamProject Engineer: David Bare FCC Part 15.247, RSS-247Class: N/A Maximum Permissible Exposure / SAR Exclusion Objective: Evaluate the RF Exposure requirements per FCC 1.1310, 2.1091, 2.1093 and RSS-102. Date of Test: 1/21/2021 No deviations were made from the requirements of the standard. Test Engineer: David Bare Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). SAR exclusion calculation formula is from FCC KDB 447498 D01 section 4.3: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] Where: f (GHz) is the RF trasnmit channel frequency Summary of Results 3.0 Device complies with SAR exclusion at 5mm separation: EUT Separation Distance (mm) SAR Exclusion Calc. SAR Exclusion Limit Power Deviations From The Standard TL124075-RA.xlsMPE Calc 21-Jan-21Page 1 of 1

41039 Boyce Road 510-578-3500 Phone Fremont, CA. 94538 510-440-9525 Fax File: FR-124075.02-NARF Rev 0 Page 1 EMC Test Report Application for FCC Grant of Equipment Authorization Canada Certification Innovation, Science and Economic Development Canada RSS-Gen Issue 5 / RSS-247 Issue 2 FCC Part 15 Subpart C Model: 550-135-100 FCC ID: 2AYMA550135100 APPLICANT: Apptricity Corporation 220 E. Las Colinas Blvd, Suite 400 Irving, TX 75039 TEST SITE(S): National Technical Systems 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-3; 2845B-4, 2845B-5, 2845B-7 PROJECT NUMBER: PR124075 REPORT DATE: January 29, 2021 FINAL TEST DATES: October 29, 2020 and January 4 and 11, 2021 TOTAL NUMBER OF PAGES: 44 This report and the information contained herein represent the results of testing of only those articles / products identified in this document and selected by the client. The tests were performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it present any statement whatsoever as to its merchantability or fitness of the test article or similar products, for a particular purpose. This report shall not be reproduced except in full without written approval from NTS. National Technical Systems Project number PR124075 Report Date: January 29, 2021 Test Report FR-124075.02-NARF Rev 0 Page 2 VALIDATING SIGNATORIES PROGRAM MGR ______________________________ David W. Bare Chief Engineer TECHNICAL REVIEWER: ______________________________ David W. Bare Chief Engineer FINAL REPORT PREPARER: ______________________________ David Guidotti Senior Technical Writer QUALITY ASSURANCE DELEGATE ______________________________ Gary Izard Senior Technical Writer National Technical Systems Project number PR124075 Report Date: January 29, 2021 Test Report FR-124075.02-NARF Rev 0 Page 3 REVISION HISTORY Rev# Date Comments Modified By - January 29, 2021 First release National Technical Systems Project number PR124075 Report Date: January 29, 2021 Test Report FR-124075.02-NARF Rev 0 Page 4 TABLE OF CONTENTS COVER PAGE............................................................................................................................................................. 1 VALIDATING SIGNATORIES ................................................................................................................................ 2 REVISION HISTORY ................................................................................................................................................ 3 TABLE OF CONTENTS ............................................................................................................................................ 4 SCOPE .......................................................................................................................................................................... 5 OBJECTIVE ................................................................................................................................................................ 5 STATEMENT OF COMPLIANCE ........................................................................................................................... 6 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 6 TEST RESULTS SUMMARY ................................................................................................................................... 7 DIGITAL TRANSMISSION SYSTEMS (2400 – 2483.5MHZ) .............................................................................. 7 MEASUREMENT UNCERTAINTIES .................................................................................................................... 9 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................................... 10 GENERAL .............................................................................................................................................................. 10 OTHER EUT DETAILS ......................................................................................................................................... 10 ANTENNA SYSTEM ............................................................................................................................................ 10 ENCLOSURE ......................................................................................................................................................... 10 MODIFICATIONS ................................................................................................................................................. 10 SUPPORT EQUIPMENT ....................................................................................................................................... 10 EUT INTERFACE PORTS .................................................................................................................................... 11 EUT OPERATION ................................................................................................................................................. 11 TEST SITE ................................................................................................................................................................. 12 GENERAL INFORMATION ................................................................................................................................. 12 CONDUCTED EMISSIONS CONSIDERATIONS .............................................................................................. 12 R…

Text truncated - open the document above for the full version.

Radiated Emissions Test Configuration Photographs
