2AYOTTPA-M001PHP USI Garaged Pen

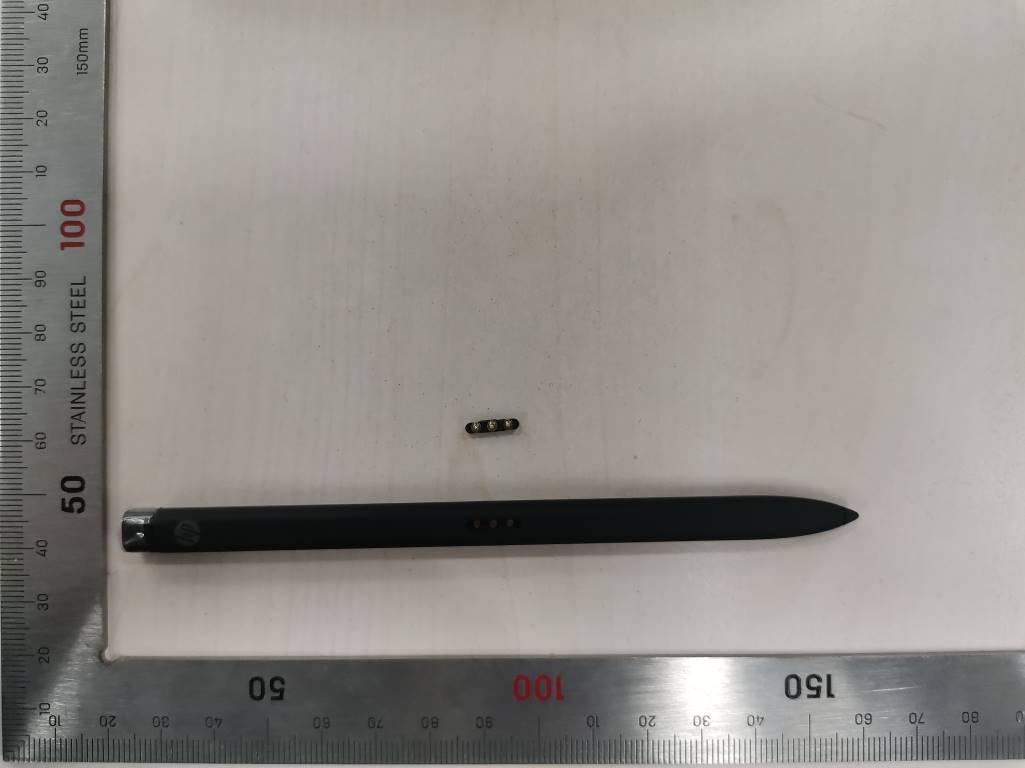

Fig.1External view-01 Fig.2External view-02

Fig.1Internal view-01 Fig.2Internal view-02 Fig.3PCB view-01 Fig.4PCB view-02

Report No.: BTL-FCCP-1-2012C109 Page 1 of 25 FCC Radio Test Report FCC ID: 2AYOTTPA-M001P This report concerns: Original Grant Project No. : 2012C109 Equipment : HP USI Garaged Pen Brand Name : HP Test Model : TPA-M001P Series Model : N/A Applicant : Shenzhen qianfenyi intelligent technology co., LTD Address : 302, Floor 3 Chuangxingda Commercial Center Building, Bao'an District, Shenzhen, PRC Manufacturer : Shenzhen qianfenyi intelligent technology co., LTD Address : 302, Floor 3 Chuangxingda Commercial Center Building, Bao'an District, Shenzhen, PRC Date of Receipt : Dec. 18, 2020 Date of Test : Jan. 04, 2021 ~ Jan. 15, 2021 Issued Date : Jan. 28, 2021 Report Version : R00 Test Sample : Sample No.: DG2020121878 Standard(s) : FCC Part15, Subpart C (15.209) ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Peggy Zhu Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2012C109 Page 2 of 25 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufact to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTLISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2012C109 Page 3 of 25 Table of Contents Page REPORT ISSUED HISTORY 4 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 1.3 TEST ENVIRONMENT CONDITIONS 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS 8 3 . RADIATED EMISSION TEST 9 3.1 LIMIT 9 3.2 TEST PROCEDURE 9 3.3 DEVIATION FROM TEST STANDARD 9 3.4 TEST SETUP 10 3.5 EUT OPERATING CONDITIONS 11 3.6 TEST RESULT - 9 KHZ TO 30 MHZ 11 3.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 11 4 . MEASUREMENT INSTRUMENTS LIST 12 5 . EUT TEST PHOTO 13 APPENDIX A - RADIATED EMISSION - 9 KHZ TO 30 MHZ 16 APPENDIX B - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 23 Report No.: BTL-FCCP-1-2012C109 Page 4 of 25 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Jan. 28, 2021 Report No.: BTL-FCCP-1-2012C109 Page 5 of 25 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.209) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions N/A N/A ------ 15.209(a) Radiated Emissions APPENDIX A APPENDIX B PASS ------ ------ Bandwidth N/A N/A ------ NOTE: (1) . Report No.: BTL-FCCP-1-2012C109 Page 6 of 25 1.1 TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) The BTL measurement uncertainty as below table: A. Radiated emissions Measurement: Test Site Method Measurement Frequency Range Ant. H / V U, (dB) DG-CB03 CISPR 9kHz ~ 30MHz - 3.02 30MHz ~ 200MHz V 4.26 30MHz ~ 200MHz H 3.38 200MHz ~ 1,000MHz V 3.98 200MHz ~ 1,000MHz H 3.94 Note: Unless specifically mentioned, the uncertainty of measurement has not been taken into account to declare the compliance or non-compliance to the specification. 1.3 TEST ENVIRONMENT CONDITIONS Test Item Temperature Humidity Test Voltage Tested By Radiated Emissions-9K-30MHz 25°C 60% DC 5V Kwok Guo Radiated Emissions-30 MHz to 1000MHz 26°C 52% DC 5V Kwok Guo Report No.: BTL-FCCP-1-2012C109 Page 7 of 25 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment HP USI Garaged Pen Brand Name HP Test Model TPA-M001P Series Model N/A Model Difference(s) N/A Power Rating DC 1.0-2.7V via built-in supercap or DC 5V, 500mA via DC source. Operation Frequency 120-480kHz (declared by manuufacurer) Note: 1. user's manual. The radiated power for this device is too to be observed in normal radiated emission testing. 2.2 DESCRIPTION OF TEST MODES The test system was pre-tested based on the consideration of all possible combinations of EUT operatio…

Text truncated - open the document above for the full version.

Report No.: BTL-ISEDR-1-2012C109 Page 16 of 28 6. EUT TEST PHOTO Radiated Emissions Test Photos 9 kHz to 30 MHz (Polarization:X) 9 kHz to 30 MHz (Polarization:Y) Report No.: BTL-ISEDR-1-2012C109 Page 17 of 28 9 kHz to 30 MHz (Polarization:Z) Report No.: BTL-ISEDR-1-2012C109 Page 18 of 28 Radiated Emissions Test Photos 30 MHz to 1000 MHz
