2AYPM530projector

WISELAZER SUPPORT Technical [email protected] Customer [email protected] www.wiselazer.comS20 Online Help S20 USER MANUAL Please read this manual thoroughly before use and keep it handy for future reference. v1.5 English ▲ 01-09 Deutsch ▲ 11-19 Français ▲ 21-29 Español ▲ 31-39 Italiano ▲ 41-49 日本語 ▲ 51-59 English ▲ [email protected] English 01 PACKING LIST WARNING Carrying Bag Lens ClothHDMI CablePower Cable Don't look straight into the light from the projector lens. Don't put projector in a damp, humid environment to avoid electrocution. S20Remote (Batteries Not Included) User Manual English 02 FUNCTION OVERVIEW Air Outlet Kickstand Lens HDMI Mute Left Back Volume - USB Infrared Receiver Power Button Power Button Fast Reverse Menu Fast Forward Down Up HDMI Input Source Right Volume + Keystone Correction Play/Pause Speaker Audio Out Power Input Press to eject the kickstand English 03 QUICK START 1. Please install the batteries for the remote control. 2. Plug the power cord into an outlet. 3. Take off the lens cover. 4. Press to eject the kickstand. Rotate the lens to focus. 5. Place the projector on a f l at surface. 6. Press the Power Button to turn on the projector. Press the Power Button twice to turn off the projector. English 04 KEYSTONE CORRECTION INPUT SOURCE Projection Mode Manual keystone 18 Digital Zoom MiraCast Setting FileManagerHDMI HummingBirdCast iOS Mobile Mirror USB Connection HDMI Connection Android Mobile Mirror English 05 LANGUAGE SETTING WIFI CONNECTION PROJECTION DISTANCE & SIZE 1. Select "Setting" on the projection image. 2. Select "Language Setting" on the projection image. Setting Language Setting 1. Select "Setting" on the projection image. 2. Select “WiFi Setting” on the projection image. Setting WiFi Setting 3. Wait for the projector to search for available networks. 4. Choose your network name and enter the password to connect. 4.27ft 6.56ft 9.84ft 16.4ft 22.3ft (1.3m) (2m) (3m) (5m) (6.8m) The recommended projection screen is around 100 inches with a distance of around 9.84ft. Ambient darkness will improve the clarity of the projected images. English 06 WIRELESS SCREEN MIRRORING For iOS device 1. Make sure that your iOS device is connected to the same network as your projector. 2. Select "HummingBirdCast" on the projection image. 3. On your iOS device, open "Control Center" and tap "Screen Mirroring". 4. On your iOS device, Looking for devices that can be mirrored on. 5. Select "BirdCast-392b" from the list. HummingBirdCast English 07 WIRELESS SCREEN MIRRORING 2. Select “MiraCast” on the projection image. 3. Turn on the wireless projection function of your Android phone. 4. On your Android device, Looking for devices that can be mirrored on. 5. Select “NEWLINK-392b” from the list. For Android device 1. Make sure that your Android device is connected to the same network as your projector. MiraCast English 08 SPECIFICATION Display Technology LCD LED Manual 3W 4Ω 8.66 x 6.89 x 2.52 in (220 x 175 x 64 mm) Native 1920 x 1080 Front/Rear/Ceiling ±25° 1/4” 480P、720P、1080P 4:3 / 16:9 / Auto 60W Resolution Input Signal Aspect Ratio Rated Power Installation Type Keystone Mounting Screw Audio Format Supported Ports JPEG/JPG/BMP/GIF/ TIF/PNG AC 100-240V,50/60Hz RMVB/AVI/MKV/WMV/ MOV/FLV/ASF/MP4/ 3GP/MPEG/VOB/DAT MP3/AMR/RM/M4A/FLAC/ APE/OGG/MPC/AIF/AIFF/ AIFC/WMA/AAC/WAV/AC3 USB x1 / HDMI x 1 / 3.5mm Audio Out x 1 Light Source Focus Speaker Unit Dimension Photo Format Supported Power Supply Video Format Supported Unit Net Weight1.25kg (2.75lb) English 09 TROUBLESHOOTING GUIDE 1. Blurry Image ● Rotate the lens to focus. ● Use the remote control to achieve keystone correction. ● Projector and screen/wall must be in effective distance. 2. Remote Unresponsive ● Make sure remote points at Infrared Receiver directly. ● Do not cover Infrared Receiver. ● Try a new pair of AAA batteries. 3. UP Side Down Images ● Go to Setting > Projection Image Setting > Projection Mode to f lip the projection image. 4. Adjust the Image Size ● Go to Setting > Projection Image Setting > Digital Zoom to adjust the image size. 10 [email protected] Deutsch ▲ Deutsch 11 PACKLISTE WARNUNG Tragetasche LinsentuchHDMI KabelStromkabel Schauen Sie nicht direkt in das Licht der Projektorlinse. Stellen Sie den Projektor nicht in eine feuchte Umgebung, um Stromschläge zu vermeiden. S20Fernbedienung (Batterien nicht im Lieferumfang enthalten) BENUTZERHANDBUCH Deutsch 12 FUNKTIONSÜBERSICHT Luftauslass Ständer Linse HDMI Stumm Links Zurück Volumen - USB Infrarotempfänger Ein- / Ausschalter Ein- / Ausschalter Schneller Rückwärtsgang Speisekarte Schneller Vorlauf Nieder Oben HDMI-Eingangsquelle Richtig Volumen + Trapezkorrektur Abspielen/Pause Lautsprecher Audio Ausgang Leistungsaufnahme Drücken Sie, um den Ständer auszuwerfen. Deutsch 13 SCHNELLSTART HDMI-Eingangsquelle 1. Bitte legen Sie die Batterien für die Fernbedienung ein. 2. Stecken Sie das Netzkabel in eine Steckdose. 3. Nehmen Sie die Objektivabdeckung ab. 4. Drücken Sie, um den Ständer auszuwerfen. Drehen Sie das Objektiv, um zu fokussieren. 5. Stellen Sie den Projektor auf eine ebene Fläche. 6. Drücken Sie den Netzschalter, um den Projektor einzuschalten. Drücken Sie den Netzschalter zweimal, um den Projektor auszuschalten. Deutsch 14 SCHLUSSSTEIN EINGABEQUELLE Proiektionsmodus Manueller Schlussstein 18 Digitaler Zoom MiraCast Setting FileManagerHDMI HummingBirdCast iOS Bildschirm- synchronisierung USB-Verbindung HDMI-Verbindung Android Bildschirm-synchronisierung Deutsch 15 SPRACHEINSTELLUNGEN WIFI VERBINDUNG PROJEKTIONSABSTAND & GRÖßE 1. Wählen Sie im Projektionsbild „Setting". 2. Wählen Sie im Projektionsbild „Spracheinstellungen". Setting Language Setting 1. Wählen Sie im Projektionsbild „Setting“. 2. Wählen Sie im Projektionsbild „WiFi-Einstellung“. Setting WiFi Setting 3. Warten Sie, bis der Projektor nach verfügbaren Netzwerken sucht. 4. Wählen Sie Ihren Netzwerknamen und geben Sie das Kennwort für die Verbindung ein…

Text truncated - open the document above for the full version.

Shenzhen Light Valve Technology Co., Ltd. Add: Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Date: 2021-4-27 FCC ID: 2AYPM530 Dear Sir/Madam, We, Shenzhen Light Valve Technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: projector Model no.: 530, G30, E300, ES300, A6, G1 Sincerely, Name/Title： Andy Hu/general manager Company: Shenzhen Light Valve Technology Co., Ltd. Address: Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Phone: 0755-29691096 Fax: 0755-29691182 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-4-27> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AYPM530 530 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Andy Hu/general manager Company: Shenzhen Light Valve Technology Co., Ltd. Address: Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Phone: 0755-29691096 Fax: 0755-29691182 E-Mail: [email protected]

Shenzhen Light Valve Technology Co., Ltd. Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Date: 2021-4-27 FCC ID: 2AYPM530 Model Number: 530 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Light Valve Technology Co., Ltd., declare that this EUT (FCC ID: 2AYPM530) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Andy Hu/general manager Company: Shenzhen Light Valve Technology Co., Ltd. Address: Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Phone: 0755-29691096 Fax: 0755-29691182 E-Mail: [email protected]

Shenzhen Light Valve Technology Co., Ltd. Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-4-27 To whom it may concern: We, Shenzhen Light Valve Technology Co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AYPM530 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Andy Hu/general manager Company: Shenzhen Light Valve Technology Co., Ltd. Address: Room 301, building 14, Junfeng Industrial Park, Chongqing Road,heping communityFuhai,Fuhai Street, Phone: 0755-29691096 Fax: 0755-29691182 E-Mail: [email protected]

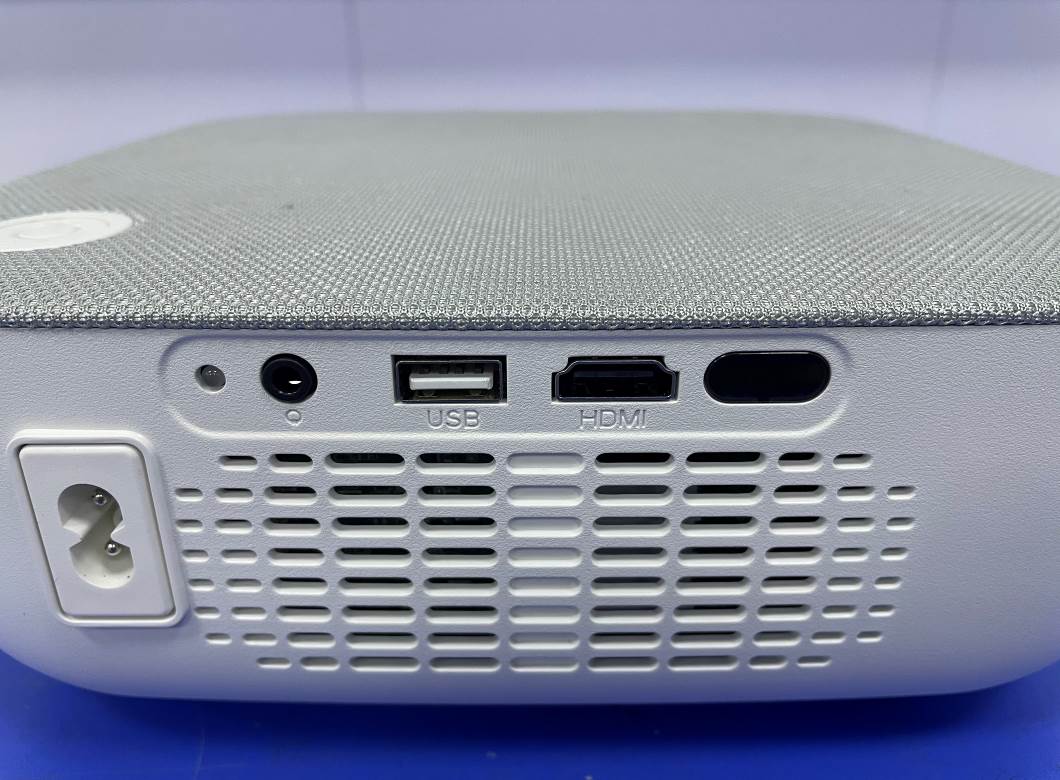

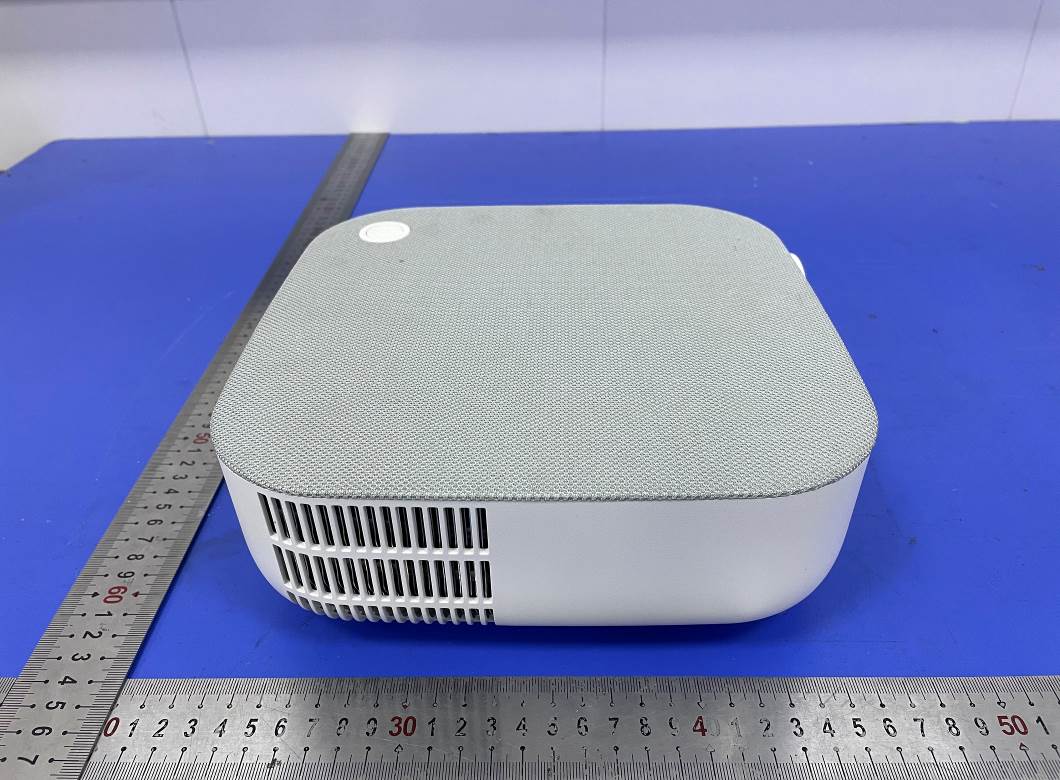

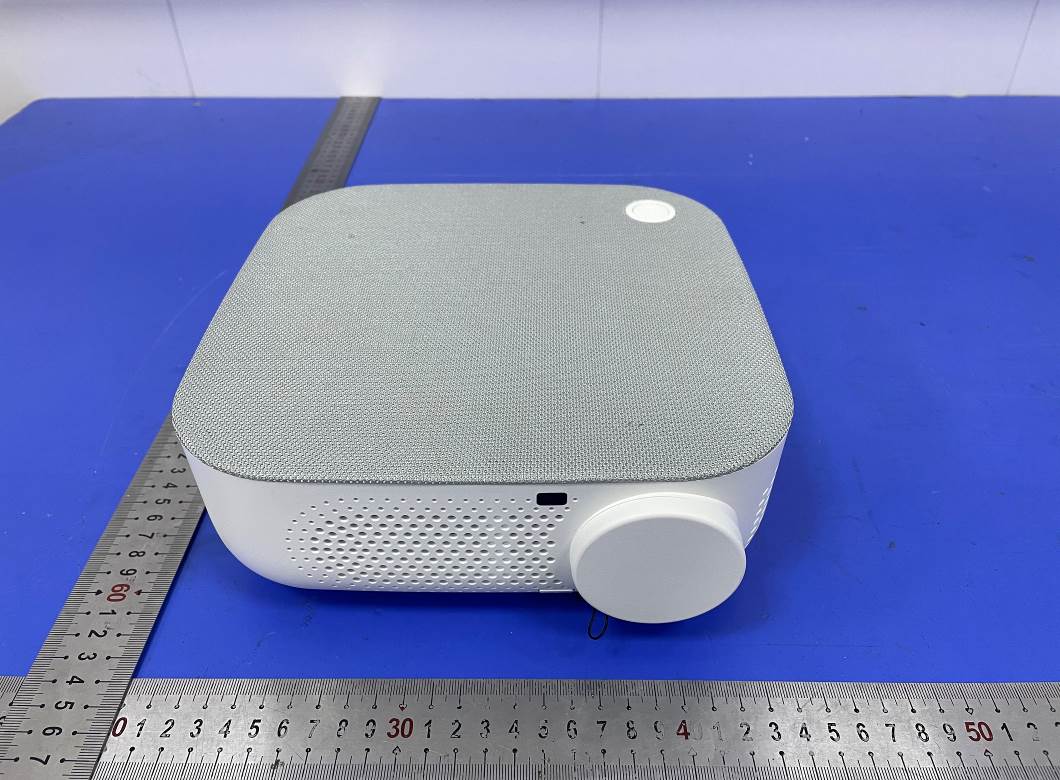

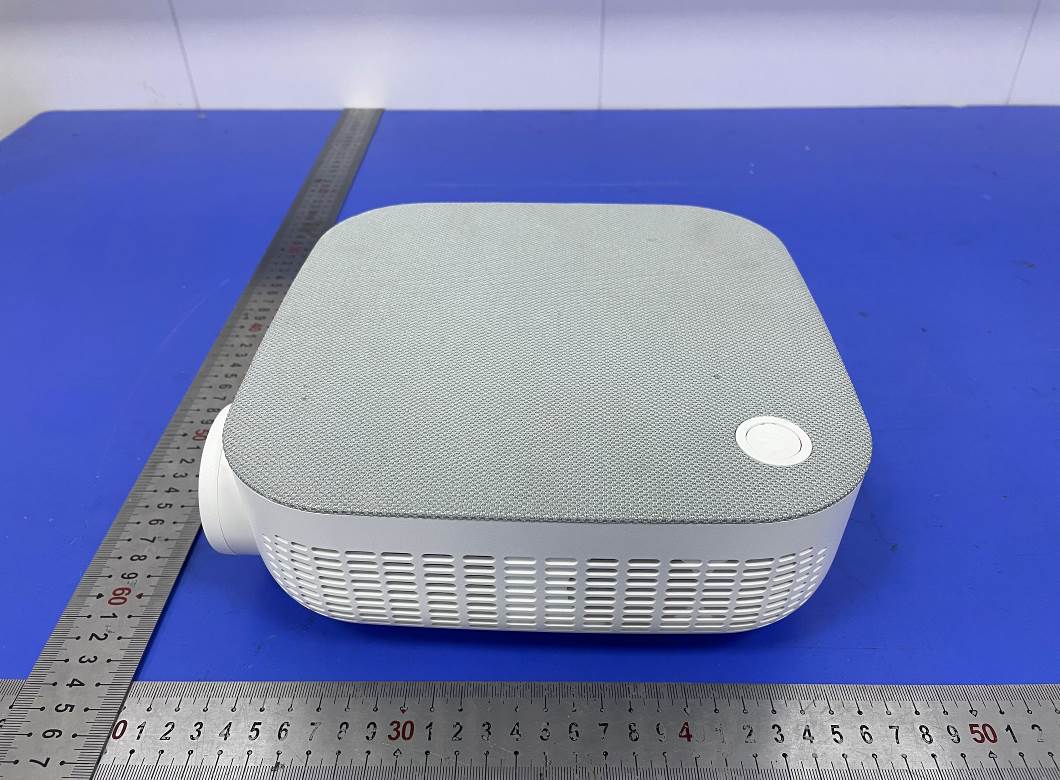

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4.0cm*W: 3.0cm Label Location projector Model No.: 530 FCC ID : 2AYPM530 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Fig.3 Fig.4 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 6 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AYPM530 Test Model 530 Additional Model No G30, E300, ES300, A6, G1 Model Declaration PCB board,structureandinternalo fthesemodel(s) are the same,So no additionalmodelsweretested Power supply Input: 100‐240V~, 50/60Hz Operation frequency 2412MHz‐2462MHz 5180MHz‐5240MHz 5745MHz‐5825MHz Antenna Type InternalAntenna, 0dBi(Max.) Antenna Gain 0dBi(Max) Hardware version ZY‐3H007‐MAIN‐V2 Software version V1.0.0.0:2020‐12‐28 Channel Number 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) 4 channels for 20MHz bandwidth (5180‐5240MHz) 2 channels for 40MHz bandwidth (5190~5230MHz) 5 channels for 20MHz bandwidth(5745‐5825MHz) 2 channels for 40MHz bandwidth(5755~5795MHz) Channel Spacing 5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far‐field plane‐wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 6 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: Mobile Devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane‐wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97‐01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information ES‐D4 can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Internal Antenna 2412MHz‐2462MHz 5180MHz‐5240MHz 5745MHz‐5825MHz 0 dBi WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 6 6. Conducted Power [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) 11B 1 2412 15.46 6 2437 15.52 11 2462 15.66 11G 1 2412 13.58 6 2437 13.63 11 2462 13.06 11N20SISO 1 2412 13.84 6 2437 13.48 11 2462 13.07 11N40SISO 3 2422 13.50 6 2437 13.53 9 2452 12.51 [5.2GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) 11A 36 5180 10.42 40 5200 9.91 48 5240 9.96 11N20 SISO 36 5180 11.04 40 5200 11.19 48 5240 10.75 11N40 SISO 38 5190 10.34 46 5230 9.66 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 6 [5.8WIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) 11A 149 5745 7.43 157 5785 8.25 165 5825 7.16 11N20 SISO 149 5745 7.72 157 5785 8.51 165 5825 7.63 11N40 SISO 151 5755 7.47 159 5795 7.41 7. Measurement Results 2.4GWIFI 11B (Peak) Channel…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: projector Trade Mark: N/A Test Model: 530 Environmental Conditions Temperature: 22.5  C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict 11B 2437 Ant1 100 PASS 11G 2437 Ant1 100 PASS 11N20SISO 2437 Ant1 100 PASS 11N40SISO 2437 Ant1 100 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 15.46 30 PASS MCH 15.52 30 PASS HCH 15.66 30 PASS 11G LCH 13.58 30 PASS MCH 13.63 30 PASS HCH 13.06 30 PASS 11N20SISO LCH 13.84 30 PASS MCH 13.48 30 PASS HCH 13.07 30 PASS 11N40SISO LCH 13.5 30 PASS MCH 13.53 30 PASS HCH 12.51 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -7.905 8 PASS MCH -10.318 8 PASS HCH -10.611 8 PASS 11G LCH -14.826 8 PASS MCH -12.578 8 PASS HCH -19.948 8 PASS 11N20SISO LCH -14.743 8 PASS MCH -12.678 8 PASS HCH -20.344 8 PASS 11N40SISO LCH -15.600 8 PASS MCH -12.663 8 PASS HCH -15.548 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 8.081 ≥0.5 PASS MCH 8.573 ≥0.5 PASS HCH 9.049 ≥0.5 PASS 11G LCH 16.42 ≥0.5 PASS MCH 16.36 ≥0.5 PASS HCH 16.20 ≥0.5 PASS 11N20SISO LCH 17.41 ≥0.5 PASS MCH 17.39 ≥0.5 PASS HCH 17.41 ≥0.5 PASS 11N40SISO LCH 32.58 ≥0.5 PASS MCH 31.72 ≥0.5 PASS HCH 29.12 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 4.685 -36.044 -15.315 PASS MCH 4.451 -37.988 -15.549 PASS HCH 4.6 -37.215 -15.400 PASS 11G LCH -7.597 -37.631 -27.597 PASS MCH -7.609 -37.301 -27.609 PASS HCH -8.161 -36.824 -28.161 PASS 11N20 SISO LCH -7.619 -37.644 -27.619 PASS MCH -8.107 -38.008 -28.107 PASS HCH -8.137 -38.687 -28.137 PASS 11N40 SISO LCH -10.341 -38.452 -30.341 PASS MCH -10.212 -38.415 -30.212 PASS HCH -10.024 -37.678 -30.024 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA Page 29 of 46 11N40SISO_LCH_Graphs Pref/11N40 SISO/LCH Puw/11N40 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Rep…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For Shenzhen Light Valve Technology Co., Ltd. projector Test Model: 530 Additional Model No.: Please Refer To Page 6 Prepared for : Shenzhen Light Valve Technology Co., Ltd. Address : Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : March 27, 2021 Number of tested samples : 2 Serial number : 210101007A-1(Engineer sample), 210101007A-2(Normal sample) Date of Test : March 27, 2021 ~ March 31, 2021 Date of Report : April 07, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210101007AEA Date of Issue .................................. : April 07, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen Light Valve Technology Co., Ltd. Address .......................................... : Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Test Specification Standard ........................................ : FCC CFR 47 PART 15 C (15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ............................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : projector Trade Mark ..................................... : N/A Test Model ..................................... : 530 Ratings ........................................... : Input: 100-240V~, 50/60Hz Result ........................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT EUT......................................... : projector Test Model........................... : 530 Applicant............................... : Shenzhen Light Valve Technology Co., Ltd. Address.................................. : Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Light Valve Technology Co., Ltd. Address................................... : Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210101007AEA April 07, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue DateRevisionsRevised By 000 April 07, 2021Initial IssueGavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 Report No.: LCS210101007AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EX…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPM530 _________________________________________________…
