2AYPMP2projector

WISELAZER SUPPORT Technical [email protected] Customer [email protected] www.wiselazer.comS20 Online Help S20 USER MANUAL Please read this manual thoroughly before use and keep it handy for future reference. v1.5 English ▲ 01-09 Deutsch ▲ 11-19 Français ▲ 21-29 Español ▲ 31-39 Italiano ▲ 41-49 日本語 ▲ 51-59 English ▲ [email protected] English 01 PACKING LIST WARNING Carrying Bag Lens ClothHDMI CablePower Cable Don't look straight into the light from the projector lens. Don't put projector in a damp, humid environment to avoid electrocution. S20Remote (Batteries Not Included) User Manual English 02 FUNCTION OVERVIEW Air Outlet Kickstand Lens HDMI Mute Left Back Volume - USB Infrared Receiver Power Button Power Button Fast Reverse Menu Fast Forward Down Up HDMI Input Source Right Volume + Keystone Correction Play/Pause Speaker Audio Out Power Input Press to eject the kickstand English 03 QUICK START 1. Please install the batteries for the remote control. 2. Plug the power cord into an outlet. 3. Take off the lens cover. 4. Press to eject the kickstand. Rotate the lens to focus. 5. Place the projector on a f l at surface. 6. Press the Power Button to turn on the projector. Press the Power Button twice to turn off the projector. English 04 KEYSTONE CORRECTION INPUT SOURCE Projection Mode Manual keystone 18 Digital Zoom MiraCast Setting FileManagerHDMI HummingBirdCast iOS Mobile Mirror USB Connection HDMI Connection Android Mobile Mirror English 05 LANGUAGE SETTING WIFI CONNECTION PROJECTION DISTANCE & SIZE 1. Select "Setting" on the projection image. 2. Select "Language Setting" on the projection image. Setting Language Setting 1. Select "Setting" on the projection image. 2. Select “WiFi Setting” on the projection image. Setting WiFi Setting 3. Wait for the projector to search for available networks. 4. Choose your network name and enter the password to connect. 4.27ft 6.56ft 9.84ft 16.4ft 22.3ft (1.3m) (2m) (3m) (5m) (6.8m) The recommended projection screen is around 100 inches with a distance of around 9.84ft. Ambient darkness will improve the clarity of the projected images. English 06 WIRELESS SCREEN MIRRORING For iOS device 1. Make sure that your iOS device is connected to the same network as your projector. 2. Select "HummingBirdCast" on the projection image. 3. On your iOS device, open "Control Center" and tap "Screen Mirroring". 4. On your iOS device, Looking for devices that can be mirrored on. 5. Select "BirdCast-392b" from the list. HummingBirdCast English 07 WIRELESS SCREEN MIRRORING 2. Select “MiraCast” on the projection image. 3. Turn on the wireless projection function of your Android phone. 4. On your Android device, Looking for devices that can be mirrored on. 5. Select “NEWLINK-392b” from the list. For Android device 1. Make sure that your Android device is connected to the same network as your projector. MiraCast English 08 SPECIFICATION Display Technology LCD LED Manual 3W 4Ω 8.66 x 6.89 x 2.52 in (220 x 175 x 64 mm) Native 1920 x 1080 Front/Rear/Ceiling ±25° 1/4” 480P、720P、1080P 4:3 / 16:9 / Auto 60W Resolution Input Signal Aspect Ratio Rated Power Installation Type Keystone Mounting Screw Audio Format Supported Ports JPEG/JPG/BMP/GIF/ TIF/PNG AC 100-240V,50/60Hz RMVB/AVI/MKV/WMV/ MOV/FLV/ASF/MP4/ 3GP/MPEG/VOB/DAT MP3/AMR/RM/M4A/FLAC/ APE/OGG/MPC/AIF/AIFF/ AIFC/WMA/AAC/WAV/AC3 USB x1 / HDMI x 1 / 3.5mm Audio Out x 1 Light Source Focus Speaker Unit Dimension Photo Format Supported Power Supply Video Format Supported Unit Net Weight1.25kg (2.75lb) English 09 TROUBLESHOOTING GUIDE 1. Blurry Image ● Rotate the lens to focus. ● Use the remote control to achieve keystone correction. ● Projector and screen/wall must be in effective distance. 2. Remote Unresponsive ● Make sure remote points at Infrared Receiver directly. ● Do not cover Infrared Receiver. ● Try a new pair of AAA batteries. 3. UP Side Down Images ● Go to Setting > Projection Image Setting > Projection Mode to f lip the projection image. 4. Adjust the Image Size ● Go to Setting > Projection Image Setting > Digital Zoom to adjust the image size. 10 [email protected] Deutsch ▲ Deutsch 11 PACKLISTE WARNUNG Tragetasche LinsentuchHDMI KabelStromkabel Schauen Sie nicht direkt in das Licht der Projektorlinse. Stellen Sie den Projektor nicht in eine feuchte Umgebung, um Stromschläge zu vermeiden. S20Fernbedienung (Batterien nicht im Lieferumfang enthalten) BENUTZERHANDBUCH Deutsch 12 FUNKTIONSÜBERSICHT Luftauslass Ständer Linse HDMI Stumm Links Zurück Volumen - USB Infrarotempfänger Ein- / Ausschalter Ein- / Ausschalter Schneller Rückwärtsgang Speisekarte Schneller Vorlauf Nieder Oben HDMI-Eingangsquelle Richtig Volumen + Trapezkorrektur Abspielen/Pause Lautsprecher Audio Ausgang Leistungsaufnahme Drücken Sie, um den Ständer auszuwerfen. Deutsch 13 SCHNELLSTART HDMI-Eingangsquelle 1. Bitte legen Sie die Batterien für die Fernbedienung ein. 2. Stecken Sie das Netzkabel in eine Steckdose. 3. Nehmen Sie die Objektivabdeckung ab. 4. Drücken Sie, um den Ständer auszuwerfen. Drehen Sie das Objektiv, um zu fokussieren. 5. Stellen Sie den Projektor auf eine ebene Fläche. 6. Drücken Sie den Netzschalter, um den Projektor einzuschalten. Drücken Sie den Netzschalter zweimal, um den Projektor auszuschalten. Deutsch 14 SCHLUSSSTEIN EINGABEQUELLE Proiektionsmodus Manueller Schlussstein 18 Digitaler Zoom MiraCast Setting FileManagerHDMI HummingBirdCast iOS Bildschirm- synchronisierung USB-Verbindung HDMI-Verbindung Android Bildschirm-synchronisierung Deutsch 15 SPRACHEINSTELLUNGEN WIFI VERBINDUNG PROJEKTIONSABSTAND & GRÖßE 1. Wählen Sie im Projektionsbild „Setting". 2. Wählen Sie im Projektionsbild „Spracheinstellungen". Setting Language Setting 1. Wählen Sie im Projektionsbild „Setting“. 2. Wählen Sie im Projektionsbild „WiFi-Einstellung“. Setting WiFi Setting 3. Warten Sie, bis der Projektor nach verfügbaren Netzwerken sucht. 4. Wählen Sie Ihren Netzwerknamen und geben Sie das Kennwort für die Verbindung ein…

Text truncated - open the document above for the full version.

Shenzhen Light Valve Technology Co., Ltd. Add: Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Date: 2021/1/27 FCC ID: 2AYPMP2 Dear Sir/Madam, We, Shenzhen Light Valve Technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: projector Model no.: P2, S10, S20, S30, S40, H10, H20, H30, H40 Sincerely, Name/Title： Andy Hu/general manager Company: Shenzhen Light Valve Technology Co., Ltd. Address: Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Phone: 0755-29691096 Fax: 0755-29691182 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021/1/27> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AYPMP2 P2 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Andy Hu/general manager Company: Shenzhen Light Valve Technology Co., Ltd. Address: Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Phone: 0755-29691096 Fax: 0755-29691182 E-Mail: [email protected]

Shenzhen Light Valve Technology Co., Ltd. Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/1/27 To whom it may concern: We, Shenzhen Light Valve Technology Co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AYPMP2 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Andy Hu/general manager Company: Shenzhen Light Valve Technology Co., Ltd. Address: Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Phone: 0755-29691096 Fax: 0755-29691182 E-Mail: [email protected]

Shenzhen Light Valve Technology Co., Ltd. Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2AYPMP2 (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title： Andy Hu/general manager Company: Shenzhen Light Valve Technology Co., Ltd. Address: Room 301, building 14, Junfeng Industrial Park, Chongqing Road, heping community, Fuhai Street, Bao ‘an district, Shenzhen, China Phone: 0755-29691096 Fax: 0755-29691182 E-Mail: [email protected]

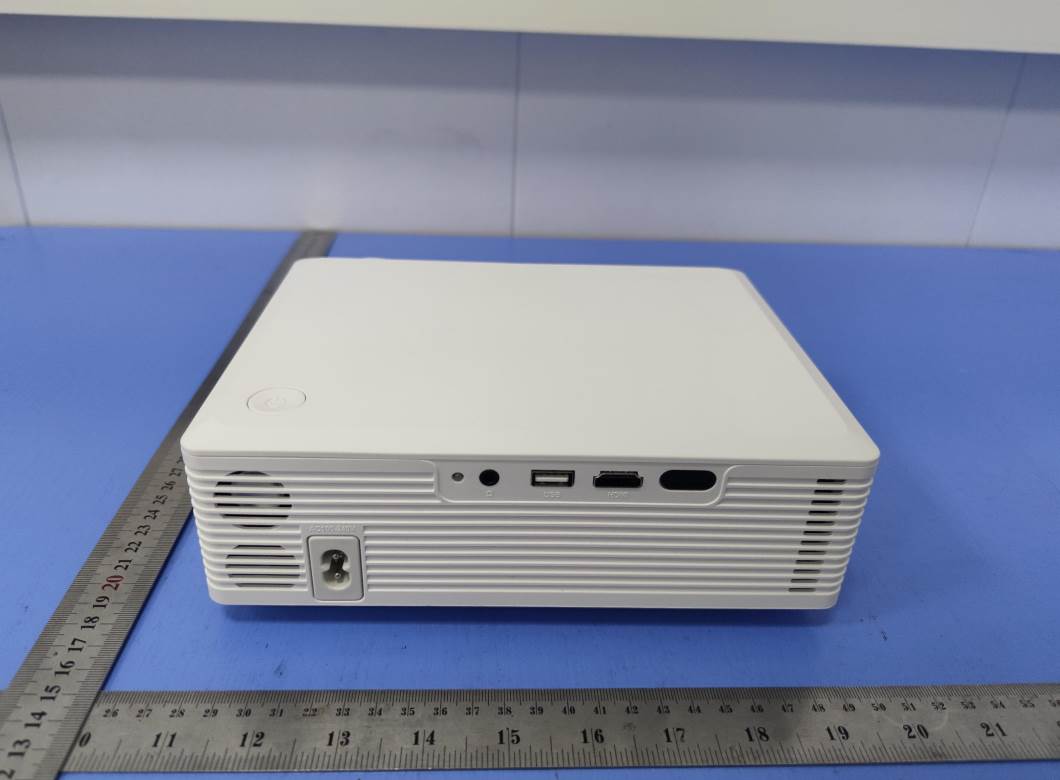

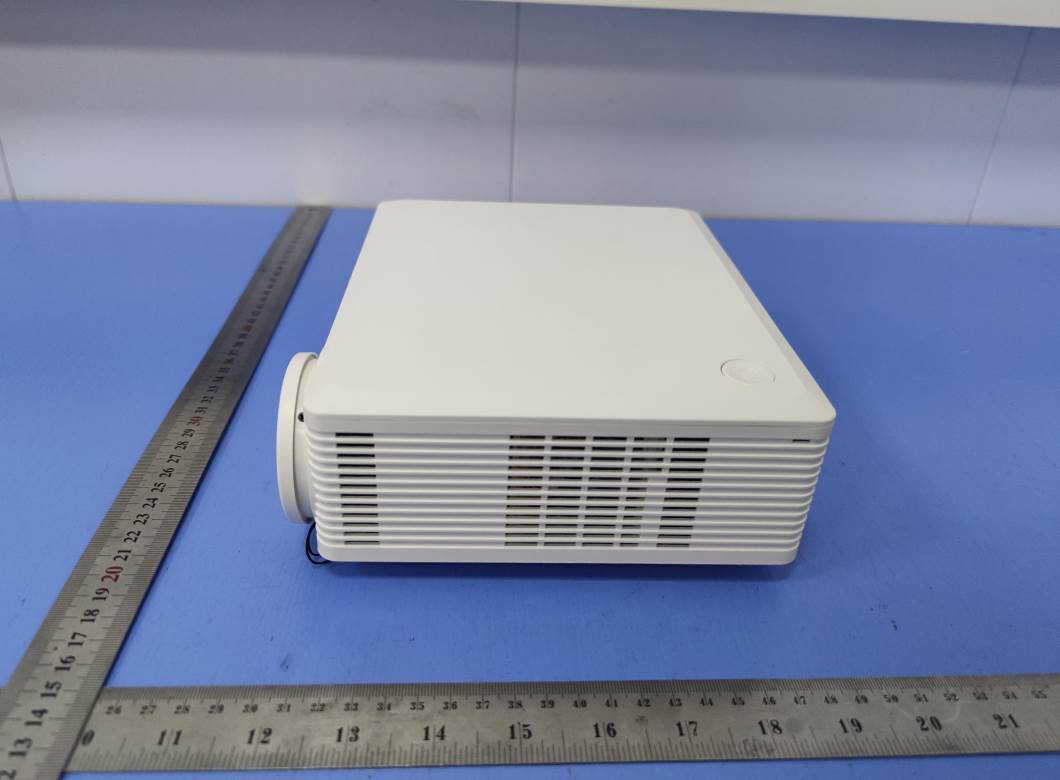

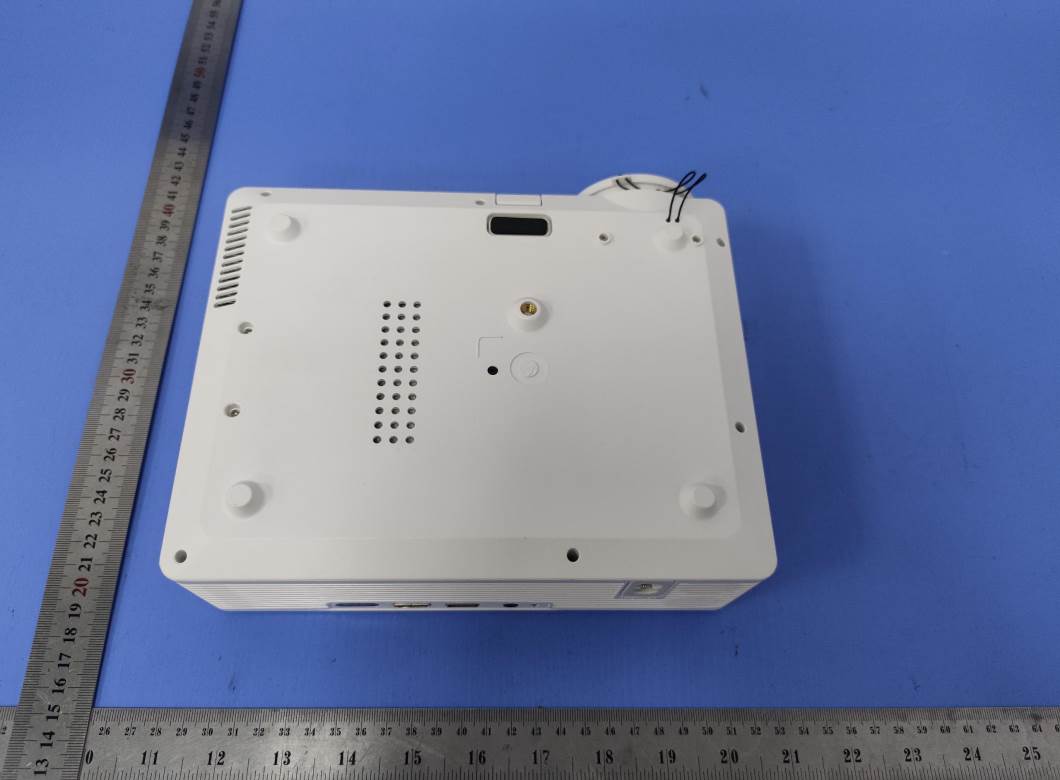

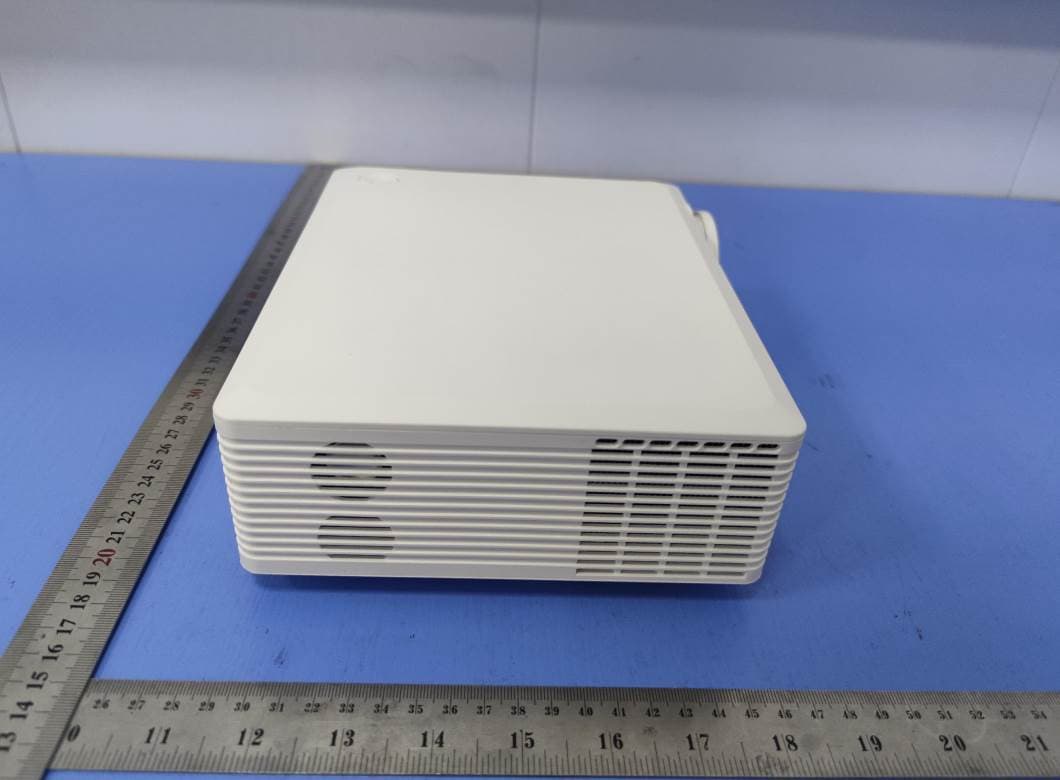

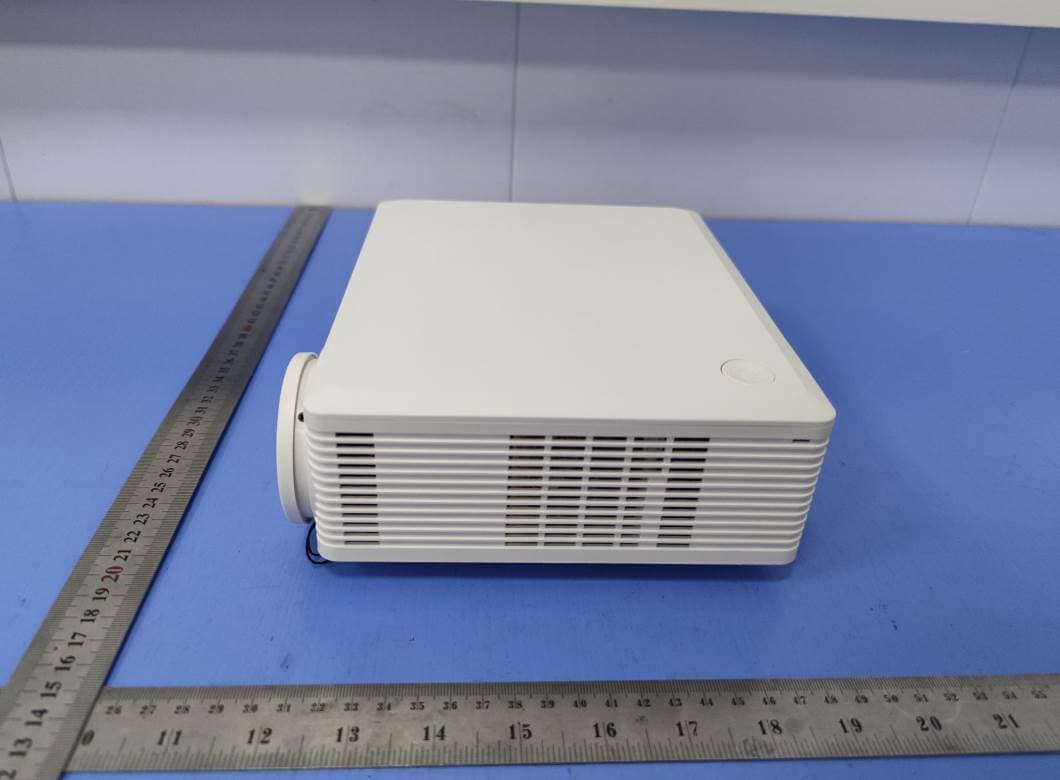

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Fig.9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 4.0cm*W: 3.0cm Label Location projector Model No.: P2 FCC ID : 2AYPMP2 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 6 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AYPMP2 Test Model P2 Additional Model No S10, S20,S30,S40,H10,H20,H30,H40 Model Declaration PCB board,structureandinternalo fthesemodel(s) are the same,So no additionalmodelsweretested Power supply Input: 100‐240V~, 50/60Hz Operation frequency 2412MHz‐2462MHz 5180MHz‐5240MHz 5745MHz‐5825MHz Antenna Type InternalAntenna, 0dBi(Max.) Antenna Gain 0dBi(Max) Hardware version ZY‐3H007‐MAIN‐V2 Software version V1.0.0.0:2020‐12‐26 Channel Number 11 Channels for 20MHz bandwidth (2412~2462MHz) 7 Channels for 40MHz bandwidth (2422~2452MHz) 4 channels for 20MHz bandwidth (5180‐5240MHz) 2 channels for 40MHz bandwidth (5190~5230MHz) 5 channels for 20MHz bandwidth(5745‐5825MHz) 2 channels for 40MHz bandwidth(5755~5795MHz) Channel Spacing 5MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far‐field plane‐wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 6 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: Mobile Devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane‐wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97‐01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information ES‐D4 can only use antennas certificated as follows provided by manufacturer; Antenna type and antenna number Operate frequency band Maximum antenna gain Notes Internal Antenna 2412MHz‐2462MHz 5180MHz‐5240MHz 5745MHz‐5825MHz 0 dBi WiFi Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 6 6. Conducted Power [2.4GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) 11B 1 2412 14.68 6 2437 14.71 11 2462 14.63 11G 1 2412 14.42 6 2437 14.46 11 2462 14.42 11N20SISO 1 2412 14.06 6 2437 14.23 11 2462 14.13 11N40SISO 3 2422 14.49 6 2437 14.38 9 2452 14.36 [5.2GWIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) 11A 36 5180 11.67 40 5200 11.76 48 5240 12.01 11N20 SISO 36 5180 16.81 40 5200 11.70 48 5240 11.91 11N40 SISO 38 5190 12.26 46 5230 12.37 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 6 [5.8WIFI Max Conducted Power] Mode Channel Frequency (MHz) Max Conducted Power(dBm) 11A 149 5745 11.02 157 5785 11.07 165 5825 10.83 11N20 SISO 149 5745 10.93 157 5785 11.11 165 5825 10.86 11N40 SISO 151 5755 11.50 159 5795 11.48 7. Measurement Results 2.4GWIFI 11B (…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 1 of 21 Appendix B RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: projector Trade Mark: N/A Test Model: P2 Environmental Conditions Temperature: 22.1  C Relative Humidity: 51.4% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Tom.Liu B.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0 0.01 11N20 SISO 5200 100 0 0.01 11N40 SISO 5190 100 0 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 2 of 21 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 3 of 21 IEEE 802.11n HT40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 4 of 21 B.2 Maximum Conduct Output Power Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 11.67 0 11.67 24 Pass 40 5200 11.76 0 11.76 Pass 48 5240 12.01 0 12.01 Pass 11N20 SISO 36 5180 16.81 0 16.81 24 Pass 40 5200 11.7 0 11.7 Pass 48 5240 11.91 0 11.91 Pass 11N40 SISO 38 5190 12.26 0 12.26 24 Pass 46 5230 12.37 0 12.37 Pass SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 5 of 21 B.3 Power Spectral Density Test Mode Channe l Frequenc y (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11A 36 5180 1.88 0 1.88 11 Pass 40 5200 2.05 0 2.05 Pass 48 5240 2.46 0 2.46 Pass 11N2 0 SISO 36 5180 6.68 0 6.68 11 Pass 40 5200 2.46 0 2.46 Pass 48 5240 2.02 0 2.02 Pass 11N4 0 SISO 38 5190 -1.29 0 -1.29 11 Pass 46 5230 -0.85 0 -0.85 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 6 of 21 IEEE 802.11na / Channel 40 / 5200MHz IEEE 802.11na / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 7 of 21 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 8 of 21 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 9 of 21 Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 10 of 21 B.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11A 36 5180 19.47 No Limit Pass 40 5200 19.33 Pass 48 5240 19.48 Pass 11N20 SISO 36 5180 20.23 No Limit Pass 40 5200 20.23 Pass 48 5240 20.23 Pass 11N40 SISO 38 5190 39.68 No Limit Pass 46 5230 39.86 Pass 26dB Bandwidth IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 11 of 21 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 12 of 21 26dB Bandwidth IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 13 of 21 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 14 of 21 26dB Bandwidth IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 15 of 21 B.5 Undesirable Emissions Measurement Test Mode Channel Frequency (MHz) Conducted Power (dBm) Antenna Gain (dBi) Ground Reflection Factor (dB) Covert Radiated E Level At 3m (dBuV/m) Detector Limit (dBuV/m) Verdict 11A 36 4500.0 -49.71 2.00 0 47.52 Peak 68.20 Pass 4500.0 -59.72 2.00 0 37.51 Average 54.00 Pass 5150.0 -46.44 2.00 0 50.79 Peak 68.20 Pass 5150.0 -57.02 2.00 0 40.21 Average 54.00 Pass 48 5350.0 -48.27 2.00 0 48.96 Peak 68.20 Pass 5350.0 -58.64 2.00 0 38.59 Average 54.00 Pass 5460.0 -48.30 2.00 0 48.93 Peak 68.20 Pass 5460.0 -59.06 2.00 0 38.17 Average 54.00 Pass 11N2 0 SISO 36 4500.0 -49.63 2.00 0 47.60 Peak 68.20 Pass 4500.0 -59.64 2.00 0 37.59 Average 54.00 Pass 5150.0 -46.24 2.00 0 50.99 Peak 68.20 Pass 5150.0 -56.77 2.00 0 40.46 Average 54.00 Pass 48 5350.0 -47.69 2.00 0 49.54 Peak 68.20 Pass 5350.0 -58.63 2.00 0 38.60 Average 54.00 Pass 5460.0 -47.82 2.00 0 49.41 Peak 68.20 Pass 5460.0 -59.06 2.00 0 38.17 Average 54.00 Pass 11N4 0 SISO 38 4500.0 -50.21 2.00 0 47.02 Peak 68.20 Pass 4500.0 -59.66 2.00 0 37.57 Average 54.00 Pass 5150.0 -46.54 2.00 0 50.69 Peak 68.20 Pass 5150.0 -57.01 2.00 0 40.22 Average 54.00 Pass 46 5350.0 -48.24 2.00 0 48.99 Peak 68.20 Pass 5350.0 -58.51 2.00 0 38.72 Average 54.00 Pass 5460.0 -47.79 2.00 0 49.44 Peak 68.20 Pass 5460.0 -58.83 2.00 0 38.40 Average 54.00 Pass SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 16 of 21 Undesirable Emissions Measurement IEEE 802.11a / Channel 36 / 5180MHz / Peak IEEE 802.11a / Channel 36 / 5180MHz / Average SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 17 of 21 Undesirable Emissions Measurement IEEE 802.11a / Channel 48 / 5240MHz / Peak IEEE 802.11a / Channel 48 / 5240MHz / Average SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AYPMP2 Report No.: LCS210101006AEB Page 18 of 21 Undesirable Emissions Measurement IEEE 802.11n20 / Channel 36 / 5180MHz / Peak IEEE 802.11n20 / Channel 36 / 5180MHz / Average SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 1 of 21 Appendix C RF Test Data for 5.8G WLAN (Conducted Measurement) Product Name: projector Trade Mark: N/A Test Model: P2 Environmental Conditions Temperature: 22.1  C Relative Humidity: 51.4% ATM Pressure: 100.0 kPa Test Engineer: Carl Fu Supervised by: Tom.Liu C.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5785 100 0 0.01 11N20 SISO 5785 100 0 0.01 11N40 SISO 5755 100 0 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 2 of 21 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 3 of 21 IEEE 802.11n HT40 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 4 of 21 C.2 Maximum Conduct Output Power Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 149 5745 11.02 0 11.02 30 Pass 157 5785 11.07 0 11.07 Pass 165 5825 10.83 0 10.83 Pass 11N20 SISO 149 5745 10.93 0 10.93 30 Pass 157 5785 11.11 0 11.11 Pass 165 5825 10.86 0 10.86 Pass 11N40 SISO 151 5755 11.5 0 11.5 30 Pass 159 5795 11.48 0 11.48 Pass SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 5 of 21 C.3 Power Spectral Density Test Mode Channel Frequency (MHz) Power Density (dBm/510KHz) Limit (dBm/500KHz) Verdict 11A 149 5745 -1.18 30 Pass 157 5785 -0.21 Pass 165 5825 -0.69 Pass 11N20 SISO 149 5745 -0.75 30 Pass 157 5785 -0.95 Pass 165 5825 -1.02 Pass 11N40 SISO 151 5755 -3.82 30 Pass 159 5795 -4.18 Pass Power Spectral Density IEEE 802.11a / Channel 149 / 5745MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 6 of 21 IEEE 802.11na / Channel 157 / 5785MHz IEEE 802.11na / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 7 of 21 Power Spectral Density IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 8 of 21 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 9 of 21 Power Spectral Density IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 10 of 21 C.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Verdict 11A 149 5745 16.29 >=0.5 Pass 157 5785 16.39 Pass 165 5825 16.34 Pass 11N20 SISO 149 5745 17.08 >=0.5 Pass 157 5785 16.58 Pass 165 5825 17.08 Pass 11N40 SISO 151 5755 35.25 >=0.5 Pass 159 5795 35.24 Pass 6dB Bandwidth IEEE 802.11a / Channel 149 / 5745MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 11 of 21 IEEE 802.11a / Channel 157 / 5785MHz IEEE 802.11a / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 12 of 21 6dB Bandwidth IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 13 of 21 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 14 of 21 26dB Bandwidth IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTC. FCC ID: 2AYPMP2 Report No.: LCS210101006AEC Page 15 of 21 C.5 Undesirable Emissions Measurement Test Mode Channel Frequency (MHz) Conducted Power (dBm) Antenna Gain (dBi) EIRP (dBm/MHz) Detector Limit (dBm/MHz) Verdict 11A 149 5650.0 -46.00 2.00 -44.00 Peak -27.0 Pass 5650.0 -59.75 2.00 -57.75 Average -27.0 Pass 5700.0 -47.50 2.00 -45.50 Peak 10 Pass 5700.0 -59.02 2.00 -57.02 Average 10 Pass 5720.0 -45.50 2.00 -43.50 Peak 15.6 Pass 5720.0 -58.55 2.00 -56.55 Average 15.6 Pass 5725.0 -45.15 2.00 -43.15 Peak 27.0 Pass 5725.0 -57.84 2.00 -55.84 Average 27.0 Pass 165 5850.0 -45.85 2.00 -43.85 Peak 27.0 Pass 5850.0 -58.37 2.00 -56.37 Average 27.0 Pass 5855.0 -45.92 2.00 -43.92 Peak 15.6 Pass 5855.0 -58.52 2.00 -56.52 Average 15.6 Pass 5875.0 -46.53 2.00 -44.53 Peak 10 Pass 5875.0 -5…

Text truncated - open the document above for the full version.
