2AYQ3-LONGRX001Wireless Mouse

Thisisadual-modemouse,withUSBcablefunctionand2.4Gwireless communication function. The mouse has left button, right button,middle button,cursormovement,scrollup,scrolldown,DPILOP,forwardbutton,backward button,powerswitchfunction. First plug the matched wireless receiver into the PC USB port, then turn the matchedmousepowerswitchto“ON”.IfthemouseLOGOisgreen,itindicates thatthemouseisconnectedtothewirelessreceiver,andmouseandreceiverhas achieved2.4Gwirelesscommunicationfunction. Mousewilltransfertheclickwhich isonleftbutton,rightbutton,middlebutton,cursormovement,scrollup,scroll down,DPILOP,forwardbutton,backwardbuttontothewirelessreceiver.Afterthe wireless receiver receives the relevant instructions which arefrom mouse, it will convertthemtotherelevantcomputerrecognitioninstructions,soastoachieve theclickinthegameandofficeandthefunctionofrightbutton,middlebutton, cursor movement, scroll up, scroll down, DPI LOP , forward button, backward button.Whenthemousepowerswitchmovesto“ OFF”,themousestopsworking, thereceiverisinawaitingstate,andthereceiverstopstransmittingsignalstothe PC.Itwillnotbegintheinteractivecommunicationwithcomputeruntilamatched mousesignalisreceived. First,insertthemouseintotheMicroUSBendofUSBCable,theninsertthe USBportofUSBCableintotheUSBportofPC.Themouselogowilllightupand the mouse will achieve the functions of game and work. It willalso charge the mouseatthesametime.IfyouunplugtheUSBCable,mousewillstopworking. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Co m Ad d Ton Pr o Mo d RX- Pr o We act We an d issu our Sig Na m Title Com mpany: Be dress: No. ngzhou Di oduct Name del Numbe -001, Mini-R oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: B ijing Jingy 346, Keha istrict, Bei e: Wireless er(s): Long- RX002 ription: Wi MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s xiulin zha n ceo Beijing Jin Beijing Jing Agen yunmake Te ai Avenue ijing, Chin s Mouse -RX-001, Lo reless Mou bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect ng ngyunmake gyunmake T nt Auth echnology , East Dis na ong-RX-002 use Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of Technology Technology horizat Co., Ltd. strict, Econ 2, Normal- ourt, Pleasa certification forward all i agencies as and all acts our own. y Co., Ltd. y Co., Ltd. tion nomic Dev RX-001, No anton, Califo of above na information s required a s carried ou Date: velopmen ormal-RX-0 ornia 94566 amed equip related to t nd to discu ut by MiCOM Jan. 20, 202 t Zone, 002, Mini- 6, USA, to pment. the approva ss any M Labs on 21 al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b It is ou r corresp docume authoriz Sincer e Signat u Name: x Title: ce of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AYQ3-L om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schema Block D Parts Lis Operatio r understand pondence du ents and thi zation is iss ely, ure: xiulin zhang eo ing Techno cations Com s Road 046 for Confiden ONGRX001 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp atic Diagram iagram st onal Descri ding that all uring the ce s informatio sued. g Beijin logy mmission ntiality 1 the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption l measurem ertification re on will be av ng Jingyun ssion’s rule old the follow nitely. m and equi e equipmen ould give co ment test rep eview proce vailable for nmake Tec s Title 47 S wing attach pment desc nt. The publ ompetitors a ports, FCC ess cannot public revi e hnology C Sections §0. hment(s) as criptions an ic disclosu r an unfair ad ID label for be granted ew once the o., Ltd. Date: Jan. 457 and §0 confidentia d are consi re of these d vantage in mat and as confide n e grant of eq 20, 2021 0.459, we al dered as documents the market . ntial quipment .

Model Difference Declaration To Whom It May Concern, We, Beijing Jingyunmake Technology Co., Ltd. (Wireless Mouse) Trademark:g- wolves, g-sevlow; Model Number: Long-RX-001, Long-RX-002, Normal-RX-001, Normal-RX-002, Mini-RX-001, Mini-RX002;All model’s the function, software and electric circuit are the same, only with a product model named and trade mark different for commercial purpose. Test sample model:Long-RX-001. Please contact me if you have any question. Name: xiulin zhang Date: Jan. 20, 2021 Title: ceo Signature of applicant:

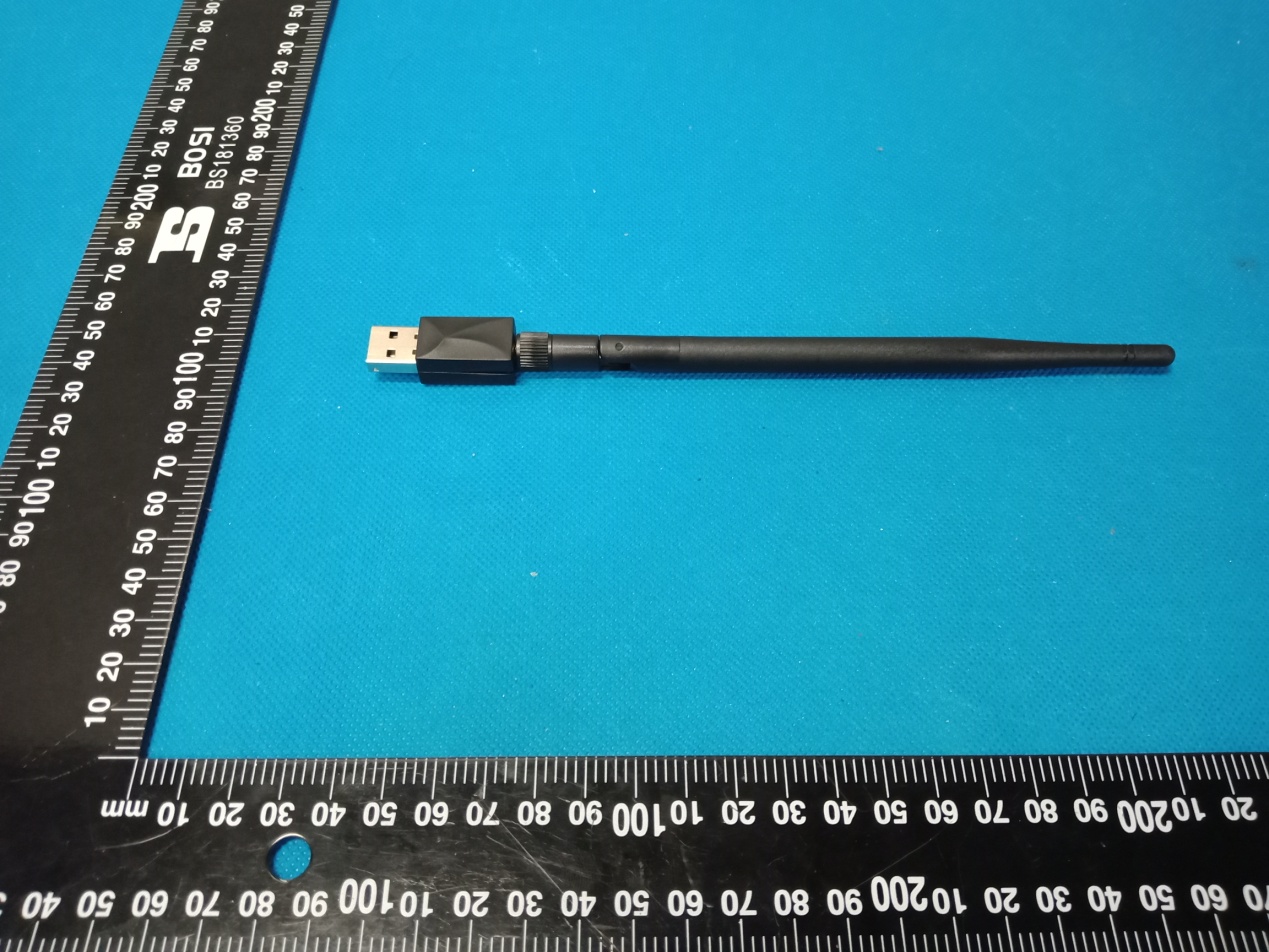

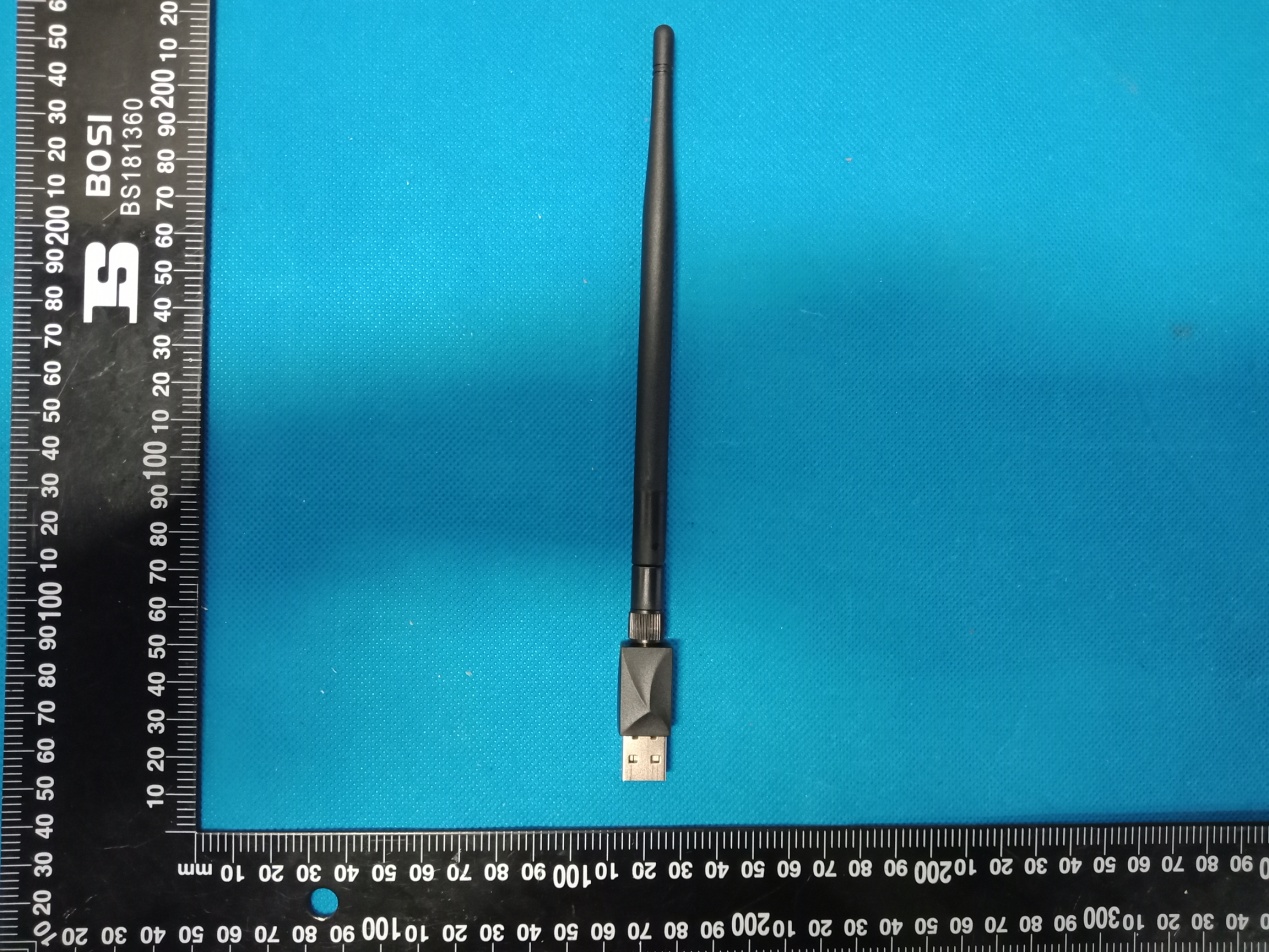

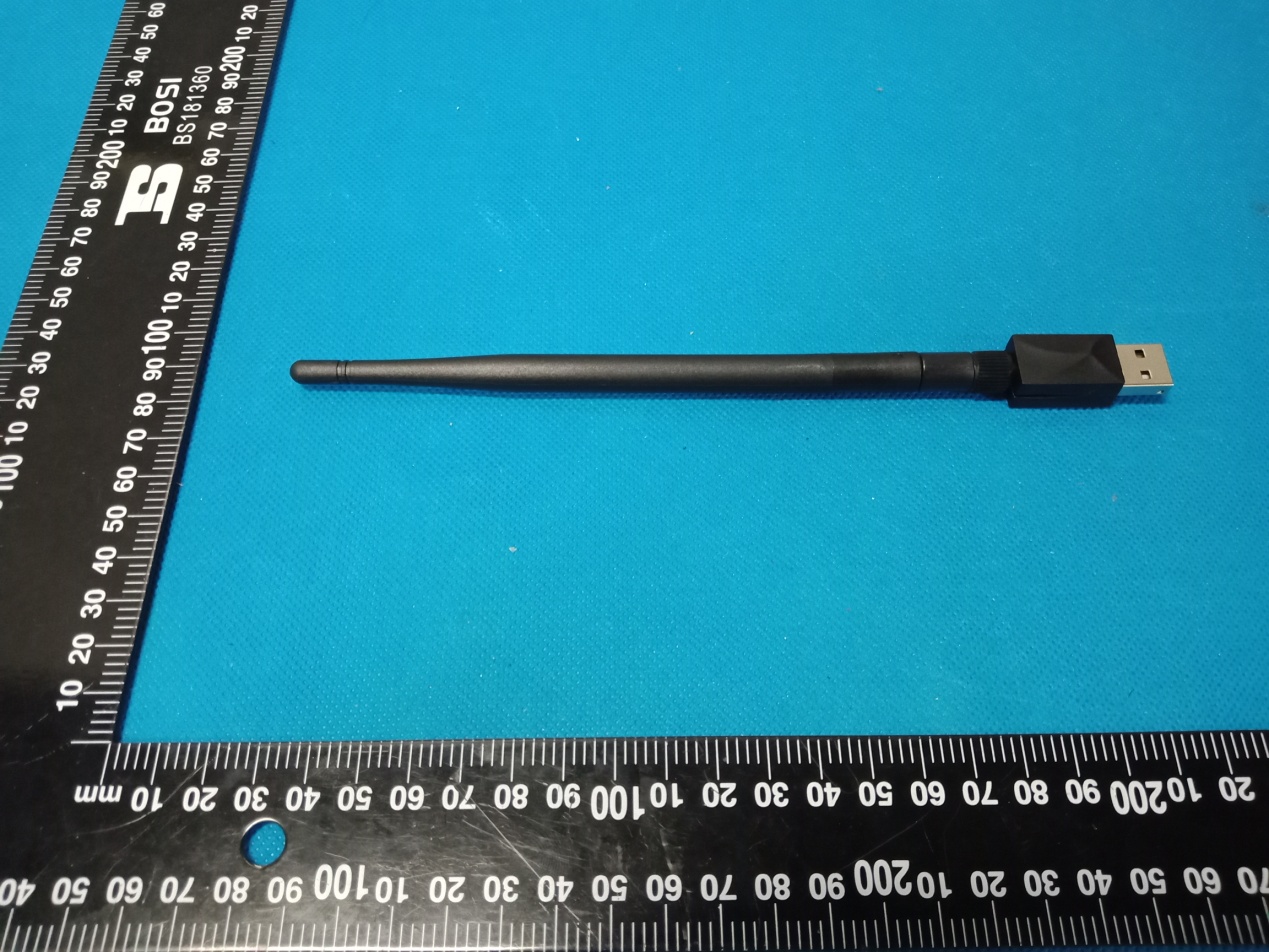

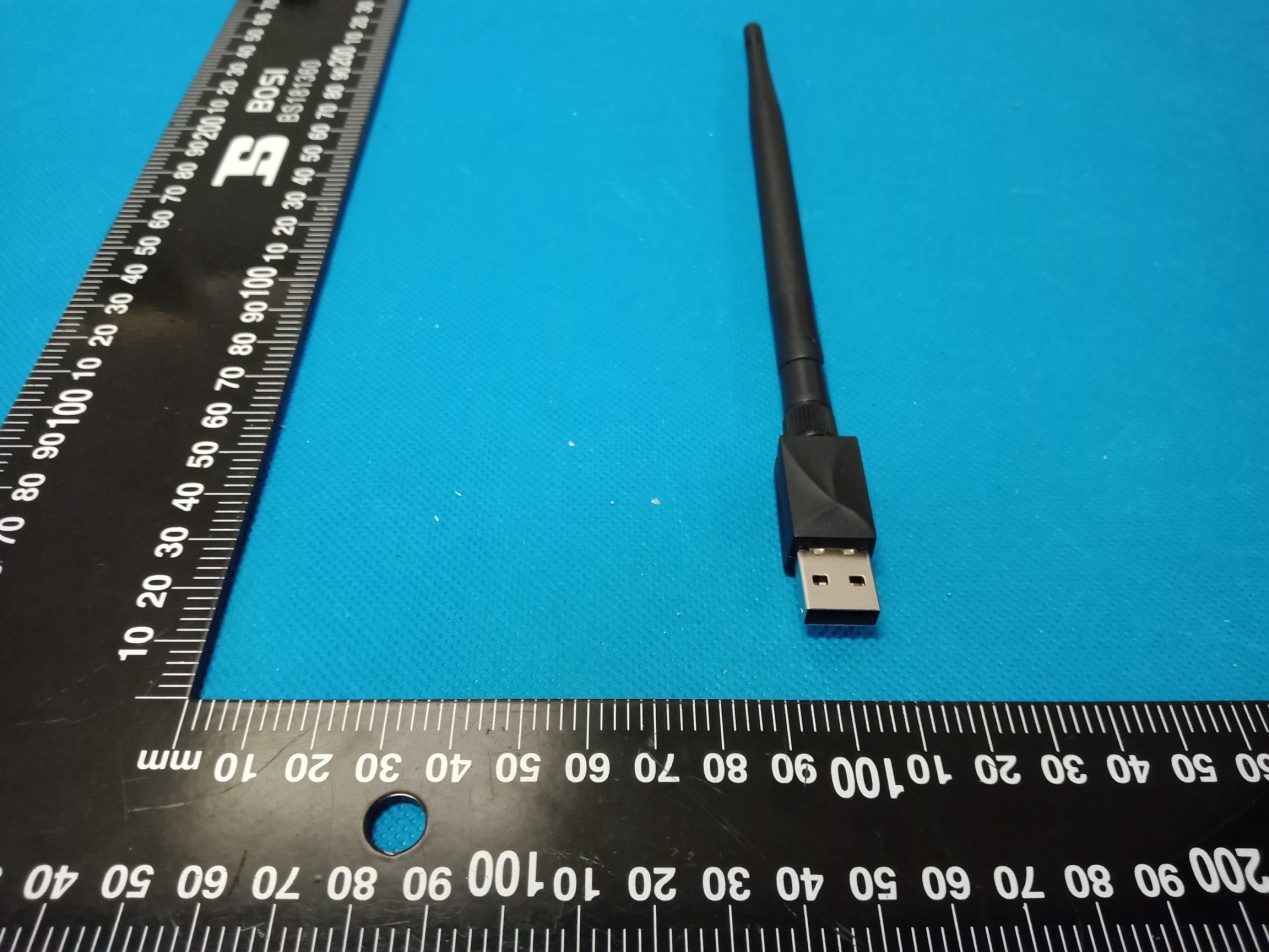

Annex A External Photos Report No.: HK2012294028‐E Page 1 of 3 Report No.: HK2012294028‐E Page 2 of 3 Report No.: HK2012294028‐E Page 3 of 3

FCC ID LABEL: FCC ID: 2AYQ3-LONGRX001 Label Location

Annex B Internal Photo Report No.:HK2012294028-E Page 1 of 3 Antenna Report No.:HK2012294028-E Page 2 of 3 Report No.:HK2012294028-E Page 3 of 3

Page 1 of 28 Report No.: HK2012294028-E FCC TEST REPORT Test report On Behalf of Beijing Jingyunmake Technology Co., Ltd. For Wireless Mouse Model No.: Long-RX-001, Long-RX-002, Normal-RX-001, Normal-RX-002, Mini-RX-001, Mini-RX002 FCC ID: 2AYQ3-LONGRX001 Prepared for : Beijing Jingyunmake Technology Co., Ltd. No. 346, Kehai Avenue, East District, Economic Development Zone, Tongzhou District, Beijing, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Dec. 29, 2020 ~ Jan. 20, 2021 Date of Report: Jan. 20, 2021 Report Number: HK2012294028-E Page 2 of 28 Report No.: HK2012294028-E TEST RESULT CERTIFICATION Applicant’s name ................. : Beijing Jingyunmake Technology Co., Ltd. Address ................................. : No. 346, Kehai Avenue, East District, Economic Development Zone, Tongzhou District, Beijing, China Manufacture's Name ............ : Beijing Jingyunmake Technology Co., Ltd. Address ................................. : No. 346, Kehai Avenue, East District, Economic Development Zone, Tongzhou District, Beijing, China Product description Trade Mark: g-wolves, g-sevlow Product name ........................... : Wireless Mouse Model and/or type reference : Long-RX-001, Long-RX-002, Normal-RX-001, Normal-RX-002, Mini-RX-001, Mini-RX002 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.249 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Dec. 29, 2020 ~ Jan. 20, 2021 Date of Issue ........................................... : Jan. 20, 2021 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 28 Report No.: HK2012294028-E Table of Contents Page 1 . Test Summary 5 1.1 . Test Procedures And Results 5 1.2 . Test Facility 5 1.3 . Measurement Uncertainty 5 2 . General Information 6 2.1 . General Description Of EUT 6 2.2 . Operation of EUT during testing 7 2.3 . Description Of Test Setup 8 2.4 . Measurement Instruments List 9 3 . Conducted Emissions Test 10 3.1. Conducted Power Line Emission Limit 10 3.2. Test Setup 10 3.3. Test Procedure 10 3.4. Test Result 11 4. Radiated Emission Test 13 4.1. Radiation Limit 13 4.2. Test Setup 13 4.3. Test Procedure 14 4.4. Test Result 14 5. Band Edge 20 5.1. Limits 20 5.2. Test Procedure 20 5.3. Test Result 21 6. Occupied Bandwidth Measurement 23 6.1. Test Setup 23 6.2. Test Procedure 23 6.3. Measurement Equipment Used 23 6.4. Test Result 23 7. Antenna Requirement 25 8. Photograph Of Test 26 9. Photos Of The EUT 28 Page 4 of 28 Report No.: HK2012294028-E ** Modifited History ** Revison Description Issued Data Remark Revsion 1.0 Initial Test Report Release Jan. 20, 2021 Jason Zhou Page 5 of 28 Report No.: HK2012294028-E 1. Test Summary 1.1. Test Procedures And Results DESCRIPTION OF TEST SECTION NUMBERRESULT CONDUCTED EMISSIONS TEST 15.207 COMPLIANT RADIATED EMISSION TEST 15.249(a) /15.209 COMPLIANT BAND EDGE 15.249(d)/15.205 COMPLIANT OCCUPIED BANDWIDTH MEASUREMENT 15.215（c） COMPLIANT ANTENNA REQUIREMENT 15.203 COMPLIANT 1.2. Test Facility Te s t F i r m ： Shenzhen HUAK Testing Technology Co., Ltd. Address ： 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China 1.3. Measurement Uncertainty Measurement Uncertainty Conducted Emission Expanded Uncertainty =2.71dB, k=2 Radiated emission expanded uncertainty(9kHz-30MHz) = 4.26dB, k=2 Radiated emission expanded uncertainty(30MHz-1000MHz)= 3.90dB, k=2 Radiated emission expanded uncertainty(Above 1GHz) = 4.28dB, k=2 Page 6 of 28 Report No.: HK2012294028-E 2. General Information 2.1. General Description Of EUT Equipment Wireless Mouse Model Name Long-RX-001 Serial Model Long-RX-002, Normal-RX-001, Normal-RX-002, Mini-RX-001, Mini-RX002 Model Difference All model’s the function, software and electric circuit are the same, only with a product model named and trade mark different. Test sample model: Long-RX-001. FCC ID 2AYQ3-LONGRX001 Antenna Type External Antenna Antenna Gain -1dBi Operation frequency 2403-2480MHz Number of Channels 16CH Modulation Type GFSK Power Source DC 5V from USB Power Rating DC 5V from USB Page 7 of 28 Report No.: HK2012294028-E 2.1.1. Carrier Frequency of Channels Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 1 2403 7 2435 13 2465 2 2409 8 2441 14 2470 3 2414 9 2445 15 2475 4 2419 10 2450 16 2480 5 2424 11 2455 6 2429 12 2461 / 2.2. Operation of EUT during testing Operating Mode The mode is used: Transmitting mode Low Channel: 2403MHz Middle Channel: 2441MHz High Channel: 2480MHz Page 8 of 28 Report No.: HK2012294028-E 2.3. Description Of Test Setup Operation of EUT during conducted testing and radiation below 1GHz testing: AC Plug Operation of EUT during radiation above 1GHz testing: PC information Model: ThinkPad E450 Input: 20V, 2.25A/3.25A The sample was placed (0.8m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emissions
