2AYQ6-WIRELSSAC1200usb wifi adapter

78 3 6 Finish FCC Warning StatementChanges or modifications not expressly approved by the party responsible for compliance couldvoid the user’s authority to operate the equipment. This equipment has been tested and found tocomply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures:‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.‐‐ Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the followingtwo conditions: (1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that maycause undesired operation.RF Exposure StatementTo maintain compliance with FCC's RF Exposure guidelines, This equipment should beinstalled and operated with minimum distance of 5mm the radiator your body. This deviceand its antenna(s) must not be co-located or operation in conjunction with any otherantenna or transmitter.

FCC Software Configuration Control Declaration Rev1.0.docx Shenzhenshi Jiujiadianzishangwuyouxiangongsi FCC Software Configuration Control Declaration Date:Mar. 01, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product: usb wifi adapter Model No.: N12, N12pro, N15, N16, N17, M-1200ER, M-1200GR Regarding FCC Country Code Selection guidelines identified in KDB 594280 D02 v01r03. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Date: Mar. 01, 2022 Name: John kang Title: General Manager Signature of applicant:

Shenzhenshi Jiujiadianzishangwuyouxiangongsi Agent Authorization Company: Shenzhenshi Jiujiadianzishangwuyouxiangongsi Address: Longgangqu Bujijiedao Jihualu,393 Hao Haifadasha 220 shenzhen Guangdong, China Product Name: usb wifi adapter Model Number(s): N12, N12pro, N15, N16, N17, M-1200ER, M-1200GR Product Description: usb wifi adapter We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Mar. 01, 2022 Name: John kang Title: General Manager Company: Shenzhenshi Jiujiadianzishangwuyouxiangongsi

Model Difference Declaration To Whom It May Concern, We, Shenzhenshi Jiujiadianzishangwuyouxiangongsi(usb wifi adapter) Trademark:Nineplus; Model Number:N12, N12pro, N15, N16, N17, M-1200ER, M-1200GR;All model’s the function, software and electric circuit are the same, only with a product color, appearance and model named different for commercial purpose. Test sample model:N12. Please contact me if you have any question. Name: John kang Date: Mar. 01, 2022 Title: General Manager Signature of applicant:

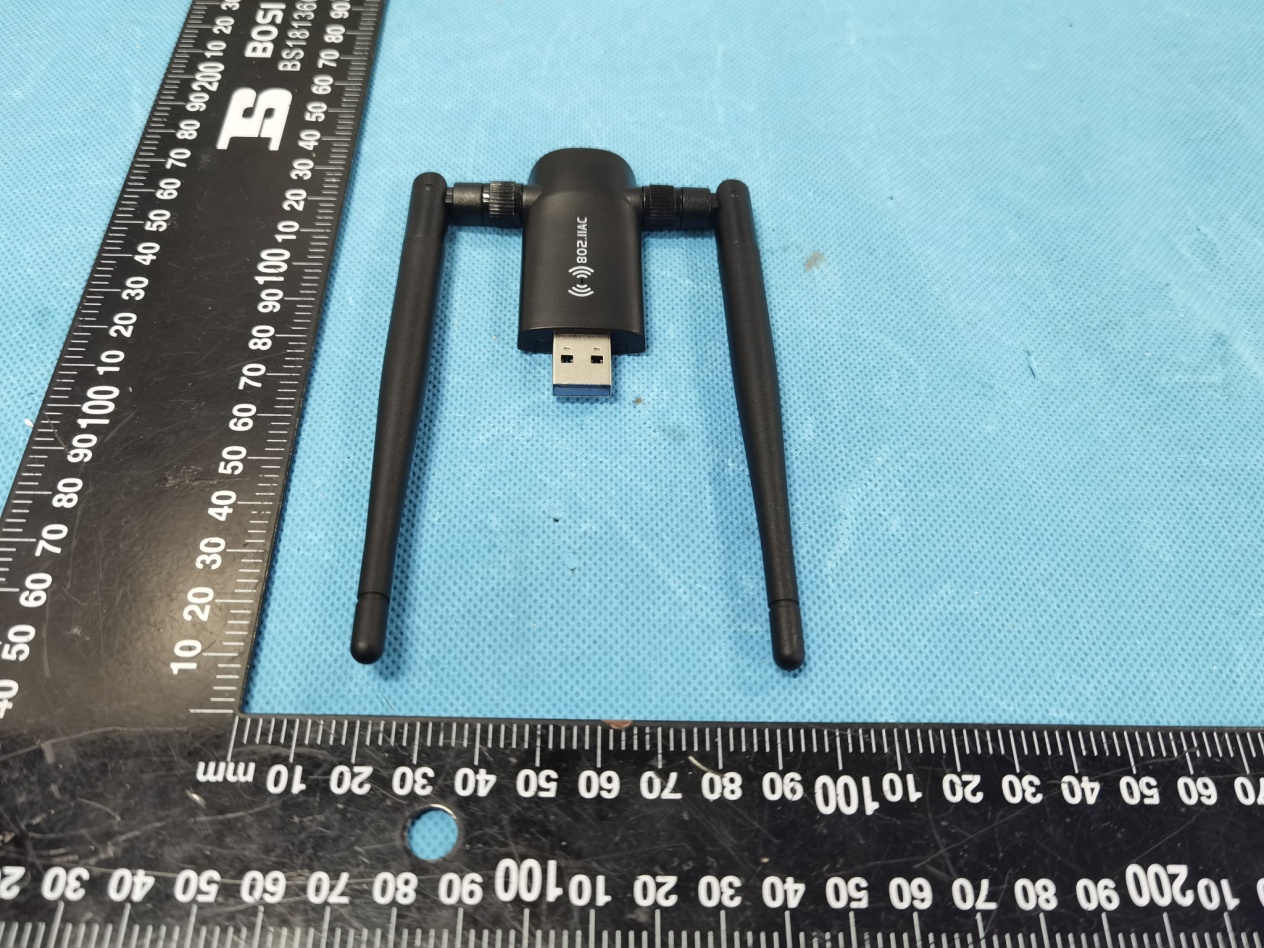

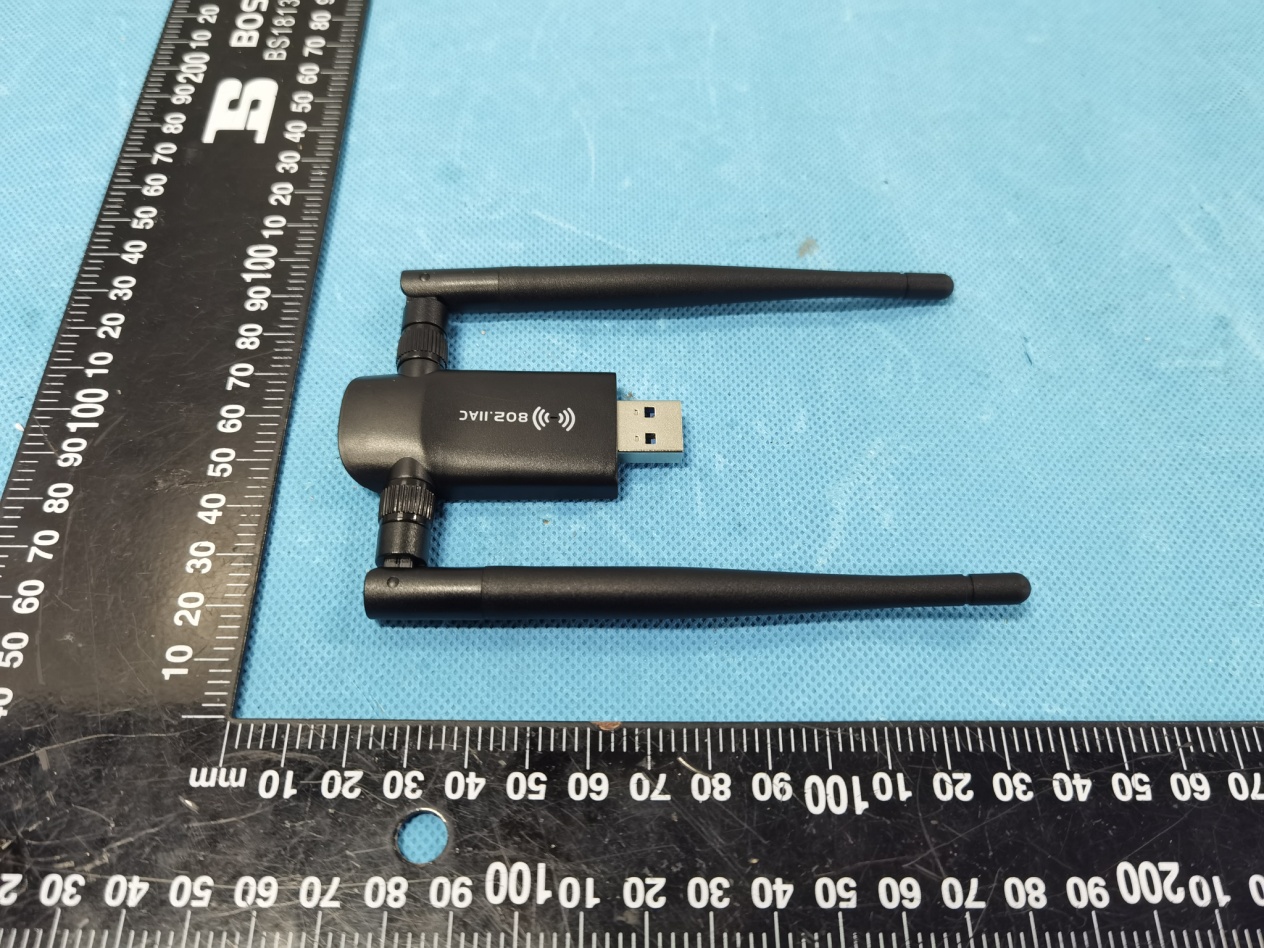

Annex A External Photos Report No.:HK2202170427-1E/2E/3E Page 1 of 4 Antenna ANT.1 ANT. 2 Report No.:HK2202170427-1E/2E/3E Page 2 of 4 Report No.:HK2202170427-1E/2E/3E Page 3 of 4 Report No.:HK2202170427-1E/2E/3E Page 4 of 4

FCC ID LABEL: Ca. 5mm x 10mm Label Location FCC ID: 2AYQ6‐WIRELSSAC1200

Annex B Internal Photo Report No.:HK2202170427-1E/2E/3E Page 1 of 2 Report No.: HK2202170427-1E/2E/3E Page 2 of 2

FCC RF Exposure EUT Description: usb wifi adapter Model No.: N12 FCC ID: 2AYQ6‐WIRELSSAC1200 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation WIFI Frequency (MHz) Outp ut pow er （dB m） Tune Up Power （dBm ） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) SAR Te s t Exclusio n 2.4G WIFI Ant. 1 2412 7.10 7±1 8/6.31 5 1.960 3.0 Pass 2.4G WIFI Ant. 2 2437 6.88 6±1 7/5.01 5 1.565 3.0 Pass MIMO 2437 9.37 8.4±1 9.4/8.71 5 2.719 3.0 Pass 5.2G WIFI Ant. 1 5240 7.75 7±1 8/6.31 5 2.872 3.0 Pass 5.2G WIFI Ant. 2 5180 6.98 6±1 7/5.01 5 2.889 3.0 Pass MIMO 5180 7.82 6.9±1 7.9/6.166 5 2.807 3.0 Pass 5.8G WIFI Ant. 1 5745 6.34 6±1 7/5.01 5 2.403 3.0 Pass 5.8G WIFI Ant. 2 5825 6.77 6±1 7/5.01 5 2.419 3.0 Pass MIMO 5775 7.93 6.93±1 7.93/6.209 5 2.984 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2202170427‐1E/2E/3E, antenna gain=1dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 2.984 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm Note: the device could not transmit simultaneously in 2.4G and 5G.

Page 1 of 106 Report No.: HK2202170427-2E FCC TEST REPORT Test report On Behalf of Shenzhenshi Jiujiadianzishangwuyouxiangongsi For usb wifi adapter Model No.: N12, N12pro, N15, N16, N17, M-1200ER, M-1200GR FCC ID: 2AYQ6-WIRELSSAC1200 Prepared For: Shenzhenshi Jiujiadianzishangwuyouxiangongsi Longgangqu Bujijiedao Jihualu,393 Hao Haifadasha 220 shenzhen Guangdong, China Prepared By: Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Feb. 16, 2022 ~ Mar. 01, 2022 Date of Report: Mar. 01, 2022 Report Number: HK2202170427-2E Applican Address . Manufac t Address . Product d Trade Ma Product n Model an d Standard This publi the Shenz source of and will n o reproduce Date of Te Date (s) o Date of Is Te s t R e su t’s name ... .................. ture's Nam .................. description rk: ame ............ d/or type re ds ............... ication may zhen HUAK the materia ot assume ed material est ............. of performan ssue ............ ult ................ TES ............... : ............... : me ............. : ............... : n ................. : eference . : ............... : be reprod u K Testing Te al. Shenzhe liability for d due to its p .................. nce of tests .................. .................. Prepa r Review Approv ST RESU Shenzhens Longgangq Guangdon Shenzhens Longgangq Guangdon Nineplus usb wifi a d N12, N12p FCC Rules ANSI C63 uced in who chnology C en HUAK Te damages re placement a ............. : ............. : ............. : ............. : red by: wed by: ved by: Page 2 of 10 ULT CER shi Jiujiadia qu Bujijieda ng, China shi Jiujiadia qu Bujijieda ng, China dapter pro, N15, N s and Regu .10: 2013 ole or in part Co., Ltd. is a esting Techn esulting from and context. Feb. 16, 2 0 Mar. 01, 20 Pass Pr Pro Te 06 RTIFICAT anzishangwu o Jihualu,39 anzishangwu o Jihualu,39 16, N17, M- ulations Part t for non-co acknowledge nology Co., m the reade 022 ~ Mar. 0 022 roject Engi oject Supe chnical Di r Report TION uyouxiango 93 Hao Haif uyouxiango 93 Hao Haif -1200ER, M t 15 Subpar ommercial p ed as copyr Ltd. takes er's interpret 01, 2022 ineer ervisor rector t No.: HK220 ngsi fadasha 220 ngsi fadasha 220 M-1200GR rt E Section purposes as right owner no respons tation of the 02170427-2E 0 shenzhen 0 shenzhen n 15.407 s long as and ibility for e E Page 3 of 106 Report No.: HK2202170427-2E TABLE OF CONTENTS 1. TEST RESULT SUMMARY ........................................................................ 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................ 5 1.3. MEASUREMENT UNCERTAINTY ..................................................................................................... 6 2. EUT DESCRIPTION ................................................................................... 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. OPERATION FREQUENCY EACH OF CHANNEL ............................................................................ 8 2.3. OPERATION OF EUT DURING TESTING .......................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. GENERA INFORMATION ........................................................................ 10 3.1. TEST ENVIRONMENT AND MODE ................................................................................................. 10 3.2. DESCRIPTION OF SUPPORT UNITS .............................................................................................. 11 4. TEST RESULTS AND MEASUREMENT DATA ...................................... 12 4.1. CONDUCTED EMISSION ................................................................................................................. 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 16 4.3. 6DB EMISSION BANDWIDTH .......................................................................................................... 19 4.4. 26DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH .............................................................. 20 4.5. POWER SPECTRAL DENSITY ........................................................................................................ 33 4.6. BAND EDGE ..................................................................................................................................... 47 4.7. SPURIOUS EMISSION ..................................................................................................................... 83 4.8. FREQUENCY STABILITY MEASUREMENT ................................................................................. 101 4.9. ANTENNA REQUIREMENT ........................................................................................................... 103 5. PHOTOGRAPHS OF TEST SETUP ....................................................... 104 6. PHOTOS OF THE EUT .......................................................................... 106 Page 4 of 106 Report No.: HK2202170427-2E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Mar. 01, 2022 Jason Zhou Page 5 of 106 Report No.: HK2202170427-2E 1. TEST RESULT SUMMARY 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(e) N/A 26dB Emission Bandwidth & 99% Occupied Bandwidth §15.407(a) PASS Power Spectral De…

Text truncated - open the document above for the full version.

Page 83 of 106 Report No.: HK2202170427-2E 4.7. SPURIOUS EMISSION 4.7.1. Test Specification Test Requirement: FCC CFR47 Part 15 Section 15.407 & 15.209 & 15.205 Test Method: KDB 789033 D02 v02r01 Frequency Range: 9kHz to 40GHz Measurement Distance: 3 m Antenna Polarization: Horizontal & Vertical Operation mode: Transmitting mode with modulation Receiver Setup: Frequency Detector RBW VBW Remark 9kHz- 150kHzQuasi-peak200Hz 1kHz Quasi-peak Value 150kHz- 30MHz Quasi-peak9kHz 30kHz Quasi-peak Value 30MHz-1GHzQuasi-peak120KHz300KHz Quasi-peak Value Above 1GHz Peak 1MHz 3MHz Peak Value Peak 1MHz 10Hz Average Value Limit: (1) For transmitters operating in the 5.15-5.25 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. The limit of frequency below 1GHz and which fall in restricted b ands should complies 15.209. Test setup: For radiated emissions below 30MHz 30MHz to 1GHz Above 1GHz Page 84 of 106 Report No.: HK2202170427-2E Test Procedure: 1. The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter camber. The table was rotated 360 degrees to determine the position of the highest radiation. 2. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. 3. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. 4. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters and the rotatable was turned from 0 degrees to 360 degrees to find the maximum reading. 5. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. 6. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would bere-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. Test results: PASS Page 85 of 106 Report No.: HK2202170427-2E 4.7.2. Test Data test mode: TX 802.11a 5180MHz All the test modes completed for test. The worst case of Radiated Emission; the test data of this mode was reported. Below 1GHz Horizontal Remark: Factor = Cable loss + Antenna factor – Preamplifier; Level = Reading + Factor; Margin = Limit – Level Page 86 of 106 Report No.: HK2202170427-2E Vertical Remark: Factor = Cable loss + Antenna factor – Preamplifier; Level = Reading + Factor; Margin = Limit – Level Harmonics and Spurious Emissions Frequency Range (9 kHz-30MHz) Frequency (MHz) Level@3m (dBμV/m) Limit@3m (dBμV/m) -- -- -- -- -- -- -- -- -- -- -- -- Note:1. Emission Level=Reading+ Cable loss+ Antenna factor-Amp factor. 2. The emission levels are 20 dB below the limit value, which are not reported. It is deemed to comply with the requirement. Page 87 of 106 Report No.: HK2202170427-2E Above 1GHz 5.2G 802.11 a Mode All modes of operation were investigated and the worst-case of Antenna 1 are reported. LOW CH 36 Horizontal: FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 364760.13-4.5955.5474-18.46peak 364747.39-4.5942.854-11.2AVG 1036053.463.7457.268.2-11peak Detector Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Vertical: FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 364760.23-4.5955.6474-18.36peak 364743.35-4.5938.7654-15.24AVG 1036051.813.7455.5568.2-12.65peak Detector Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Page 88 of 106 Report No.: HK2202170427-2E MID CH40 Horizontal: FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 364762.25-4.5957.6674-16.34peak 364745.08-4.5940.4954-13.51AVG 1040052.413.7456.1568.2-12.05peak Detector Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Vertical: FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 364764.08-4.5959.4974-14.51peak 364743.27-4.5938.6854-15.32AVG 1040052.493.7456.2368.2-11.97peak Detector Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Page 89 of 106 Report No.: HK2202170427-2E HIGH CH 48 Horizontal: FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 364761.17-4.5956.5874-17.42peak 364743.78-4.5939.1954-14.81AVG 1048054.993.7558.7468.2-9.46peak Detector Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Vertical: FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 364760.58-4.5955.9974-18.01peak 364744.81-4.5940.2254-13.78AVG 1048051.793.7555.5468.2-12.66peak Detector Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Remark： (1) Measuring frequencies from 1 GHz to the 40 GHz. (2) “F” denotes fundamental frequency; “H” denotes spurious frequency; “E” denotes band edge frequency. (3) * denotes emission frequency which appearing within the Restricted Bands specified in provision of 15.205, then the general radiated emission limits in 15.209 apply. (4) The emissions are attenuated more than 20dB below the permissible limits are not record in the report. (5) The IF bandwidth of EMI Test Receiver between 30MHz to 1GHz was 120KHz, 1 MHz for measuring above 1 GHz, below 30MHz was 10KHz. (6) When the test results of Peak Detected below the limits of Average Detected, the Average Detected is not need completed. For example: Top Channel at Fundamental 73.16dBuV/m(PK Value) <93.98(AV Limit), at harmonic 53.20 dBuV/m(PK Value) <54 dBuV/m(AV Limit), the Average Detected not need to completed. Page 90 of 106 Report No.: HK2202170427-2E 5.2G 802.11n20 Mode All modes of operation were investigated and th…

Text truncated - open the document above for the full version.

Page 1 of 107 Report No.: HK2202170427-3E FCC TEST REPORT Test report On Behalf of Shenzhenshi Jiujiadianzishangwuyouxiangongsi For usb wifi adapter Model No.: N12, N12pro, N15, N16, N17, M-1200ER, M-1200GR FCC ID: 2AYQ6-WIRELSSAC1200 Prepared For: Shenzhenshi Jiujiadianzishangwuyouxiangongsi Longgangqu Bujijiedao Jihualu,393 Hao Haifadasha 220 shenzhen Guangdong, China Prepared By: Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Feb. 16, 2022 ~ Mar. 01, 2022 Date of Report: Mar. 01, 2022 Report Number: HK2202170427-3E Page 2 of 107 Report No.: HK2202170427-3E TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhenshi Jiujiadianzishangwuyouxiangongsi Address .................................. : Longgangqu Bujijiedao Jihualu,393 Hao Haifadasha 220 shenzhen Guangdong, China Manufacture's Name ............ : Shenzhenshi Jiujiadianzishangwuyouxiangongsi Address .................................. : Longgangqu Bujijiedao Jihualu,393 Hao Haifadasha 220 shenzhen Guangdong, China Product description Trade Mark: Nineplus Product name ............................ : usb wifi adapter Model and/or type reference : N12, N12pro, N15, N16, N17, M-1200ER, M-1200GR Standards.............................. : FCC Rules and Regulations Part 15 Subpart E Section 15.407 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests .............. : Feb. 16, 2022 ~ Mar. 01, 2022 Date of Issue ........................................... : Mar. 01, 2022 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Page 3 of 107 Report No.: HK2202170427-3E TABLE OF CONTENTS 1. TEST RESULT SUMMARY ........................................................................ 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................ 5 1.3. MEASUREMENT UNCERTAINTY ..................................................................................................... 6 2. EUT DESCRIPTION ................................................................................... 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. OPERATION FREQUENCY EACH OF CHANNEL ............................................................................ 8 2.3. OPERATION OF EUT DURING TESTING .......................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. GENERA INFORMATION ........................................................................ 10 3.1. TEST ENVIRONMENT AND MODE ................................................................................................. 10 3.2. DESCRIPTION OF SUPPORT UNITS .............................................................................................. 11 4. TEST RESULTS AND MEASUREMENT DATA ...................................... 12 4.1. CONDUCTED EMISSION ................................................................................................................. 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 16 4.3. 6DB EMISSION BANDWIDTH .......................................................................................................... 19 4.4. 26DB BANDWIDTH AND 99% OCCUPIED BANDWIDTH .............................................................. 32 4.5. POWER SPECTRAL DENSITY ........................................................................................................ 33 4.6. BAND EDGE ..................................................................................................................................... 47 4.7. SPURIOUS EMISSION ..................................................................................................................... 84 4.8. FREQUENCY STABILITY MEASUREMENT ................................................................................. 102 4.9. ANTENNA REQUIREMENT ........................................................................................................... 104 5. PHOTOGRAPHS OF TEST SETUP ....................................................... 105 6. PHOTOS OF THE EUT .......................................................................... 107 Page 4 of 107 Report No.: HK2202170427-3E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Mar. 01, 2022 Jason Zhou Page 5 of 107 Report No.: HK2202170427-3E 1. TEST RESULT SUMMARY 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Maximum Conducted Output Power §15.407(a) PASS 6dB Emission Bandwidth §15.407(e) PASS 26dB Emission Bandwidth & 99% Occupied Bandwidth §15.407(a) N/A Power Spectral Density §15.407(a) PASS Band edge §15.407(b)/15.209/15.205 PASS Radiated Emission §15.407(b)/15.209/15.205 PASS Frequency Stability §15.407(g) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Te…

Text truncated - open the document above for the full version.

Radiated Emission
