2AYQZ-W2Projector

Dongguan Yi Pai Ji He Electronic Co., Ltd 6th floor, No.96 Jinghai Middle Road, Chang'an Town, Dongguan, Guangdong, China 2021-02-05 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AYQZ-W2 Product Name: Projector Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Yongqiu Yu Title: Engineer

2021-02-05 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorizeCompliance Testing, LLCto act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized here under is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Yongqiu Yu Title: Engineer

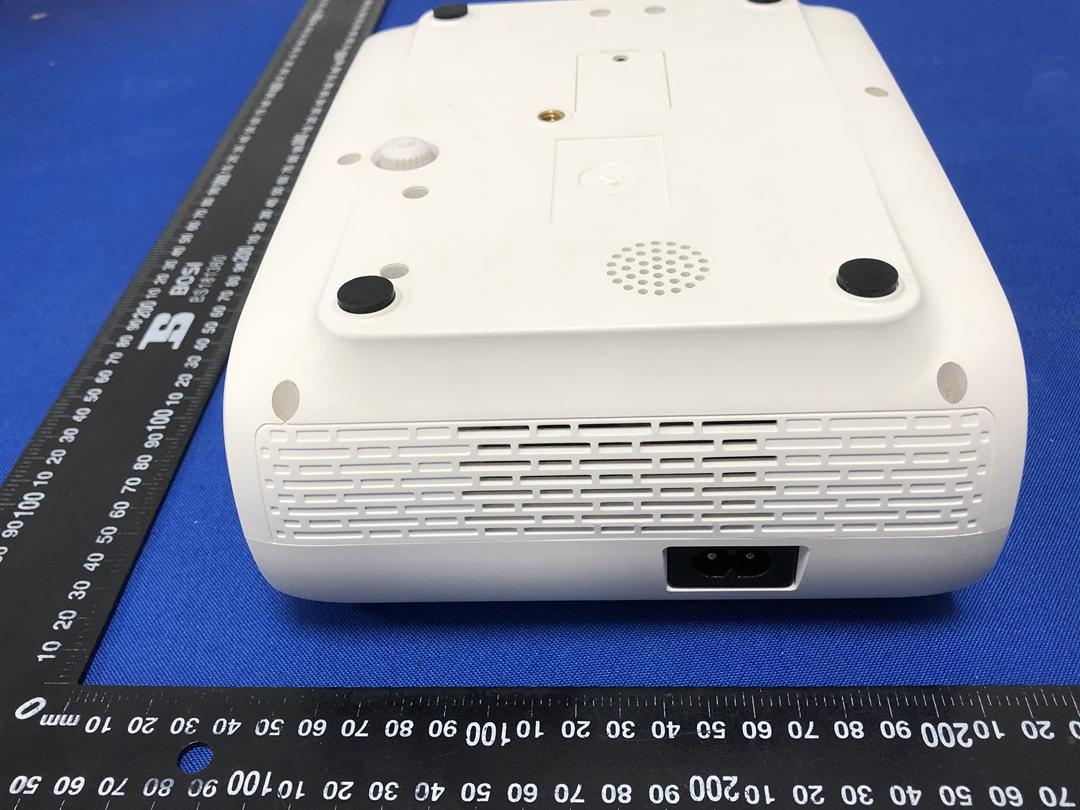

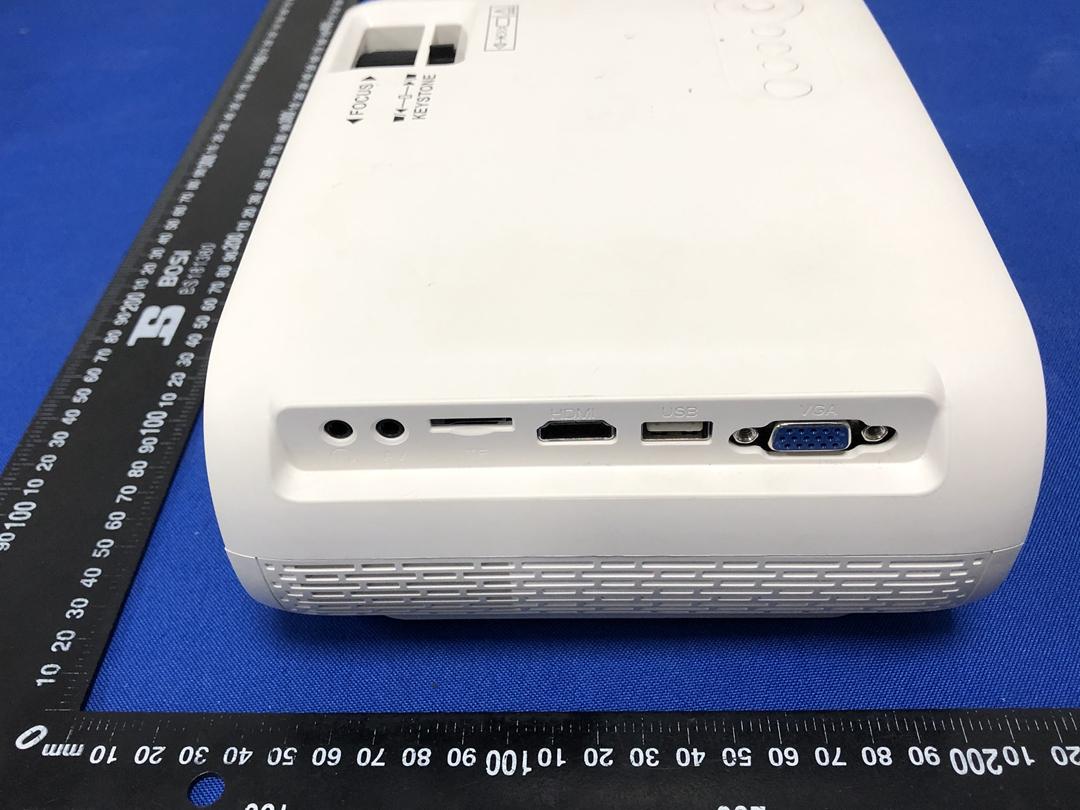

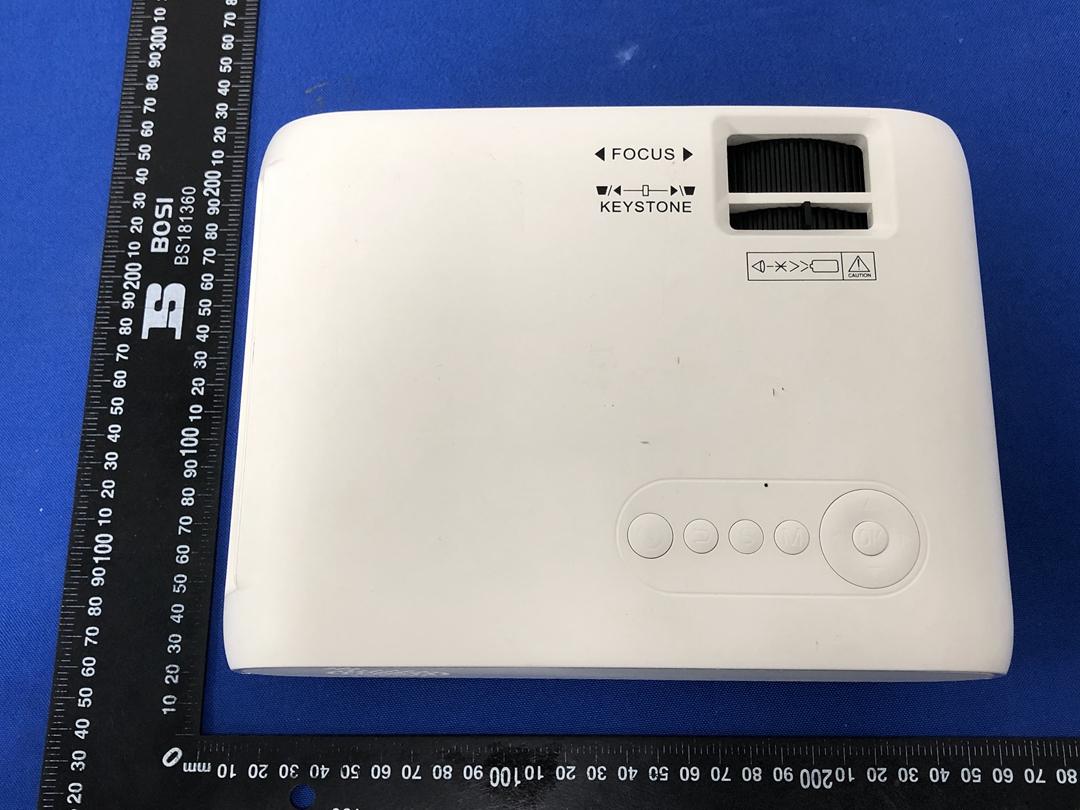

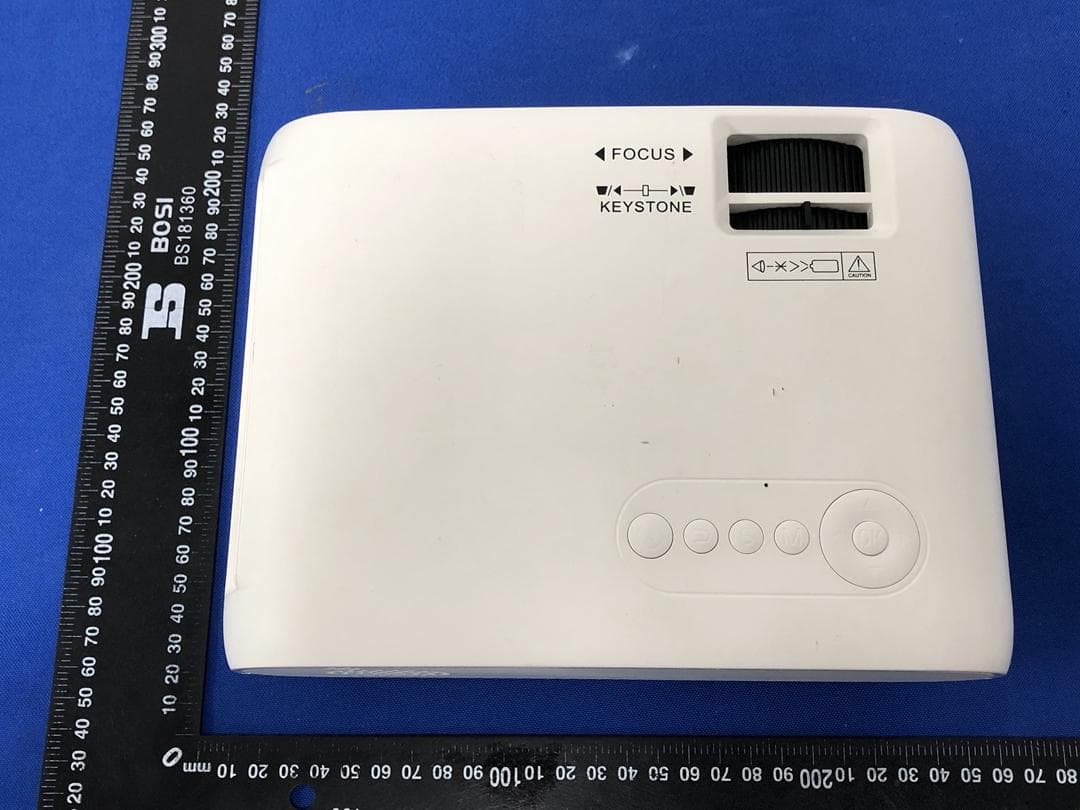

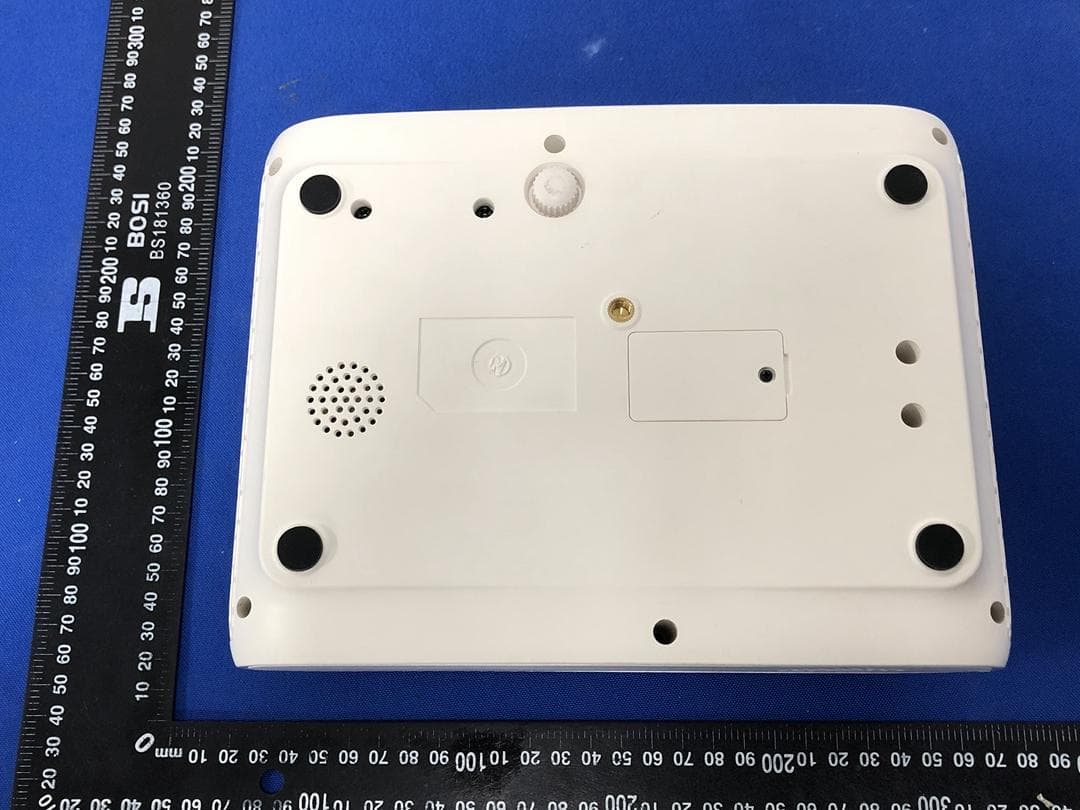

Page 1 of 4 Appendix B: Photographs of EUT Product: Projector Model: W2 External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: W2 Label： Size: L*W= 60*30mm Projector Model No.: W2 FCC ID: 2AYQZ-W2 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Location

Page 1 of 10 Appendix B: Photographs of EUT Product: Projector Model: W2 Internal Photos Page 2 of 10 BT Antenna Page 3 of 10 Page 4 of 10 Page 5 of 10 WIFI Antenna Page 6 of 10 Page 7 of 10 Page 8 of 10 Page 9 of 10 Page 10 of 10

Maximum Permissible Exposure Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) For BT: The maximum output power for antenna is -1.61dBm (0.69mW) at 2480MHz, 2dBi antenna gain(with 1.58 numeric antenna gain.) For WIFI: The maximum output power for antenna is 15.84dBm (38.37mW) at 2437MHz, 2dBi antenna gain(with 1.58 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. For BT: Maximum Permissible Exposure output power= 0.69mW Numeric Antenna gain= 1.58 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 Power density= 0.000217mW/cm 2 For WIFI: Maximum Permissible Exposure output power= 38.37mW Numeric Antenna gain= 1.58 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm 2 Power density= 0.012064mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AYQZ-W2 Product: Projector Model No.: W2 Additional Model No.: N/A Trade Mark: N/A Report No.: TCT210111E061 Issued Date: Feb. 01, 2021 Issued for: Dongguan Yi Pai Ji He Electronic Co., Ltd 6th floor, No.96 Jinghai Middle Road, Chang'an Town, Dongguan, Guangdong, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT210111E061 Page 2 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations .................................................................. 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data ................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 17 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 18 6.7. Radiated Spurious Emission Measurement ...................................................... 20 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT210111E061 Page 3 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Projector Model No.: W2 Additional Model No.: N/A Trade Mark: N/A Applicant: Dongguan Yi Pai Ji He Electronic Co., Ltd Address: 6th floor, No.96 Jinghai Middle Road, Chang'an Town, Dongguan, Guangdong, China Manufacturer: Dongguan Yi Pai Ji He Electronic Co., Ltd Address: 6th floor, No.96 Jinghai Middle Road, Chang'an Town, Dongguan, Guangdong, China Date of Test: Jan. 12, 2021 – Jan. 29, 2021 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Jan. 29, 2021 Brave Zeng Reviewed By: Date: Feb. 01, 2021 Beryl Zhao Approved By: Date: Feb. 01, 2021 Tomsin Report No.: TCT210111E061 Page 4 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT210111E061 Page 5 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Projector Model No.: W2 Additional Model No.: N/A Trade Mark: N/A Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) 2422MHz~2452MHz (802.11n(HT40)) Channel Separation: 5MHz Number of Channel: 11 for 802.11b/802.11g/802.11n(HT20) 7 for 802.11n(HT40) Modulation Technology: (IEEE 802.11b) Direct Sequence Spread Spectrum (DSSS) Modulation Technology: (IEEE 802.11g/802.11n) Orthogonal Frequency Division Multiplexing(OFDM) Data speed (IEEE 802.11b): 1Mbps, 2Mbps, 5.5Mbps, 11Mbps Data speed (IEEE 802.11g): 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps Data speed (IEEE 802.11n): Up to 150Mbps Antenna Type: Internal Antenna Antenna Gain: 2dBi Power Supply: AC 120V/60Hz Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not …

Text truncated - open the document above for the full version.

Report No.: TCT210111E061 Page 54 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band edge measurements Test Result Test Mode Antenna Ch Name Channel Ref Level[dBm] Result[dBm] Limit[dBm] Verdict 11BAnt1 Low 2412 7.88-37.07<=-22.12PASS High 2462 7.61-54.93<=-22.39PASS 11GAnt1 Low 2412 1.10-32.31<=-28.9PASS High 2462 1.14-49.81<=-28.86PASS 11N20SISOAnt1 Low 2412 0.36-31.45<=-29.64PASS High 2462 -1.79 -38.97<=-31.79PASS 11N40SISOAnt1 Low 2422 -3.68 -41.38<=-33.68PASS High 2452 -37.07<=-22.12PASS Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 -1.95 Report No.: TCT210111E061 Page 55 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N40SISO_Ant1_Low_2422 Report No.: TCT210111E061 Page 56 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Report No.: TCT210111E061 Page 57 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted SpuriousEmission Test Result Test Mode Antenna Channel Freq Range [Mhz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 7.68 7.68 --- PASS 30~1000 30~1000 -68.603 <=-22.317 PASS 1000~26500 1000~26500 -40.343 <=-22.317 PASS 2437 Reference 7.82 7.82 --- PASS 30~1000 30~1000 -68.046 <=-22.185 PASS 1000~26500 1000~26500 -42.094 <=-22.185 PASS 2462 Reference 7.23 7.23 --- PASS 30~1000 30~1000 -67.274 <=-22.775 PASS 1000~26500 1000~26500 -42.849 <=-22.775 PASS 11G Ant1 2412 Reference 1.38 1.38 --- PASS 30~1000 30~1000 -67.808 <=-28.623 PASS 1000~26500 1000~26500 -42.59 <=-28.623 PASS 2437 Reference 0.54 0.54 --- PASS 30~1000 30~1000 -68.847 <=-29.464 PASS 1000~26500 1000~26500 -43.026 <=-29.464 PASS 2462 Reference 0.73 0.73 --- PASS 30~1000 30~1000 -68.417 <=-29.267 PASS 1000~26500 1000~26500 -42.341 <=-29.267 PASS 11N20SISO Ant1 2412 Reference 0.16 0.16 --- PASS 30~1000 30~1000 -68.641 <=-29.838 PASS 1000~26500 1000~26500 -42.942 <=-29.838 PASS 2437 Reference -0.16 -0.16 --- PASS 30~1000 30~1000 -68.491 <=-30.163 PASS 1000~26500 1000~26500 -43.209 <=-30.163 PASS 2462 Reference 0.24 0.24 --- PASS 30~1000 30~1000 -68.415 <=-29.757 PASS 1000~26500 1000~26500 -42.443 <=-29.757 PASS 11N40SISO Ant1 2422 Reference -2.29 -2.29 --- PASS 30~1000 30~1000 -68.512 <=-32.294 PASS 1000~26500 1000~26500 -42.993 <=-32.294 PASS 2437 Reference -3.01 -3.01 --- PASS 30~1000 30~1000 -68.733 <=-33.013 PASS 1000~26500 1000~26500 -42.542 <=-33.013 PASS 2452 Reference -3.56 -3.56 --- PASS 30~1000 30~1000 -68.125 <=-33.555 PASS 1000~26500 1000~26500 -42.408 <=-33.555 PASS Report No.: TCT210111E061 Page 58 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 Report No.: TCT210111E061 Page 59 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference Report No.: TCT210111E061 Page 60 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference Report No.: TCT210111E061 Page 61 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference Report No.: TCT210111E061 Page 62 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 11G_Ant1_2462_0~Reference Report No.: TCT210111E061 Page 63 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference Report No.: TCT210111E061 Page 64 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference Report No.: TCT210111E061 Page 65 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2437_30~1000 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference Report No.: TCT210111E061 Page 66 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference Report No.: TCT210111E061 Page 67 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 11N40SISO_Ant1_2437_0~Reference Report No.: TCT210111E061 Page 68 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 11N40SISO_Ant1_2452_0~Reference Report No.: TCT210111E061 Page 69 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_2452_30~1000 11N40SISO_Ant1_2452_1000~26500 Report No.: TCT210111E061 Page 70 of 75 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Duty Cycle Test Result Test Mode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Limit Verdict 11B Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11G Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N20SISO Ant1 2412 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2462 50.00 50.00 100.00 --- PASS 11N40SISO Ant1 2422 50.00 50.00 100.00 --- PASS 2437 50.00 50.00 100.00 --- PASS 2452 50.00 50.00 100.00 --- PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Report N…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Projector Model: W2 Radiated Emission Page 2 of 2 Conducted Emission
