2AYRA-03812Linksys Classic Micro Router 5

LIN<SYS ® User Guide N600/AC1000/AC1200 DUAL-BAND ROUTER Model # E2500 / E5350 / E5400 / E5450 A Modem OR B Mode m-Router Plug one en d of th e inc luded ethernet cable into t he yel low Int ernet p ort on your new rou ter. If you hav e a mod em, pl ug t he othe r e nd into th e Ethernet (LAN) port on t he mod em. Plug one en d of th e inc luded ethernet cable to the yello w Int ernet p ort on your new rou ter. If you hav e a mod em- rou ter, plug t he othe r e nd into any avail able port. In addition to this user guide, you can nd help at Linksys.com/support/E2500 or Linksys.com/support/E5350 or Linksys.com/support/E5400 or Linksys.com/support/E5450 (documentation, downloads, FAQs, technical support, live chat, forums) • • • • • • • • • • • • • • • • • • • • • • Linksys E5400 / E5450 E5400 / E5450 For regulatory, warranty, and safety information, see the CD that came with your router or go to Linksys.com/support/E2500 or linksys.com/support/E5350 or linksys.com/support/E5400 or Linksys.com/support/E5450. © 2023 Linksys Holdings, Inc. and/or its aliates. All rights reserved. Visit linksys.com/support for award-winning 24/7 technical support. Regulatory information Linksys and many product names and logos are trademarks of Linksys Holdings, Inc.and/or its affiliates. Third-party trademarks mentioned are the property of their respective owners. © 2023 Linksys Holdings, Inc. and/or its affiliates. All rights reserved. LNKPG-00988 Rev A00 Linksys Classic Micro Router 5 E5400, E5300, E5350, E2500 V4, E5450 Linksys USA, Inc. Regulatory Information 3 4 Table of Contents Wireless Regulatory Information 3 FCC Statement 3 FCC Radiation Exposure Statement 3 Innovation, Science and Economic Development Canada Statement 4 Innovation, Science and Economic Development Canada Radiation Exposure Statement 4 Restrictions in the 5 GHz Band 4 Additional requirements for the band 5600-5650 MHz 5 Avis d’Innovation, Sciences et Développement économique Canada 5 Avis d’Innovation, Sciences et Développement économique Canada concernant l’exposition aux radiofréquences 5 Restrictions dans la bande 5 GHz 5 Prescriptions supplémentaires pour la bande 5600-5650 MHz 6 Wireless Disclaimer 6 Avis de non-responsabilité concernant les appareils sans fil 6 Safety Notices 7 Wireless Regulatory Information FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and devices • Connect the equipment to an outlet other than the receiver’s • Consult a dealer or an experienced radio/TV technician for assistance FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. 2.4 GHz operation of this product in the USA is firmware-limited to channels 1 through 11. Selection of other channels is not possible. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This device and it’s antennas(s) must not be co -located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. Innovation, Science and Economic Development Canada Statement CAN ICES-003(B) / NMB-003(B) This device complies with ISED’s license-exempt RSS standards. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. For product available in the USA/Canada market, only channel 1~11 can be operated for 2.4 GHz. Selection of other channels i s n ot possible. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. Innovation, Scienc e and Economic Development Canada Radiation Exposure Statement This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. This device and its antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with ISED multi-transmitter product procedures. Restrictions in the 5 GHz Band The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co -channel mobile satellite systems. This device has been designed to operate with an antenna having a maximum g ain of 2.53 dBi and 3.37 dBi at 2.4 GHz and 5 GHz respectively. Antenna having a higher gain is strictly …

Text truncated - open the document above for the full version.

Linksys USA, Inc. 121 Theory, Irvine, CA. 92617, USA U.S. Agent for Service of Process Attestation Date: 2023/10/30 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 USA Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: 2AYRA Applicant FRN：0030450555 To Whom It May Concern: Linksys USA, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: Name: Linksys USA, Inc. Address: 121 Theory, Irvine, CA. 92617, USA Contact Person: Julia Chu Te l . : (886) 921465808 Email: [email protected] Sincerely, Company name : Linksys USA, Inc. Company address : 121 Theory, Irvine, CA. 92617, USA Signature : Name : Julia Chu E-Mail : [email protected] Te l : (886) 921465808

Linksys USA, Inc. 121 Theory, Irvine, CA. 92617, USA Attestation Statements Date: 2023/10/30 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Attestation Statements Part 2.911(d)(5)(i)-(ii) Filing FCC ID：2AYR A-03812 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) Linksys USA, In c. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. St atement for 47 CFR section 2.911(d)(5)(ii) Linksys USA, In c. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Res pectfully, Applicant’s company name : Linksys USA, Inc. Applicant’s company address : 121 Theory, Irvine, CA. 92617, USA Signature : Name and Job Title : Julia Chu / Regulatory Compliance Engineer E-Mail : [email protected] Te l : (886) 921465808 Fax : N/A

Linksys USA, Inc. 121 Theory, Irvine, CA. 92617, USA Power of Attorney Date: 2023/10/30 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Hsinchu Laboratory Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e- mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: 2AYR A-03812 Respectfully, Applicant’s company name : Linksys USA, Inc. Applicant’s company address : 121 Theory, Irvine, CA. 92617, USA Signature : Name and Job Title : Julia Chu / Regulatory Compliance Engineer E-Mail : [email protected] Te l : (886) 921465808 Fax : N/A

Linksys USA, Inc. 121 Theory, Irvine, CA. 92617, USA Confidential Letter Date: 2023/10/30 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：2AYR A-03812 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Respectfully, Applicant’s company name : Linksys USA, Inc. Applicant’s company address : 121 Theory, Irvine, CA. 92617, USA Signature : Name and Job Title : Julia Chu / Regulatory Compliance Engineer E-Mail : [email protected] Te l : (886) 921465808 Fax : N/A

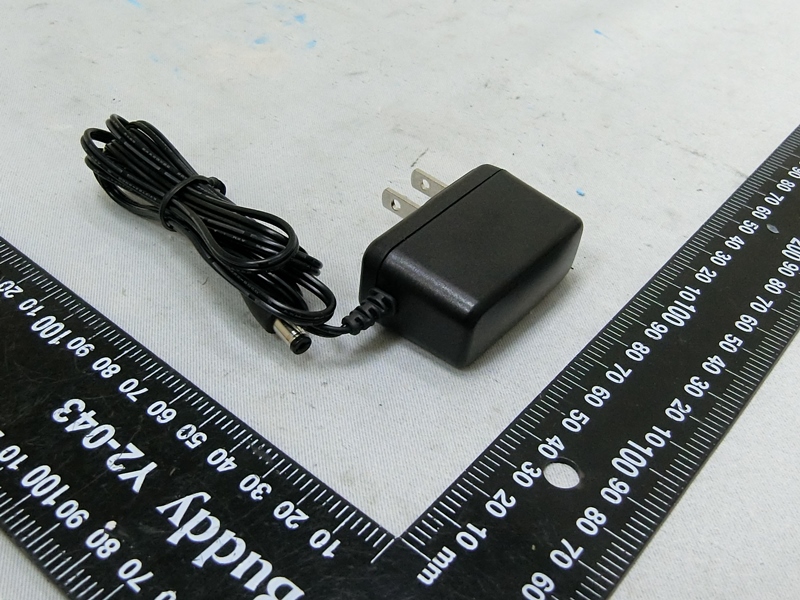

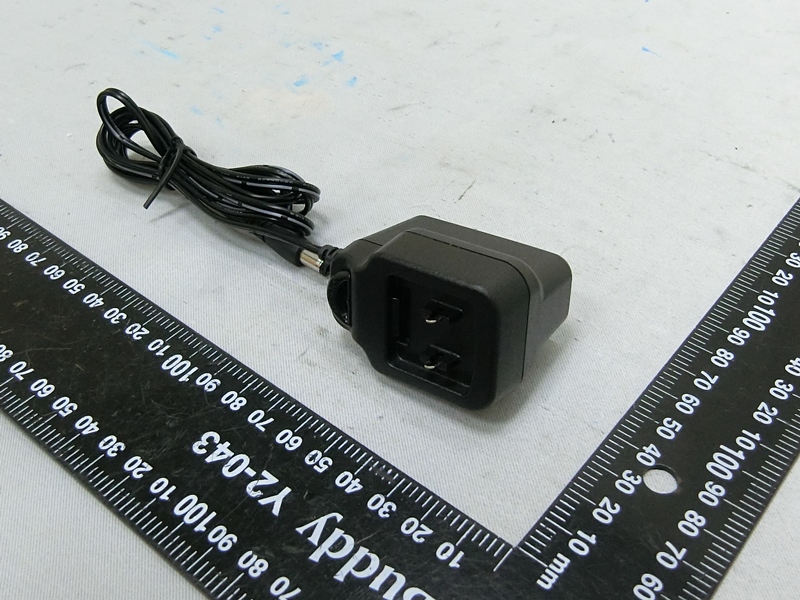

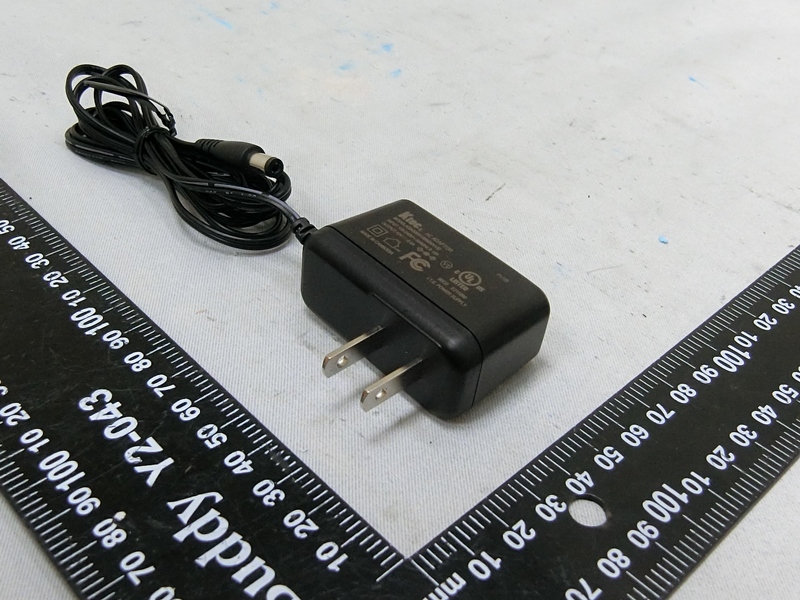

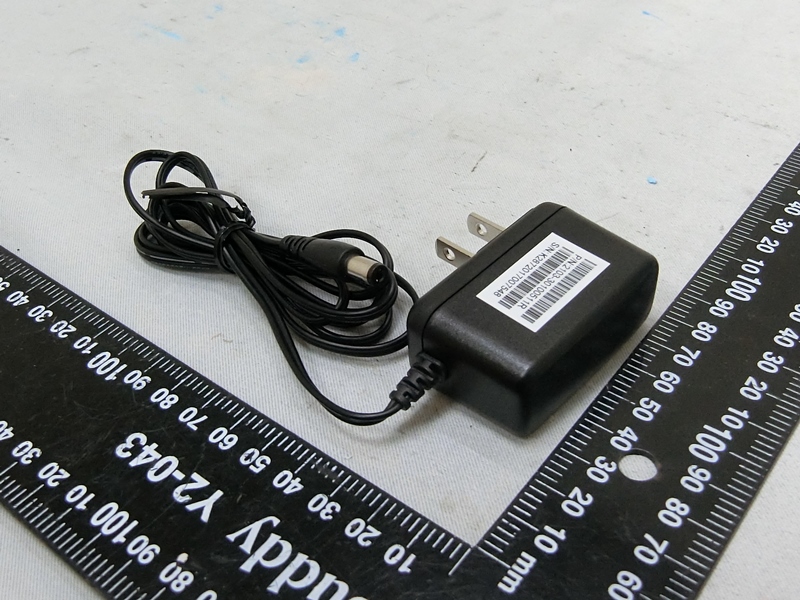

PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Page No. : 1 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 16, 2023 Report Version : 01 Brand Name: LINKSYS Model Name: E5450 PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Page No. : 2 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 16, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Page No. : 3 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 16, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Page No. : 4 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 16, 2023 Report Version : 01 Adapter 1 PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Page No. : 5 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 16, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Page No. : 6 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 16, 2023 Report Version : 01 Adapter 2 PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Page No. : 7 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 16, 2023 Report Version : 01 PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Page No. : 8 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 16, 2023 Report Version : 01 US plug (for Adapter 2 use) PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Page No. : 9 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 16, 2023 Report Version : 01 Adapter 3 PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Page No. : 10 of 10 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 16, 2023 Report Version : 01 RJ-45 cable

Label Location

PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Hsinchu Laboratory Page Number : 1 of 7 TEL : 886-3-656-9065 Issued Date : Nov. 16, 2023 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP Brand Name: LINKSYS Model Name: E5450 Ant. 2 Ant. 1 PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Hsinchu Laboratory Page Number : 2 of 7 TEL : 886-3-656-9065 Issued Date : Nov. 16, 2023 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Hsinchu Laboratory Page Number : 3 of 7 TEL : 886-3-656-9065 Issued Date : Nov. 16, 2023 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Hsinchu Laboratory Page Number : 4 of 7 TEL : 886-3-656-9065 Issued Date : Nov. 16, 2023 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Hsinchu Laboratory Page Number : 5 of 7 TEL : 886-3-656-9065 Issued Date : Nov. 16, 2023 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Hsinchu Laboratory Page Number : 6 of 7 TEL : 886-3-656-9065 Issued Date : Nov. 16, 2023 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP PHOTOGRAPHS OF EUT Report No. : EP8N1905-05 Sporton International Inc. Hsinchu Laboratory Page Number : 7 of 7 TEL : 886-3-656-9065 Issued Date : Nov. 16, 2023 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.1_EP

RADIO EXPOSURE TEST REPORT Report No. : FA8N1905-05 TEL : 886-3-656-9065 Page Number : 2 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 16, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 5 1.3 Accessories ............................................................................................................................................ 7 1.4 Applicable Standards ............................................................................................................................. 7 1.5 Testing Location ..................................................................................................................................... 7 2 Maximum Permissible Exposure ........................................................................................................ 8 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 8 2.2 MPE Calculation Method ........................................................................................................................ 8 2.3 MPE Exemption ...................................................................................................................................... 9 2.4 Calculated Result and Limit .................................................................................................................. 10 Photographs of EUT v01 RADIO EXPOSURE TEST REPORT Report No. : FA8N1905-05 TEL : 886-3-656-9065 Page Number : 3 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 16, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FA8N1905-05 01 Initial issue of report Nov. 16, 2023 RADIO EXPOSURE TEST REPORT Report No. : FA8N1905-05 TEL : 886-3-656-9065 Page Number : 4 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 16, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. 2. The measurement uncertainty please refer to each test result in the chapter "Measurement Uncertainty". Disclaimer: The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. Reviewed by: Sam Chen Report Producer: Lavender Zeng RADIO EXPOSURE TEST REPORT Report No. : FA8N1905-05 TEL : 886-3-656-9065 Page Number : 5 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 16, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 5GHz WLAN 5150-5250 5725-5850 5180-5240 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 1.2 Antenna Information Ant. Brand Model Name Antenna Type Connector Gain (dBi) 2.4Gz 5GHz 1 FIT 4TS4009-A0001-JH Dipole Antenna I-PEX 2.52 3.37 2 FIT 4TS4009-A0002JH Dipole Antenna I-PEX 2.53 3.28 Note 1 : The above information was declared by manufacturer. Note 2 : The EUT has two antennas. For WLAN 2.4GHz (2TX/2RX): Ant. 1 (Port 1) and Ant. 2 (Port 2) could transmit/receive simultaneously. For WLAN 5GHz (2TX/2RX): Ant. 1 (Port 1) and Ant. 2 (Port 2) could transmit/receive simultaneously. RADIO EXPOSURE TEST REPORT Report No. : FA8N1905-05 TEL : 886-3-656-9065 Page Number : 6 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 16, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Note 3: Directional gain information RADIO EXPOSURE TEST REPORT Report No. : FA8N1905-05 TEL : 886-3-656-9065 Page Number : 7 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 16, 2023 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1.3 Accessories Accessories Power Brand Model Rating Adapter 1 (Fixed plug) Ktec KSAS0051200050VUD Input: 100-240V ~ 50/60Hz, 0.18A Output: 12V, 0.5A Adapter 2 (Removable plug) Ktec KSA-6W-120050D5D Input: 100-240V ~ 50/60Hz, 0.18A Output: 12.0V, 0.5A, 6.0W Adapter 3 (Fixed plug) Ktec KSA-6W-120050VUD Input: 100-240V ~ 50/60Hz, 0.18A Output: 12V, 0.5A Others US plug*1 (for Adapter 2 use) RJ-45 cable*1, Non-shielded, 0.88m 1.4 Applicable Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards:  47 CFR Part 2.1091  KDB 447498 D04 Interim General RF Exposure Guidance v01 The following reference test guidance is not within the scope of accreditation of TAF.  47 CFR Part 1.1307  47 CFR Part 1.1310 1.5 Testing Location Testing Location Information Test Lab.：Sporton International Inc. Hsinchu Labo…

Text truncated - open the document above for the full version.

RADIO TEST REPORT Report No. : FR8N1905-05AB TEL : 886-3-656-9065 Page Number : 2 of 31 FAX : 886-3-656-9085 Issued Date : Nov. 16, 2023 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 9 1.3 Testing Location Information .................................................................................................................. 9 1.4 Measurement Uncertainty .................................................................................................................... 10 2 Test Configuration of EUT ................................................................................................................. 11 2.1 Test Channel Mode .............................................................................................................................. 11 2.2 The Worst Case Measurement Configuration ...................................................................................... 12 2.3 EUT Operation during Test .................................................................................................................. 13 2.4 Accessories .......................................................................................................................................... 14 2.5 Support Equipment ............................................................................................................................... 14 2.6 Test Setup Diagram ............................................................................................................................. 15 3 Transmitter Test Result ..................................................................................................................... 18 3.1 AC Power-line Conducted Emissions .................................................................................................. 18 3.2 Emission Bandwidth ............................................................................................................................. 20 3.3 Maximum Conducted Output Power .................................................................................................... 21 3.4 Peak Power Spectral Density ............................................................................................................... 23 3.5 Unwanted Emissions ............................................................................................................................ 26 4 Test Equipment and Calibration Data .............................................................................................. 30 Appendix A. Test Results of AC Power-line Conducted Emissions Appendix B. Test Results of Emission Bandwidth Appendix C. Test Results of Maximum Conducted Output Power Appendix D. Test Results of Peak Power Spectral Density Appendix E. Test Results of Unwanted Emissions Appendix F. Test Results of Radiated Emission Co-location Appendix G. Test Photos Photographs of EUT v01 RADIO TEST REPORT Report No. : FR8N1905-05AB TEL : 886-3-656-9065 Page Number : 3 of 31 FAX : 886-3-656-9085 Issued Date : Nov. 16, 2023 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 History of this test report Report No. Version Description Issued Date FR8N1905-05AB 01 Initial issue of report Nov. 16, 2023 RADIO TEST REPORT Report No. : FR8N1905-05AB TEL : 886-3-656-9065 Page Number : 4 of 31 FAX : 886-3-656-9085 Issued Date : Nov. 16, 2023 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.407(a) Emission Bandwidth PASS - 3.3 15.407(a) Maximum Conducted Output Power PASS - 3.4 15.407(a) Peak Power Spectral Density PASS - 3.5 15.407(b) Unwanted Emissions PASS - Note: Reference to Sporton Project No.: 8N1905 Conformity Assessment Condition: 1. The test results (PASS/FAIL) with all measurement uncertainty excluded are presented against the regulation limits or in accordance with the requirements stipulated by the applicant/manufacturer who shall bear all the risks of non-compliance that may potentially occur if measurement uncertainty is taken into account. 2. The measurement uncertainty please refer to each test result in the chapter "Measurement Uncertainty". Disclaimer: The product specifications of the EUT presented in the test report that may affect the test assessments are declared by the manufacturer who shall take full responsibility for the authenticity. Reviewed by: Sam Chen Report Producer: Lavender Zeng RADIO TEST REPORT Report No. : FR8N1905-05AB TEL : 886-3-656-9065 Page Number : 5 of 31 FAX : 886-3-656-9085 Issued Date : Nov. 16, 2023 Report Template No.: CB-A10_10 Ver1.3 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Frequency (MHz) Channel Number 5150-5250 a, n (HT20), ac (VHT20) 5180-5240 36-48 [4] 5725-5850 5745-5825 149-165 [5] 5150-5250 n (HT40), ac (VHT40) 5190-5230 38-46 [2] 5725-5850 5755-5795 151-159 [2] 5150-5250 ac (VHT80) 5210 42 [1] 5725-5850 5775 155 [1] Band Mode BWch (MHz) Nant 5.15-5.25GHz 802.11a 20 2TX 5.15-5.25GHz 802.11…

Text truncated - open the document above for the full version.

FoxconnAntenna Solution Page1 Hyde Ant2 Specification Project Specific Part Version: V3.0 Creator: FAS Antenna Module P/N: 4TS4009-A0002JH Application: HydeAntenna Company Name: Foxconn Interconnect Technology Limited Taiwan Branch Company Address: No. 66-1, ZHONGSHAN RD., TUCHENG DIST., NEW TAIPEI CITY 23680, TAIWAN（R.O.C.） FoxconnAntenna Solution Page2 1.Product Description Electrical Properties FrequencyRange 2400-2500 MHz 5150-5875 MHz Efficiency 73.16% 75.58% Peak Gain 2.53dBi 3.28dBi Average Gain -1.36dB-1.20BdB VSWR < 2 < 2 Polarization Linear & Vertical Impedance 50 Ω Physical Properties Cable type 1.13 Low Loss, Length 130mm Cable Color Black Description External antenna-PCB Operating Temp -40~+65°C FoxconnAntenna Solution Page3 2. Product Drawings FoxconnAntenna Solution Page4 3. Antenna Test VSWR Parameters Antenna Efficiency Frequency (MHz) 2412 2422 2432 2442 2452 2462 2472 2482 5150 5250 5350 5450 5550 5650 5750 5850 Efficiency (dB) -1.59 -1.46-1.35-1.23-1.18-1.08-1.47-1.52-1.32-1.42-0.94-0.90-0.96-1.10-1.47-1.54 Efficiency (%) 69.28 71.51 73.28 75.30 76.20 78.00 71.31 70.43 73.86 72.05 80.52 81.33 80.14 77.68 71.35 70.13 X Y Z FoxconnAntenna Solution Page5 Antenna 2D Radiation Pattern (Max: 5 Min: -35) X Y 2442 MHz 5150 MHz 5500 MHz 5850 MHz 2442 MHz 5150 MHz 5500 MHz 5850 MHz Z X Z Y 5500 MHz 2442 MHz 5150 MHz 5850 MHz FoxconnAntenna Solution Page6 4. Package Specification Packing information >Product package PE bag 10pcs/bag >Packaging material Carton >Carton size 460*320*250mm 1000pcs/box > Packaging label Name、Quantity、Date、P/N etc

FoxconnAntenna Solution Page1 Hyde Ant1 Specification Project Specific Part Version: V3.0 Creator: FAS Antenna Module P/N: 4TS4009-A0001-JH Application: HydeAntenna Company Name: Foxconn Interconnect Technology Limited Taiwan Branch Company Address: No. 66-1, ZHONGSHAN RD., TUCHENG DIST., NEW TAIPEI CITY 23680, TAIWAN（R.O.C.） FoxconnAntenna Solution Page2 1.Product Description Electrical Properties FrequencyRange 2400-2500 MHz 5150-5875 MHz Efficiency 73.22 % 77.42% Peak Gain 2.52 dBi 3.37 dBi Average Gain -1.35 dB-1.11 dB VSWR < 2 < 2 Polarization Linear & Vertical Impedance 50 Ω Physical Properties Cable type 1.13 Low Loss, Length 100mm Cable Color Black Description External antenna-PCB Operating Temp -40~+65°C FoxconnAntenna Solution Page3 2. Product Drawings FoxconnAntenna Solution Page4 3. Antenna Test VSWR Parameters Antenna Efficiency Frequency (MHz) 2412 2422 2432 2442 2452 2462 2472 2482 5150 5250 5350 5450 5550 5650 5750 5850 Efficiency (dB) -1.62 -1.50-1.40-1.24-1.07-1.18-1.30-1.56-1.42-1.25-0.80-0.79-0.83-1.01-1.52-1.34 Efficiency (%) 68.89 70.81 72.39 75.16 78.22 76.27 74.09 69.90 72.04 75.07 83.19 83.39 82.61 79.19 70.41 73.53 X Y Z FoxconnAntenna Solution Page5 Antenna 2D Radiation Pattern (Max: 5 Min: -35) X Y 2442 MHz 5150 MHz 5500 MHz 5850 MHz 2442 MHz 5150 MHz 5500 MHz 5850 MHz Z X Z Y 5500 MHz 2442 MHz 5150 MHz 5850 MHz FoxconnAntenna Solution Page6 4. Package Specification Packing information >Product package PE bag 10pcs/bag >Packaging material Carton >Carton size 460*320*250mm 1000pcs/box > Packaging label Name、Quantity、Date、P/N etc

Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 1 of 3 Report No. : FR8N1905-05AB 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 2 of 3 Report No. : FR8N1905-05AB 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 30MHz~1GHz / Test Mode: Mode 3 FRONT VIEW REAR VIEW Test Photos Appendix G Sporton International Inc. Hsinchu Laboratory Page No. : 3 of 3 Report No. : FR8N1905-05AB Test Configuration: Above 1GHz FRONT VIEW REAR VIEW ─────THE END─────
